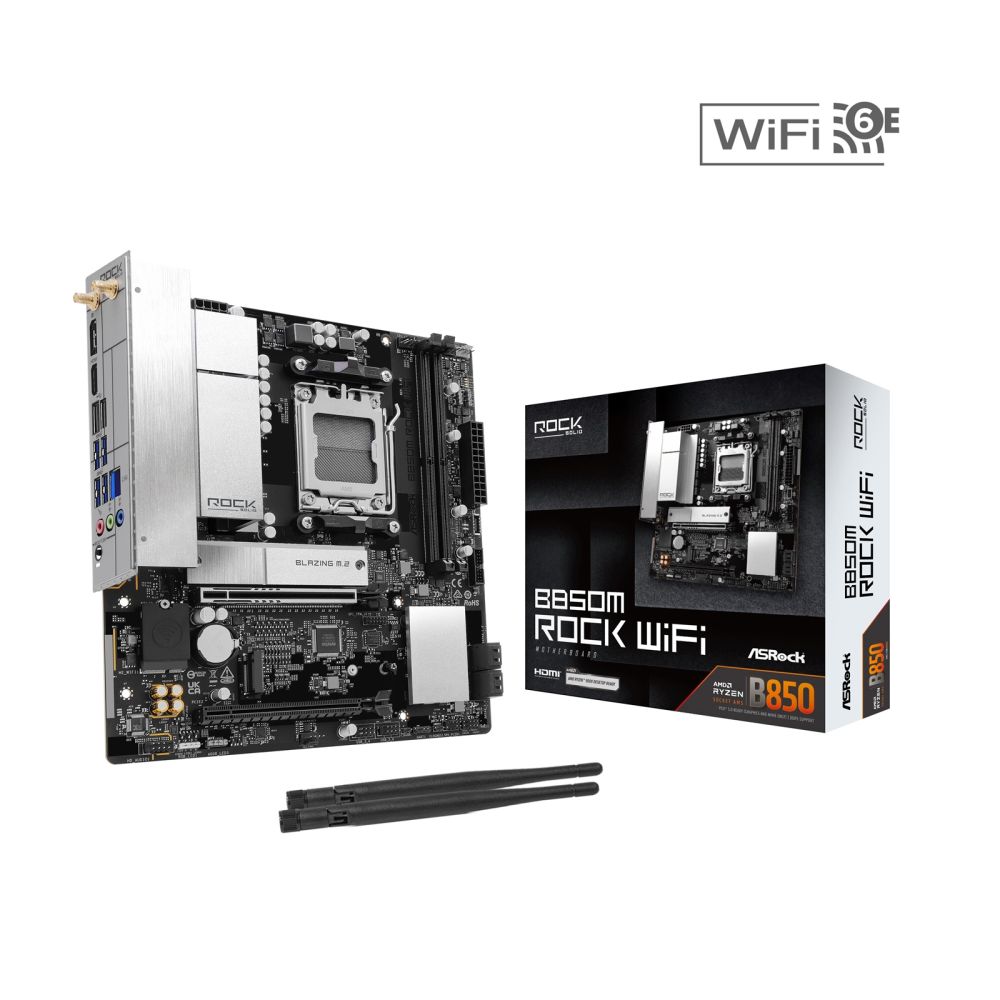

Asrock B850M Rock WiFi AM5 Motherboard, Micro-ATX, 2x DDR5, 2x M.2, Wi-Fi 6E, 2.5GbE LAN

ASRock B850M Rock WiFi | Micro-ATX AMD AM5 Motherboard with Wi-Fi 6E

The Asrock B850M Rock WiFi AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port is a compact powerhouse designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. This micro-ATX board delivers PCIe 5.0 graphics support, dual-channel DDR5 memory, and next-gen Wi-Fi 6E connectivity in a space-saving form factor.

Built for Ryzen™ AM5 Performance

Engineered for AMD’s AM5 platform, this motherboard supports the latest Ryzen™ 9000, 8000, and 7000 Series processors. The 6+1+1 power phase design with Dr.MOS VCore delivers stable power delivery for demanding workloads and smooth multitasking. Whether you’re building a gaming rig or content creation workstation, the B850M Rock WiFi provides the foundation for responsive performance.

Dual-Channel DDR5 Memory Architecture

With two DDR5 DIMM slots supporting up to 128GB of memory, this board enables fast, responsive computing. The dual-channel configuration maximises bandwidth for applications that benefit from high-speed memory access. Support for XMP and EXPO profiles makes overclocking straightforward, allowing you to extract maximum performance from compatible memory modules without manual timing adjustments.

PCIe 5.0 Graphics and Storage Ready

The primary PCIe 5.0 x16 slot supports the latest graphics cards at full x16 bandwidth, future-proofing your system for next-generation GPUs. For storage, the Blazing M.2 Socket runs PCIe Gen5x4 for ultra-fast NVMe SSDs, while the secondary M.2 socket offers PCIe Gen4x4 speeds. This combination ensures both your graphics and storage subsystems can keep pace with demanding applications.

2.5GbE LAN + Wi-Fi 6E Connectivity

Network performance is exceptional with 2.5GbE LAN and integrated Wi-Fi 6E. The 2.5GbE connection provides up to 2.5 times faster wired speeds than standard Gigabit, while Wi-Fi 6E adds the 6GHz band for reduced interference and higher throughput. Dragon 2.5G LAN software includes smart bandwidth control and visual network statistics, making it easy to optimise your connection for gaming, streaming, or productivity.

EZ Update and Troubleshooting Features

ASRock has included several user-friendly features to simplify system management. The BIOS Flashback button allows firmware updates without a CPU installed, while the Auto Driver Installer streamlines software setup. The Full HD UEFI BIOS provides an intuitive interface for system configuration, and the bundled accessories include everything needed for basic installation.

Box contents

• ASRock B850M Rock WiFi motherboard
• 2x SATA data cables
• 2x ASRock WiFi 2.4/5/6 GHz antennas
• I/O shield (pre-installed)
• User manual and driver CD

Check before you buy

• Confirm your AMD Ryzen™ AM5 processor is supported
• Verify your case supports micro-ATX form factor (9.6″ x 8.9″)
• Check if your power supply has the required 8-pin CPU connector
• Ensure you have DDR5 memory modules (not DDR4)

Frequently Asked Questions

Q: Does this motherboard support DDR4 memory?

A: No, this board only supports DDR5 memory modules.

Q: Can I use this with an Intel processor?

A: No, this motherboard is designed exclusively for AMD AM5 processors.

Q: What Wi-Fi bands does the 802.11axe support?

A: It supports 2.4GHz, 5GHz, and the extended 6GHz bands for Wi-Fi 6E connectivity.

Q: Is the I/O shield pre-installed?

A: Yes, the I/O shield comes pre-installed on this motherboard.

Q: Does it support RAID configurations?

A: Yes, it supports RAID 0, 1, and 10 for both SATA and M.2 NVMe storage devices.

The Consultant’s verdict & warranty

The ASRock B850M Rock WiFi delivers exceptional value for users seeking a compact AMD AM5 platform with modern connectivity. Its combination of PCIe 5.0 support, Wi-Fi 6E, and 2.5GbE networking makes it ideal for space-conscious builds that don’t compromise on performance. The pre-installed I/O shield and comprehensive BIOS features add convenience for both novice and experienced builders. Covered by the standard Manufacturer Warranty.
