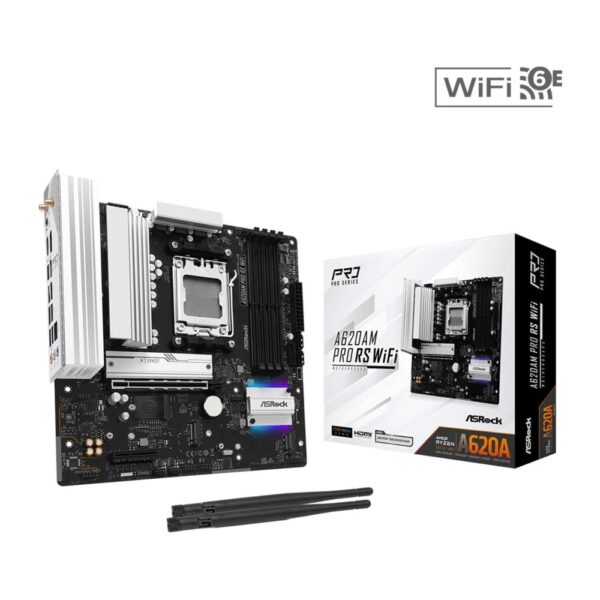

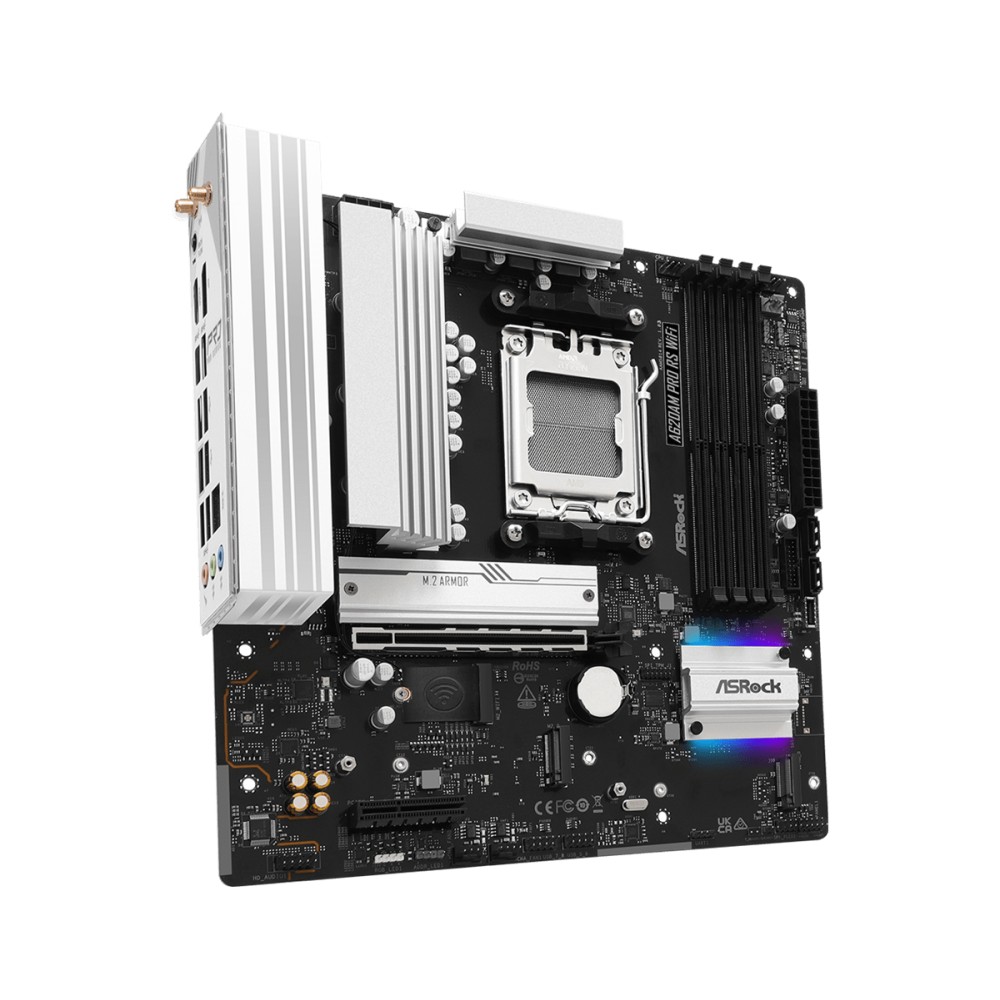

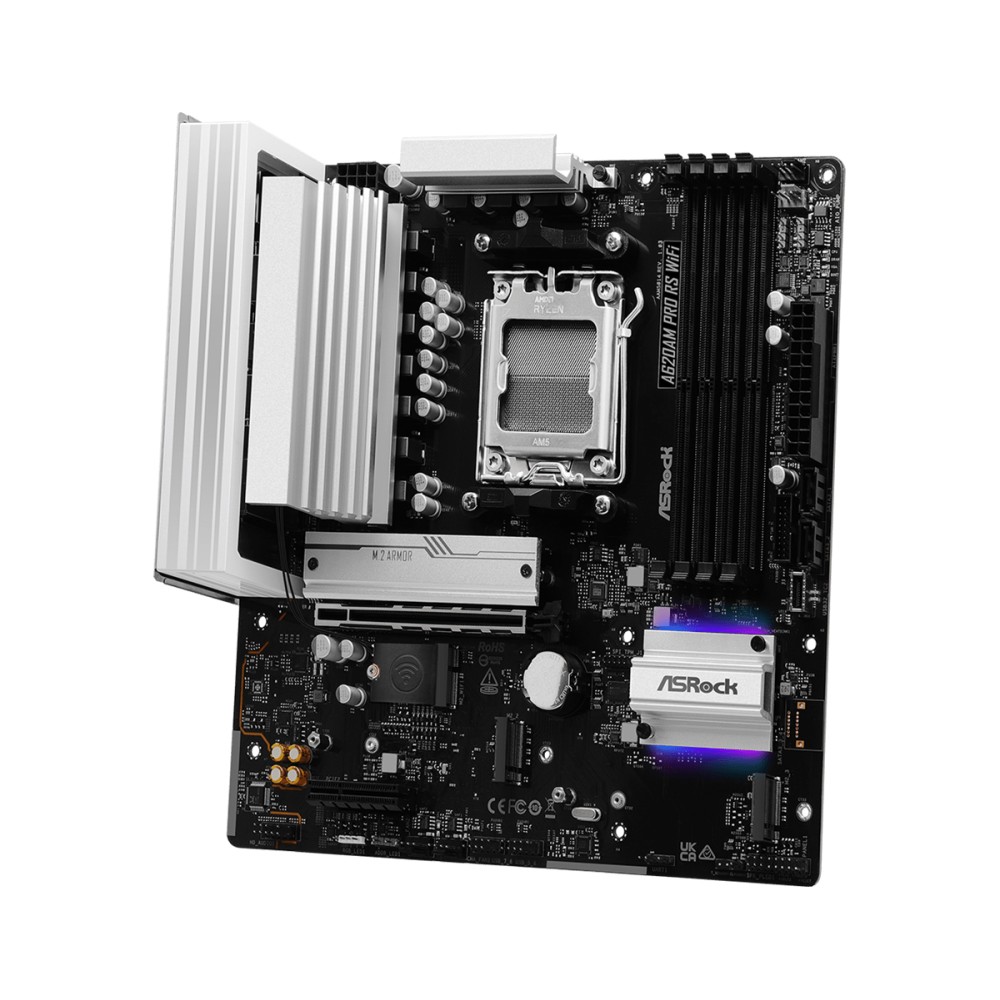

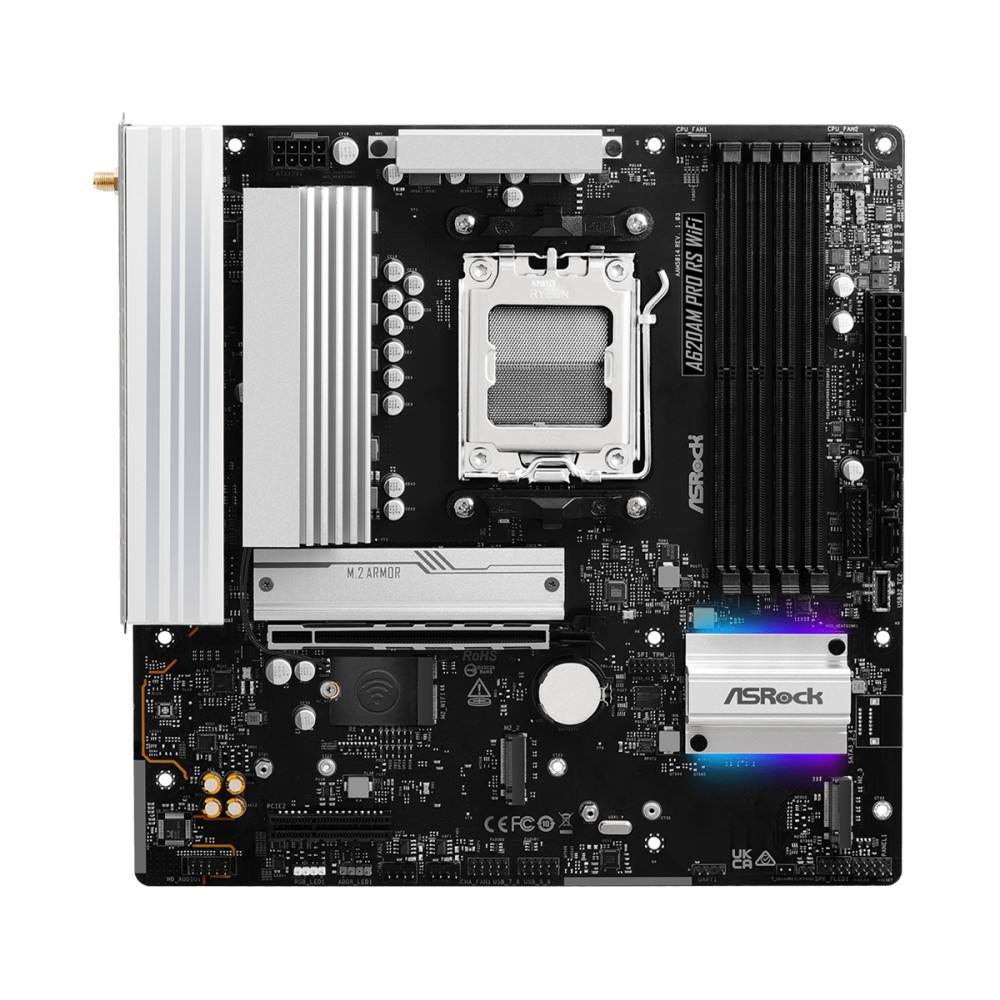

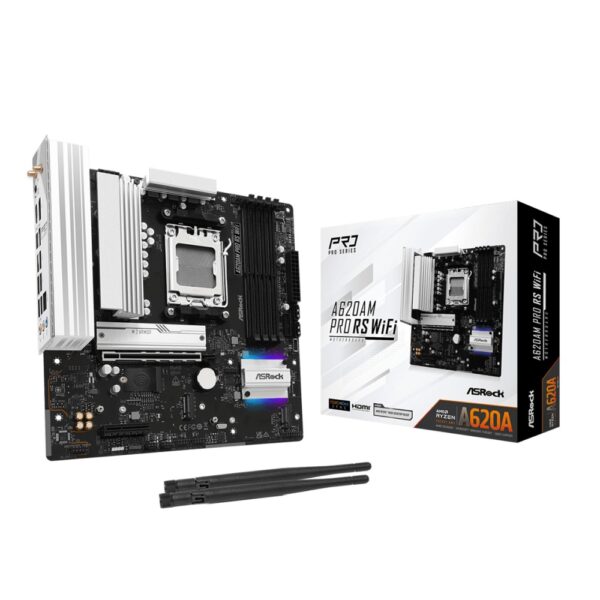

Asrock A620AM Pro RS WiFi mATX AM5 A620A
£96.07 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD Socket AM5 motherboard compatible with Ryzen 7000/8000/9000 Series processors
- AMD A620A chipset with 4 DDR5 DIMM slots supporting up to 256GB and XMP/EXPO
- Micro ATX form factor with 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot
- Hyper M.2 Gen4 x4 slot plus 2 SATA III connectors for flexible storage
- Wi-Fi 6E, Bluetooth 5.2, and 2.5GbE LAN for high-speed networking
- USB 3.2 Gen1 Type-C header and 7.1 channel Realtek audio
- 4 RGB and 1 ARGB headers with Polychrome Sync and SignalRGB support
Payment Methods:
You may also like
Asrock A620AM Pro RS WiFi | AMD AM5 Micro-ATX Foundation
The Asrock A620AM Pro RS WiFi AMD A620A Socket AM5 micro ATX is a solid foundation for a modern AMD Ryzen system. This board targets users building a cost-effective PC for daily computing, home office, or light content creation. Its key defensible USP is the integrated Wi-Fi 6E and 2.5GbE LAN, which eliminates the need for separate networking cards.
Technical Overview: Asrock A620AM Pro RS WiFi AMD A620A Socket AM5 micro ATX
This motherboard is built for stability and efficiency. It uses the AMD A620A chipset and supports AMD Ryzen 7000, 8000, and 9000 series processors. The micro-ATX form factor fits compact cases while offering essential connectivity.
Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | Socket AM5 |
| Memory Support | DDR5, up to 256 GB, Dual-channel |
| Primary Graphics Output | HDMI 1.4, DisplayPort 1.4 |
| Networking | Wi-Fi 6E, 2.5GbE LAN, Bluetooth 5.2 |
| Storage Interfaces | 1x M.2 (PCIe 4.0), 2x SATA III |
DDR5 Memory Performance
This board supports DDR5 memory with XMP and EXPO profiles. The 6-layer PCB design provides stable signal traces. This helps with lower temperatures and better energy efficiency during memory overclocking. You can install up to 256 GB of DDR5 RAM. Both ECC and non-ECC modules are compatible.
High-Speed Storage Options
You get one Hyper M.2 slot supporting PCIe 4.0 x4 speeds. This allows for very fast NVMe SSD performance, twice the speed of older Gen3 drives. There are also two SATA III ports for traditional 2.5-inch or 3.5-inch drives. This mix gives you flexibility for your storage needs.
Integrated Wi-Fi 6E and 2.5GbE LAN
The board includes Wi-Fi 6E, which uses the 6 GHz spectrum for less interference and lower latency. It also has a Dragon 2.5Gb/s LAN port. This provides much faster wired networking than standard gigabit Ethernet. It is ideal for file transfers, streaming, and online gaming.
Robust Connectivity and RGB
It features a front USB 3.2 Gen1 Type-C header for modern cases. There are four RGB LED headers for custom lighting. The Realtek ALC897 audio chip supports 7.1 channels. A Post Status Checker shows CPU, DRAM, VGA, and BOOT status with LEDs during startup.
What is in the box
- Asrock A620AM Pro RS WiFi motherboard
- SATA cables
- M.2 standoff and screws
- I/O shield (assumed, not specified but standard)
- Documentation
Check before you buy
- Confirm your PC case supports micro-ATX (244 x 244 mm) and has a front USB 3.2 Gen1 Type-C header.
- Verify your CPU is an AMD Ryzen 7000, 8000, or 9000 series processor for Socket AM5.
- Check that your memory is DDR5-SDRAM; this board does not support older DDR4.
- Ensure your power supply has a 24-pin ATX and an 8-pin EPS connector.
Questions and answers
Does this motherboard support PCIe 5.0 graphics cards?
Can I use this board for a gaming PC?
Is a CPU cooler included with this motherboard?
What is the maximum memory speed supported?
Does it have a BIOS flashback feature?
Our recommendation
This motherboard is a practical choice for builders seeking a stable, efficient AM5 platform without unnecessary extras. It is well-suited for home office PCs, entry-level gaming rigs, and media centres where integrated Wi-Fi and 2.5GbE are valuable. The micro-ATX size keeps builds compact.
Covered by the applicable manufacturer warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |

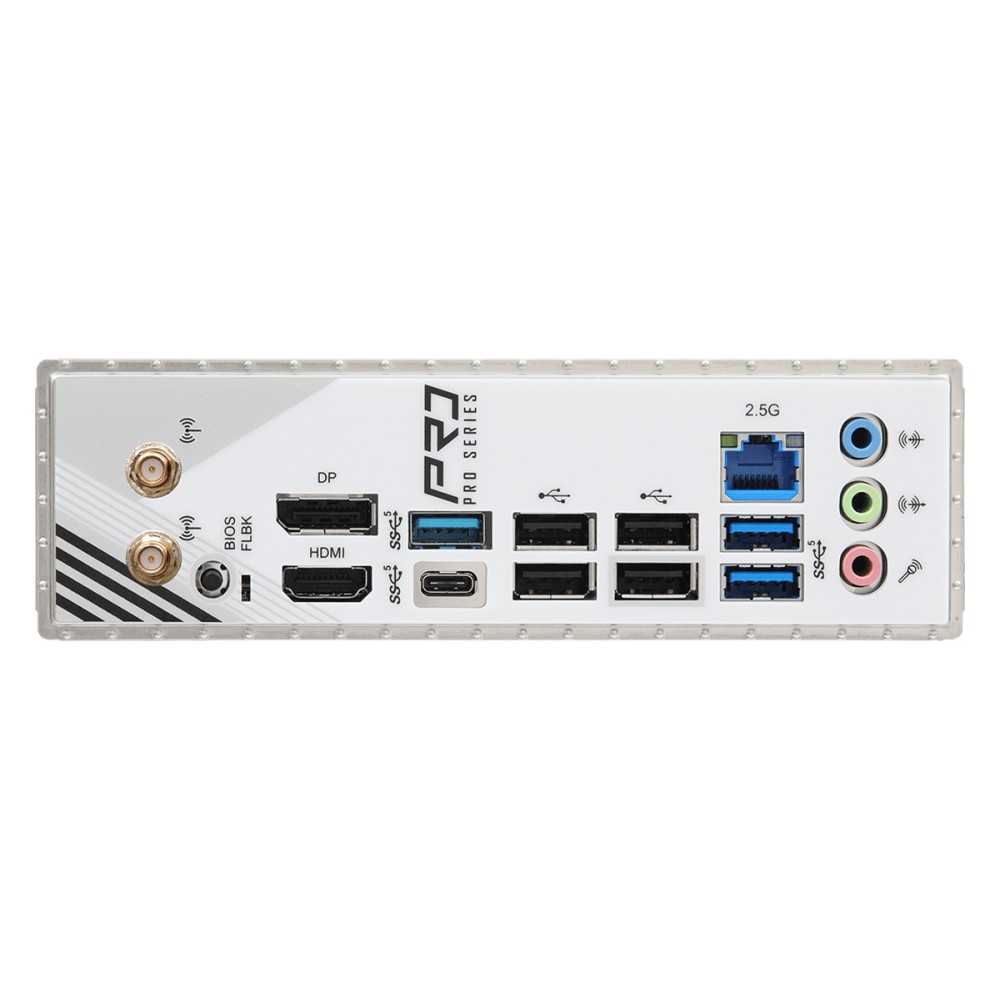

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| M.2 standoff included | Yes |
| Identifiers | |
| Distributor SKUs | A620AMPRORSWIFI, 90-MXBSW0-A0UAYZ, MBASR-A620AMPROR, CLA620AMPRORSWIFI, 21148080000 |
