Asrock H810M-H Intel H810 micro ATX motherboard

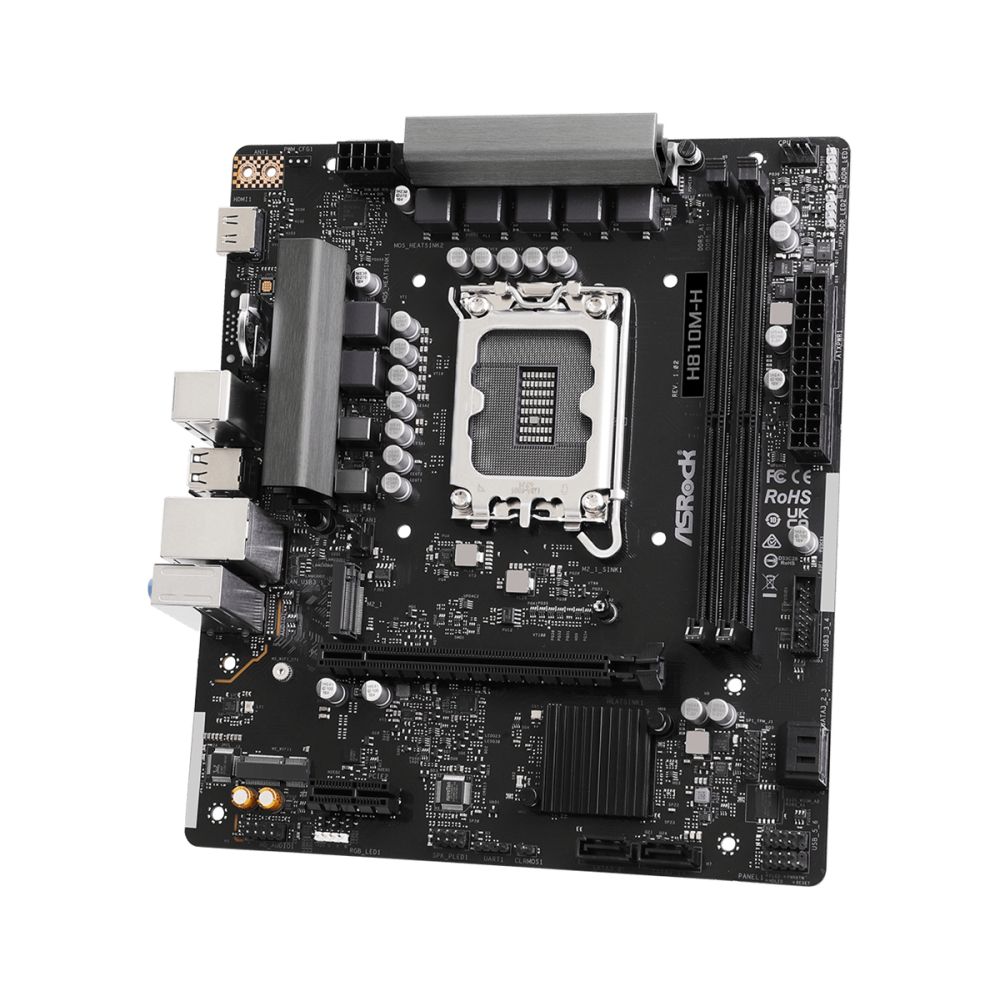

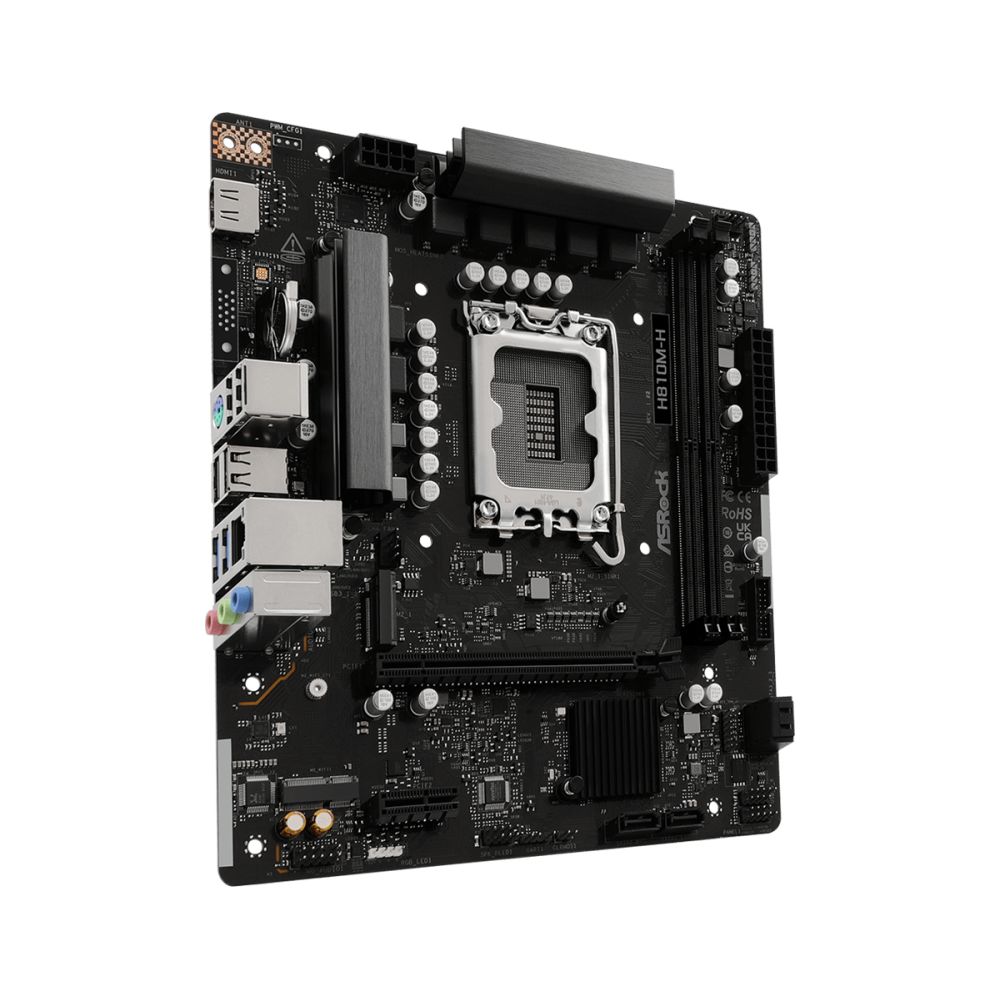

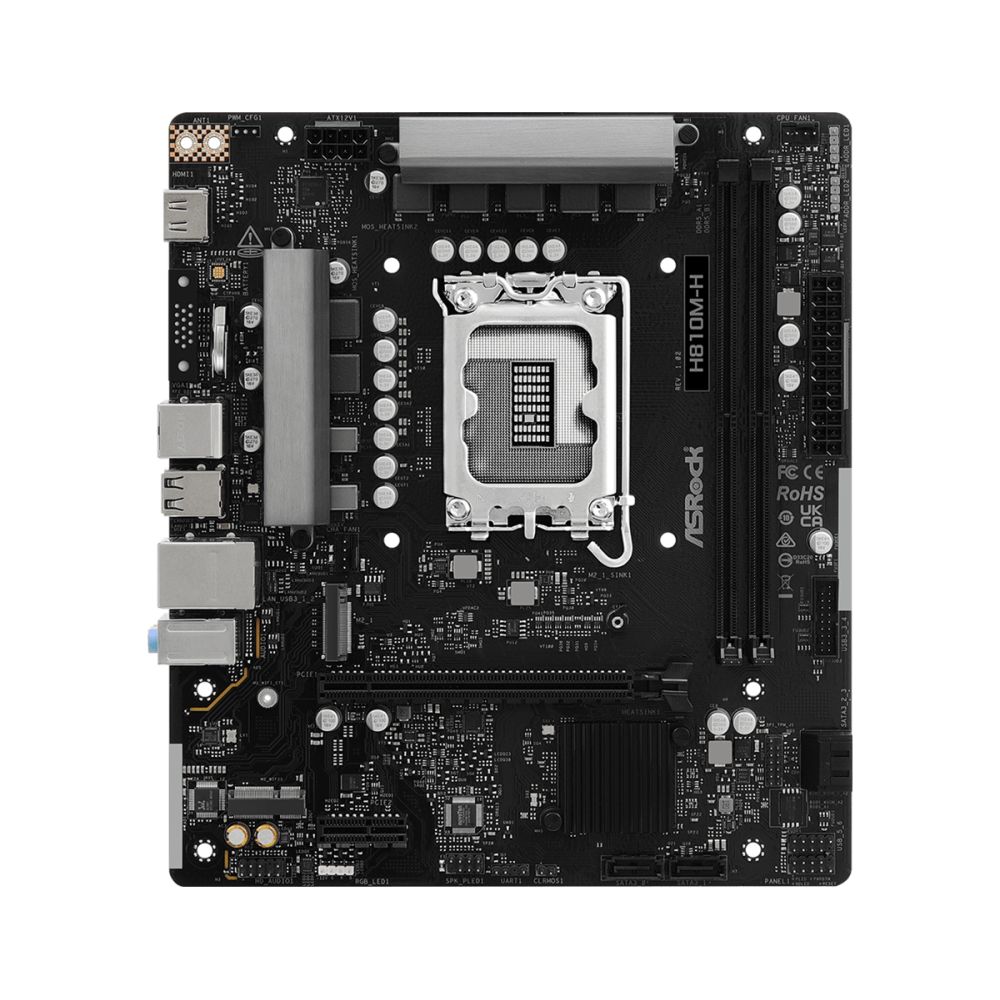

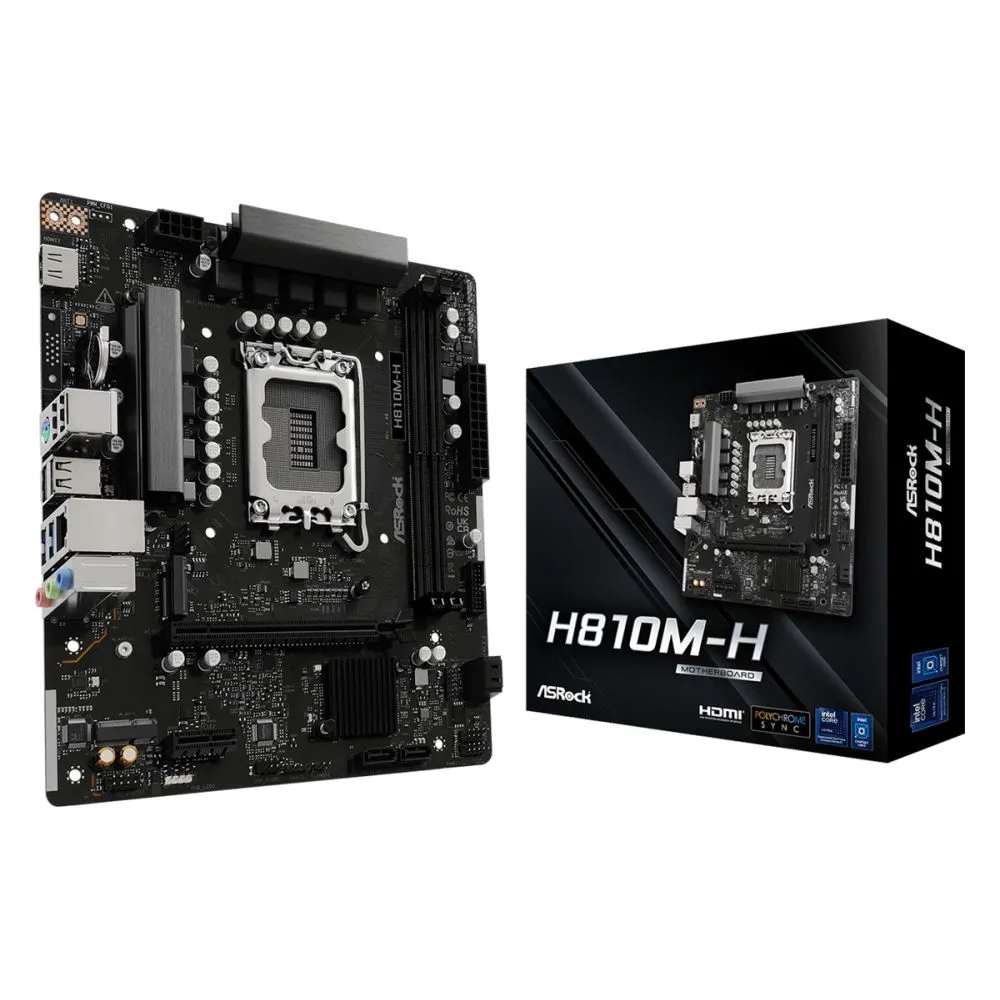

ASRock H810M-H | Intel H810 LGA 1851 Micro ATX Motherboard

The ASRock H810M-H Intel H810 LGA 1851 (Socket V1) micro ATX motherboard delivers reliable performance for everyday computing tasks. Built around Intel’s H810 chipset, this micro ATX board supports Intel Core Ultra (Series 2) processors and offers versatile connectivity options for home and office systems.

Slim Specs Table

Built for Intel Core Ultra Processors

This motherboard supports Intel’s latest Core Ultra (Series 2) processors through the LGA 1851 socket. The H810 chipset provides a stable platform for everyday computing, productivity applications, and light content creation. With dual-channel DDR5 memory support up to 128GB at 6400MHz, you’ll experience responsive performance for multitasking and demanding applications.

High-Speed Storage Solutions

The ASRock H810M-H features Hyper M.2 Gen4 x4 support, capable of delivering twice the speed of previous-generation M.2 SSDs. This provides lightning-fast data transfer speeds for your operating system, applications, and files. The board also includes four SATA III ports for additional storage expansion, supporting both HDD and SSD configurations to meet your storage needs.

Intelligent Thermal Management

An optimized aluminum heatsink design provides efficient heat dissipation during heavy workloads. The motherboard includes PWM/DC fan support with ASRock’s Fan-Tastic Tuning function, allowing automatic detection of fan types and easy adjustment of fan curves through a visualized UI interface. This ensures system stability and durability while maintaining quiet operation.

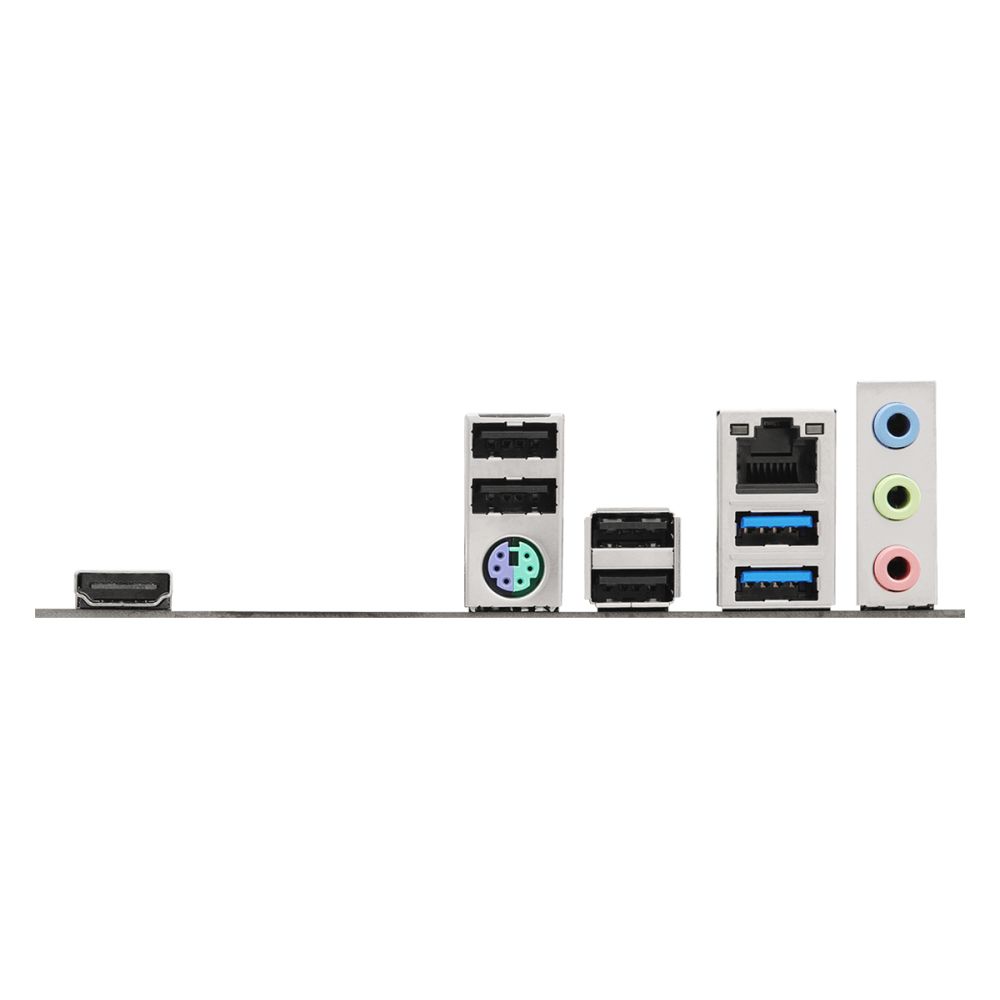

Comprehensive Connectivity

Despite its micro ATX form factor, this board offers extensive connectivity options. Four USB 3.2 Gen 1 ports provide fast data transfer for peripherals, while four USB 2.0 ports accommodate legacy devices. The HDMI 2.1 port supports 4K resolution at 60Hz, and the 7.1 channel audio delivers immersive sound quality. Gigabit Ethernet ensures reliable wired connectivity, with an M.2 Key E slot available for optional Wi-Fi expansion.

Customizable RGB Lighting

The POLYCHROME RGB system includes onboard RGB headers and addressable RGB headers, allowing connection to compatible LED devices such as strips, CPU fans, and chassis components. Users can synchronize lighting effects across Polychrome RGB Sync-certified accessories for personalized aesthetics. The board also features SignalRGB integration for advanced lighting control and game-reactive effects.

Box Contents

• ASRock H810M-H motherboard
• SATA cables
• Screws
• User manual

Check before you buy

• Confirm your Intel Core Ultra (Series 2) processor is compatible with LGA 1851 socket
• Verify your case supports micro ATX form factor (220mm x 193mm)
• Check that your DDR5 memory modules are compatible with 6400MHz speeds
• Confirm you have adequate cooling for your specific processor

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi out of the box?

A: No, Wi-Fi is not included. The M.2 Key E slot allows for optional Wi-Fi module installation.

Q: What is the maximum memory capacity supported?

A: The motherboard supports up to 128GB of DDR5 memory across two DIMM slots.

Q: Can I use this with older Intel processors?

A: No, this board is designed specifically for Intel Core Ultra (Series 2) processors using the LGA 1851 socket.

Q: Does it support ECC memory?

A: Yes, the motherboard supports both ECC and non-ECC DDR5 memory modules.

Q: What operating systems are supported?

A: The motherboard supports Windows 11 x64 operating systems.

The Consultant’s verdict & warranty

The ASRock H810M-H offers a solid foundation for building a reliable Intel Core Ultra-based system in a compact micro ATX form factor. With support for high-speed DDR5 memory, Gen4 M.2 storage, and comprehensive connectivity options, it suits users seeking dependable performance for everyday computing, productivity, and light creative work. Covered by the standard Manufacturer Warranty.
