Asrock B650M-HDV AMD B650 AM5 micro ATX
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B650 micro ATX motherboard for AMD Ryzen™ 7 processors
- DDR5-SDRAM support with 64 GB maximum memory
- PCIe 4.0 x16 slot and M.2 slot for high-speed storage
- 2.5 Gb/s LAN and Realtek ALC897 7.1-channel audio
- Front USB 3.2 Gen2 Type-C and multiple USB ports
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock B650M-HDV/M.2 | Micro ATX AMD B650 Motherboard

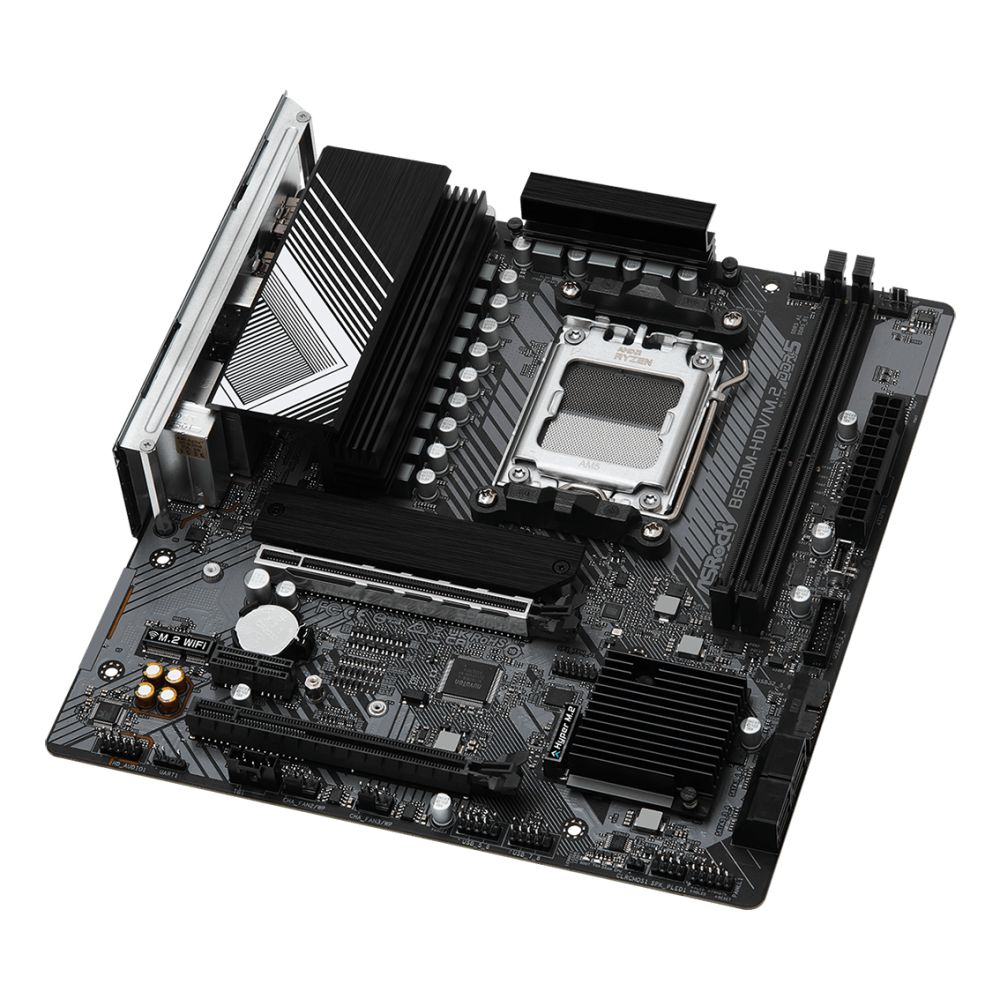

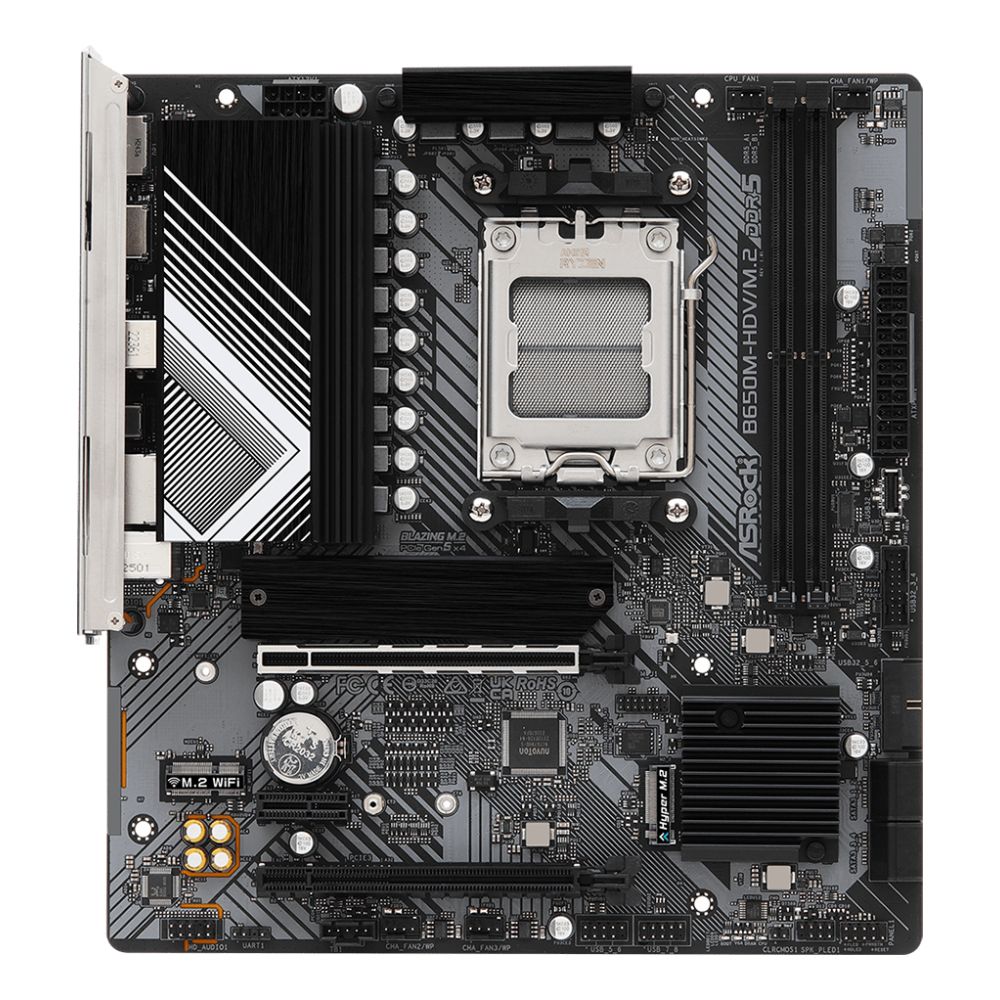

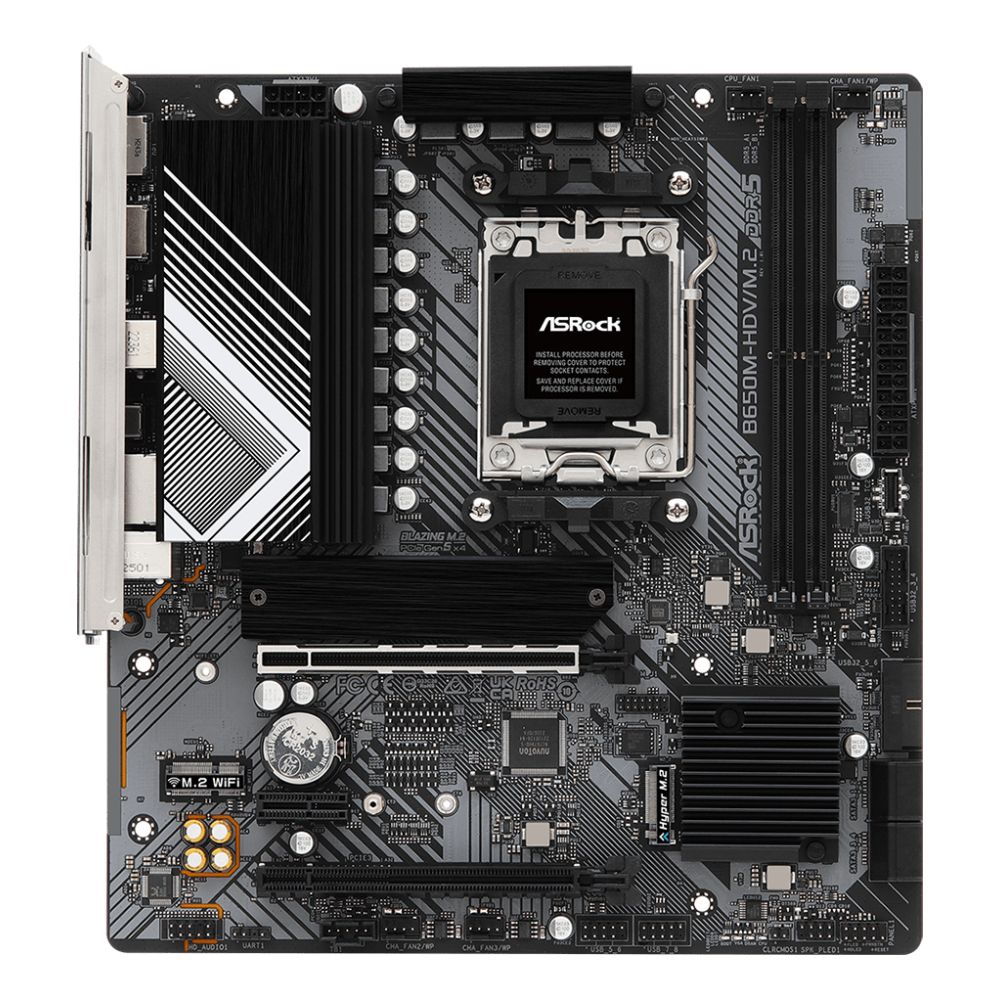

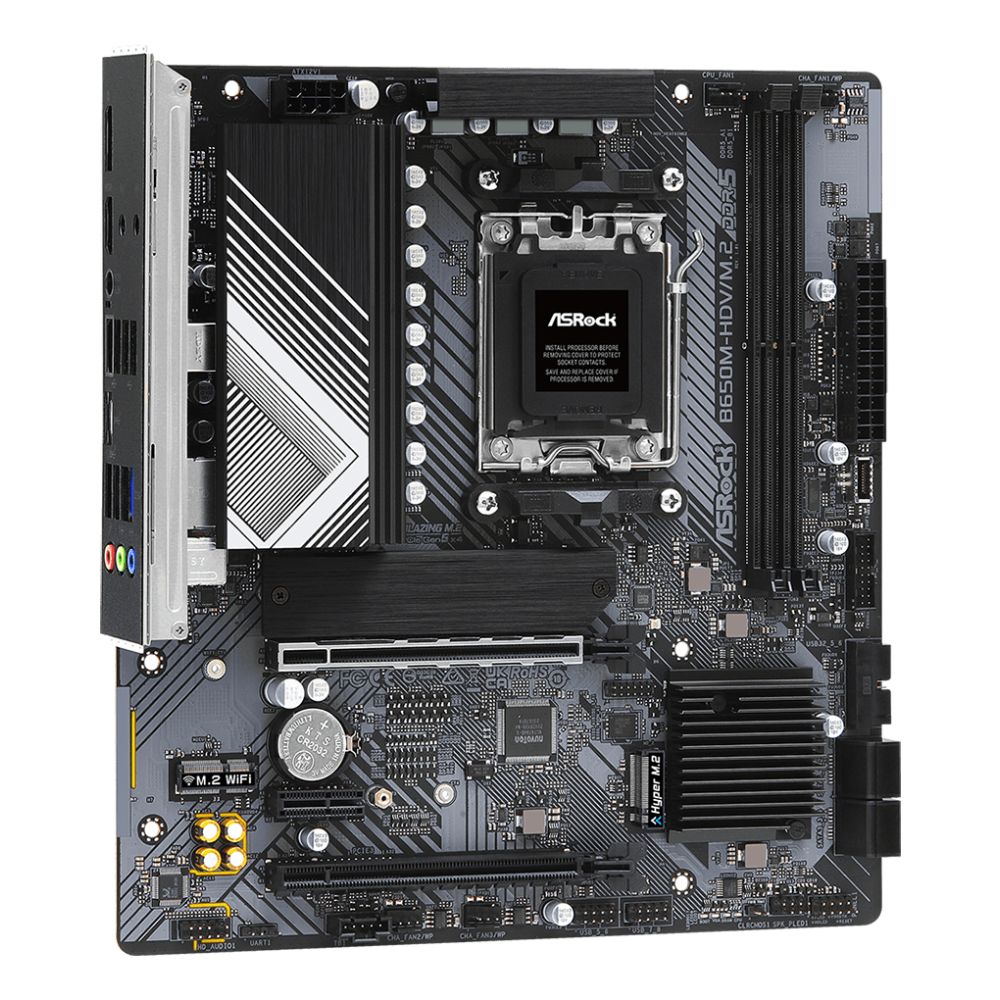

The ASRock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX motherboard delivers a compact micro ATX form factor with robust AMD B650 chipset support, ideal for building a high-performance PC around AMD Ryzen™ 7 processors. With DDR5 memory support, PCIe Gen5 M.2, and 2.5Gb/s LAN, this board balances performance and reliability for gaming, content creation, and everyday computing.
Key Specs at a Glance
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Memory Support | DDR5, up to 64 GB |
| M.2 Slots | 1 x PCIe 5.0 |
| LAN | 2.5Gb/s Realtek RTL8125-BG |
| Audio | 7.1 CH, Realtek ALC897 |
Compact Micro ATX Design with Full-Featured I/O
This micro ATX motherboard packs a comprehensive set of connectivity options into a space-saving layout. You get four USB 2.0 ports, two USB 3.2 Gen1 ports, one USB 3.2 Gen2 Type-C, HDMI, DisplayPort, and a Gigabit Ethernet RJ-45 port. The front USB 3.2 Gen2 Type-C header allows for high-speed connections to modern cases, while the reinforced PCIe steel slot ensures heavy GPUs are securely installed.
Enhanced Power Delivery for Stable Performance
The 8+2+1 power phase design with Dr. MOS technology provides smooth, efficient power delivery to the CPU, improving thermal performance and overclocking headroom. The 2oz copper PCB enhances signal stability and heat dissipation, making it suitable for sustained workloads and gaming sessions. ASRock’s DDR5 protection circuit also safeguards memory modules from damage during installation or removal.
Blazing Fast Storage and Networking
A PCIe Gen5 M.2 slot supports the latest ultra-fast NVMe SSDs, delivering up to 128Gb/s transfer speeds for rapid boot times and file access. Paired with the Dragon 2.5Gb/s LAN, this motherboard ensures lag-free online gaming, quick file transfers, and seamless 4K streaming. For wireless flexibility, an M.2 Key E slot supports Wi-Fi adapters (adapter not included).
Immersive Audio with Nahimic Technology
Realtek ALC897 codec combined with Nahimic Audio delivers 7.1-channel surround sound with advanced noise suppression, echo cancellation, and voice stabilization. The Sound Tracker feature visually maps in-game audio for competitive advantage, while compatibility across headphones, speakers, and HDMI ensures rich sound on any device.
Box Contents

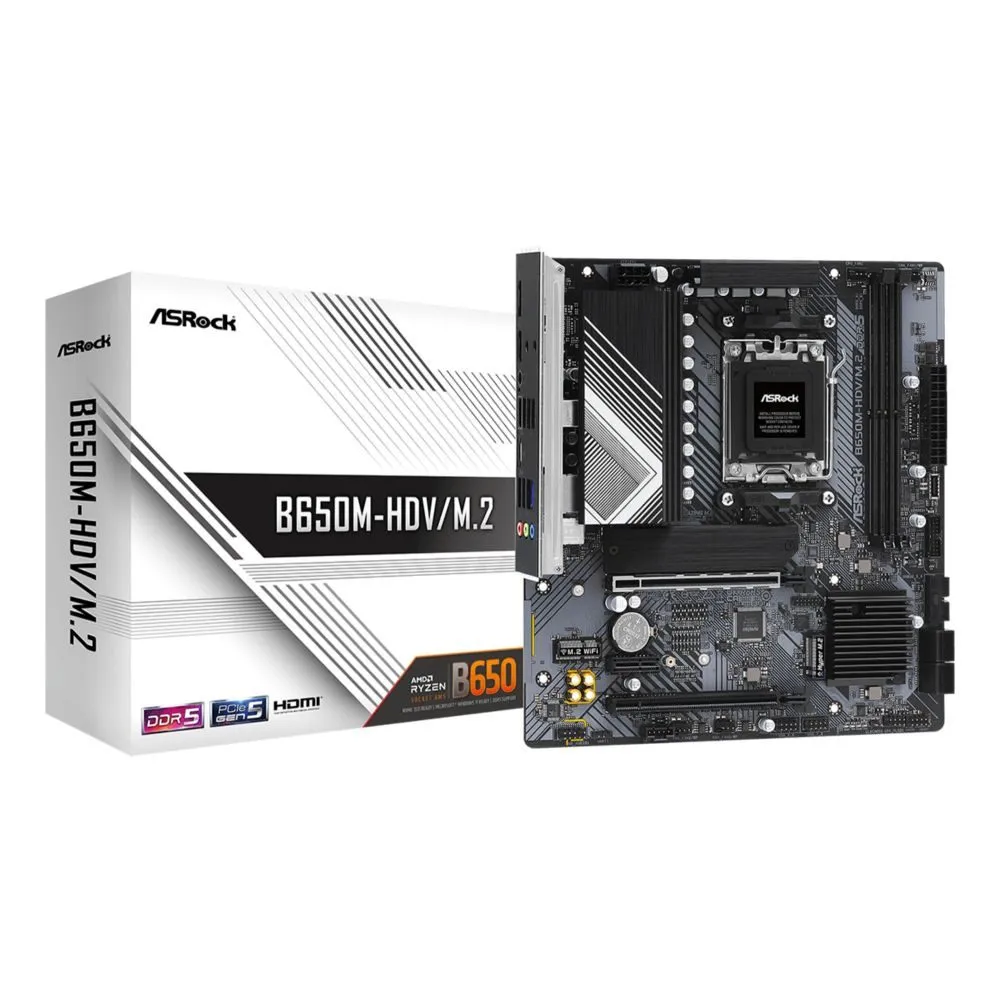

- ASRock B650M-HDV/M.2 motherboard
- I/O shield
- User manual
- SATA cables (quantity not specified)
- Support CD (if applicable)
Check Before You Buy
- Confirm your AMD Ryzen™ processor is compatible with Socket AM5.
- Verify your case supports micro ATX motherboards (244 mm x 226 mm).
- Ensure you have DDR5 memory modules (non-ECC, unbuffered).
- Check if you need a Wi-Fi adapter, as onboard Wi-Fi is not included.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM modules.
Q: Is there onboard Wi-Fi?
A: No, Wi-Fi is not built-in but can be added via the M.2 Key E slot.
Q: What is the maximum RAM capacity?
A: Up to 64 GB across two DIMM slots.
Q: Can I install a PCIe 5.0 graphics card?
A: Yes, the reinforced PCIe x16 slot supports PCIe 4.0 and is ready for future upgrades.
Q: What RAID configurations are available?
A: RAID 0, 1, and 10 are supported via the chipset.
The Consultant’s Verdict & Warranty
The ASRock B650M-HDV/M.2 is a well-rounded micro ATX motherboard offering excellent value for AMD AM5 builds. Its combination of DDR5 support, PCIe Gen5 storage, robust power delivery, and immersive audio makes it a strong choice for gamers and creators seeking a compact yet powerful platform. Covered by the standard Manufacturer Warranty.
| Weight | 1.2 kg |
|---|---|
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| RAID support | Yes |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125-BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Number of M.2 M slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | EFI AMI |
| BIOS memory size | 256 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 244 mm |
| Depth | 226 mm |
| PCI Express x1 Gen 4.x slots | 1 |
