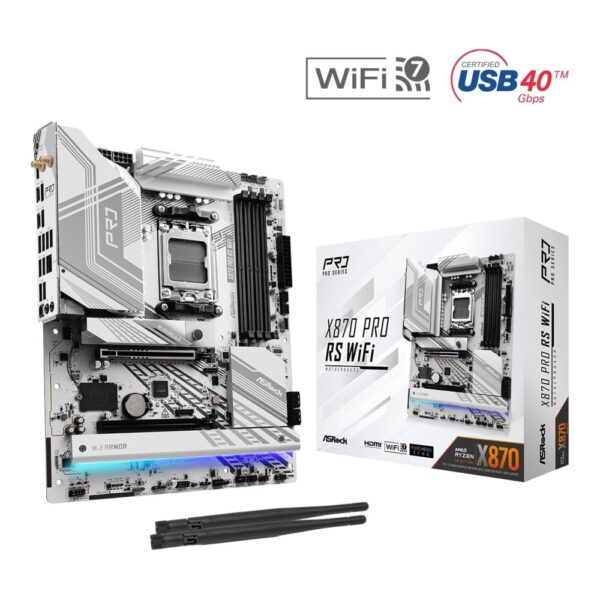

ASRock X870 Pro WiFi AM5 Motherboard with DDR5, M.2, Wi-Fi 7
£203.24 inc VAT
22 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD AM5 socket for Ryzen 9000, 8000 and 7000 Series processors
- 14+2+1 power phase design with 80A Dr.MOS for stable VCore+SOC+MISC delivery
- Supports dual-channel DDR5 memory up to 256GB at 8000+ MHz (OC)
- PCIe 5.0 x16 slot for graphics and Gen5 M.2 SSD (128 Gb/s)
- 2.5Gb LAN, Wi-Fi 7 802.11be, and USB4 Type-C ports for high-speed connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

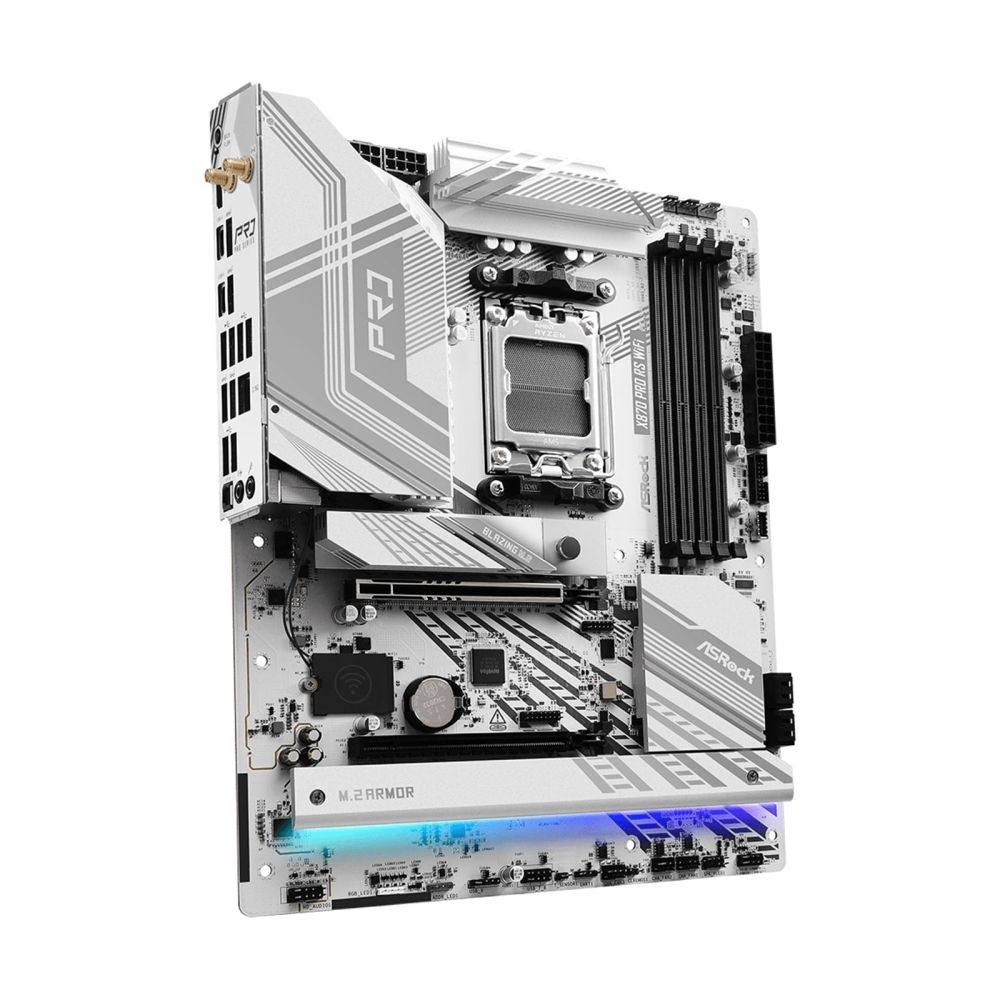

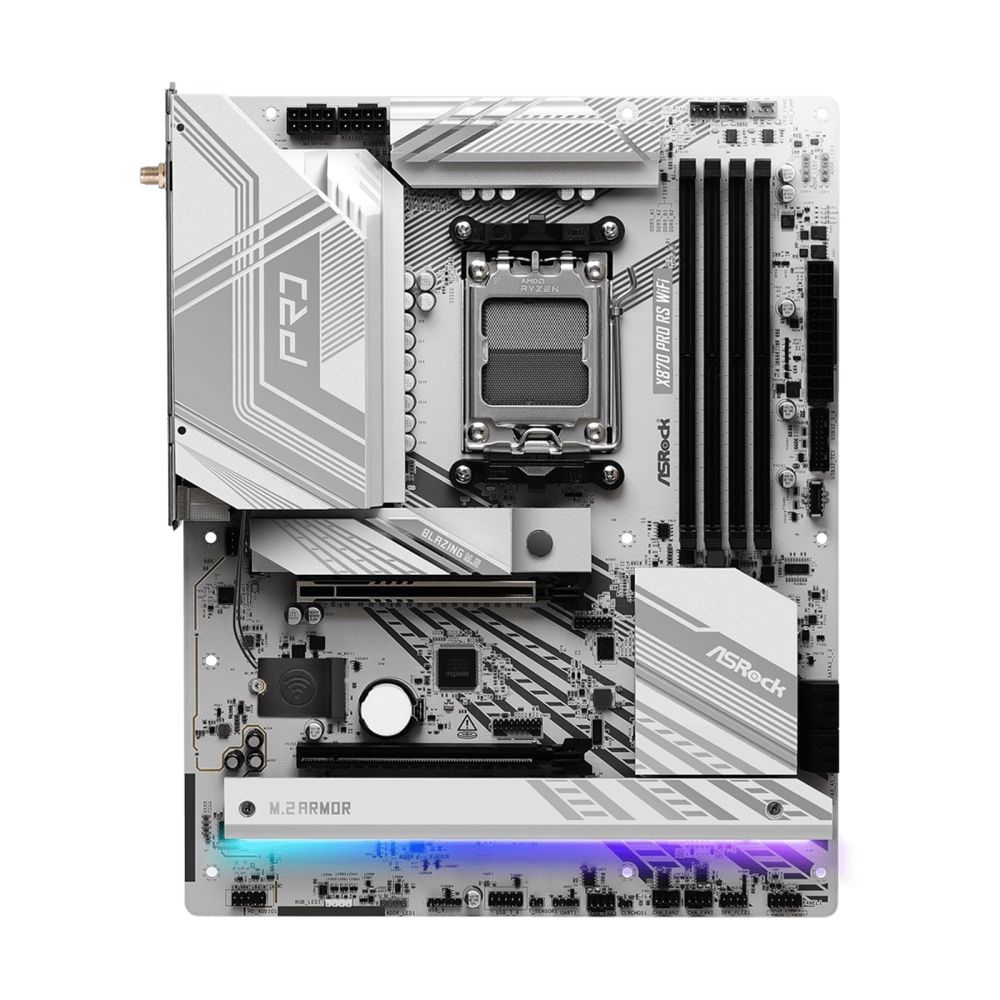

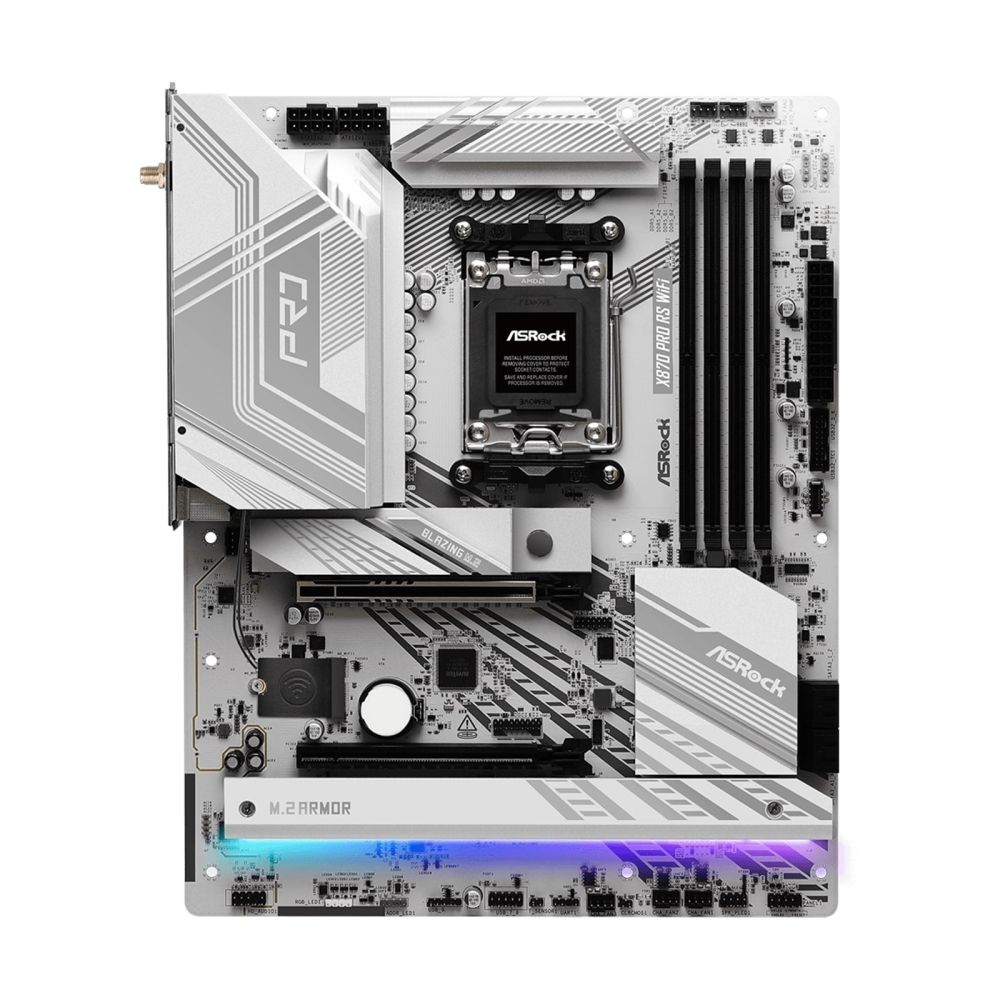

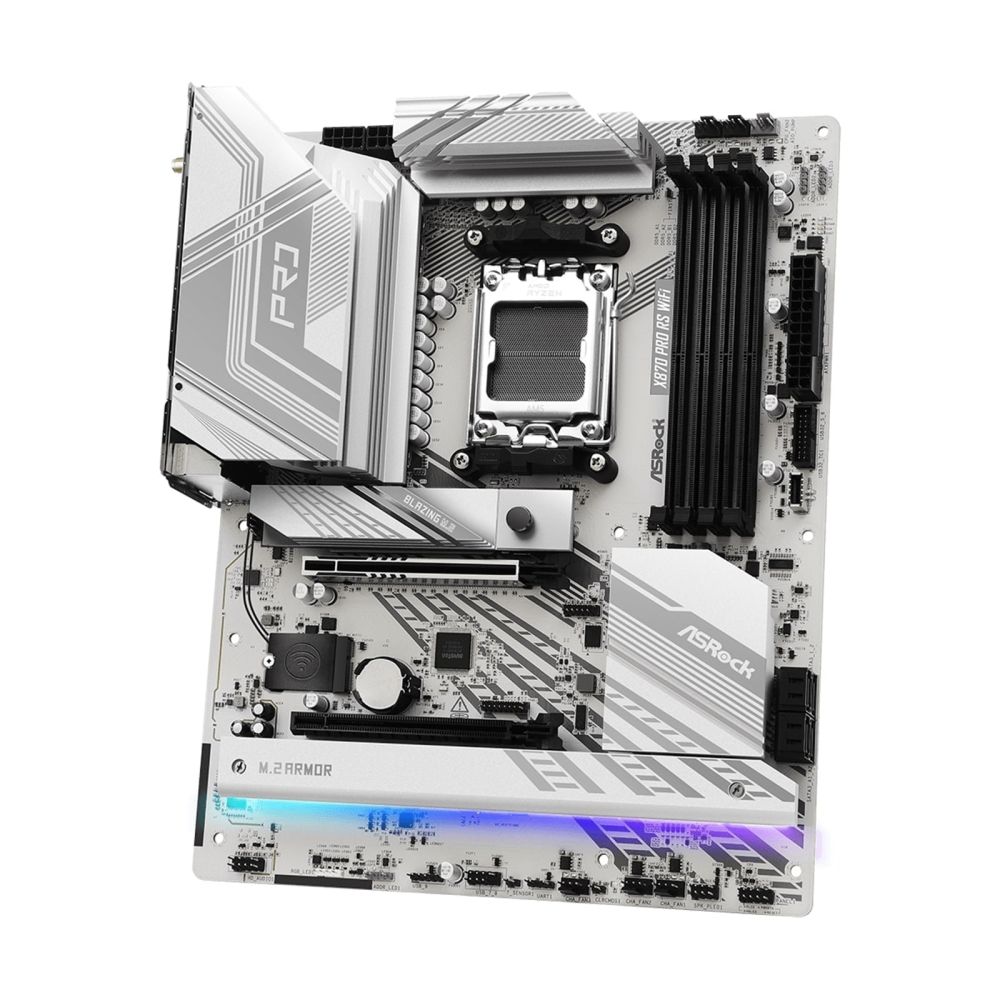

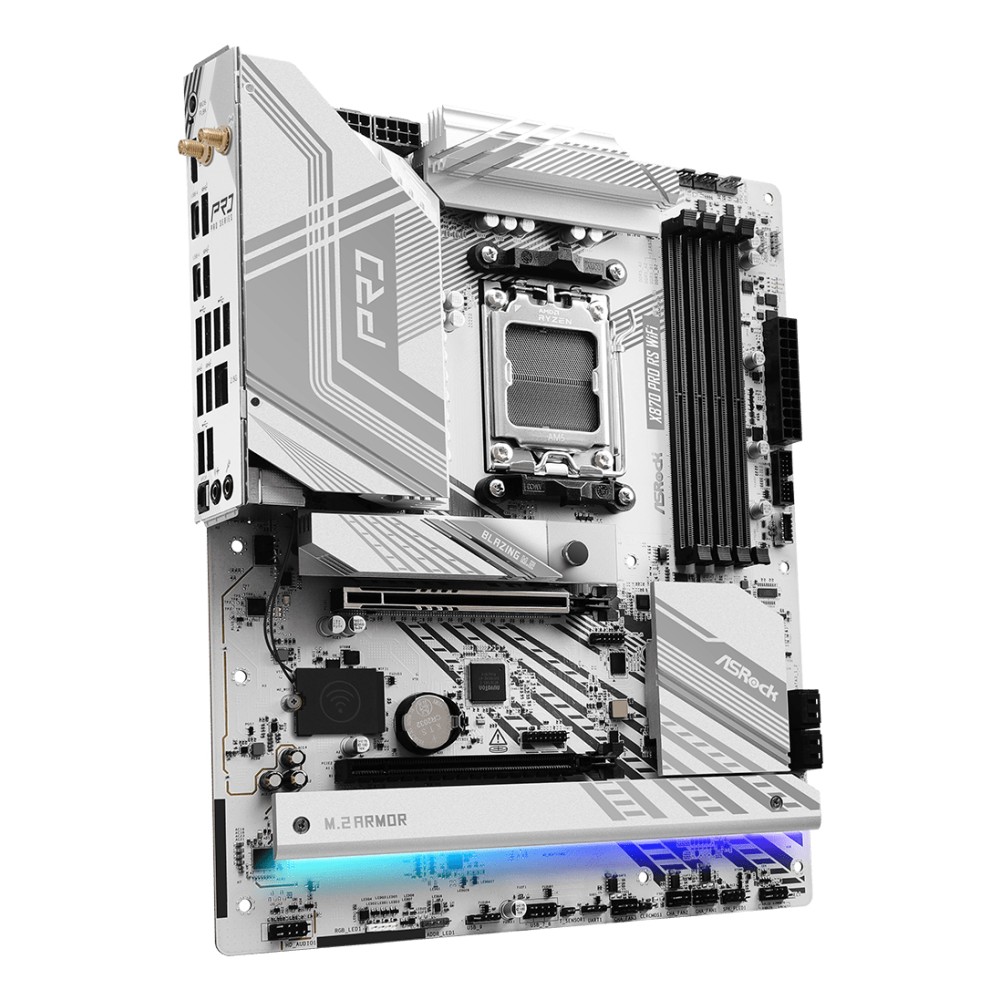

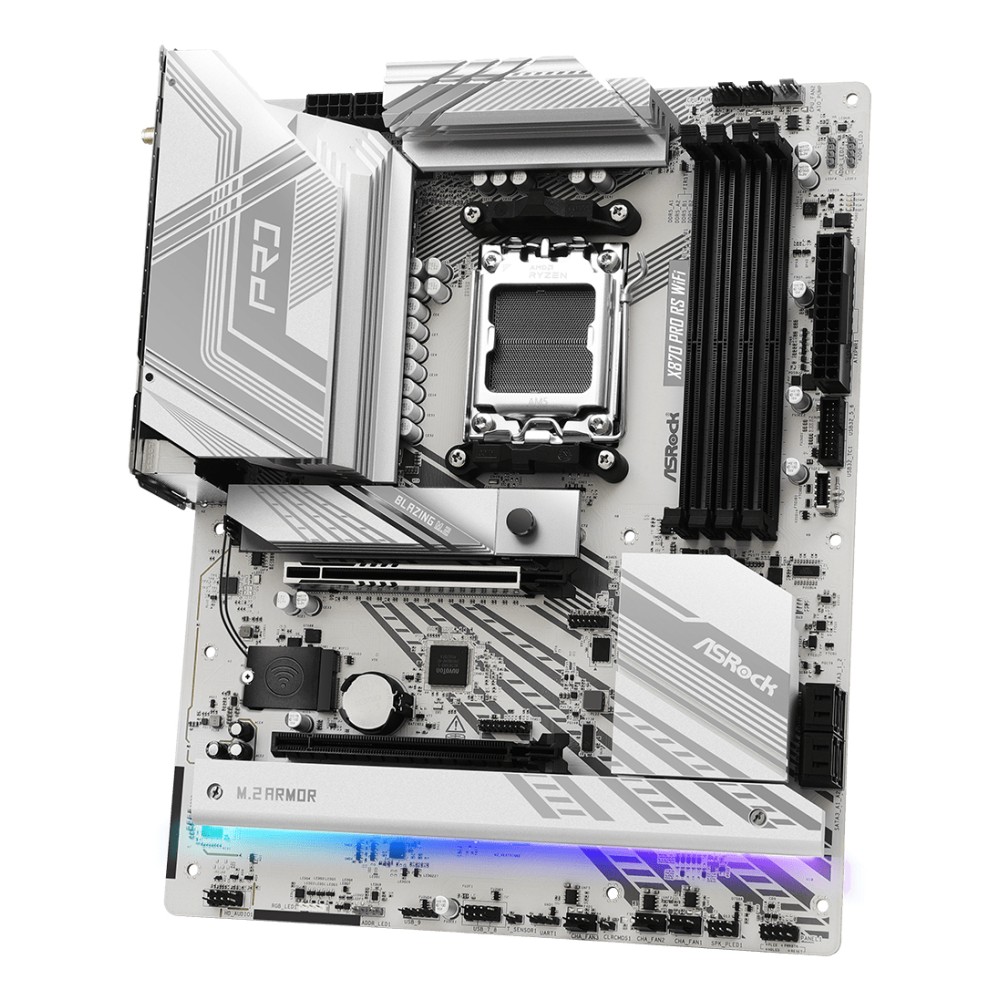

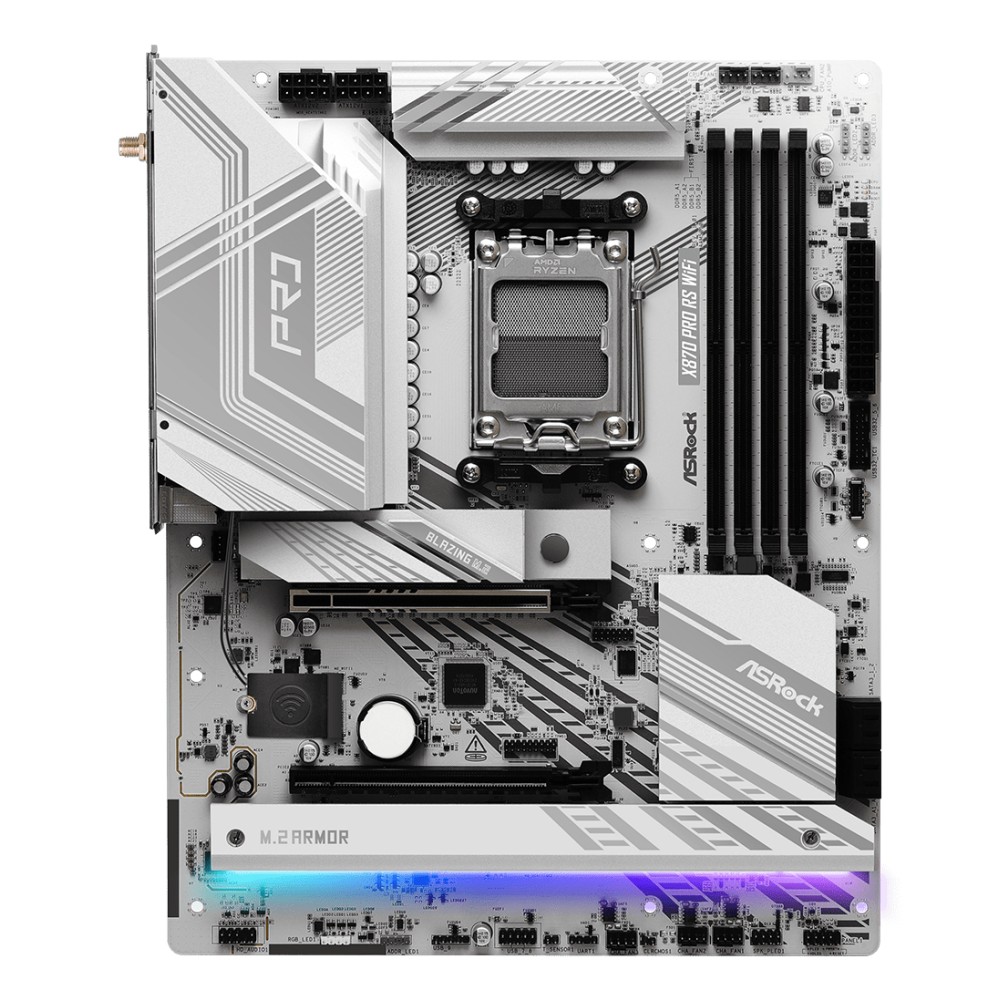

ASRock X870 PRO RS WIFI | AMD AM5 Performance Motherboard
The ASRock X870 PRO RS WIFI is a high-performance ATX motherboard designed for AMD AM5 processors, delivering cutting-edge connectivity, robust power delivery, and advanced cooling for demanding gaming and creative workloads.
Quick Specifications
| Metric | Spec. |
|---|---|
| Socket | AMD AM5 (Ryzen 9000/8000/7000) |
| Memory | 4x DDR5, up to 256 GB |
| M.2 Slots | 3 (1x PCIe 5.0, 2x PCIe 4.0/3.0) |
| Network | 2.5GbE LAN + Wi-Fi 7 |
| USB Connectivity | 2x USB4 Type-C (40 Gb/s) |
Power Delivery Built for Overclocking
The 14+2+1 power phase design with 80A Dr. MOS components ensures stable, efficient power delivery to the CPU even under heavy overclocking loads. This robust VRM setup minimizes heat and voltage fluctuations, giving enthusiasts the headroom to push Ryzen processors to their limits without compromising system stability.
Next-Gen Storage Performance
Featuring a PCIe 5.0 M.2 slot capable of 128 GB/s transfer speeds, this motherboard is ready for the fastest NVMe SSDs on the market. Two additional M.2 slots support PCIe 4.0 and SATA modes, while toolless heatsink designs and anti-drop screws make installation quick and secure. Enhanced thermal management keeps high-speed drives cool under sustained workloads.
Blazing-Fast Connectivity

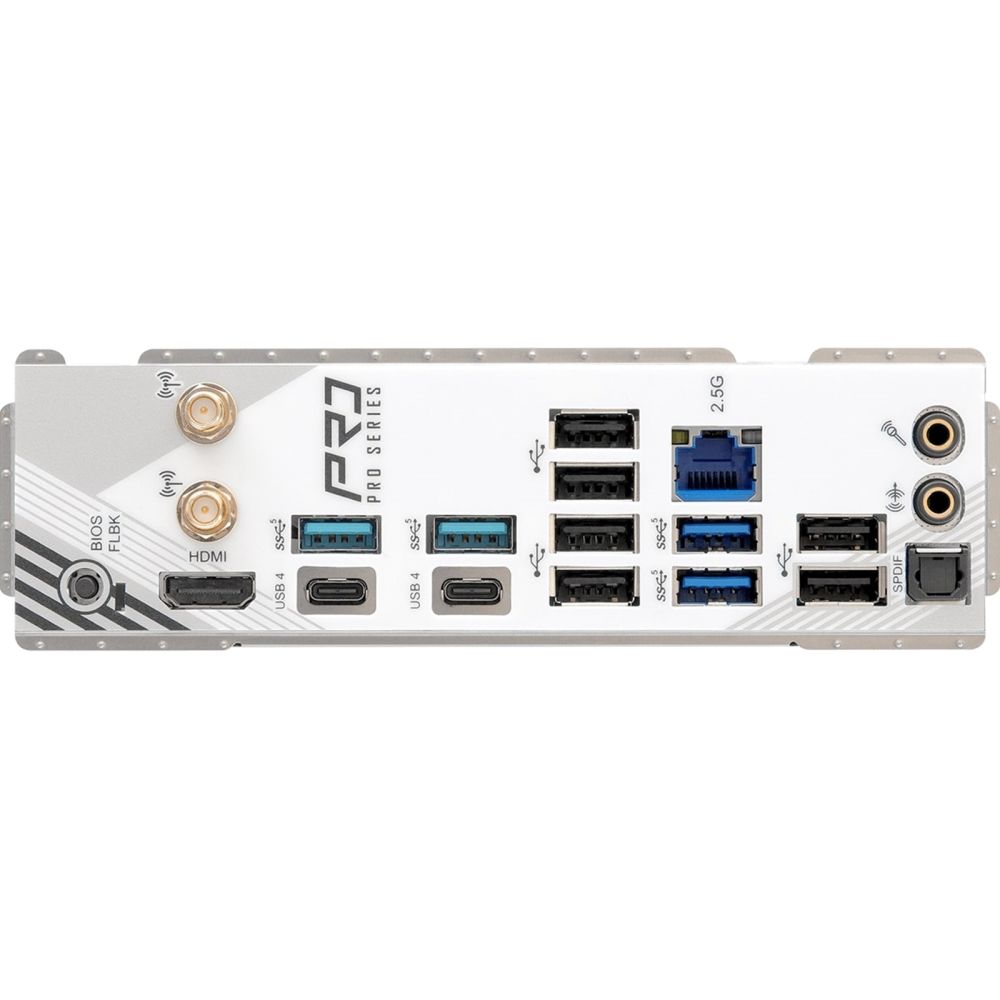

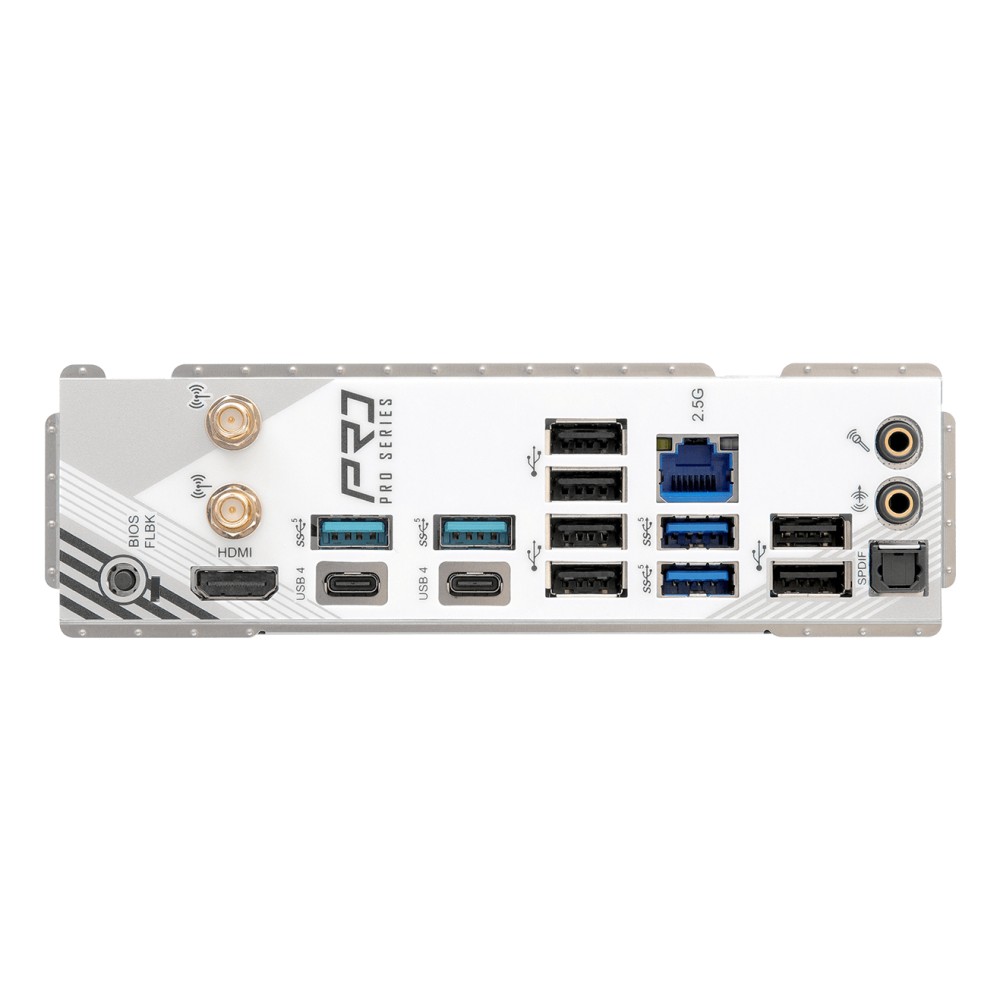

With integrated Wi-Fi 7 and 2.5GbE LAN, you get ultra-low latency and multi-gigabit speeds for online gaming, 8K streaming, and large file transfers. Two rear USB4 Type-C ports deliver 40 Gb/s bidirectional bandwidth, while front-panel USB 3.2 Gen 2×2 Type-C adds future-proof expansion. AMD CrossFire support and PCIe 5.0 graphics slots ensure compatibility with the latest GPUs.
Immersive Audio and RGB Customization
Nahimic Audio technology provides 7.1-channel HD sound with noise cancellation and voice stabilization for crystal-clear communication. Polychrome RGB headers let you sync lighting across compatible devices, creating a cohesive aesthetic. The reinforced steel PCIe slot protects heavy graphics cards, and BIOS Flashback allows firmware updates without a CPU installed.

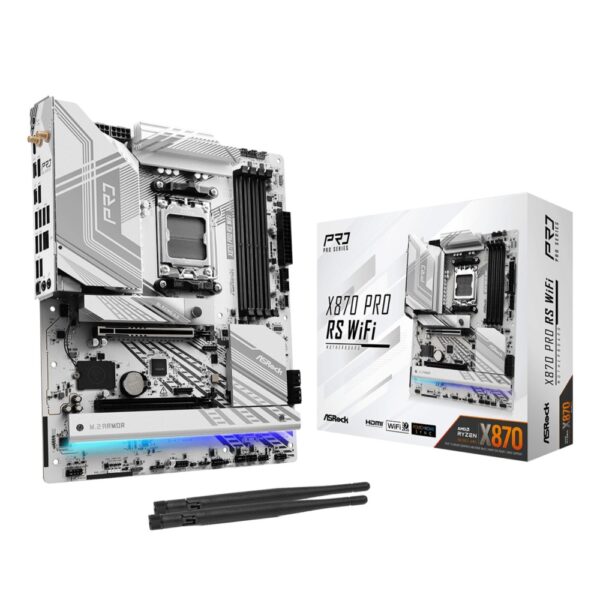

Box Contents
- ASRock X870 PRO RS WIFI motherboard
- I/O shield
- User manuals and driver DVD
- SATA cables
- M.2 screws and standoff
- Wi-Fi antenna
Check before you buy
- Confirm your CPU is an AMD AM5 Ryzen 9000/8000/7000 series.
- Verify your case supports ATX motherboards.
- Ensure your PSU has the required 24-pin ATX and 8-pin CPU connectors.
- Check that your DDR5 memory is XMP/EXPO compatible for overclocking.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5 memory modules.
Q: Can I use Wi-Fi 6E with this board?
A: No, it comes with Wi-Fi 7 (802.11be) only.
Q: Is the M.2 heatsink removable?
A: Yes, the heatsinks use a toolless quick-release mechanism for easy access.
Q: Does it have built-in graphics output?
A: Yes, it includes an HDMI 2.1 port for integrated AMD RDNA graphics (CPU-dependent).
The Consultant’s Verdict & Warranty
The ASRock X870 PRO RS WIFI is built for gamers and creators who demand top-tier performance, future-proof connectivity, and rock-solid stability. Its combination of PCIe 5.0 storage, Wi-Fi 7, and robust power delivery makes it a compelling foundation for high-end AM5 builds. Covered by the standard Manufacturer Warranty.
| Weight | 2 kg |
|---|---|
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | CrossFire |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 6 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| Number of M.2 M slots | 3 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power source type | ATX |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Antenna included | Yes |
| Number of M.2 E slots | 1 |
| Back-to-BIOS button | Yes |
