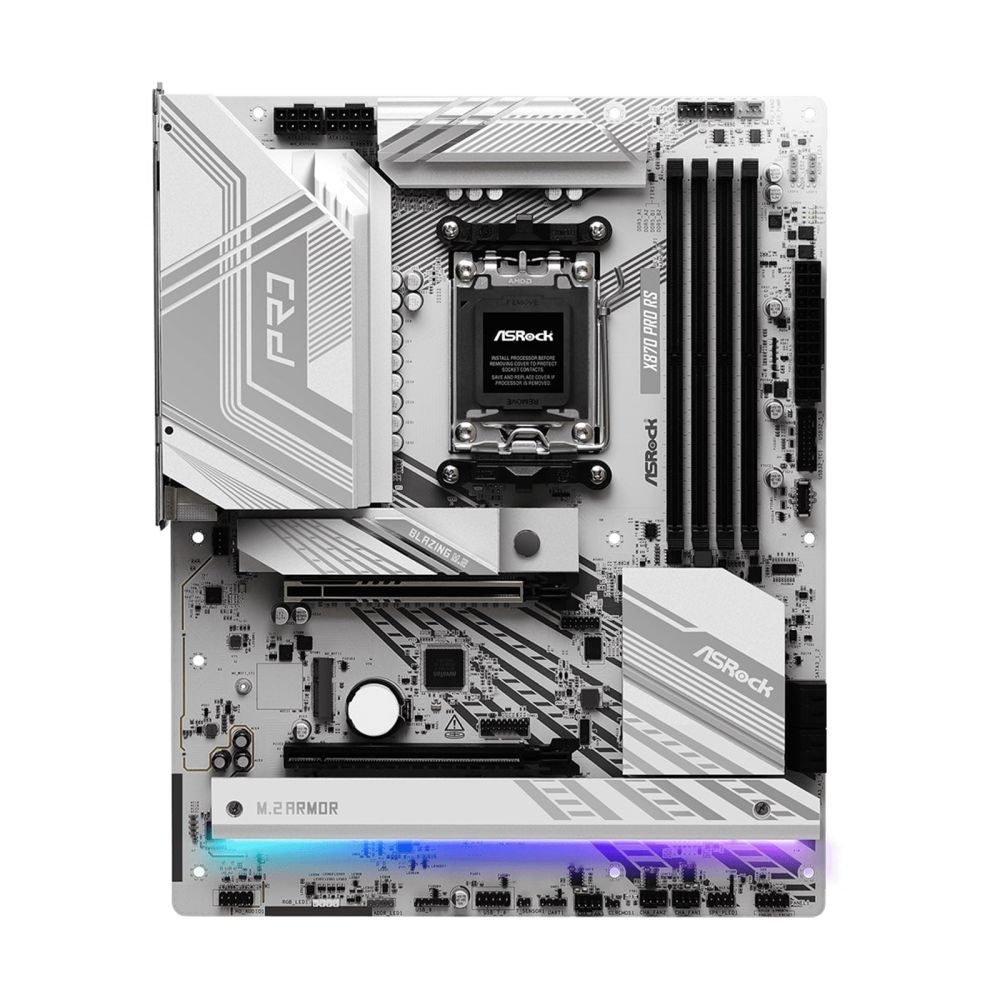

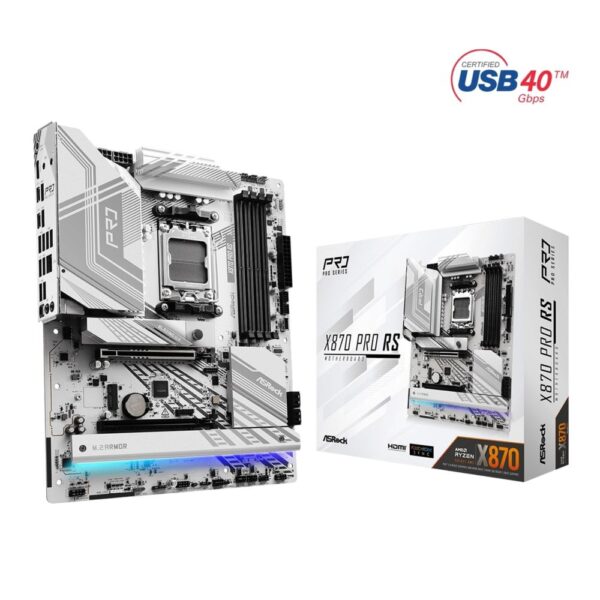

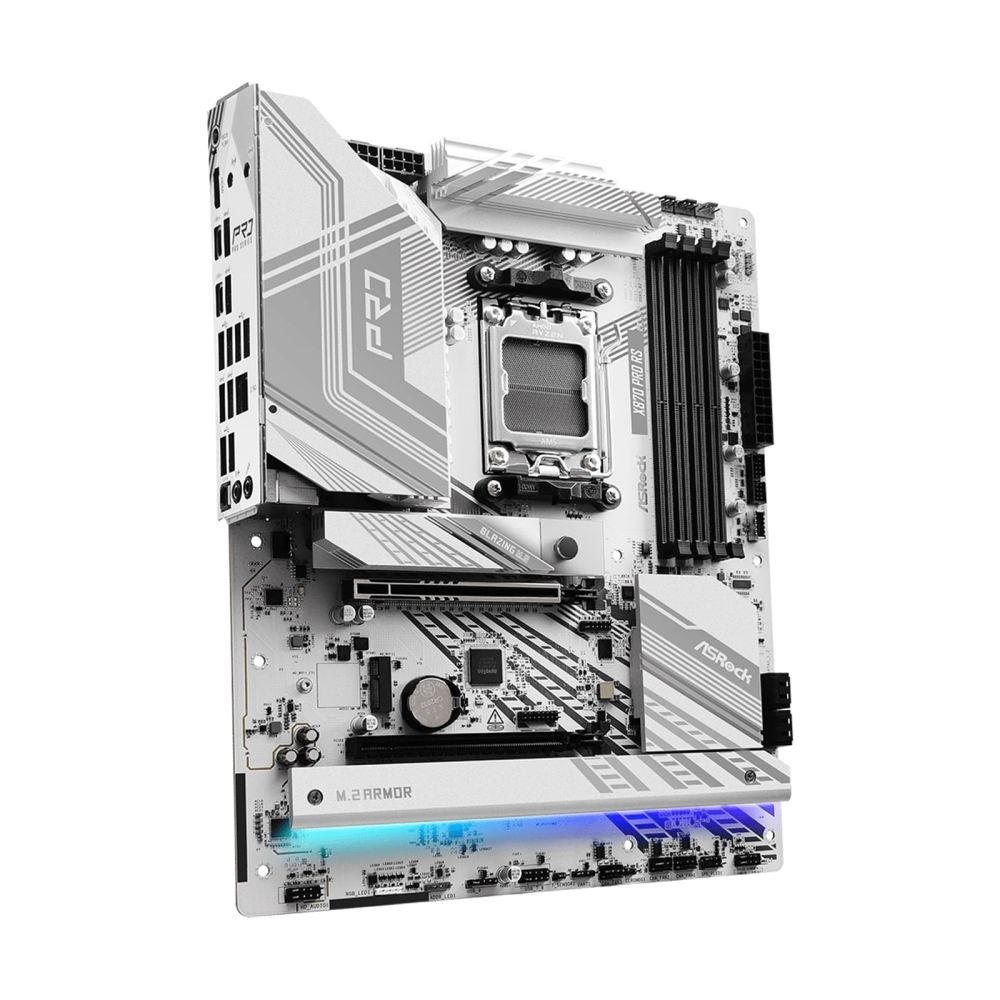

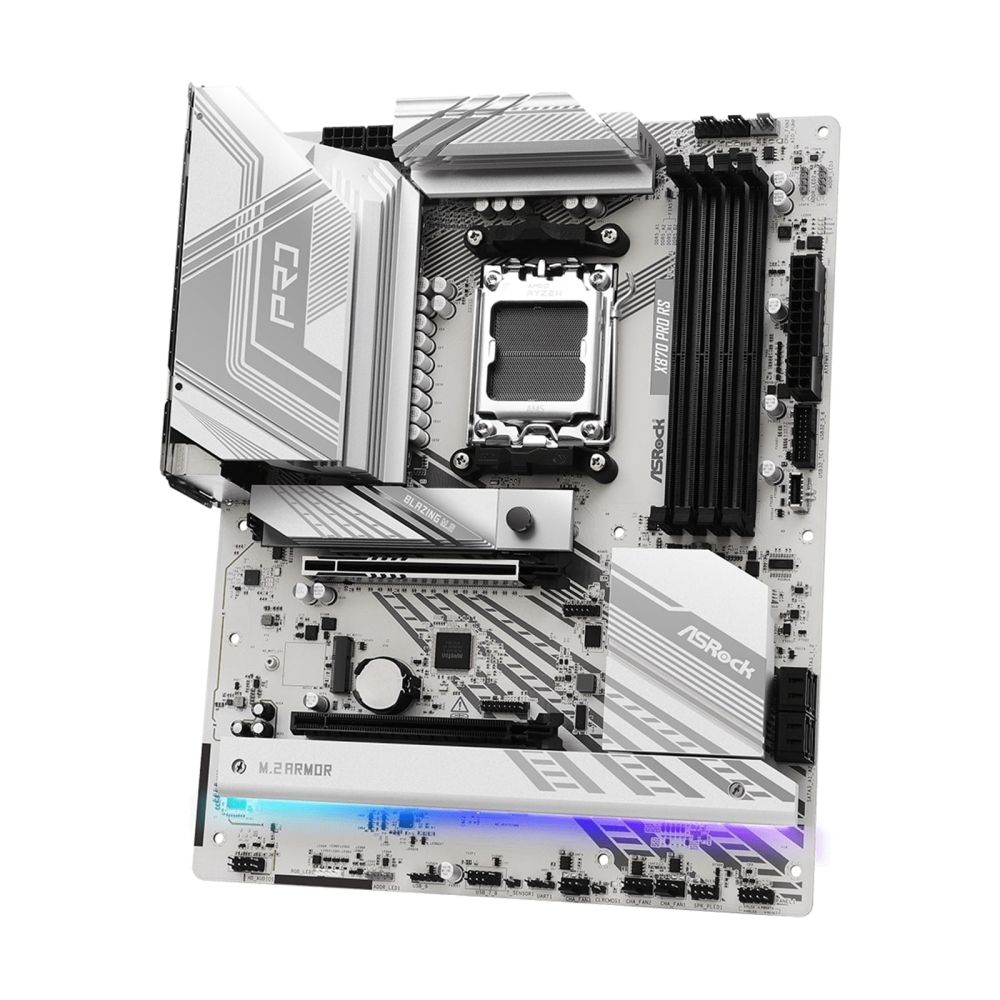

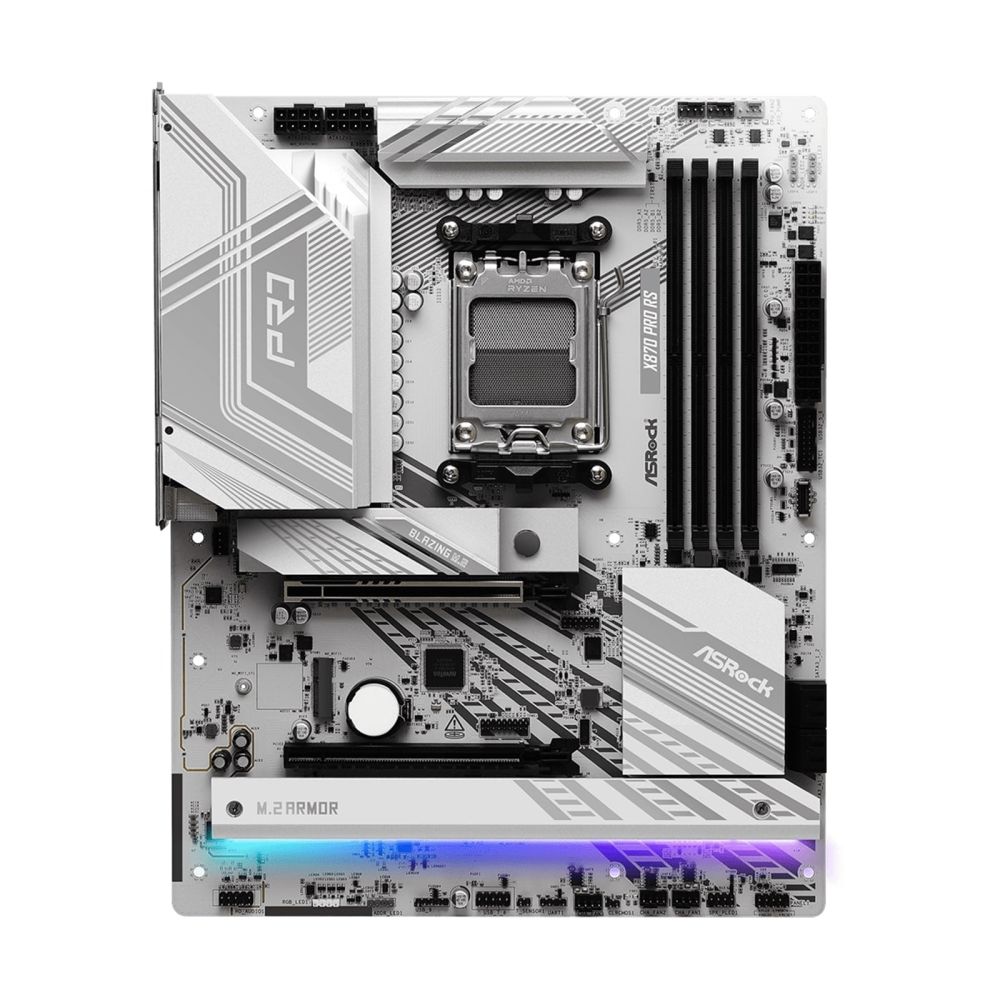

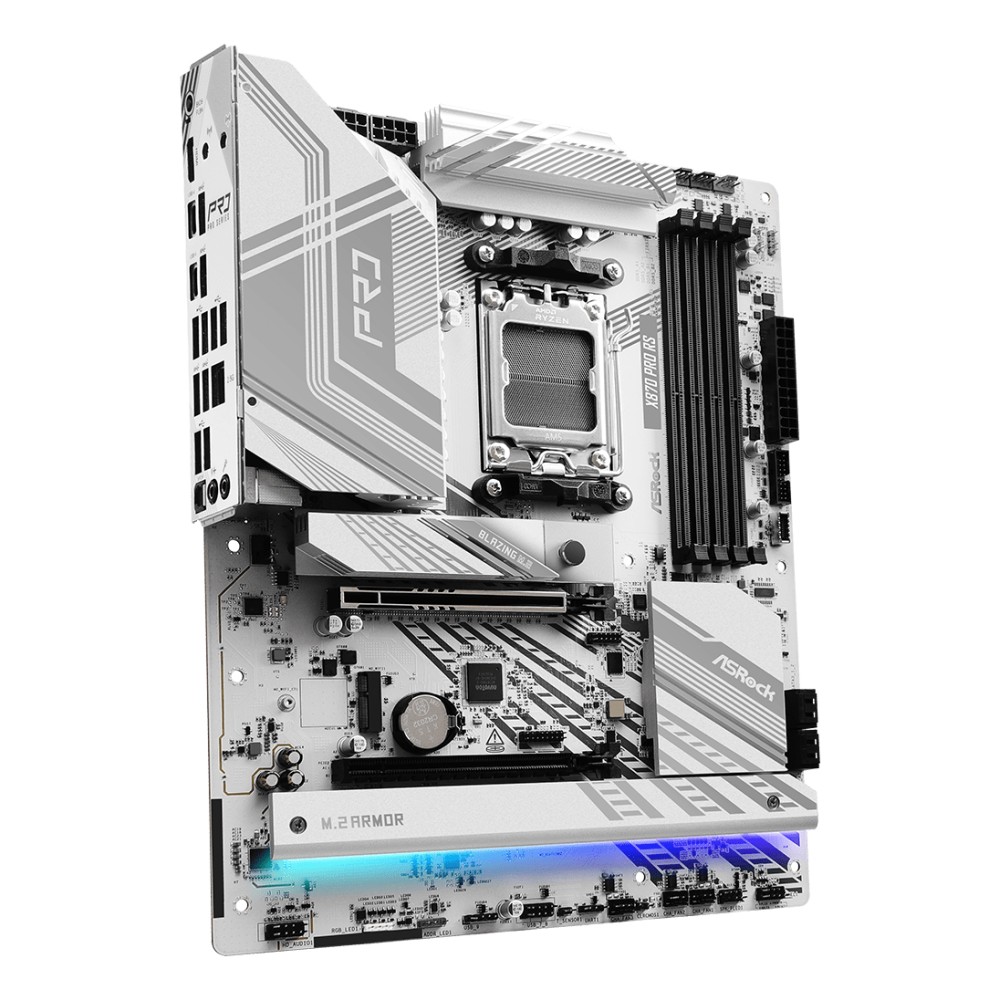

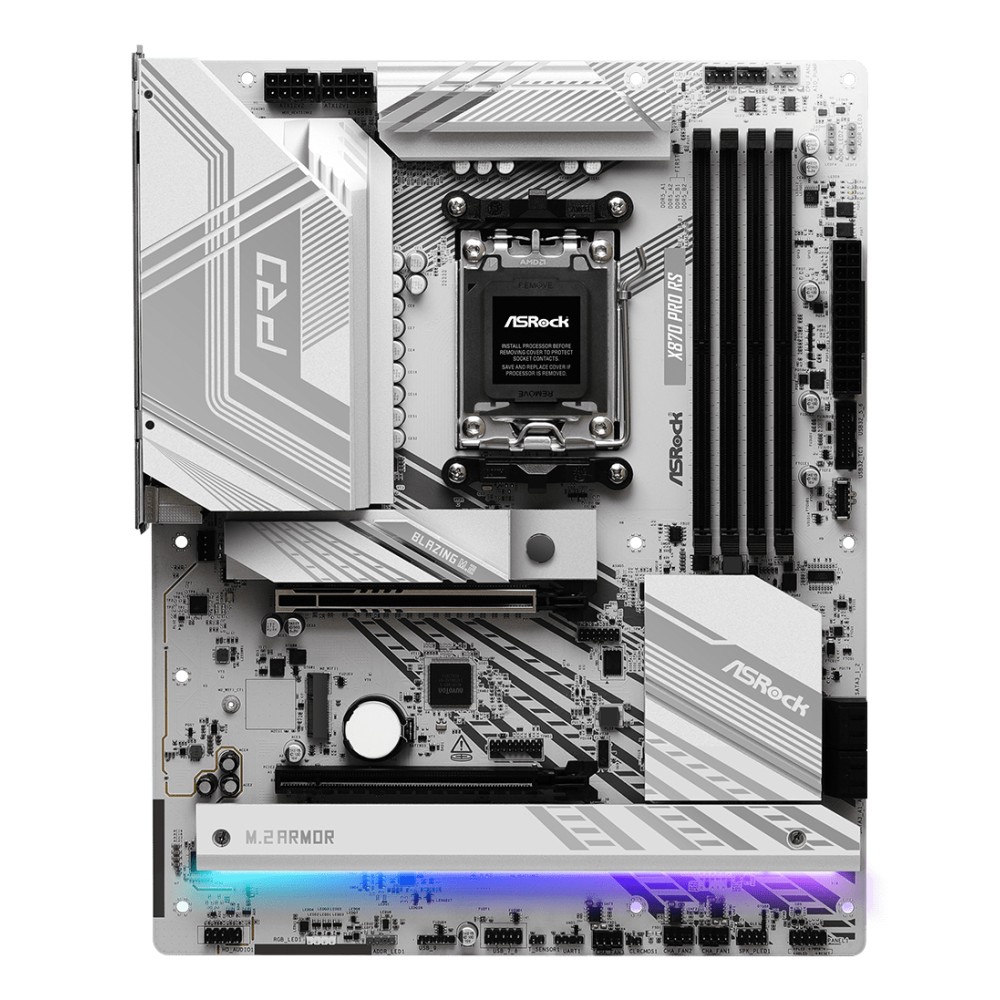

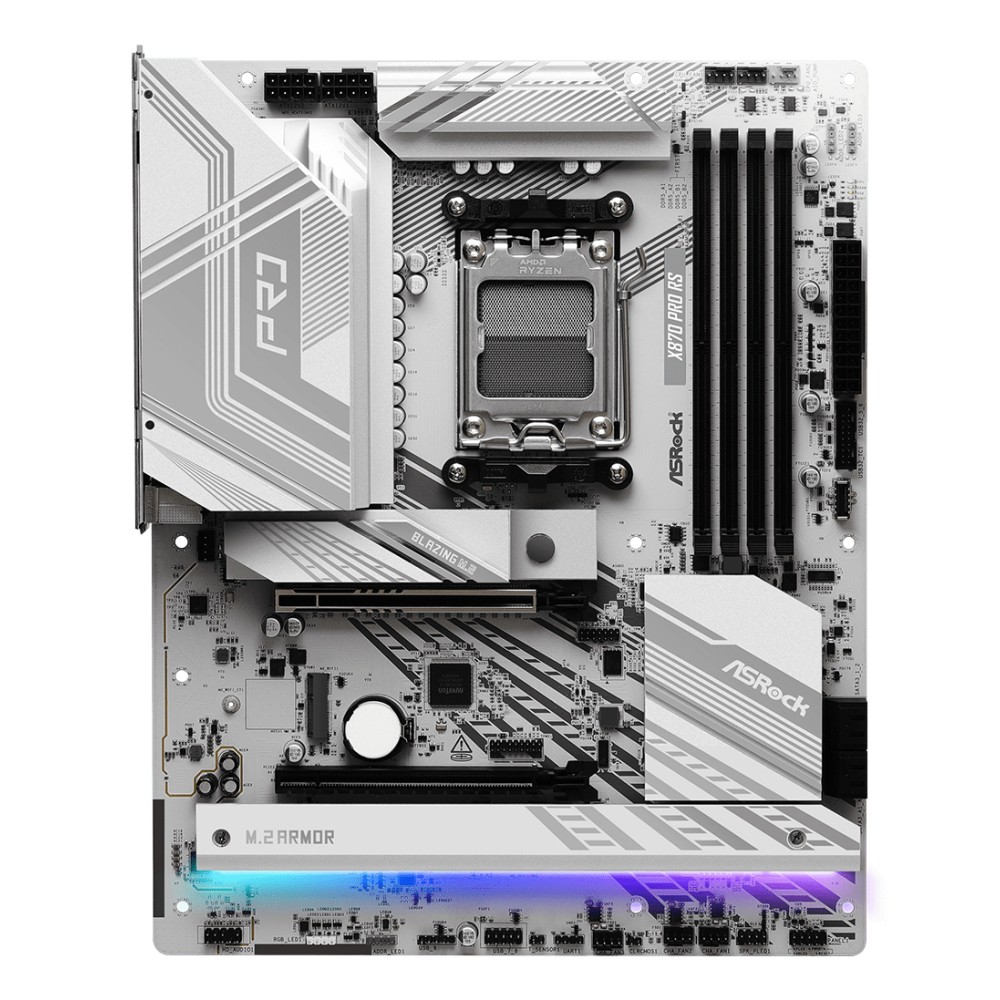

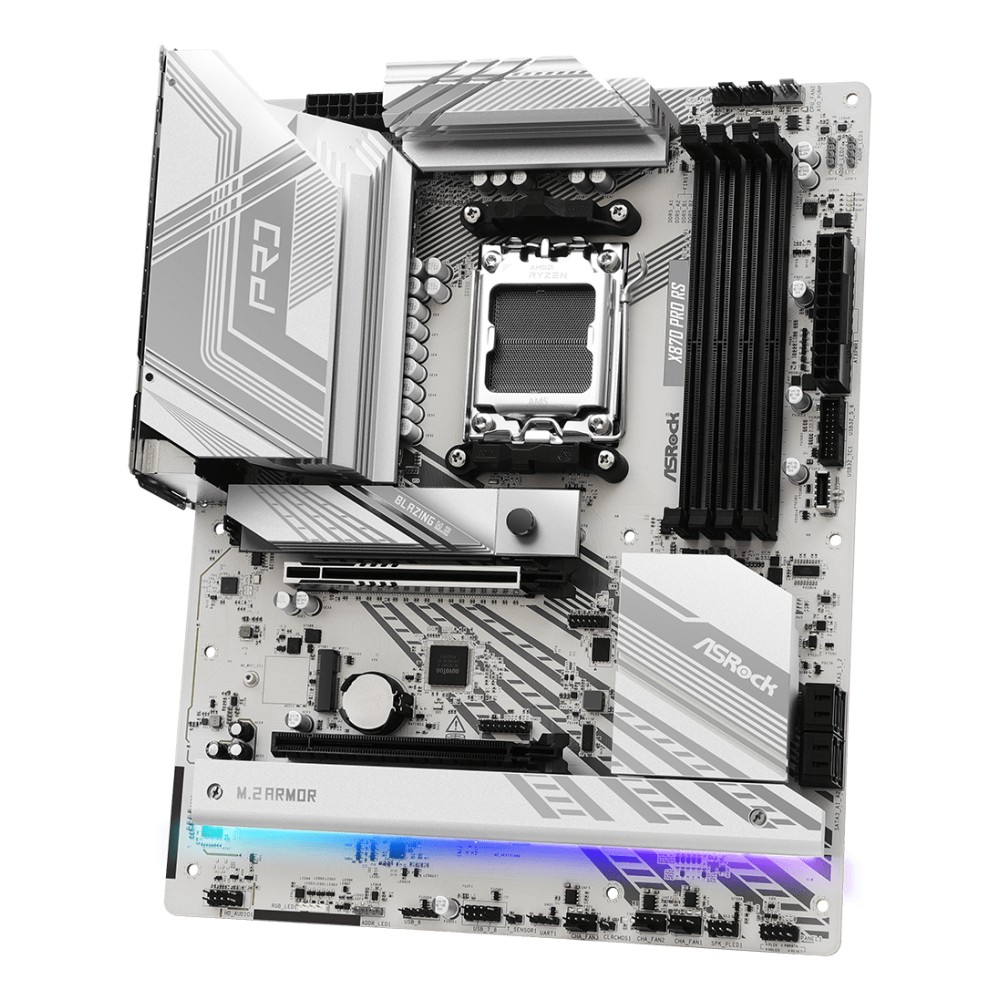

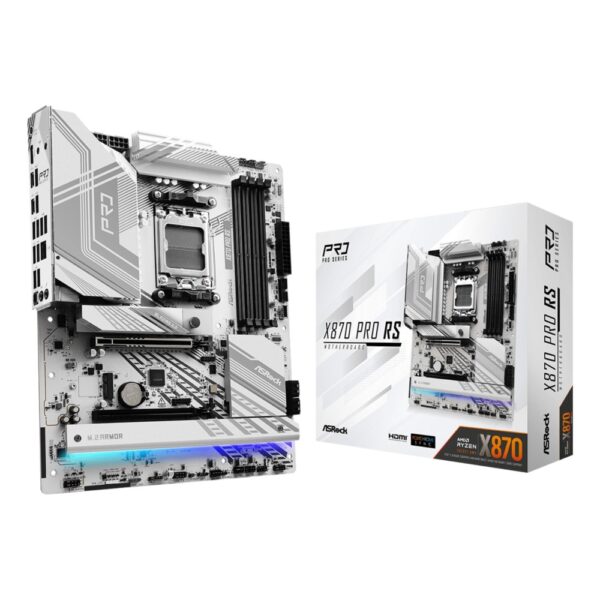

Asrock X870 Pro RS AM5 ATX Motherboard
£182.14 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870 chipset supporting Ryzen 7000/8000/9000 series processors on Socket AM5
- 4 x DDR5 DIMM slots supporting up to 256 GB with 8000 MHz overclocking via XMP/EXPO
- 3 x M.2 slots (1 x PCIe 5.0, 1 x PCIe 4.0, 1 x PCIe 3.0) plus 4 x SATA III connectors
- 1 x PCIe 5.0 x16 and 1 x PCIe 4.0 x16 reinforced steel slots for graphics cards
- USB4 Gen 2×2 (40 Gbps), USB 3.2 Gen 2×2 (20 Gbps), and 2.5 Gigabit Ethernet LAN connectivity
- ATX form factor (305 x 244 mm) with 14+2+1 power phase design and 8-layer PCB for stability
- What to check: Wi-Fi support is not specified in the inputs
Payment Methods:
You may also like
Asrock X870 PRO RS | AMD X870 ATX Motherboard
The Asrock X870 PRO RS AMD X870 Socket AM5 ATX is a foundational component for high-performance PCs. It is designed for builders using AMD Ryzen 7000, 8000, and 9000 Series processors. This board focuses on stable power delivery and high-speed connectivity for gaming and content creation.
Slim Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | AM5 |
| Memory Type | DDR5 (Max 256 GB) |
| M.2 Slots | 4 (1x PCIe 5.0) |
| LAN | 2.5 Gigabit Ethernet |
| Form Factor | ATX |
| USB4 Ports | 2 |
Power Delivery for Stable Performance
This motherboard uses a 14+2+1 power phase design with Dr.MOS components. It ensures smooth power to the CPU during heavy workloads. The durable 1000uF capacitors provide higher charge storage. This results in improved system stability and consistent performance under load.
High-Speed Storage and Connectivity
The board features a PCIe Gen5 M.2 slot for next-generation SSDs. It also includes three additional M.2 slots and four SATA connectors for ample storage. USB4 ports offer 40Gbps data transfer. The 2.5Gb Ethernet provides faster local networking than standard gigabit connections.
DIY-Friendly Cooling and Build
An enlarged aluminium heatsink with a toolless quick-release mechanism cools your M.2 drives. This design simplifies installation and prevents dropped screws. The 8-layer PCB improves heat dissipation and signal integrity. This helps maintain lower temperatures during long sessions.
Immersive Audio and Visuals
The integrated Realtek ALC1220 audio chip works with Nahimic software. This provides detailed 7.1-channel sound for gaming and media. Polychrome RGB headers allow custom lighting control. A reinforced steel PCIe 5.0 slot securely supports heavy graphics cards.
Box contents
- 1 x ASRock X870 PRO RS Motherboard
- 1 x Quick Installation Guide
- 1 x I/O Shield
- 4 x SATA Data Cables
- 1 x M.2 Heatsink Screw
- 1 x M.2 Mounting Screw Kit
- 1 x WiFi Antenna (Note: Board has no WiFi, but some bundles include this for Bluetooth)
Check before you buy
- Confirm you have an AMD Ryzen 7000/8000/9000 series CPU for the AM5 socket.
- Verify your case supports ATX form factor (305 mm x 244 mm).
- Ensure your power supply has the required 24-pin and dual 8-pin EPS connectors.
- Confirm your memory is DDR5 and compatible with AMD EXPO or Intel XMP profiles.
Frequently Asked Questions
Q: Does this motherboard support Wi-Fi?
A: No, the Asrock X870 PRO RS does not have built-in Wi-Fi. You will need a separate PCIe card or USB adapter.
Q: What is the maximum memory speed supported?
A: It supports DDR5 memory up to 8000 MHz (OC). Check the QVL for specific module compatibility.
Q: How many graphics cards can I install?
A: It supports AMD CrossFire with two PCIe x16 slots (Gen 4 and Gen 5). NVIDIA SLI is not specified.
Q: Is the motherboard ready for Windows 11?
A: Yes, it fully supports Windows 10 x64 and Windows 11 x64 operating systems.
Q: What audio chip does it use?
A: It features a Realtek ALC1220 audio codec with Nahimic audio processing for 7.1-channel sound.
The Consultant’s verdict & warranty
This board suits UK builders creating a powerful AMD AM5 system without Wi-Fi needs. It offers strong power delivery and fast storage options for gamers and creators. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| Supported storage drive interfaces | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Parallel processing technology support | CrossFire |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | CrossFire |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |

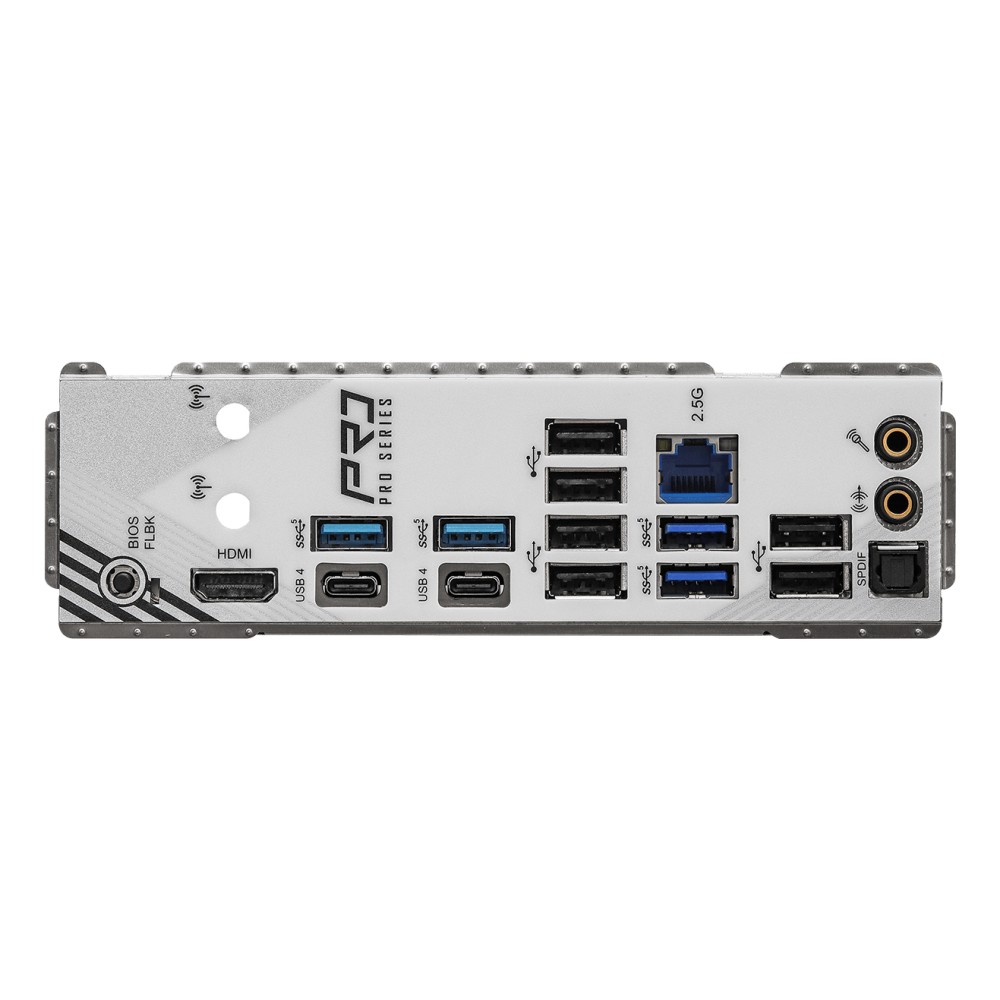

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 6 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital audio optical out | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Certificates | |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Number of M.2 (E) slots | 1 |
| Identifiers | |
| Distributor SKUs | 90-MXBPZ0-A0UAYZ, 533048, 540682, STD10232862, MBASR-X870PRORS, X870PRORS, CLX870PRORS, 19335345000 |
