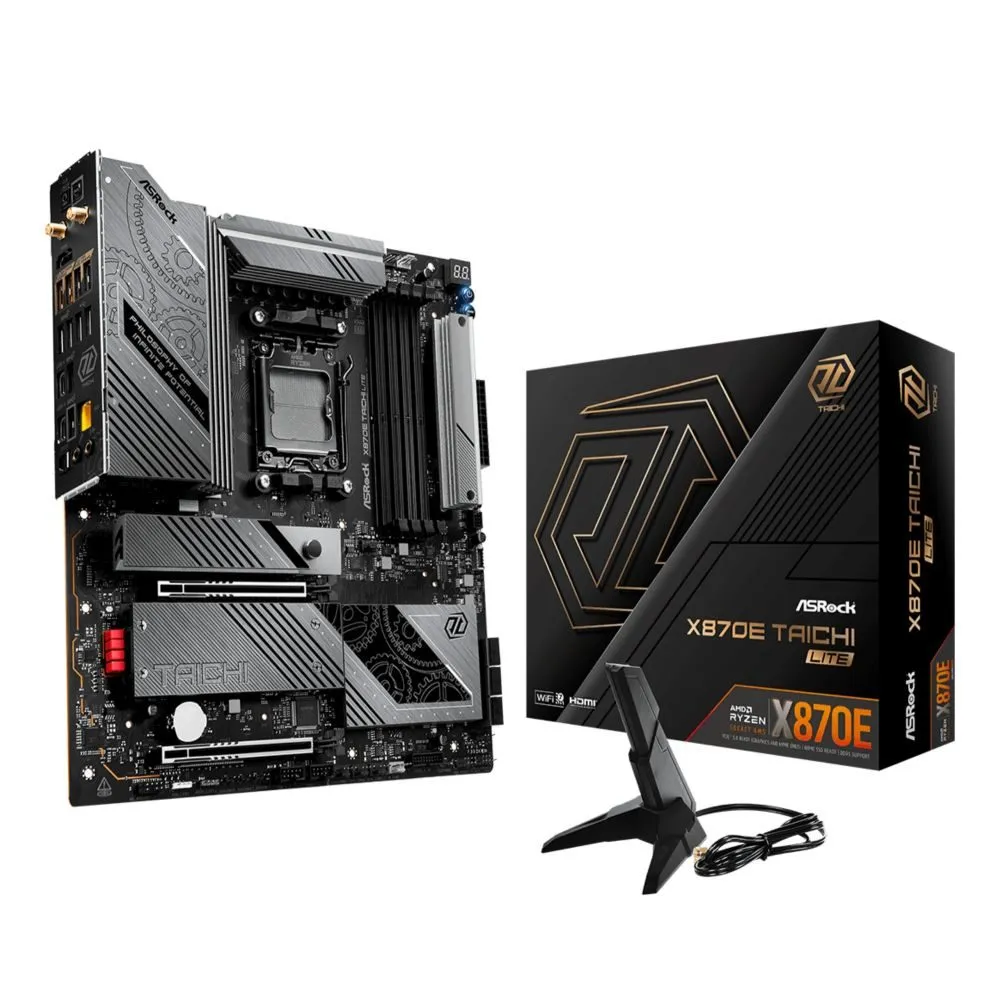

Asrock AMD X870 AM5 Extended ATX Motherboard
£366.06 inc VAT
21 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- X870E Taichi Lite motherboard with AMD X870 chipset for AM5 socket
- Supports AMD Ryzen 7000/8000/9000 series processors
- 4 DIMM slots for DDR5-SDRAM up to 256 GB at 8000 MHz
- Extended ATX form factor with 3 M.2 M slots and 1 M.2 E slot
- 7.1 channel audio with Realtek ALC1220 codec
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

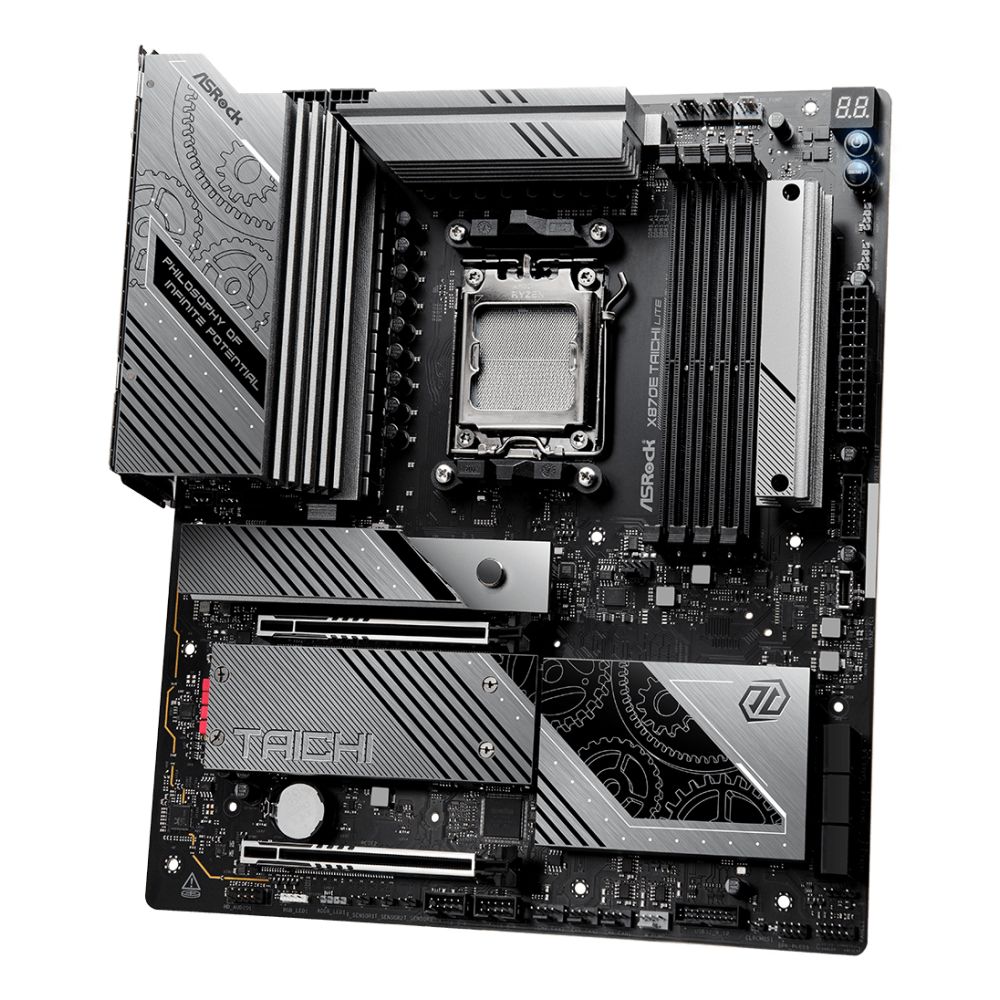

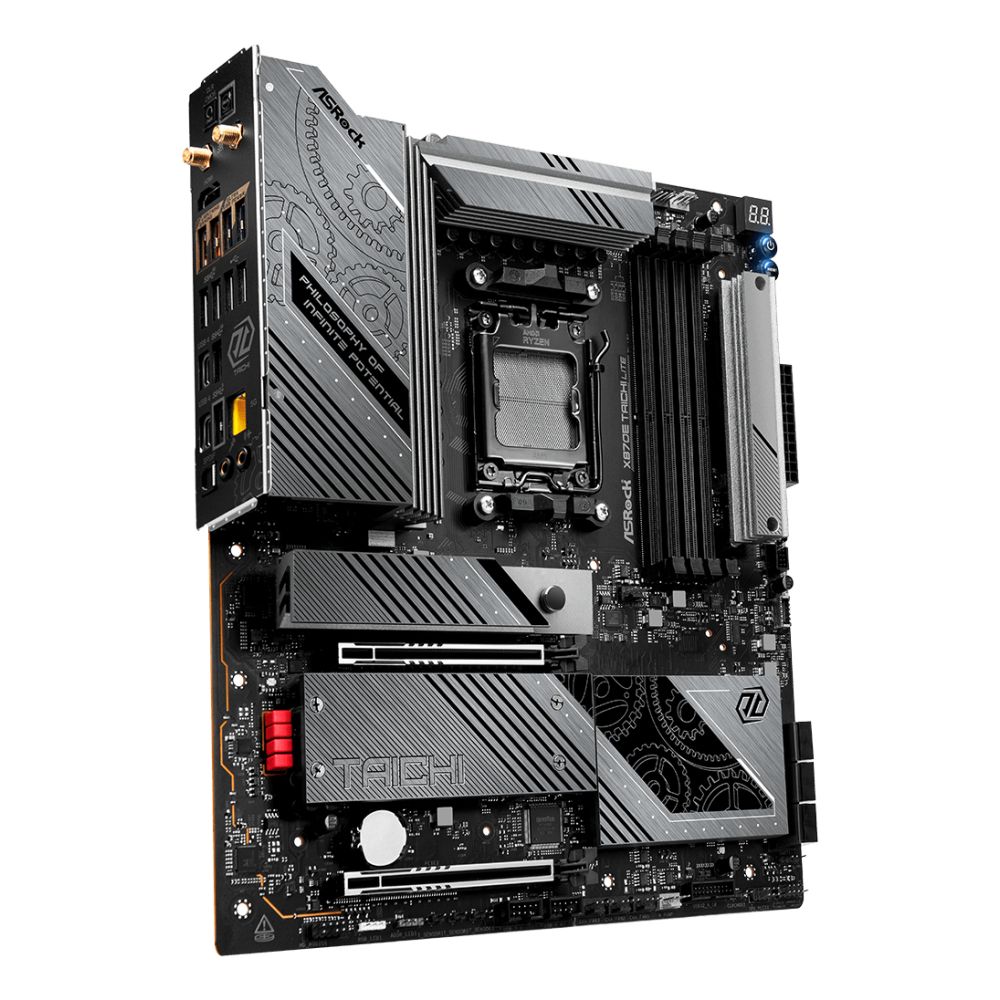

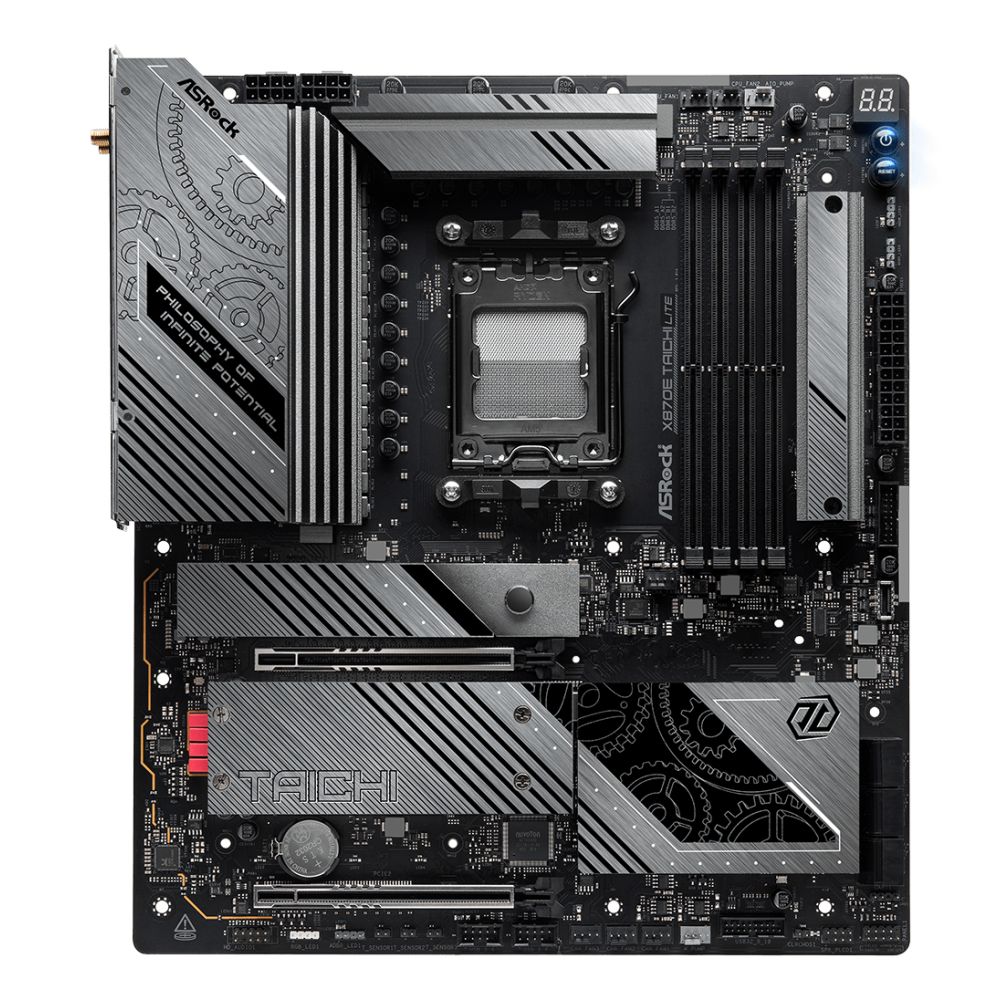

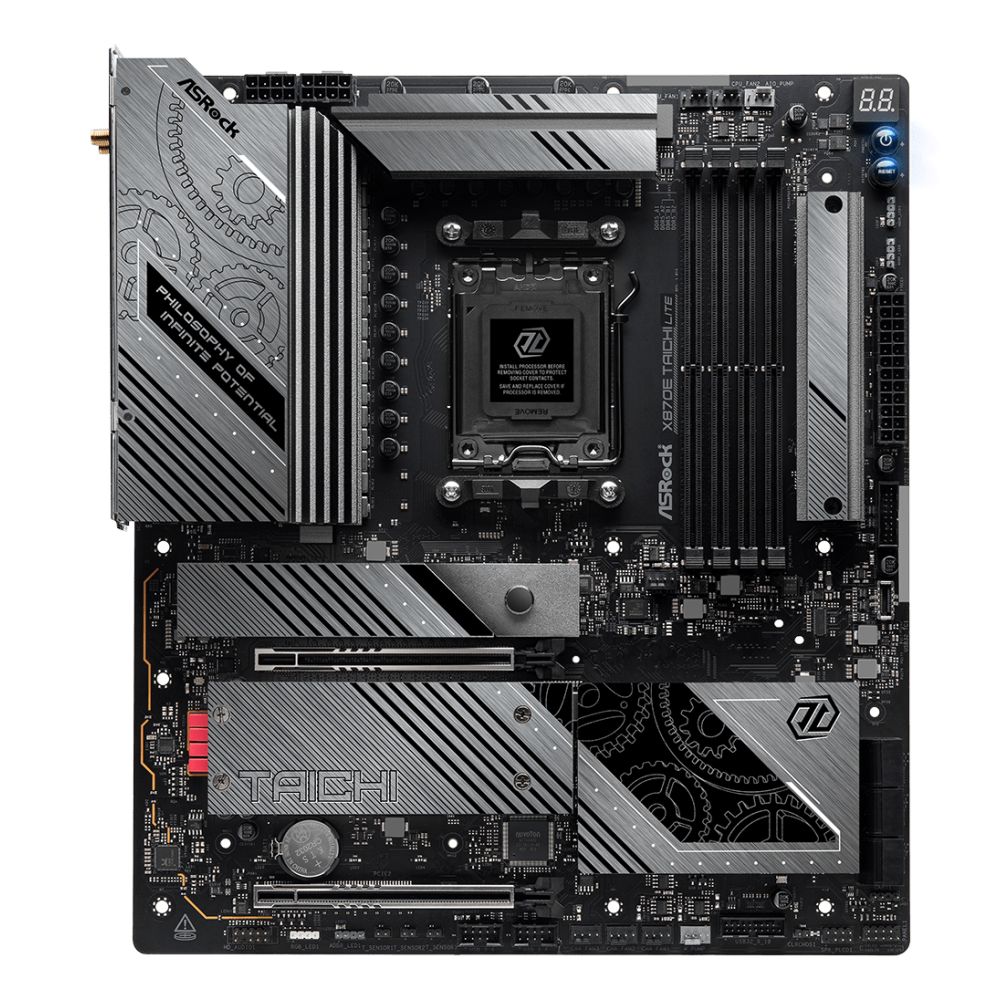

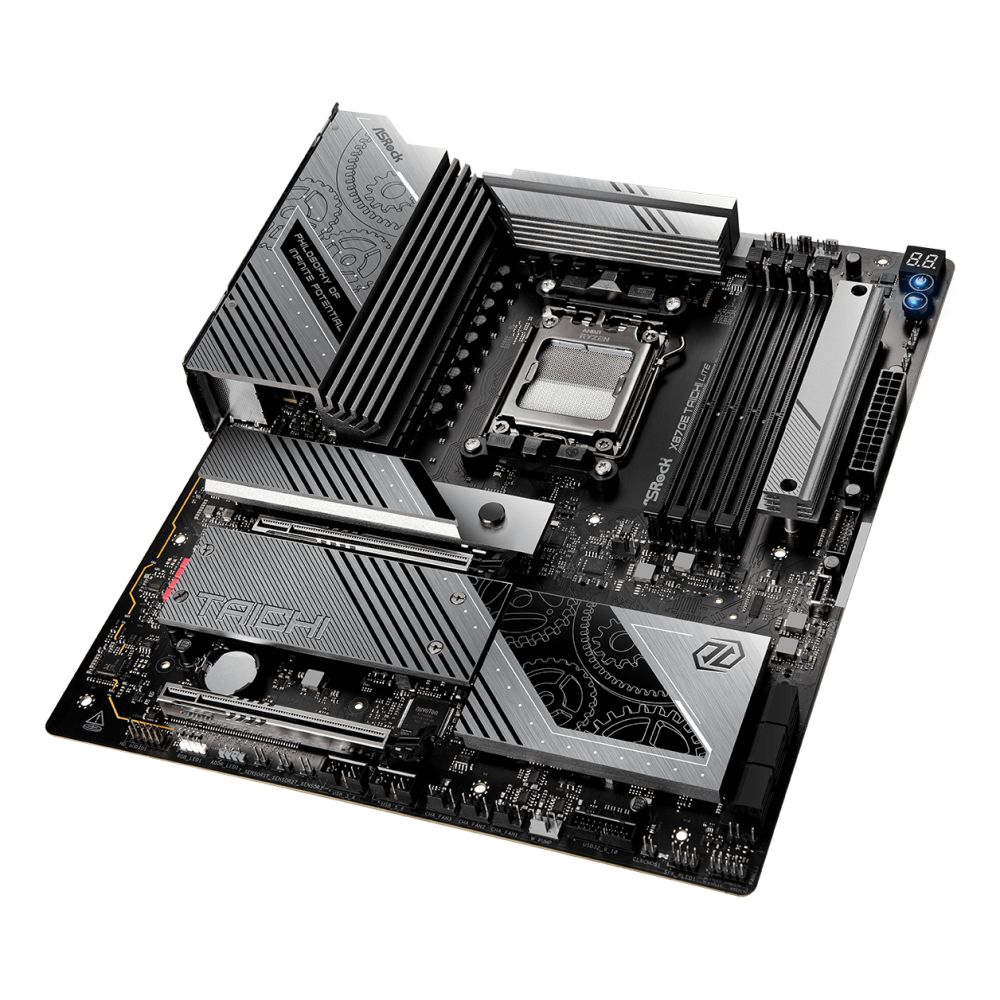

ASRock X870E Taichi Lite | AMD X870 Extended ATX Motherboard
The ASRock X870E Taichi Lite motherboard delivers premium AMD X870 performance in a streamlined Extended ATX form factor. Designed for enthusiasts building high-end AMD Ryzen systems, this board combines advanced DDR5 memory support, PCIe 5.0 storage, and comprehensive connectivity for maximum system potential.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | AMD AM5 |
| Chipset | AMD X870E |
| Memory Support | DDR5, up to 8000MHz, 256GB |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 |
| M.2 Slots | 3x M.2 (PCIe 5.0/4.0/3.0) |
| Form Factor | Extended ATX (305 x 244mm) |
| Wi-Fi | Wi-Fi 7 + Bluetooth 5.4 |
| LAN | 2.5Gb Ethernet |
Optimized VRM Design for Stable Overclocking
The X870E Taichi Lite features an enhanced VRM solution with upgraded 20K Black capacitors rated for 20,000 hours of operation. This provides rock-solid power delivery to AMD Ryzen 7000/8000/9000 series processors, ensuring stable performance during intensive workloads and overclocking sessions.
High-Speed M.2 Storage Solution
Equipped with three M.2 slots supporting PCIe 5.0, 4.0, and 3.0 standards, this motherboard accommodates the latest ultra-fast NVMe SSDs. The PCIe 5.0 slot delivers up to 128GB/s transfer speeds, perfect for professional content creators and gamers requiring rapid data access.
DIY-Friendly Installation Features
ASRock incorporates toolless M.2 SSD installation and a quick-release heatsink mechanism, making hardware upgrades straightforward. The enlarged aluminum alloy M.2 heatsink maintains optimal temperatures for high-speed storage devices, ensuring consistent performance under load.
Comprehensive Connectivity Options
With 7.1 channel audio powered by Realtek ALC1220, Wi-Fi 7, Bluetooth 5.4, and 2.5Gb LAN, this motherboard covers all modern connectivity needs. Multiple USB ports including USB4 Gen 2×2 provide flexible peripheral connections for any setup.
Box Contents
- ASRock X870E Taichi Lite motherboard
- SATA cables (quantity not specified)
- Wi-Fi antennas
- I/O shield
- User manual and driver CD
Check before you buy
- Confirm your AMD Ryzen processor is AM5 compatible
- Verify your case supports Extended ATX (305 x 244mm) dimensions
- Check if your PSU provides sufficient PCIe power connectors
- Ensure your DDR5 memory modules support XMP/EXPO profiles
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory overclocking?
A: Yes, it supports DDR5 memory with XMP/EXPO profiles for enhanced performance.
Q: How many PCIe 5.0 devices can I install?
A: One PCIe 5.0 x16 slot is available for graphics cards or storage devices.
Q: Is Wi-Fi 7 included with this motherboard?
A: Yes, it features Wi-Fi 7 with Bluetooth 5.4 for the latest wireless connectivity.
Q: What form factor is this motherboard?
A: It’s Extended ATX, measuring 305 x 244mm, requiring a compatible case.
Q: Does it support RAID configurations?
A: Yes, it supports RAID 0 and RAID 1 configurations for storage setups.
The Consultant’s Verdict & Warranty
The ASRock X870E Taichi Lite offers exceptional value for enthusiasts seeking AMD X870 performance without excessive features. Its combination of PCIe 5.0 storage, robust VRM design, and comprehensive connectivity makes it ideal for high-performance AMD Ryzen builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Parallel processing technology support | CrossFire |
| HDMI version | 2.1 |
| Back-to-BIOS button | Yes |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1 |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | CrossFire |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| Number of M.2 (E) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Back-to-BIOS button | Yes |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Certificates | |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Other features | |
| Number of M.2 (E) slots | 1 |
| Back-to-BIOS button | Yes |
