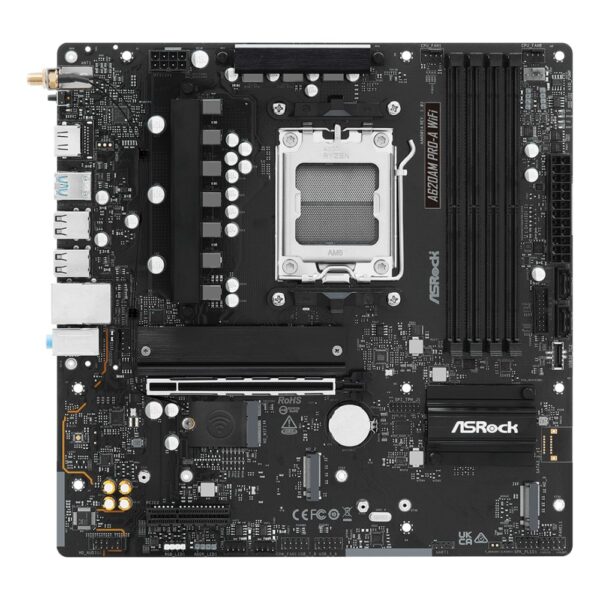

Asrock A620M Pro-A WiFi AMD A620 AM5 mATX

Asrock A620AM PRO-A WIFI | AMD A620 Micro-ATX Board

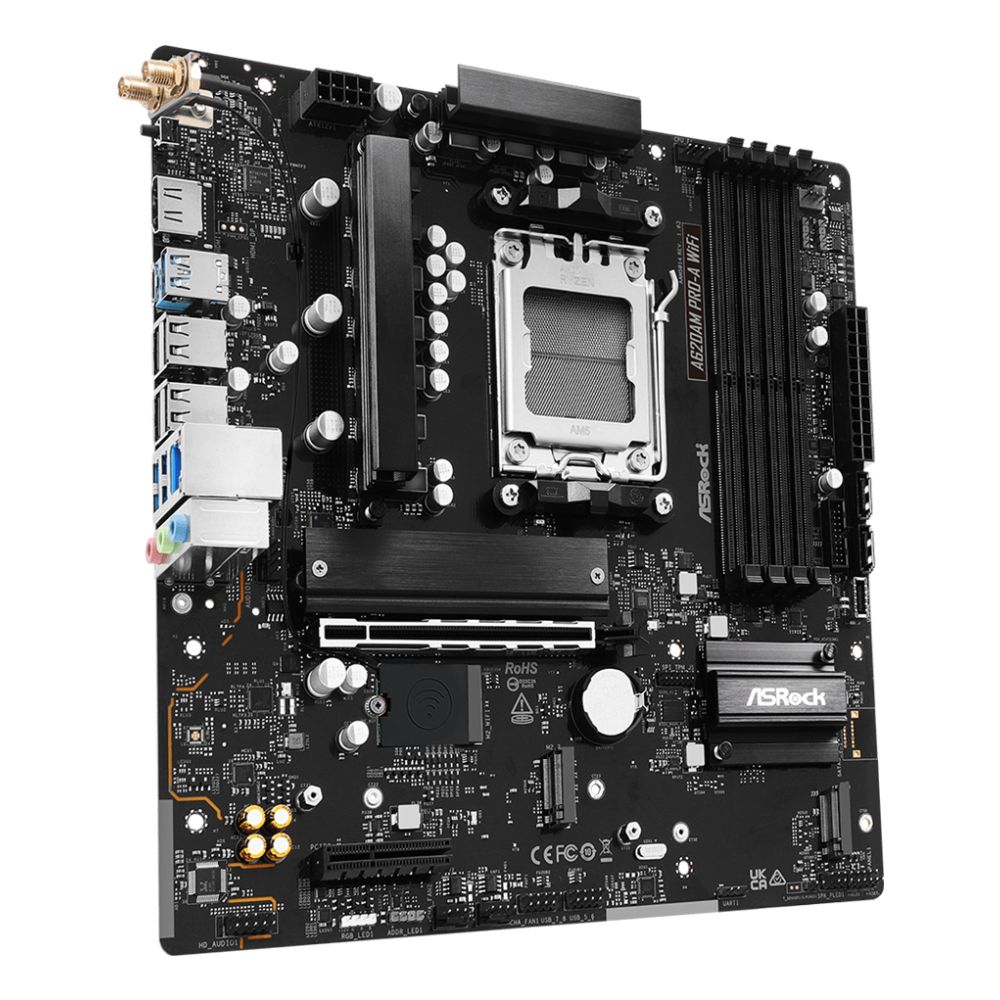

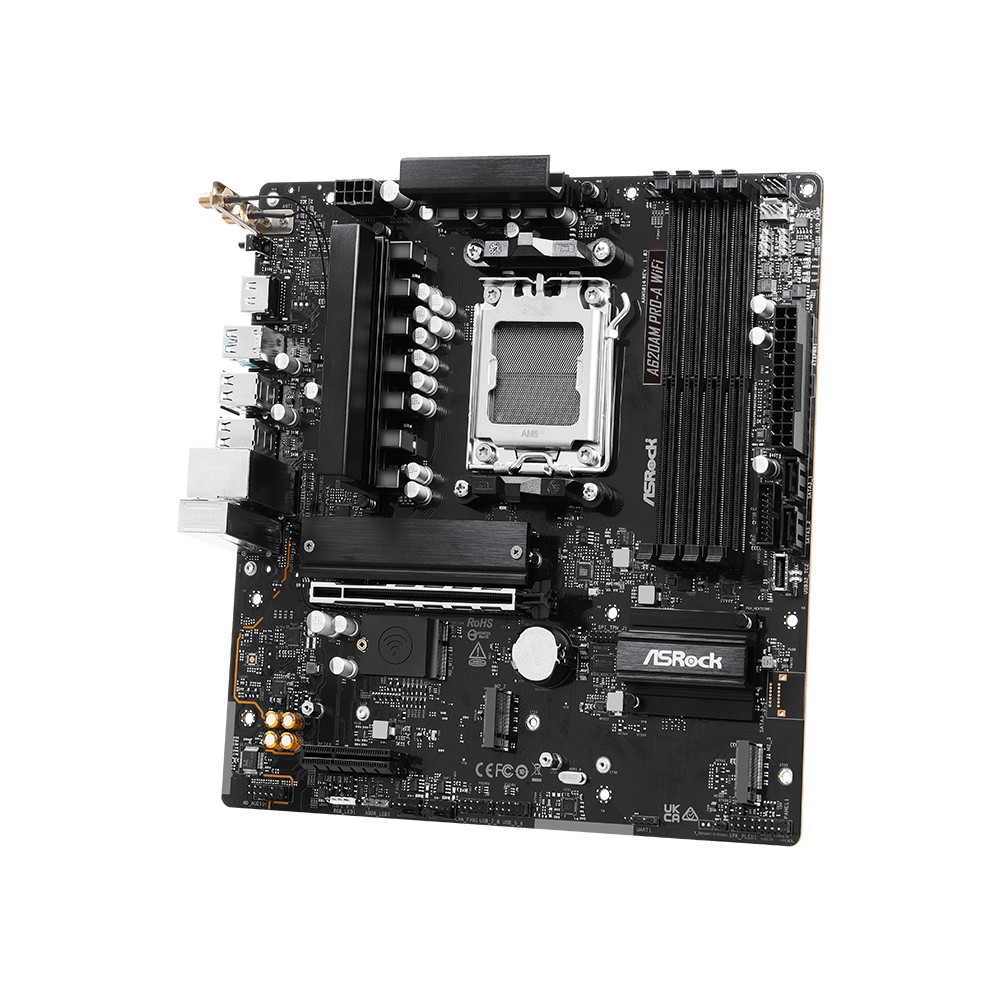

The Asrock A620AM PRO-A WIFI AMD A620 Socket AM5 micro ATX is a solid foundation for a modern AMD Ryzen build. This motherboard targets users building a reliable daily PC or a compact workstation. It offers built-in Wi-Fi 6E and robust power delivery for its class.

Core Platform and Processor Support

This board uses the AMD A620 chipset. It supports the latest AMD Ryzen 7000, 8000, and 9000 series processors. The Socket AM5 ensures compatibility with current and future AMD CPUs. This provides a clear upgrade path for your system. However, the A620 chipset does not support CPU overclocking. It is designed for stable, efficient operation.

Memory and Storage Performance

You get four DIMM slots for DDR5 memory. The board supports speeds up to 8000 MHz via XMP/EXPO profiles. This allows for strong dual-channel performance. For storage, there are three M.2 slots. One slot runs at PCIe Gen4 x4 for ultra-fast NVMe drives. The other two slots support PCIe Gen3 and SATA interfaces. This gives you flexible options for SSDs and HDDs.

Integrated Connectivity and Networking

The board features robust onboard connectivity. Wi-Fi 6E (802.11ax) provides high-speed wireless. Bluetooth 5.2 is included for peripherals. For wired connections, the Dragon 2.5Gb/s LAN controller offers fast and stable internet. This is ideal for gaming, streaming, and large file transfers.

Expansion and Rear I/O

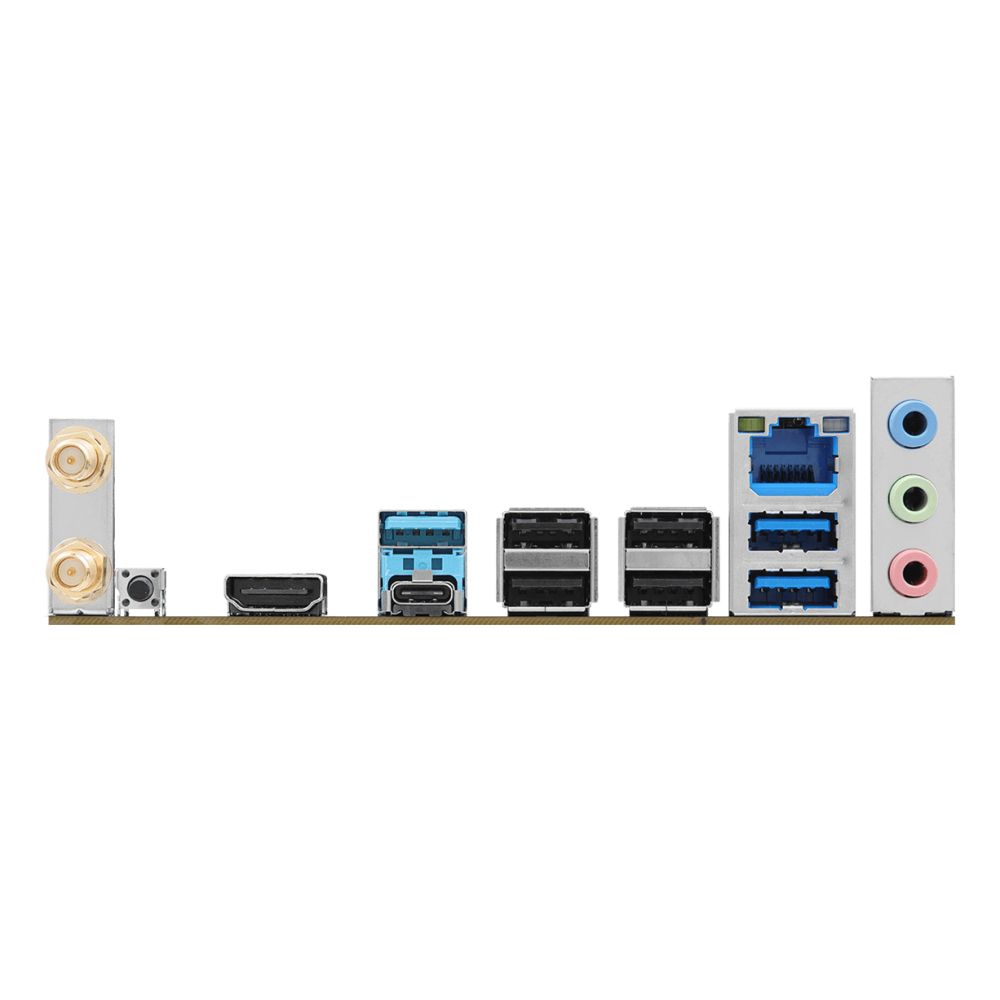

The rear I/O panel includes HDMI 2.1 for 4K display output. You get USB 3.2 Gen1 Type-C and multiple Type-A ports. The board also has a front USB 3.2 Gen1 Type-C header. For expansion, there is one PCIe x16 Gen4 slot for a graphics card. A PCIe x4 Gen3 slot is also available. Note that the board uses passive cooling; there is no active fan on the chipset.

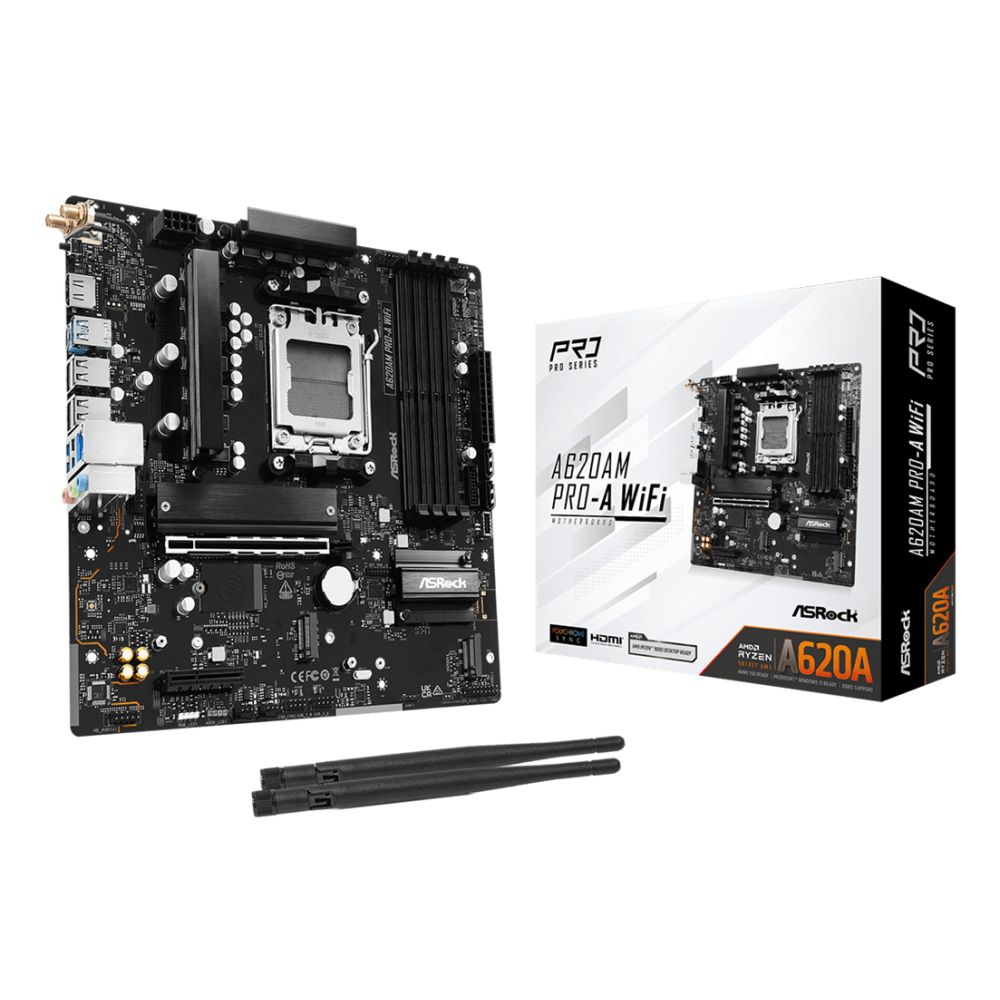

Box contents

• ASRock A620AM PRO-A WIFI motherboard
• Quick Installation Guide
• SATA data cables (2x)
• M.2 mounting screws
• M.2 standoffs
• Wi-Fi antenna
• I/O shield

Check before you buy

• Confirm your case supports micro ATX form factor (244 x 244 mm).
• Verify your CPU is an AMD Ryzen 7000/8000/9000 series processor.
• Check that your memory is DDR5-SDRAM and compatible with XMP/EXPO.
• Ensure your power supply has a 24-pin ATX and 12V CPU connector.

Frequently Asked Questions

Q: Does this motherboard support CPU overclocking?

A: No, the AMD A620 chipset does not support CPU overclocking. It is designed for stable operation.

Q: What is the maximum memory capacity?

A: The board supports up to 256 GB of DDR5 memory across four DIMM slots.

Q: Can I install a PCIe 4.0 NVMe SSD?

A: Yes, the primary M.2 slot supports PCIe Gen4 x4 NVMe SSDs for fast storage.

Q: Does it come with Wi-Fi and Bluetooth?

A: Yes, it has integrated Wi-Fi 6E and Bluetooth 5.2. An antenna is included.

Q: What video outputs are available?

A: It has one HDMI 2.1 port supporting up to 4K resolution. This is for onboard graphics.

The Consultant’s verdict & warranty

This motherboard is ideal for budget-conscious builders assembling a reliable AMD Ryzen system. It suits users who need integrated Wi-Fi, fast storage options, and modern connectivity without overclocking. It is a practical choice for home offices, media PCs, and entry-level gaming builds. Covered by the standard Manufacturer Warranty.
