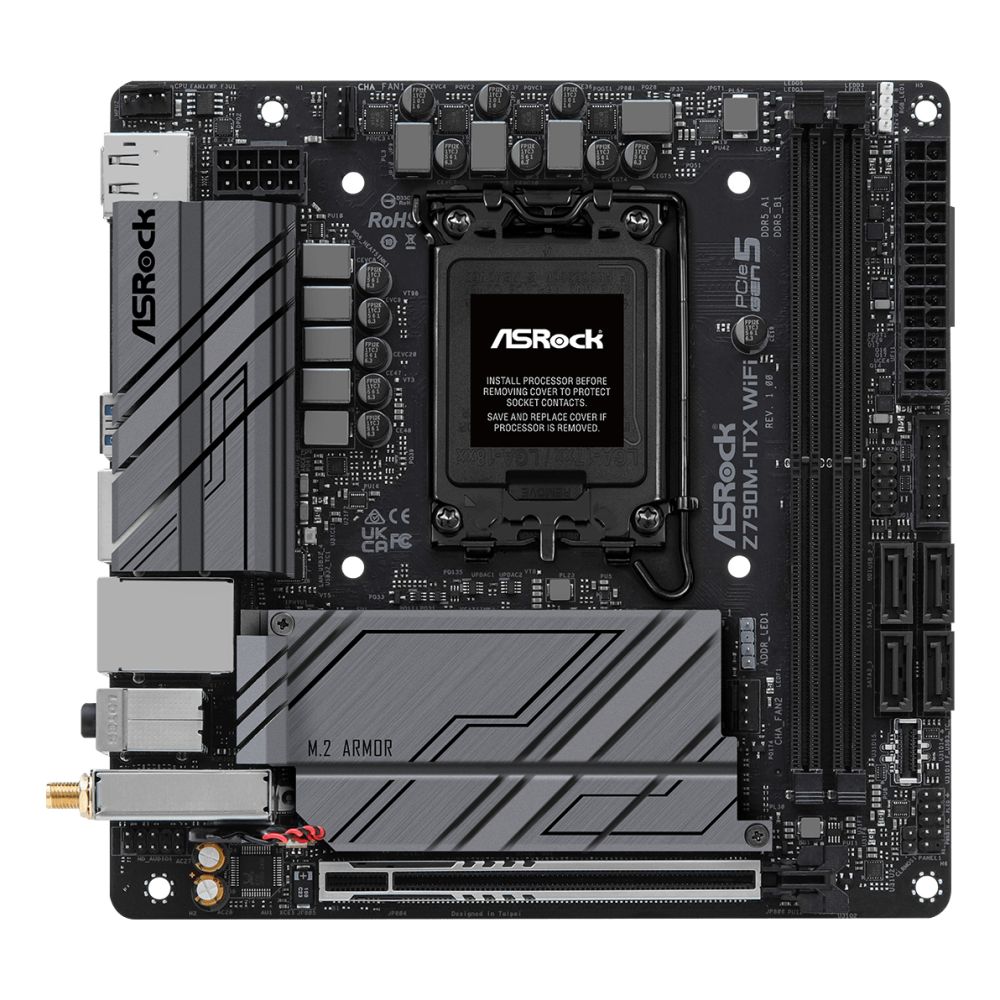

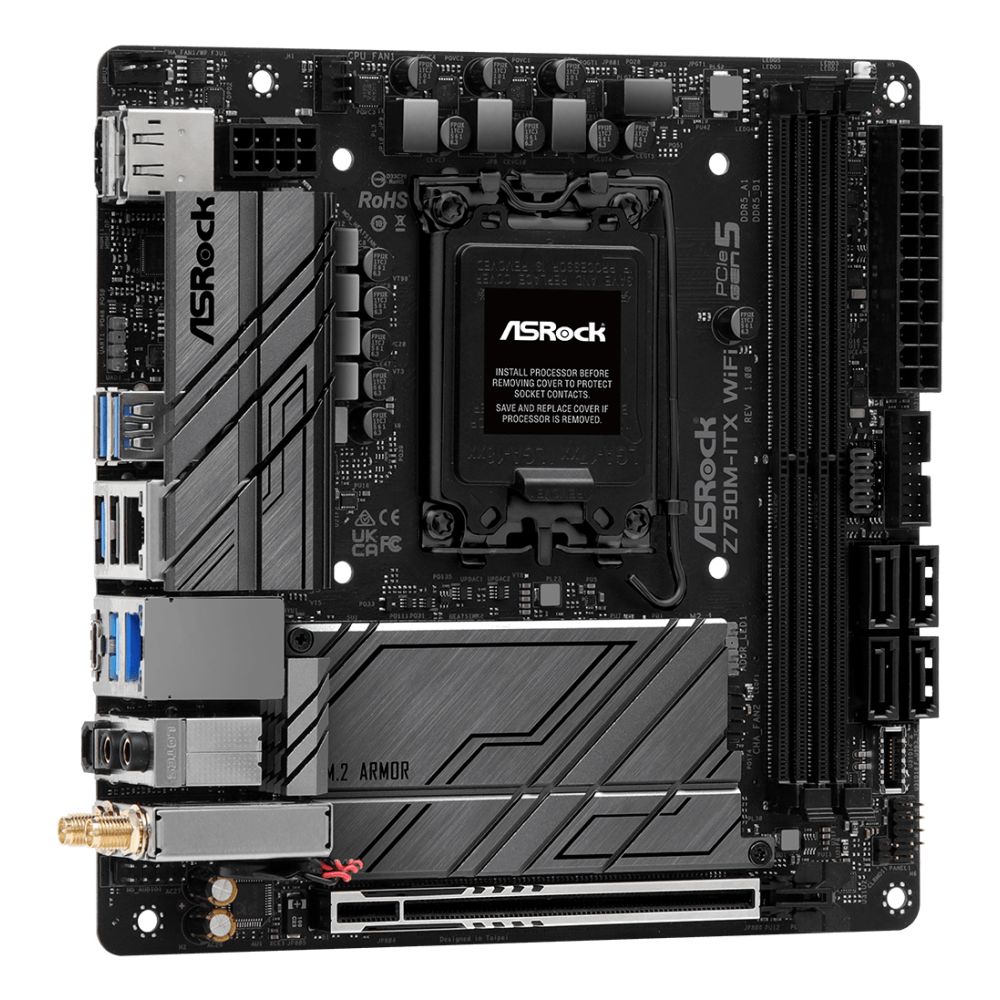

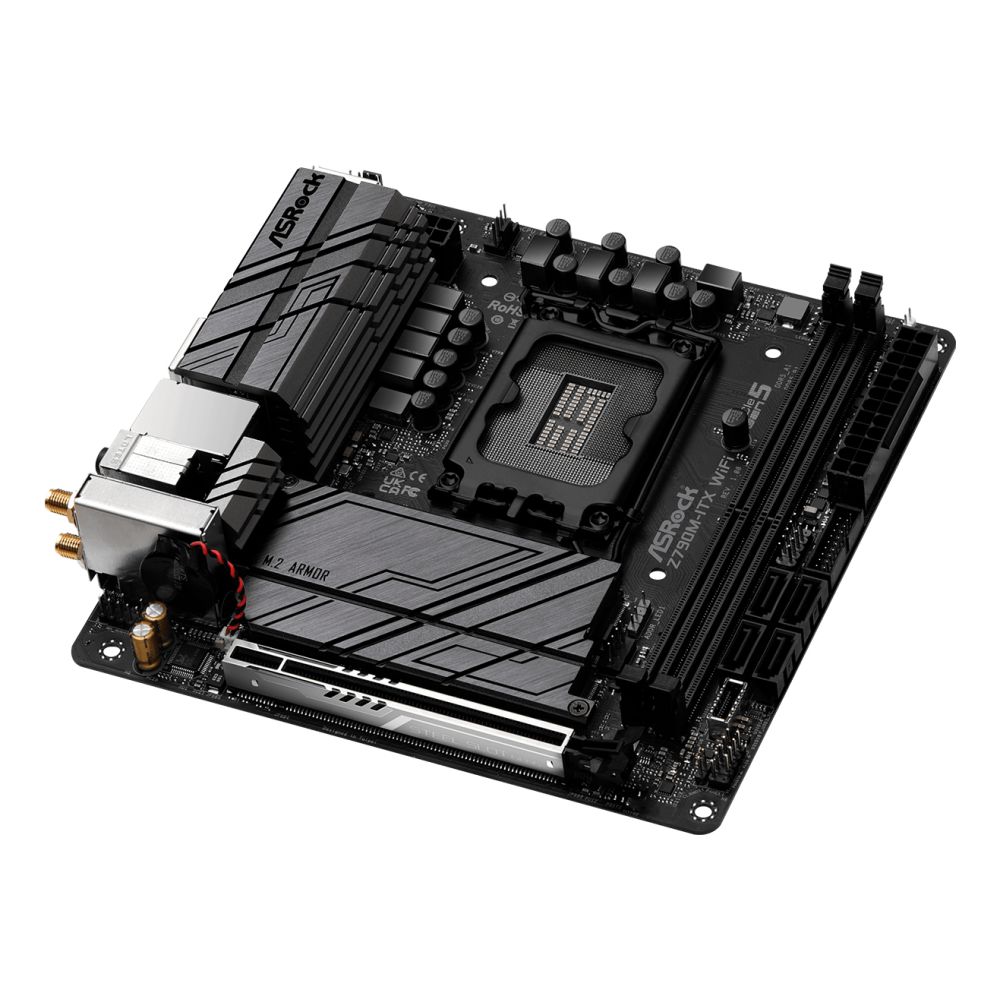

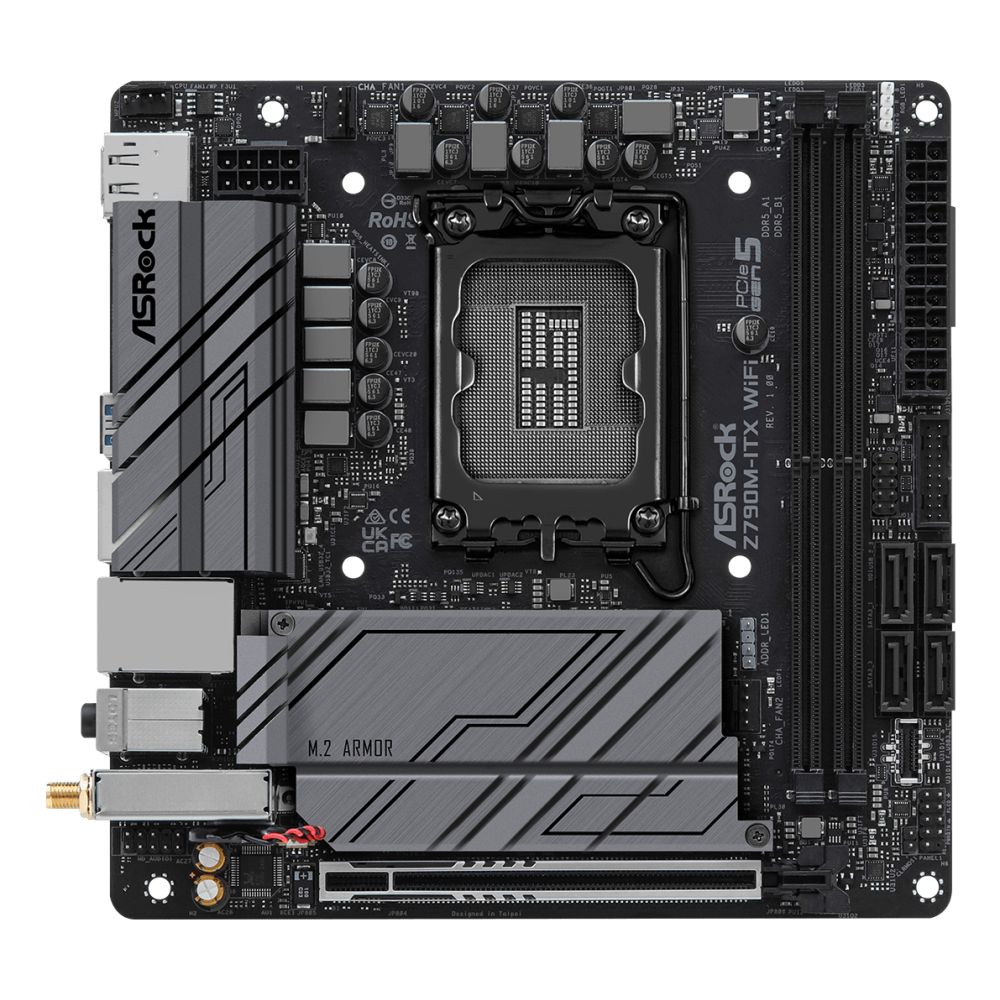

Asrock Z790M-ITX WiFi Motherboard
£152.78 inc VAT
5 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Z790 mini ITX motherboard for compact PC builds
- Supports Intel Core i5/i7/i9 processors on LGA 1700 socket
- Dual-channel DDR5 memory up to 64GB with non-ECC compatibility
- PCIe 5.0 x16 slot with surface-mount technology for enhanced stability
- Wi-Fi 6E and 2.5Gb Ethernet for high-speed connectivity
- Realtek ALC897 7.1-channel audio with Nahimic enhancement
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock Z790M-ITX WiFi | Compact Intel Z790 Powerhouse
The Asrock Z790M-ITX WiFi Intel Z790 LGA 1700 mini ITX delivers high-end desktop performance in a compact mini-ITX form factor. Designed for Intel’s 13th and 12th Gen processors, this motherboard combines robust power delivery, DDR5 memory support, and advanced connectivity—making it ideal for small-form-factor gaming rigs, media centres, or professional workstations where space is at a premium.
Key Specifications
| Metric | Spec. |
|---|---|
| Form Factor | Mini ITX |
| Socket | LGA 1700 |
| Memory Support | DDR5 (up to 64 GB) |
| Storage | M.2 NVMe + 4x SATA III |
| Wi-Fi | Wi-Fi 6E + Bluetooth |
| LAN | 2.5 Gb Ethernet |
| PCIe Slots | 1x PCIe 5.0 x16 |
Power & Performance Engineered
Built around a 7+1+1 Dr.MOS power phase design, this motherboard delivers stable, clean power to Intel Core i5, i7, and i9 CPUs. The integrated power stages intelligently manage current delivery per phase, reducing heat and improving efficiency—crucial for sustained performance during intensive workloads or extended gaming sessions.
DDR5 Memory with Protection
Supporting up to 64 GB of DDR5 memory across two DIMM slots, the Z790M-ITX WiFi includes a dedicated protection circuit for DDR5 modules. This safeguards against electrical damage during installation or removal, a common concern with the unique architecture of DDR5 DIMMs.
Next-Gen Connectivity
With Wi-Fi 6E, Bluetooth, and a 2.5 Gb Ethernet port, this board ensures fast, reliable network access. Front USB 3.2 Gen2 Type-C and four rear USB 3.2 Gen2 ports offer high-speed data transfer. The single PCIe 5.0 x16 slot is ready for the latest GPUs, delivering up to 128 GB/s bandwidth.
Audio & RGB Customisation
Featuring the Realtek ALC897 codec with Nahimic Audio, you get immersive 7.1-channel sound with noise suppression and voice stabilisation—ideal for gaming and streaming. Polychrome RGB headers let you personalise lighting across compatible components, syncing effects for a cohesive look.

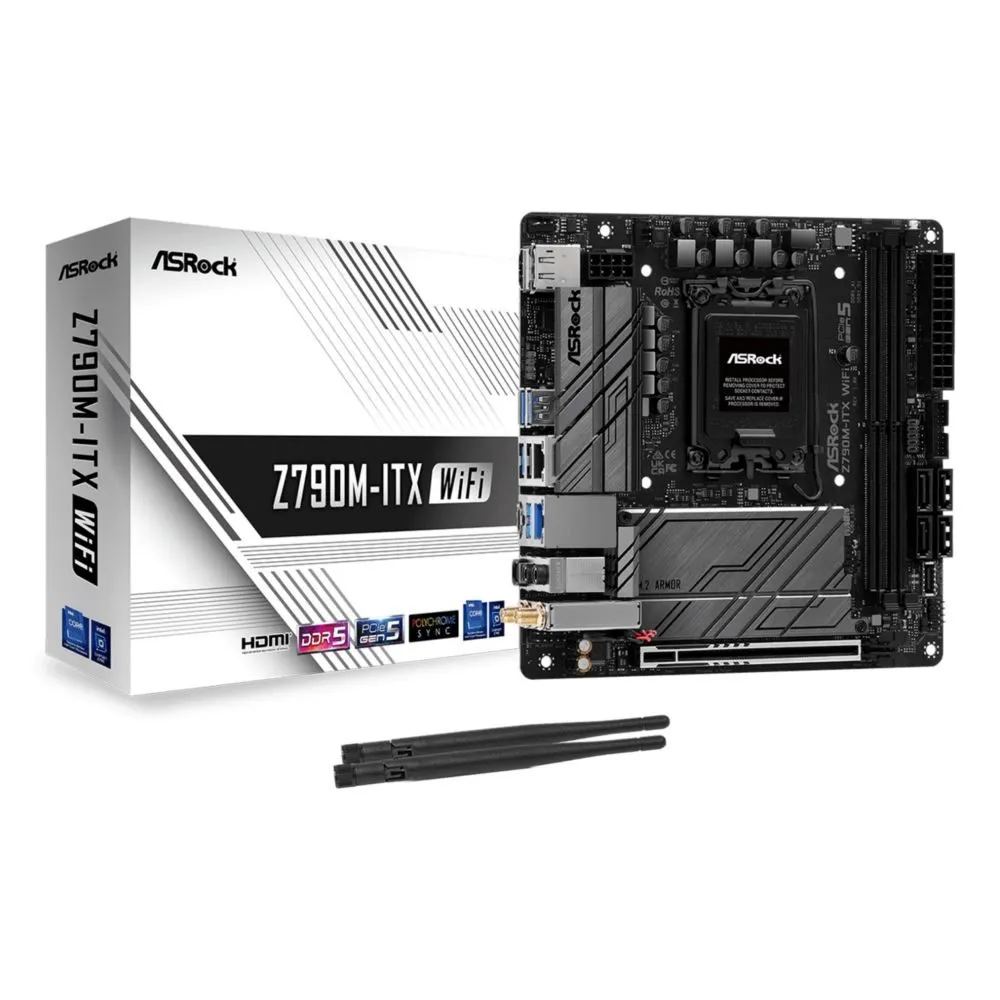

Box Contents
- ASRock Z790M-ITX WiFi motherboard
- I/O shield
- User manual
- SATA cables (quantity not specified)
- M.2 screws and standoff
- Warranty card
Check Before You Buy
- Confirm your CPU is LGA 1700 and 13th/12th Gen Intel Core compatible
- Verify your DDR5 memory modules are non-ECC and XMP/EXPO capable
- Ensure your chassis supports mini ITX (170 mm × 170 mm)
- Check that your GPU fits with the single PCIe 5.0 x16 slot
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM modules.
Q: Can I use this board for overclocking?
A: Yes, it supports XMP/EXPO profiles for DDR5 memory and has robust power delivery for CPU overclocking.
Q: How many M.2 drives can I install?
A: One M.2 NVMe drive is supported; exact quantity not specified.
Q: Is Wi-Fi 6E backwards compatible?
A: Yes, it supports 802.11a/b/g/n/ac/ax (Wi-Fi 4/5/6E).
Q: What BIOS type does it use?
A: UEFI AMI BIOS with 128 Mbit flash memory.
The Consultant’s Verdict & Warranty
The Asrock Z790M-ITX WiFi Intel Z790 LGA 1700 mini ITX is a premium mini-ITX platform for users who want full desktop performance in a compact build. With DDR5 memory, PCIe 5.0, Wi-Fi 6E, and robust power delivery, it’s well-suited for high-performance gaming, content creation, or HTPC use. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |

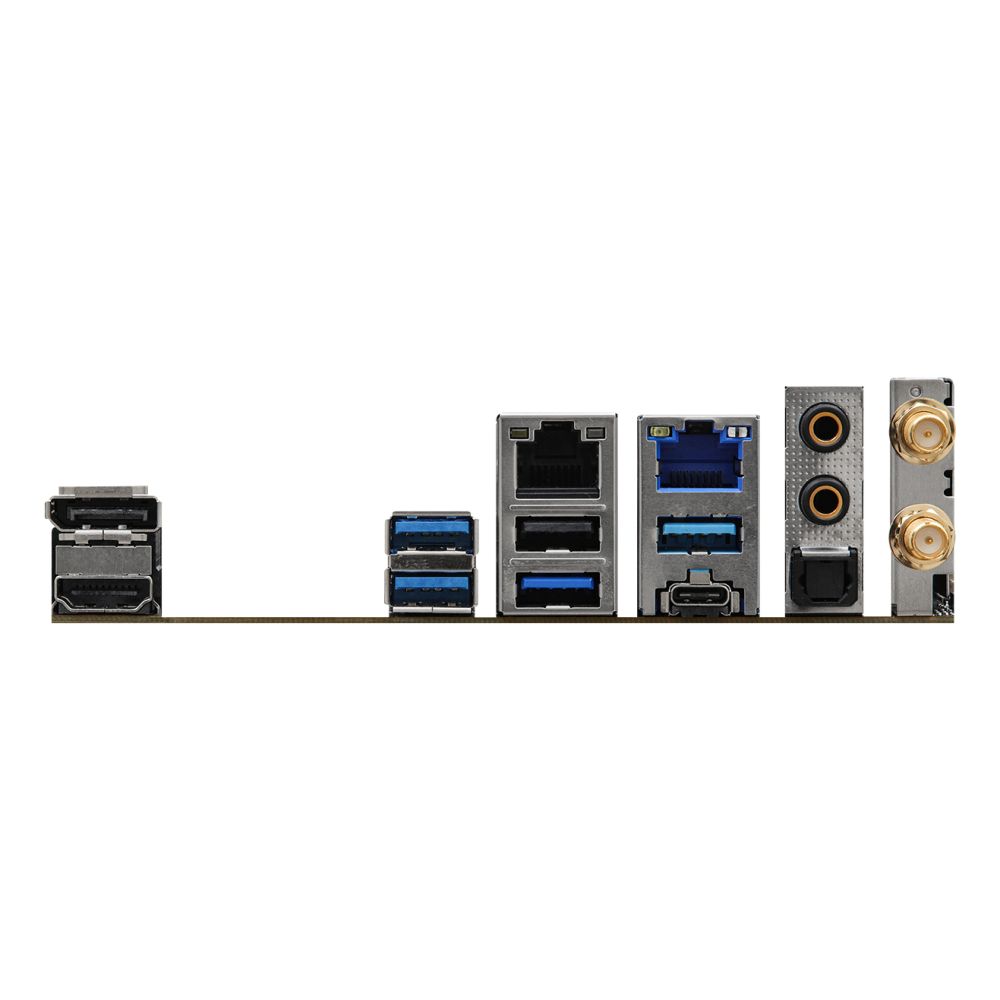

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 1 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Identifiers | |
| Distributor SKUs | W128279547, Z790M-ITX WIFI, 439521, MBASR-Z790MITXWF, Z790M-ITXWIFI, CLZ790M-ITXWIFI |
| Additional EANs | 5715328101128 |
