Asrock B850M Pro RS micro ATX motherboard

ASRock B850M Pro RS | AMD B850 Micro ATX Motherboard

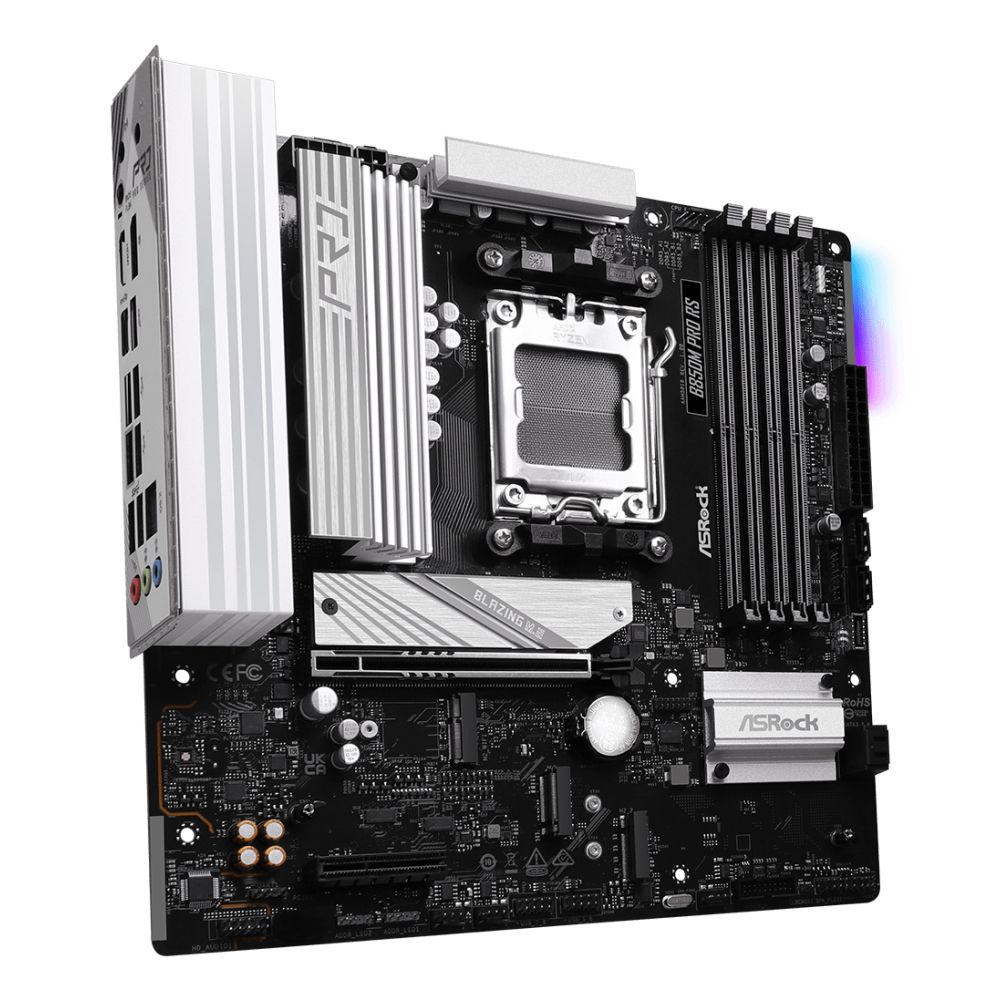

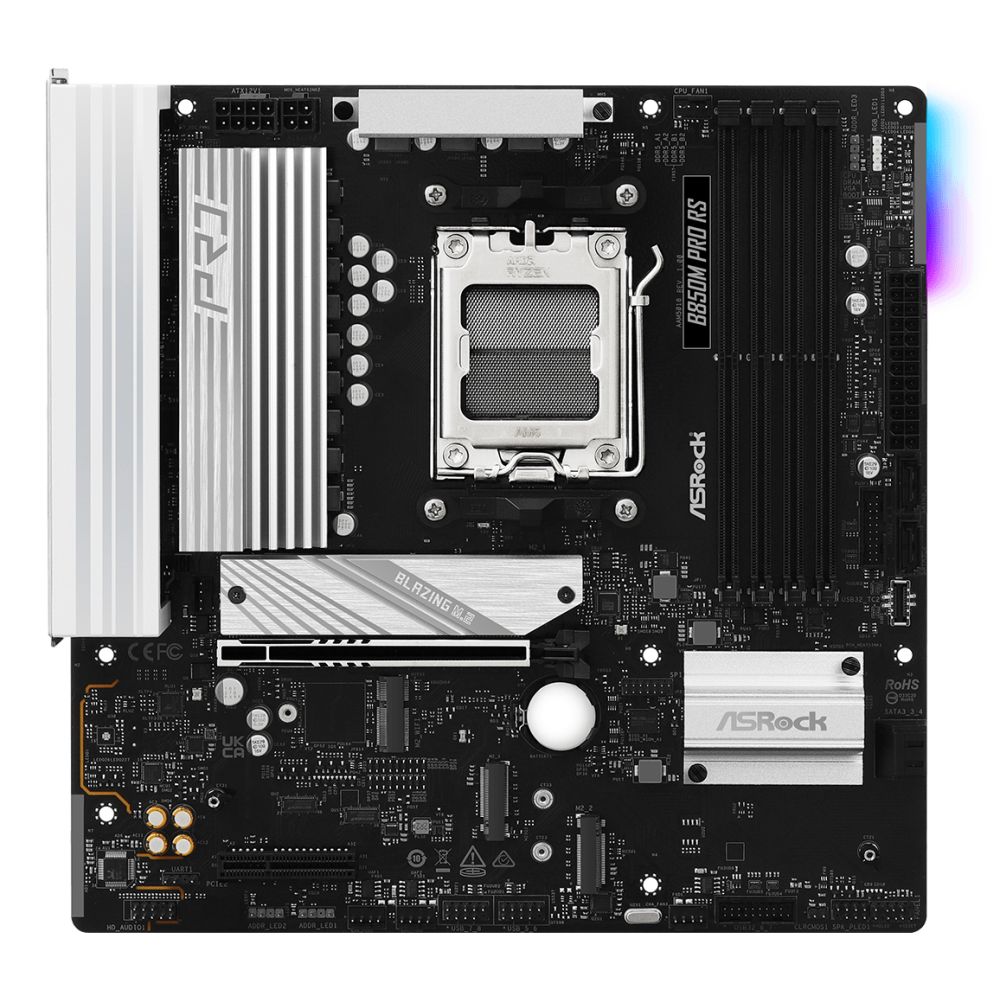

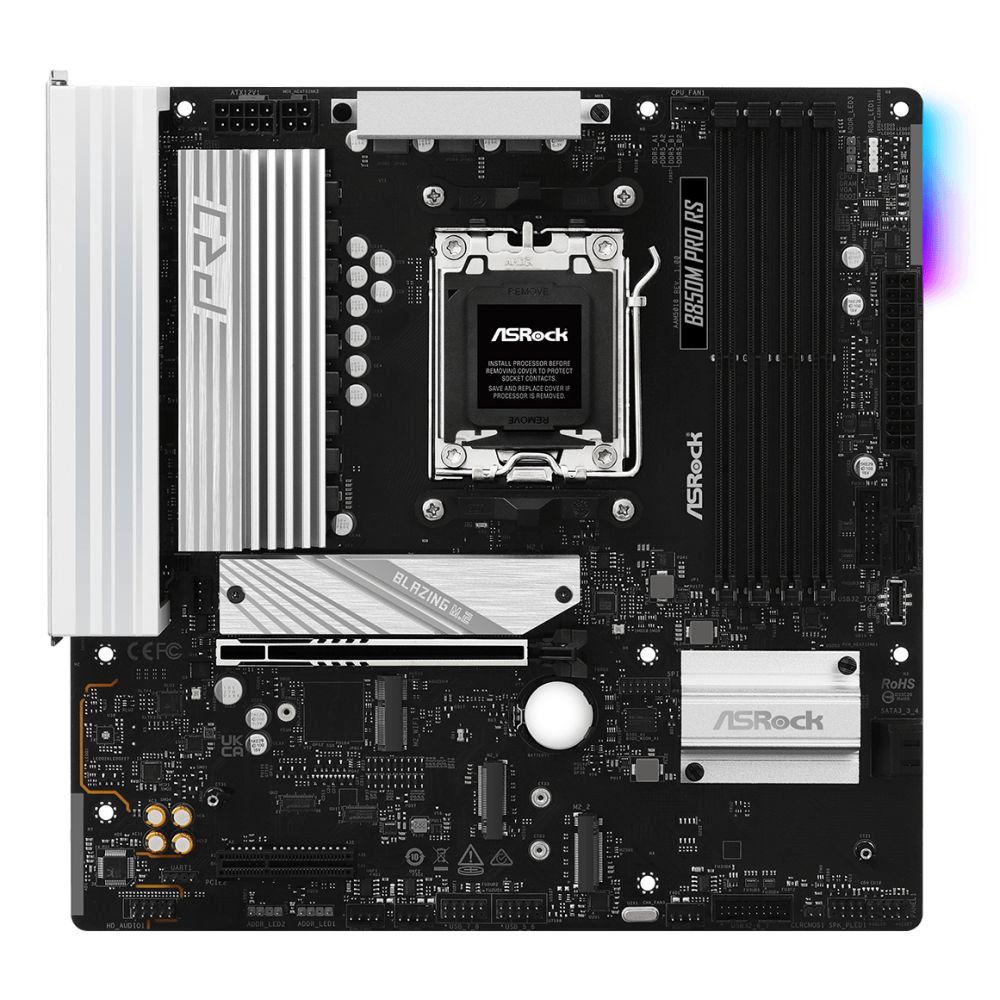

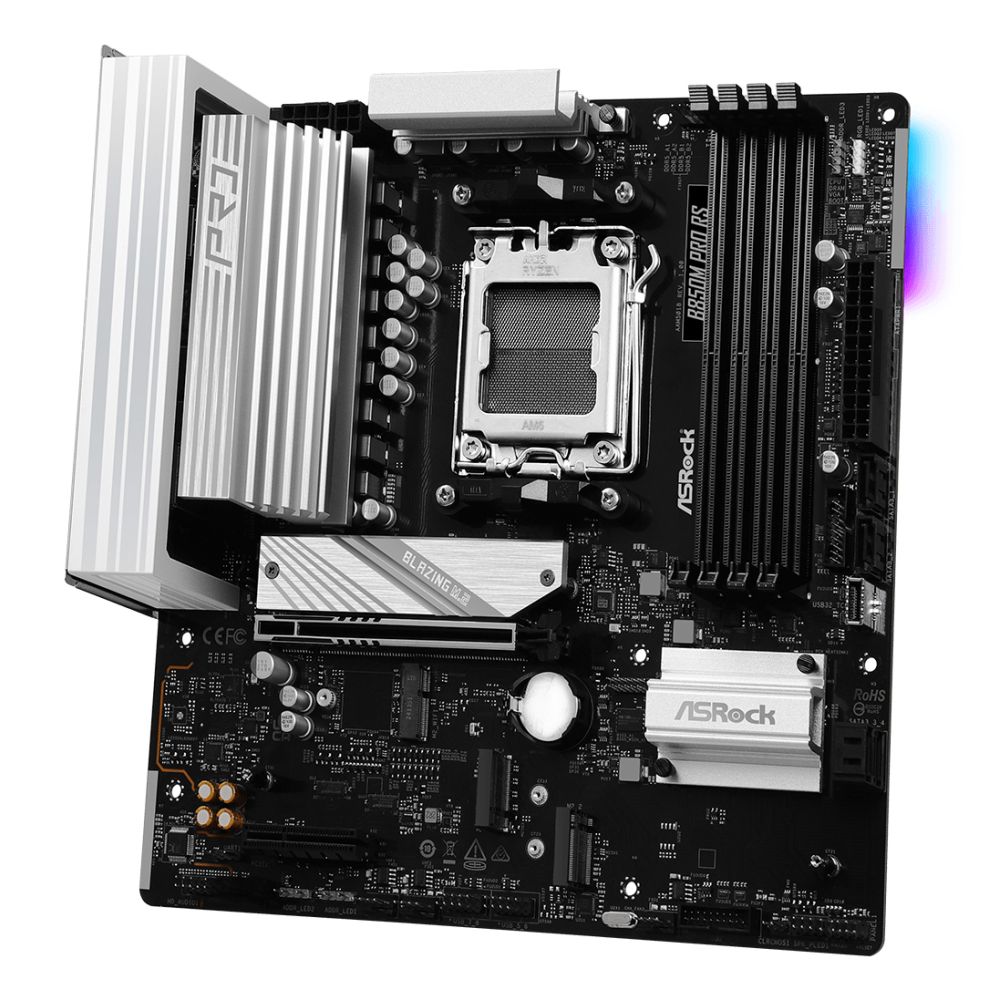

The Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX motherboard delivers robust performance for AMD Ryzen 7000, 8000, and 9000 Series processors. Built on the AMD B850 chipset with Socket AM5, this micro ATX board combines advanced features like PCIe 5.0 support, DDR5 memory compatibility, and comprehensive cooling solutions for both gaming and productivity workloads.

Key Specifications

Optimized VRM Design for Stable Power Delivery

The 8+2+1 power phase design with Dr. MOS technology ensures smooth, efficient power delivery to your CPU. This intelligent design delivers higher current per phase compared to traditional MOSFETs, resulting in improved thermal performance and superior overclocking stability. The Hi-Density Power Connectors are engineered to handle higher currents, reducing fire risk during heavy overclocking scenarios.

High-Speed Storage and Memory Performance

Three M.2 slots provide exceptional storage flexibility: one blazing-fast PCIe 5.0 M.2 slot capable of 128Gb/s transfer speeds, plus two PCIe 4.0 M.2 slots for additional high-performance SSDs. The board supports up to seven storage drives total through its combination of M.2 and SATA III interfaces. DDR5 XMP/EXPO support allows enthusiasts to unlock memory overclocking potential with pre-tested profiles, supporting modules up to 256 GB across four DIMM slots.

Intelligent Cooling System

The aluminum heatsink design effectively manages heat dissipation during intensive workloads, while the 6-layer PCB provides stable signal traces and improved energy efficiency. ASRock’s comprehensive cooling features include PWM/DC fan support with automatic detection, plus the Fan-Tastic Tuning function that auto-detects minimum fan duty and allows visual curve adjustment through the UI interface.

Comprehensive Connectivity Options

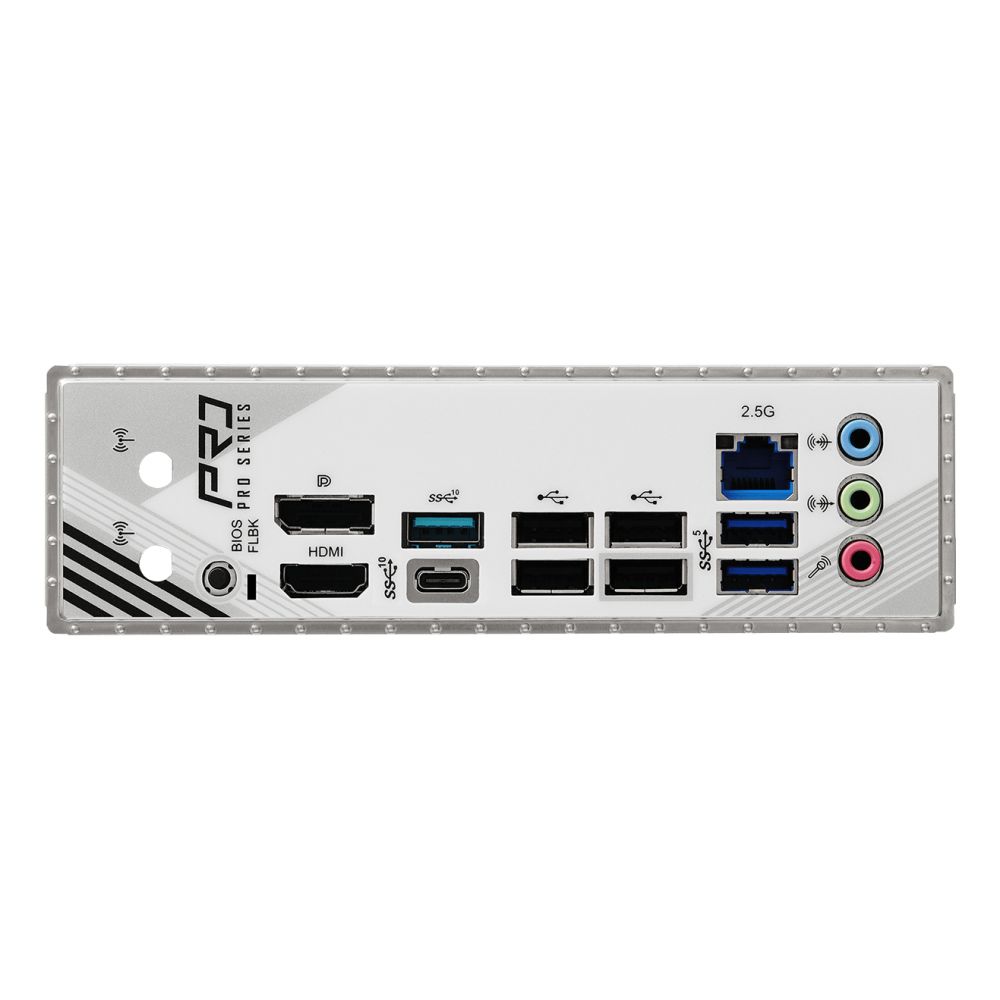

Dual graphics outputs (HDMI 2.1 + DisplayPort 1.4) provide flexible display connectivity, while the reinforced steel PCIe 5.0 slot ensures secure installation of heavy graphics cards. The 2.5 Gb/s Dragon LAN delivers up to 2.5× the bandwidth of standard gigabit Ethernet, ideal for gaming, content creation, and media streaming. USB 3.2 Gen 2 Type-C plus multiple USB 3.2 and 2.0 ports ensure broad peripheral compatibility.

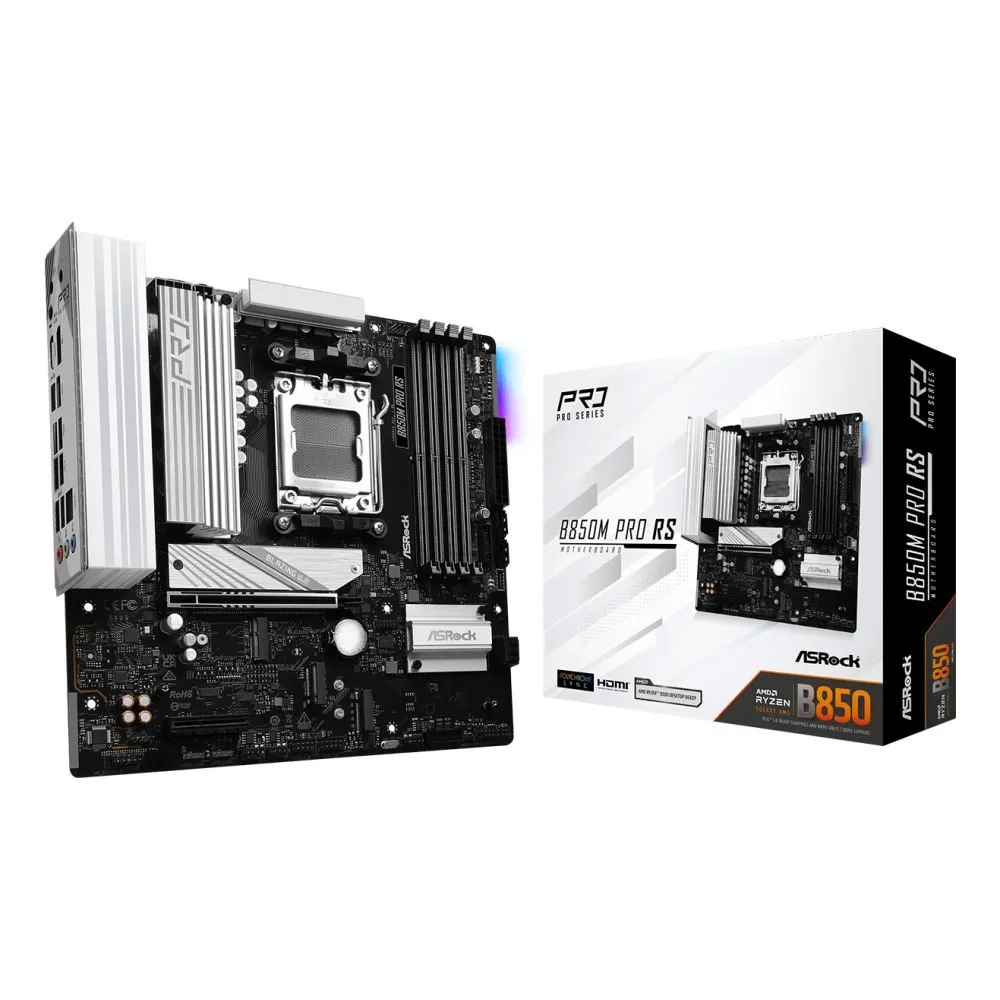

Box Contents

• ASRock B850M Pro RS motherboard
• SATA cables
• Mounting screws
• I/O shield (pre-installed)

Check before you buy

• Confirm your AMD Ryzen processor is compatible with Socket AM5
• Verify you have adequate case space for micro ATX (244×244 mm) dimensions
• Ensure your power supply has the required 8-pin EPS and 24-pin ATX connectors
• Check that your intended M.2 SSDs match the PCIe generation slots available

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi?

A: No, the Asrock B850M Pro RS does not include built-in Wi-Fi. You’ll need to use the 2.5 Gb/s Ethernet or add a Wi-Fi card.

Q: What memory speeds are supported?

A: The board supports DDR5 memory with XMP/EXPO profiles for overclocking. Maximum capacity is 256 GB across four DIMM slots.

Q: Can I use this with an AMD Ryzen 7000 CPU?

A: Yes, it’s compatible with AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket.

Q: How many M.2 drives can I install?

A: You can install up to three M.2 SSDs: one PCIe 5.0 and two PCIe 4.0 drives.

Q: Is the BIOS easy to update?

A: Yes, the motherboard features ASRock’s EZ Setting with convenient BIOS flashing via USB without requiring CPU or RAM.

The Consultant’s Verdict & Warranty

The Asrock B850M Pro RS offers exceptional value for AMD AM5 platform builders seeking PCIe 5.0 storage, DDR5 memory support, and reliable power delivery in a compact micro ATX form factor. Its combination of advanced VRM design, comprehensive cooling, and future-proof connectivity makes it ideal for gaming enthusiasts and content creators who want performance without excessive complexity. Covered by the standard Manufacturer Warranty.
