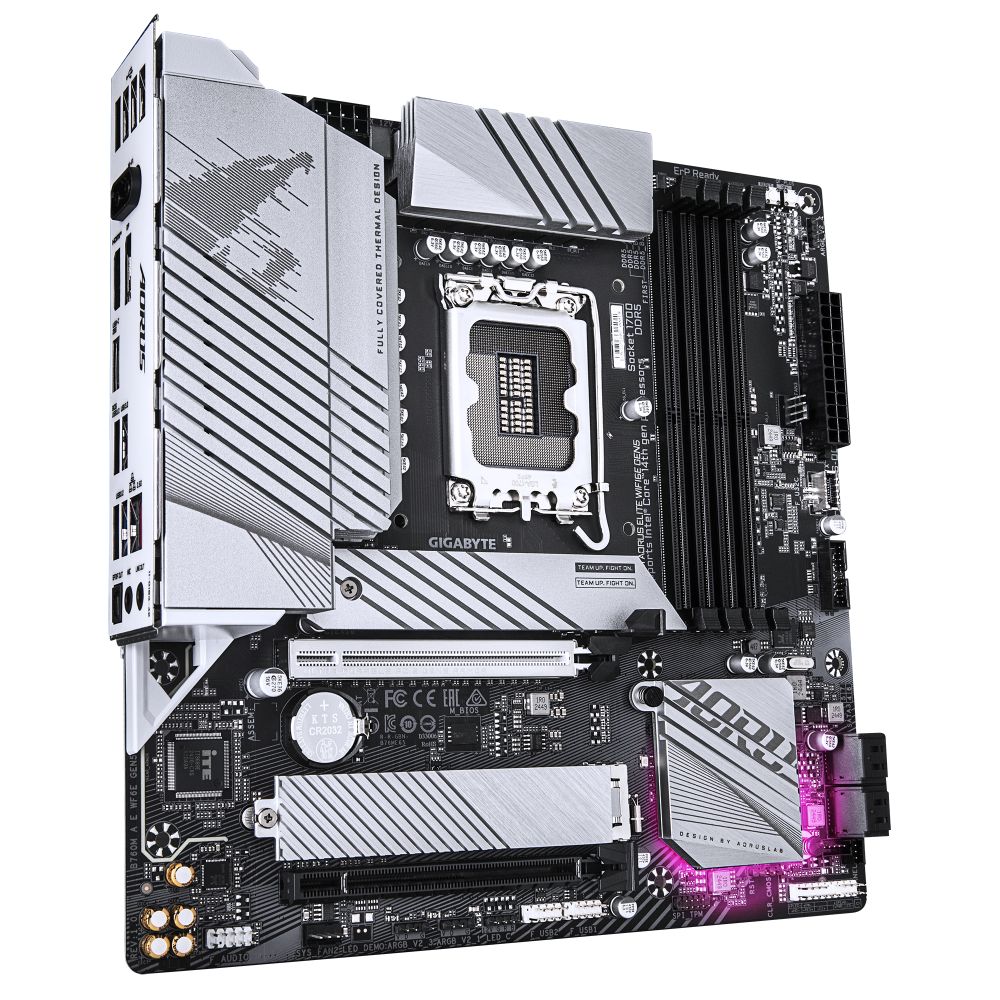

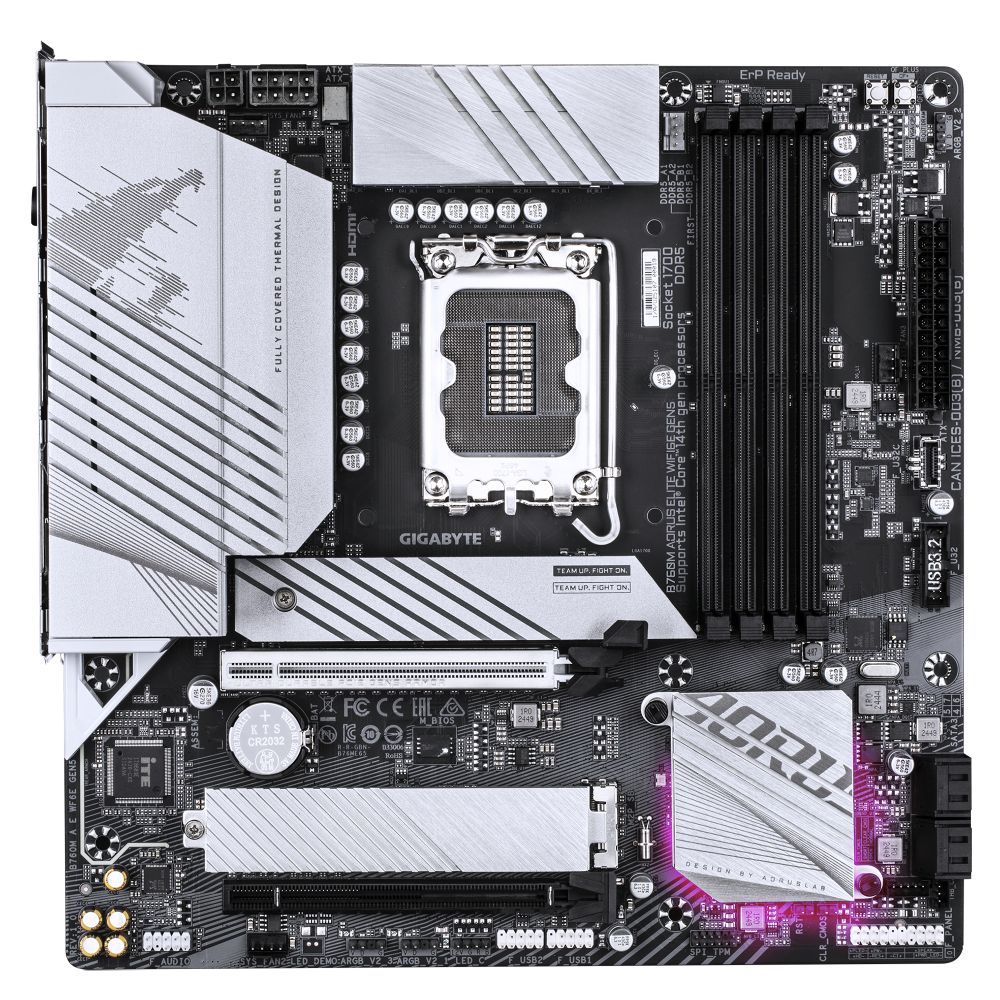

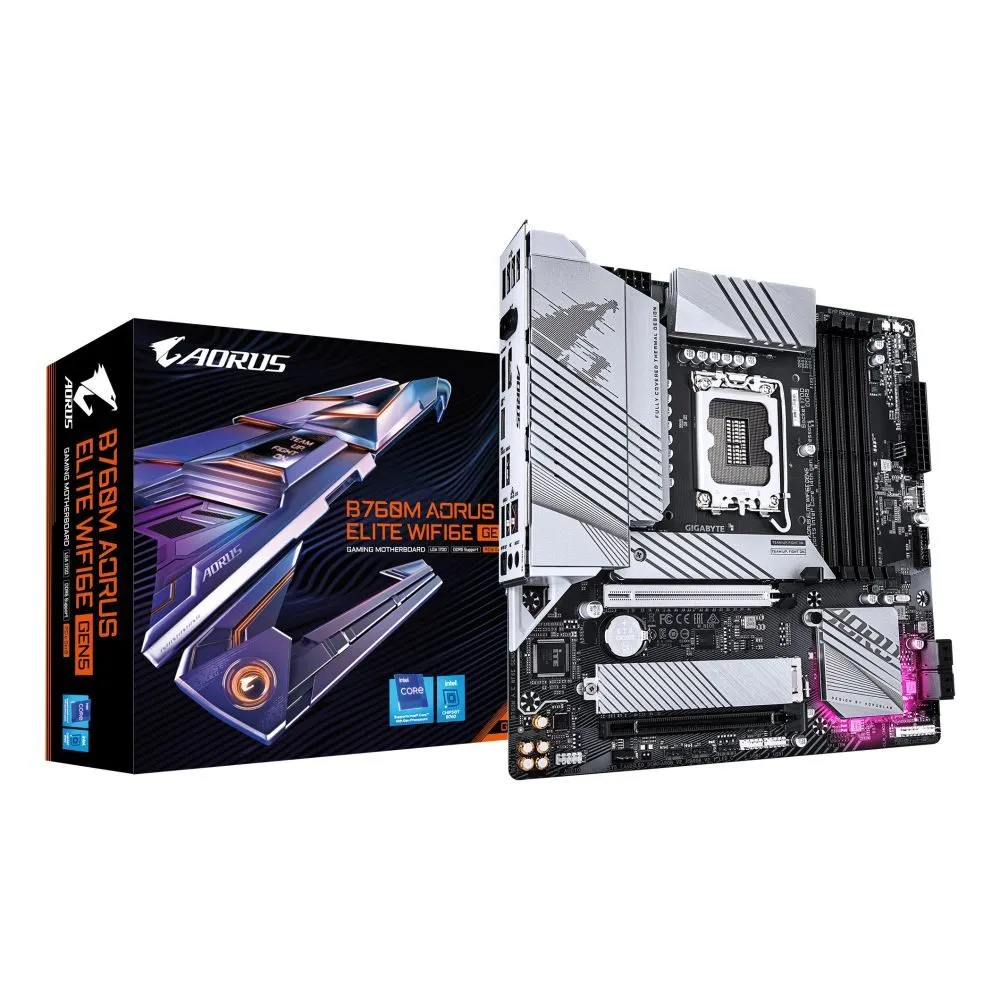

GIGABYTE B760M AORUS ELITE WiFi6E Motherboard
£152.64 inc VAT
10 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports 14th Gen Intel Core CPUs with LGA 1700 socket
- 12+1+1 phase VRM for stable power delivery
- Supports up to 5600MHz DDR5 memory
- 2x PCIe 4.0 M.2 slots for high-speed storage
- Wi-Fi 6E and 2.5 GbE LAN for fast connectivity
- micro ATX form factor with 7.1 channel audio
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE B760M AORUS ELITE WIFI6E GEN5 | Compact Powerhouse for Intel Builds
The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard delivers premium performance in a micro-ATX form factor, supporting 14th Gen Intel Core CPUs with advanced DDR5 memory, robust VRM cooling, and comprehensive connectivity options.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Support | 14th Gen Intel Core (LGA 1700) |
| Memory | DDR5, up to 5600MHz, 256GB max |
| Storage | 2x M.2 PCIe 4.0, 4x SATA III |
| Network | Wi-Fi 6E, 2.5GbE LAN, Bluetooth 5.3 |
| Form Factor | Micro ATX |
Built for Next-Gen Intel Performance
This motherboard features a 12+1+1 phase VRM design with advanced thermal management, ensuring stable power delivery for demanding 14th Gen Intel processors. The micro-ATX footprint makes it ideal for compact builds without sacrificing performance or expansion capabilities.
Future-Proof Connectivity
With dual PCIe 4.0 M.2 slots supporting the latest NVMe SSDs and comprehensive USB options including USB 3.2 Gen 2×2 Type-C, this board keeps your system ready for tomorrow’s storage and peripheral demands. The Wi-Fi 6E and 2.5GbE LAN provide versatile networking options for both wireless and wired connections.
Enhanced Audio and Cooling
Equipped with Realtek ALC1220-VB audio codec and 7.1 channel support, this motherboard delivers immersive sound quality. Multiple fan headers and temperature monitoring ensure optimal cooling for both air and liquid cooling setups, maintaining system stability under load.
Box contents
- GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard
- I/O shield
- User manual
- Driver/software support DVD
- SATA cables (quantity not specified)
- M.2 screws
- Wi-Fi antenna
- CMOS battery
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports micro ATX dimensions (244mm x 244mm)
- Check if your RAM is DDR5 and within supported speed ranges
- Ensure your power supply has necessary connectors (24-pin ATX, 8-pin EPS)
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this board only supports DDR5-SDRAM memory modules.
Q: Can I use this with a 13th Gen Intel processor?
A: Yes, it supports 12th, 13th, and 14th Gen Intel Core processors.
Q: How many graphics cards can I install?
A: There is one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot available.
Q: Does it come with built-in Wi-Fi?
A: Yes, it features Intel Wi-Fi 6E AX210 with Bluetooth 5.3.
The Consultant’s verdict & warranty
The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is an excellent choice for users building compact yet powerful Intel systems, particularly those prioritising modern connectivity and future upgrade potential. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Digital audio optical out | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.75 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.75 kg |
| Weight | 1.33 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.75 kg |
| Weight | 1.33 kg |
