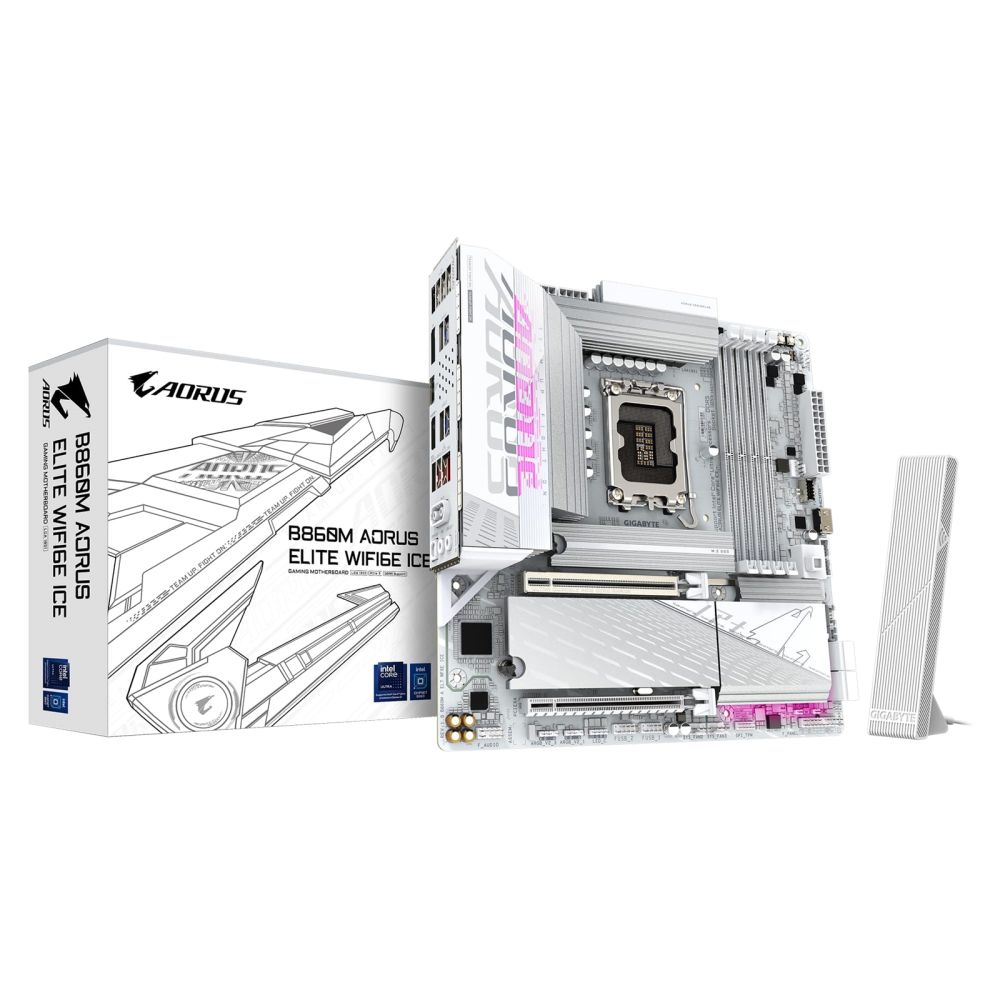

Gigabyte B860M AORUS ELITE WiFi6E Motherboard

Gigabyte B860M AORUS ELITE WIFI6E ICE | Micro-ATX Powerhouse for Intel Core Ultra

The Gigabyte B860M AORUS ELITE WIFI6E ICE Intel 1851 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI… delivers cutting-edge performance for Intel Core Ultra processors in a compact Micro-ATX form factor. Built with advanced thermal management and ultra-fast connectivity, this board is ideal for gamers, content creators, and PC builders seeking next-gen performance without sacrificing space.

Key Specifications

Digital Twin VRM for Stable Power Delivery

The 12+1+2 phase digital twin VRM solution ensures consistent, clean power delivery to Intel Core Ultra processors, even under heavy workloads. This architecture reduces voltage ripple and heat, maintaining system stability during intense gaming or rendering sessions. The VRM Thermal Armor Advanced further enhances cooling efficiency, preventing thermal throttling.

Ultra-Fast Storage and Memory Performance

With support for PCIe 5.0 x4 M.2 storage and DDR5 memory up to 9200MT/s (OC), this motherboard offers industry-leading data transfer speeds. The D5 Bionic Corsa technology optimises memory performance, while the four DIMM slots allow for up to 256GB of system memory. XMP support ensures plug-and-play overclocking for enthusiasts.

Comprehensive Connectivity and Expansion

Featuring USB4 Type-C with DisplayPort Alt Mode, HDMI 2.1, and DisplayPort 2.1 outputs, the B860M AORUS ELITE WIFI6E ICE supports multi-display setups up to 4K@144Hz. The 2.5GbE LAN and Intel Wi-Fi 6E AX211 provide lightning-fast network speeds, while the fitted I/O shield and EZ-Latch designs simplify installation and maintenance.

AI-Driven BIOS and User-Friendly Features

GIGABYTE’s AI Perfdrive automatically configures optimal BIOS settings based on your hardware, making system tuning accessible to all users. The multi-theme UEFI BIOS, Q-Flash Plus for BIOS updates without a CPU, and Smart Backup functionality streamline the building and maintenance process.

Box contents

• Gigabyte B860M AORUS ELITE WIFI6E ICE motherboard
• I/O shield
• User manual
• Driver/software support DVD
• SATA cables (quantity not specified)

Check before you buy

• Confirm your Intel Core Ultra processor is supported on Gigabyte’s CPU support list.
• Verify your DDR5 memory modules are compatible with the motherboard’s speed and capacity limits.
• Ensure your case supports Micro-ATX form factor (24.4cm x 24.4cm).
• Check if your GPU and other expansion cards fit with the PCIe 5.0 M.2 SSD installed.

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it supports Windows 11 64-bit.

Q: Can I use this board with non-ECC DDR5 memory?

A: Yes, it supports both ECC and non-ECC unbuffered DDR5 DIMMs.

Q: How many displays can I connect simultaneously?

A: Up to four displays can be connected at once via the available video outputs.

Q: Is Wi-Fi 6E included on this motherboard?

A: Yes, it features Intel Wi-Fi 6E AX211 with 2.4/5/6 GHz support.

Q: Does the motherboard come with RGB lighting?

A: Yes, it includes addressable RGB Gen2 LED strip headers for custom lighting.

The Consultant’s verdict & warranty

The Gigabyte B860M AORUS ELITE WIFI6E ICE is an excellent choice for UK users building compact, high-performance systems with Intel Core Ultra processors. Its combination of PCIe 5.0 storage, Wi-Fi 6E, and robust VRM cooling makes it future-proof for demanding applications. Covered by the standard Manufacturer Warranty.
