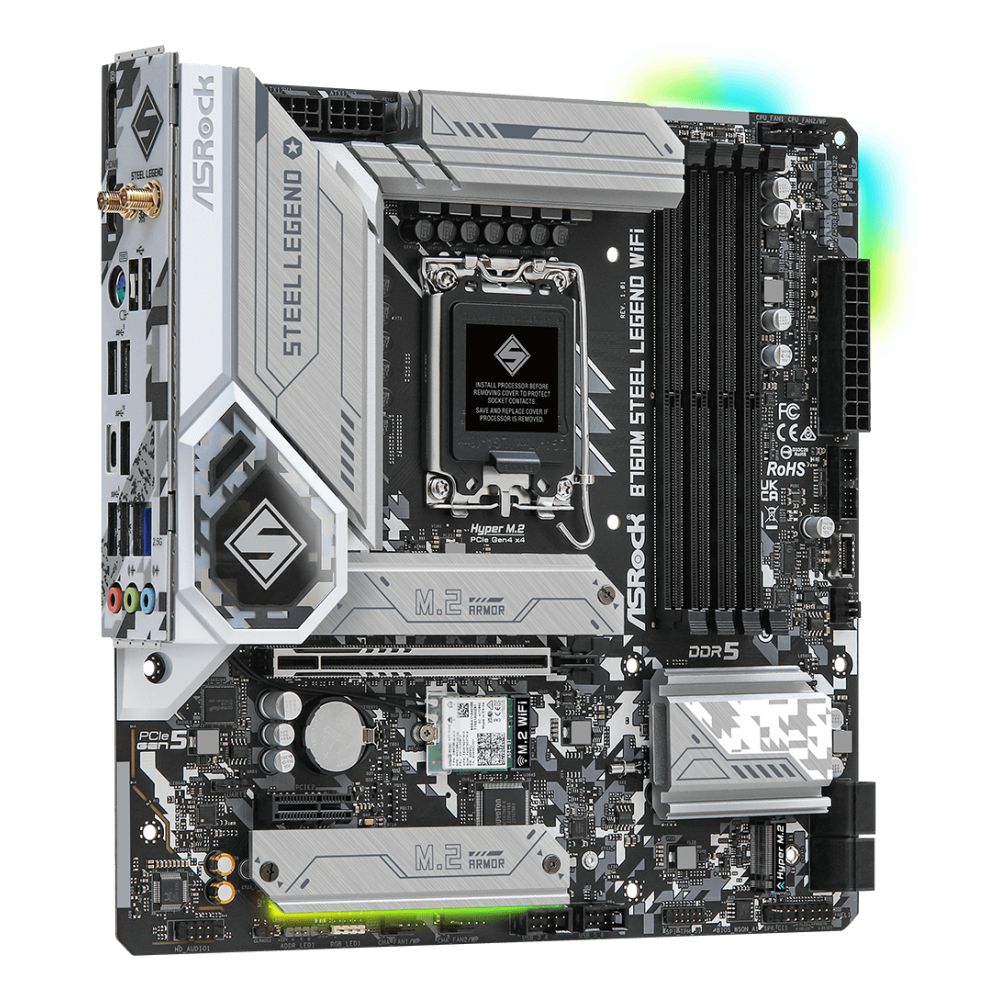

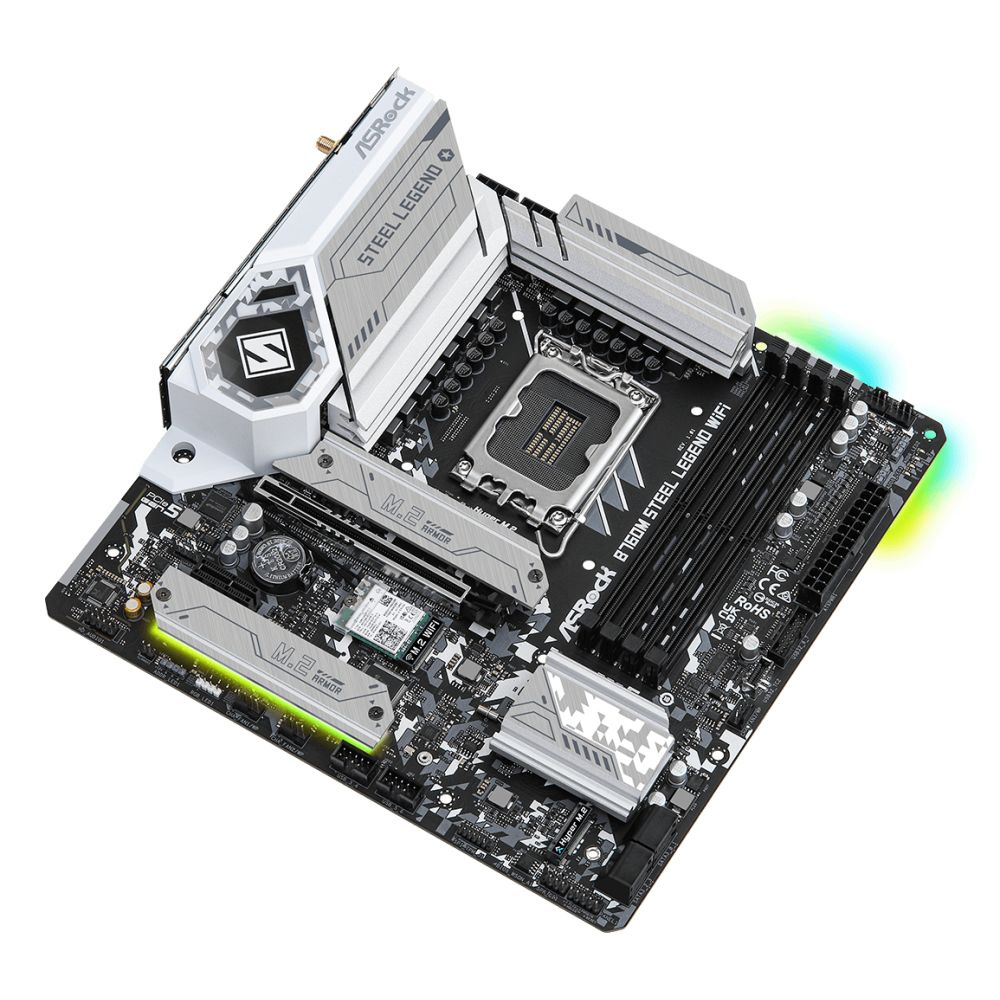

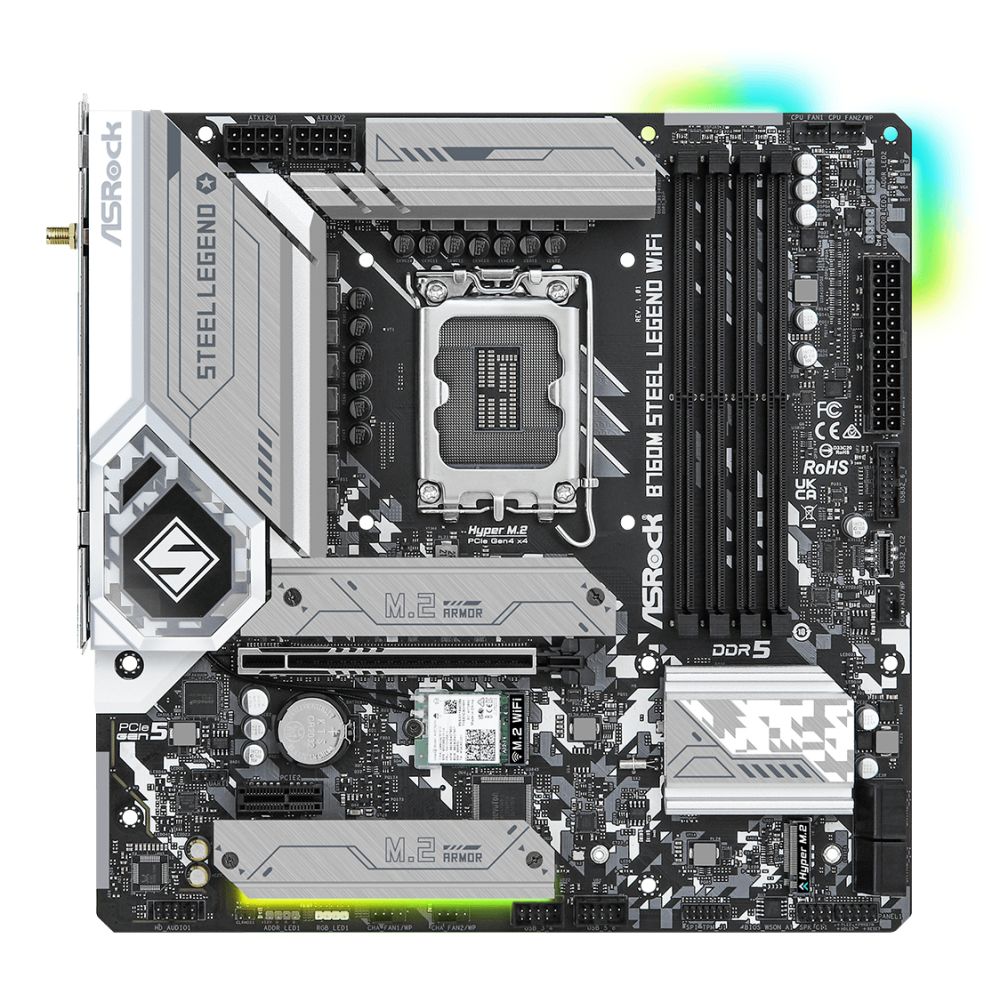

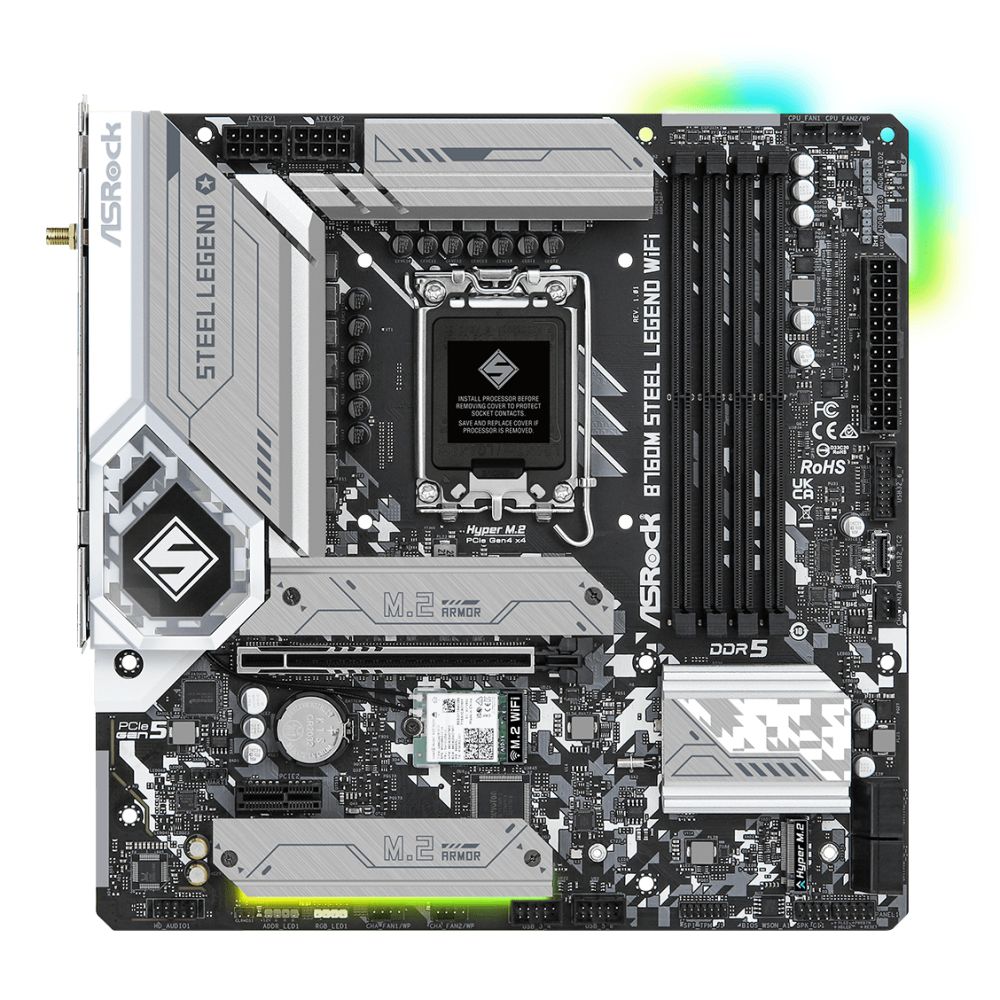

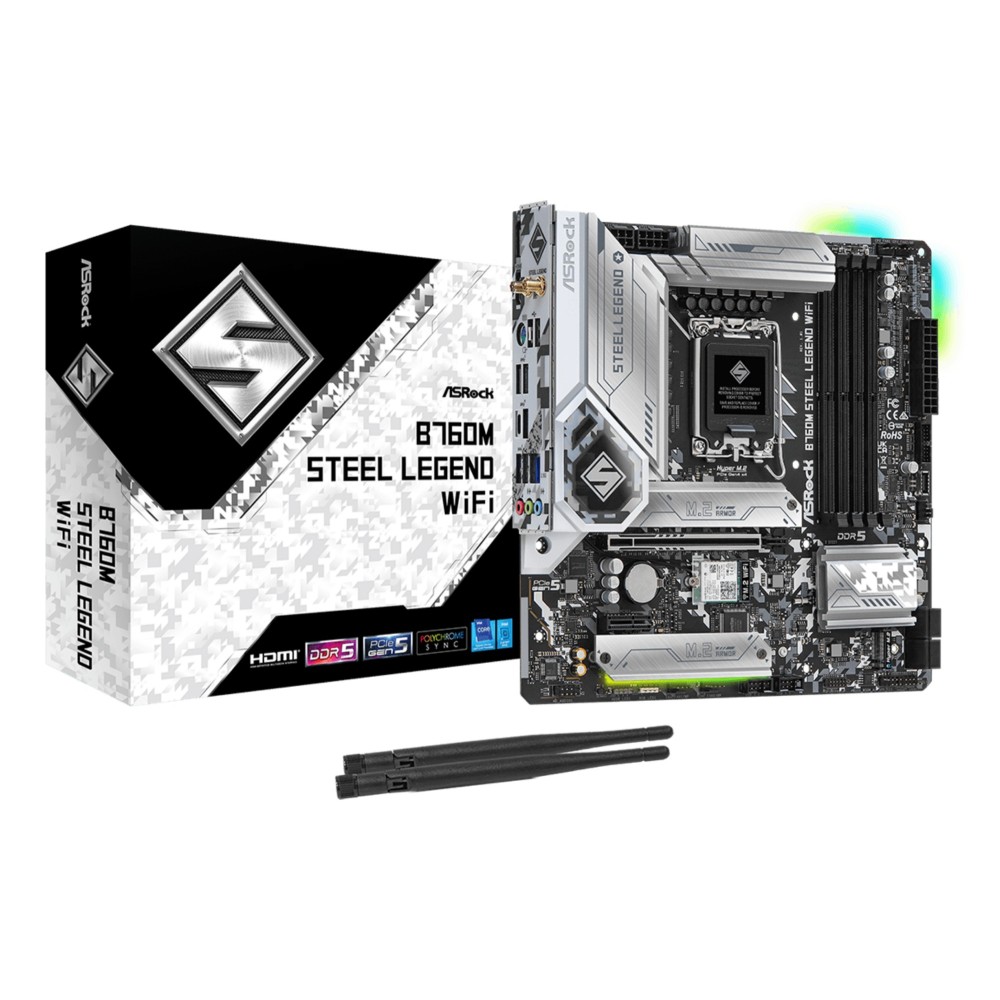

ASRock B760M Steel Legend Wi-Fi Intel B760 Motherboard LGA 1700 micro ATX DDR5 Wi-Fi 6E
£149.14
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Intel B760 chipset supporting LGA 1700 processors including Core i5 i7 and i9 series
- Four DDR5 DIMM slots allowing up to 128GB dual-channel memory with XMP and EXPO overclocking profiles
- Micro ATX form factor featuring a reinforced PCIe 5.0 x16 slot for high speed graphics cards
- One M.2 slot supporting PCIe Gen4 x4 SSDs alongside four SATA III connectors for HDD or SSD storage
- Integrated Wi-Fi 6E and Bluetooth 5.3 paired with Dragon 2.5 Gigabit Ethernet for fast networking
- Rear I/O includes USB 3.2 Gen2 Type-A and Type-C ports plus DisplayPort and HDMI video outputs
- 7.1 channel audio with Nahimic engine and 12+1+1 power phase design using Dr MOS technology
Available alternatives
Asrock B760 PRO RS LGA1700 ATX Motherboard
In stock
Asrock B760M Pro RS Intel B760
In stock
Asrock B760M-H2/M.2 Intel Motherboard
In stock
Asrock B760M-HDV/M.2 Intel Micro ATX Motherboard
In stock
You may also like
Asrock A620AI WiFi Mini ITX Motherboard
In stock
Asrock B760M-X Gen5 Intel 1700 Motherboard
In stock
Asrock B850 Steel Legend WiFi ATX
In stock
Asrock B760M-H2/M.2 Intel Motherboard
In stock
Asrock A620AM-HVS AM5 Micro ATX Motherboard
In stock
Asrock B650M-HDV AMD B650 AM5 micro ATX
In stock
Asrock B760M-HDV/M.2 Intel Micro ATX Motherboard
In stock
Asrock B650 PG Lightning AMD B650 ATX
In stock
Asrock B850M Pro RS micro ATX motherboard
In stock
Asrock A620AM PRO-A micro ATX motherboard
In stock
Asrock B650M-H/M.2+ AMD B650 AM5 micro ATX
In stock
ASRock B550M-HDV Micro-ATX AMD Motherboard
In stock
ASRock B760M Steel Legend Wi-Fi – Robust DDR5 Platform
We recommend this board for builders seeking reliable performance. The ASRock B760M Steel Legend Wi-Fi Intel B760 Motherboard LGA 1700 micro ATX DDR5 Wi-Fi 6E supports latest Intel CPUs. It delivers stable power delivery for daily tasks. You get modern connectivity including Wi-Fi 6E. This ensures fast wireless speeds for gaming.
Specifications for the ASRock B760M Steel Legend Wi-Fi Intel B760 Motherboard LGA 1700 micro ATX DDR5 Wi-Fi 6E
| Metric | Spec. |
|---|---|
| Processor Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | micro ATX |
| Max Memory | 128 GB DDR5 |
| Wireless | Wi-Fi 6E (802.11ax) |
| Ethernet | 2.5 Gigabit LAN |
Efficient power delivery design
This board uses a 12+1+1 power phase design. Dr. MOS technology improves thermal results significantly. You benefit from smoother power to the CPU. This helps maintain performance under sustained loads.
Fast storage and expansion
You get one M.2 slot supporting PCIe Gen4. There are four SATA III ports available. A PCIe 5.0 x16 slot is present. This ensures stability for future graphics cards.
Modern connectivity options
Rear ports include dual USB 3.2 Gen2. One port is Type-C for versatility. Wi-Fi 6E provides access to the 6GHz spectrum. Bluetooth 5.3 connects wireless peripherals easily.
Polished audio and visuals
Realtek audio powers the 7.1 output channels. Nahimic Audio helps clear voice noise. A DisplayPort 1.4 and HDMI port exist. Visual output works on various monitors seamlessly.
Package contents
We include a standard SATA cable in the box. No driver disc is needed for installation.
Before you order
Confirm your processor uses the LGA 1700 socket. Verify your chassis supports micro ATX dimensions. Check that your memory modules are DDR5 type.
Common questions
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: Yes, it supports DDR5-SDRAM up to 128 GB maximum.
Q: Is Wi-Fi 6E included onboard?
A: Yes, Wi-Fi 6E and Bluetooth 5.3 are built-in.
Q: How many M.2 slots are available?
A: The board provides one M.2 M slot for storage.
Q: Can I install PCIe 5.0 GPUs?
A: Yes, the primary slot supports PCIe 5.0 standards.
Our final assessment
The ASRock B760M Steel Legend Wi-Fi Intel B760 Motherboard LGA 1700 micro ATX DDR5 Wi-Fi 6E suits mainstream users. We appreciate the balanced feature set for this chipset.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |

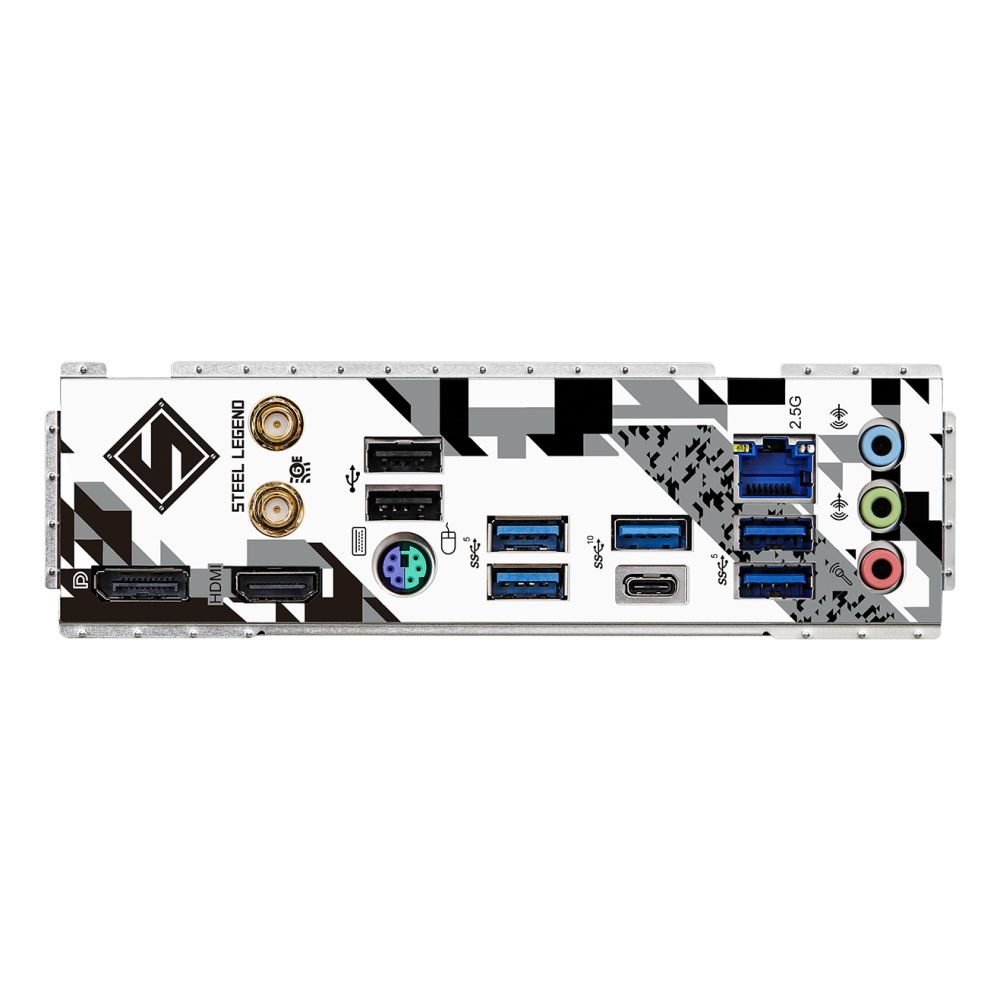

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| PCI Express x1 (Gen 4.x) slots | 1 |
