GIGABYTE H610M K DDR4 Motherboard for Intel 14th Gen CPUs
£54.15 inc VAT
24 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports Intel 14th Gen CPUs
- Micro ATX form factor
- 2 DIMM slots, up to 64GB DDR4
- 1x M.2 and 2x SATA III storage
- Realtek ALC897 audio, 7.1 channels
- Gigabit Ethernet, HDMI 2.1
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

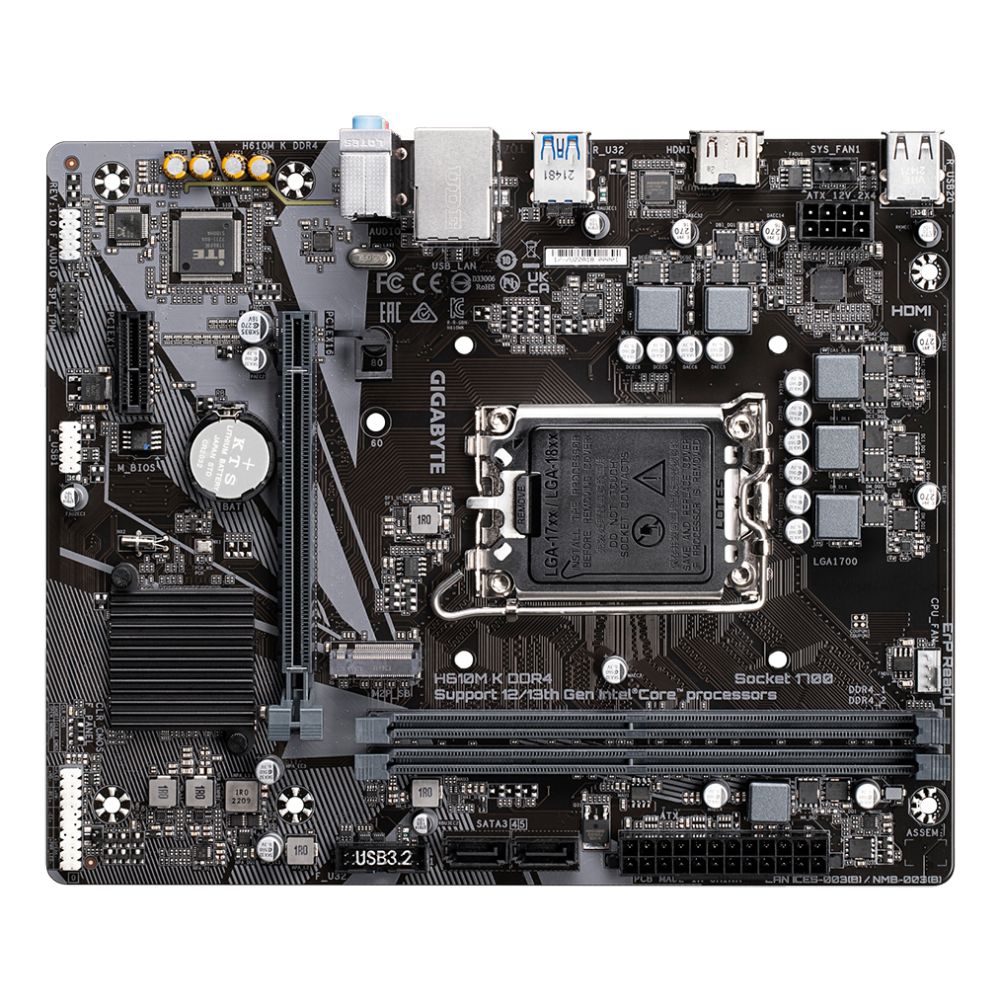

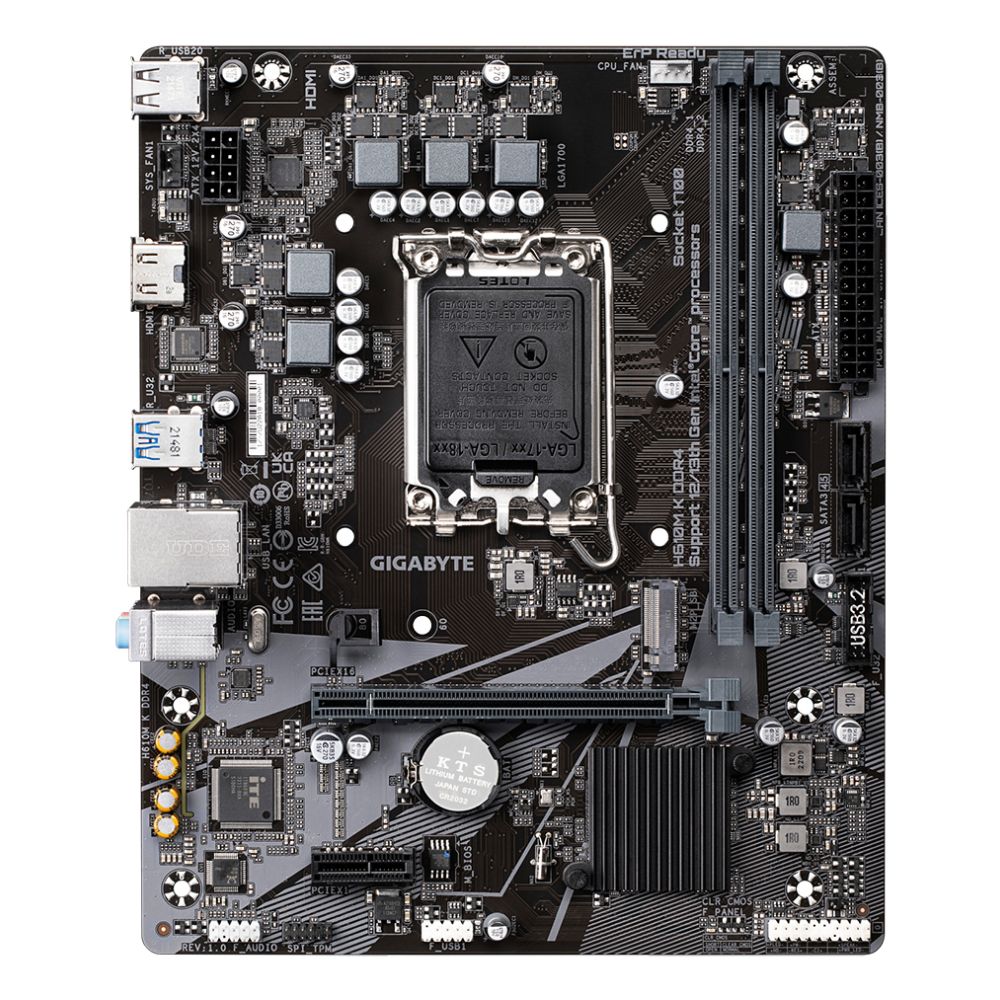

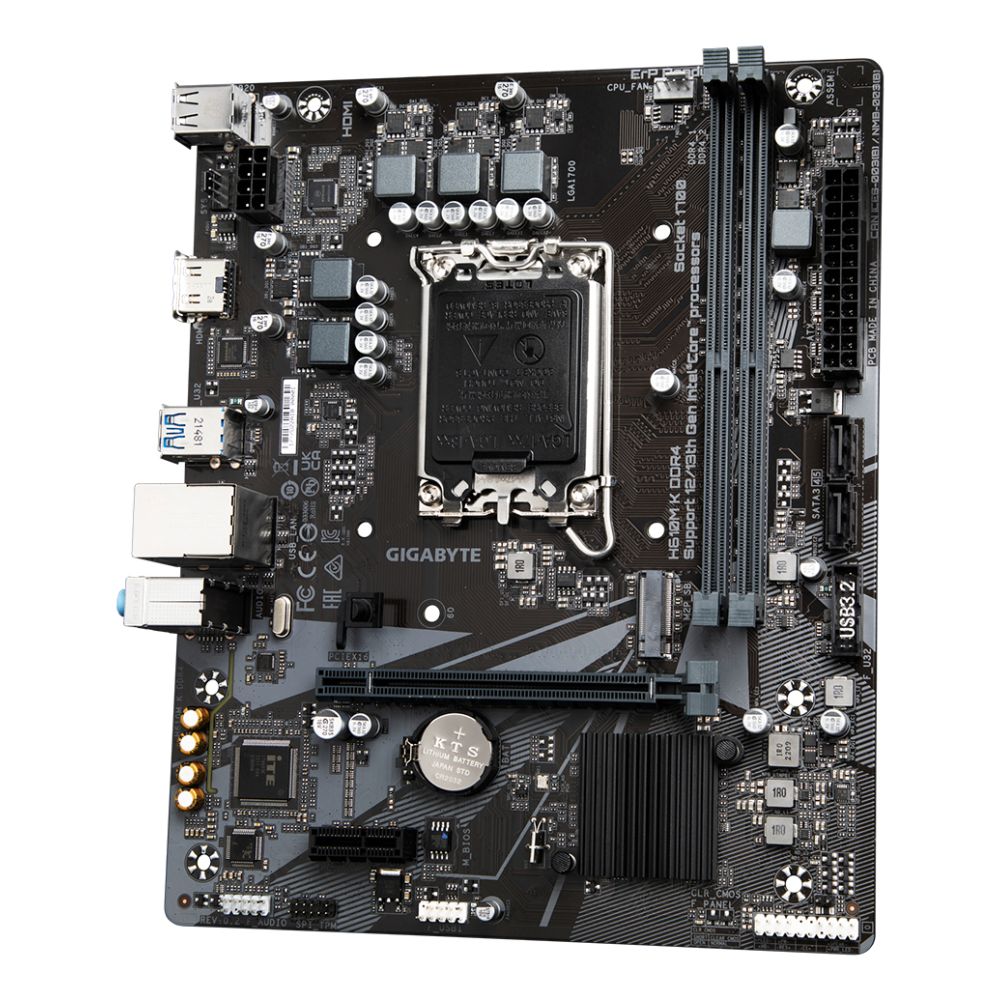

GIGABYTE H610M K | Micro ATX Motherboard for Intel 14th Gen
The GIGABYTE H610M K DDR4 Motherboard delivers a compact micro ATX platform engineered for Intel Core 14th Gen CPUs. With its 3+1+1 hybrid power design and support for up to 3200MHz DDR4 memory, this board balances performance and reliability for mainstream builds.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Socket | LGA 1700 |
| Memory Support | DDR4 up to 3200MHz |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2, 2x SATA III |
| LAN | Gigabit Ethernet |
| Form Factor | Micro ATX |
Compact Design with Robust Power Delivery
Built around Intel’s H610 Express chipset, the H610M K features a 3+1+1 phase hybrid power design that provides stable voltage regulation for Intel 14th Gen processors. The micro ATX form factor (226mm x 185mm) makes it ideal for space-conscious builds without sacrificing essential connectivity.
Storage and Expansion Options
This motherboard supports both modern and traditional storage solutions with one PCIe 3.0 M.2 slot for ultra-fast NVMe SSDs and two SATA III connectors for additional drives. The single PCIe 4.0 x16 slot accommodates the latest graphics cards, while the PCIe 3.0 x1 slot offers flexibility for add-in cards.
Connectivity and I/O Features
The H610M K provides comprehensive connectivity including USB 3.2 Gen 1 Type-A ports, HDMI 2.1 output supporting up to 4K resolution, and Gigabit Ethernet via Realtek RTL8111H controller. The 7.1 channel audio output, powered by Realtek ALC897 codec, delivers quality sound for multimedia applications.

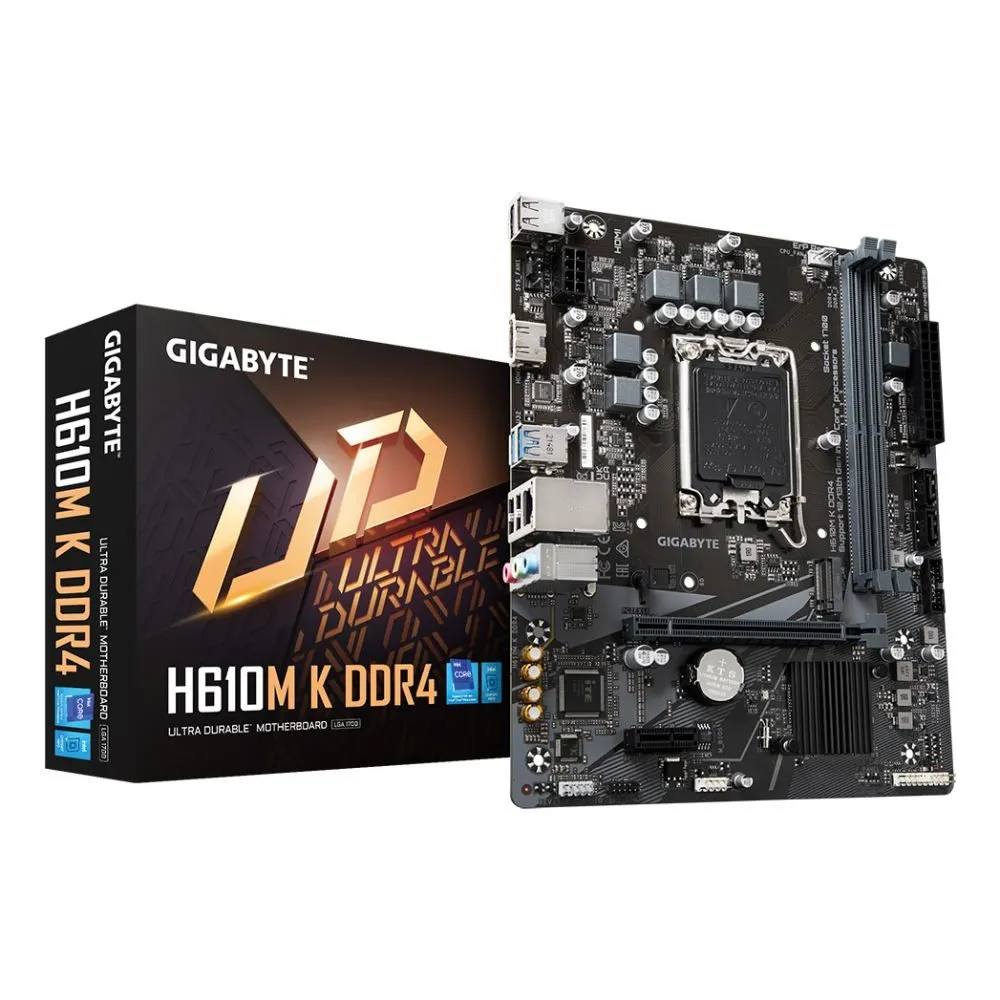

Box Contents
- GIGABYTE H610M K motherboard
- I/O shield
- SATA cables (2)
- User manual
- Driver/software disc
Check before you buy
- Confirm your Intel 14th Gen CPU is compatible with H610 chipset
- Verify your case supports micro ATX (9.6″ x 7.4″) dimensions
- Check if you need Wi-Fi connectivity (this board does not include wireless)
- Ensure your PSU has the required 24-pin ATX and 8-pin EPS connectors
Frequently Asked Questions
Q: Does this motherboard support Intel 14th Gen processors?
A: Yes, the H610M K supports Intel Core 14th Gen CPUs via LGA 1700 socket.
Q: What is the maximum memory speed supported?
A: The motherboard supports DDR4 memory up to 3200MHz when using compatible modules.
Q: How many M.2 drives can I install?
A: The board includes one M.2 slot for NVMe or SATA SSDs.
Q: Does this motherboard have built-in Wi-Fi?
A: No, the H610M K does not include Wi-Fi; it features Gigabit Ethernet only.
Q: What is the warranty period?
A: This motherboard comes with a 3-year manufacturer warranty.
The Consultant’s Verdict & Warranty
The GIGABYTE H610M K offers excellent value for users building compact systems with Intel 14th Gen processors. Its hybrid power design, support for high-speed DDR4 memory, and essential connectivity make it a reliable foundation for mainstream computing tasks. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Total number of SATA connectors | 2 |
| Front panel connector | Yes |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Number of SATA III connectors | 2 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Total number of SATA connectors | 2 |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 3 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |

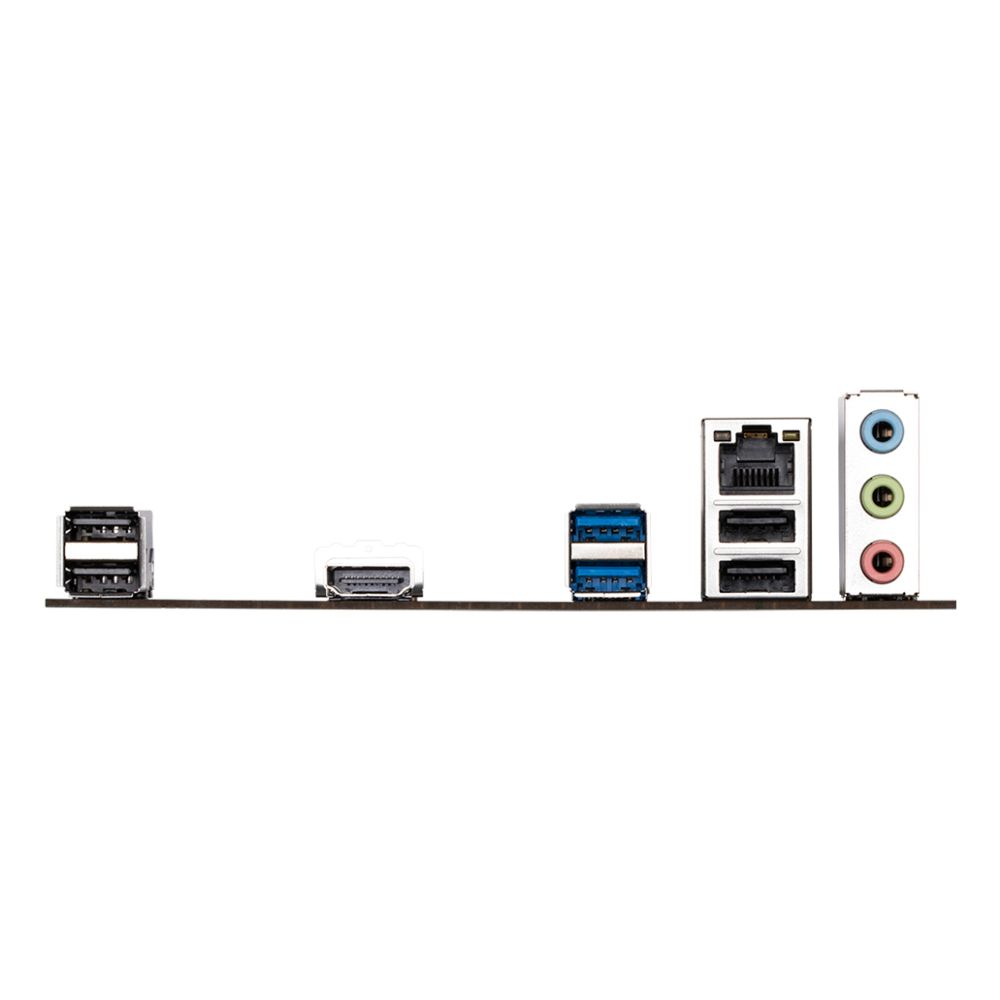

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Brown |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 717 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 717 g |
| Width | 226 mm |
| Depth | 185 mm |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 717 g |
