GIGABYTE H810M Gaming WiFi6 Motherboard
£101.81 inc VAT
9 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Core Ultra (Series 2) CPU support via LGA 1851 socket
- 4+1+2 phase VRM design for stable power delivery
- Micro ATX form factor with passive cooling solution
- Up to 6400MHz DDR5 memory support, dual-channel
- 1x PCIe 4.0 M.2 slot for high-speed storage
- 2.5GbE LAN and WiFi 6 for fast networking
- 7.1 channel audio with Realtek ALC897 codec
- Comprehensive I/O including HDMI 2.1, DisplayPort 2.1, USB 3.2 Gen 1
- Supports up to 128GB RAM with ECC compatibility
- 3-year warranty for peace of mind
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE H810M GAMING WIFI6 | Compact Intel Motherboard

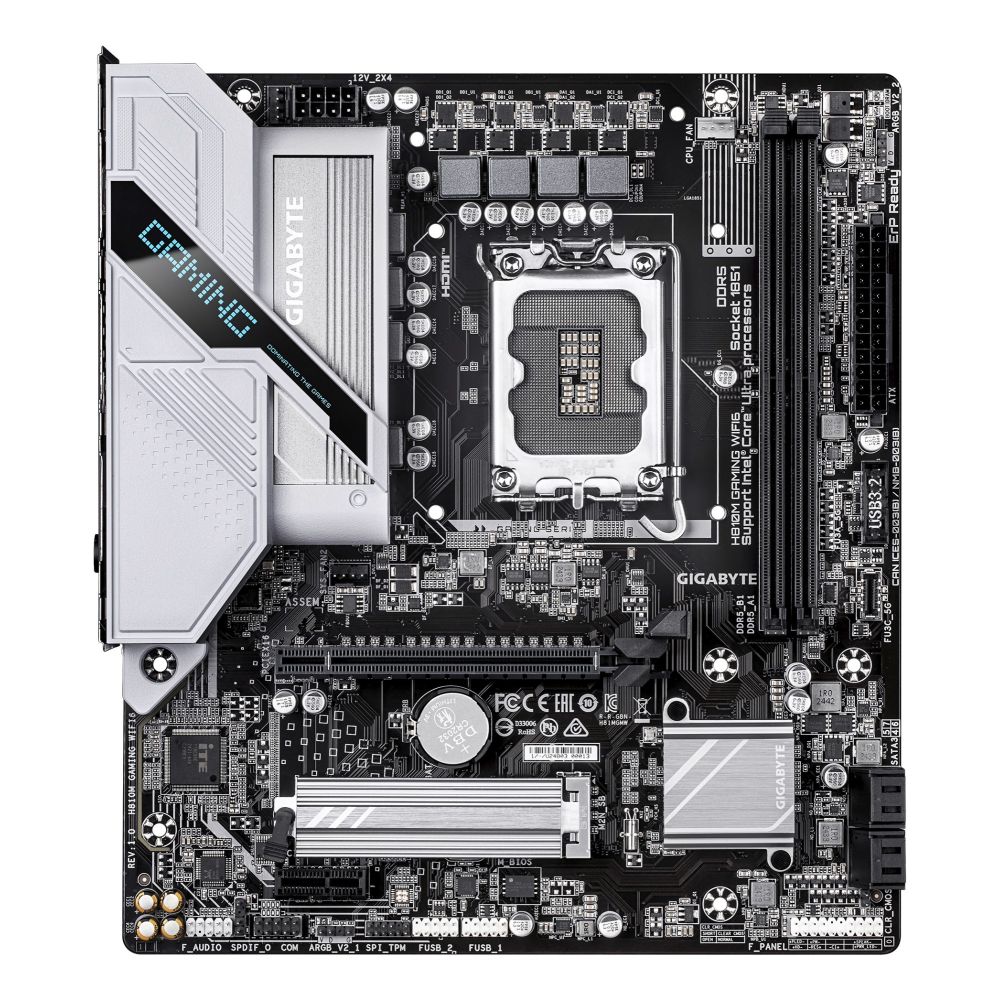

The GIGABYTE H810M GAMING WIFI6 motherboard delivers robust performance for Intel Core Ultra (Series 2) processors in a micro ATX form factor. With 4+1+2 phase VRM design, DDR5 memory support up to 6400MHz, and comprehensive connectivity including 2.5GbE LAN and WiFi 6, this board balances power efficiency with modern gaming and productivity demands.
Slim Specs Table
| Metric | Spec |
|---|---|
| Processor Support | Intel Core Ultra (Series 2), LGA 1851 |
| Memory | 2x DIMM, DDR5, up to 128GB, 6400MHz |
| Storage | 1x PCIe 4.0 M.2, 4x SATA III |
| Networking | 2.5GbE LAN, WiFi 6, Bluetooth 5.3 |
| Form Factor | micro ATX |
Efficient Power Delivery for Intel Core Ultra CPUs
The 4+1+2 phase VRM configuration provides stable power delivery to Intel Core Ultra (Series 2) processors. This design ensures efficient thermal management during intensive workloads, maintaining consistent performance whether you’re gaming, streaming, or running demanding applications. The passive cooling solution keeps noise levels minimal while protecting components from overheating.
High-Speed DDR5 Memory Performance
With dual-channel DDR5 support reaching up to 6400MHz, this motherboard enables rapid data access and smooth multitasking. The 128GB maximum capacity accommodates future memory upgrades, while ECC compatibility provides additional reliability for professional workloads. Two DIMM slots offer straightforward installation without compromising performance.
Versatile Storage and Expansion Options
The PCIe 4.0 M.2 slot delivers ultra-fast NVMe SSD performance for quick boot times and application loading. Combined with four SATA III ports and RAID 0, 1, 5, and 10 support, you can configure multiple storage solutions to match your needs. The single PCIe x16 slot accommodates discrete graphics cards for enhanced visual performance.
Comprehensive Connectivity Suite
Modern connectivity options include WiFi 6 with dual antenna support for stable wireless networking, 2.5GbE Ethernet for lag-free online gaming, and Bluetooth 5.3 for peripheral connections. Multiple USB ports (including USB 3.2 Gen 1) and 7.1 channel audio ensure all your devices connect seamlessly, whether for work or entertainment.
Box contents
- GIGABYTE H810M GAMING WIFI6 motherboard
- I/O shield
- User manual
- Driver DVD
- SATA cables
- Screws
- WiFi antennas
- CR2032 battery
Check before you buy
- Confirm your CPU is Intel Core Ultra (Series 2) with LGA 1851 socket
- Verify your case supports micro ATX motherboards (244mm x 215mm)
- Check that your power supply has required 24-pin ATX and 8-pin EPS connectors
- Ensure your DDR5 memory is compatible with 6400MHz speeds
Frequently Asked Questions
Q: What processors work with this motherboard?
A: Intel Core Ultra (Series 2) processors with LGA 1851 socket.
Q: How many M.2 slots are available?
A: One PCIe 4.0 M.2 slot supporting 2280 size drives.
Q: Does it support WiFi 6?
A: Yes, with Realtek RTL8851BE controller and dual antenna jacks.
Q: What’s the maximum RAM capacity?
A: 128GB across two DDR5 DIMM slots.
Q: Is there onboard graphics support?
A: Yes, with HDMI 2.1 and DisplayPort 2.1 outputs.
The Consultant’s verdict & warranty
The GIGABYTE H810M GAMING WIFI6 offers excellent value for users building compact systems with Intel Core Ultra (Series 2) processors. Its balanced feature set, including WiFi 6, 2.5GbE networking, and DDR5 memory support, makes it suitable for both gaming and productivity. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Supported processor sockets | LGA 1851 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 5 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
| Weight | 1.1 kg |
| Width | 244 mm |
| Depth | 215 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
| Weight | 1.1 kg |
| Identifiers | |
| Additional EANs | 0889523047941 |
