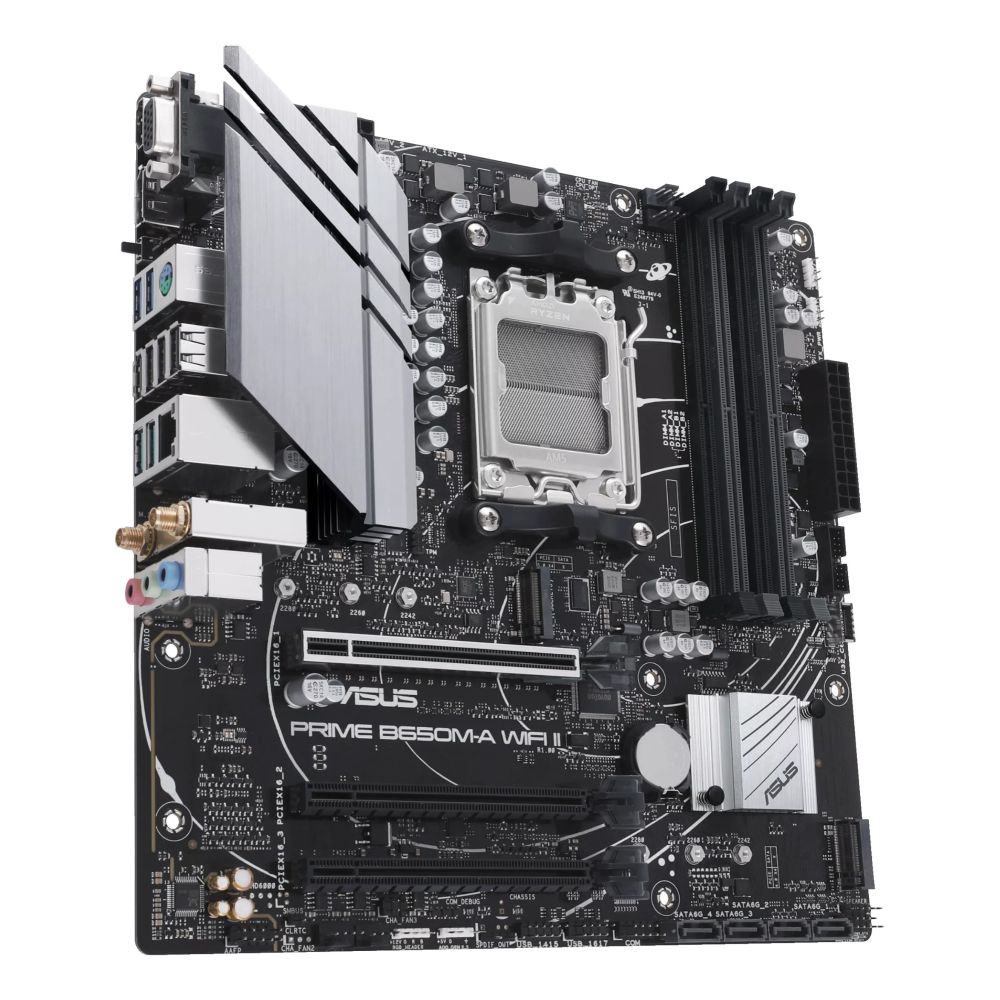

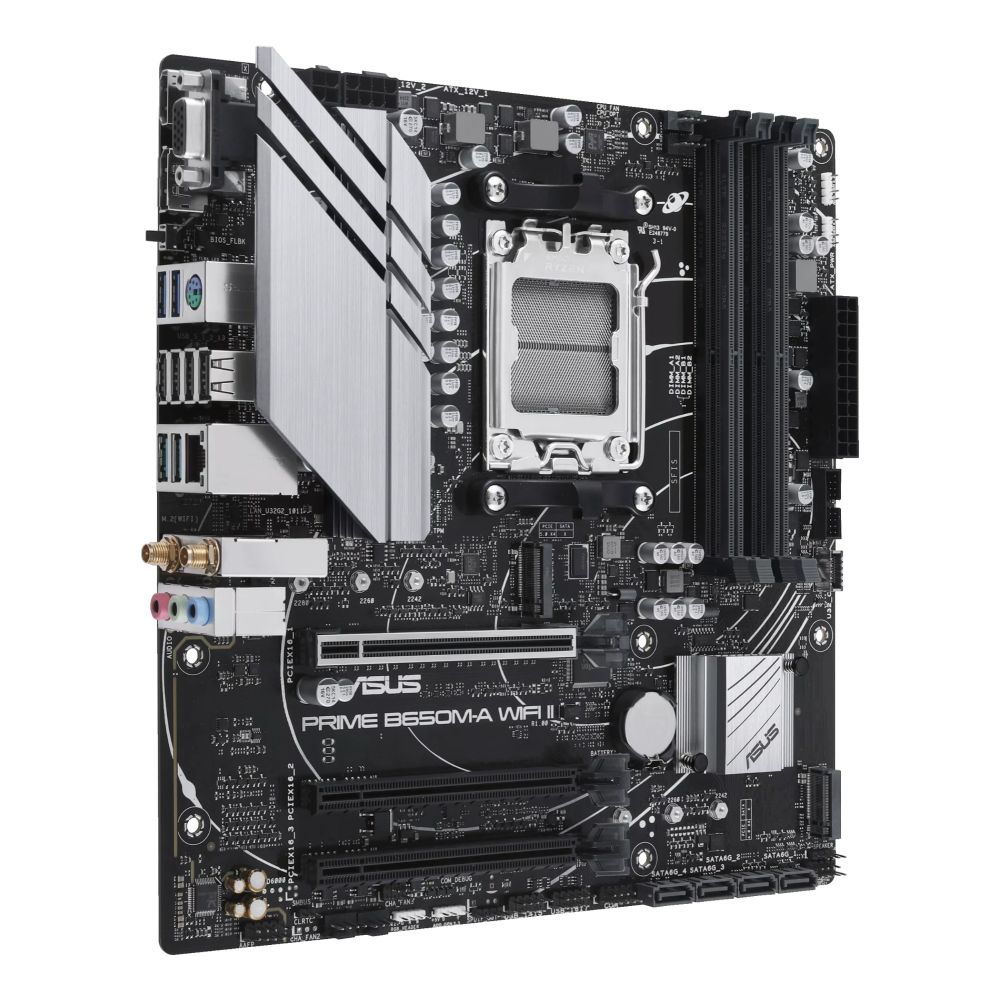

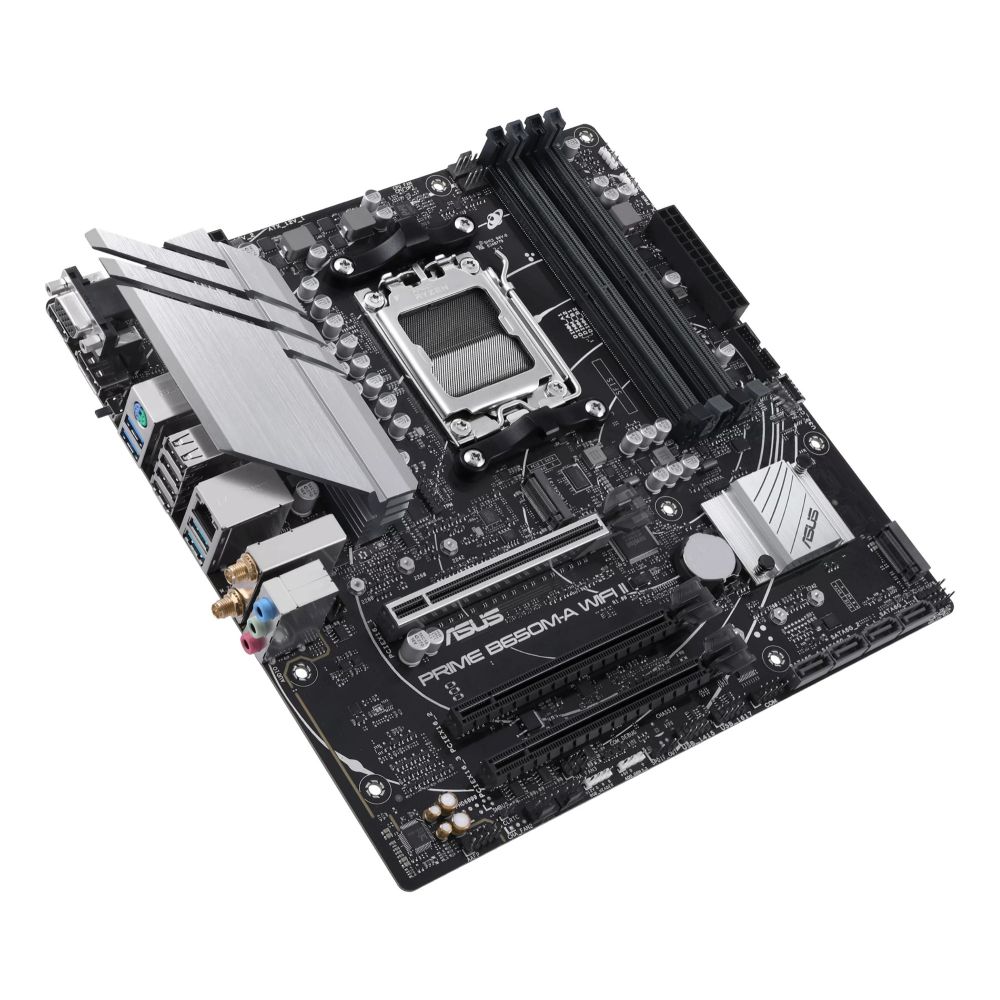

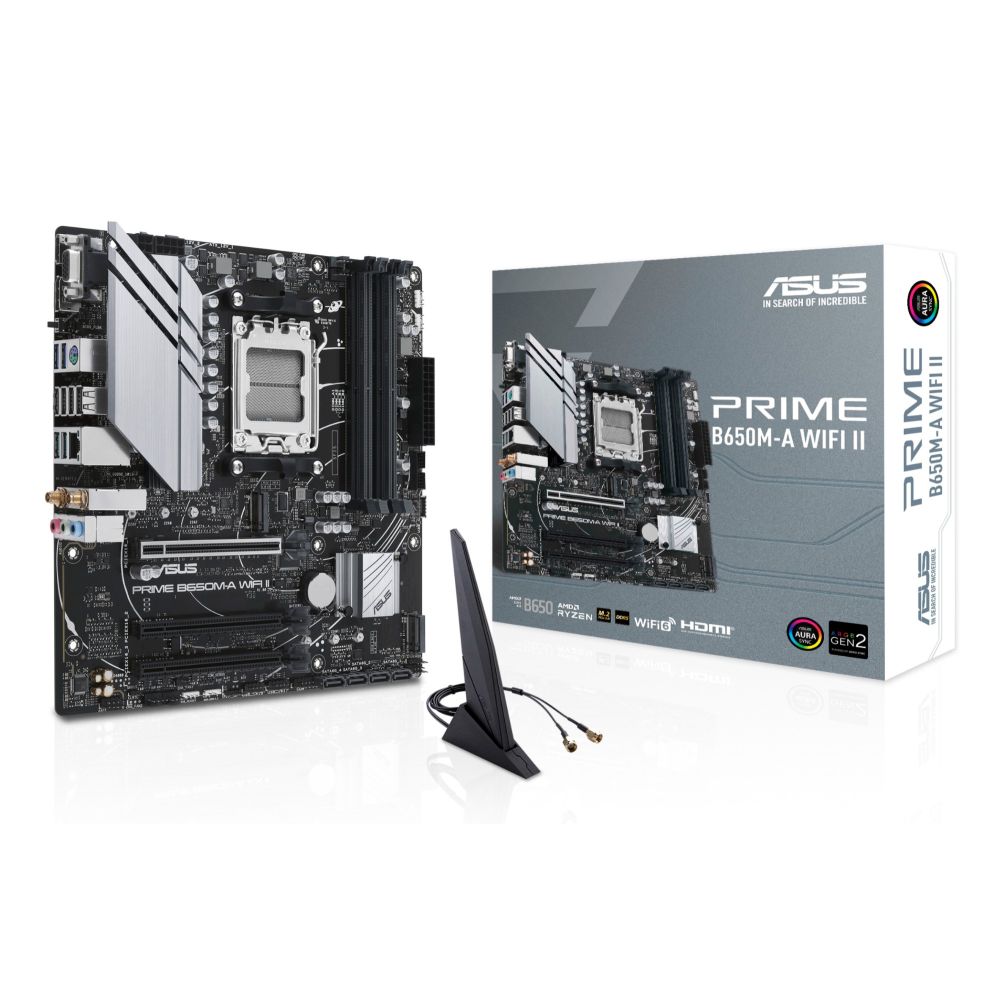

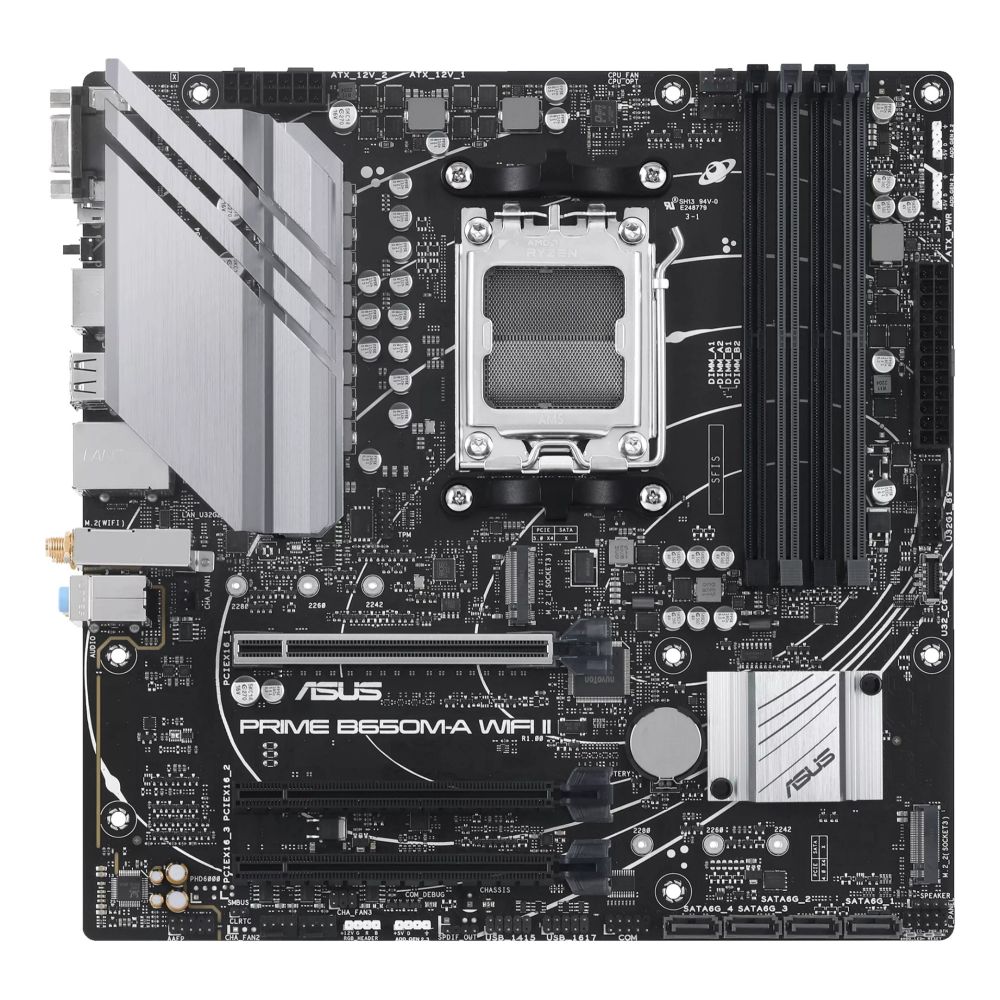

ASUS PRIME B650M-A WiFi II micro ATX motherboard
£111.14 inc VAT
274 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- micro ATX motherboard for AMD Ryzen 7000 series processors
- 2 x M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast storage
- 4 x SATA 6Gb/s ports with RAID 0/1/10 support for versatile storage options
- Supports up to 128GB DDR5 memory with speeds up to 6400MHz
- Wi-Fi 6 and 2.5Gb Ethernet for fast wireless and wired connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS PRIME B650M-A WIFI II | Micro ATX Motherboard for AMD Ryzen 7000
The ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX motherboard is designed for PC builders seeking a reliable, feature-rich platform for AMD Ryzen 7000-series processors. This micro ATX board combines robust power delivery, comprehensive cooling, and modern connectivity in a compact form factor.
Key Specs at a Glance
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Chipset | AMD B650 |
| Memory Support | DDR5, up to 128 GB |
| Storage | 2 x M.2 (PCIe 5.0 + PCIe 4.0), 4 x SATA 6Gb/s |
| Wi-Fi | Wi-Fi 6 (802.11ax) + Bluetooth 5.2 |
| LAN | 2.5 Gigabit Ethernet |
| Form Factor | micro ATX (244 x 244 mm) |
Compact Powerhouse for Ryzen 7000
Built on the AMD B650 chipset, this motherboard supports the latest Ryzen 7000 CPUs via the AM5 socket. Its Digi+ VRM delivers precise digital power control, ensuring stable performance even under heavy workloads. The six-layer PCB design and VRM heatsink help manage heat effectively, giving you headroom for sustained operation.
Storage Flexibility for Speed and Capacity
With two M.2 slots—one supporting PCIe 5.0 and the other PCIe 4.0—you can install ultra-fast NVMe SSDs for maximum throughput. Four SATA 6Gb/s ports provide additional storage options for HDDs or SATA SSDs. AMD RAIDXpert2 technology supports both PCIe and SATA RAID configurations, ideal for users building storage arrays.
Enhanced Memory Performance
The board supports DDR5 memory up to 6400 MHz, with four DIMM slots allowing up to 128 GB total. For users without EXPO kits, ASUS’s AEMP (ASUS Enhanced Memory Profile) helps unlock performance from standard DDR5 modules. Dual-channel architecture ensures efficient bandwidth utilisation.
Advanced Cooling and Quiet Operation
ASUS Fan Xpert 2+ software offers comprehensive fan control, including an Auto-Tuning mode and Extreme Quiet setting for silent operation during light tasks. Multiple temperature sources allow dynamic fan speed adjustment based on component heat. The motherboard includes three chassis fan headers and dedicated CPU and AIO pump connectors.
Rich Connectivity and Expansion

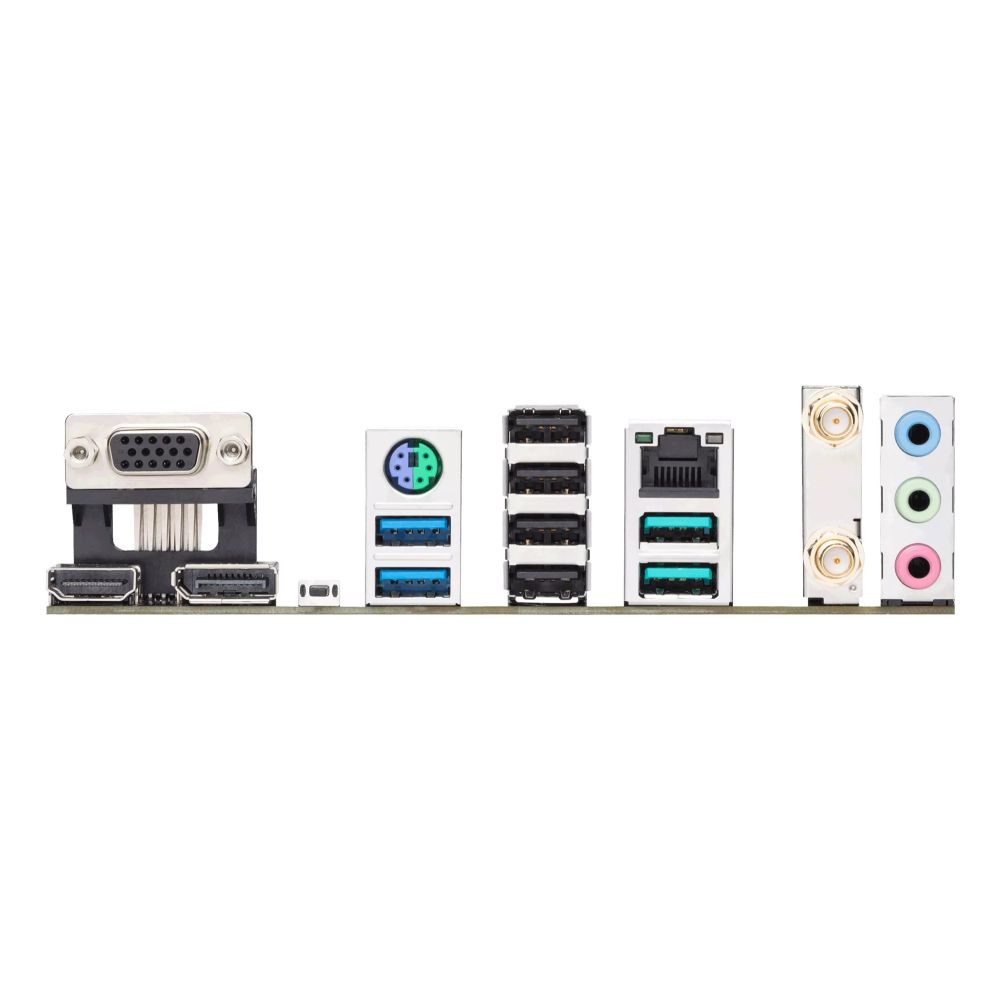

Graphics outputs include HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (8K@60Hz), and VGA, supporting varied display setups. Front panel headers and rear I/O provide USB 3.2 Gen 2 Type-A ports, USB 2.0 ports, audio jacks, and RGB headers. Integrated 2.5Gb Ethernet and Wi-Fi 6 keep you connected at high speeds.

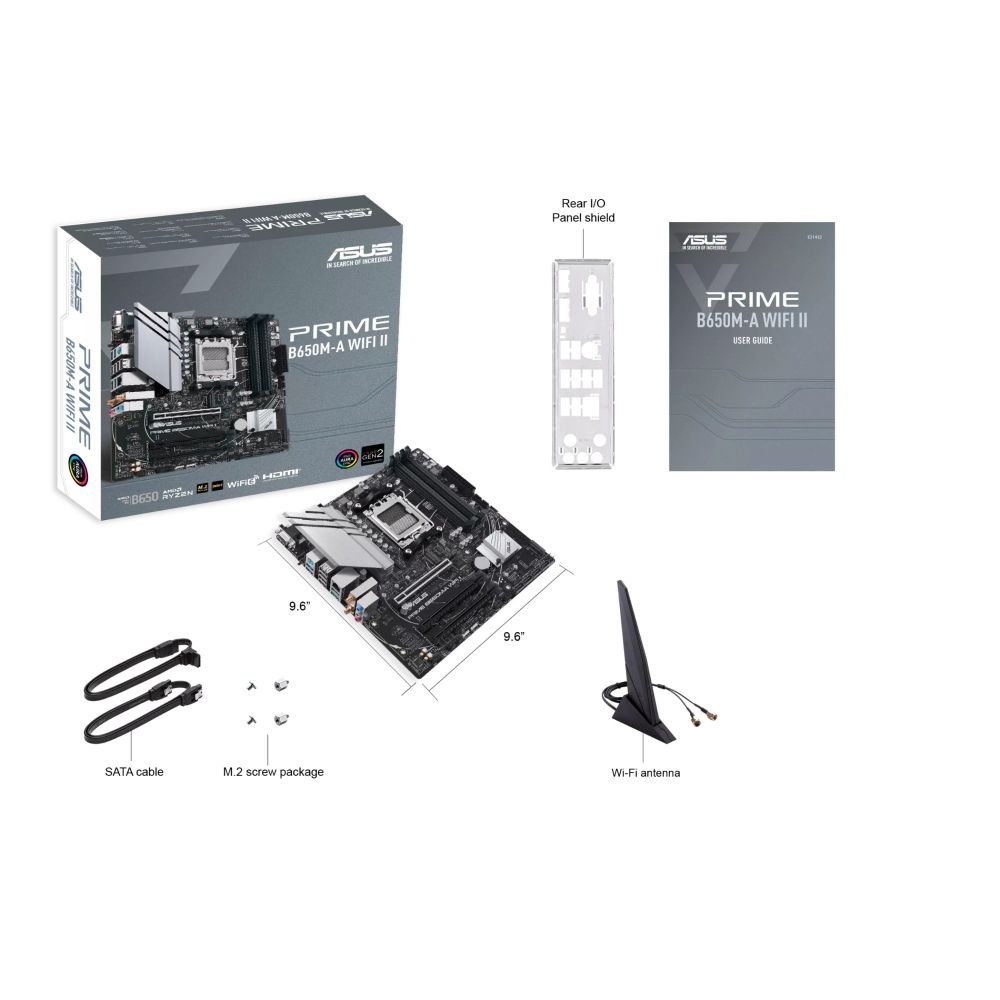

Box Contents
- ASUS PRIME B650M-A WIFI II motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual and warranty card
Check before you buy
- Confirm your AMD Ryzen 7000 CPU is supported on AM5.
- Verify your chosen DDR5 memory is compatible with AEMP or EXPO profiles.
- Ensure your case fits micro ATX dimensions (244 x 244 mm).
- Check that your power supply has the required 8-pin EPS and 24-pin ATX connectors.
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0 GPUs?
A: Yes, it includes PCIe x16 Gen 4 slots, compatible with PCIe 5.0 GPUs at Gen 4 speeds.
Q: Can I use ECC memory with this board?
A: The board supports ECC and non-ECC DDR5 memory, but ECC functionality depends on the CPU.
Q: Is Wi-Fi 6 included or is it an add-on?
A: Wi-Fi 6 (802.11ax) is built-in, along with Bluetooth 5.2.
Q: How many M.2 drives can I install?
A: Two M.2 slots are available—one PCIe 5.0 and one PCIe 4.0.
Q: Does it support Windows 11?
A: Yes, it supports both Windows 10 and Windows 11.
The Consultant’s Verdict & Warranty
The ASUS PRIME B650M-A WIFI II is an excellent choice for users building compact yet powerful AMD Ryzen 7000 systems. Its combination of PCIe 5.0 storage, DDR5 memory support, and comprehensive cooling makes it suitable for both productivity and light gaming workloads. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Special features | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD B650 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Graphics output | 1 x DisplayPort**1 x VGA port1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Total number of SATA connectors | 4 |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 2 |
| RAID support | Yes |
| Internal I/O | |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Bundled software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Bundled software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other features | |
| Audio output | Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Special features | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD B650 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Graphics output | 1 x DisplayPort**1 x VGA port1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Identifiers | |
| Distributor SKUs | MBD-90MB1EG0-M0EAY0, 7925941, 122967, PRIME B650M-A WIFI II, 10382724, 449880, STD10129940, STD10215095, 2110350, 1822896 |
