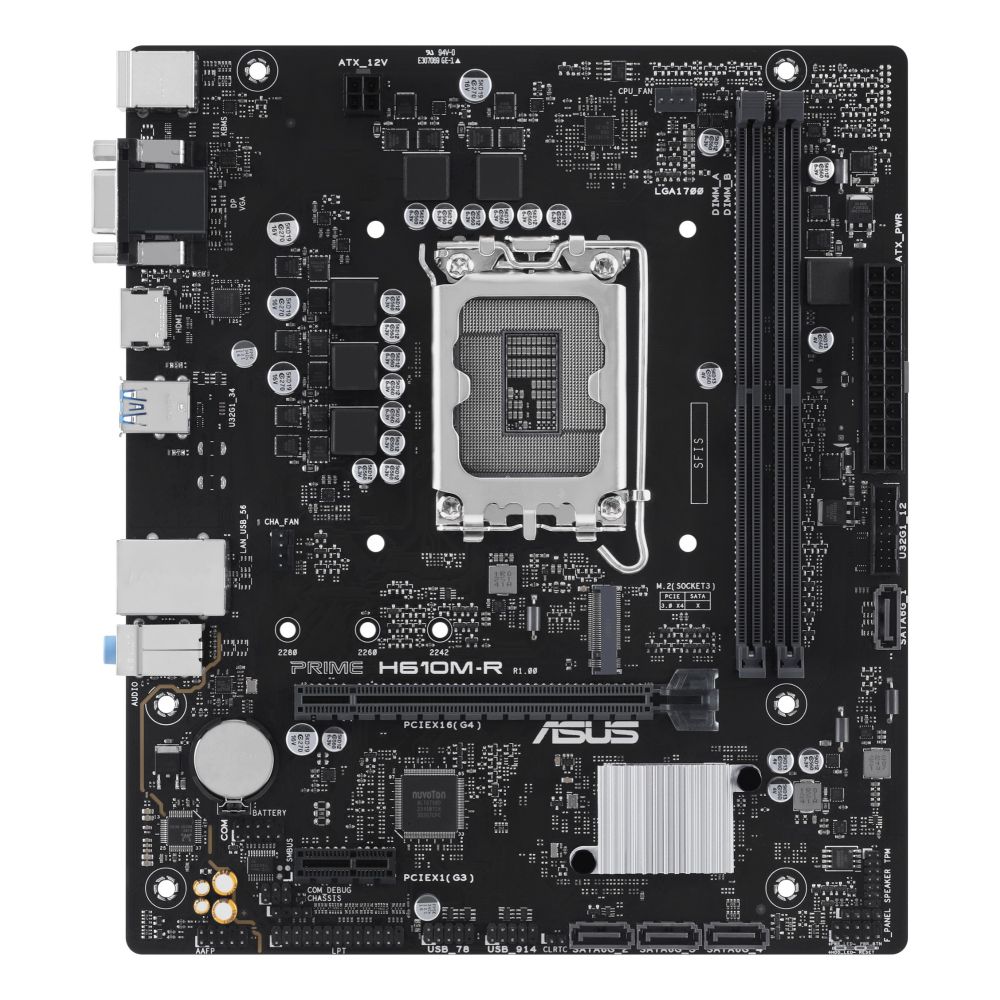

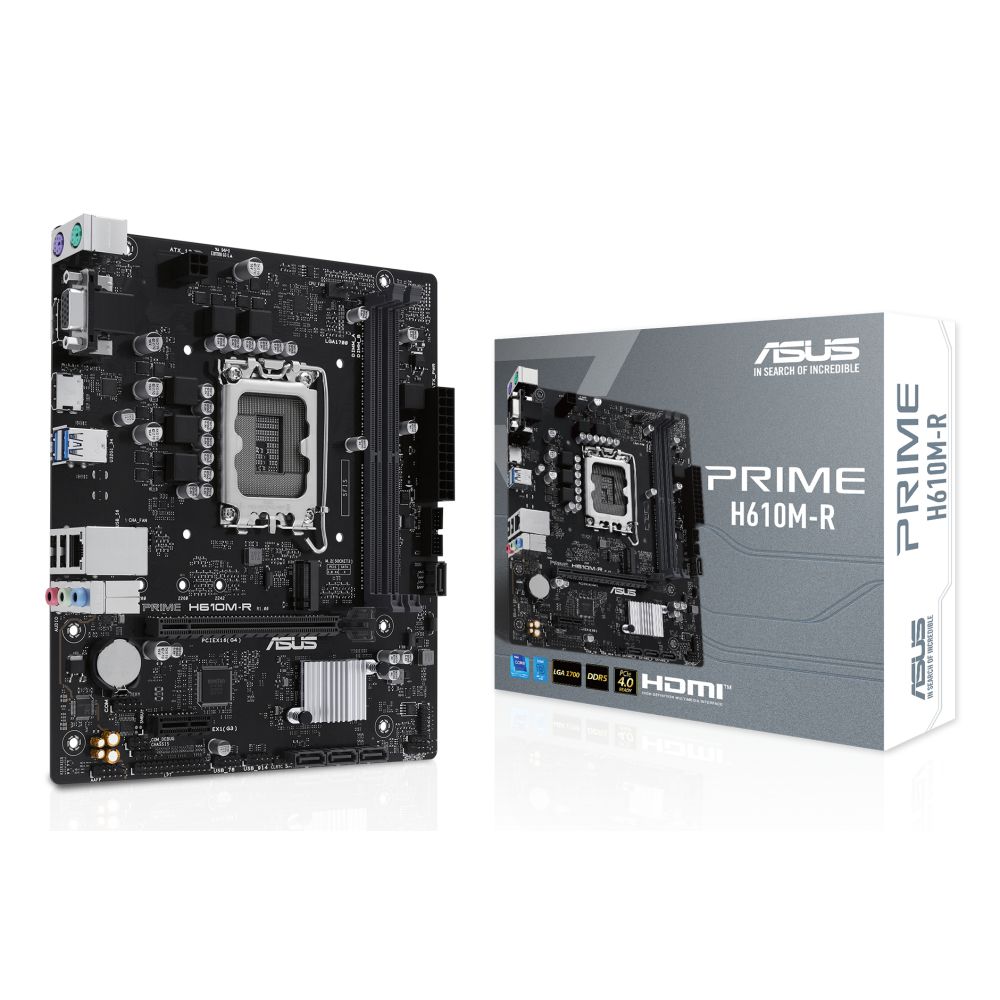

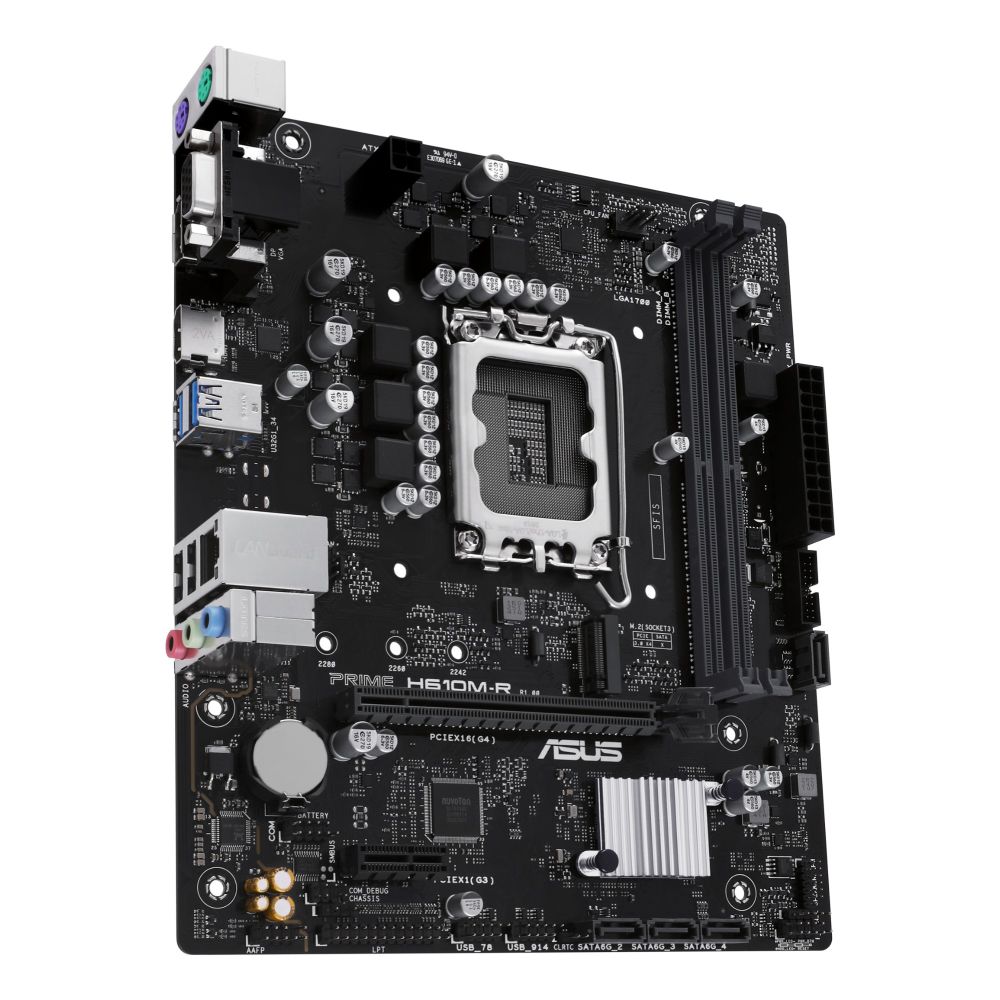

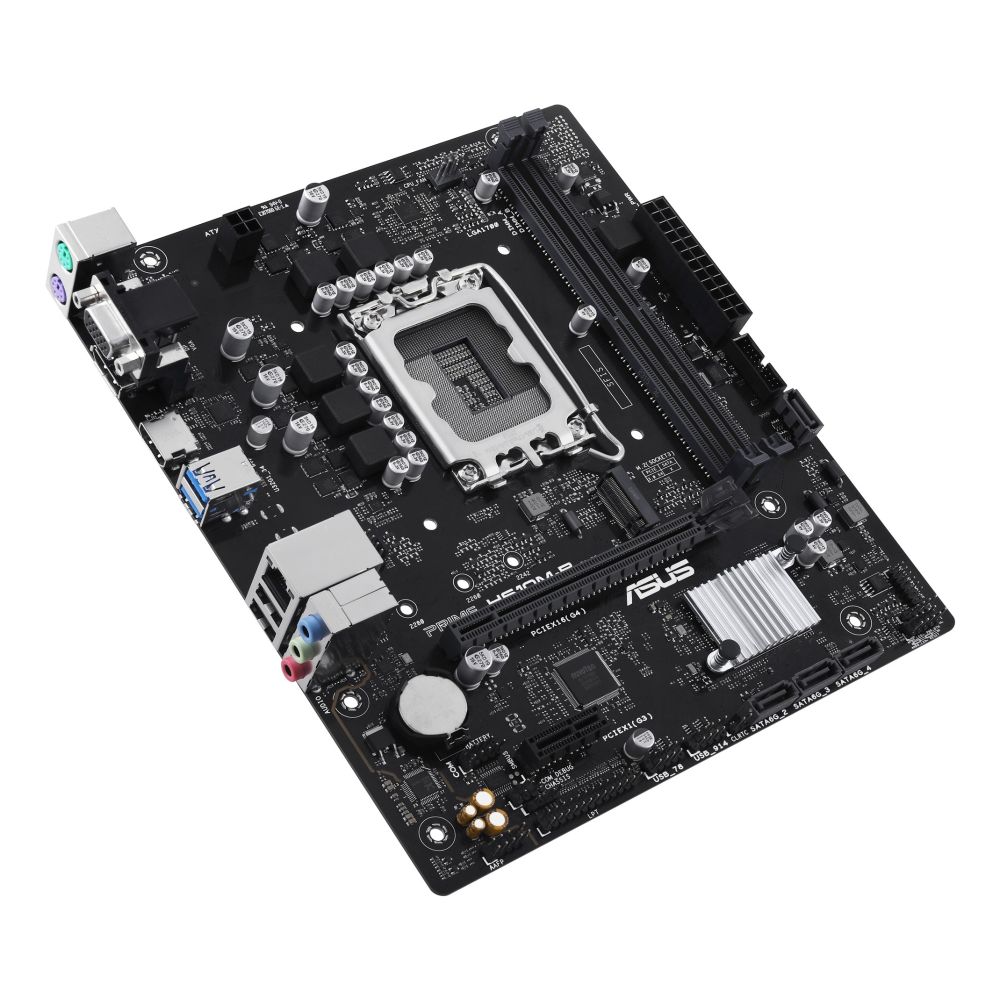

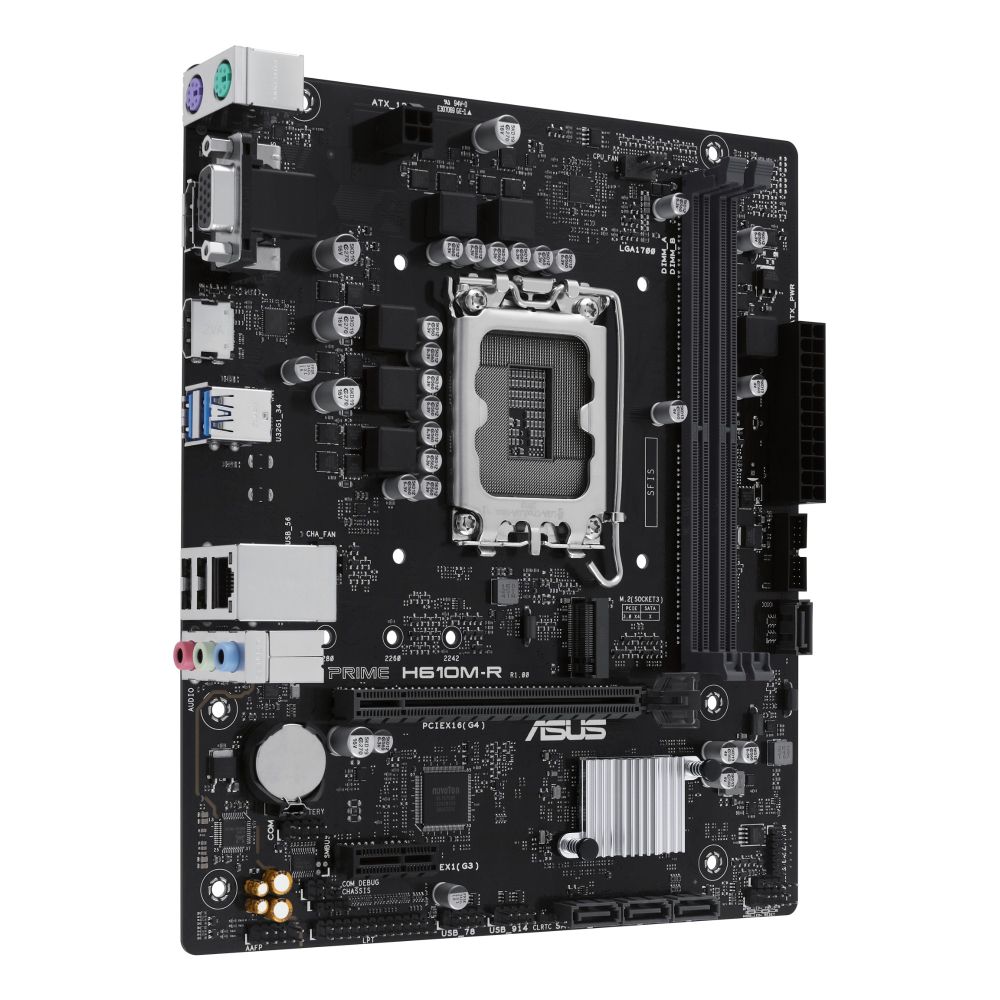

ASUS PRIME H610M-R-SI micro ATX motherboard
£60.28 inc VAT
13 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel H610 micro ATX motherboard for LGA 1700 processors
- Supports DDR5-SDRAM up to 96 GB with dual-channel memory
- 1 M.2 slot plus 4 SATA III ports for flexible storage
- 1 PCIe x16 Gen 4 and 1 PCIe x1 Gen 3 expansion slots

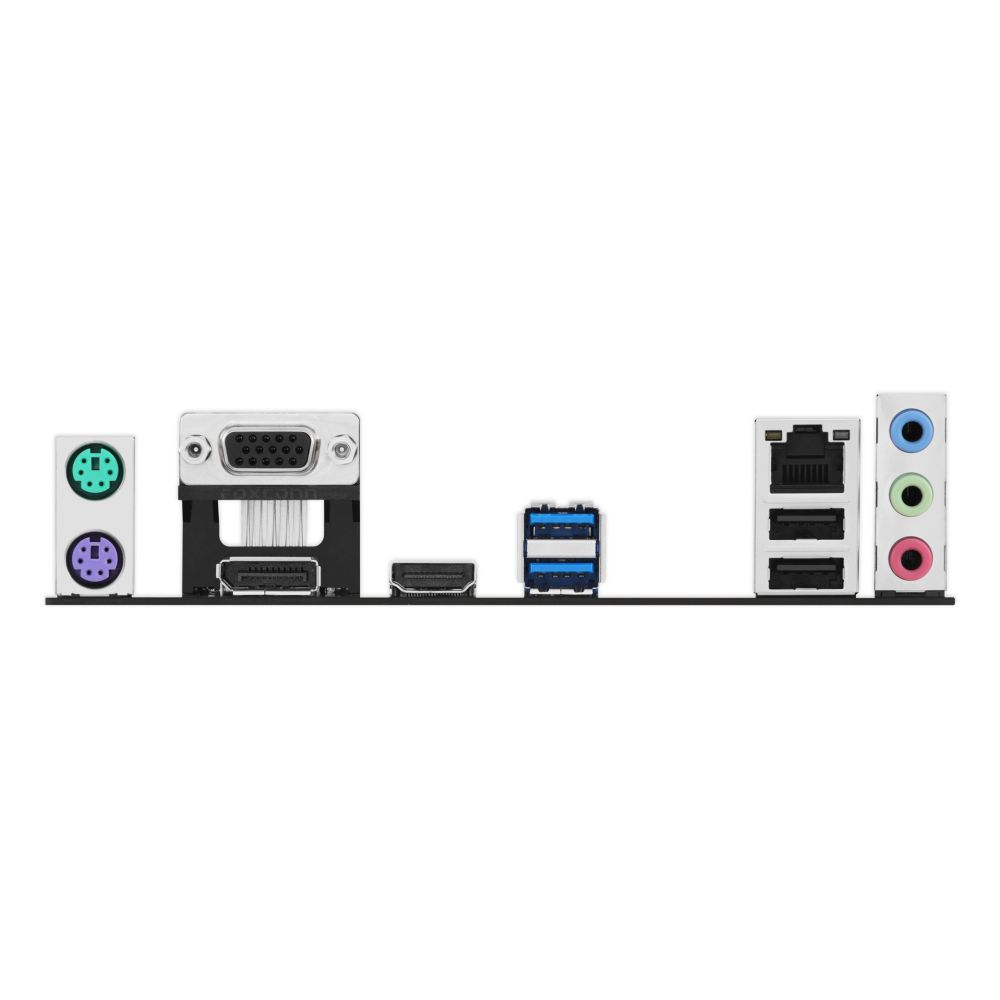

- 7.1-channel HD audio with rear panel I/O including HDMI and VGA
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE B760 GAMING X Motherboard – Intel 14th Gen, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
ASUS PRIME H610M-R-SI | Intel H610 Micro ATX Motherboard
The ASUS PRIME H610M-R-SI Intel H610 LGA 1700 micro ATX motherboard is designed for builders seeking a compact, reliable platform for Intel’s 12th and 13th Gen processors. Supporting DDR5 memory and featuring the Intel H610 chipset, it offers a balance of performance and value for everyday computing, home office setups, and light creative work.
Key Specifications
| Metric | Spec. |
|---|---|
| Form Factor | micro ATX |
| Processor Socket | LGA 1700 |
| Memory Support | DDR5, up to 96 GB |
| Storage Interfaces | M.2, SATA III |
| USB Ports | 2x USB 3.2 Gen 1, 2x USB 2.0 |
| Network | Gigabit Ethernet |
| Audio | 7.1 channel HD audio |
Built for Intel’s Latest CPUs
The H610M-R-SI supports Intel’s 12th and 13th Gen Core processors, including i3, i5, i7, i9, Pentium Gold, and Celeron. With DDR5 memory support and dual-channel architecture, you get faster data throughput and improved multitasking. The micro ATX form factor makes it ideal for space-conscious builds without sacrificing expandability.
Compact Design, Full Connectivity
Despite its small footprint, this motherboard offers comprehensive connectivity. It includes HDMI and DisplayPort outputs, VGA for legacy displays, and a mix of USB ports for modern peripherals. The Gigabit Ethernet port ensures stable, high-speed wired networking, while the 7.1 channel HD audio delivers immersive sound for media and communication.
Storage and Expansion Ready
With one M.2 slot for ultra-fast NVMe SSDs and four SATA III ports, you can configure a blend of high-speed and high-capacity storage. The PCIe x16 Gen 4 slot supports the latest graphics cards, while the PCIe x1 Gen 3 slot allows for additional expansion cards. This makes it suitable for both productivity and light gaming setups.

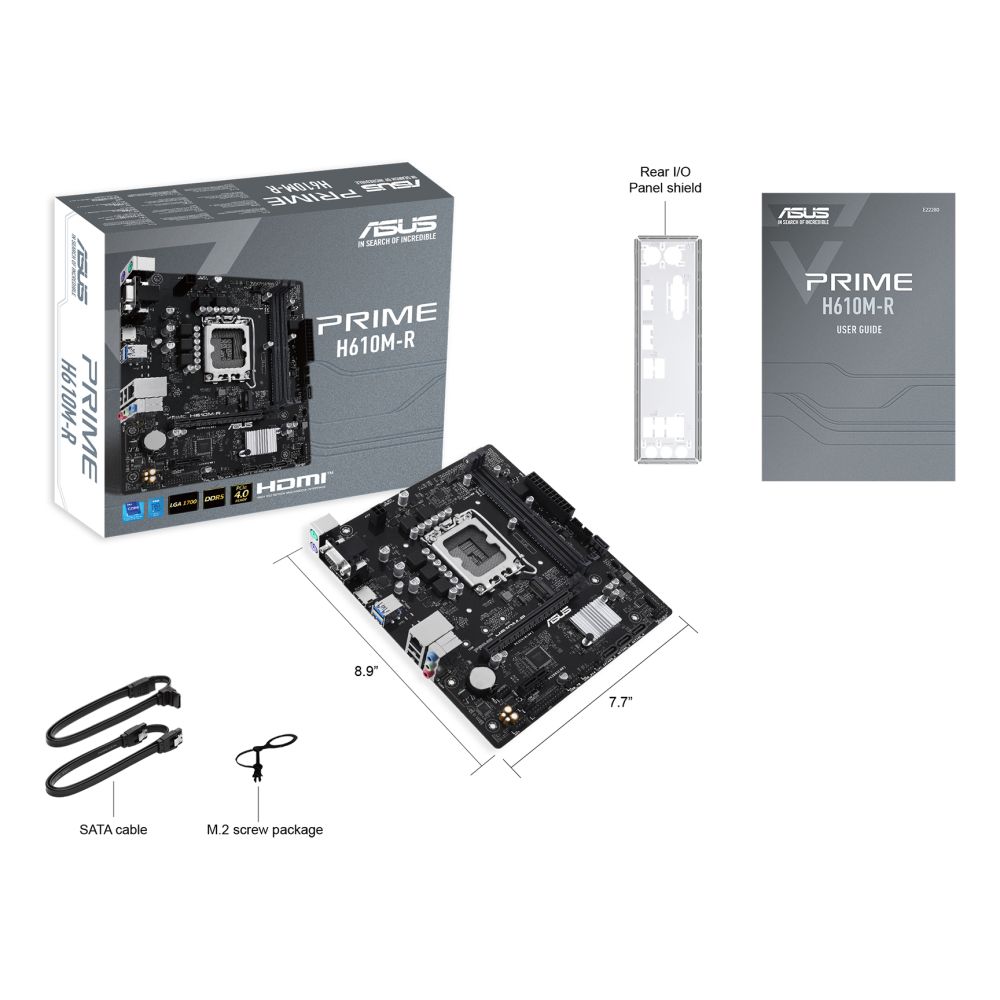

Box Contents
- ASUS PRIME H610M-R-SI motherboard

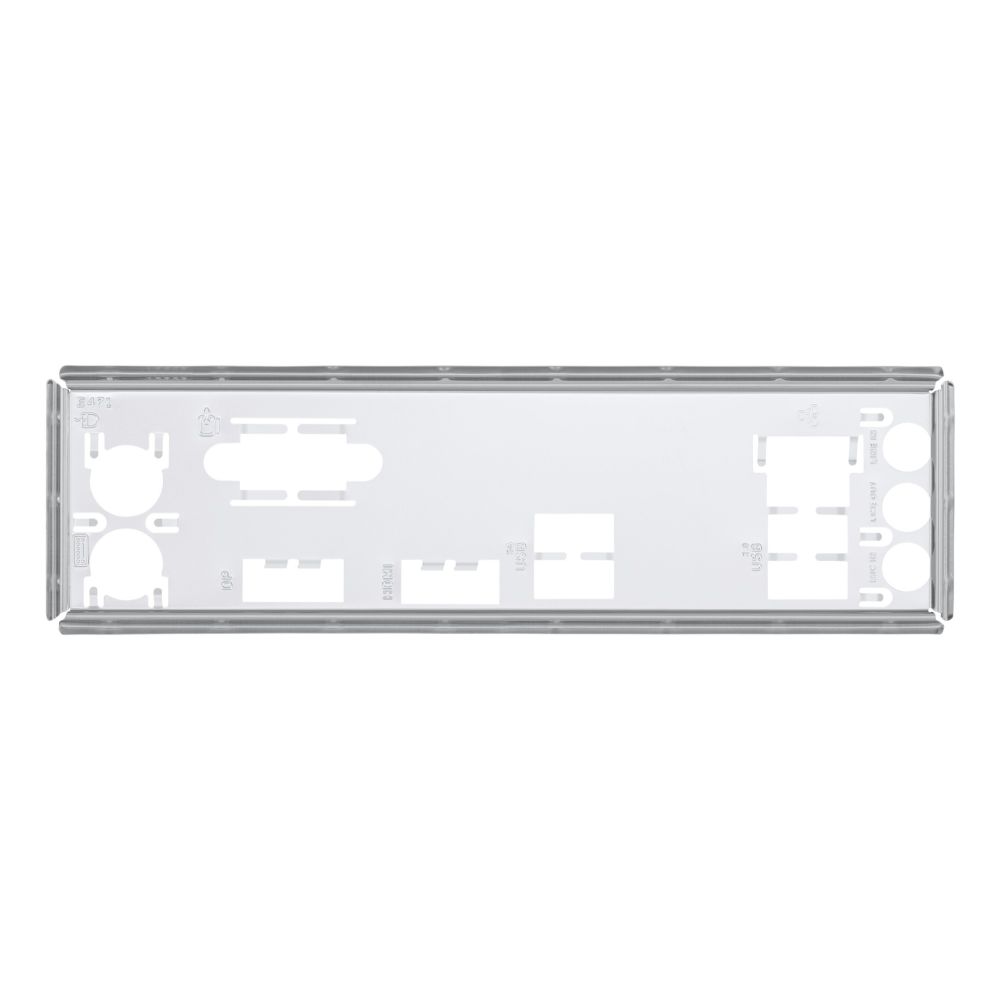

- I/O shield
- SATA cables (2)
- User manual
- Warranty card
Check before you buy
- Confirm your CPU is compatible with LGA 1700 and Intel H610 chipset.
- Verify your chosen DDR5 memory is on the motherboard’s QVL list.
- Ensure your case supports micro ATX motherboards.
- Check that your power supply has the required 24-pin ATX and 12V connectors.
Frequently Asked Questions
Q: Does this motherboard support Wi-Fi?
A: No, the ASUS PRIME H610M-R-SI does not include built-in Wi-Fi. You’ll need a PCIe Wi-Fi card or USB adapter for wireless connectivity.
Q: What size power supply do I need?
A: A standard ATX power supply with 24-pin main connector and 8-pin CPU power is required. Check your CPU and GPU power needs for total wattage.
Q: Can I use DDR4 memory with this board?
A: No, this motherboard only supports DDR5 memory. DDR4 is not compatible.
Q: How many fans can I connect?
A: The board includes one chassis fan header and one CPU fan header. Additional fans may require a fan hub.
Q: Is this board good for gaming?
A: It can handle light to moderate gaming, especially with integrated graphics or a mid-range GPU, but lacks advanced features like PCIe 5.0 or enhanced VRM for high-end overclocking.
The Consultant’s Verdict & Warranty
The ASUS PRIME H610M-R-SI is a solid choice for users building a compact, efficient system with Intel’s latest CPUs. Its micro ATX size, DDR5 support, and essential connectivity make it well-suited for home offices, media centres, and everyday productivity. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,5400,5200,5000,4800 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
| Package width | 246 mm |
| Package depth | 223 mm |
| Package height | 50 mm |
| Package weight | 680 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Height | 36.5 mm |
| Package width | 246 mm |
| Package depth | 223 mm |
| Package height | 50 mm |
| Package weight | 680 g |
| Weight | 437 g |
| Width | 226 mm |
| Depth | 195 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| Height | 36.5 mm |
| Package width | 246 mm |
| Package depth | 223 mm |
| Package height | 50 mm |
| Package weight | 680 g |
| Weight | 437 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1GL0-M0ECY0, 495585, CL90MB1GL0-M0ECY0 |
