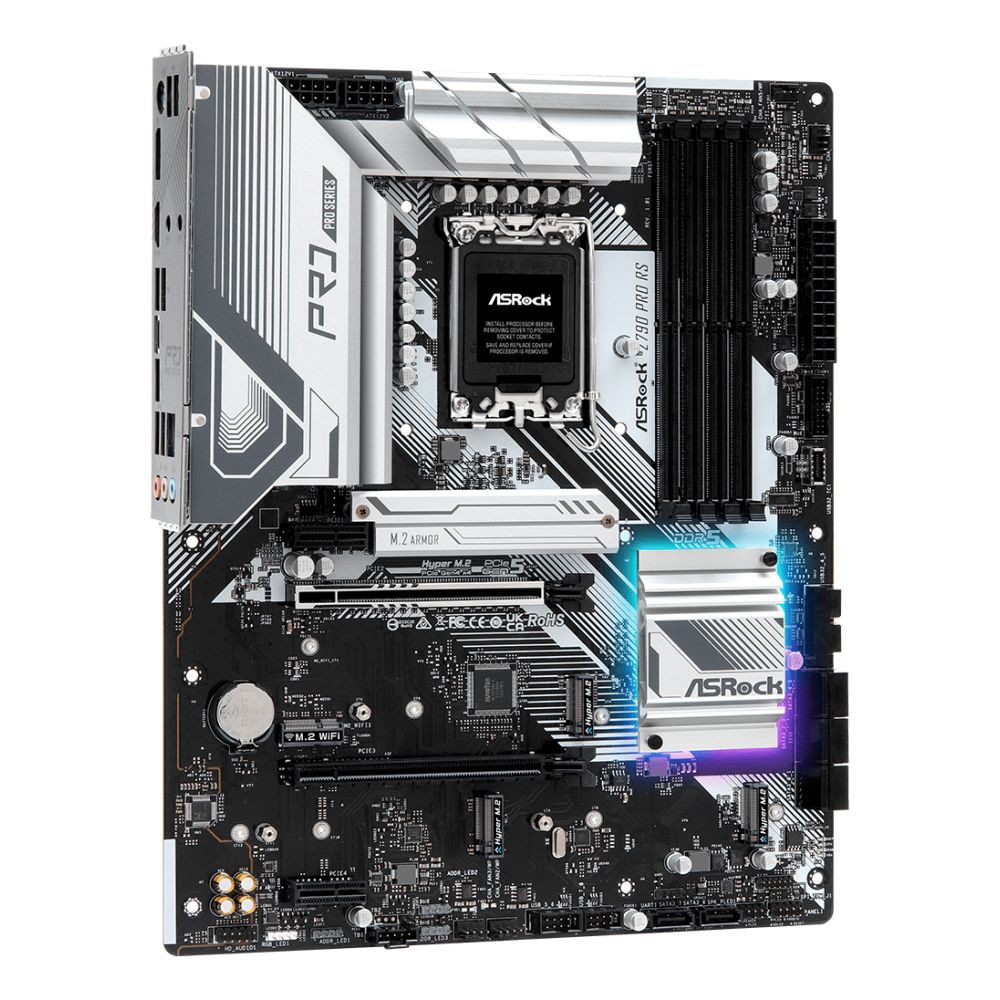

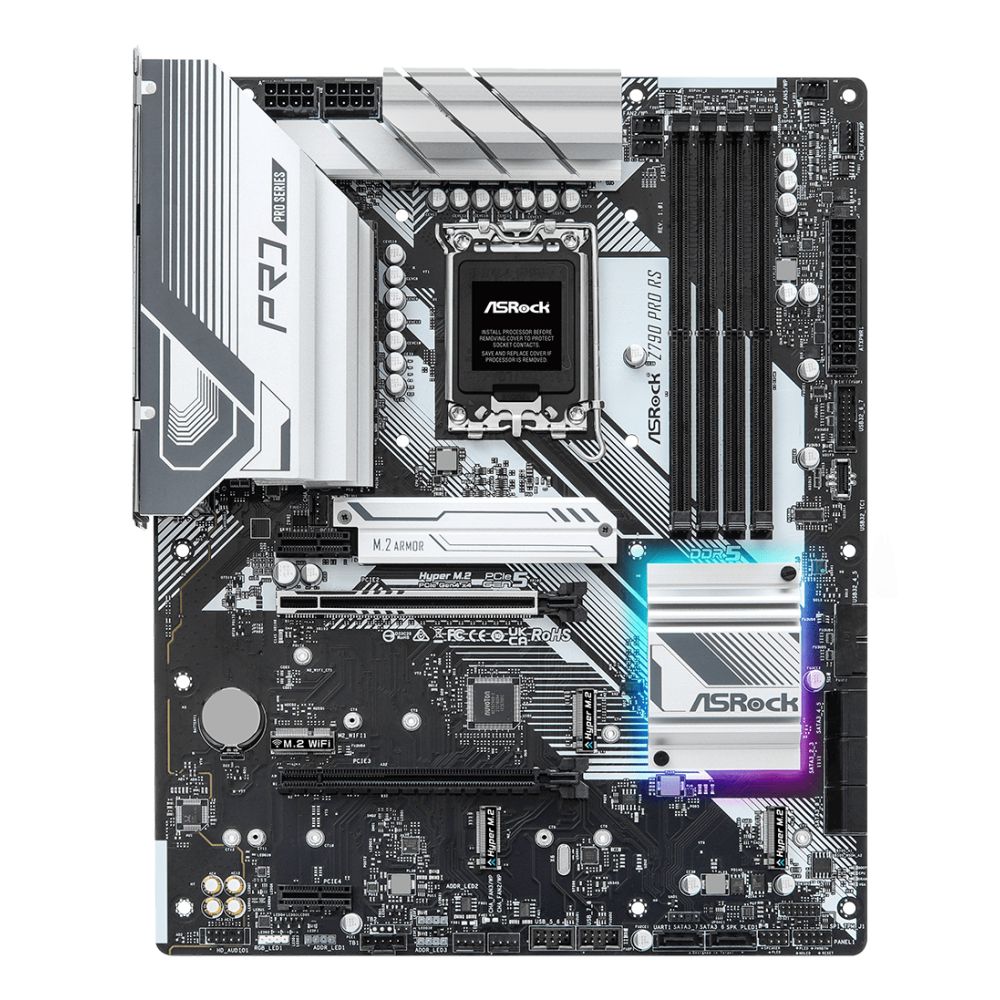

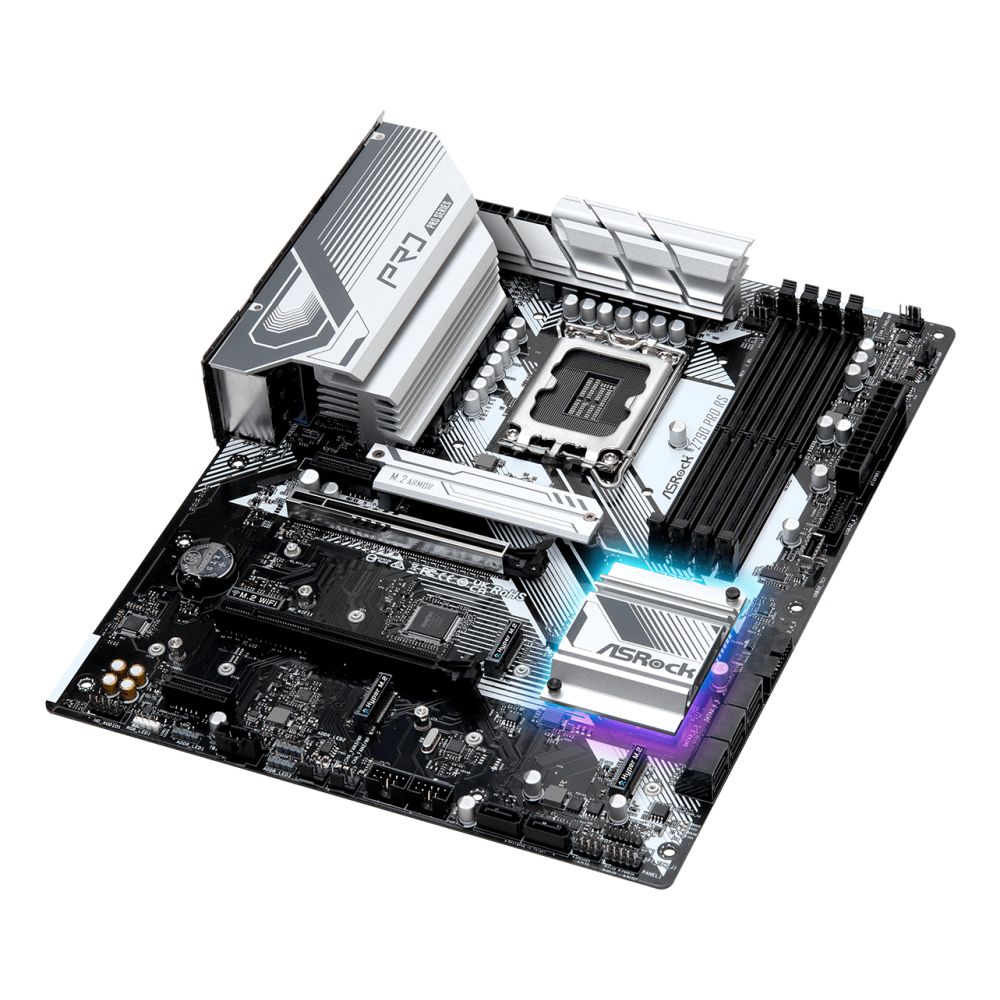

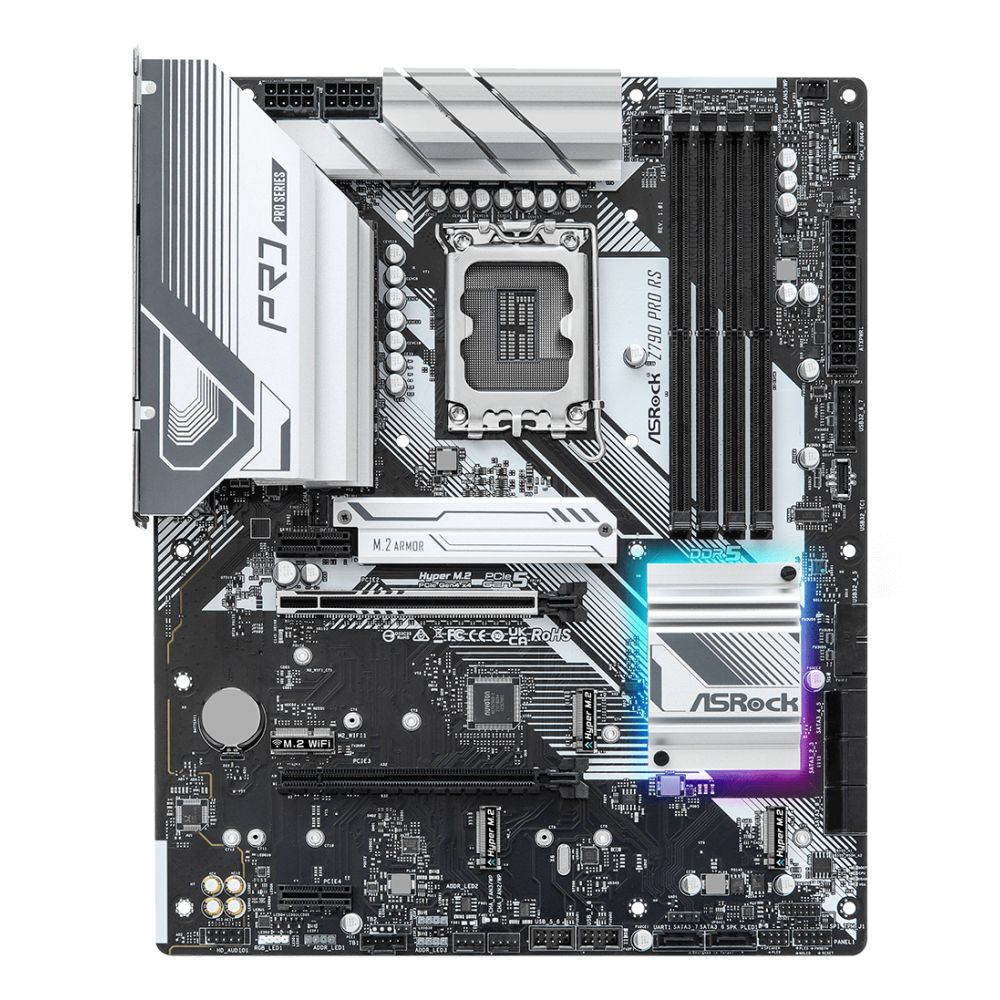

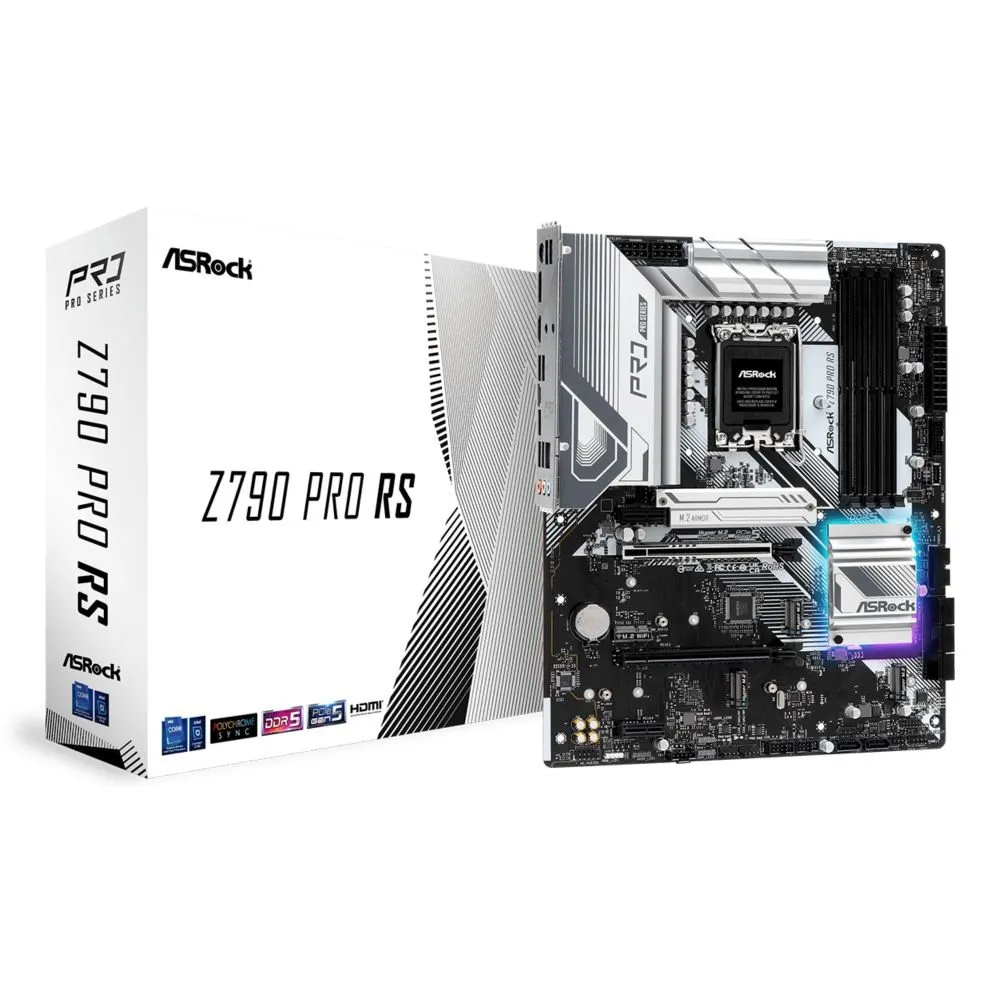

Asrock Z790 Pro RS ATX Motherboard
£157.86 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel Z790 chipset with LGA 1700 socket for 12th/13th Gen Intel Core processors
- Supports up to 128GB DDR5 memory across 4 DIMM slots with dual-channel architecture
- Features PCIe 5.0 x16 and PCIe 4.0 x16 slots for high-performance graphics cards
- Equipped with 1 M.2 slot and 8 SATA III connectors for versatile storage options
- Realtek ALC897 7.1-channel audio with Nahimic technology for immersive sound
- 2.5 Gigabit Ethernet via Dragon RTL8125BG controller for fast network connectivity
Payment Methods:
You may also like
ASRock Z790 Pro RS | Intel Z790 LGA 1700 ATX Motherboard
The ASRock Z790 Pro RS Intel Z790 LGA 1700 ATX delivers a balanced blend of performance and value for mainstream DIY builders. With robust power delivery, DDR5 support, and PCIe 5.0 readiness, this Race Sport edition offers dependable computing for everyday tasks and light gaming without breaking the bank.
Specification Overview
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Memory | 4x DDR5, up to 128GB |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 |
| Storage | 1x M.2, 8x SATA III |
| Network | 2.5Gb Ethernet |
Built for stable, reliable performance
The 14+1+1 power phase design with Dr. MOS technology delivers smooth, efficient power to your CPU. Combined with a 6-layer PCB and 2oz copper traces, this motherboard maintains lower temperatures and improved energy efficiency. These features work together to provide stable performance for both everyday computing and demanding applications.
Future-ready connectivity
With PCIe 5.0 support for graphics cards and a reinforced steel slot, this motherboard handles next-generation hardware with ease. The 2.5Gb Ethernet ensures fast, reliable network connections, while multiple USB ports including USB 3.2 Gen 2 Type-C provide versatile connectivity options. The single M.2 slot supports high-speed NVMe storage for quick boot times and responsive applications.
Enhanced memory performance
DDR5 XMP and EXPO support allows enthusiasts to unlock higher memory speeds with pre-tested profiles. The integrated protection circuit safeguards your DDR5 modules during installation and removal, preventing damage from improper power disconnection. This attention to detail ensures both performance gains and peace of mind.
Immersive audio experience
Nahimic Audio technology delivers rich, detailed sound across all your devices. Whether using headphones, speakers, or HDMI output, you’ll enjoy clear audio with features like noise suppression and echo cancellation. The Sound Tracker provides visual audio cues for gaming immersion, while the 7.1 channel support creates an engaging surround sound experience.
Package contents
- ASRock Z790 Pro RS motherboard

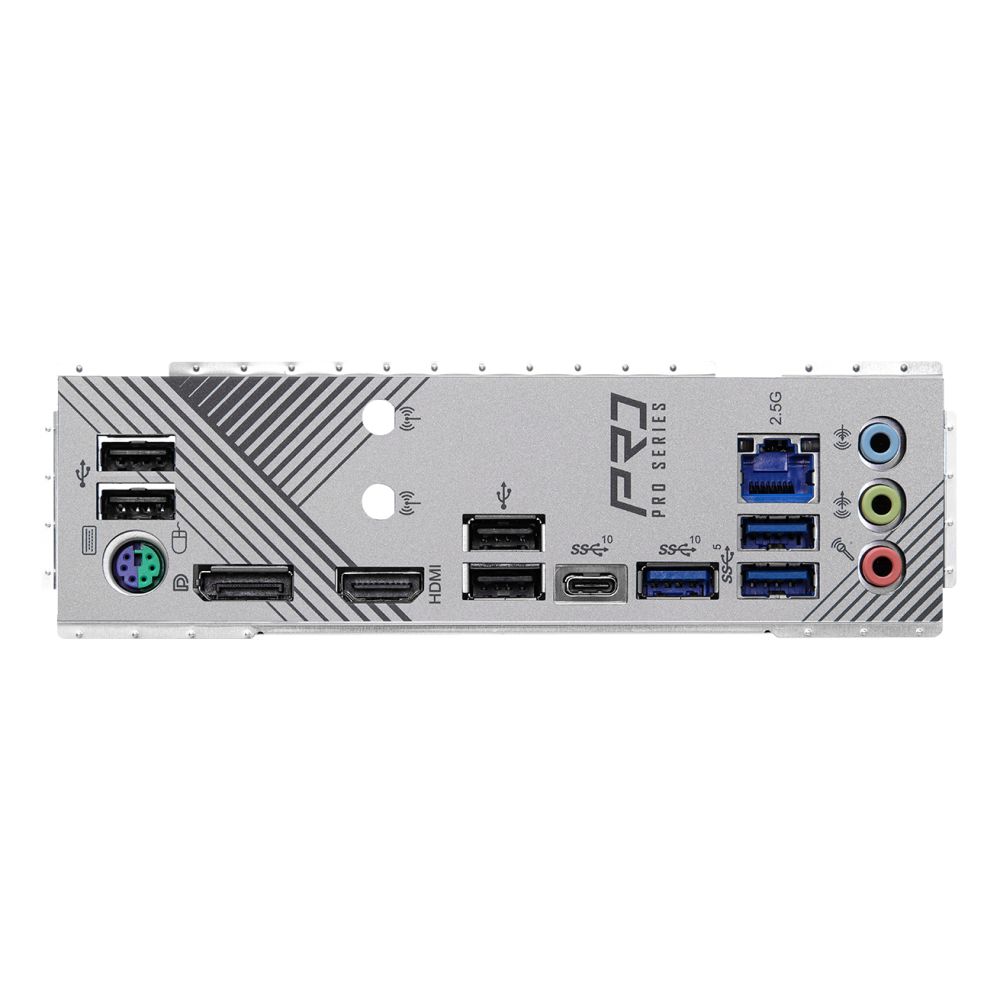

- I/O shield
- User manual
- Driver/software disc
- SATA cables
- M.2 screws
Things to check first
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports ATX form factor (305mm x 244mm)
- Ensure your DDR5 memory modules support XMP/EXPO profiles
- Check that your power supply has a 24-pin ATX connector
Frequently Asked Questions
Does this motherboard support Wi-Fi?
What processors are compatible with this motherboard?
Can I use this motherboard for gaming?
How many RGB headers does this motherboard have?
What is the maximum memory capacity?
Summary & warranty
The ASRock Z790 Pro RS offers excellent value for builders seeking a reliable, feature-rich motherboard without premium pricing. Its combination of PCIe 5.0 support, DDR5 memory compatibility, and robust power delivery makes it a solid foundation for mainstream systems. Covered by the applicable manufacturer warranty.
| Weight | 2 kg |
|---|---|
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| LAN controller | Dragon RTL8125BG |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 2 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 305 mm |
| Depth | 244 mm |
