GIGABYTE B760M DS3H DDR4 Motherboard for Intel 14th Gen CPUs
£85.48 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Supports Intel 14th Gen CPUs
- 2x PCIe 4.0 M.2 slots for NVMe SSDs
- 4x SATA III connectors for storage drives
- Up to 5333MHz DDR4 memory (OC) support
- 2.5GbE LAN for fast network connectivity
- Micro ATX form factor for compact builds
Payment Methods:
You may also like
GIGABYTE B760M D3HP Motherboard – Intel Core 14th Gen, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
GIGABYTE B760M DS3H DDR4 Motherboard | Intel B760 Express Micro ATX

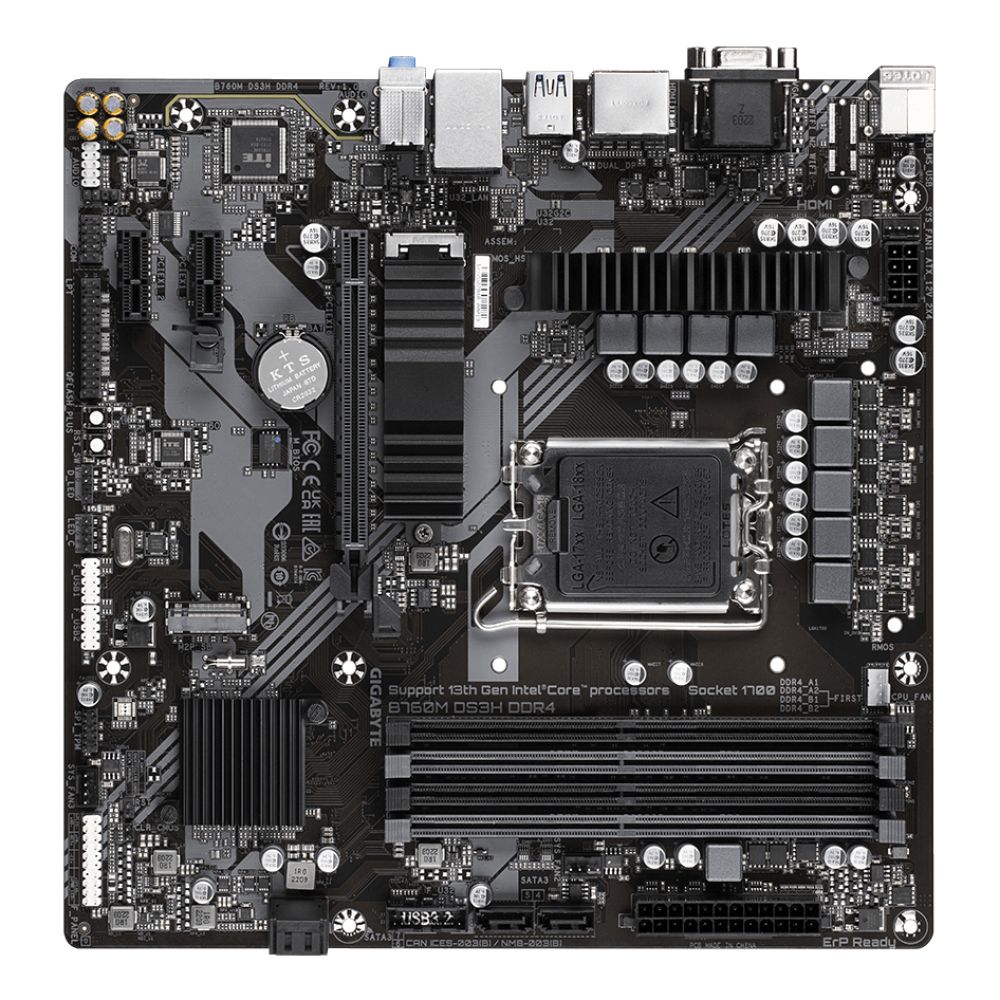

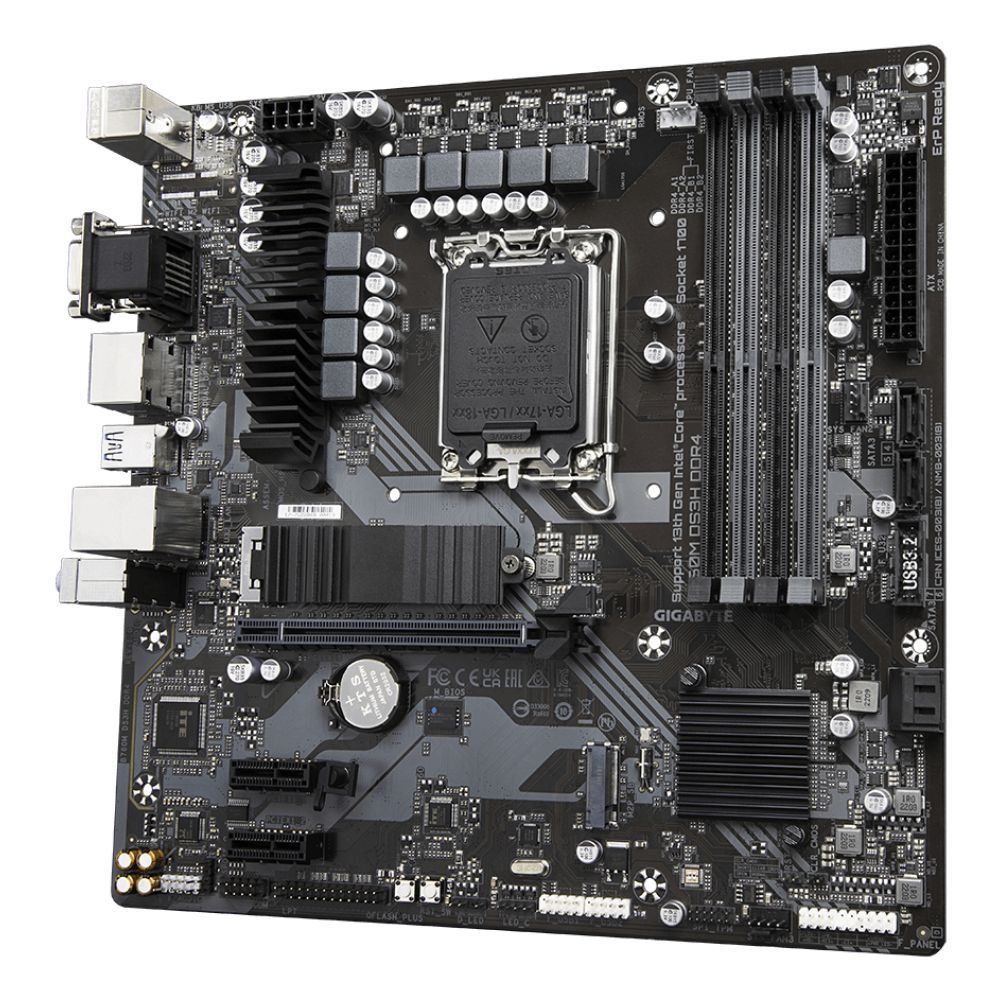

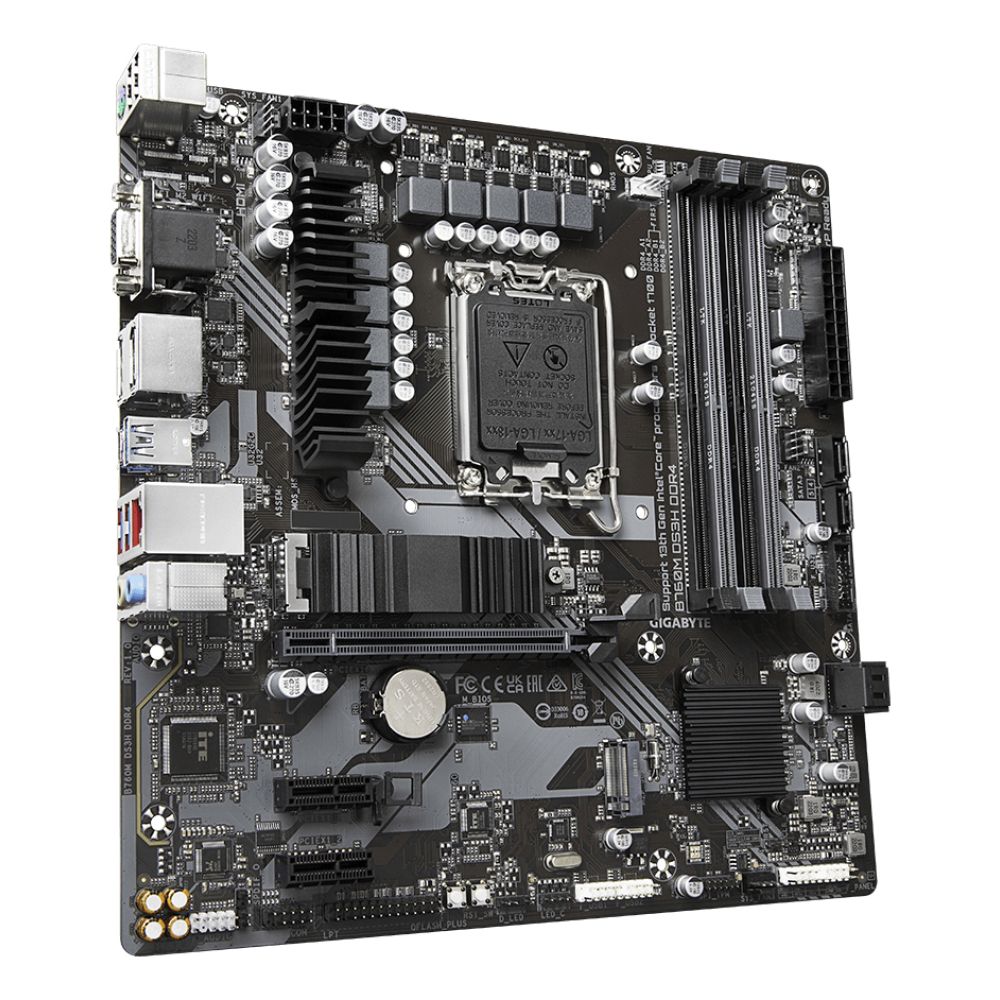

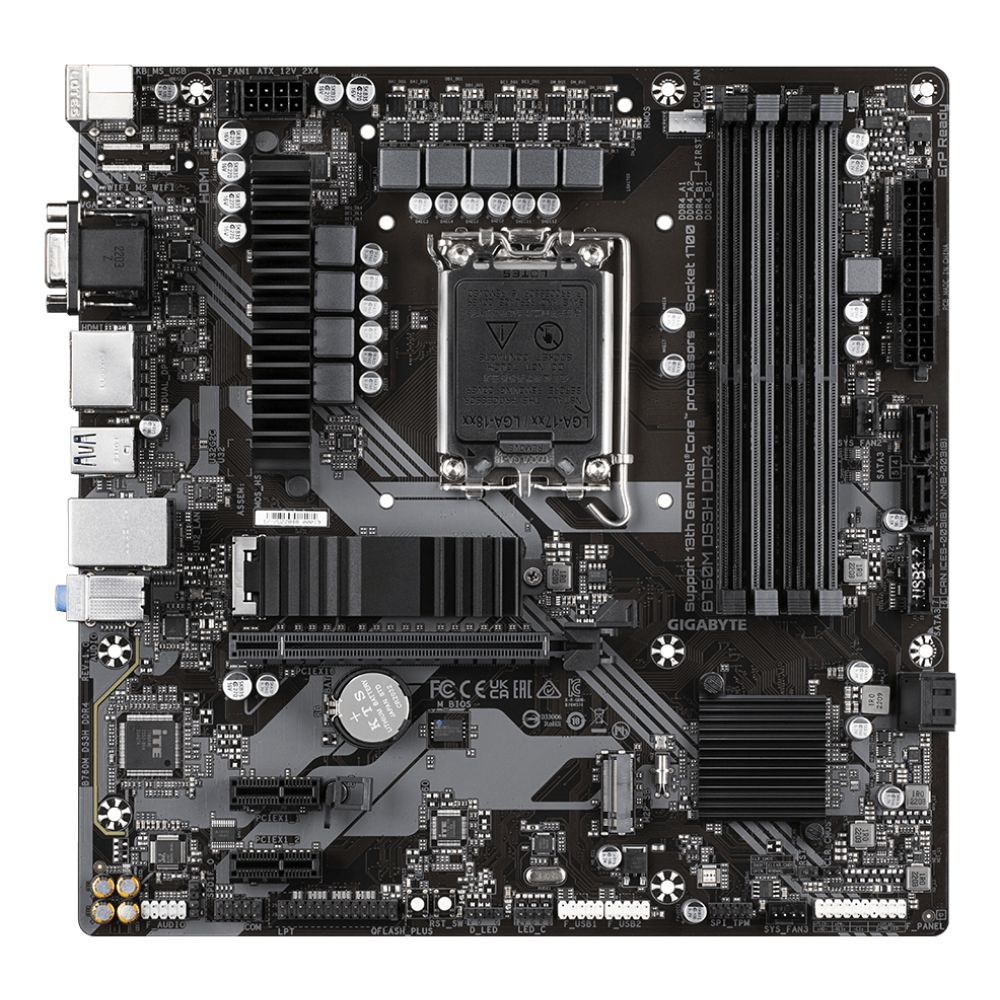

The GIGABYTE B760M DS3H DDR4 Motherboard delivers a robust foundation for Intel Core 14th Gen CPUs, combining 6+2+1 digital VRM phases with support for up to 5333MHz DDR4 memory and dual PCIe 4.0 M.2 slots. This micro ATX board balances performance and expandability, making it ideal for compact gaming rigs and professional workstations requiring reliable Intel B760 Express platform support.
Product Specifications
| Metric | Spec. |
|---|---|
| Form Factor | micro ATX |
| Memory Support | DDR4 up to 5333MHz (OC) |
| CPU Socket | LGA 1700 |
| Storage | 2x M.2 PCIe 4.0, 4x SATA III |
| LAN | 2.5GbE |
| Warranty | 3 years |
Built for Intel 14th Gen Performance
Engineered specifically for Intel’s 14th Gen processors, this motherboard’s 6+2+1 phase digital VRM delivers clean, stable power delivery essential for demanding workloads. The LGA 1700 socket ensures compatibility with the latest Intel Core i3, i5, i7, i9, Celeron, and Pentium Gold CPUs, providing headroom for both current and future upgrades within the Intel ecosystem.
Dual PCIe 4.0 M.2 Storage Architecture
Two PCIe 4.0 M.2 slots enable lightning-fast NVMe SSD installations, supporting sequential read/write speeds up to 7000/5000 MB/s when paired with compatible drives. This dual-slot configuration allows for RAID 0/1 configurations or separate OS/application storage setups, eliminating storage bottlenecks for gaming, content creation, or data-intensive applications.
Comprehensive I/O Connectivity

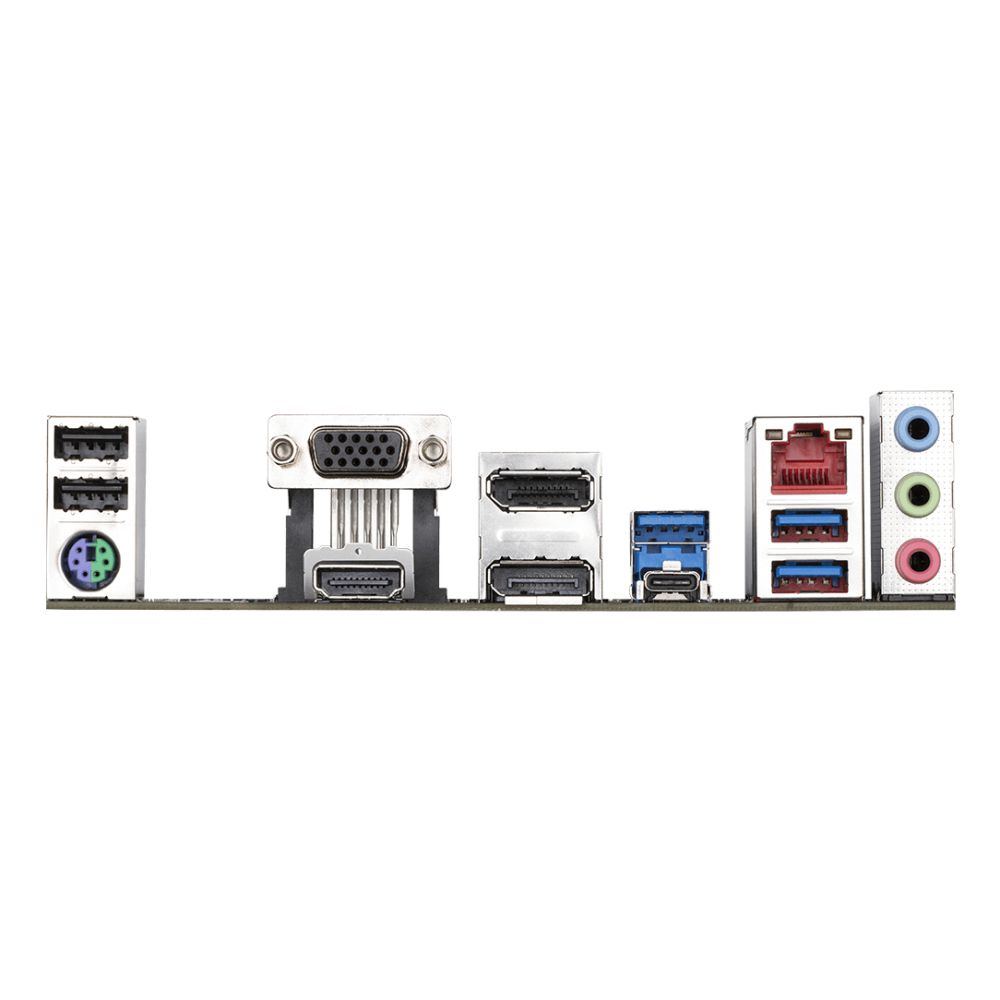

The rear I/O panel provides extensive connectivity options including USB 3.2 Gen 2 Type-C, three USB 3.2 Gen 1 ports, and 2.5GbE LAN for rapid file transfers and network performance. HDMI and DisplayPort outputs support multi-monitor setups up to 4096×2304 resolution, while legacy PS/2 ports maintain compatibility with older peripherals. The integrated Realtek ALC897 audio delivers 7.1 channel HD sound quality.
Advanced Memory and Storage Capabilities
Supporting up to 128GB of DDR4 memory across four DIMM slots, this board accommodates memory speeds from 2133MHz to 5333MHz (OC), enabling dual-channel configurations for optimal performance. The Intel B760 Express chipset provides six total storage connections (2x M.2 + 4x SATA III) with RAID 0, 1, 5, and 10 support, offering flexible storage solutions for various performance and redundancy requirements.
Smart Cooling and System Monitoring
Three chassis fan headers and dedicated CPU fan connector support comprehensive cooling solutions, from air cooling to custom water loops. The PC health monitoring system tracks fan speeds, temperatures, and voltages in real-time, ensuring system stability during extended gaming sessions or intensive workloads. The UEFI AMI BIOS provides intuitive overclocking controls and system configuration options.

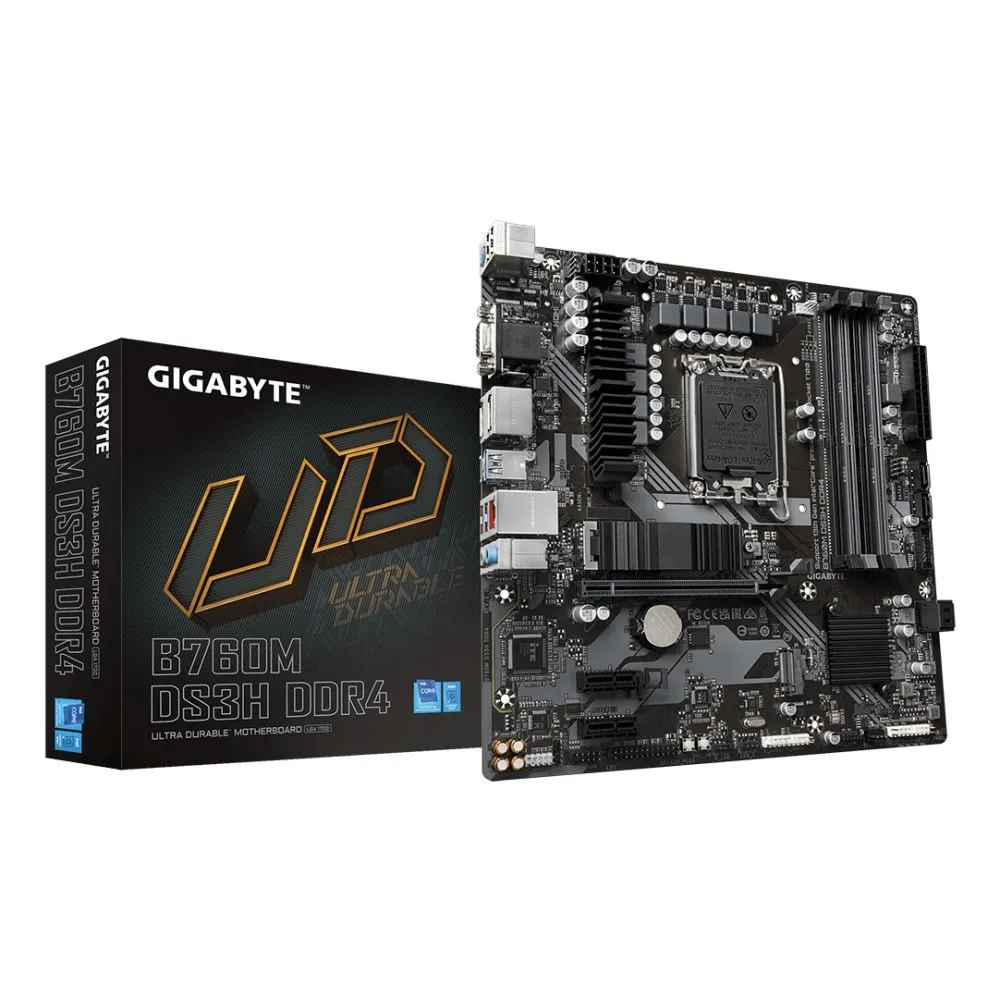

Box contents
- GIGABYTE B760M DS3H DDR4 Motherboard
- I/O Shield
- User Manual
- Driver Disk
- SATA Cables
- M.2 Heatsinks
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket and Intel B760 chipset
- Verify your case supports micro ATX (244mm x 244mm) form factor
- Check if your GPU requires additional PCIe power connectors
- Ensure your power supply has the necessary 24-pin ATX and 8-pin EPS connectors
Common questions
Does this motherboard support WiFi?
What is the maximum RAM capacity supported?
Can I use PCIe 3.0 GPUs with this board?
Does it support Intel 13th Gen processors?
What RAID configurations are available?
Is RGB lighting supported?
Final thoughts
The GIGABYTE B760M DS3H DDR4 strikes an excellent balance between performance and value for users building Intel-based systems with 13th or 14th Gen processors. Its robust power delivery, dual PCIe 4.0 M.2 slots, and comprehensive connectivity make it particularly suitable for compact gaming builds and professional workstations where space efficiency matters. Covered by the applicable manufacturer warranty.
| Weight | 1.15 kg |
|---|---|
| Bundled software | Norton Internet Security |
| Front panel connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Parallel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 5333 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Number of displays supported | 4 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 3 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Brown |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 244 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
