MSI Pro B840-S EVO WIFI6E ATX Motherboard

MSI Pro B840-S EVO WIFI6E | AMD B840 ATX Motherboard

The MSI Pro B840-S EVO WIFI6E AMD B840 Socket AM5 ATX is engineered for professionals and power users who need reliable performance with modern connectivity. This ATX motherboard supports AMD Ryzen 7000/8000/9000 Series processors on the AM5 socket, featuring DDR5 memory, PCIe 4.0 M.2 slots, and Wi-Fi 6E for future-ready builds.

Key Specifications

Professional Performance for Demanding Workloads

Built with a 7+2+1 digital power phase design and an 8-pin CPU connector, this motherboard delivers stable power delivery for heavy multi-core workloads. The VRM solution ensures sustained performance during extended computing sessions, making it ideal for content creation, data analysis, and professional applications.

Advanced DDR5 Memory Architecture

Experience DDR5 performance with dedicated SMT welding and MSI Memory Boost technology. The dual-channel DDR5 architecture supports speeds up to 8000 MHz, providing exceptional bandwidth for memory-intensive applications and ensuring smooth multitasking capabilities.

Comprehensive Storage and Expansion Options

With support for seven storage drives including M.2 PCIe 4.0 and SATA III, you have extensive flexibility for your storage configuration. RAID 0, 1, and 10 support enables optimized performance or data redundancy. The Lightning Gen 4 PCI-E interface provides 64GB/s bandwidth for graphics cards and high-speed devices.

Enhanced Cooling and Protection

The M.2 Shield Frozr with 7W/mK thermal pads prevents thermal throttling of your SSDs, while the enlarged chipset heatsink maintains optimal operating temperatures. Transient Voltage Suppressors protect against power surges, ensuring component longevity and system stability.

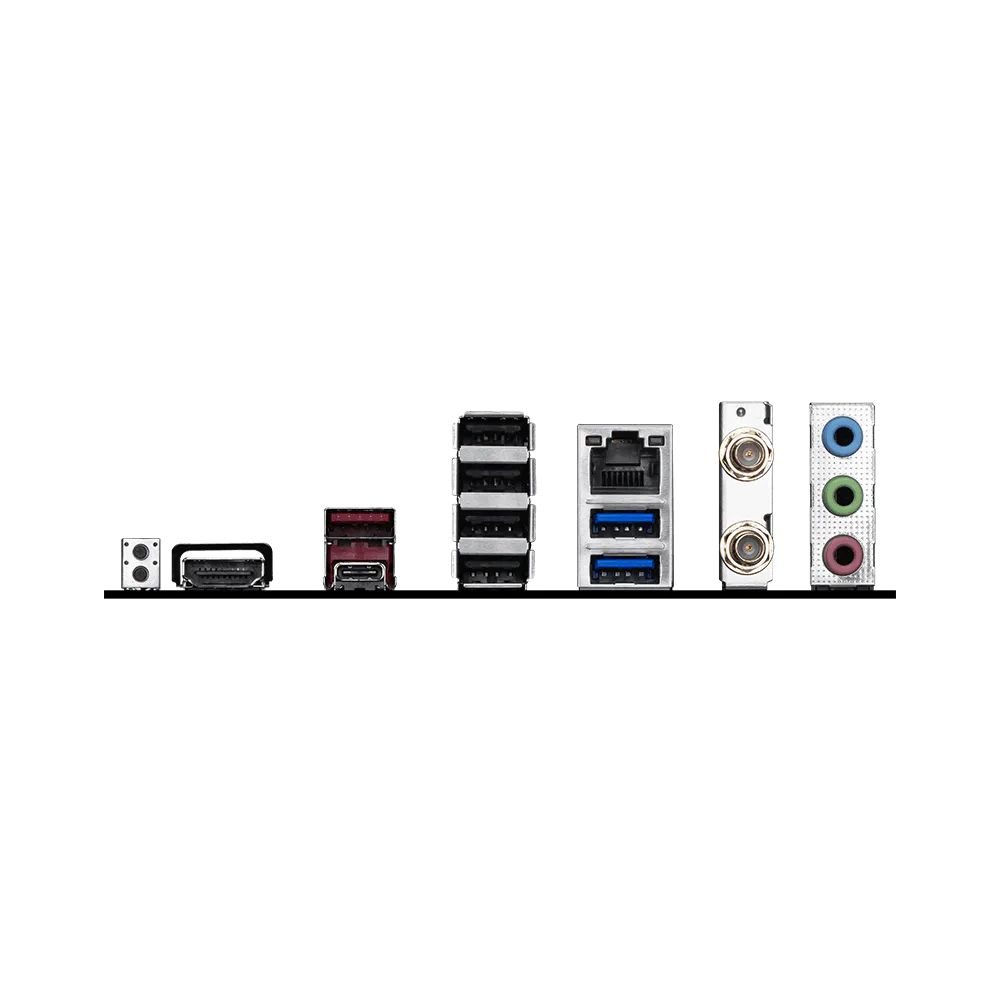

Connectivity and I/O Features

Featuring 2.5G LAN, Wi-Fi 6E with EZ Antenna, and USB 3.2 Gen 2 Type-C ports, this motherboard offers comprehensive connectivity options. The Realtek ALC897 audio codec delivers 7.1 channel surround sound, while Mystic Light RGB headers allow customizable lighting effects.

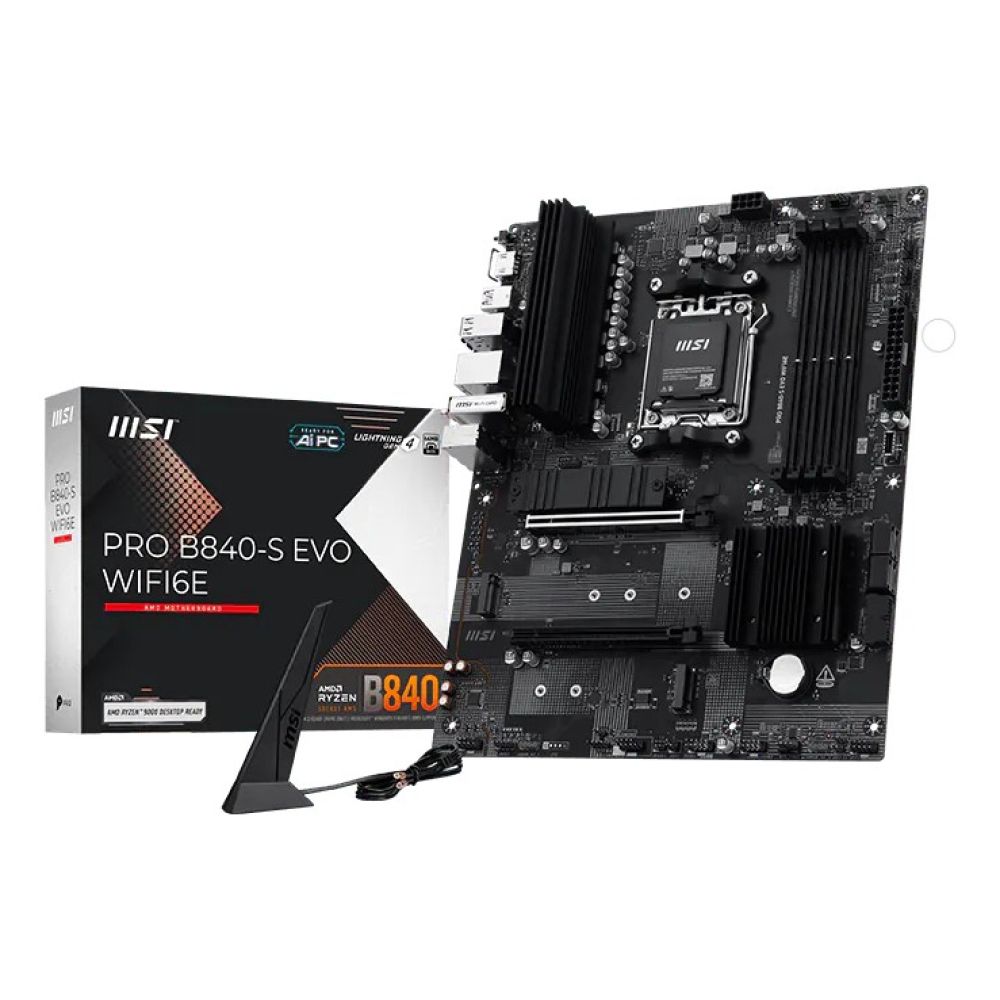

Box contents

• MSI Pro B840-S EVO WIFI6E motherboard
• I/O shield
• User manual
• Driver/software installation disc
• SATA cables (quantity varies)
• Wi-Fi antenna
• M.2 standoff and screw
• Q-Connector for front panel connections

Check before you buy

• Confirm your AMD Ryzen processor is AM5 compatible
• Verify your case supports ATX form factor (243.8 x 304.8 mm)
• Check if your CPU cooler fits the AM5 socket layout
• Ensure your power supply has an 8-pin CPU connector available

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it supports Windows 11 x64 and includes features like Secure Boot and TPM 2.0 compliance.

Q: What type of memory does it support?

A: It supports DDR5-SDRAM with speeds ranging from 4800 MHz to 8000 MHz and a maximum capacity of 256 GB.

Q: How many graphics cards can I install?

A: You can install one graphics card in the PCIe 4.0 x16 slot, with additional expansion cards in the PCIe 3.0 x16 slots.

Q: Does it have built-in Wi-Fi?

A: Yes, it includes Wi-Fi 6E with an EZ Antenna for improved wireless connectivity and range.

Q: What audio features are included?

A: It features the Realtek ALC897 codec supporting 7.1 channel audio output for immersive sound.

The Consultant’s verdict & warranty

The MSI Pro B840-S EVO WIFI6E is an excellent choice for professionals building AMD AM5 systems who need reliable performance, modern connectivity, and comprehensive expansion options. With its robust power delivery, DDR5 support, and Wi-Fi 6E capabilities, it provides a solid foundation for both work and entertainment builds. Covered by the standard Manufacturer Warranty.
