MSI PRO Z890-P WIFI ATX Motherboard
£206.78 inc VAT
20 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- ATX motherboard for Intel Core Ultra processors
- 4 M.2 slots and 4 SATA III connectors
- Supports up to 256 GB DDR5 memory at 9200 MHz
- Wi-Fi 7, 5 Gb Ethernet, and Thunderbolt 4 connectivity
- PCIe 5.0 M.2 with EZ M.2 Shield Frozr II
- 7.1 channel audio with Realtek ALC897 codec
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
MSI PRO Z890-P WIFI | Intel Z890 ATX Motherboard for Core Ultra
The MSI PRO Z890-P WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX is engineered for professionals and enthusiasts building high-performance PCs around Intel’s latest Core Ultra processors. With robust power delivery, Wi-Fi 7 connectivity, and PCIe 5.0 support, this ATX board balances business-class reliability with cutting-edge features for demanding workloads.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1851 (Socket V1) |
| Memory Support | DDR5, up to 256 GB, 9200 MHz |
| PCIe Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 4.0 x1 |
| M.2 Slots | 4x M.2 (PCIe 5.0 capable) |
| Network | Wi-Fi 7, 5 Gb Ethernet, Bluetooth 5.4 |
| Form Factor | ATX (243.8 x 304.8 mm) |
Built for Intel Core Ultra Performance
The PRO Z890-P WIFI is ready for Intel Core Ultra (Series 2) processors, delivering exceptional multi-threaded performance for content creation, data analysis, and multitasking. Its 14+1+1+1 DRPS power design with 55A DrMOS ensures stable power delivery even under heavy workloads, while the dual 8-pin EPS connectors provide headroom for future upgrades.
Next-Generation Connectivity
Stay ahead with Wi-Fi 7 and 5 Gb Ethernet for ultra-fast, low-latency networking. The board includes Thunderbolt 4 for high-speed peripherals, HDMI 2.1 for 4K/8K displays, and multiple USB 3.2 Gen 2 ports for rapid data transfers. Whether you’re streaming, gaming, or collaborating, connectivity won’t be a bottleneck.
Storage Versatility and Expansion
With four M.2 slots and four SATA III ports, you can configure multiple NVMe SSDs and HDDs for maximum storage flexibility. RAID 0, 1, 5, and 10 support lets you tailor performance and redundancy to your needs. The PCIe 5.0 M.2 slot ensures compatibility with the fastest next-gen drives.
Business-Class Reliability
The PRO Series is designed for professionals who need dependable, efficient performance. MSI’s advanced hardware and AI-powered BIOS and Center software make system management intuitive and hassle-free. The board’s 7.1-channel audio with Realtek ALC897 codec ensures clear sound for conferencing and media.

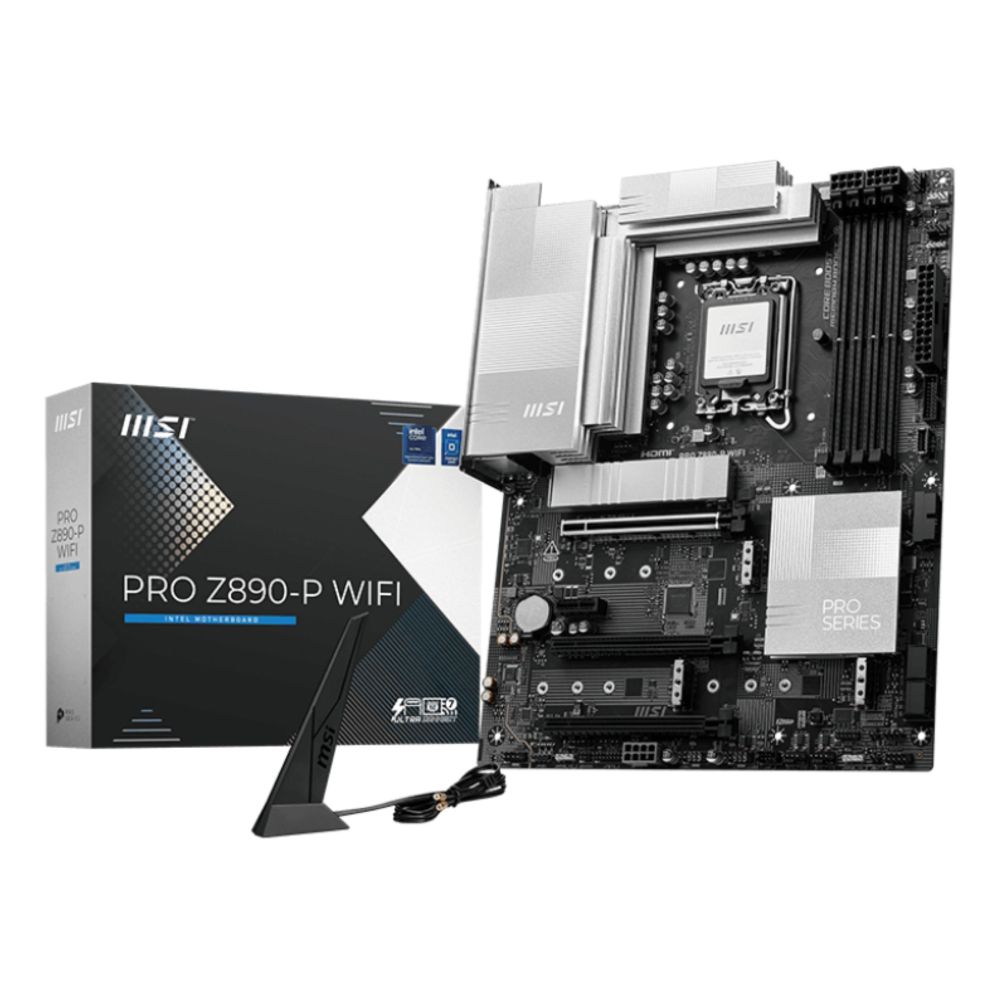

Box Contents
- MSI PRO Z890-P WIFI motherboard
- I/O shield
- User manual
- Driver/software CD
- SATA cables (quantity not specified)
- Wi-Fi antenna(s) (quantity not specified)
Check Before You Buy
- Confirm your Intel Core Ultra processor is LGA 1851 compatible.
- Verify your PSU has the required 24-pin ATX and dual 8-pin EPS connectors.
- Ensure your case supports ATX form factor (243.8 x 304.8 mm).
- Check if your intended DDR5 memory is on MSI’s QVL list for stability.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM, up to 256 GB at 9200 MHz.
Q: Is Wi-Fi 7 included or is it just Wi-Fi 6?
A: Yes, it features true Wi-Fi 7 (802.11be) with an EZ Antenna for the latest wireless speeds.
Q: Can I use this board for gaming as well as professional work?
A: Absolutely. With PCIe 5.0, fast networking, and stable power delivery, it handles both gaming and professional applications smoothly.
Q: How many GPUs can I install?
A: One full-length PCIe 5.0 x16 card; additional slots are PCIe 4.0 x4 and x1 for other expansion cards.
Q: Does it come with onboard graphics?
A: No, it does not have onboard graphics; you’ll need a dedicated GPU.
The Consultant’s Verdict & Warranty
The MSI PRO Z890-P WIFI is an excellent choice for professionals and enthusiasts seeking a future-proof, feature-rich platform for Intel’s Core Ultra processors. Its combination of robust power delivery, Wi-Fi 7, and extensive connectivity makes it ideal for high-performance builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 256 GB |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 6400,9200 MHz |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 9200 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| Thunderbolt ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Other features | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Identifiers | |
| Distributor SKUs | 125665, 4711377257701, W129038842, 7E34-001R, 911-7E34-001, 536086, 535962, STD10215492 |
| Additional EANs | 0824142381458 |
