GIGABYTE H810M K Motherboard for Intel Core Ultra CPUs
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Core Ultra (Series 2) CPU support with LGA 1851 socket
- Dual-channel DDR5 memory up to 6400MHz with 128GB max capacity
- 1x PCIe 4.0 M.2 slot plus 4x SATA III for versatile storage
- micro ATX form factor with passive cooling for quiet operation
- 7.1 channel audio with Realtek ALC897 codec
- Intel H810 chipset with Gigabit Ethernet and HDMI 2.1
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

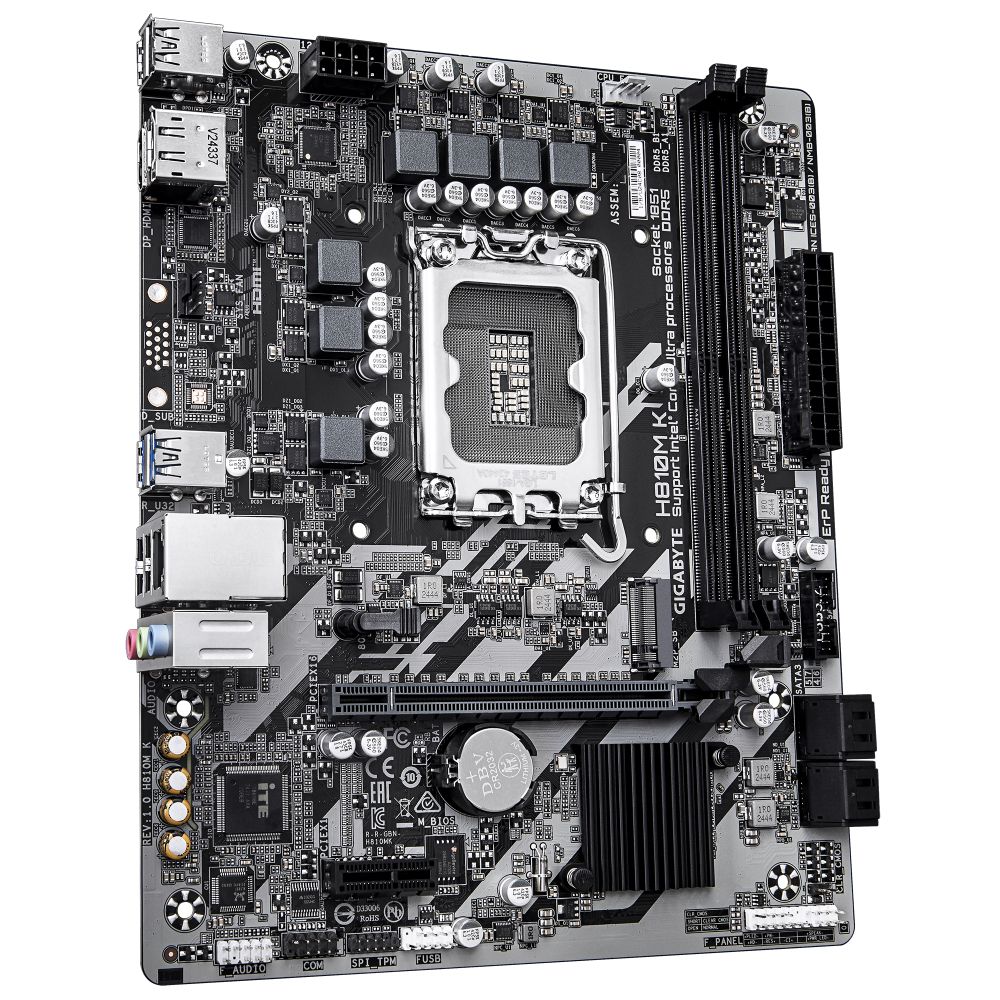

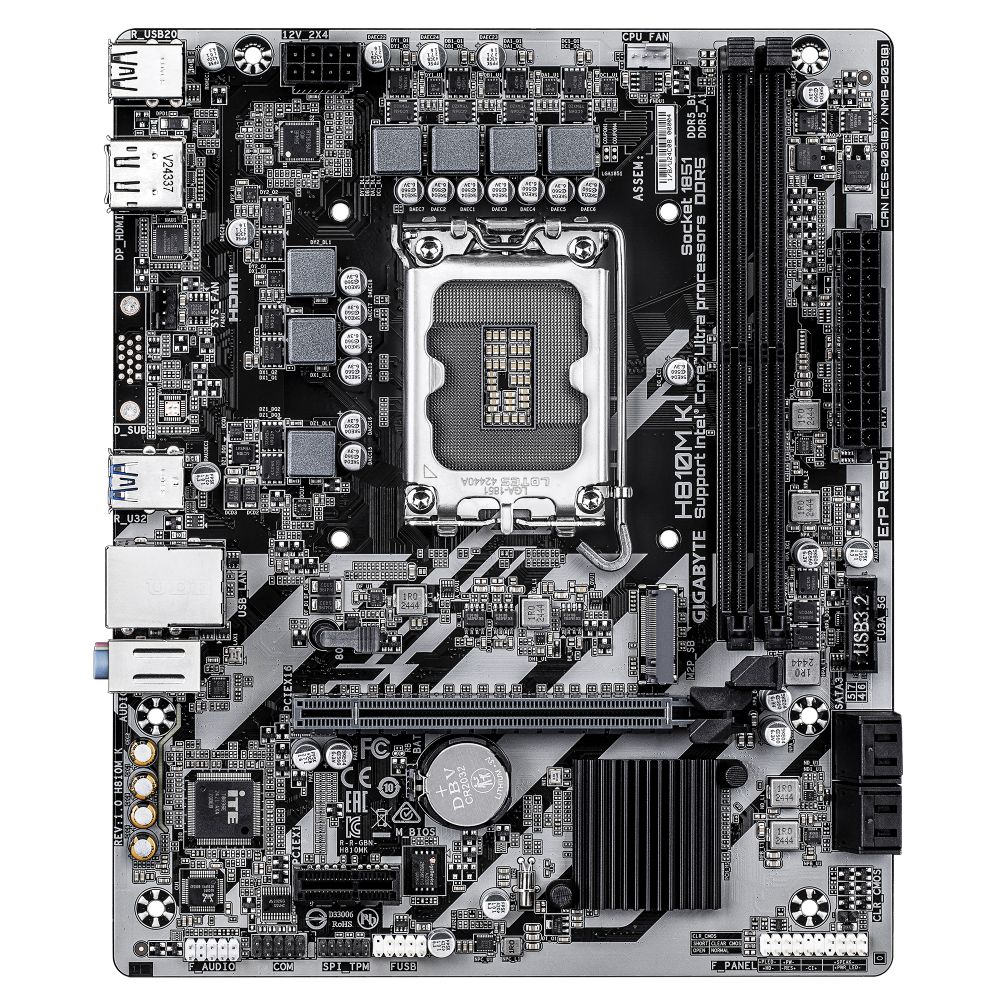

GIGABYTE H810M K | Micro ATX Intel Core Ultra Motherboard
The GIGABYTE H810M K Motherboard is engineered for Intel Core Ultra (Series 2) processors, delivering a compact micro ATX platform with robust VRM cooling, DDR5 memory support up to 6400MHz, and versatile storage options. Ideal for UK builders seeking reliable performance in a space-efficient form factor.
Key Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | LGA 1851 |
| Memory Support | DDR5, up to 6400MHz, 128GB total |
| Form Factor | Micro ATX |
| Storage Interfaces | 1x M.2 PCIe 4.0, 4x SATA III |
| Network | 1GbE Realtek RTL8111H |
| Warranty | 3 years |
Intel Core Ultra Ready Performance
Built around the Intel H810 chipset, this motherboard supports the latest Intel Core Ultra (Series 2) CPUs through the LGA 1851 socket. The 3+1+2 phase VRM design with passive cooling ensures stable power delivery for demanding workloads, while dual-channel DDR5 memory architecture enables speeds up to 6400MHz for responsive multitasking.
Storage and Expansion Flexibility
With one PCIe 4.0 M.2 slot supporting drives up to 2280mm and four SATA III ports, you can configure multiple storage devices for optimal performance. The board supports RAID 0, 1, 5, and 10 configurations, allowing you to balance speed and redundancy based on your needs. The PCIe x16 slot provides room for a dedicated graphics card.

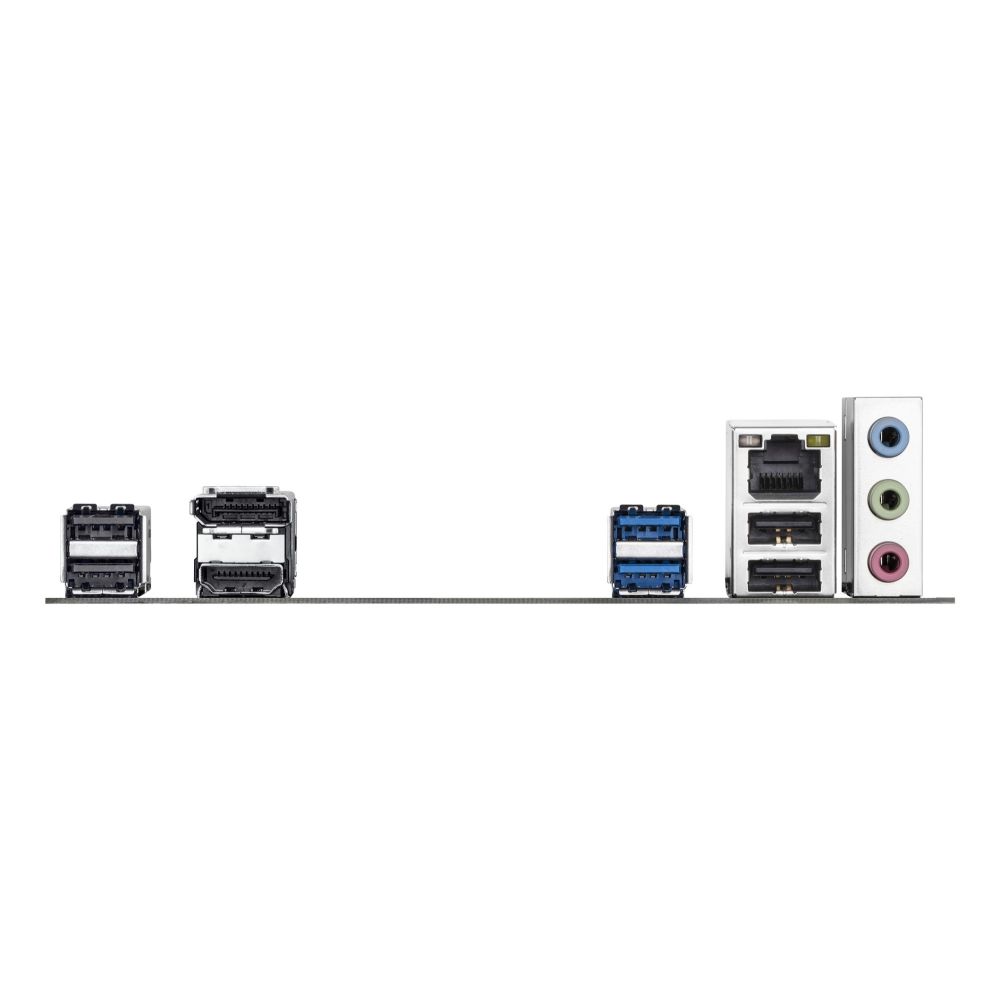

Comprehensive I/O and Connectivity
This micro ATX board includes essential connectivity options: two USB 3.2 Gen 1 ports, four USB 2.0 ports, HDMI 2.1, DisplayPort 2.1, and a Gigabit Ethernet port. The 7.1-channel HD audio with Realtek ALC897 codec delivers clear sound, while front panel headers accommodate additional USB and audio devices.

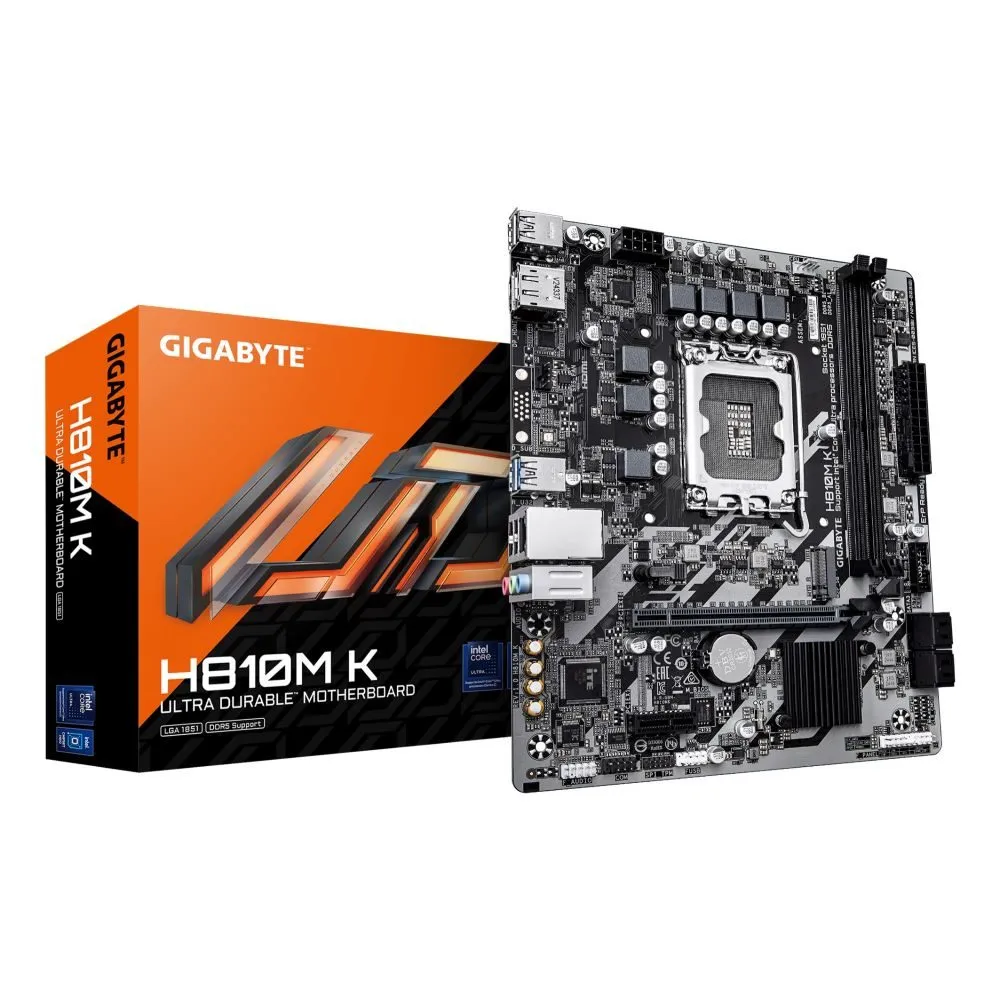

Box contents
- GIGABYTE H810M K Motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual
- Driver/software disc
- CMOS battery (CR2032)
- Screws for installation
Check before you buy
- Confirm your Intel Core Ultra (Series 2) CPU is compatible with LGA 1851 socket
- Verify your case supports micro ATX (185mm x 226mm) dimensions
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your DDR5 memory modules are within the 128GB maximum capacity
Frequently Asked Questions
Q: What processors work with this motherboard?
A: Intel Core Ultra (Series 2) processors with LGA 1851 socket compatibility.
Q: How many RAM slots does it have?
A: Two DDR5 DIMM slots supporting up to 128GB total memory.
Q: Does it support Wi-Fi connectivity?
A: No, this model does not include built-in Wi-Fi; requires separate adapter.
Q: What graphics outputs are available?
A: One HDMI 2.1 port and one DisplayPort 2.1 port for integrated graphics.
Q: Can I use this for gaming?
A: Yes, with a compatible Intel Core Ultra CPU and dedicated GPU, it handles gaming well.
The Consultant’s verdict & warranty
The GIGABYTE H810M K offers UK builders a reliable micro ATX foundation for Intel Core Ultra (Series 2) systems, combining DDR5 memory support, PCIe 4.0 storage, and comprehensive connectivity in a compact design. Covered by the standard Manufacturer Warranty.
| Front panel connector | Yes |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Serial port headers | 1 |
| Warranty period | 3 year(s) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 6400 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 226 mm |
| Depth | 185 mm |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 766.6 g |
| Weight | 688 g |
