ASUS TUF Gaming X870-Plus WiFi Motherboard
£291.99 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870 chipset for Ryzen 7000/8000/9000 Series
- Socket AM5 for next-gen AMD processors
- ATX form factor with military-grade components
- 4 M.2 slots for high-speed NVMe storage
- Wi-Fi 7 and 2.5Gb Ethernet connectivity
- Realtek ALC1220P 7.1 audio with RGB lighting
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING X870-PLUS WIFI | AMD AM5 Gaming Motherboard
The ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX motherboard delivers rock-solid performance for AMD Ryzen 7000/8000/9000 Series processors. Engineered with military-grade components and comprehensive cooling, this board handles marathon gaming sessions while supporting the latest DDR5 memory and Wi-Fi 7 connectivity.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | AMD AM5 |
| Memory Support | DDR5, up to 192 GB |
| Storage | 4x M.2, 6x SATA III |
| Network | 2.5Gb Ethernet + Wi-Fi 7 |
| Form Factor | ATX (305 x 244 mm) |
Built for AMD Ryzen Performance
This motherboard supports the full AMD Ryzen 7000, 8000, and 9000 Series processors through the AM5 socket. The AMD X870 chipset provides enhanced PCIe 5.0 lanes for next-gen graphics cards and storage devices. With support for up to 192 GB of DDR5 memory at 8000 MHz, you’ll experience smooth multitasking and rapid data access for demanding applications.
Comprehensive Cooling System
TUF GAMING X870-PLUS WIFI features a robust thermal design including multiple fan headers and dedicated M.2 heatsinks. The VRM heatsinks work with the extended heatsink array to maintain optimal temperatures during intensive workloads. Four chassis fan connectors allow precise control over your cooling setup, ensuring stable performance whether you’re gaming or content creating.
Advanced Connectivity Options
Stay connected with Wi-Fi 7 (802.11be) and Bluetooth 5.4 for the latest wireless standards. The 2.5Gb Ethernet port provides reliable wired connections for competitive gaming. Storage options include four M.2 slots supporting PCIe 5.0 and six SATA III ports, giving you flexibility for both ultra-fast NVMe drives and traditional SSDs or HDDs.
Storage and Expansion Flexibility
With six total storage devices supported through M.2 and SATA III interfaces, you can build your ideal storage configuration. The motherboard supports RAID 0, 1, 5, and 10 for data protection and performance optimization. Four USB 3.2 Gen 1 ports and three USB 3.2 Gen 2 ports provide ample connectivity for peripherals, while the USB4 Gen 3×2 ports offer cutting-edge data transfer speeds.

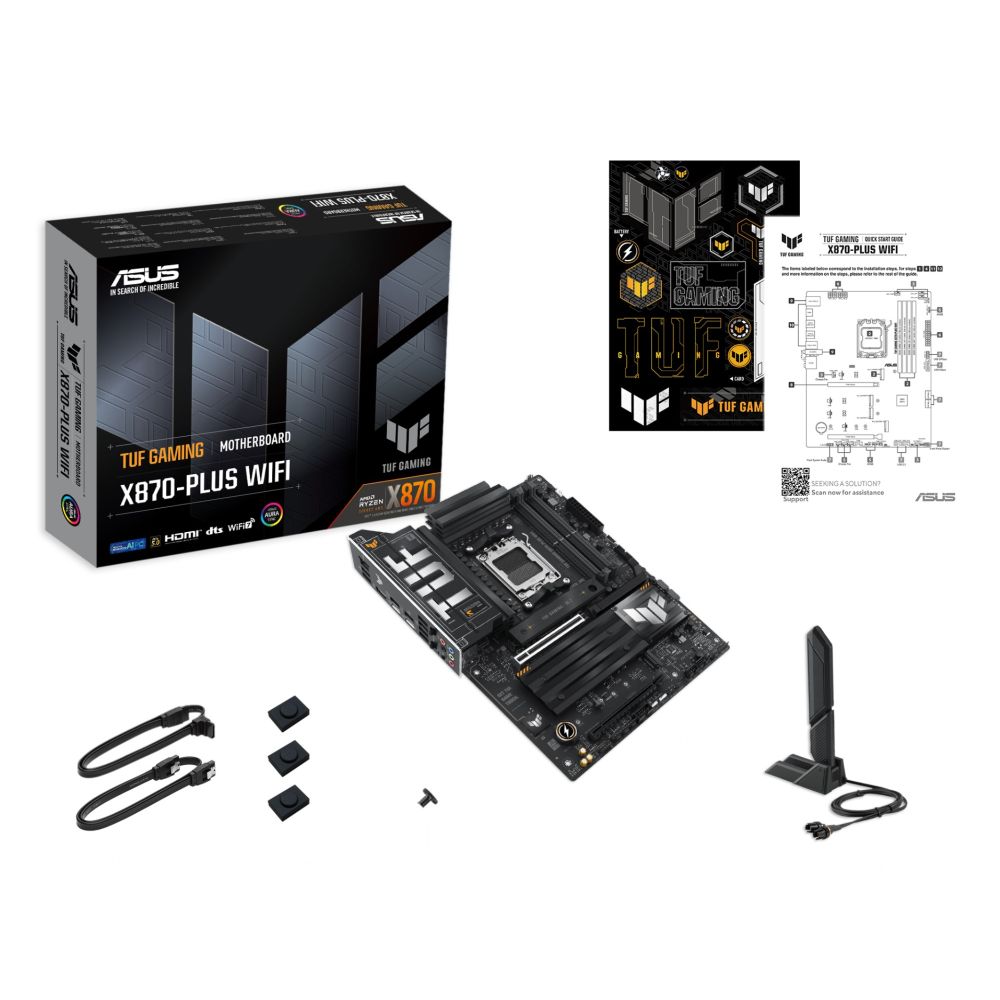

Box Contents
- ASUS TUF GAMING X870-PLUS WIFI motherboard
- I/O shield
- User manual
- Warranty card
- SATA cables (quantity varies)
- M.2 screws and standoff
- RGB extension cable
Check before you buy
- Confirm your AMD Ryzen processor is AM5 compatible
- Verify your case supports ATX form factor (305 x 244 mm)
- Check if your GPU requires PCIe 5.0 support
- Confirm DDR5 memory compatibility with your modules
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard only supports DDR5-SDRAM memory modules.
Q: What processors are compatible with this board?
A: It supports AMD Ryzen 7000, 8000, and 9000 Series processors with AM5 socket.
Q: Does it have built-in Wi-Fi?
A: Yes, it includes Wi-Fi 7 (802.11be) and Bluetooth 5.4 for wireless connectivity.
Q: How many M.2 slots are available?
A: The motherboard has four M.2 slots for NVMe SSDs.
Q: What is the maximum memory capacity?
A: You can install up to 192 GB of DDR5 memory across the four DIMM slots.
The Consultant’s verdict & warranty
The ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX motherboard offers exceptional value for gamers and content creators seeking AMD AM5 platform stability. With comprehensive cooling, Wi-Fi 7 connectivity, and support for the latest Ryzen processors, it delivers reliable performance for demanding applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

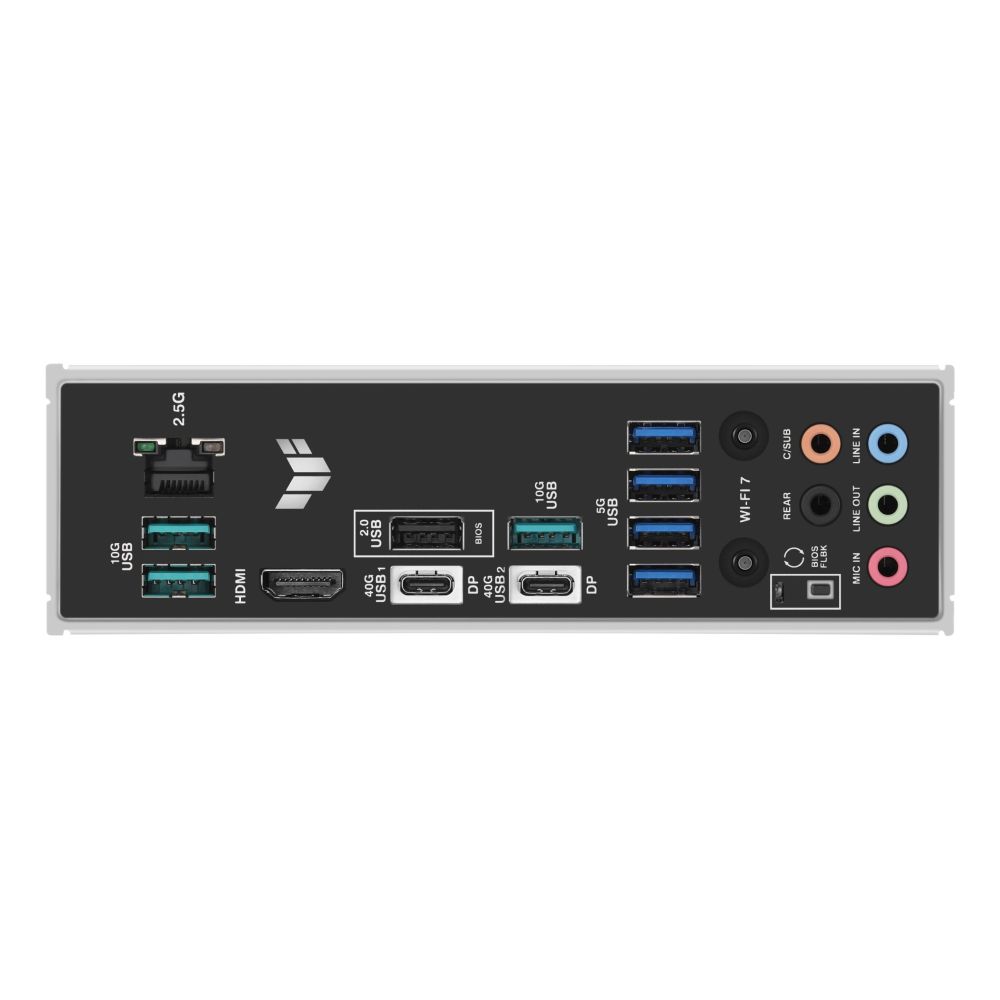

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Identifiers | |
| Distributor SKUs | MBD-90MB1IU0-M0EAY0, 10455591, 125652, TUF GAMING X870-PLUS WIFI, 533812, 536619, STD10215844, 2110356, CL90MB1IU0-M0EAY0, 19344119000 |
