GIGABYTE A620M DS3H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2
£82.72 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD Ryzen 8000 CPU support on Socket AM5
- DDR5 memory up to 7600 MHz with 4 DIMM slots
- micro ATX form factor with AMD A620 chipset
- 1x PCIe 4.0 M.2 slot plus 4 SATA III connectors
- HDMI 2.1, DisplayPort 1.4, and VGA outputs
- 7.1 channel audio and Gigabit Ethernet connectivity
Payment Methods:
You may also like
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE A620M DS3H | Micro ATX AMD Ryzen AM5 Motherboard
The GIGABYTE A620M DS3H is a micro ATX motherboard designed for AMD Ryzen 8000 CPUs, featuring a 5+2+2 phase digital VRM, DDR5 memory support up to 7600MHz (OC), and PCIe 4.0 M.2 storage. Built on the AMD A620 chipset, it delivers essential performance for budget-conscious builders and everyday computing tasks.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Support | AMD Ryzen 8000 Series (AM5) |
| Memory Support | DDR5, up to 192GB, 7600MHz (OC) |
| Expansion | 1x PCIe 4.0 M.2, 1x PCIe x16 |
| Storage | 4x SATA III, M.2 NVMe |
| Network | Gigabit Ethernet |
| USB Ports | USB 3.2 Gen 1, USB 2.0, Type-C |
GIGABYTE A620M DS3H Motherboard – Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
The A620M DS3H delivers reliable AMD AM5 platform support with essential features for everyday computing. Its 5+2+2 phase digital VRM ensures stable power delivery for Ryzen 8000 CPUs, while DDR5 memory support enables faster data access and multitasking. The PCIe 4.0 M.2 slot provides high-speed NVMe storage options for quick boot times and application loading.
Stable Power Delivery for Ryzen 8000
The 5+2+2 phase digital VRM design provides consistent power delivery to AMD Ryzen 8000 processors, maintaining system stability during demanding workloads. This configuration helps prevent thermal throttling and ensures reliable performance whether you’re gaming, working, or streaming content.
DDR5 Memory Performance and Expandability
Supporting DDR5 memory up to 7600MHz (overclocked), this motherboard enables faster data transfer rates compared to DDR4. With four DIMM slots supporting up to 192GB total capacity, you can configure systems for both performance and extensive multitasking capabilities.
Storage Solutions and Connectivity
The A620M DS3H offers versatile storage options with one PCIe 4.0 M.2 slot for ultra-fast NVMe SSDs and four SATA III ports for additional drives. Gigabit Ethernet provides reliable wired network connectivity, while multiple USB ports (including USB 3.2 Gen 1 and Type-C) accommodate various peripherals and external devices.
Compact Micro ATX Design
The micro ATX form factor makes this motherboard suitable for smaller PC cases while maintaining essential features. This size is ideal for space-conscious builds without sacrificing core functionality, making it perfect for home offices, media centers, or compact gaming setups.

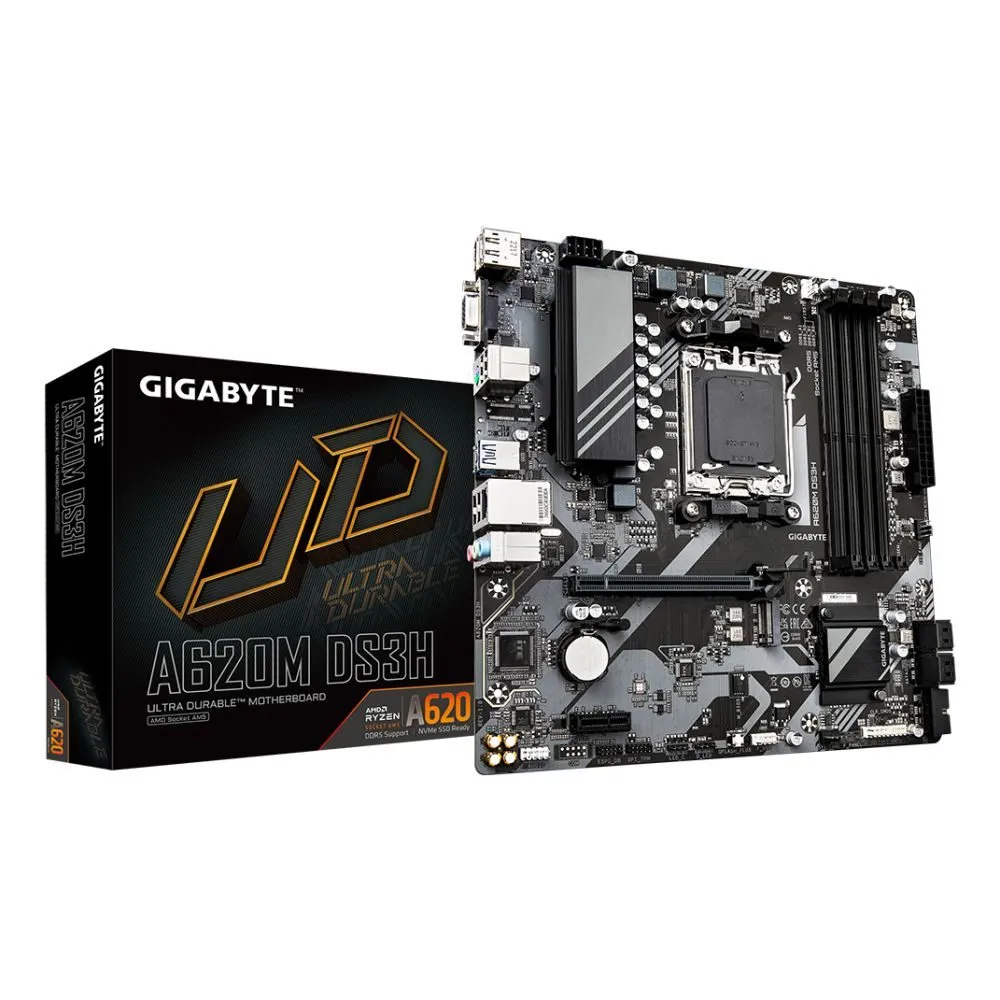

What Is in the Box
- GIGABYTE A620M DS3H motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual and driver CD
- Warranty documentation
Before you order
- Confirm your AMD Ryzen 8000 CPU is compatible with the AM5 socket
- Verify your case supports micro ATX motherboard dimensions (244mm x 244mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure you have DDR5 memory modules (DDR4 will not work)
Buyer FAQs
Does this motherboard support Windows 11?
Can I use DDR4 memory with this board?
How many M.2 drives can I install?
What graphics outputs are available?
Is Wi-Fi included on this motherboard?
Why we rate it
The GIGABYTE A620M DS3H is an excellent choice for budget-conscious builders seeking AMD AM5 platform support with essential features. It’s ideal for everyday computing, office work, and light gaming where DDR5 performance and future upgrade potential matter. Covered by the applicable manufacturer warranty.
| Weight | 0.7 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 192 GB |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 7600 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 1 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Brown |
| Number of M.2 M slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Batteries included | Yes |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.07 kg |
