ASUS TUF GAMING Z890-PLUS WIFI ATX Motherboard
£207.23 inc VAT
26 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Z890 chipset with LGA 1851 socket for Intel Core Ultra (Series 2) processors
- Supports up to 192GB DDR5 memory with AEMP III for enhanced performance
- Four M.2 slots and eight total storage drive support with PCIe 5.0 and RAID options
- Wi-Fi 7, 2.5Gb Ethernet, and Thunderbolt 4 for ultra-fast connectivity
- Realtek ALC1220P 7.1-channel audio with DTS processing for immersive sound
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING Z890-PLUS WIFI | Intel Z890 Gaming Powerhouse
The ASUS TUF GAMING Z890-PLUS WIFI is built for UK gamers and creators who demand rock-solid performance with the latest Intel Core Ultra (Series 2) processors. Engineered with military-grade durability, advanced cooling, and AI-enhanced features, this ATX motherboard delivers marathon-ready stability for intense gaming and multitasking.
Slim Specs Table
| Metric | Spec |
|---|---|
| Processor Support | Intel Core Ultra (Series 2) LGA 1851 |
| Memory | DDR5, up to 192 GB, 8600 MHz |
| Storage | 4x M.2 + 4x SATA III, PCIe 5.0 ready |
| Networking | Wi-Fi 7, 2.5Gb Ethernet, Bluetooth 5.4 |
| Audio | Realtek ALC1220P, 7.1 channels |
AI-Powered Performance for Next-Gen Gaming
The ASUS TUF GAMING Z890-PLUS WIFI integrates intelligent AI features that optimise your system in real time. AI Cooling II dynamically adjusts fan speeds based on CPU temperature, reducing noise without sacrificing thermals. AI Networking II prioritises bandwidth for gaming and streaming, ensuring low-latency connections even on congested networks. For creators, the onboard NPU Boost overclocks Intel’s integrated NPU with one click, accelerating AI workflows by up to 24% for compatible K-series processors.
Military-Grade Power Delivery for Stability
Built to handle high-core-count Intel CPUs, this motherboard features a 16+1+2+1 phase VRM design with 80A power stages. The ProCool connectors and TUF chokes deliver clean, stable power even during extreme overclocking. Eight-layer PCB construction enhances signal integrity and heat dissipation, while Digi+VRM control provides real-time voltage monitoring. Whether you’re pushing frame rates or rendering 3D projects, the power delivery remains rock-solid.
Future-Proof Storage and Memory Performance
With four M.2 slots supporting PCIe 5.0 (up to 128 Gbps) and four SATA III ports, you can configure lightning-fast NVMe RAID arrays or massive storage pools. ASUS Enhanced Memory Profile III (AEMP III) automatically tunes DDR5 modules for optimal performance, even with entry-level kits. The DIMM Fit feature analyses each memory stick to maximise stability and compatibility, making overclocking accessible whether you’re a seasoned enthusiast or first-time builder.
Comprehensive Connectivity for UK Setups
This motherboard offers versatile connectivity including three USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port on the rear, and a front USB 20Gbps Type-C header for modern peripherals. Thunderbolt 4 support provides 40Gbps bi-directional bandwidth for external displays and high-speed drives. Intel 2.5Gb Ethernet delivers up to 2.5x faster LAN speeds than standard gigabit, while Wi-Fi 7 with ASUS WiFi Q-Antenna ensures stronger wireless reception—up to 18% better than previous generations.

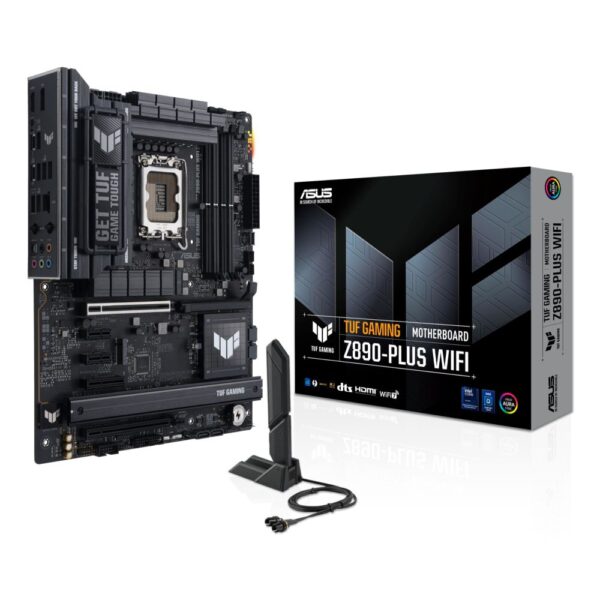

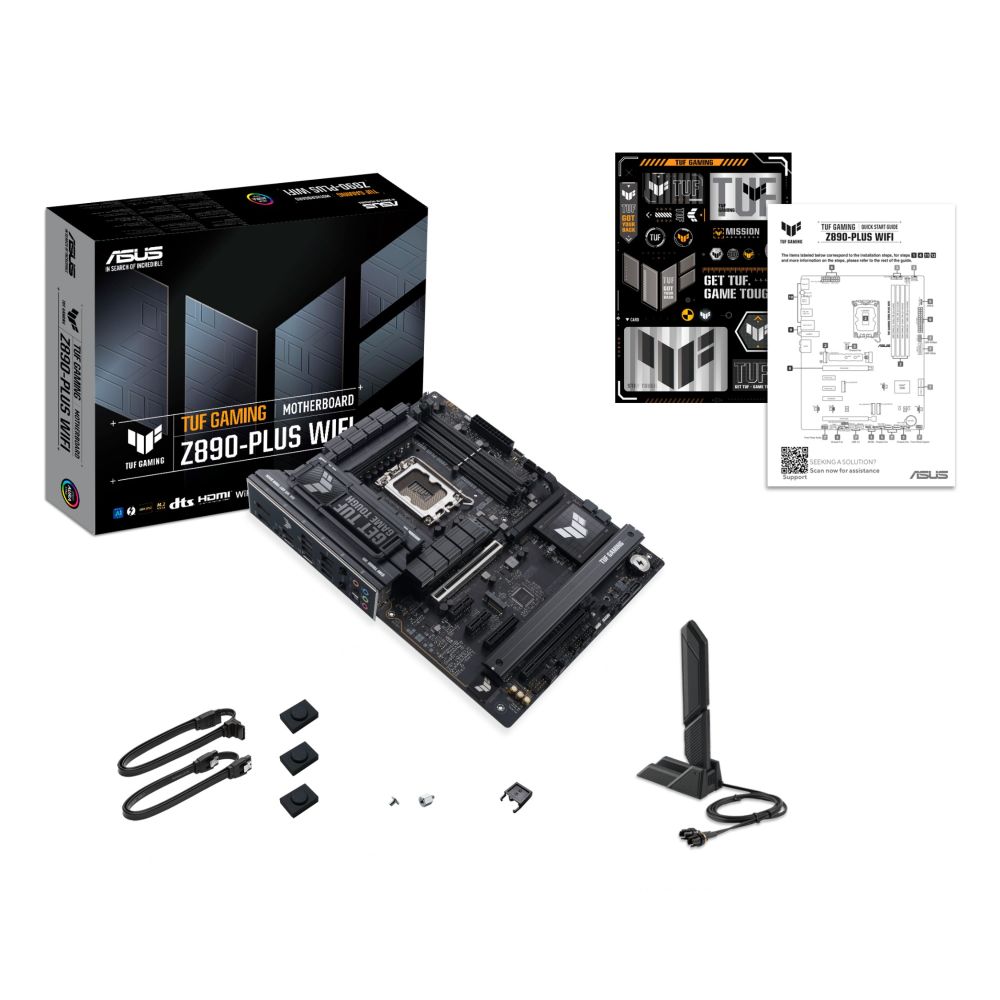

Box Contents
- ASUS TUF GAMING Z890-PLUS WIFI motherboard
- SATA cables (quantity not specified)
- Quick installation guide
- I/O shield
- M.2 screws and standoff
Check before you buy
- Confirm your Intel Core Ultra (Series 2) processor is LGA 1851 compatible
- Verify your CPU cooler fits the ATX form factor (305mm x 244mm)
- Check that your case has adequate clearance for full-length PCIe 5.0 cards
- Ensure your power supply has the required 8+8 pin CPU connectors
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM modules up to 192 GB at 8600 MHz.
Q: Can I use this with an older Intel processor?
A: No, it’s designed specifically for Intel Core Ultra (Series 2) processors using LGA 1851 socket.
Q: How many graphics cards can I install?
A: It has one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot for graphics cards.
Q: Is Wi-Fi 7 backwards compatible?
A: Yes, it supports Wi-Fi 4 through Wi-Fi 7 standards for maximum compatibility.
Q: Does it come with RGB lighting?
A: Yes, it features Aura Sync RGB headers and addressable Gen2 RGB headers for custom lighting.
The Consultant’s Verdict & Warranty
The ASUS TUF GAMING Z890-PLUS WIFI is ideal for UK gamers and content creators who want future-proof performance without compromising on stability. Its military-grade components, AI-enhanced features, and comprehensive connectivity make it perfect for building a high-end gaming rig or workstation. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Back-to-BIOS button | Yes |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8600 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

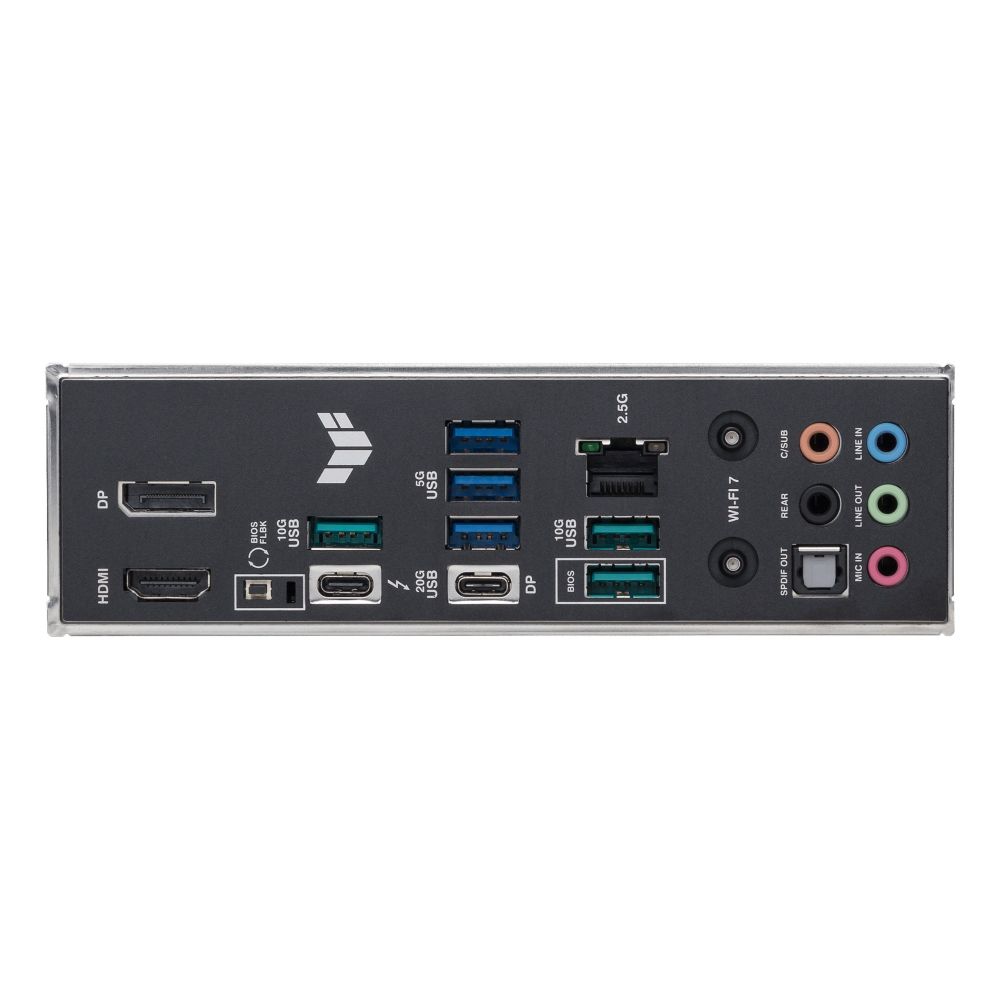

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 1 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Back-to-BIOS button | Yes |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.34 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.34 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Other features | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.34 kg |
| Quick installation guide | Yes |
| Back-to-BIOS button | Yes |
| Identifiers | |
| Distributor SKUs | MBD-90MB1IQ0-M0EAY0, 10496363, 125811, W129021717, TUF GAMING Z890-PLUS WIFI, 535460, 596957, STD10215762, 2110364, CL90MB1IQ0-M0EAY0, 19378881000 |
| Additional EANs | 0197105763920 |
