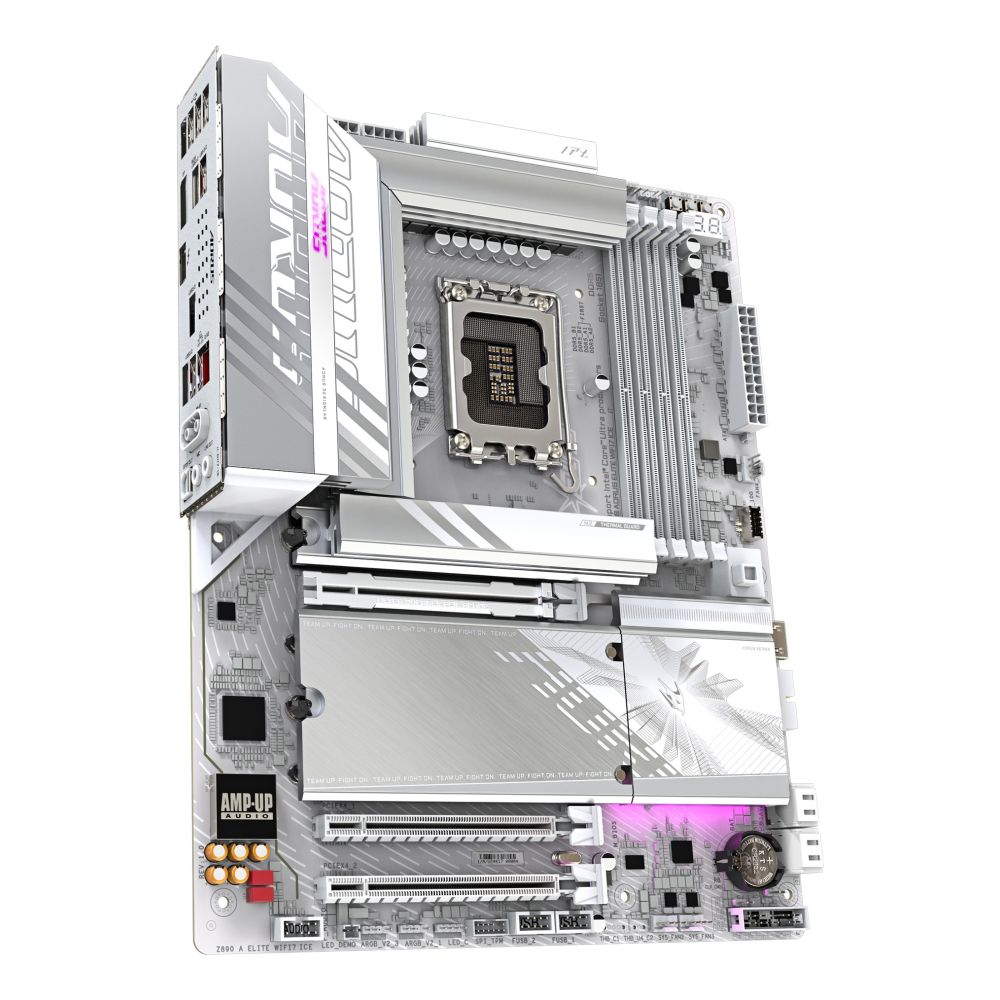

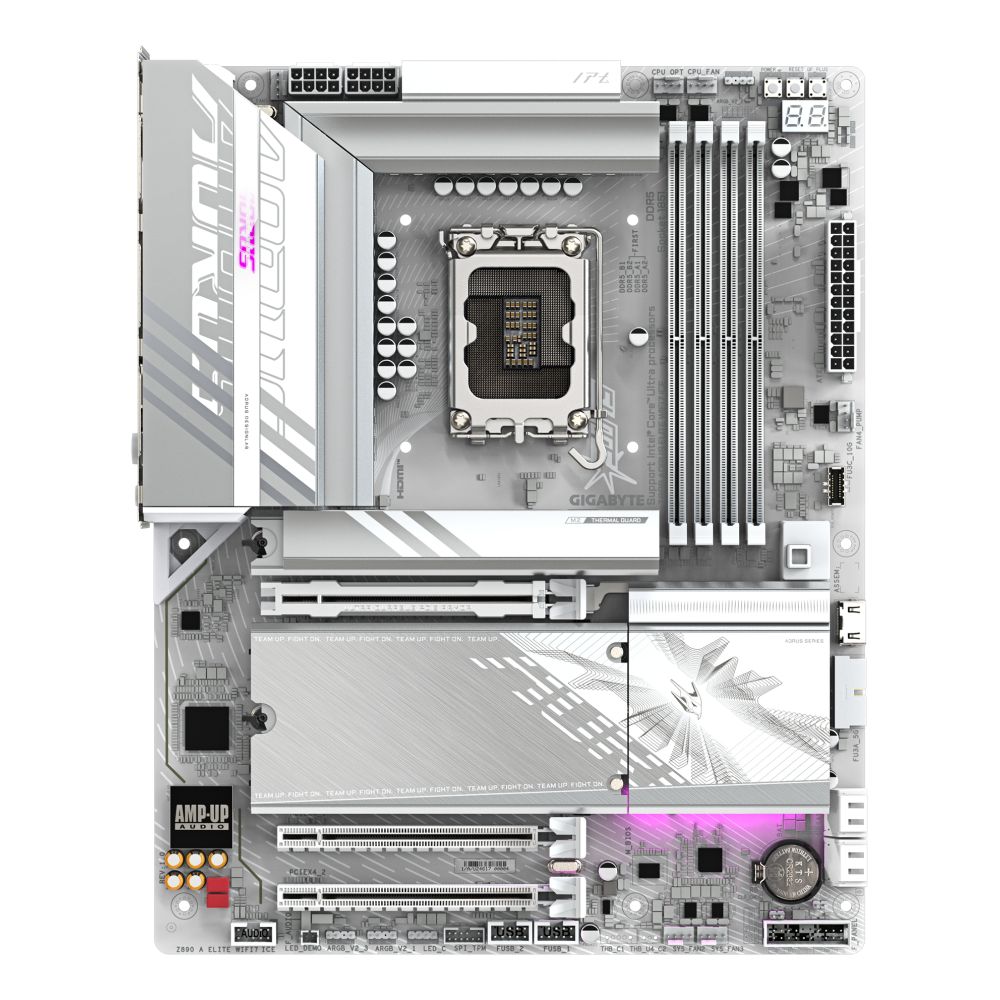

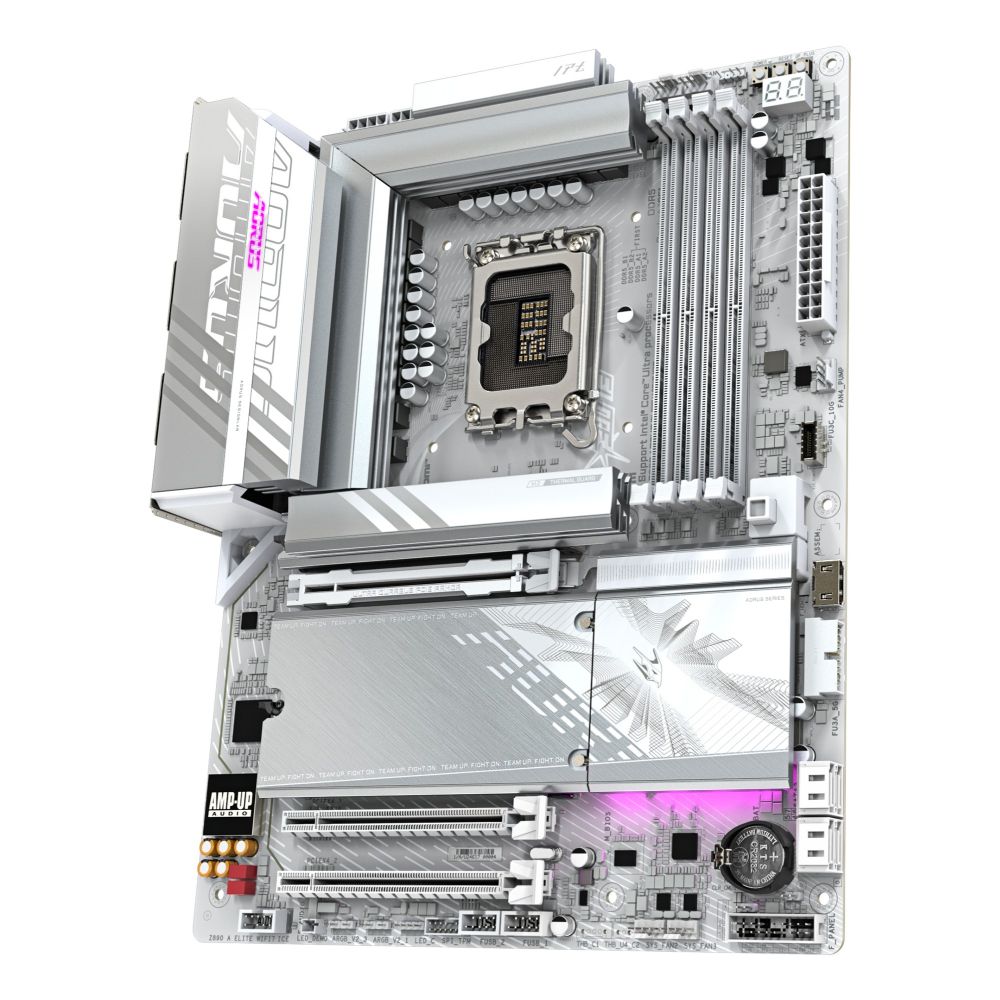

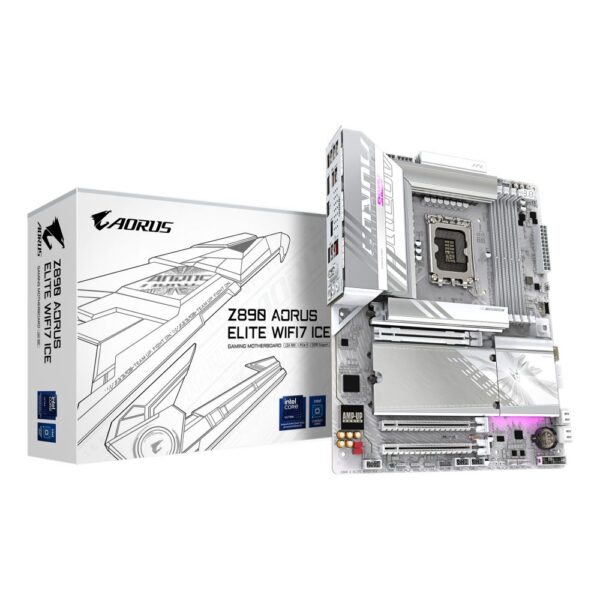

GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard

GIGABYTE Z890 AORUS ELITE WIFI7 ICE | Intel Core Ultra Ready

The GIGABYTE Z890 AORUS ELITE WIFI7 ICE motherboard delivers cutting-edge performance for next-generation Intel Core Ultra (Series 2) processors. With a robust 16+1+2 phase VRM design, support for DDR5 memory up to 8800MHz (OC), and comprehensive connectivity including Wi-Fi 7 and 2.5GbE Ethernet, this ATX motherboard is engineered for enthusiasts seeking uncompromising power and reliability.

Specification Overview

Power Delivery That Scales With Your Build

The 16+1+2 phase VRM configuration provides exceptional power delivery for Intel Core Ultra processors, ensuring stable performance under heavy workloads. This robust power design maintains clean voltage delivery even during extended gaming sessions or content creation tasks, preventing throttling and maintaining consistent clock speeds when you need them most.

Next-Generation Memory Performance

With four DDR5 memory slots supporting speeds up to 8800MHz (overclocked), this motherboard unlocks the full potential of high-speed memory kits. The dual-channel architecture and extensive memory support (1GB to 64GB modules) provide the bandwidth necessary for demanding applications, from 4K video editing to complex simulations and high-refresh gaming.

Comprehensive Storage Solutions

Four M.2 slots and four SATA III connectors offer extensive storage flexibility. The motherboard supports the latest PCIe 5.0 SSDs alongside traditional SATA drives, with RAID 0, 1, 5, and 10 configurations available. This setup accommodates everything from ultra-fast boot drives to massive storage arrays, ideal for professionals working with large media files.

Advanced Connectivity For Modern Workloads

Wi-Fi 7 support delivers multi-gigabit wireless speeds with reduced latency, while the 2.5GbE Ethernet port ensures reliable wired connections. Bluetooth 5.4 provides low-energy connectivity for peripherals. The combination of three USB 3.2 Gen 1 and two USB 3.2 Gen 2 ports offers versatile options for high-speed peripherals and external storage.

Package contents

• GIGABYTE Z890 AORUS ELITE WIFI7 ICE motherboard
• I/O shield
• User manuals
• Driver/software support DVD
• SATA cables
• M.2 screws
• Wi-Fi antenna
• Warranty card

Things to check first

• Confirm your Intel Core Ultra (Series 2) processor is compatible with LGA 1851 socket
• Verify your case supports ATX motherboard dimensions (305mm x 244mm)
• Check your PSU has the required 24-pin ATX and 8-pin EPS connectors
• Confirm your memory kit is DDR5 compatible and within supported speed ranges

Frequently Asked Questions

Q: Does this motherboard support PCIe 5.0 graphics cards?

A: Yes, it features one PCIe 5.0 x16 slot for the latest graphics cards.

Q: What is the maximum RAM capacity supported?

A: The motherboard supports up to 256GB of DDR5 memory across four slots.

Q: Is Wi-Fi 7 backwards compatible with older Wi-Fi standards?

A: Yes, Wi-Fi 7 is backwards compatible with Wi-Fi 6, Wi-Fi 5, and earlier standards.

Q: Does this board include built-in graphics capabilities?

A: No, this motherboard does not have on-board graphics and requires a discrete GPU.

Q: What RAID configurations are available?

A: The motherboard supports RAID 0, 1, 5, and 10 configurations for both M.2 and SATA drives.

Our verdict & warranty

The GIGABYTE Z890 AORUS ELITE WIFI7 ICE represents a future-proof foundation for high-performance Intel Core Ultra systems. Its combination of robust power delivery, extensive memory support, and cutting-edge connectivity makes it ideal for enthusiasts and professionals building next-generation PCs. Covered by the applicable manufacturer warranty.
