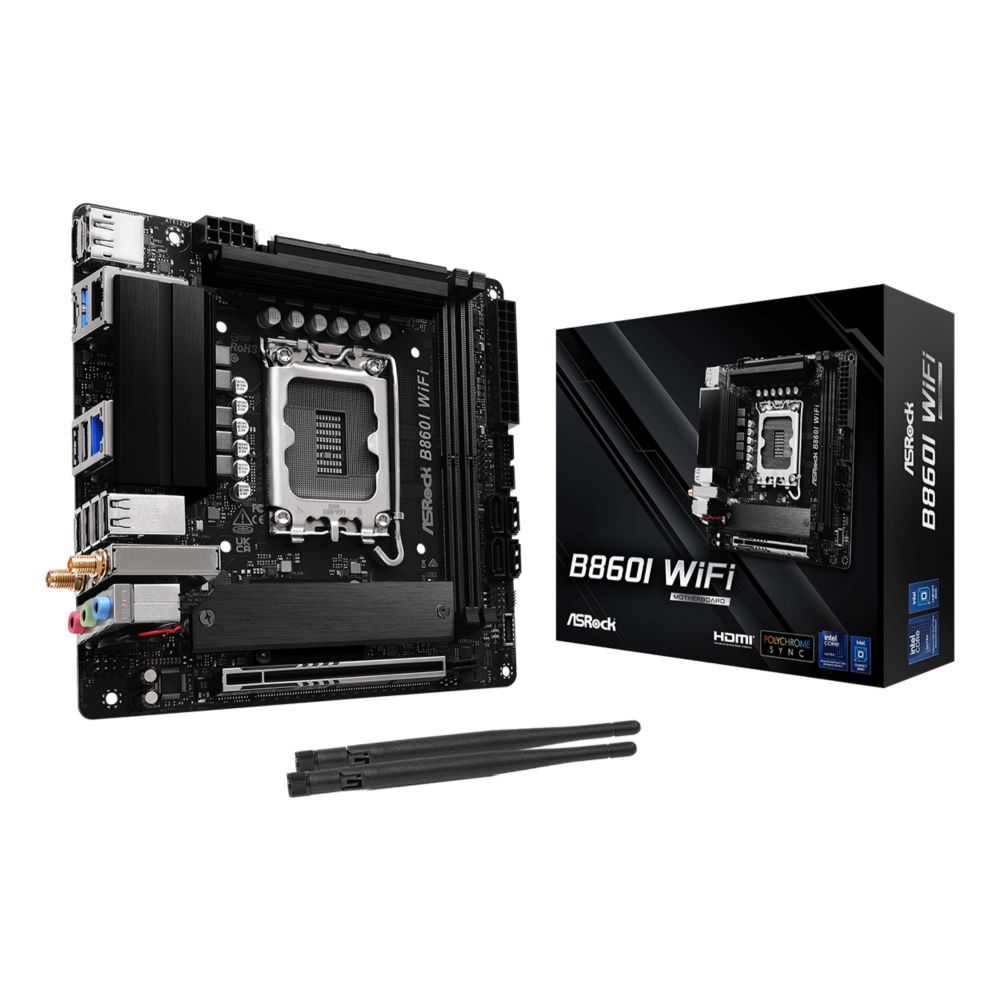

Asrock B860I WiFi mini ITX Motherboard
£123.00 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- mini ITX motherboard with Intel B860 chipset
- Supports DDR5-SDRAM memory up to 128 GB
- Features PCIe Gen5 M.2 slot for ultrafast SSDs
- Wi-Fi 6E and 2.5 Gb/s LAN for high-speed connectivity
- HDMI and DisplayPort outputs for flexible graphics
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock B860I WiFi | Intel B860 Mini ITX Motherboard
The Asrock B860I WiFi Intel B860 LGA 1851 (Socket V1) mini ITX is a compact powerhouse designed for Intel’s latest LGA 1851 processors. Built on the Intel B860 chipset, this mini ITX board delivers robust performance in a small form factor, making it ideal for space-conscious builds without compromising on features or connectivity.
Slim Specs Table
| Metric | Spec |
|---|---|
| Form Factor | Mini ITX |
| Socket | LGA 1851 (Socket V1) |
| Memory Support | DDR5, up to 128GB |
| M.2 Slots | 1 x PCIe 5.0 |
| Network | 2.5Gb/s + Gigabit LAN |
Compact Power for Next-Gen Intel CPUs
This motherboard supports Intel’s latest LGA 1851 processors with an 8+1+1 power phase design featuring Dr.MOS Smart Power Stage technology. The Hi-Density Power Connectors provide stable power delivery even under heavy overclocking loads, while the 8-layer PCB ensures clean signal routing and improved thermal performance for memory overclocking.
Blazing Fast Storage and Memory
Equipped with a PCIe 5.0 M.2 slot, the B860I WiFi supports the latest ultra-fast NVMe SSDs with up to 128Gb/s transfer speeds. DDR5 memory support with XMP/EXPO profiles allows enthusiasts to push memory frequencies beyond standard limits. The board includes four SATA III ports for additional storage options.
Advanced Connectivity Options
The B860I WiFi features comprehensive connectivity including Wi-Fi 6E with 802.11ax support for the latest wireless standards, Bluetooth 5.3, and dual LAN configuration with 2.5Gb/s and Gigabit Ethernet ports. Front-panel USB 3.2 Gen 2×2 Type-C provides up to 20Gbps transfer speeds, while the rear I/O includes multiple USB 3.2 and 2.0 ports for versatile peripheral connections.
Intelligent Thermal Design
An optimized aluminum heatsink design helps manage heat effectively during intensive workloads. The board’s thermal solution ensures stable operation whether you’re gaming, creating content, or running productivity applications. Combined with the 8-layer PCB, this design maintains lower temperatures for improved component longevity.
Box contents
- ASRock B860I WiFi motherboard
- SATA cables (quantity not specified)
- Mounting screws
- User manual
- I/O shield
Check before you buy
- Confirm your CPU is compatible with LGA 1851 (Socket V1)
- Verify your case supports mini ITX form factor (170mm x 170mm)
- Check if your DDR5 memory modules support XMP/EXPO profiles
- Ensure your power supply has the required 8-pin EPS connector
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: It supports Intel processors with LGA 1851 (Socket V1) socket, designed for next-generation Intel CPUs.
Q: Does it support DDR4 memory?
A: No, this motherboard supports DDR5-SDRAM memory only, up to 128GB maximum.
Q: How many M.2 drives can I install?
A: The board has one M.2 slot supporting PCIe 5.0 for ultra-fast NVMe SSDs.
Q: What Wi-Fi standards are supported?
A: It supports Wi-Fi 6E (802.11ax) plus 802.11a/b/g/n/ac for comprehensive wireless connectivity.
Q: Is this motherboard suitable for gaming?
A: Yes, with PCIe 5.0, 2.5Gb/s LAN, and robust power delivery, it’s well-suited for gaming builds.
The Consultant’s verdict & warranty
The Asrock B860I WiFi Intel B860 LGA 1851 (Socket V1) mini ITX offers exceptional value for users building compact systems with Intel’s latest processors. Its combination of PCIe 5.0 support, Wi-Fi 6E connectivity, and robust power delivery makes it a versatile choice for both gaming and productivity applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| On-board graphics card | Yes |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |

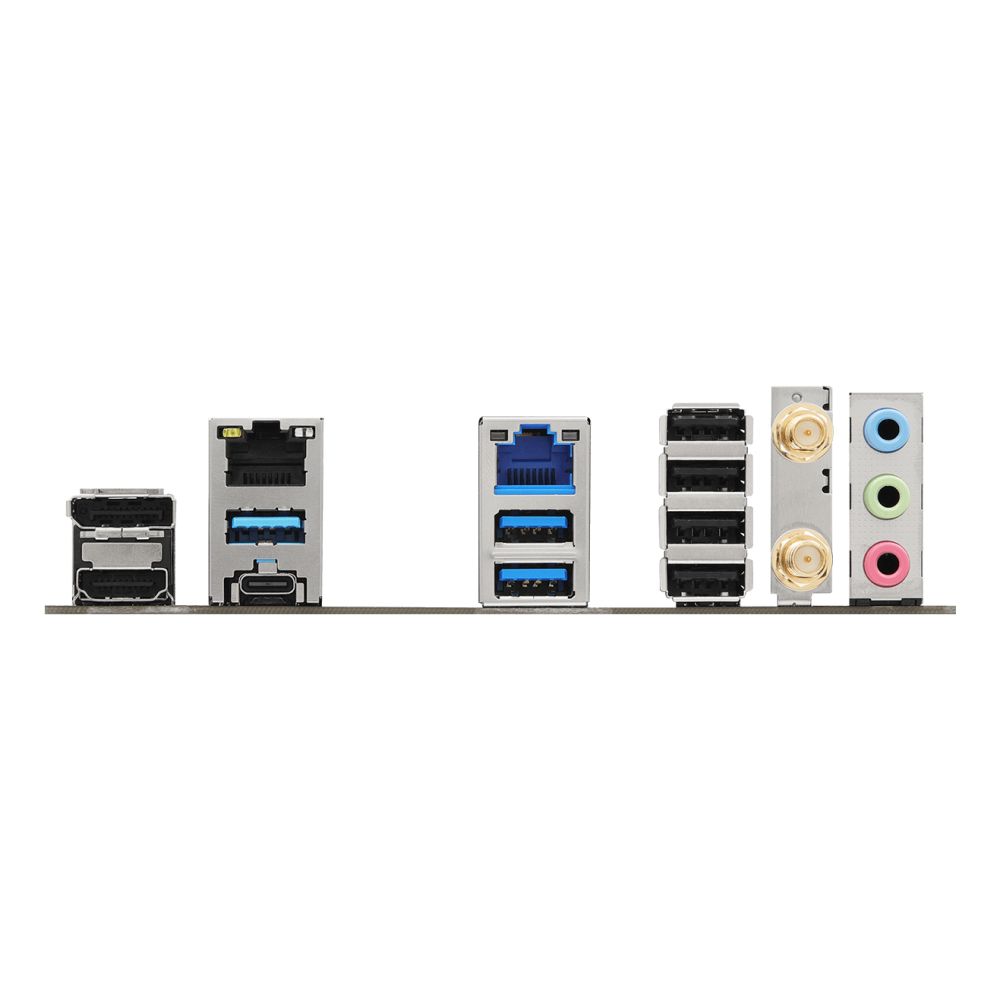

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Video | |
| Graphics card family | Intel |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Identifiers | |
| Distributor SKUs | 90-MXBQQ-A0UAYZ, 90-MXBQQ0-A0UAYZ, MBASR-B860IWIFI, B860IWIFI, CLB860IWIFI |
