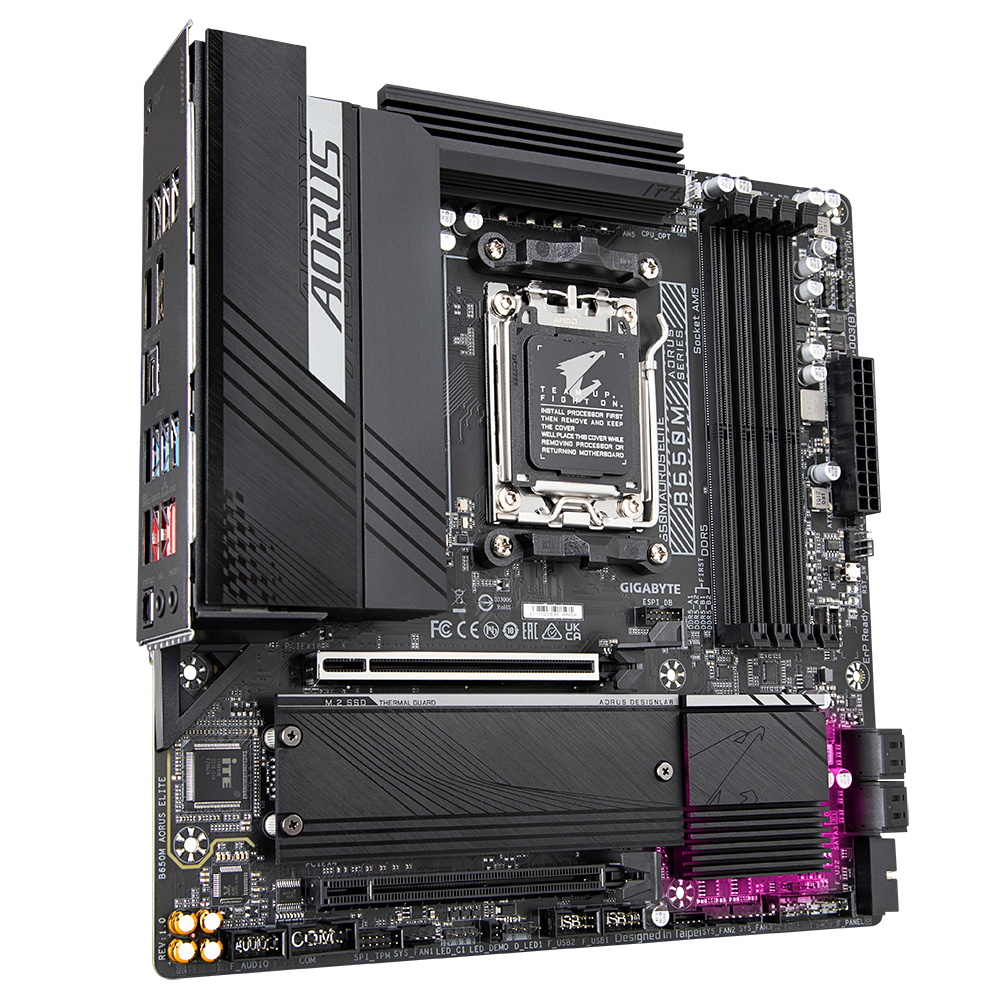

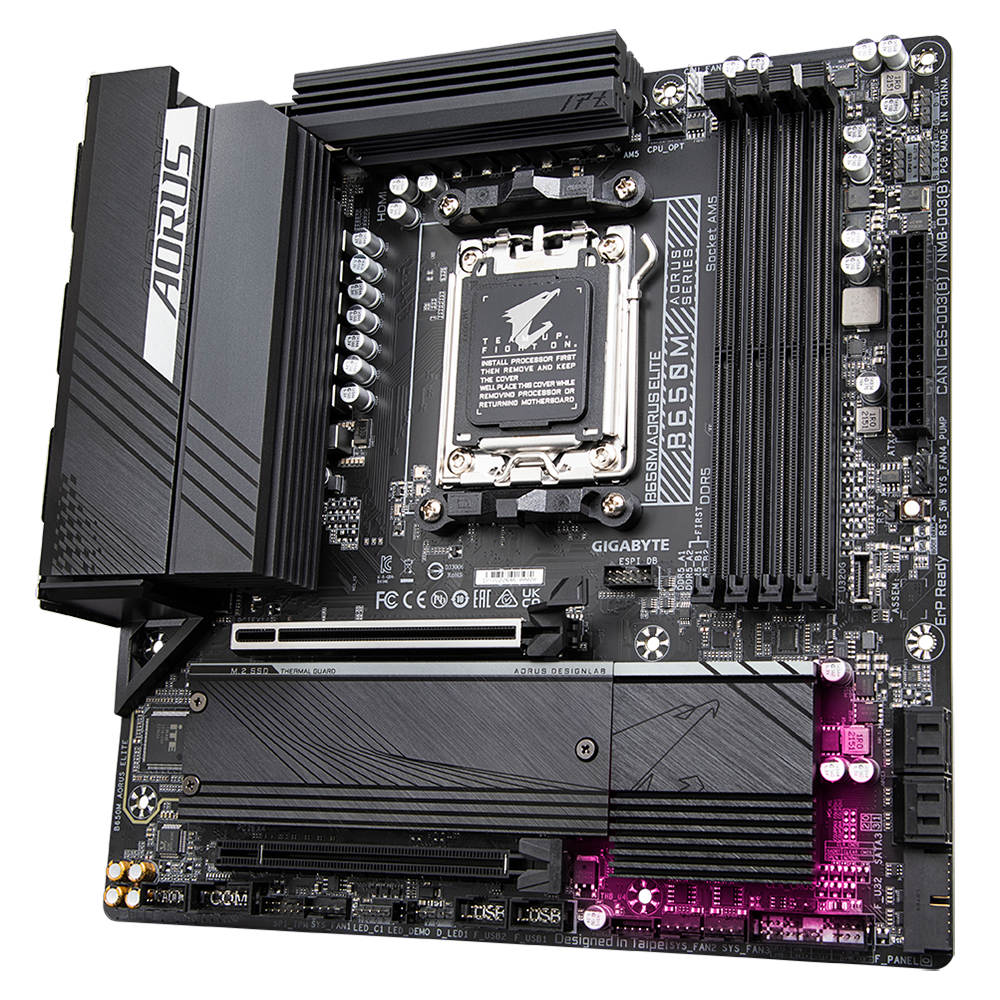

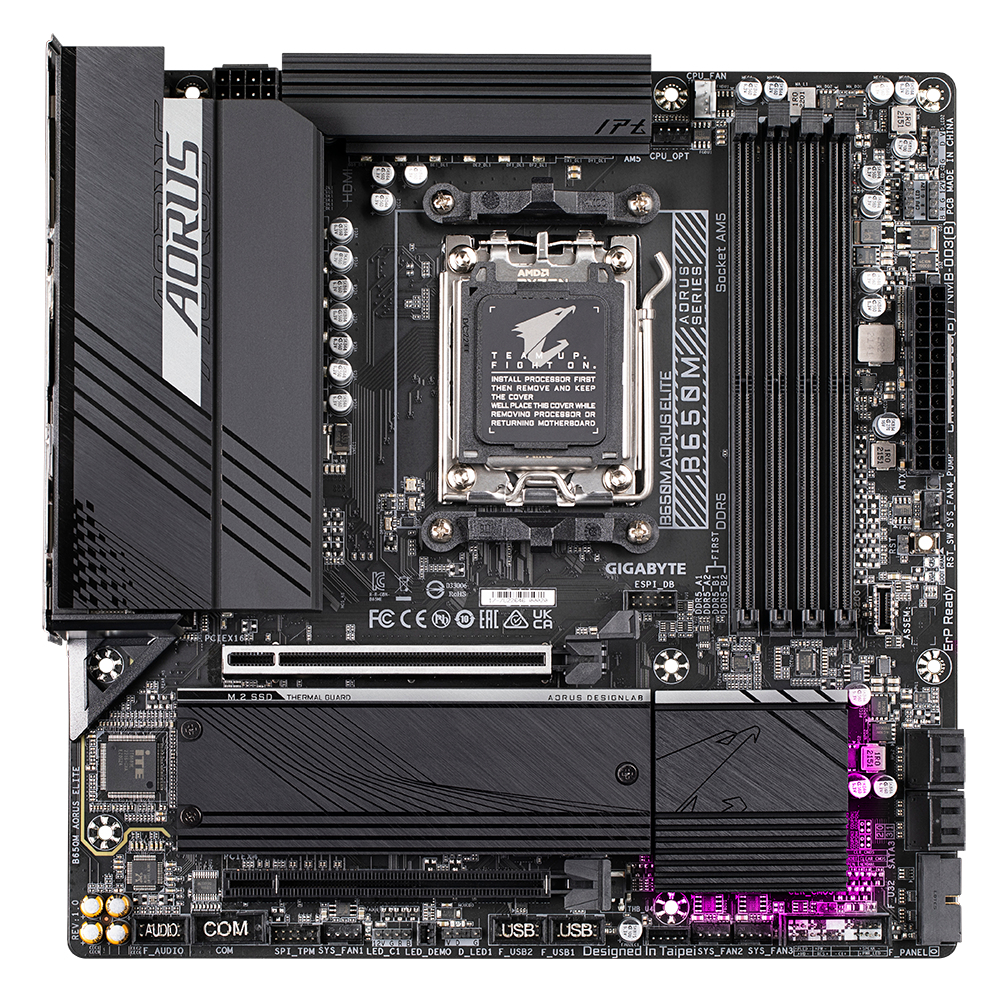

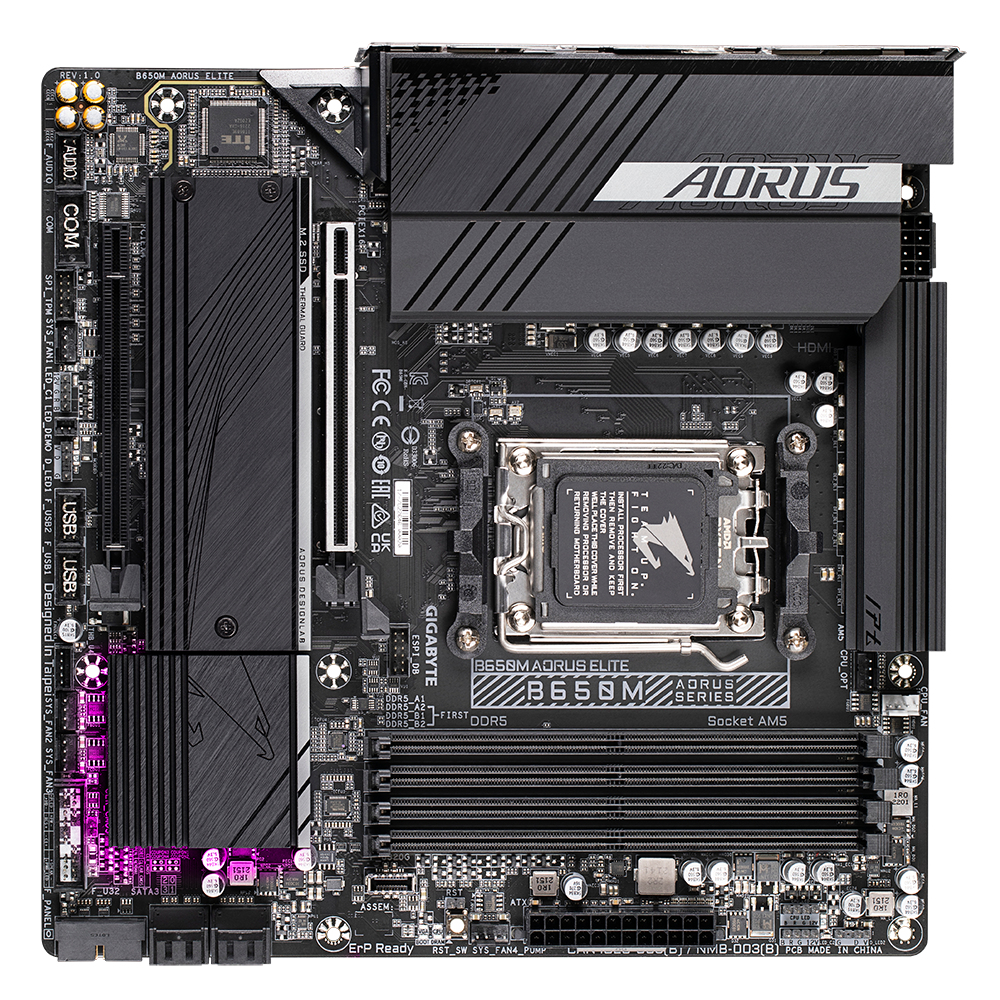

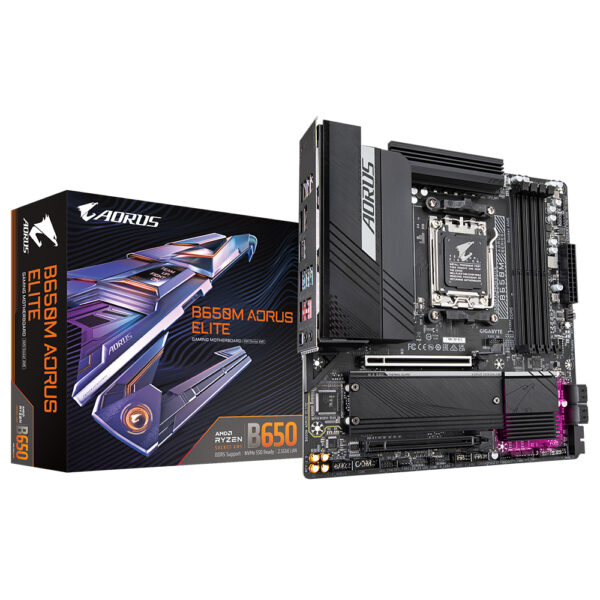

GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
£136.27 inc VAT
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B650 chipset for Ryzen 9000 CPUs
- Dual-channel DDR5 support up to 8000MHz
- 2 M.2 slots (PCIe 5.0 + PCIe 4.0)
- 2.5GbE LAN and 7.1 audio
- 4 SATA III, 4 fan headers, 5 RGB headers
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE B650M AORUS ELITE | AMD Ryzen 9000 Performance Platform
The GIGABYTE B650M AORUS ELITE motherboard delivers exceptional performance for AMD Ryzen 9000 CPUs, featuring a robust 12+2+2 phase VRM design and support for DDR5 memory up to 8000MHz. This Micro-ATX board combines PCIe 5.0 and 4.0 M.2 slots with 2.5GbE LAN and comprehensive connectivity options, making it ideal for high-performance gaming and content creation systems.
Slim Specs Table
| Metric | Spec |
|---|---|
| CPU Support | AMD Ryzen 7000/8000/9000 Series |
| Memory | 4x DDR5, up to 8000MHz, 256GB max |
| Storage | 2x M.2 (PCIe 5.0 + 4.0), 4x SATA III |
| Expansion | 2x PCIe 4.0 x16 slots |
| Network | 2.5GbE LAN, USB 3.2 Gen 2×2 Type-C |
Uncompromised Power Delivery for Ryzen 9000
The 12+2+2 phase VRM configuration provides clean, stable power delivery to AMD’s latest Ryzen 9000 processors. This robust power design ensures consistent performance during intensive workloads and gaming sessions, preventing thermal throttling and maintaining peak clock speeds. The motherboard’s power delivery system is engineered to handle the increased power demands of next-generation CPUs while maintaining excellent efficiency.
Next-Generation Memory and Storage Performance
DDR5 memory support up to 8000MHz delivers exceptional bandwidth for demanding applications and games. The dual-channel architecture optimizes memory performance, while support for up to 256GB total capacity future-proofs your system. With two M.2 slots offering PCIe 5.0 and 4.0 interfaces, you can achieve blazing-fast storage speeds for both your operating system and applications, significantly reducing load times and improving overall system responsiveness.
Comprehensive Connectivity Suite
The B650M AORUS ELITE features extensive connectivity options including five USB 3.2 Gen 1 ports, two USB 3.2 Gen 2 ports, and a USB 3.2 Gen 2×2 Type-C port for high-speed data transfer. The 2.5GbE LAN controller ensures reliable, high-speed network connectivity, while the Realtek ALC897 audio codec delivers 7.1 channel HD audio for immersive gaming and entertainment experiences. Multiple fan headers and water pump connectors provide comprehensive cooling control for any build configuration.
Advanced Cooling and System Monitoring
Passive cooling design maintains optimal temperatures without adding noise, while comprehensive PC health monitoring tracks fan speeds, temperatures, and voltages. Four chassis fan connectors and two water pump headers allow for precise cooling control, essential for maintaining system stability during extended gaming sessions or intensive workloads. The motherboard’s monitoring capabilities help you keep your system running at peak performance while preventing overheating issues.
Box Contents
- GIGABYTE B650M AORUS ELITE motherboard
- I/O shield
- User manual
- Driver/software support DVD
- SATA cables
- M.2 screws
- CPU installation tool
- Warranty card
Check before you buy
- Confirm your CPU is compatible with Socket AM5 (AMD Ryzen 7000/8000/9000 Series)
- Verify your case supports Micro-ATX form factor (244mm x 244mm)
- Check that your PSU has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your DDR5 memory is on the motherboard’s QVL list for optimal stability
Frequently Asked Questions
Q: Does this motherboard support Wi-Fi?
A: No, the B650M AORUS ELITE does not include built-in Wi-Fi. You’ll need a separate Wi-Fi adapter for wireless connectivity.
Q: What is the maximum memory speed supported?
A: The motherboard supports DDR5 memory up to 8000MHz, though actual speeds depend on your CPU and memory kit capabilities.
Q: How many M.2 slots are available?
A: There are two M.2 slots available – one supporting PCIe 5.0 and another supporting PCIe 4.0 for NVMe SSDs.
Q: Is this motherboard suitable for overclocking?
A: Yes, the robust VRM design and comprehensive cooling options make it suitable for moderate overclocking of compatible CPUs and memory.
Q: What operating systems are supported?
A: The motherboard supports Windows 10 x64 and Windows 11 x64 operating systems.
The Consultant’s Verdict & Warranty
The GIGABYTE B650M AORUS ELITE offers exceptional value for users building high-performance systems around AMD’s Ryzen 9000 processors. Its combination of robust power delivery, DDR5 support, and comprehensive connectivity makes it an excellent choice for gaming enthusiasts and content creators seeking reliable performance in a Micro-ATX form factor. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

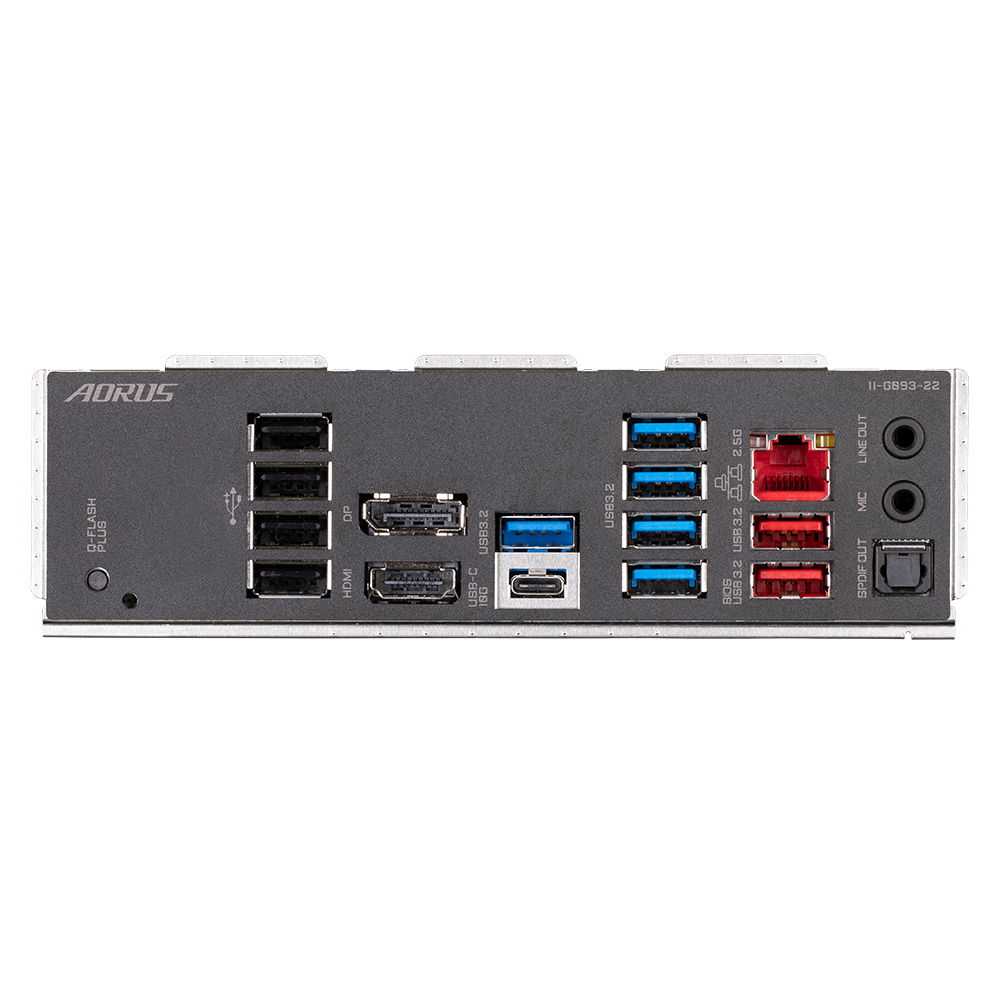

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.9 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.9 kg |
| Weight | 1.66 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.9 kg |
| Weight | 1.66 kg |
