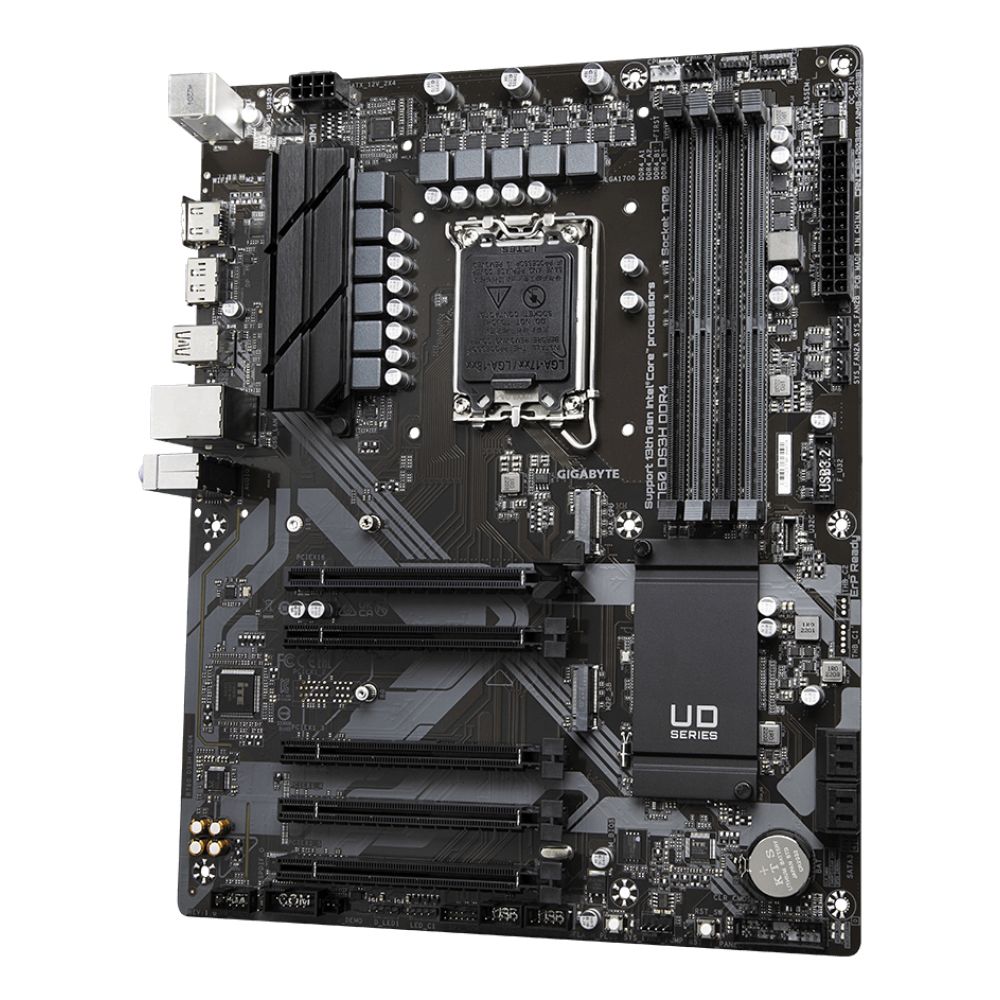

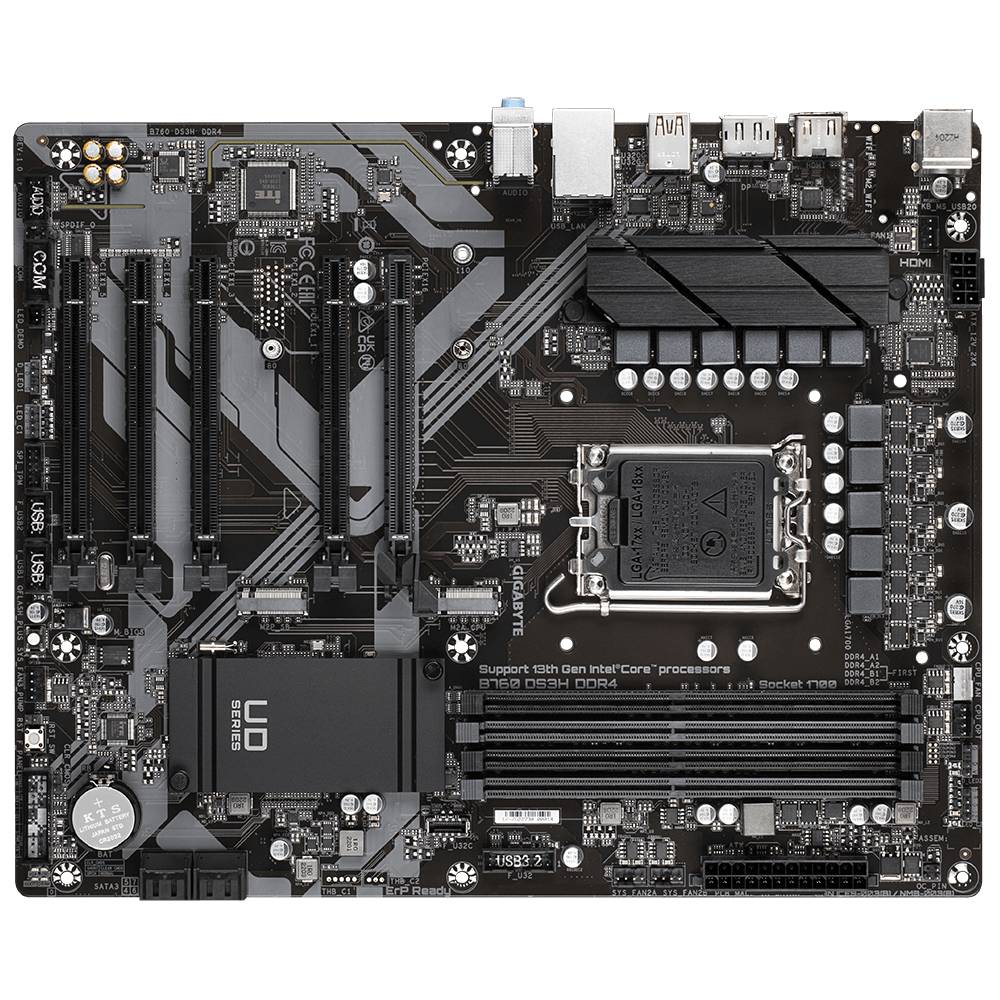

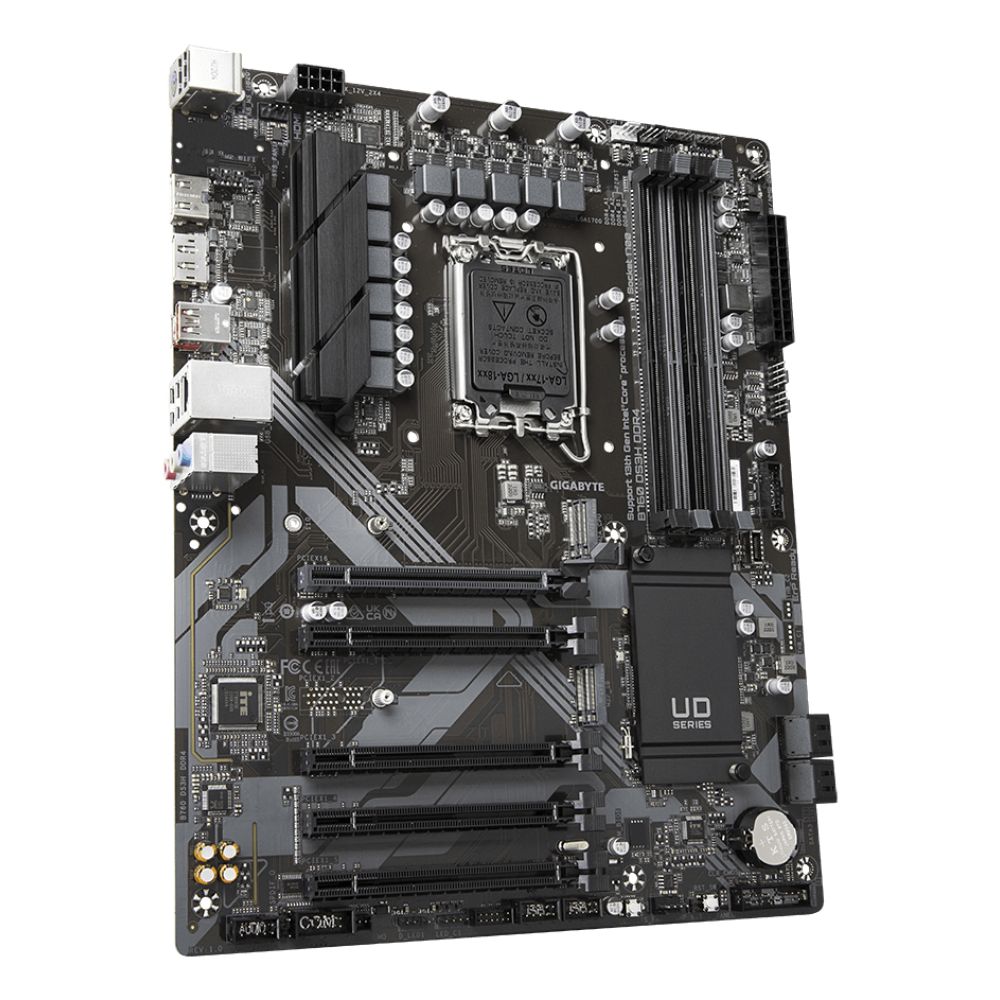

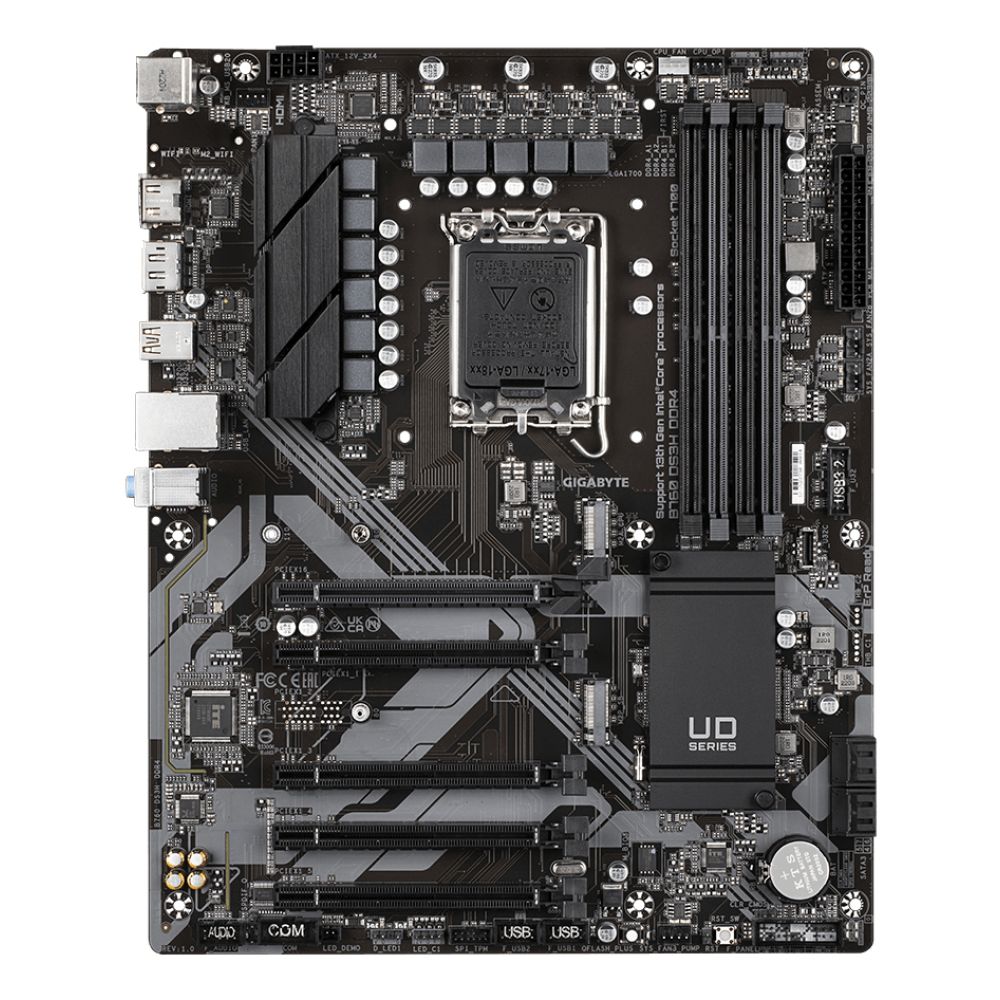

GIGABYTE B760 DS3H DDR4 Motherboard – Intel Core 14th, 18+2+1 VRM, 5333MHz DDR4, PCIe 4.0 M.2, GbE LAN
£100.32 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B760 Express chipset with LGA 1700 socket for 14th Gen Intel Core CPUs
- 18+2+1 phase digital VRM with 5333MHz DDR4 memory support (OC)
- 2x PCIe 4.0 M.2 slots and 4x SATA III connectors for versatile storage
- ATX form factor with 7.1 channel HD audio and Gigabit Ethernet
- 4 DIMM slots supporting up to 128GB DDR4 memory
- 1x PCIe 4.0 Type-A and 1x PCIe 4.0 Type-C for high-speed connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE B760 DS3H DDR4 Motherboard | Performance-Ready Intel Platform
The GIGABYTE B760 DS3H DDR4 Motherboard delivers robust performance for Intel Core 14th generation processors, featuring 18+2+1 phases digital VRM, support for up to 5333MHz DDR4 memory, and dual PCIe 4.0 M.2 slots for high-speed storage. This ATX motherboard combines essential features with reliable connectivity, making it ideal for users building capable mid-range systems.
Slim Specs Table
| Metric | Spec |
|---|---|
| Processor Support | Intel Core 14th Gen (LGA 1700) |
| Memory Support | DDR4, up to 128GB, 5333MHz OC |
| Storage | 2x M.2 PCIe 4.0, 4x SATA III |
| Expansion | 5x PCIe x16 slots |
| Network | Gigabit Ethernet |
Powerful Power Delivery for Intel Core Processors
The 18+2+1 phase digital VRM design provides stable power delivery to Intel Core 14th generation processors, ensuring consistent performance during demanding workloads. This robust power architecture supports both standard and overclocked configurations, giving you flexibility whether you’re building a productivity workstation or a gaming system. The digital VRM also operates more efficiently than traditional designs, helping maintain lower temperatures during extended use.
High-Speed Storage and Memory Performance
With support for up to 5333MHz DDR4 memory (overclocked) and dual PCIe 4.0 M.2 slots, this motherboard delivers exceptional storage and memory performance. The dual-channel DDR4 architecture allows for up to 128GB of system memory, while the PCIe 4.0 M.2 slots provide blazing-fast NVMe SSD speeds for reduced load times and improved system responsiveness. Four SATA III connectors offer additional storage expansion options for traditional hard drives or SATA SSDs.
Comprehensive Connectivity Options
The B760 DS3H offers extensive connectivity including USB 3.2 Gen 2 ports for fast data transfer, HDMI 2.0 and DisplayPort 1.2 outputs for multi-monitor setups, and Gigabit Ethernet for reliable wired networking. The motherboard includes both USB Type-A and Type-C connectors, along with legacy PS/2 ports for older peripherals. Seven 7.1-channel audio outputs deliver immersive sound quality for gaming and multimedia applications.
Smart System Monitoring and Cooling
Built-in PC health monitoring tracks fan speeds, temperatures, and voltages to help maintain optimal system performance and longevity. Multiple fan headers including CPU and system fans allow for comprehensive cooling control, while the water cooling header supports advanced liquid cooling solutions. The UEFI AMI BIOS provides easy system configuration and monitoring through an intuitive interface.

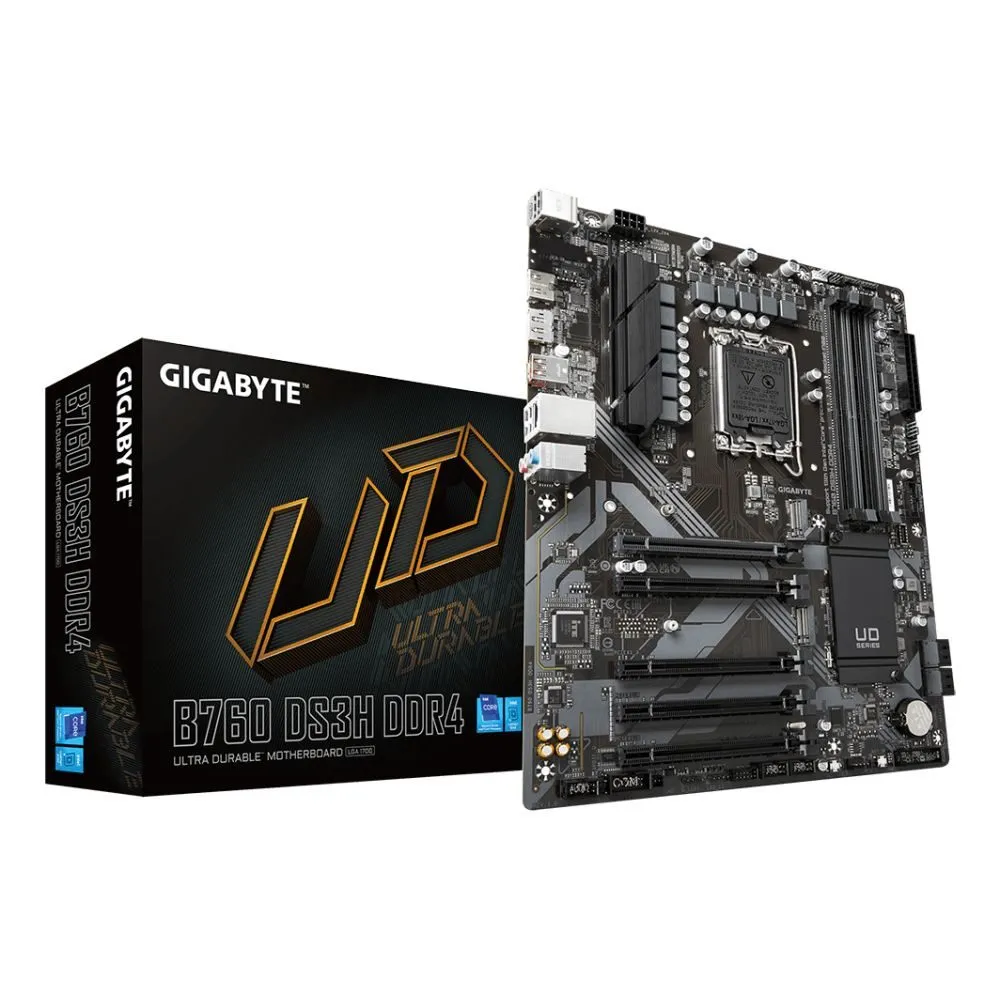

Box Contents
- GIGABYTE B760 DS3H DDR4 Motherboard
- I/O Shield
- SATA Cables
- User Manual
- Driver Disk
- Warranty Registration Card
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket and supports DDR4 memory
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check that your power supply provides adequate PCIe power connectors
- Confirm your RAM modules are DDR4 and within supported speed ranges
Frequently Asked Questions
Q: Does this motherboard support Intel 13th generation processors?
A: Yes, the B760 chipset supports both Intel 13th and 14th generation processors with LGA 1700 socket.
Q: Can I use DDR5 memory with this motherboard?
A: No, this motherboard only supports DDR4 memory modules, not DDR5.
Q: How many graphics cards can I install?
A: The motherboard has five PCIe x16 slots, but actual multi-GPU support depends on CPU PCIe lane availability.
Q: Is Wi-Fi included on this motherboard?
A: No, this model does not include built-in Wi-Fi. You’ll need a separate Wi-Fi adapter for wireless connectivity.
Q: What RAID configurations are supported?
A: The motherboard supports RAID 0, 1, 5, and 10 configurations for both M.2 and SATA storage devices.
The Consultant’s verdict & warranty
The GIGABYTE B760 DS3H DDR4 Motherboard offers excellent value for users seeking a reliable foundation for Intel Core 14th generation systems. With robust power delivery, comprehensive connectivity, and support for high-speed storage and memory, it’s well-suited for both gaming and productivity applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.0 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 128 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

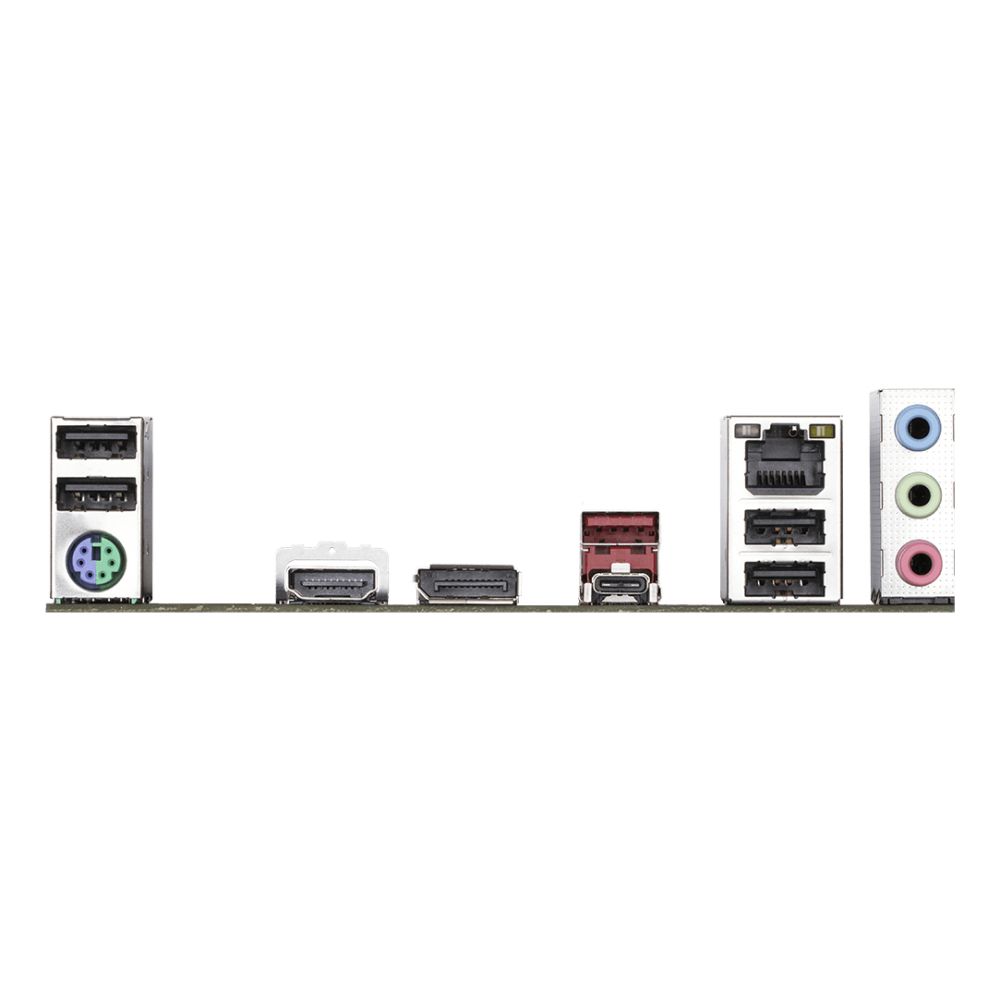

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 5 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.31 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton Internet Security |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.31 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Batteries included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.31 kg |
