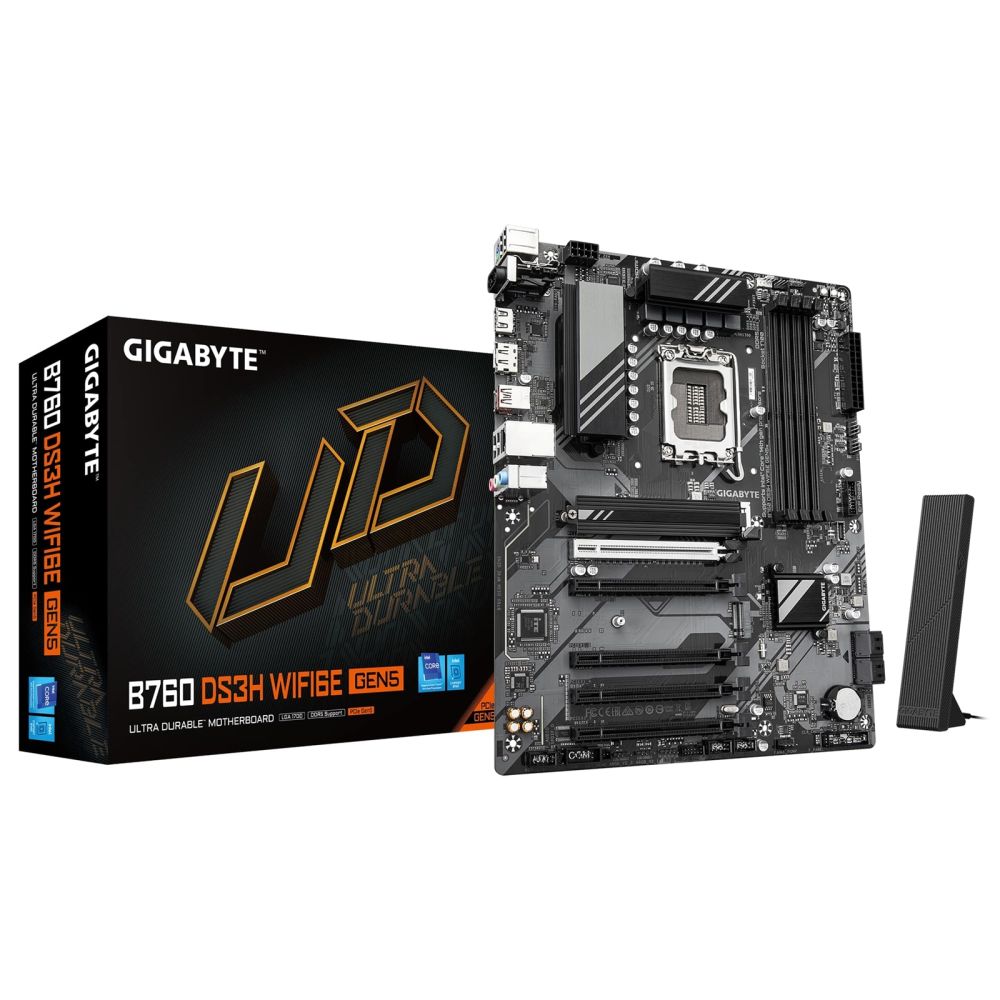

Gigabyte B760 DS3H WIFI6E Motherboard
£107.65 inc VAT
48 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- GIGABYTE B760 DS3H WIFI6E motherboard with LGA1700 socket for 14th/13th/12th Gen Intel Core processors
- PCIe Gen5 x16 slot with EZ-Latch quick release design for enhanced graphics card support
- 4x DDR5 DIMM slots supporting up to 256GB dual-channel memory with XMP profiles
- Intel Wi-Fi 6E AX210 module with 2.4/5/6 GHz bands and Bluetooth 5.3 connectivity
- 2x M.2 PCIe 4.0 x4 connectors and 4x SATA 6Gb/s ports for versatile storage options
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE B760 GAMING X Motherboard – Intel 14th Gen, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
Gigabyte B760 DS3H WIFI6E | Intel 14th/13th/12th Gen ATX Motherboard
The Gigabyte B760 DS3H WIFI6E GEN5 Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 2x M.2 Sockets, GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port delivers PCIe 5.0-ready performance for Intel’s latest processors. Built for gamers, creators, and PC builders seeking next-gen storage and networking without excessive complexity.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Socket | LGA1700 (Intel 14th/13th/12th Gen) |
| Memory Support | DDR5, up to 256 GB (4x DIMMs) |
| PCIe Slots | 1x PCIe 5.0 x16, 4x PCIe 3.0 x1 |
| M.2 Slots | 2x PCIe 4.0 x4 |
| Wi-Fi | Wi-Fi 6E AX210 (2.4/5/6 GHz) |
| LAN | GbE Realtek |
| Audio | Realtek HD Audio (7.1-channel) |
PCIe 5.0 Performance for Modern Builds
The Gigabyte B760 DS3H WIFI6E features PCIe 5.0 support on its primary x16 slot, doubling bandwidth from 16 GT/s to 32 GT/s per lane. This translates to faster graphics rendering and reduced NVMe SSD bottlenecks. The Ultra Durable design uses SMD PCIe 5.0 armor to reinforce heavy graphics cards, ensuring stable performance under load.
Next-Generation Connectivity
Built-in Wi-Fi 6E AX210 delivers tri-band wireless (2.4/5/6 GHz) with Bluetooth 5.3, while the GbE LAN port handles high-speed wired networking. Two PCIe 4.0 M.2 slots support the latest NVMe SSDs, and rear USB-C 20Gb/s ports provide rapid data transfers. HDMI and DisplayPort outputs enable multi-monitor setups without a dedicated GPU.
Smart Thermal and BIOS Management
Smart Fan 6 monitors multiple temperature sensors and includes hybrid fan headers with FAN STOP functionality for silent operation. The 8+2+1 phase VRM delivers clean power to demanding CPUs, while Q-Flash Plus allows BIOS updates without installing CPU, memory, or GPU—ideal for troubleshooting or fresh builds.
Box Contents
- Gigabyte B760 DS3H WIFI6E motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual and driver disk
- Wi-Fi antennas (quantity not specified)
Check Before You Buy
- Confirm your Intel CPU is 14th, 13th, or 12th generation LGA1700
- Verify DDR5 memory compatibility and speed support
- Check case clearance for ATX form factor (30.5cm x 24.4cm)
- Confirm Wi-Fi 6E band availability in your region
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5 memory modules.
Q: Can I use this board without a dedicated graphics card?
A: Yes, it includes HDMI and DisplayPort outputs via integrated Intel HD Graphics.
Q: How many M.2 SSDs can I install?
A: Two M.2 slots are available, both supporting PCIe 4.0 x4 NVMe SSDs.
Q: Is Wi-Fi 6E backwards compatible with older Wi-Fi standards?
A: Yes, the AX210 module supports Wi-Fi a/b/g/n/ac/ax across all bands.
The Consultant’s Verdict & Warranty
The Gigabyte B760 DS3H WIFI6E strikes an excellent balance between PCIe 5.0 readiness, modern connectivity, and user-friendly features. Its Wi-Fi 6E, dual M.2 slots, and reinforced PCIe 5.0 slot make it ideal for mid-range gaming rigs and content creation workstations. Covered by the standard Manufacturer Warranty.
| Weight | 1.3 kg |
|---|
