Asrock Z790 Riptide WiFi ATX Motherboard
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Z790 chipset with LGA 1700 socket for 12th/13th Gen Intel Core processors
- ATX form factor with 4 DDR5 DIMM slots supporting up to 192 GB memory at 8000 MHz
- PCIe 5.0 x16 slot plus M.2 Gen5 storage for cutting-edge performance
- Intel Wi-Fi 7, Bluetooth 5.4, and Killer E3100G 2.5Gb Ethernet for high-speed connectivity
- Realtek ALC1220 7.1-channel audio with Nahimic Audio enhancement
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

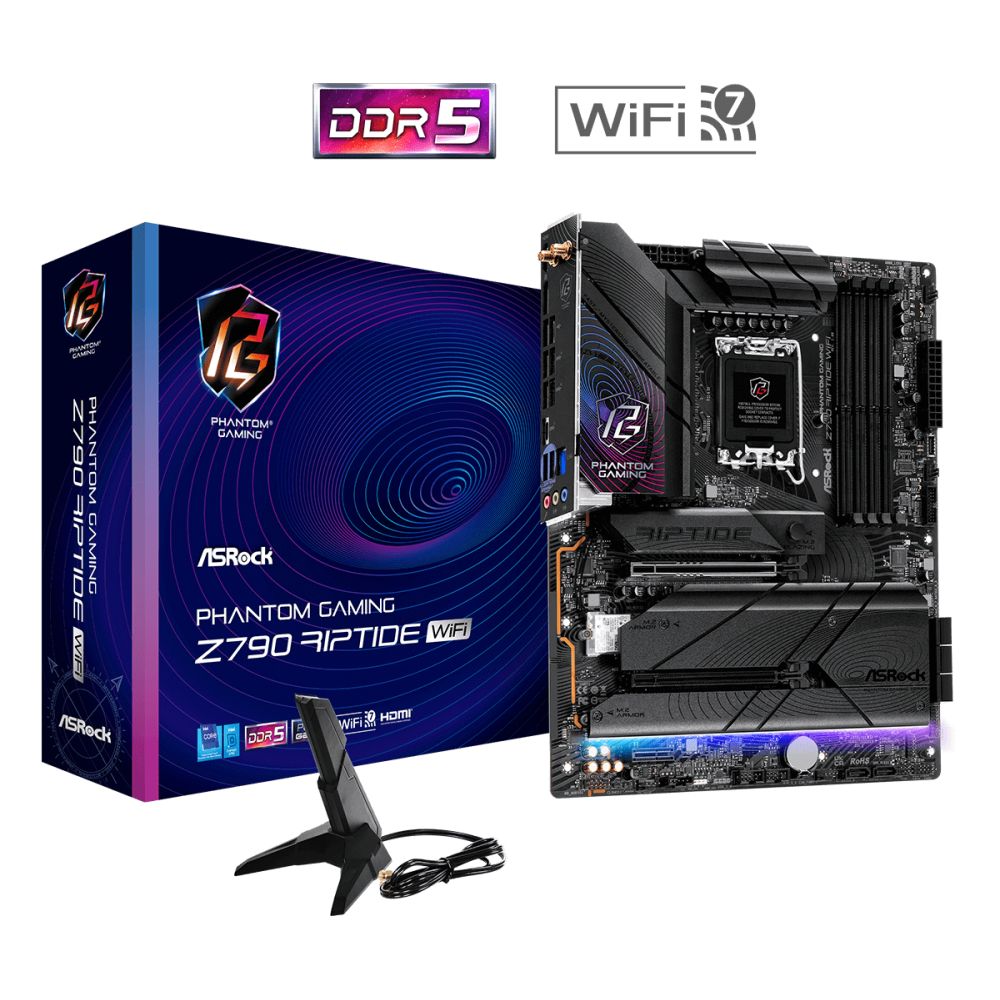

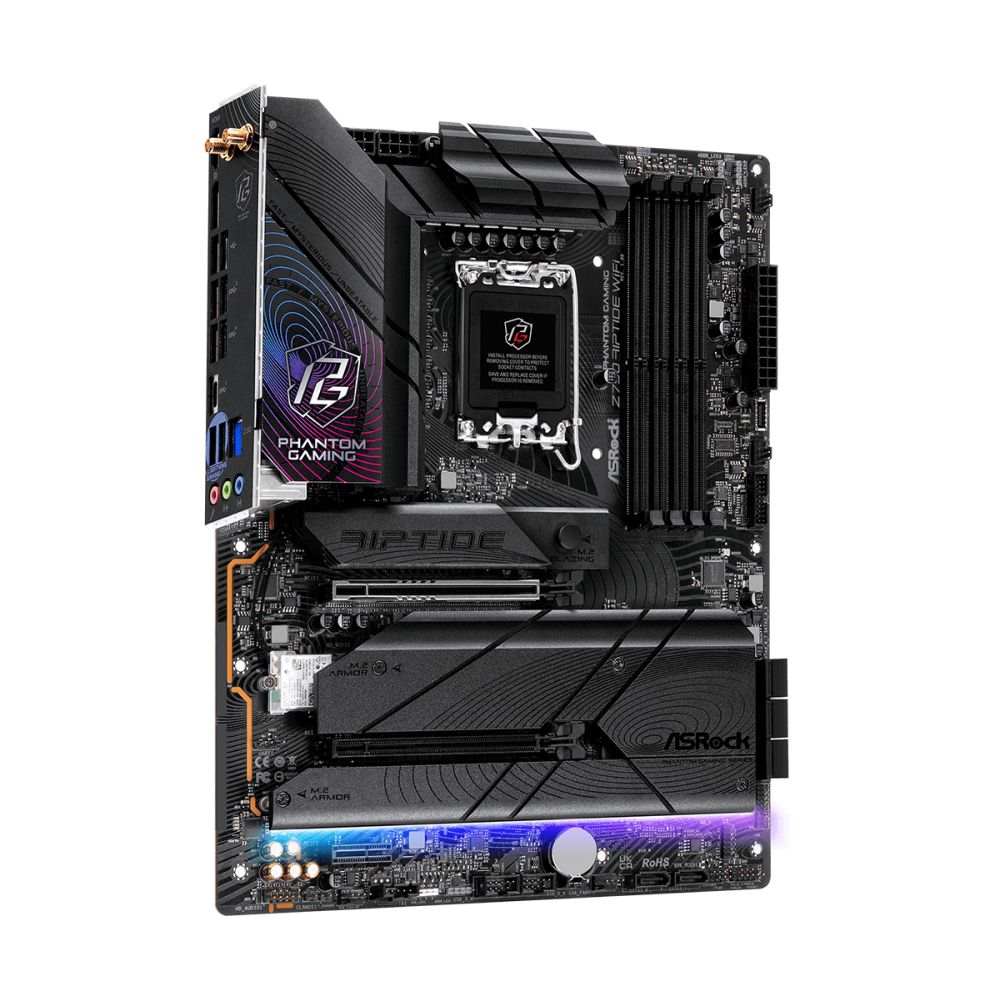

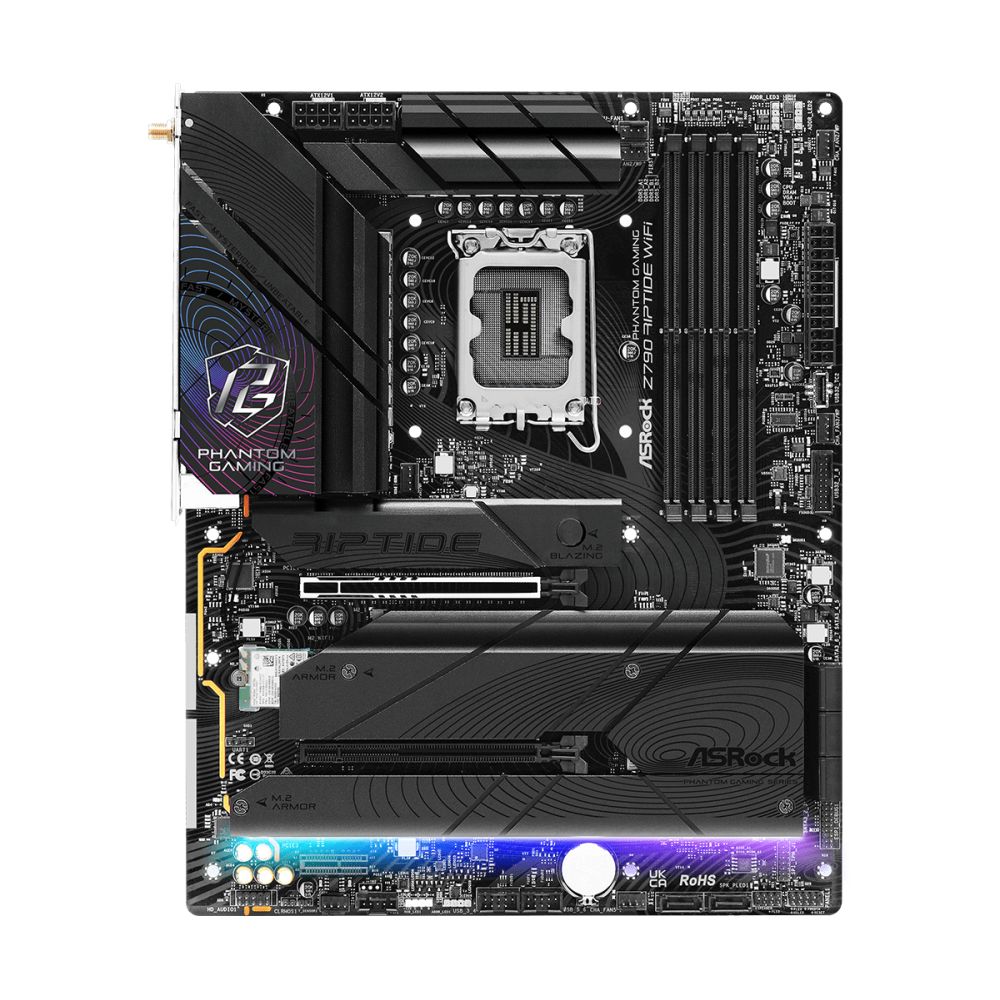

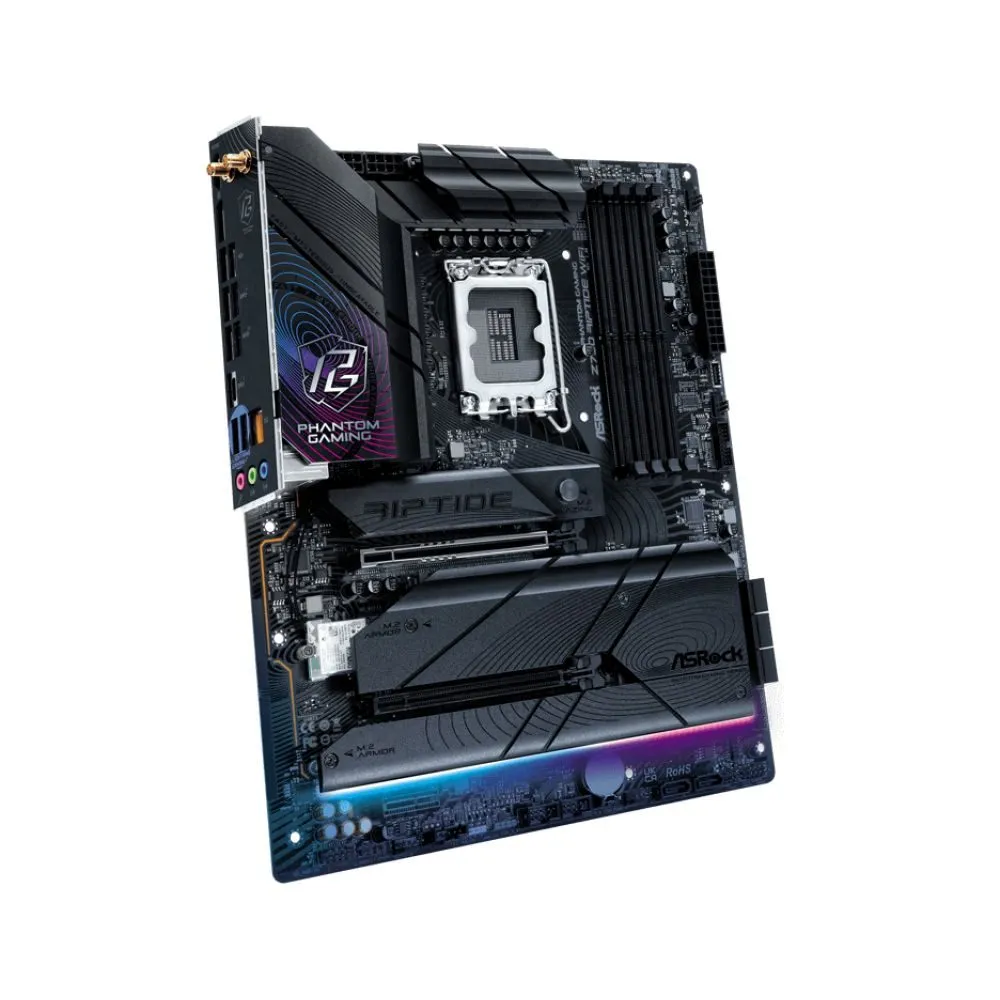

ASRock Z790 Riptide WiFi | Intel Z790 ATX Gaming Motherboard
The ASRock Z790 Riptide WiFi Intel Z790 LGA 1700 ATX is a high-performance motherboard built for gamers and PC enthusiasts who demand cutting-edge features and rock-solid stability. With support for Intel’s latest processors, DDR5 memory, and PCIe 5.0, this board delivers the speed and connectivity needed for modern gaming and content creation.
Quick Specs
| Metric | Spec |
|---|---|
| Form Factor | ATX |
| CPU Socket | LGA 1700 |
| Memory Support | DDR5, up to 8000 MHz |
| Maximum Memory | 192 GB |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 |
| M.2 Slots | 1x PCIe 5.0, 1x PCIe 4.0 |
| Networking | Wi-Fi 7, 2.5 Gb Ethernet |
PCIe 5.0 Graphics & Storage Performance
The reinforced steel PCIe 5.0 slot and server-grade low-loss PCB ensure rock-solid signal integrity for the latest high-end graphics cards. With 128GB/s bandwidth, PCIe 5.0 unlocks the full potential of next-generation GPUs and M.2 SSDs. The Blazing M.2 slot supports PCIe 5.0 storage, delivering twice the speed of previous generations for lightning-fast load times and data transfers.
DDR5 Memory Overclocking Made Simple
Built with premium components and Intel XMP/AMD EXPO profiles, this motherboard makes DDR5 overclocking accessible to enthusiasts. The robust power delivery and optimized layout allow memory speeds up to 8000 MHz, giving you a tangible performance boost in demanding applications and games.
Advanced Cooling for Sustained Performance
A large aluminum heatsink array, multiple fan headers with PWM/DC support, and a thermistor header provide comprehensive thermal management. The toolless M.2 heatsink design makes installation simple while keeping high-speed storage cool under load. ASRock’s Fan-Tastic Tuning software allows precise control over fan curves for the perfect balance of cooling and acoustics.
Killer Networking for Competitive Edge
The Killer E3100 2.5 Gb Ethernet controller and Wi-Fi 7 deliver ultra-low latency and high throughput for lag-free gaming and streaming. Killer’s prioritization engine automatically classifies and prioritizes gaming traffic, ensuring your connection remains stable during intense online battles.
Box Contents
- ASRock Z790 Riptide WiFi motherboard
- I/O shield
- SATA cables
- Wi-Fi antennas
- ARGB splitter cable
- Thermistor cable
- User manual and driver DVD
Check before you buy
- Confirm your CPU is compatible with LGA 1700 and your BIOS is up to date.
- Verify your case supports ATX motherboards (305mm x 244mm).
- Ensure your PSU has a 24-pin ATX and 8-pin EPS connector.
- Check if your DDR5 memory modules support XMP/EXPO profiles for overclocking.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this board only supports DDR5 memory modules.
Q: Can I use this motherboard with an AMD processor?
A: No, it is designed exclusively for Intel processors with LGA 1700 socket.
Q: Is Wi-Fi 7 backwards compatible with older Wi-Fi standards?
A: Yes, it supports all previous Wi-Fi standards including Wi-Fi 6 and Wi-Fi 5.
Q: How many M.2 SSDs can I install?
A: This motherboard has two M.2 slots: one PCIe 5.0 and one PCIe 4.0.
Q: Does it have built-in RGB lighting?
A: Yes, it features Polychrome RGB headers for custom lighting effects.
The Consultant’s Verdict & Warranty
The ASRock Z790 Riptide WiFi is an excellent choice for gamers and power users seeking a future-proof platform with cutting-edge connectivity, robust power delivery, and comprehensive cooling. Its blend of PCIe 5.0 support, DDR5 memory, and Killer networking makes it ideal for high-end gaming rigs and content creation workstations. Covered by the standard Manufacturer Warranty.
| Weight | 2 kg |
|---|---|
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EuP, Federal Communications Commission (FCC) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Supported storage drive interfaces | M.2 |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Parallel processing technology support | CrossFire |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 4 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Killer E3100G |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Graphics card family | Intel |
| Graphics card | Intel Iris Xe Graphics |
| Discrete graphics support | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Bundled software | – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC |
| Antenna included | Yes |
