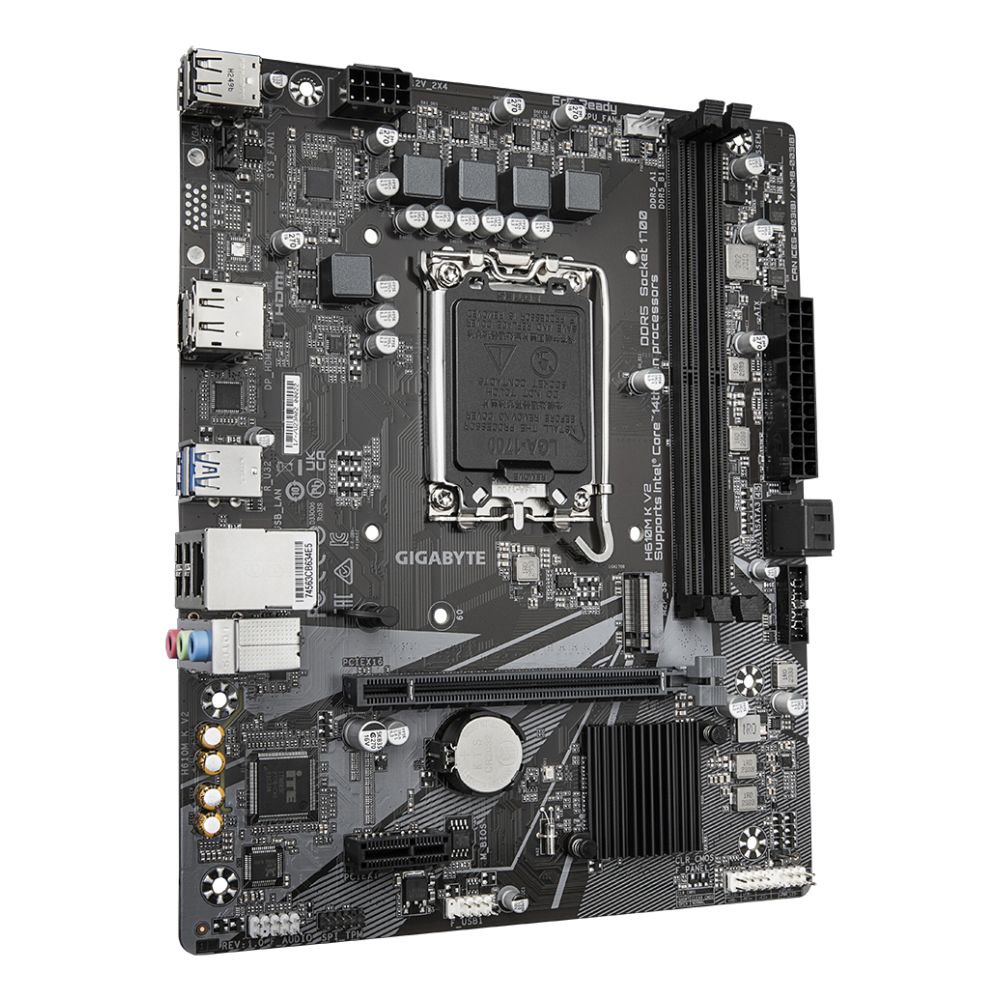

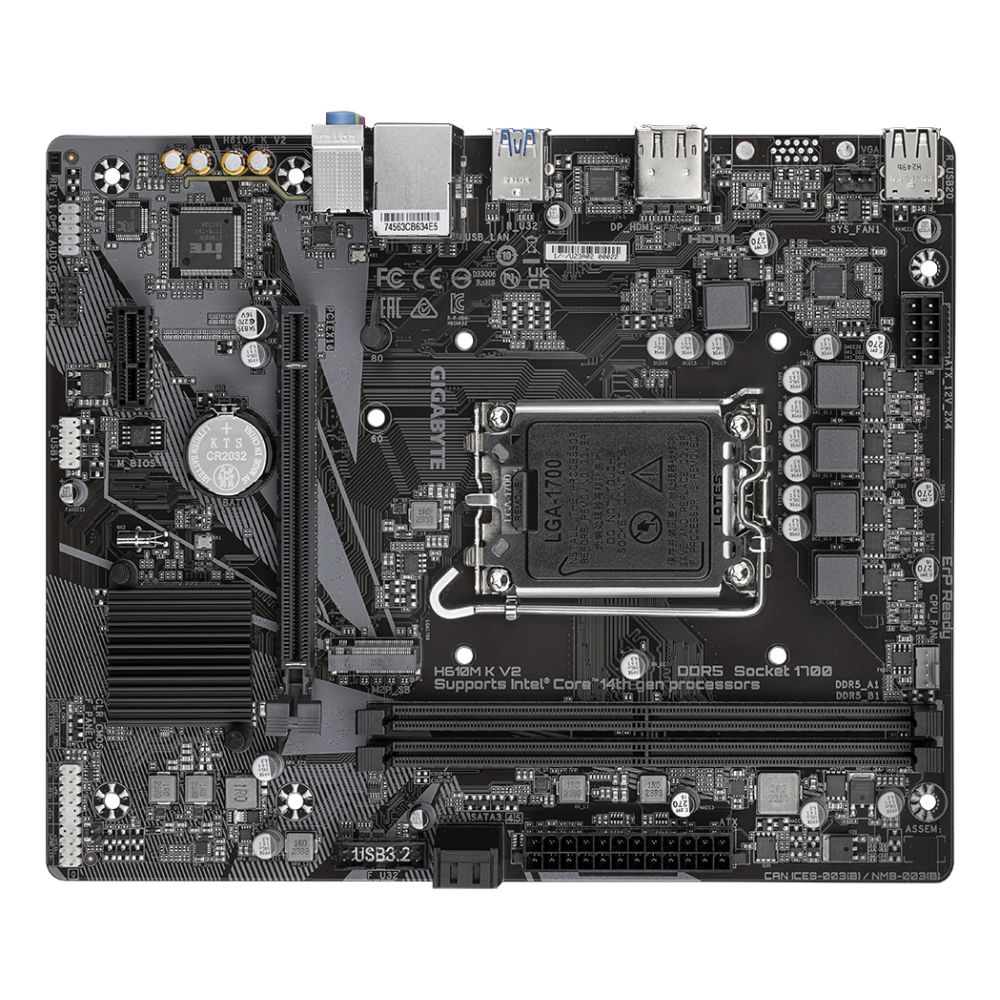

GIGABYTE H610M K V2 Motherboard with DDR5 Support
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel H610 chipset with LGA 1700 socket for 14th Gen Intel Core CPUs
- Dual-channel DDR5 memory support up to 5600MHz, 128GB total capacity
- Micro ATX form factor with 1x PCIe 3.0 M.2 slot and 2x SATA III connectors
- HDMI 2.1 and DisplayPort 1.2 for 4K@60Hz output with 7.1 audio channels
- Gigabit Ethernet, USB 3.2 Gen 1, and front panel connectors for versatile connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE H610M K V2 | Micro ATX Intel Motherboard with DDR5 Support
The GIGABYTE H610M K V2 Motherboard delivers a compact micro ATX platform designed for Intel Core 14th CPUs, supporting up to 5600MHz DDR5 memory and featuring a single PCIe 3.0 M.2 slot for fast storage. With 1GbE LAN and USB 3.2 Gen 1 connectivity, this board offers reliable performance for home and office builds.
| Metric | Spec |
|---|---|
| CPU Support | Intel Core 14th Gen |
| Memory | DDR5, up to 5600MHz |
| M.2 Slots | 1 x PCIe 3.0 |
| LAN | 1GbE Realtek RTL8111H |
| Form Factor | Micro ATX |
Built for Intel 14th Gen CPUs with DDR5 Performance
Engineered for Intel’s latest 14th Generation processors, the H610M K V2 supports DDR5 memory speeds up to 5600MHz, delivering faster data transfer rates and improved multitasking. The dual-channel memory architecture maximises bandwidth, while the LGA 1700 socket ensures compatibility with Intel’s current CPU lineup, including Core i3, i5, i7, i9, Celeron, and Pentium Gold series.
Compact Micro ATX Design with Essential Features
This micro ATX motherboard measures just 226mm x 185mm, making it ideal for space-conscious builds without sacrificing functionality. The passive cooling design ensures silent operation, while the Realtek ALC897 audio chip provides 7.1 channel surround sound. With HDMI 2.1 and DisplayPort 1.2 outputs, you can connect modern displays at resolutions up to 4K.
Storage and Expansion Capabilities
The H610M K V2 offers versatile storage options with one PCIe 3.0 M.2 slot supporting NVMe SSDs for ultra-fast boot and load times. Additionally, two SATA III connectors allow for traditional HDD or SSD installations. The board includes one PCIe x16 Gen 4 slot for graphics cards and one PCIe x1 slot for expansion cards, providing flexibility for various build configurations.

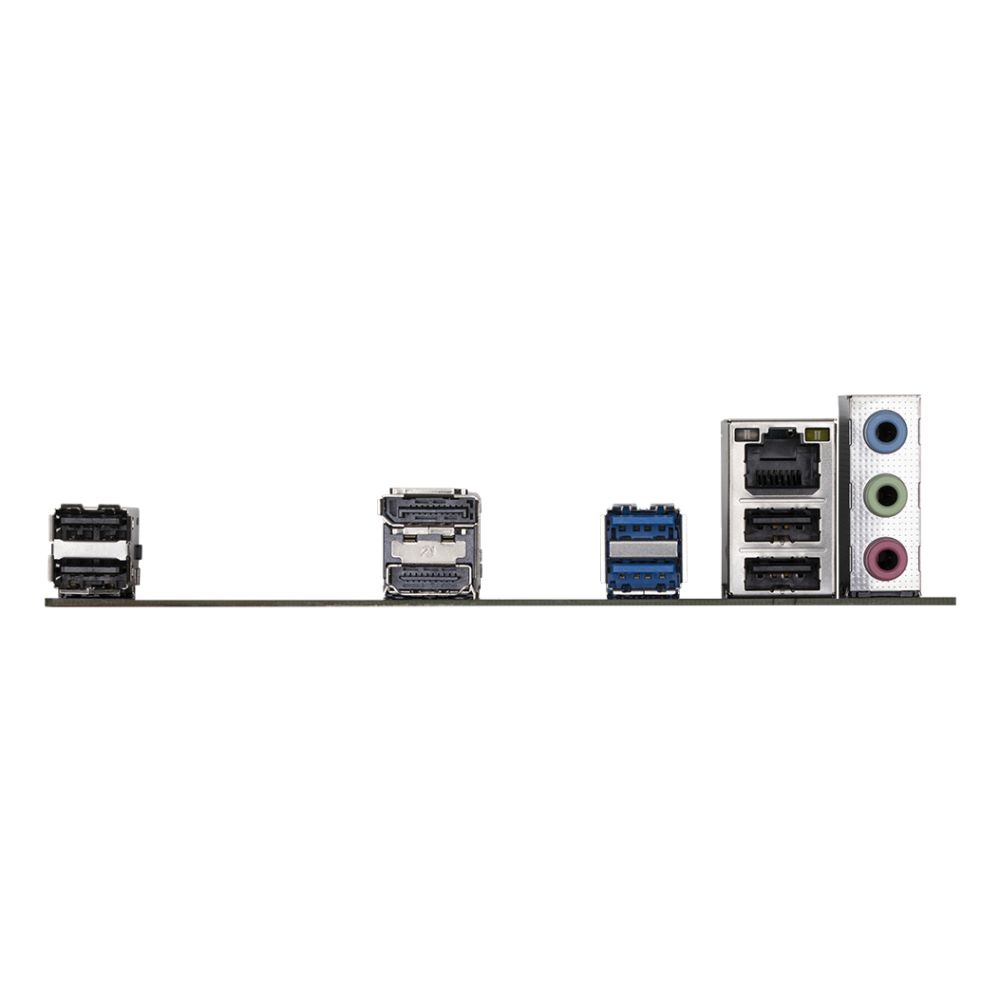

Connectivity and I/O Options
Featuring 4 USB 2.0 ports and 2 USB 3.2 Gen 1 Type-A ports, this motherboard covers all your peripheral needs. The front panel connector supports modern case features, while the dedicated TPM connector enhances security. Gigabit Ethernet ensures stable wired connections, though Wi-Fi is not included – requiring a separate adapter if wireless connectivity is needed.

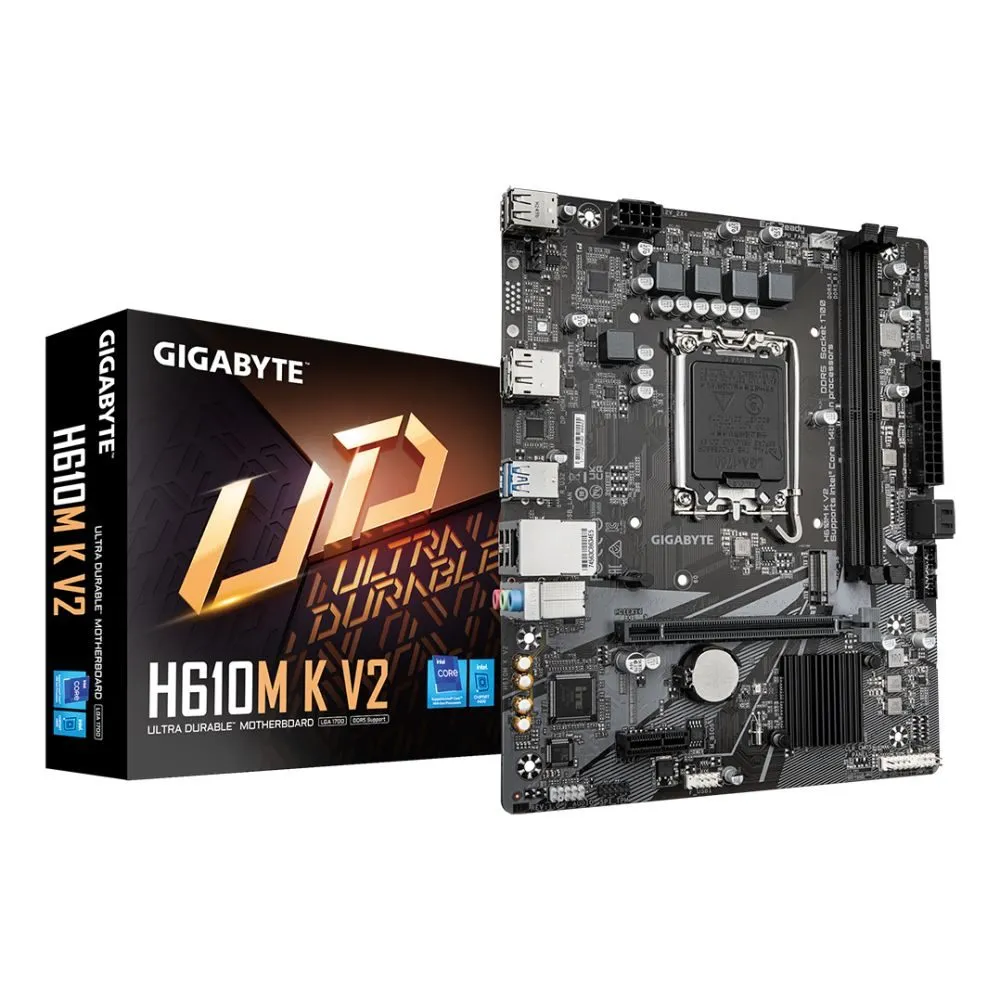

Box contents
- GIGABYTE H610M K V2 Motherboard
- I/O shield
- SATA cables (quantity not specified)
- User manual
- Driver/software CD
- Screws included
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket and supports DDR5 memory
- Verify your case supports micro ATX form factor (185mm x 226mm)
- Check if you need Wi-Fi – this board does not include wireless connectivity
- Ensure your power supply has a 24-pin ATX connector and 8-pin EPS connector
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: Intel Core 14th Gen, 13th Gen, 12th Gen, plus Celeron, Pentium Gold, and compatible 11th Gen CPUs.
Q: How many RAM slots does it have and what’s the maximum capacity?
A: Two DDR5 DIMM slots supporting up to 128GB total (64GB per slot) at speeds up to 5600MHz.
Q: Does this motherboard support Wi-Fi?
A: No, Wi-Fi is not included. You’ll need a separate Wi-Fi adapter for wireless connectivity.
Q: What type of M.2 storage is supported?
A: One M.2 slot supporting PCIe 3.0 NVMe SSDs up to 2280 key size.
Q: What are the dimensions of this motherboard?
A: Micro ATX form factor measuring 226mm x 185mm x 35mm.
The Consultant’s verdict & warranty
The GIGABYTE H610M K V2 offers excellent value for users building compact systems with Intel 14th Gen processors, providing DDR5 support and essential features in a micro ATX package. Its straightforward connectivity and reliable performance make it suitable for office work, home use, and light gaming. Covered by the standard Manufacturer Warranty.
| Weight | 0.65 kg |
|---|---|
| Front panel connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Warranty period | 3 year(s) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,5200,4800,4400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 3 |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Width | 226 mm |
| Depth | 185 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 723 g |
| Weight | 650 g |
