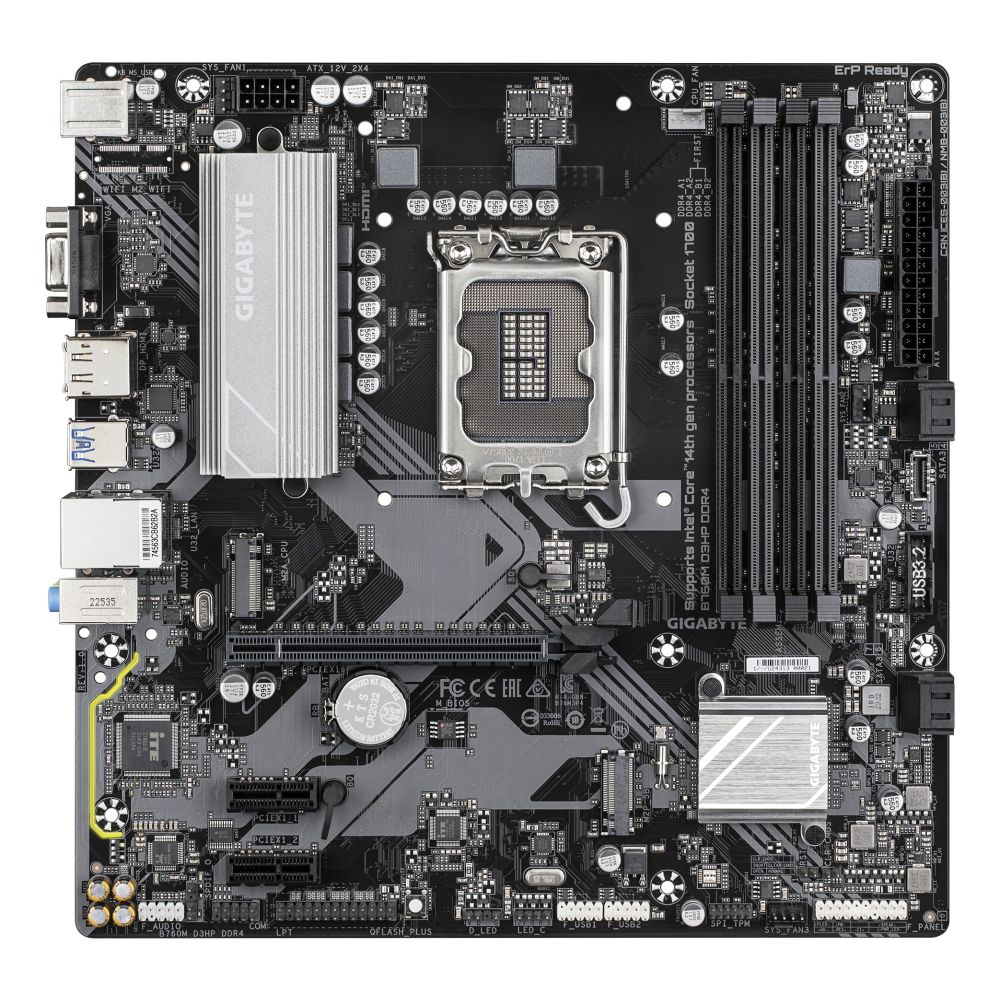

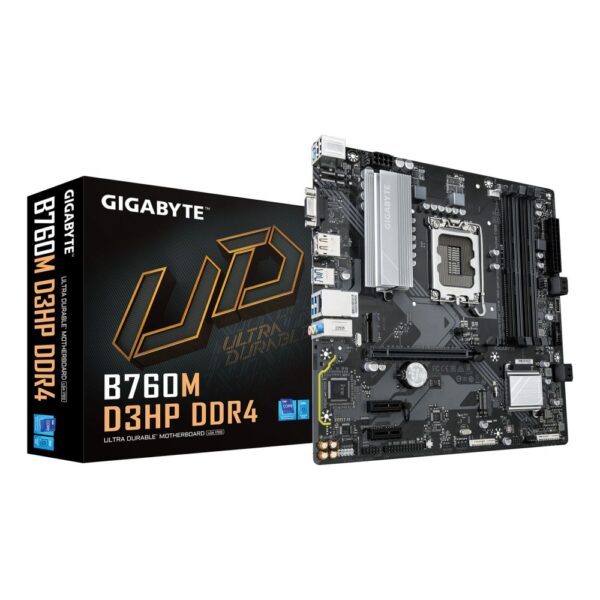

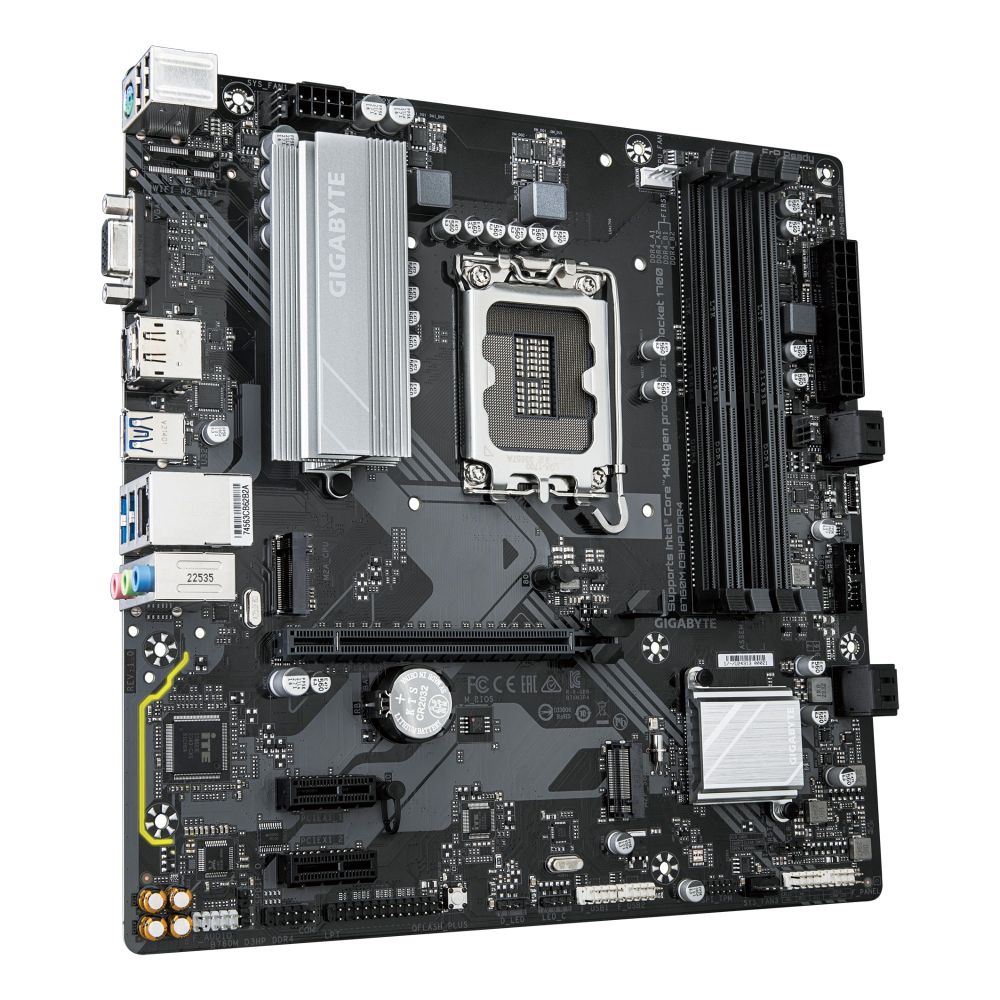

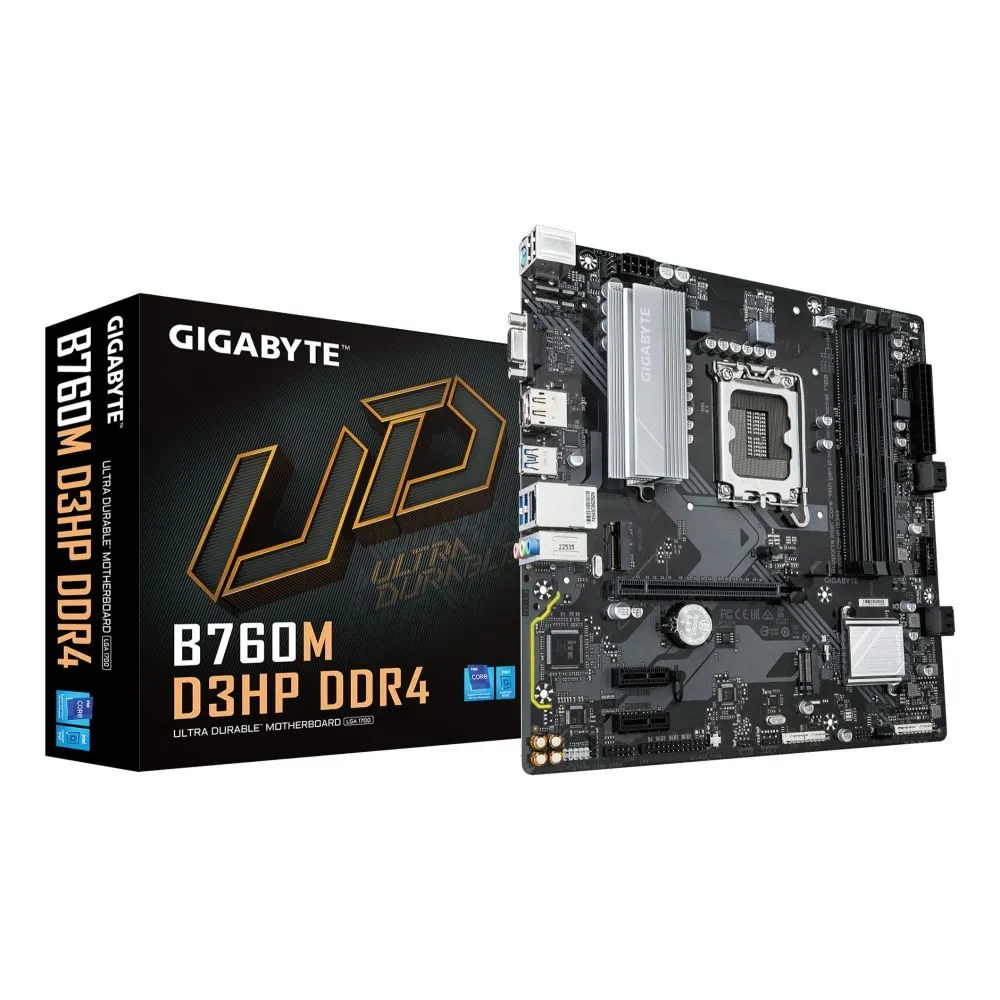

GIGABYTE B760M D3HP DDR4 Motherboard for Intel 14th Gen CPUs
£76.67 inc VAT
92 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports Intel 14th Gen CPUs via LGA 1700 socket
- Up to 5333MHz DDR4 memory with 4 DIMM slots, 128GB max
- 2x M.2 slots and 4x SATA III connectors for storage
- Micro ATX form factor with Intel B760 Express chipset
- 7.1-channel audio, Gigabit Ethernet, and HDMI 2.1 output
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE B760M D3HP | Intel 14th Gen DDR4 Micro ATX
The GIGABYTE B760M D3HP DDR4 Motherboard delivers robust performance for Intel’s 14th Gen Core processors, featuring a 4+1+1 phase digital VRM design and support for DDR4 memory up to 5333MHz (OC). This micro ATX board combines modern connectivity with reliable stability for both gaming and professional applications.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Support | Intel Core 14th Gen |
| Memory Support | DDR4, up to 5333MHz (OC) |
| Form Factor | micro ATX |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots | 2x PCIe 4.0 |
Performance for Intel 14th Gen Processors
This motherboard’s 4+1+1 phase digital VRM configuration ensures stable power delivery to Intel’s 14th Gen Core processors, maintaining optimal performance during intensive workloads. The LGA 1700 socket supports the latest Intel chips, making this board a future-proof foundation for your PC build.
Advanced DDR4 Memory Support
With support for DDR4 memory speeds up to 5333MHz (when overclocked), this board delivers exceptional memory bandwidth for demanding applications. The dual-channel architecture and four DIMM slots support up to 128GB of unbuffered ECC or non-ECC memory, providing flexibility for various computing needs.
Storage and Expansion Capabilities
The B760M D3HP offers comprehensive storage options with two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs and four SATA III connectors for additional storage drives. The board supports RAID 0, 1, 5, and 10 configurations, allowing users to optimize their storage setup for performance or redundancy.
Comprehensive Connectivity
This micro ATX motherboard features a balanced array of connectivity options including three USB 3.2 Gen 1 Type-A ports, HDMI 2.1, DisplayPort 1.4, and Gigabit Ethernet. The integrated Intel B760 Express chipset provides reliable performance for both current and future peripherals.
Box contents
- GIGABYTE B760M D3HP motherboard
- I/O shield
- User manual
- Driver disk
- SATA cables
- M.2 screws
- CMOS battery
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports micro ATX form factor (244mm x 244mm)
- Check your DDR4 memory speed compatibility with 5333MHz (OC) support
- Ensure your power supply has the required ATX 24-pin and EPS 8-pin connectors
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: No, this motherboard only supports DDR4 memory, not DDR5.
Q: Can I use this with Intel 13th Gen processors?
A: Yes, this motherboard supports both Intel 13th and 14th Gen processors on the LGA 1700 socket.
Q: Does it have built-in Wi-Fi?
A: No, this motherboard does not include built-in Wi-Fi. You’ll need a separate Wi-Fi adapter.
Q: What RAID configurations are supported?
A: This motherboard supports RAID 0, 1, 5, and 10 configurations.
Q: Is this motherboard suitable for gaming?
A: Yes, with PCIe 4.0 support, high-speed memory, and robust power delivery, it’s suitable for gaming builds.
The Consultant’s verdict & warranty
The GIGABYTE B760M D3HP offers excellent value for users building systems around Intel’s 14th Gen processors who prefer DDR4 memory. Its combination of modern features, reliable power delivery, and micro ATX form factor makes it ideal for both gaming and professional applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| Parallel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 128 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

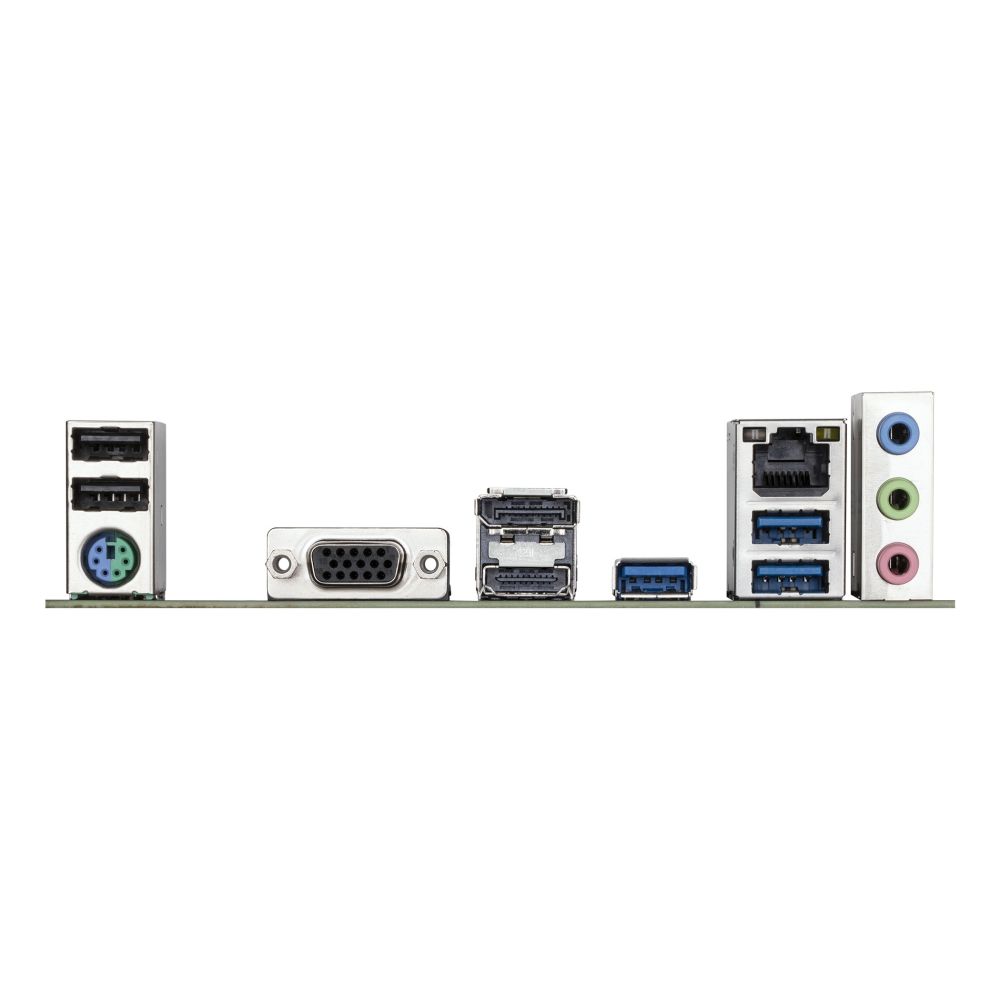

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Digital audio optical out | 3 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Bundled software | Norton Internet Security |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton Internet Security |
| Batteries included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Identifiers | |
| Additional EANs | 0889523043790 |
