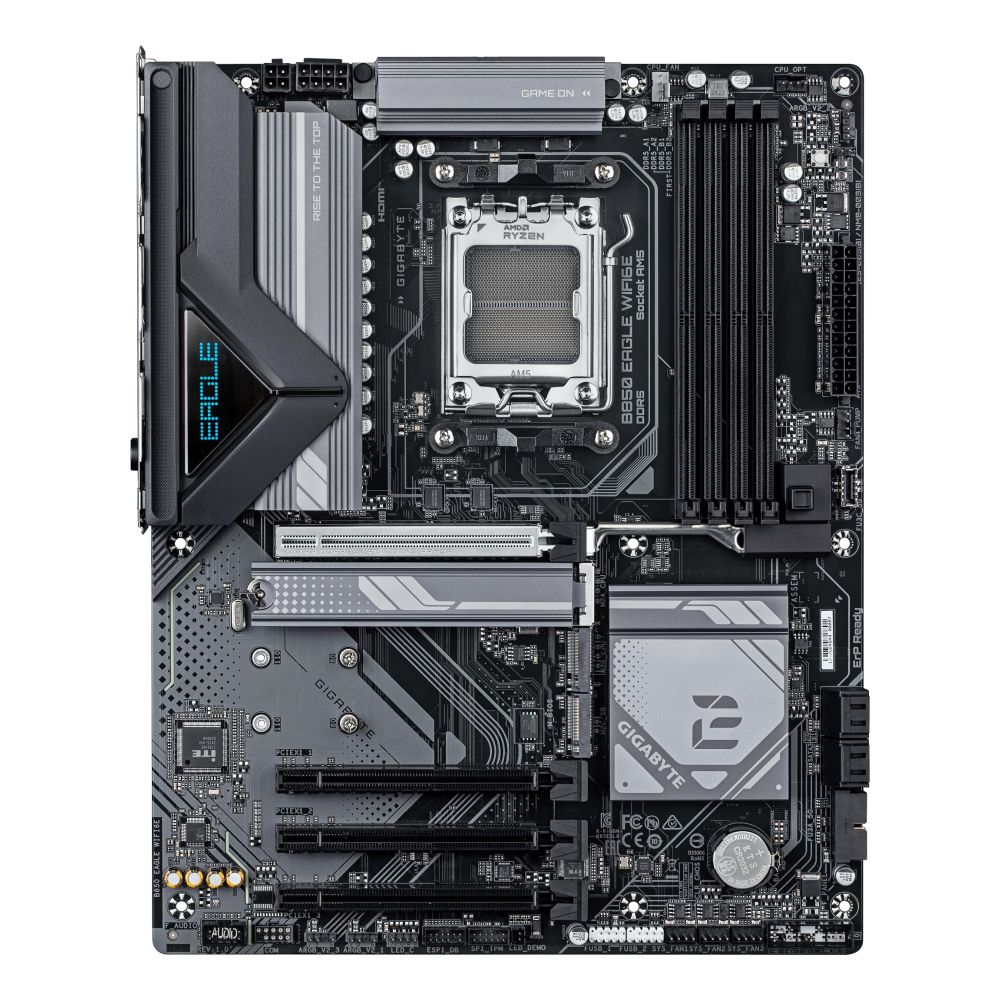

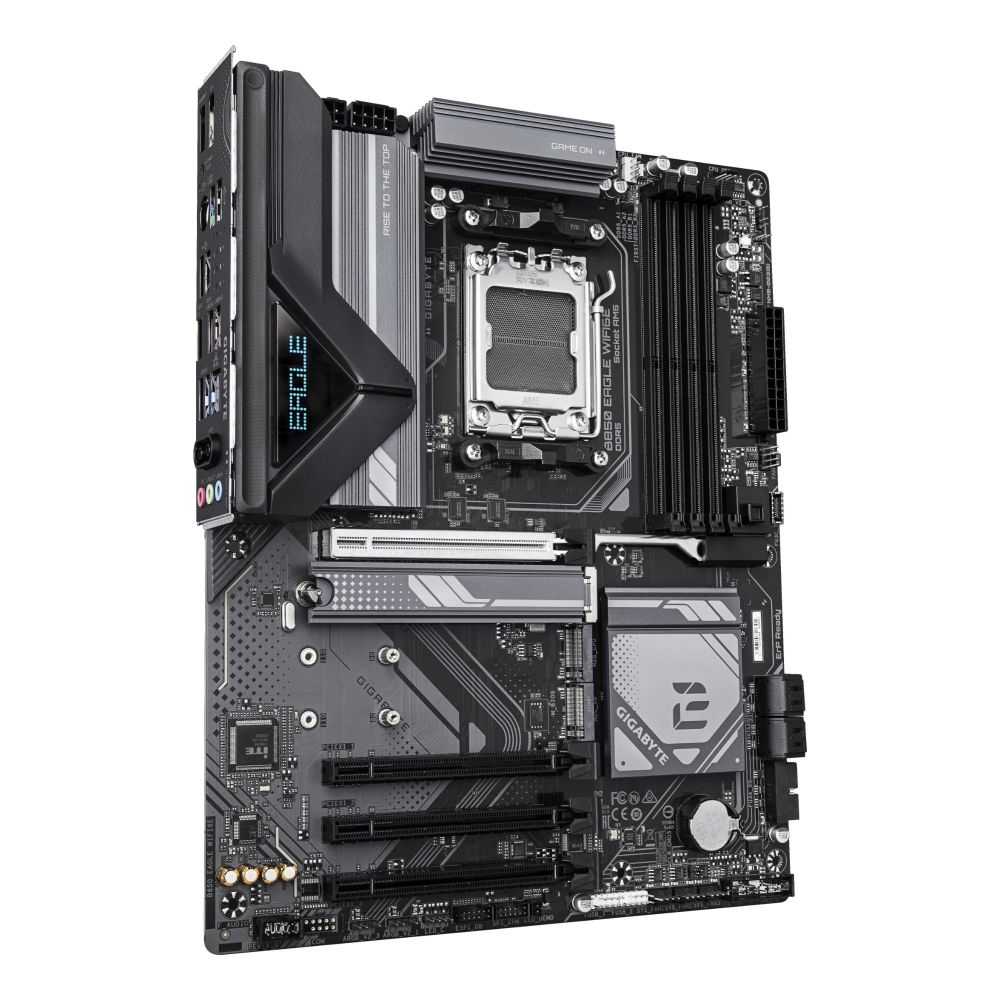

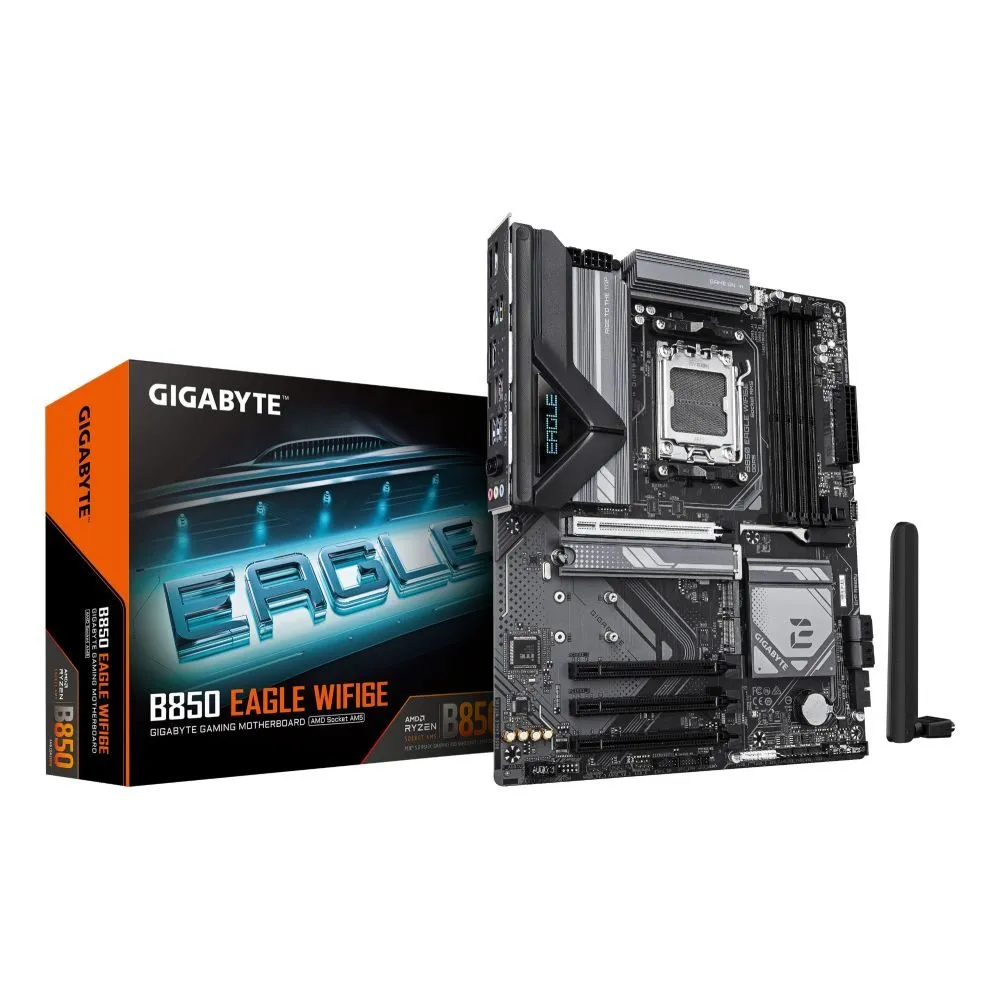

GIGABYTE B850 EAGLE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0, WIFI 6E
£160.30 inc VAT
74 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B850 chipset with Socket AM5 for AMD Ryzen 9000 series CPUs
- 8+2+2 phase digital VRM with up to 8200MHz DDR5 memory support
- 3 M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) for high-speed storage
- Wi-Fi 6E and Gigabit Ethernet for fast connectivity
- ATX form factor with 7.1 channel audio and comprehensive cooling options
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE B850 EAGLE WIFI6E | AMD Ryzen 9000 Series Ready Motherboard
The GIGABYTE B850 EAGLE WIFI6E Motherboard is engineered for AMD Ryzen 9000 Series CPUs, delivering exceptional performance with its 8+2+2 phases digital VRM, support for DDR5 memory up to 8200MHz (OC), and comprehensive connectivity options including PCIe 5.0 and 4.0 M.2 slots, GbE LAN, and WiFi 6E.
Key Specifications
| Metric | Spec. |
|---|---|
| CPU Socket | Socket AM5 |
| Memory Support | DDR5 up to 8200MHz (OC) |
| PCIe Slots | 1x PCIe 5.0, 2x PCIe 4.0 M.2 |
| WiFi Standard | WiFi 6E |
| Warranty | 3 years |
Advanced Power Delivery for Stable Performance
The B850 EAGLE features an 8+2+2 phases digital VRM design that provides clean, stable power delivery to AMD Ryzen 9000 Series processors. This robust power architecture ensures consistent performance during intensive workloads, gaming sessions, or content creation tasks. The digital VRM also contributes to better thermal management, keeping your system running efficiently even under heavy loads.
Next-Generation Storage and Connectivity
With one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, this motherboard supports the latest high-speed storage solutions. The PCIe 5.0 slot offers up to 64GB/s bandwidth for cutting-edge NVMe SSDs, while the PCIe 4.0 slots provide excellent performance for additional storage devices. Combined with four SATA III connectors, you can build a comprehensive storage setup with RAID 0, 1, or 10 configurations for data protection or performance enhancement.
Comprehensive I/O and Networking Features
The B850 EAGLE delivers extensive connectivity options including USB 3.2 Gen 2 Type-C and Type-A ports, HDMI 2.1, and DisplayPort 2.1 for multiple display setups. The onboard WiFi 6E with Bluetooth 5.3 ensures fast wireless connectivity across modern networks, while the Gigabit Ethernet port provides reliable wired networking. Front panel audio with 7.1 channel support delivers high-quality sound for immersive gaming and multimedia experiences.
Box Contents
- GIGABYTE B850 EAGLE WIFI6E Motherboard
- I/O Shield
- M.2 Screws
- User Manual
- Warranty Registration Card
- Antenna Set (for WiFi)
Check before you buy
- Confirm your AMD Ryzen processor is compatible with Socket AM5
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check if your CPU cooler fits with the motherboard’s VRM heatsink design
- Ensure your power supply has the required 24-pin ATX and 8-pin EPS connectors
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard only supports DDR5-SDRAM memory modules.
Q: Can I use this with older AMD Ryzen processors?
A: No, this motherboard is designed specifically for AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket.
Q: What is the maximum memory capacity supported?
A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots.
Q: Does it have built-in WiFi?
A: Yes, it features WiFi 6E with Bluetooth 5.3 for wireless connectivity.
Q: How many M.2 SSDs can I install?
A: You can install up to three M.2 SSDs – one PCIe 5.0 and two PCIe 4.0 devices.
The Consultant’s verdict & warranty
The GIGABYTE B850 EAGLE WIFI6E offers excellent value for users building systems around AMD Ryzen 9000 Series processors who need robust power delivery, fast storage options, and comprehensive connectivity. Its combination of PCIe 5.0 support, WiFi 6E, and reliable VRM design makes it suitable for gaming, content creation, and general computing tasks. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

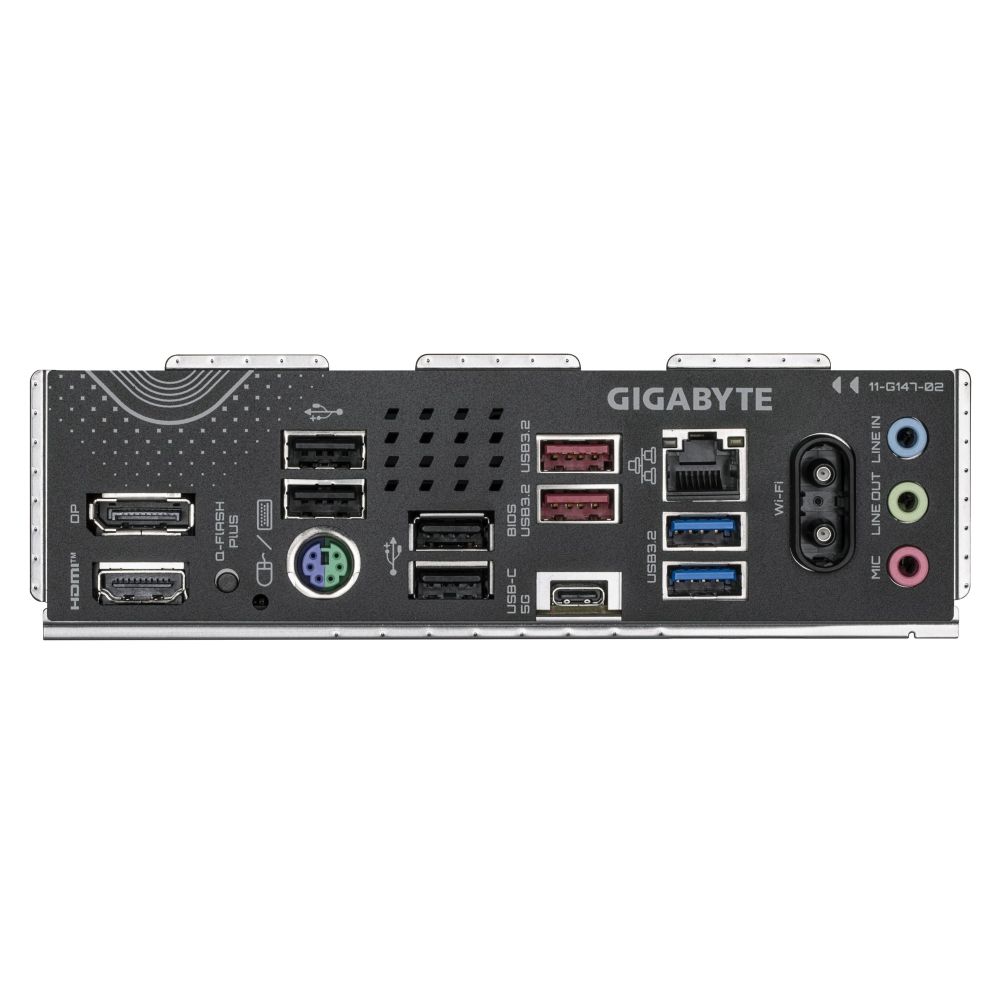

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8111H |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Brown |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.93 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.93 kg |
| Weight | 1.68 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.93 kg |
| Weight | 1.68 kg |
| Identifiers | |
| Additional EANs | 0889523046302 |
