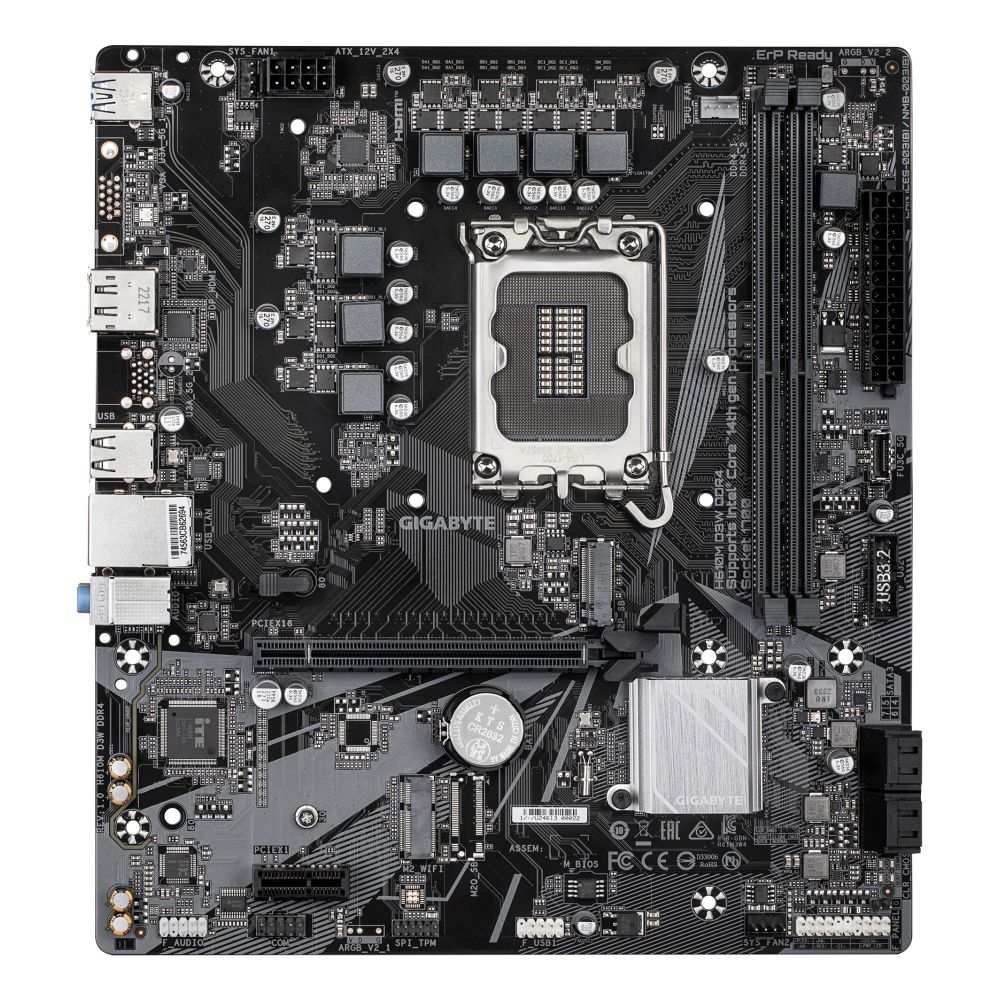

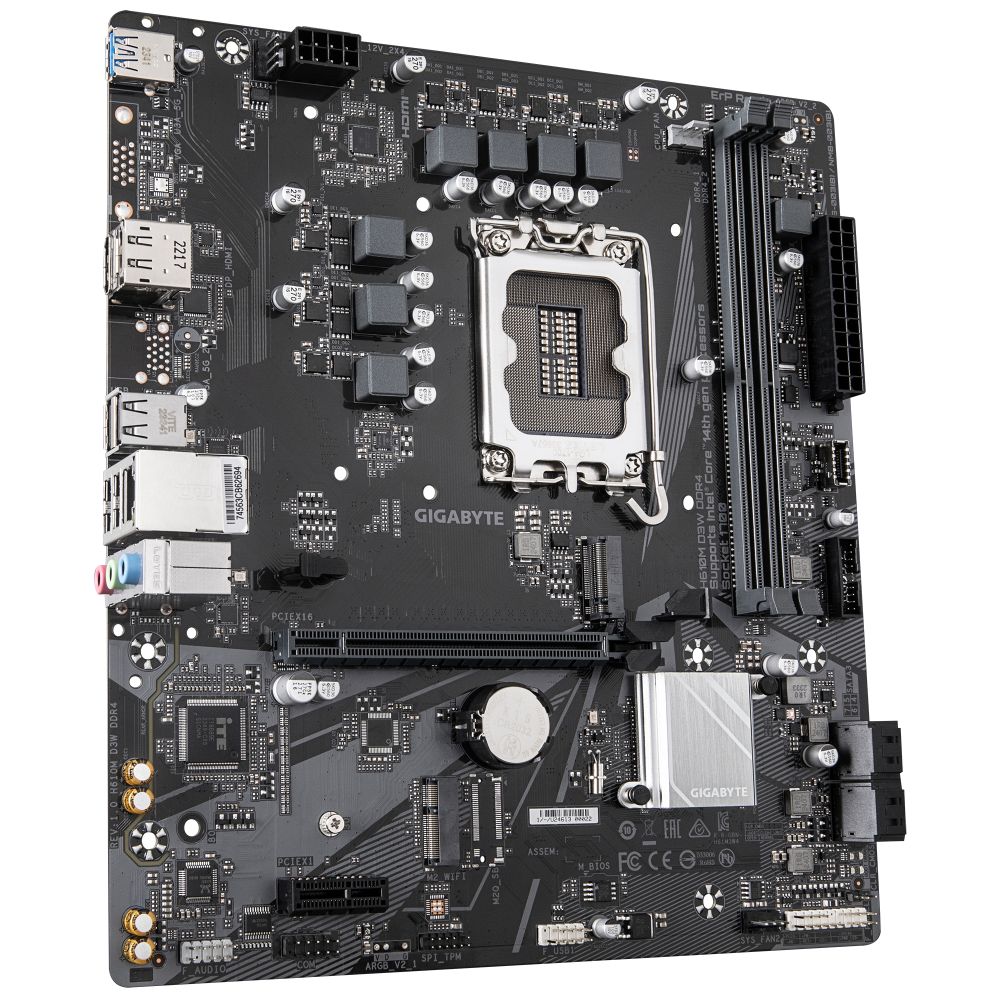

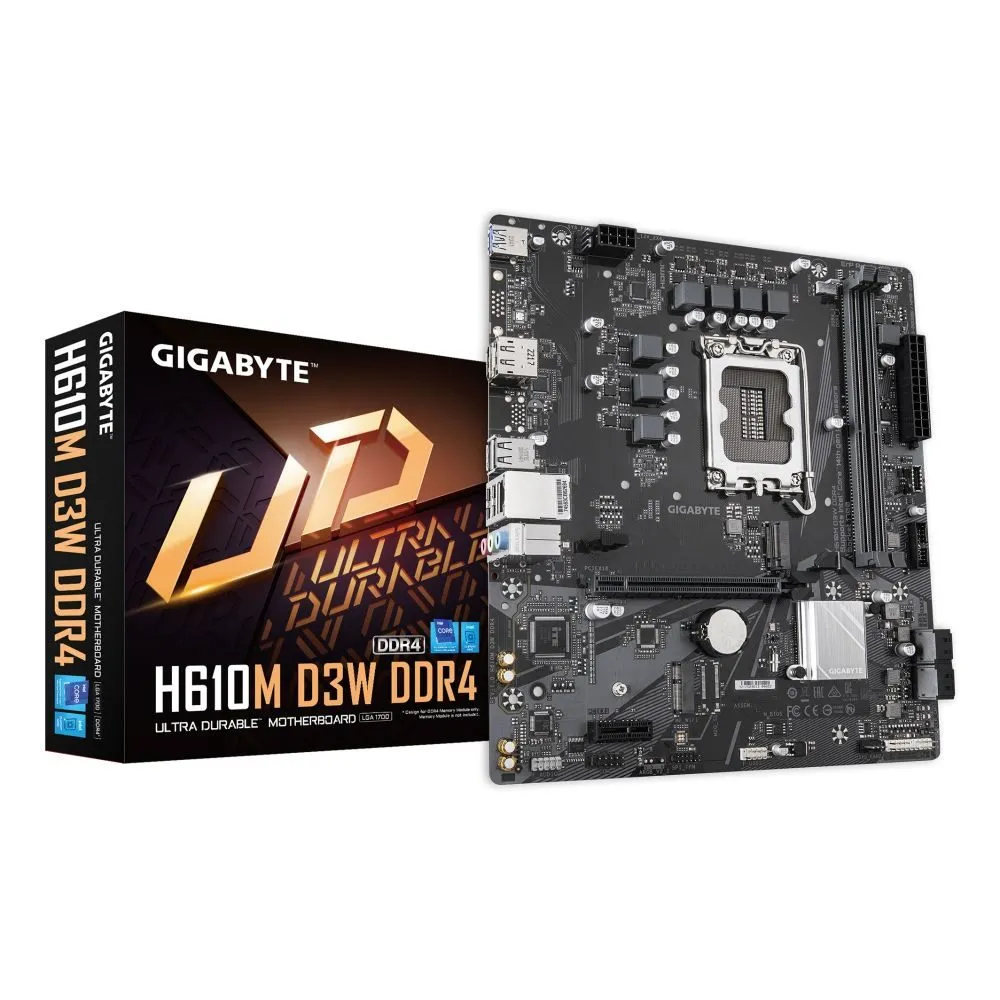

GIGABYTE H610M D3W DDR4 Motherboard for 14th Gen Intel CPUs
£64.67 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports 14th Gen Intel Core CPUs
- 5+1+1 phase VRM for stable power delivery
- Micro ATX form factor for compact builds
- Supports up to 64GB DDR4 memory at 3200MHz
- 1x PCIe 3.0 M.2 slot for fast NVMe storage
- 1GbE LAN with Realtek RTL8111H controller
- 7.1 channel HD audio with Realtek ALC897 codec
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE H610M D3W | Micro ATX Intel Motherboard
The GIGABYTE H610M D3W DDR4 Motherboard delivers reliable performance for Intel 12th to 14th Gen Core processors with robust VRM design and modern connectivity. This micro ATX board balances essential features with compact dimensions, making it ideal for home and office builds requiring dependable computing power.
Slim Specs Table
| Metric | Spec |
|---|---|
| Processor Support | Intel 12th-14th Gen Core (LGA 1700) |
| Memory Support | DDR4, up to 64GB, 3200MHz max |
| Expansion Slots | 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe 3.0), 4x SATA III |
| Networking | 1GbE LAN, Realtek RTL8111H |
Robust Power Delivery for Intel CPUs
The 5+1+1 phase VRM configuration provides stable power delivery for Intel 12th through 14th Generation Core processors. This design ensures consistent performance during demanding workloads and maintains system stability under various operating conditions. The enhanced power architecture supports smooth operation whether you’re running office applications or light content creation tasks.
Dual-Channel DDR4 Memory Performance
With two DIMM slots supporting up to 64GB of DDR4 memory at 3200MHz, this motherboard enables efficient multitasking and responsive system performance. The dual-channel memory architecture doubles memory bandwidth compared to single-channel configurations, improving overall system responsiveness for everyday computing tasks and moderate productivity workloads.
Versatile Storage Expansion Options
The H610M D3W offers comprehensive storage flexibility with one PCIe 3.0 M.2 slot for ultra-fast NVMe SSDs and four SATA III ports for additional drives. This configuration supports both high-speed boot drives and ample storage capacity for files, applications, and media libraries. The combination accommodates both performance-focused and storage-intensive usage scenarios.
Comprehensive System Monitoring and Cooling
Built-in PC health monitoring tracks fan speeds, temperatures, and voltages to maintain optimal system operation. Two chassis fan headers plus a dedicated CPU fan connector allow for effective thermal management. The monitoring system helps prevent overheating and ensures component longevity, particularly important for maintaining stable performance during extended use.
Enhanced Connectivity Suite
Featuring one HDMI 2.1 port, one DisplayPort 1.2, and multiple USB ports including USB 3.2 Gen 1, this motherboard provides flexible display and peripheral connectivity. The Realtek ALC897 audio chip delivers 7.1 channel surround sound for immersive audio experiences. Gigabit Ethernet ensures reliable wired network connectivity for stable internet access.
Box contents
- GIGABYTE H610M D3W motherboard
- I/O shield
- User manual
- SATA cables
- Screws (M.2, standoff)
- CR2032 battery
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket and Intel H610 chipset
- Verify your case supports micro ATX form factor (244mm x 220mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your DDR4 memory is compatible with the motherboard’s speed limitations
Frequently Asked Questions
Q: What Intel processors are supported?
A: Intel 12th, 13th, and 14th Generation Core processors with LGA 1700 socket, plus Celeron, Pentium, and compatible chipsets.
Q: Does this motherboard support Wi-Fi?
A: No, this model does not include built-in Wi-Fi. You’ll need a PCIe Wi-Fi adapter for wireless connectivity.
Q> What is the maximum memory speed supported?
A: The motherboard supports DDR4 memory up to 3200MHz when using compatible modules and processors.
Q: Can I install a graphics card?
A: Yes, there is one PCIe 3.0 x16 slot available for discrete graphics cards.
Q: How many M.2 drives can I install?
A: This motherboard supports one M.2 NVMe or SATA SSD in the M.2 slot.
Q: What type of audio does this motherboard provide?
A: It features the Realtek ALC897 audio chip with 7.1 channel surround sound output.
The Consultant’s verdict & warranty
The GIGABYTE H610M D3W offers dependable performance for budget-conscious builders and office environments needing reliable Intel platform support. Its micro ATX footprint suits space-constrained cases while delivering essential features for everyday computing. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Grey |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 800 g |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 800 g |
| Weight | 770 g |
| Width | 244 mm |
| Depth | 220 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 800 g |
| Weight | 770 g |
