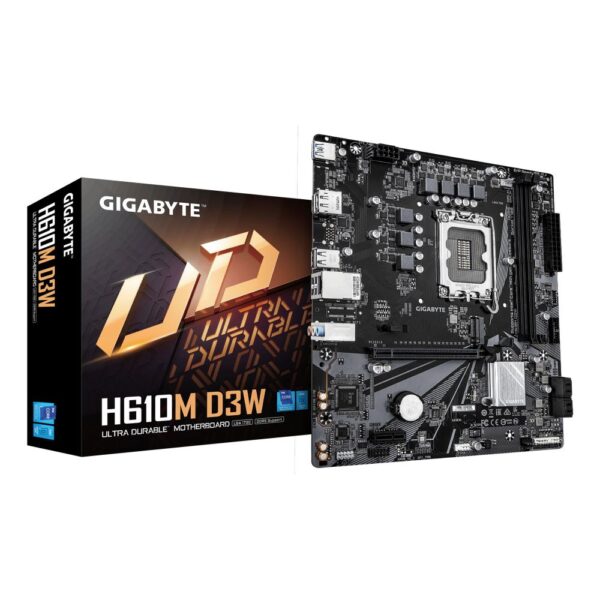

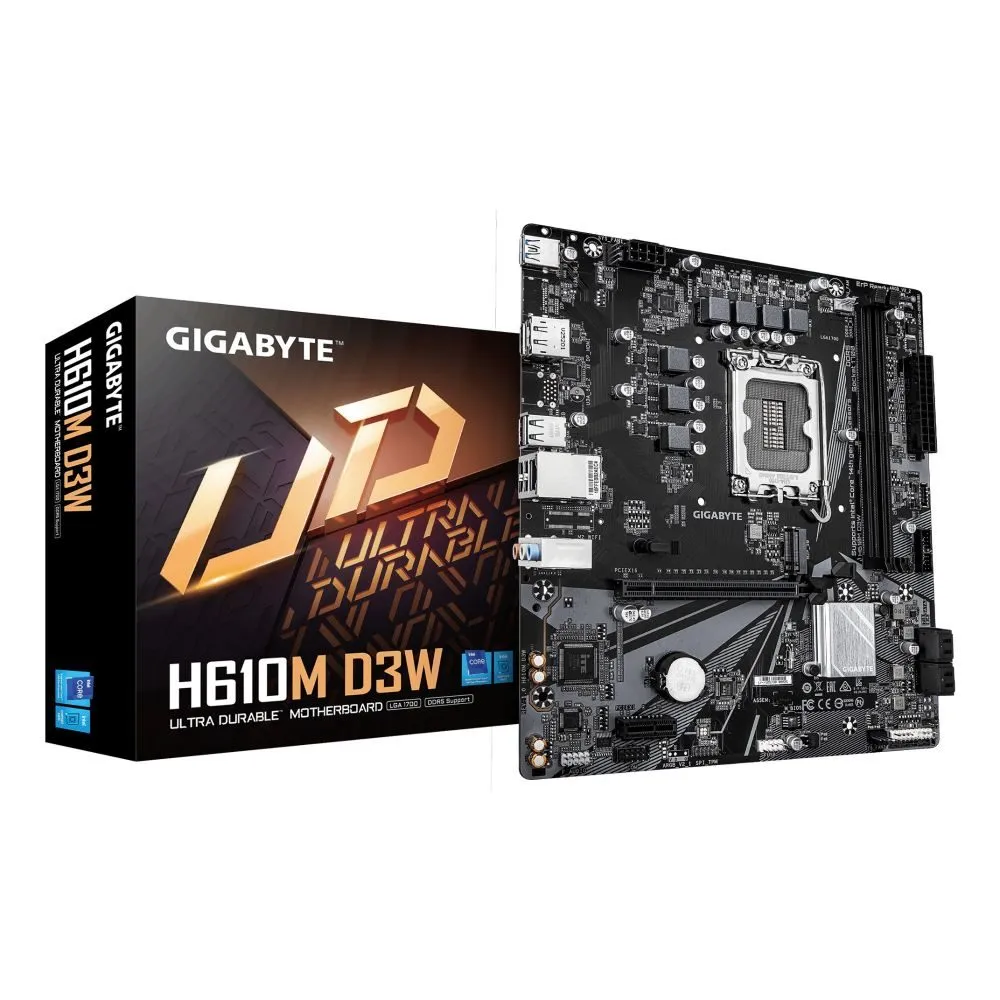

GIGABYTE H610M D3W Motherboard – 14th Gen Intel, DDR5, PCIe 3.0 M.2
£69.98 inc VAT
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports 14th Gen Intel Core CPUs with LGA 1700 socket
- 5+1+1 phases VRM for stable power delivery
- Up to 5600MHz DDR5 memory support
- 1x PCIe 3.0 M.2 slot for high-speed storage
- 1GbE LAN and USB 3.2 Gen 1 for fast connectivity
- micro ATX form factor for compact builds
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE H610M D3W | Compact DDR5 Motherboard for Intel 14th Gen CPUs

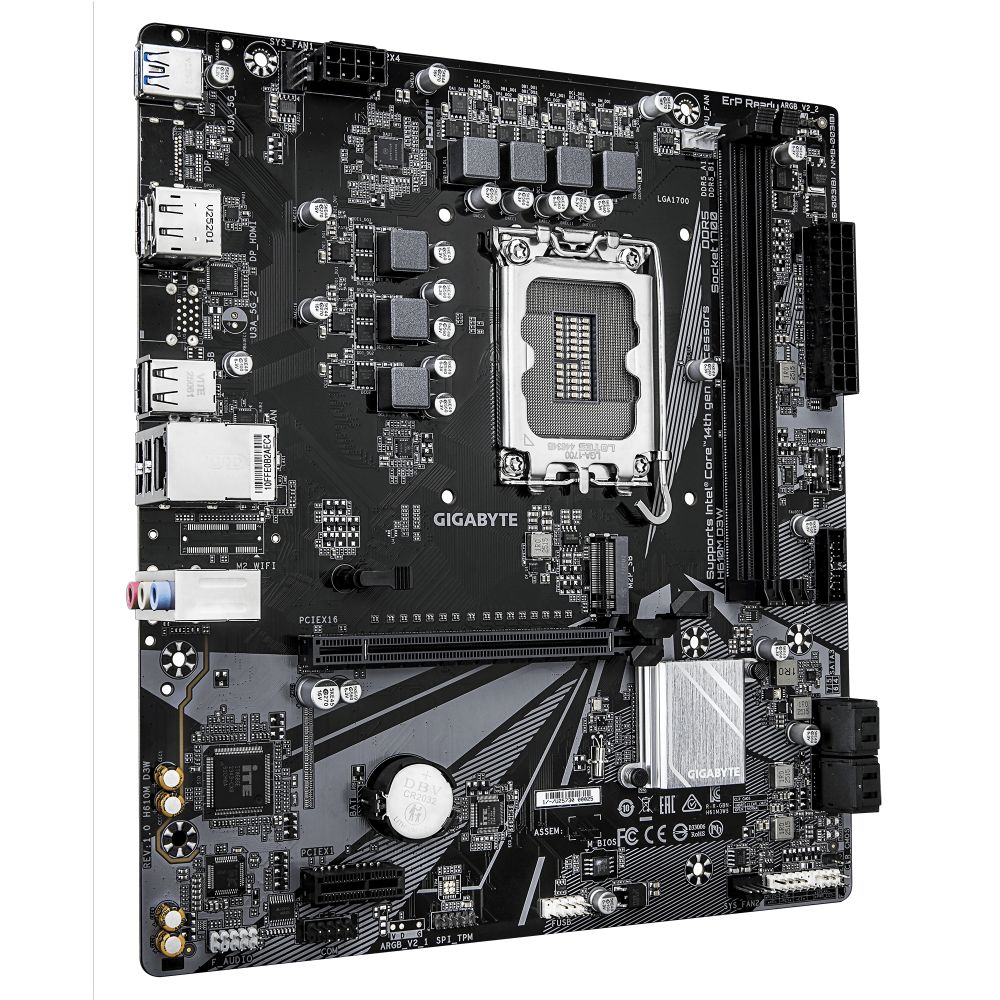

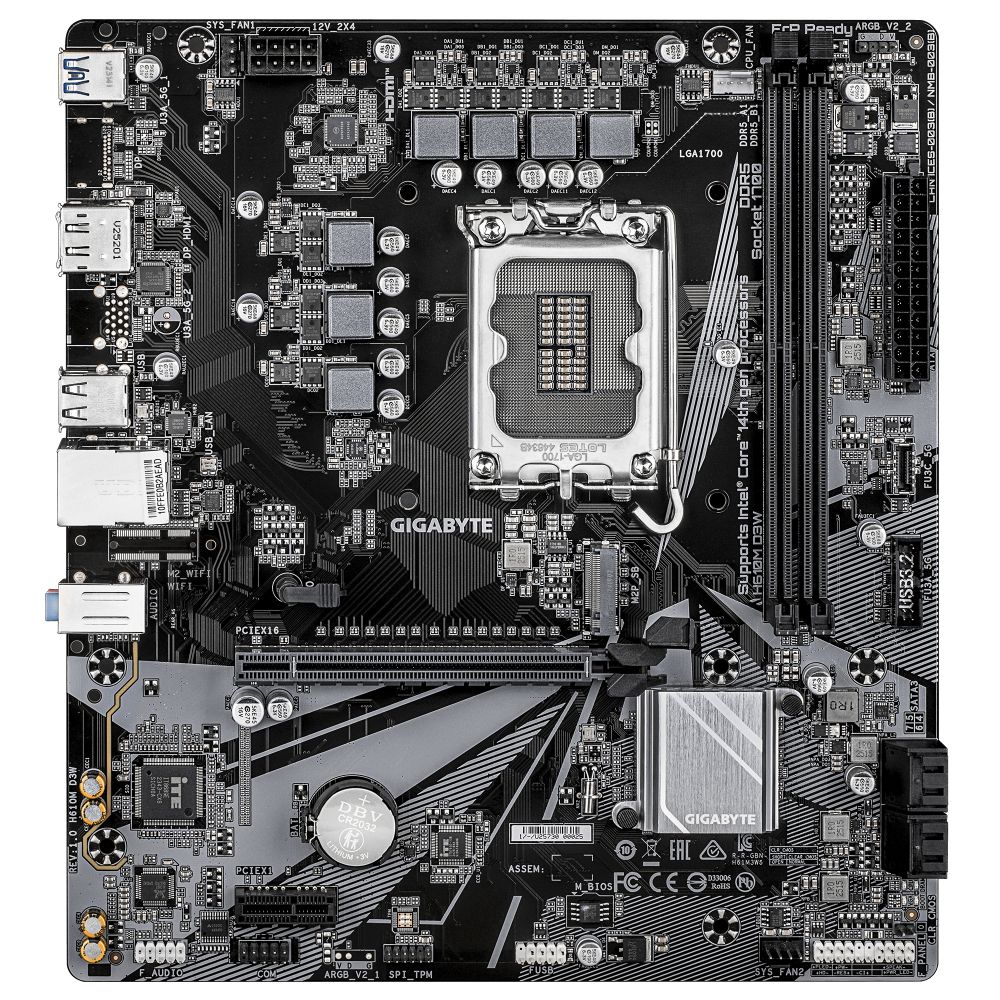

The GIGABYTE H610M D3W motherboard delivers a compact micro ATX platform for Intel 14th Gen. Core CPUs, featuring 5+1+1 phase VRM, DDR5 memory support up to 5600MHz, and essential connectivity including PCIe 3.0 M.2 and Gigabit Ethernet.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Support | Intel 14th Gen. Core (LGA 1700) |
| Memory | 2x DDR5 slots, up to 128GB, 5600MHz |
| Storage | 1x PCIe 3.0 M.2, 4x SATA III |
| Expansion | 1x PCIe x16 Gen 4, 1x PCIe x1 |
| LAN | Realtek RTL8111H Gigabit Ethernet |
Efficient Power Delivery for Intel CPUs
The 5+1+1 phase VRM design provides stable power delivery for Intel 14th Gen. processors, ensuring reliable performance during demanding workloads. This configuration balances thermal efficiency with power delivery capability, making it suitable for both office and light creative applications.
DDR5 Memory Performance and Expansion
With dual-channel DDR5 support and a maximum frequency of 5600MHz, this motherboard offers modern memory performance. The two DIMM slots support up to 128GB total memory, providing headroom for multitasking and memory-intensive applications. ECC compatibility ensures data integrity for professional workloads.
Storage Flexibility and Connectivity
The H610M D3W supports five storage devices through one PCIe 3.0 M.2 slot and four SATA III connectors. This configuration allows for a fast NVMe boot drive alongside multiple SATA SSDs or HDDs for mass storage. The Realtek Gigabit LAN controller provides reliable wired network connectivity.
Compact Micro ATX Design

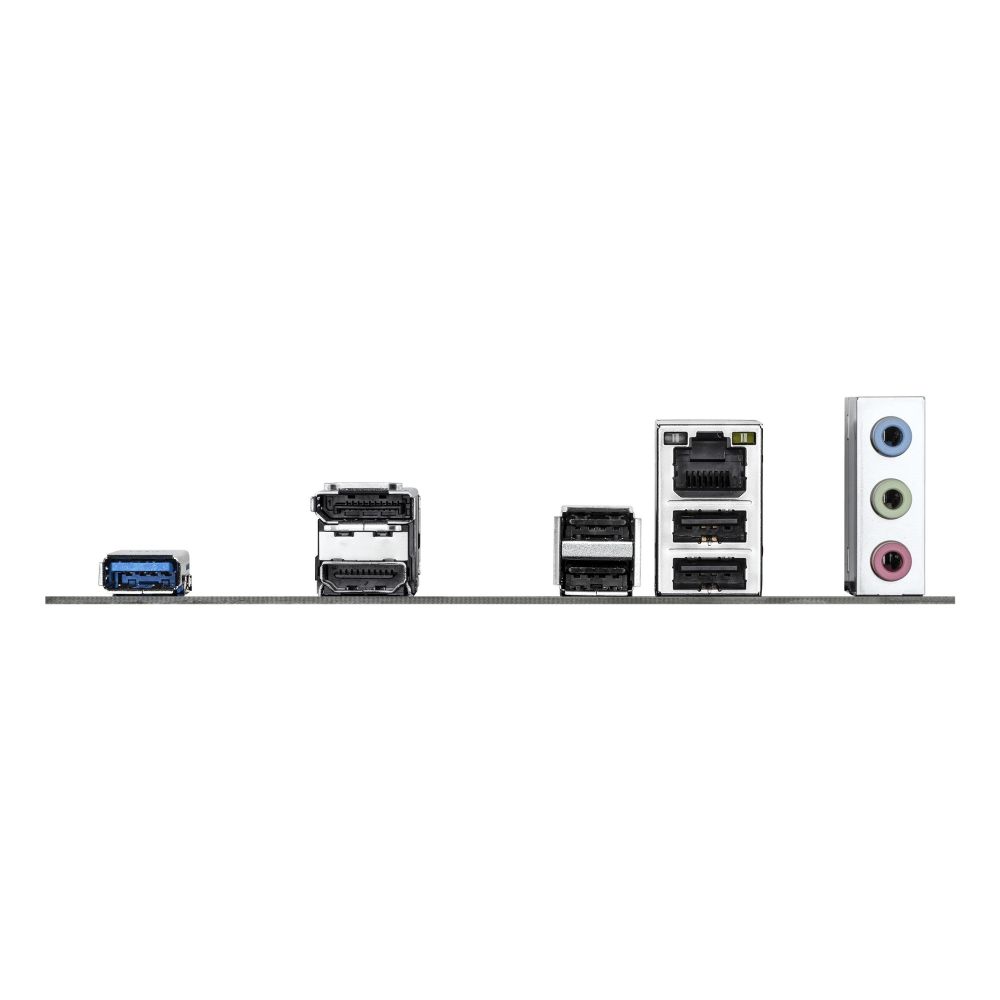

Measuring 244mm x 220mm, the micro ATX form factor fits standard ATX cases while offering a balanced I/O layout. The dark brown PCB with passive cooling maintains a clean aesthetic. Rear panel includes HDMI 2.1, DisplayPort 1.2, USB 3.2 Gen 1, and USB 2.0 ports for comprehensive connectivity.
Box Contents
- GIGABYTE H610M D3W motherboard
- I/O shield
- User manual
- Driver/software disc
- SATA cables
- Screws and standoffs
- CR2032 battery
- Norton Internet Security (OEM version)
Check before you buy
- Confirm your CPU uses LGA 1700 socket
- Verify your case supports micro ATX (244mm x 220mm)
- Check that your power supply has 24-pin ATX and 8-pin EPS connectors
- Ensure you have DDR5 memory modules (not DDR4)
Frequently Asked Questions
Q: Does this motherboard support Windows 11?
A: Yes, it supports Windows 10 x64 and Windows 11 x64 operating systems.
Q: Can I use DDR4 memory with this board?
A: No, this motherboard only supports DDR5-SDRAM memory modules.
Q: How many graphics cards can I install?
A: One full-length PCIe x16 graphics card can be installed in the primary slot.
Q: Does it have built-in Wi-Fi?
A: No, this model does not include Wi-Fi connectivity; it requires a wired Ethernet connection.
Q: What’s the maximum memory speed supported?
A: The motherboard supports DDR5 memory up to 5600MHz when using compatible modules.
The Consultant’s Verdict & Warranty
The GIGABYTE H610M D3W offers a solid foundation for Intel 14th Gen. systems where space efficiency and DDR5 performance matter. The 5+1+1 phase VRM provides adequate power delivery for mainstream CPUs, while the micro ATX footprint suits compact builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| HDCP version | 2.3 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 200 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 821 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 200 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 821 g |
| Weight | 742 g |
| Width | 244 mm |
| Depth | 220 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 821 g |
| Weight | 742 g |
