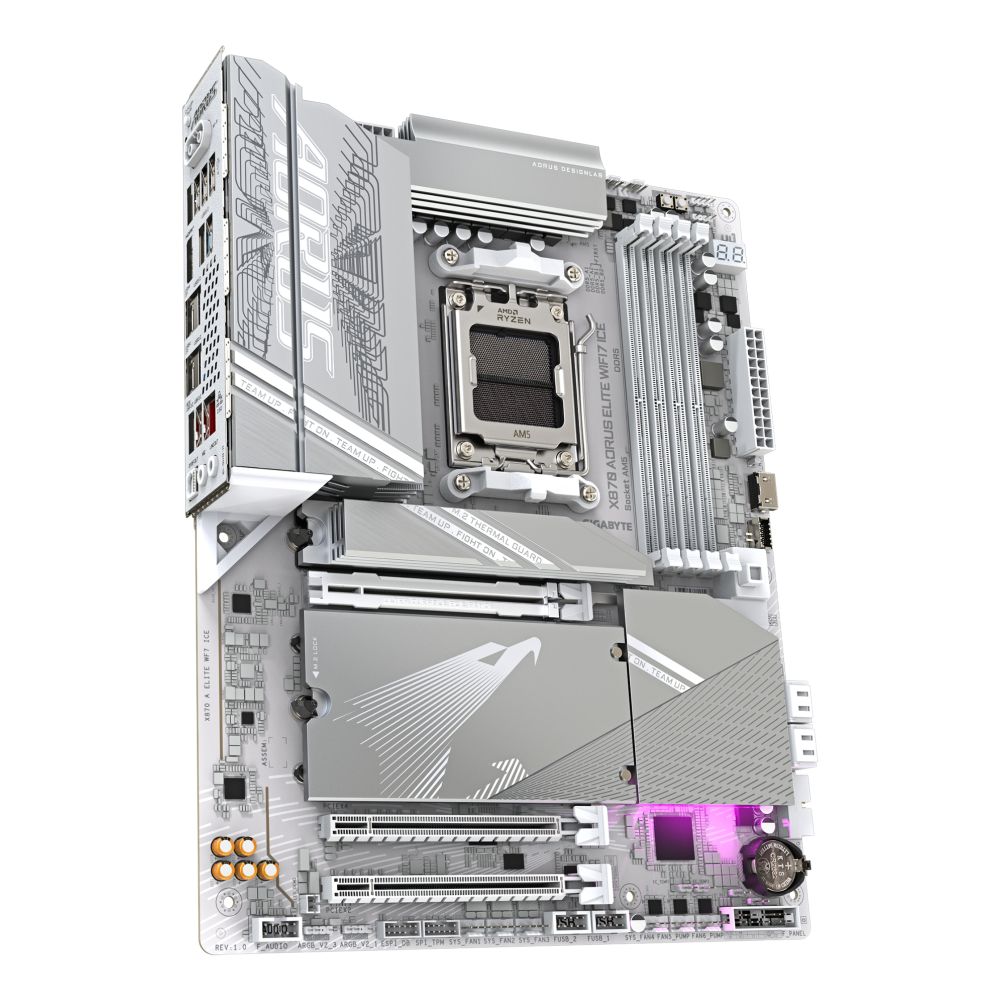

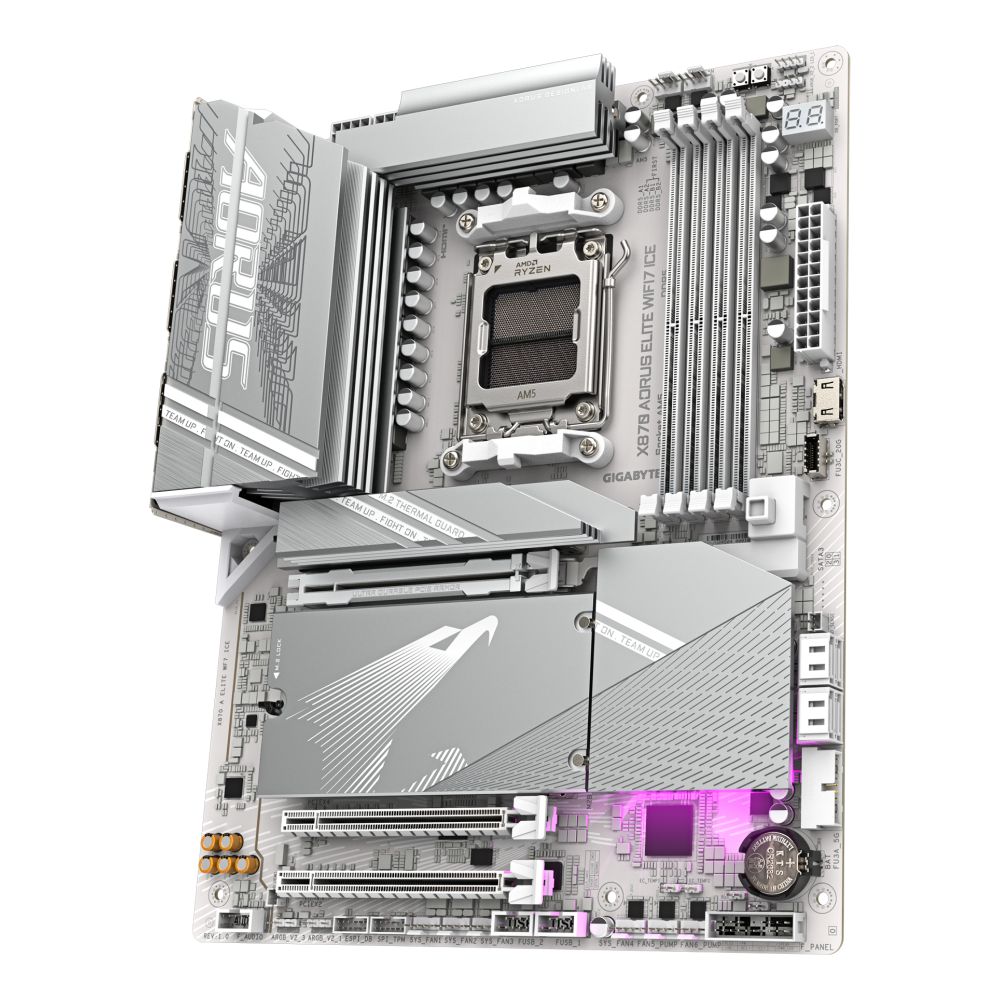

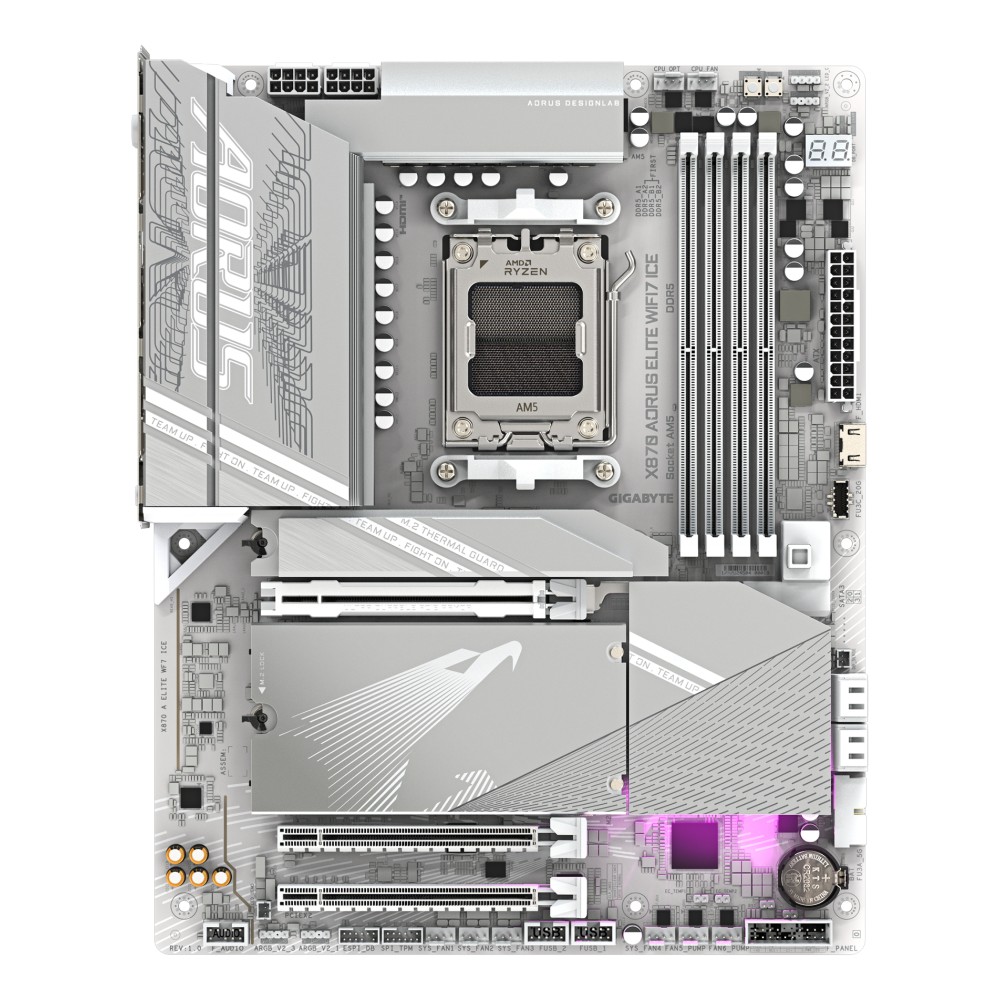

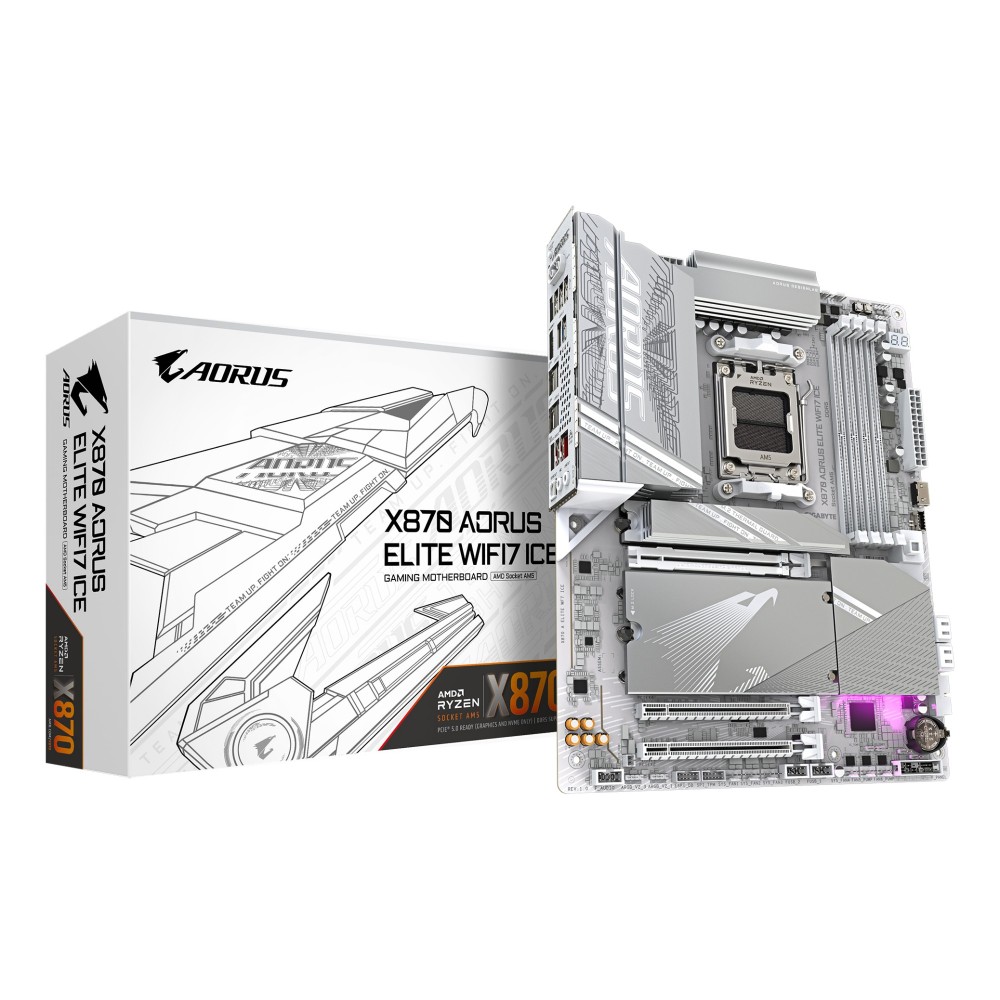

GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard

GIGABYTE X870 AORUS ELITE WIFI7 ICE | AMD Ryzen 9000 Powerhouse

The GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard delivers cutting-edge performance for AMD Ryzen 9000 CPUs with advanced cooling, ultra-fast connectivity, and comprehensive expansion options. This premium ATX motherboard combines the latest AMD X870 chipset with DDR5 support up to 8200MHz, Wi-Fi 7, and multiple PCIe 5.0 slots for serious gaming and content creation workloads.

Slim Specs Table

Built for AMD Ryzen 9000 Dominance

This motherboard harnesses the full potential of AMD’s latest Ryzen 9000 processors through its robust 16+2+2 phase digital VRM design. The enhanced power delivery ensures stable performance during intensive workloads, while comprehensive cooling solutions keep temperatures optimal. With support for up to 256GB of DDR5 memory at 8200MHz, you’ll experience lightning-fast data access and seamless multitasking.

Future-Proof Connectivity Suite

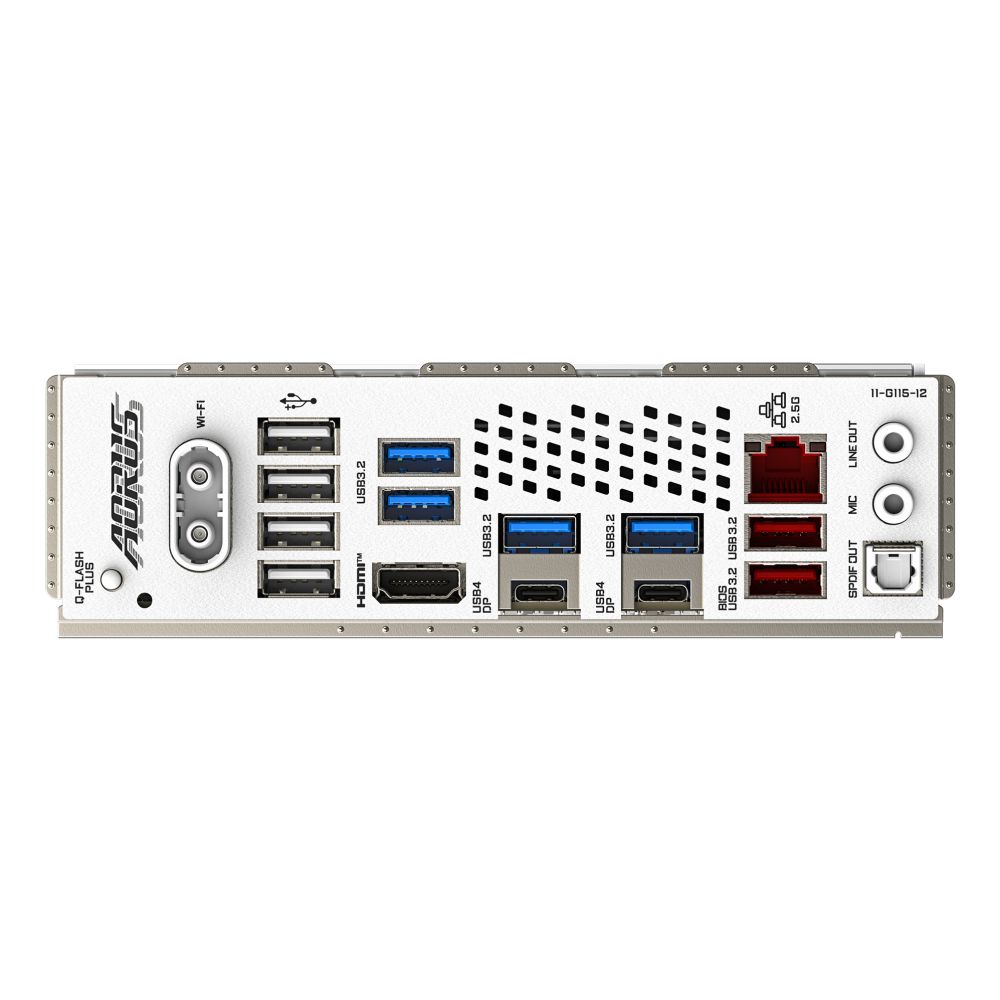

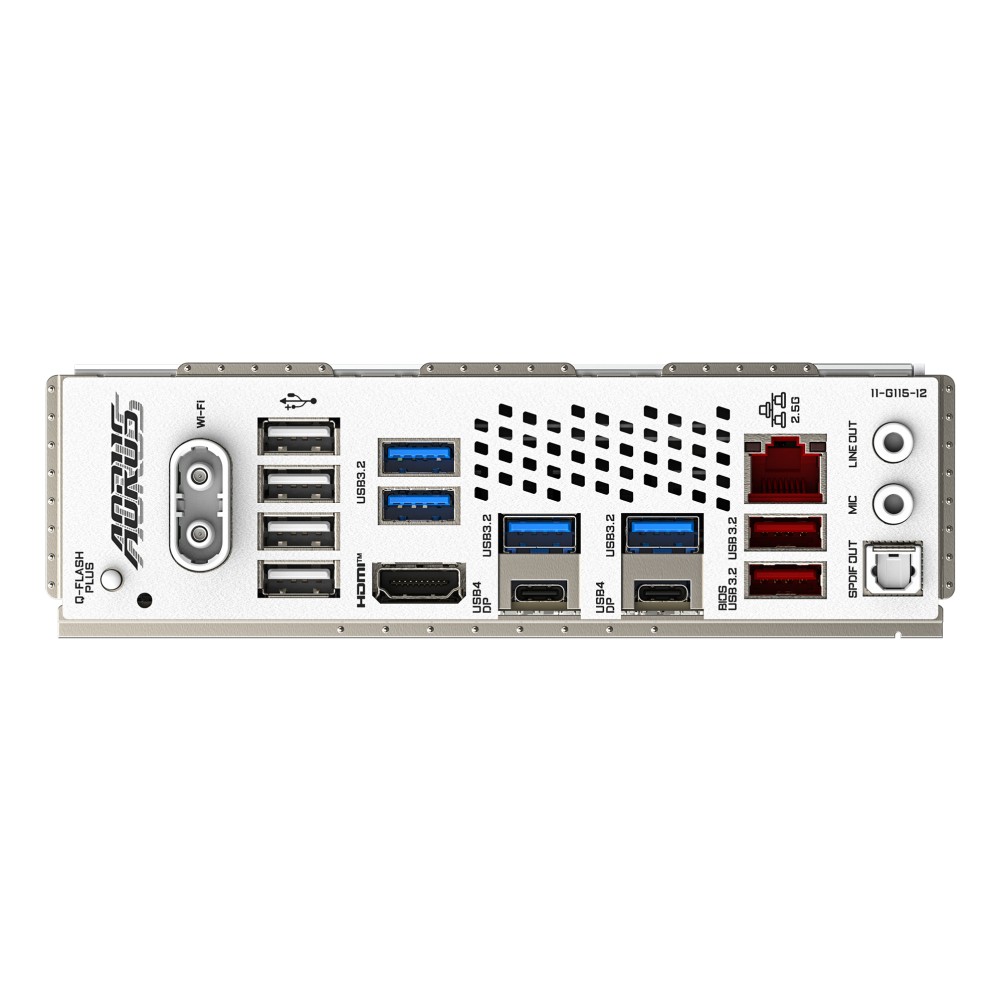

Stay ahead of the curve with Wi-Fi 7 and Bluetooth 5.4 for the fastest wireless performance available. The Realtek RTL8125 2.5GbE LAN provides reliable wired connectivity, while multiple USB ports including USB4 Gen 3×2 ensure compatibility with the latest peripherals. HDMI 2.1 and DisplayPort 1.4 outputs support multiple displays at 4K resolution, perfect for multi-monitor setups.

Expandable Storage Architecture

With four M.2 slots supporting PCIe 5.0 and 4.0, plus four SATA III connectors, this motherboard offers exceptional storage flexibility. RAID 0, 1, and 10 support allows for optimized performance or redundancy configurations. The combination of ultra-fast NVMe SSDs and traditional SATA drives provides the perfect balance of speed and capacity for any build.

Comprehensive Cooling & Monitoring

Advanced PC health monitoring tracks fan speeds, noise levels, temperatures, voltages, and water cooling performance. Six chassis fan headers plus dedicated CPU and water pump connectors give you complete control over your system’s thermal management. The AIO pump support ensures compatibility with custom liquid cooling solutions for enthusiasts pushing their systems to the limit.

Box contents

• GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard
• I/O shield
• SATA cables (quantity not specified)
• User manual
• Driver/software support DVD
• Warranty card
• Motherboard screws (confirmed included)
• Wi-Fi antennas (confirmed included)

Check before you buy

• Confirm your AMD Ryzen 9000 CPU is supported on this motherboard
• Verify your case dimensions accommodate ATX form factor (305 x 244mm)
• Check your PSU has required connectors (24-pin ATX, 8-pin EPS)
• Confirm your DDR5 memory is on the QVL list for optimal performance

Frequently Asked Questions

Q: What processors are compatible with this motherboard?

A: It supports AMD Ryzen 7000, 8000, and 9000 Series processors using Socket AM5.

Q: How many M.2 drives can I install?

A: The motherboard has four M.2 slots – three PCIe 5.0 and one PCIe 4.0.

Q: Does it support DDR5 memory?

A: Yes, it supports DDR5-SDRAM up to 8200MHz (OC) with 256GB maximum capacity.

Q: What Wi-Fi standard does it include?

A: It features Wi-Fi 7 (802.11be) with MediaTek MT7925 controller and Bluetooth 5.4.

Q: Is RGB lighting supported?

A: Yes, it has four RGB LED headers for customizable lighting effects.

The Consultant’s verdict & warranty

The GIGABYTE X870 AORUS ELITE WIFI7 ICE represents an exceptional foundation for high-performance AMD Ryzen 9000 builds, offering premium features like Wi-Fi 7, PCIe 5.0 storage, and robust power delivery. Its comprehensive connectivity and cooling options make it ideal for gamers, content creators, and enthusiasts who demand cutting-edge performance. Covered by the standard Manufacturer Warranty.
