Save £20

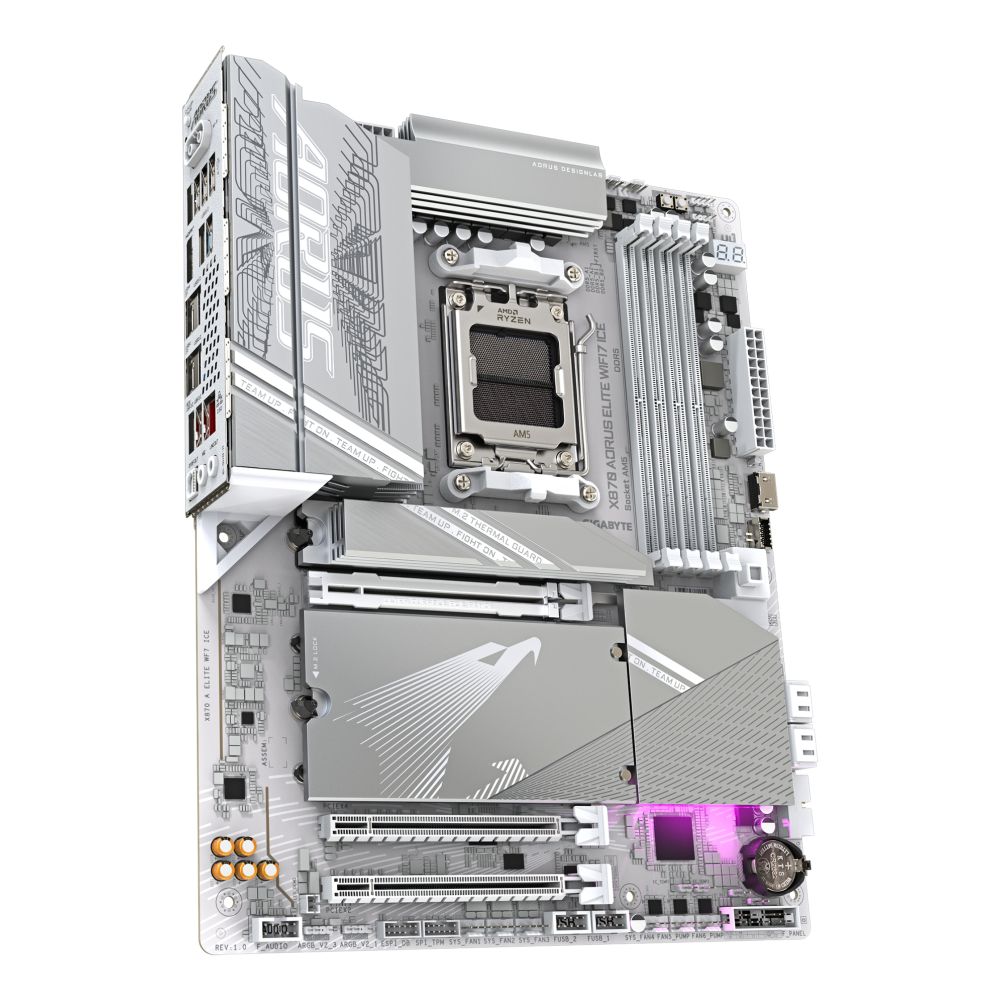

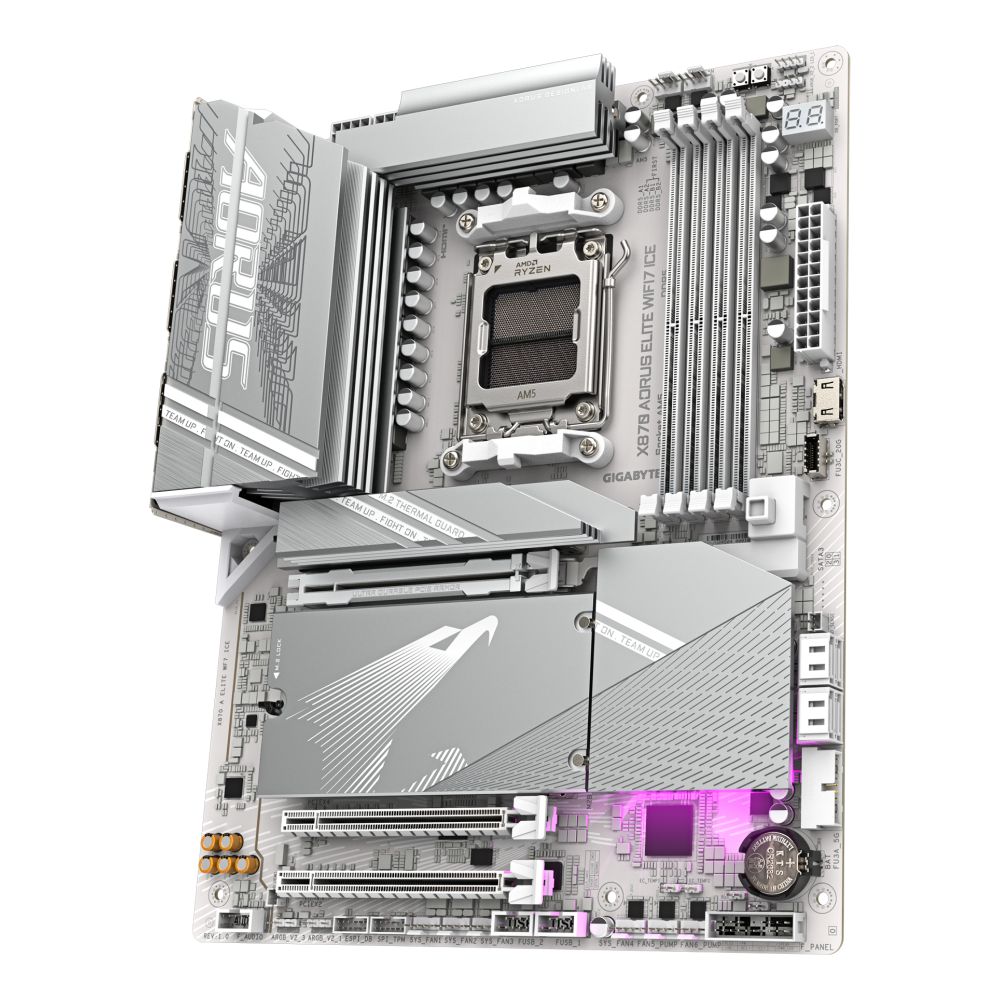

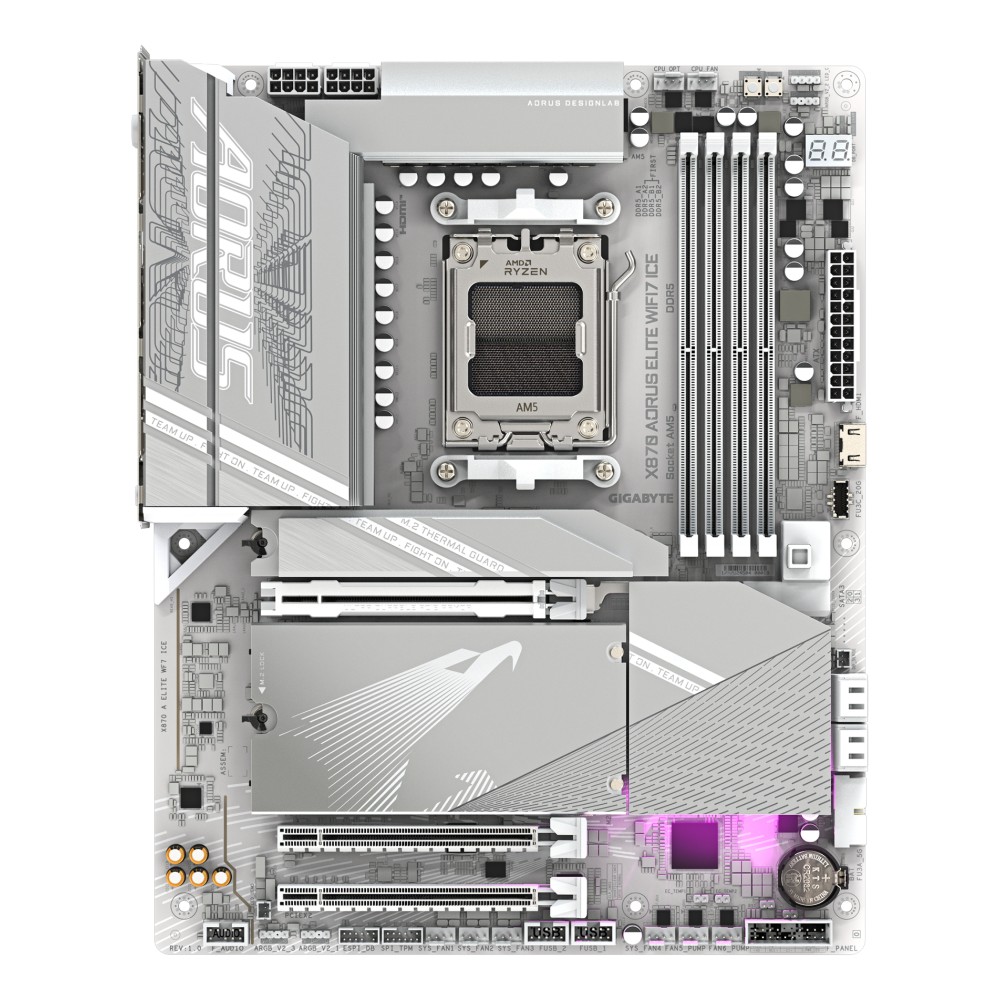

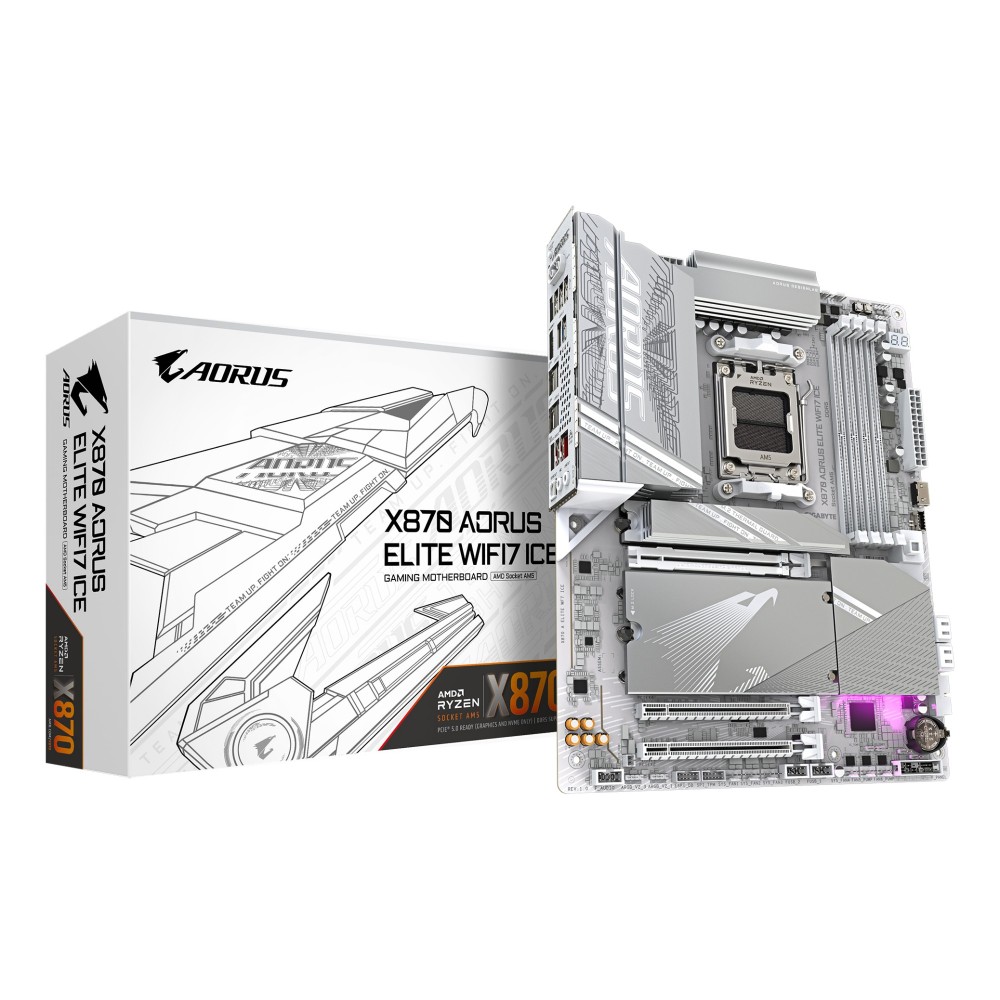

Gigabyte X870 AORUS ELITE Wi-Fi 7 ICE Motherboard AM5 Socket AMD Chipset ATX DDR5 White
Original price was: £299.99.£279.59Current price is: £279.59.
Out of stock
Out of stock
Order now, get it by Mon 12 Oct
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- AMD X870 chipset with AM5 socket for Ryzen 7000 to 9000 series processors
- Four DDR5 memory slots supporting up to 256 GB capacity and speeds up to 8200 MHz
- Four M.2 slots including three PCIe 5.0 and one PCIe 4.0 plus four SATA III connectors
- Wi-Fi 7 and Bluetooth 5.4 wireless alongside USB4 Gen 3×2 and 2.5 Gigabit Ethernet
- ATX form factor in white ICE design with extensive RGB LED headers and fan connectors
- Realtek ALC1220 7.1 channel audio and HDMI 2.1 with DisplayPort 1.4 output support
You may also like
Save £30
GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
In stock
Original price was: £518.39.£488.39Current price is: £488.39.
Save £7.20
Asrock B850M-X R2.0 AMD B850 micro ATX motherboard
In stock
Original price was: £123.59.£116.39Current price is: £116.39.
Save £6.00
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
Original price was: £98.39.£92.39Current price is: £92.39.
Save £9.60
Asrock B650 PG Lightning AMD B650 ATX
In stock
Original price was: £151.19.£141.59Current price is: £141.59.
Save £6.00
Asrock A620AM PRO-A micro ATX motherboard
In stock
Original price was: £101.99.£95.99Current price is: £95.99.
Save £12
ASRock B850I Mini-ITX Gaming Motherboard
In stock
Original price was: £211.19.£199.19Current price is: £199.19.
Save £16
Asrock X870 NOVA WIFI AM5 ATX
In stock
Original price was: £304.79.£289.19Current price is: £289.19.
Save £7.20
GIGABYTE B650M D3HP Motherboard – Ryzen 9000, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock
Original price was: £119.99.£112.79Current price is: £112.79.
Save £7.20
GIGABYTE B840M D2H AMD Ryzen 9000 Motherboard
In stock
Original price was: £106.79.£99.59Current price is: £99.59.
Save £12
Asrock B650I Lightning WiFi AM5 Mini ITX
In stock
Original price was: £171.59.£159.59Current price is: £159.59.
Save £11
Asrock B850M Steel Legend WiFi AM5 micro ATX
In stock
Original price was: £166.79.£155.99Current price is: £155.99.
Save £13
GIGABYTE B850M AORUS ELITE Motherboard
In stock
Original price was: £211.19.£197.99Current price is: £197.99.
Save £8.40
Asrock B850M Pro RS micro ATX motherboard
In stock
Original price was: £135.59.£127.19Current price is: £127.19.
Save £9.60
GIGABYTE B840M EAGLE WIFI6 Motherboard
In stock
Original price was: £145.19.£135.59Current price is: £135.59.
Save £9.60
GIGABYTE B650M AORUS ELITE Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
Original price was: £163.19.£153.59Current price is: £153.59.
Save £7.20
Asrock A620AI WiFi Mini ITX Motherboard
In stock
Original price was: £142.79.£135.59Current price is: £135.59.
Save £6.00
ASRock A620AM-X AMD AM5 Motherboard with DDR5, M.2, and 2.5GbE LAN
In stock
Original price was: £99.59.£93.59Current price is: £93.59.
Save £23
Gigabyte X870E AORUS ELITE X3D Motherboard
In stock
Original price was: £361.19.£338.39Current price is: £338.39.
Description
Gigabyte X870 AORUS ELITE Wi-Fi 7 ICE Motherboard AM5 Socket AMD Chipset ATX DDR5 White
We recommend this board for PC builders. It supports AMD Ryzen 7000 series processors. Wi-Fi 7 ensures rapid wireless speeds. You get four M.2 slots for storage. Our engineers note the strong VRM design. It handles high CPU loads well.
Core Technical Metrics
| Metric | Spec. |
|---|---|
| Socket | AM5 |
| Chipset | AMD X870 |
| Memory Support | DDR5 up to 8200 MHz |
| M.2 Slots | 4 |
| Wireless Standard | Wi-Fi 7 |
| Form Factor | ATX |
Unlock Next-Gen Wireless Speeds
This model supports Wi-Fi 7 standards. It delivers faster throughput than older systems. You need compatible routers to use it. Bluetooth 5.4 provides stable peripheral connections.
Maximise Your Storage Potential
Four M.2 slots offer flexibility. Three support PCIe 5.0 speeds. You also have four SATA ports. This accommodates multiple drives easily.
Stable Power For Demanding CPUs
Dual 8-pin EPS connectors provide power. This helps maintain stable frequencies. Thermal design keeps components cool during use. RGB headers allow lighting customisation.
What You Receive
- Wi-Fi antenna
- Mounting screws
- Motherboard
Before You Order
- Confirm your case supports ATX
- Check your PSU has required connectors
- Verify your CPU uses the AM5 socket
Frequently Asked Questions
Frequently Asked Questions
Q: Which CPU sockets are supported?
A: This board works with AM5 socket processors.
Q: What is the maximum RAM speed?
A: It supports DDR5 memory up to 8200 MHz.
Q: Does it have onboard graphics?
A: Yes, it supports onboard graphics for displays.
Q: How many M.2 drives can I use?
A: You can install up to four M.2 drives.
Q: Is there a warranty?
A: Yes, this product carries a 3 year warranty.
Our Final Assessment
This board suits builders wanting fast storage. It pairs well with AMD Ryzen CPUs. You get reliable power and connectivity.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 3 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Number of displays supported | 4 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 256 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2 |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Number of displays supported | 4 |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| On-board graphics card model | AMD Radeon Graphics |

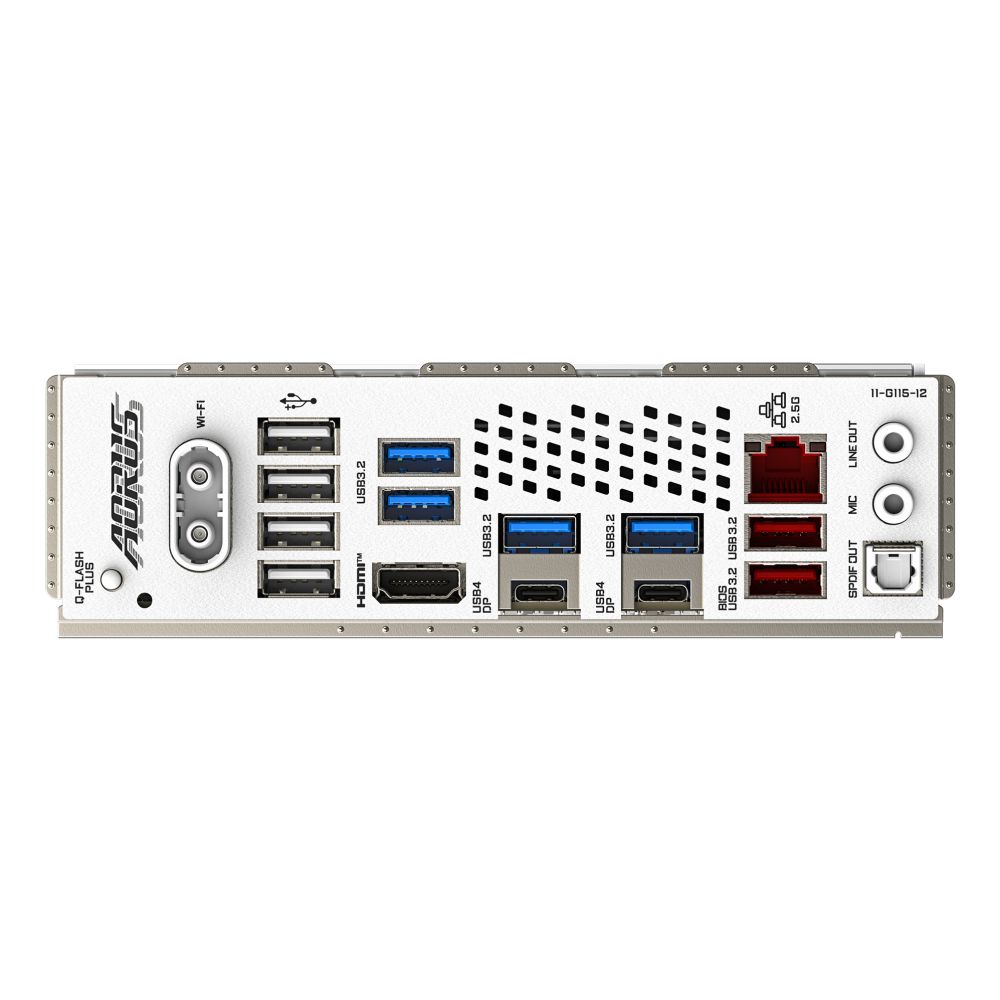

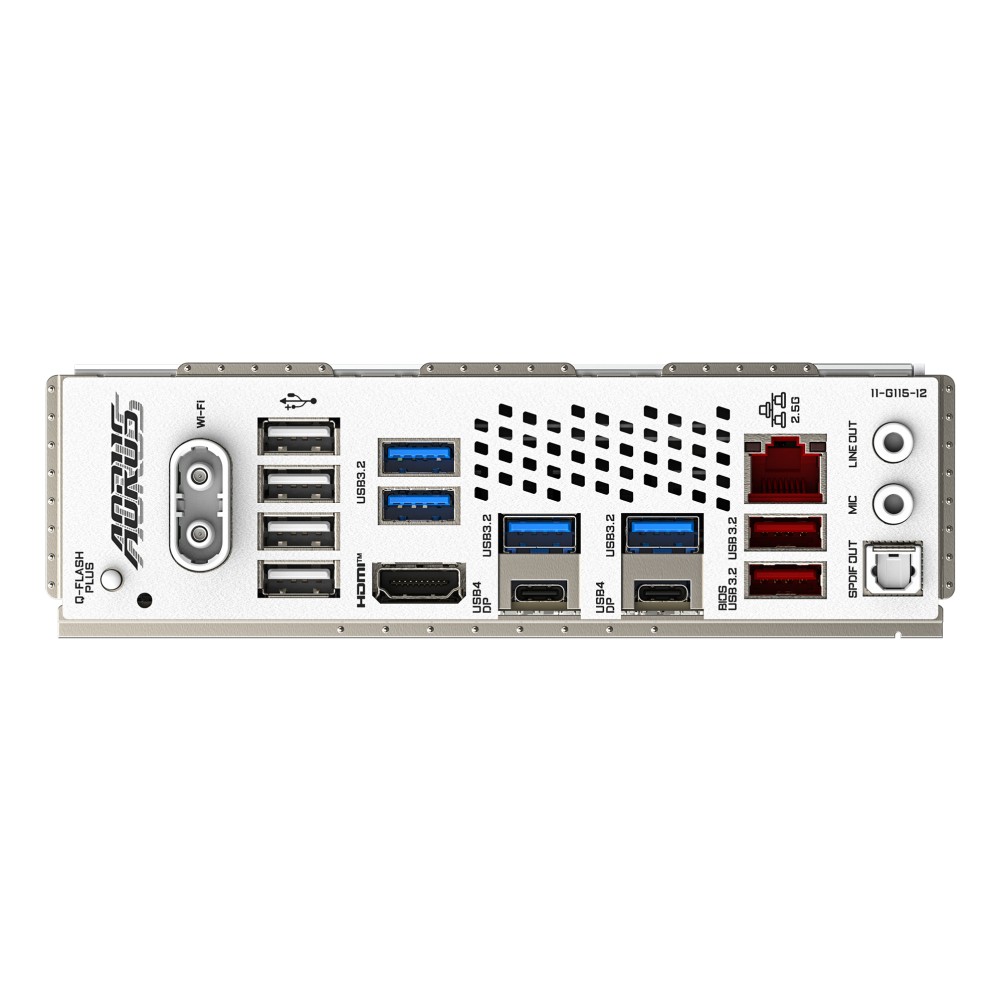

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Weight | 2.4 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Weight | 2.4 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-X870AEW7I, 125597, X870 A ELITE WF7 ICE 1.0, X870 AORUS ELITE WF7 ICE, 531757, 2120859, OSX870 A ELITE WF7 ICE |
| Additional EANs | 0889523045176 |
Reviews
Clear filtersThere are no reviews yet.
