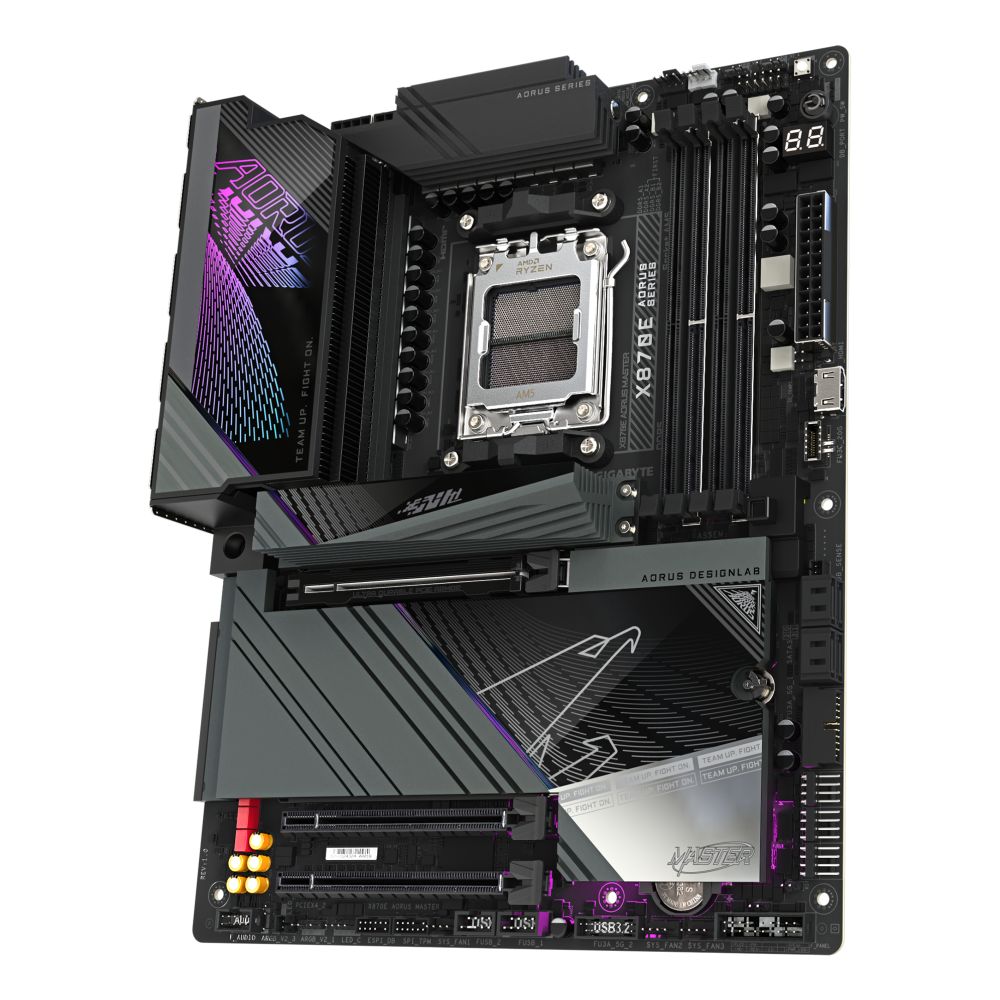

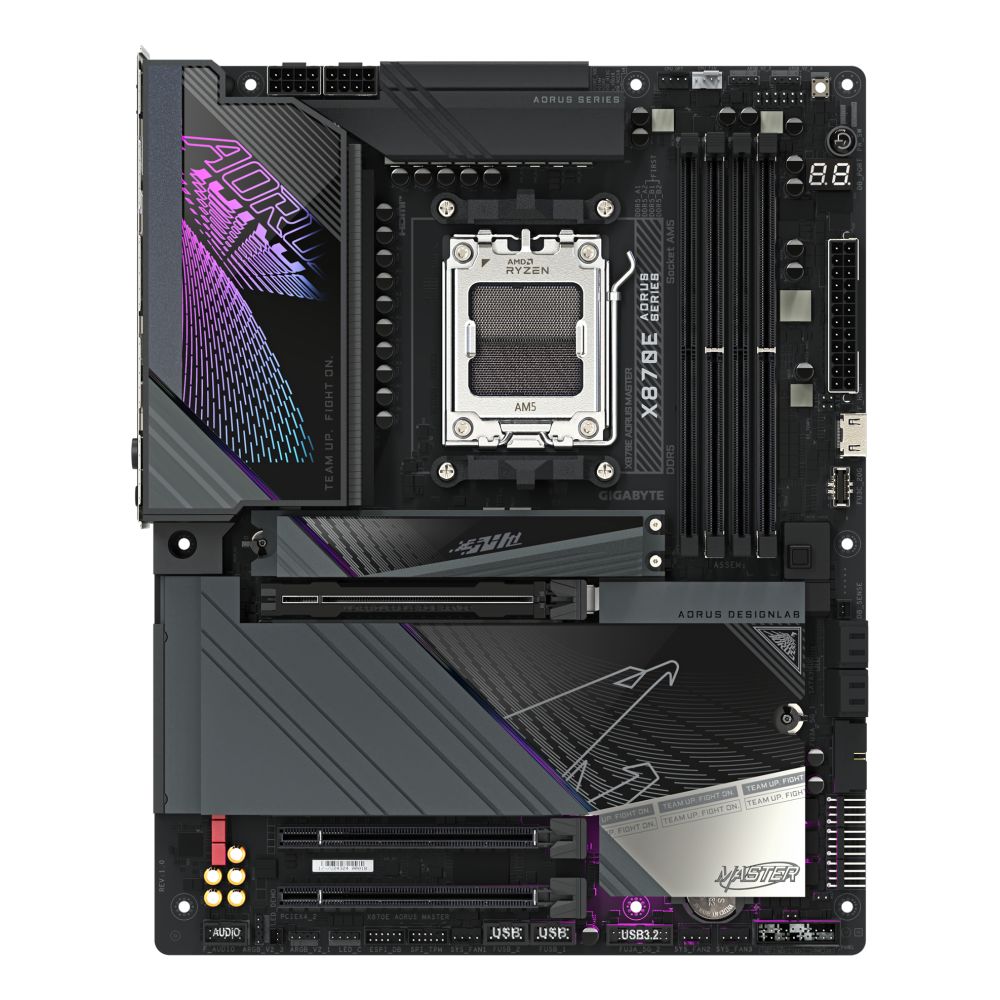

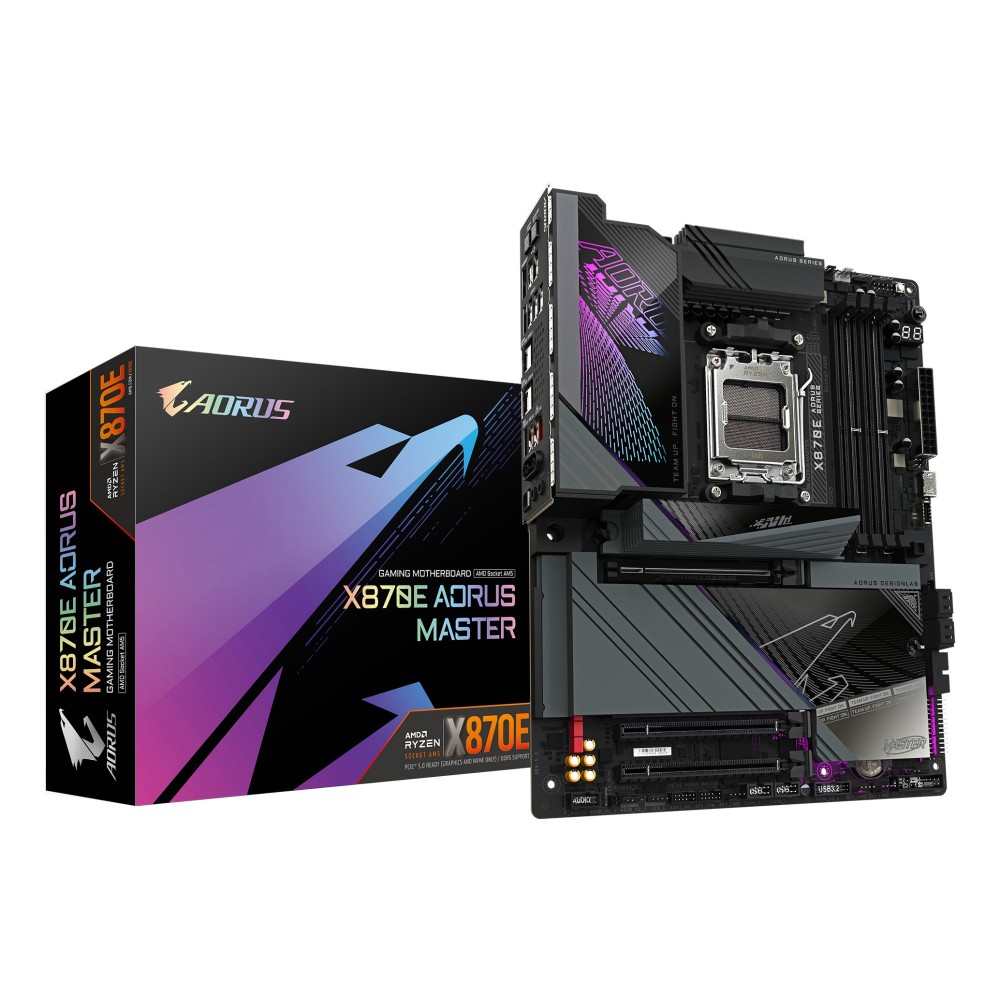

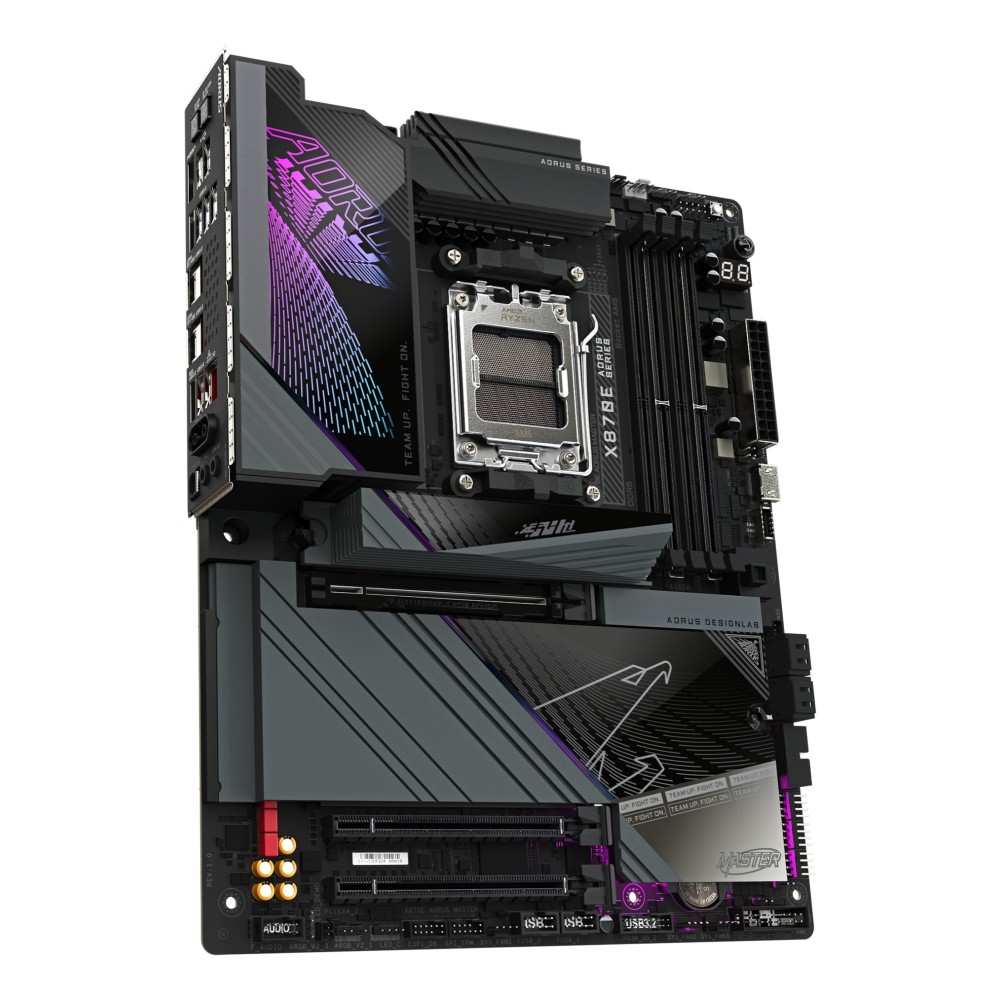

GIGABYTE X870E AORUS MASTER Motherboard
£446.85 inc VAT
1 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports AMD Ryzen 9000 CPUs with Socket AM5
- 16+2+2 phases digital VRM for stable power delivery
- Up to 8600MHz DDR5 memory support (OC) for extreme performance
- 4 M.2 slots with PCIe 5.0/4.0 support for high-speed storage
- Wi-Fi 7, 5GbE LAN, and USB 4 for cutting-edge connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
GIGABYTE X870E AORUS MASTER | AMD AM5 Powerhouse
The GIGABYTE X870E AORUS MASTER motherboard delivers exceptional performance for AMD Ryzen 9000 CPUs, featuring 16+2+2 phases digital VRM and support for DDR5 memory up to 8600MHz. This premium ATX board combines cutting-edge connectivity with robust power delivery for demanding users.
Slim Specs Table
| Metric | Spec |
|---|---|
| Socket | AMD AM5 |
| Memory Support | DDR5 up to 8600MHz |
| PCIe Slots | 3x PCIe 5.0 + 1x PCIe 4.0 |
| Storage | 4x M.2 (3x PCIe 5.0, 1x PCIe 4.0) + 4x SATA III |
| Connectivity | Wi-Fi 7, 5GbE LAN, USB 4 |
Next-Generation Power Delivery
The X870E AORUS MASTER features a sophisticated 16+2+2 phase digital VRM design that ensures stable power delivery even under extreme loads. This robust power architecture supports the latest AMD Ryzen 9000 series processors, maintaining optimal performance during intensive tasks like gaming, content creation, or professional workloads.
DDR5 Performance Unleashed
Supporting DDR5 memory speeds up to 8600MHz (overclocked), this motherboard unlocks the full potential of your system’s memory. The four DIMM slots support up to 256GB total capacity with ECC compatibility for enhanced stability. Dual-channel architecture and advanced memory routing deliver exceptional bandwidth for demanding applications.
Comprehensive Storage Solutions
With four M.2 slots including three PCIe 5.0 capable drives, the X870E AORUS MASTER offers unmatched storage flexibility. Three M.2 slots support the latest PCIe 5.0 SSDs for blazing-fast speeds, while the fourth provides PCIe 4.0 compatibility. Four additional SATA III ports ensure support for traditional storage needs.
Advanced Connectivity Features
Stay connected with Wi-Fi 7 (802.11be) technology providing the latest wireless standards, complemented by a 5GbE LAN controller for wired connections. USB 4 ports deliver versatile connectivity with up to 40Gbps transfer speeds. The Realtek ALC1220 audio codec provides immersive 7.1 channel sound for enhanced gaming and media experiences.
Box contents
- GIGABYTE X870E AORUS MASTER motherboard
- I/O shield
- Driver and utility disc
- User manual
- SATA cables
- M.2 screws
- Wi-Fi antenna
- RGB extension cable
- Q-connector
- CMOS battery
Check before you buy
- Confirm your AMD Ryzen 9000 series CPU is compatible with AM5 socket
- Verify your case supports ATX form factor (305mm x 244mm)
- Check that your power supply has adequate PCIe and CPU power connectors
- Ensure your CPU cooler fits the AM5 socket layout
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, the X870E AORUS MASTER only supports DDR5-SDRAM memory modules.
Q: How many graphics cards can I install?
A: The motherboard has one PCIe 5.0 x16 slot for your primary graphics card, plus additional PCIe slots for other expansion cards.
Q: What’s the maximum supported RAM capacity?
A: You can install up to 256GB of DDR5 memory across the four DIMM slots.
Q: Does it include onboard Wi-Fi?
A: Yes, it features Wi-Fi 7 (802.11be) with Bluetooth 5.3 and includes external antennas.
The Consultant’s verdict & warranty
The GIGABYTE X870E AORUS MASTER represents a premium foundation for high-performance AMD AM5 systems, combining exceptional power delivery with comprehensive connectivity options. Ideal for enthusiasts, gamers, and content creators seeking cutting-edge performance without compromise. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 256 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |

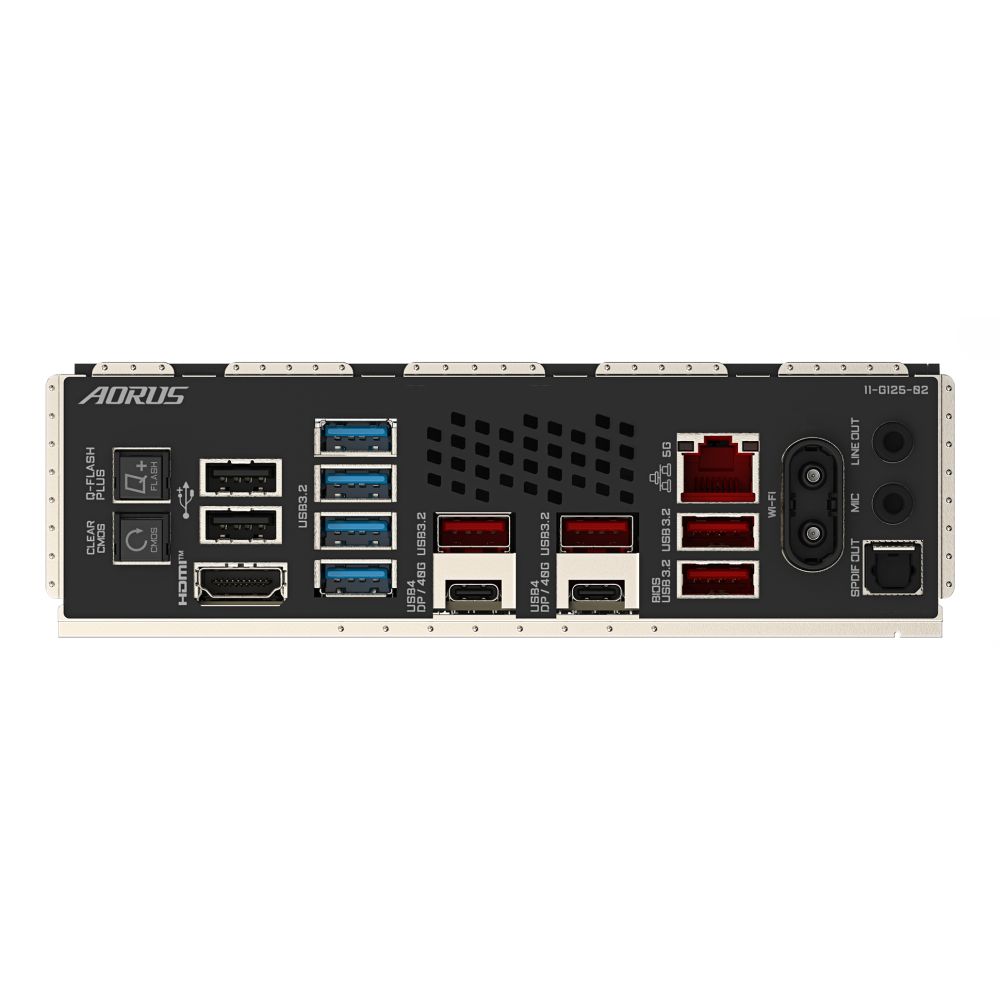

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.97 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.97 kg |
| Weight | 2.54 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.97 kg |
| Weight | 2.54 kg |
| Identifiers | |
| Additional EANs | 0889523044803 |
