ASUS PRIME B650M-R AMD B650 Micro ATX Motherboard
£92.30 inc VAT
106 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B650 micro ATX motherboard with Socket AM5 for Ryzen 7000/8000 series CPUs
- 2 x M.2 slots and 4 x SATA III for high-speed storage expansion
- Dual-channel DDR5 memory support up to 7200 MHz and 96 GB capacity
- PCIe 4.0 x16 and x1 slots with 2.5 Gb Ethernet and USB 3.2 Gen 1 ports
- 7.1 channel HD audio, Aura Sync RGB, and passive cooling design
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

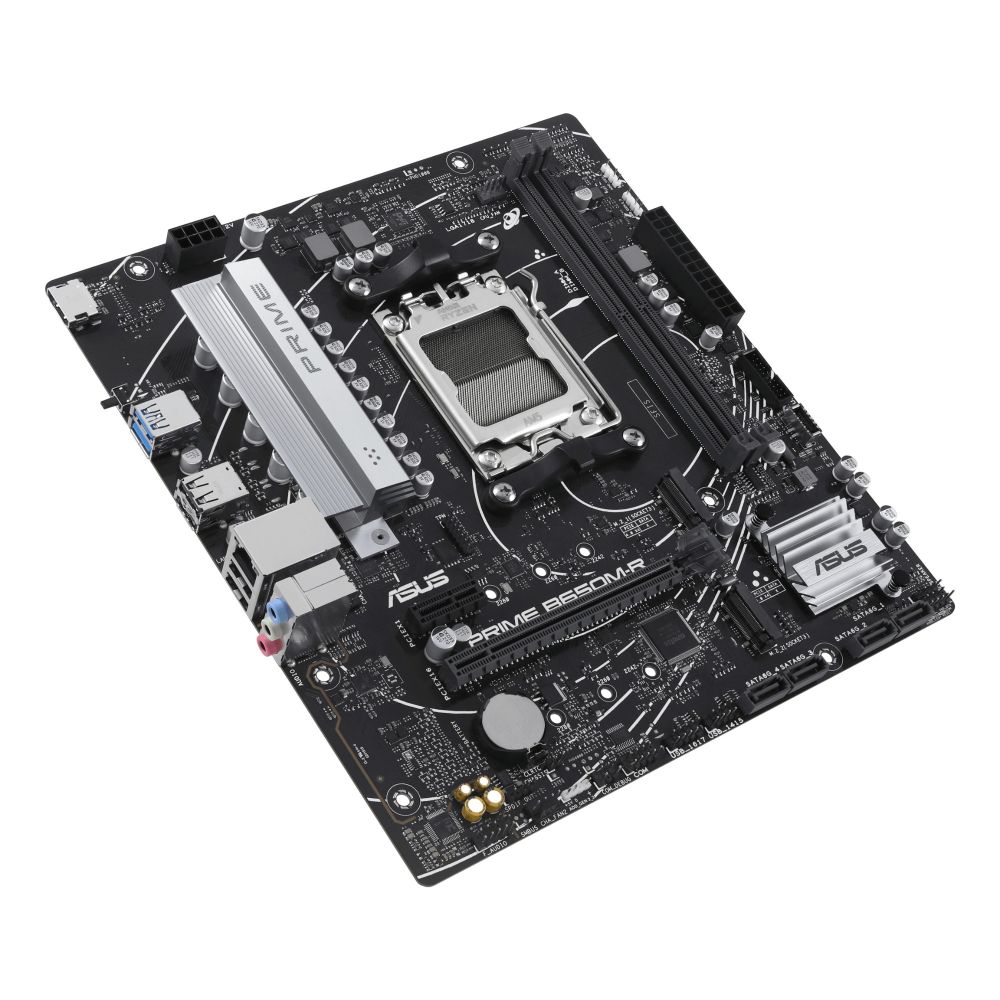

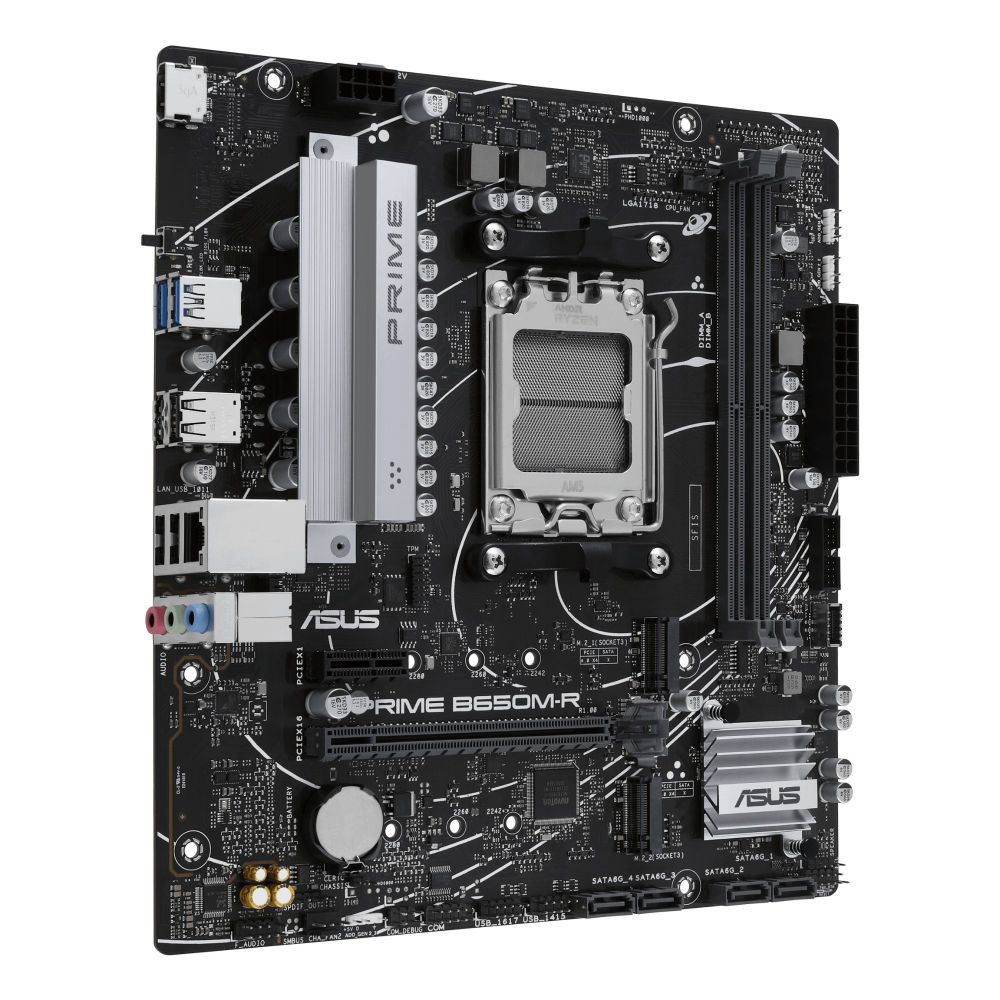

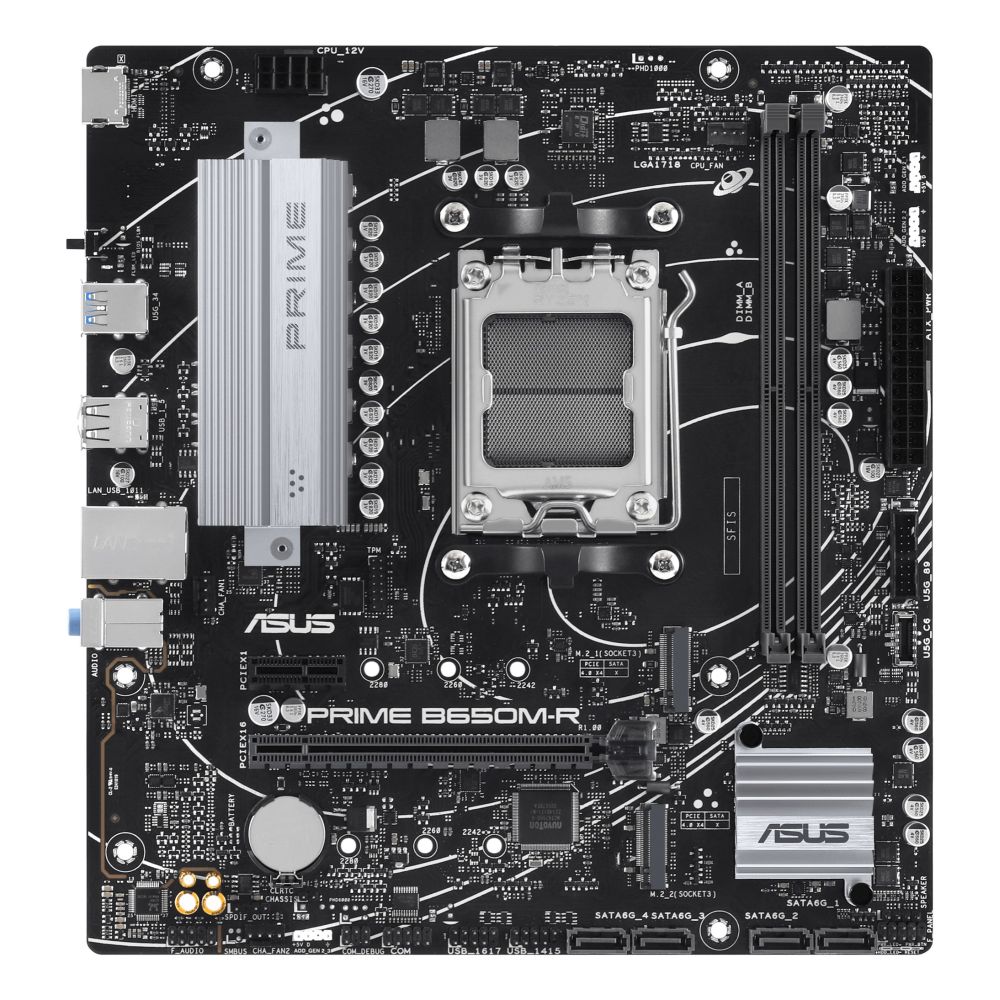

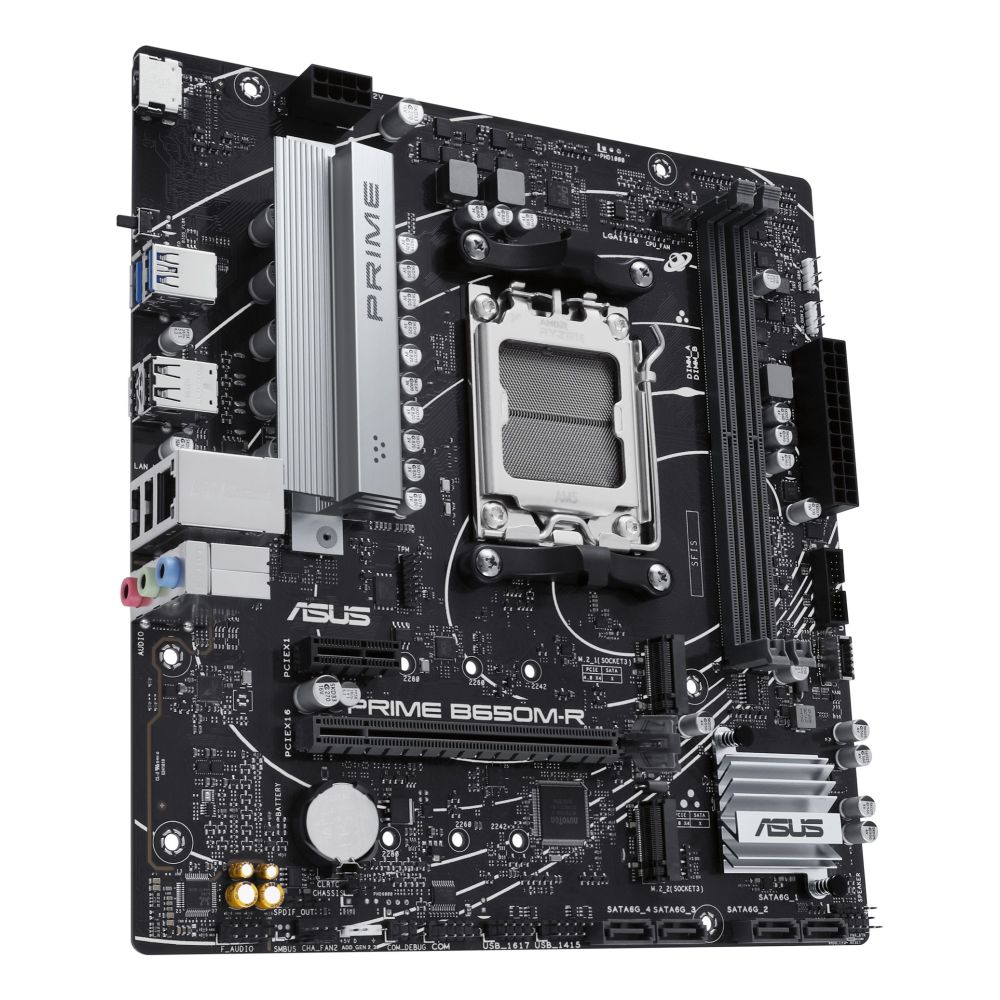

ASUS PRIME B650M-R | AMD B650 micro ATX for Ryzen 7000
The ASUS PRIME B650M-R AMD B650 Socket AM5 micro ATX motherboard is engineered to deliver reliable performance for AMD Ryzen 7000-series CPUs. With robust power delivery, comprehensive cooling, and flexible tuning options, it suits both first-time builders and seasoned enthusiasts seeking stable micro ATX performance.
Quick Specs
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Memory | DDR5, up to 96 GB, 7200 MHz |
| Storage | 2 x M.2 PCIe 4.0, 4 x SATA III |
| Network | 2.5 Gb Ethernet |
| Form Factor | micro ATX |
Engineered for Ryzen 7000 Performance
Built on the AMD B650 chipset, this board supports AMD Ryzen 7000 and 8000-series processors, unlocking high core-count performance and PCIe 5.0 lanes for future GPUs. The Digi+ VRM delivers precise power delivery to keep demanding workloads stable, while the 2oz copper PCB aids heat dissipation under load.
Cooling That Keeps Up
The PRIME B650M-R features a VRM heatsink and thermal pads to improve heat transfer from MOSFETs and chokes. ASUS Fan Xpert 2+ software allows granular fan control, including an Auto-Tuning mode and Extreme Quiet profile for silent light tasks. A back-to-BIOS button also simplifies recovery if a BIOS flash goes wrong.
Storage Flexibility
With two PCIe 4.0 M.2 slots, you can run ultra-fast NVMe SSDs for boot and application drives. Four SATA III ports support additional HDDs or SSDs, and RAID 0/1/10 configurations are available for performance or redundancy. Storage expansion is straightforward for both gamers and content creators.
Connectivity & Expansion
The board offers two PCIe 4.0 x16 slots for dual-GPU setups, one PCIe 4.0 x1 slot, and a front USB 3.2 Gen 1 Type-C header for modern peripherals. Realtek 2.5 Gb Ethernet reduces CPU overhead for smoother online gaming and file transfers. Audio is handled by a 7.1-channel HD system with shielding and premium capacitors for clear sound.
Aura Sync RGB
ASUS Aura Sync lets you customise onboard RGB LEDs or sync addressable RGB strips via two Gen 2 headers. You can also disable all lighting for a stealth build. Armoury Crate software centralises lighting, fan, and device control in one interface.

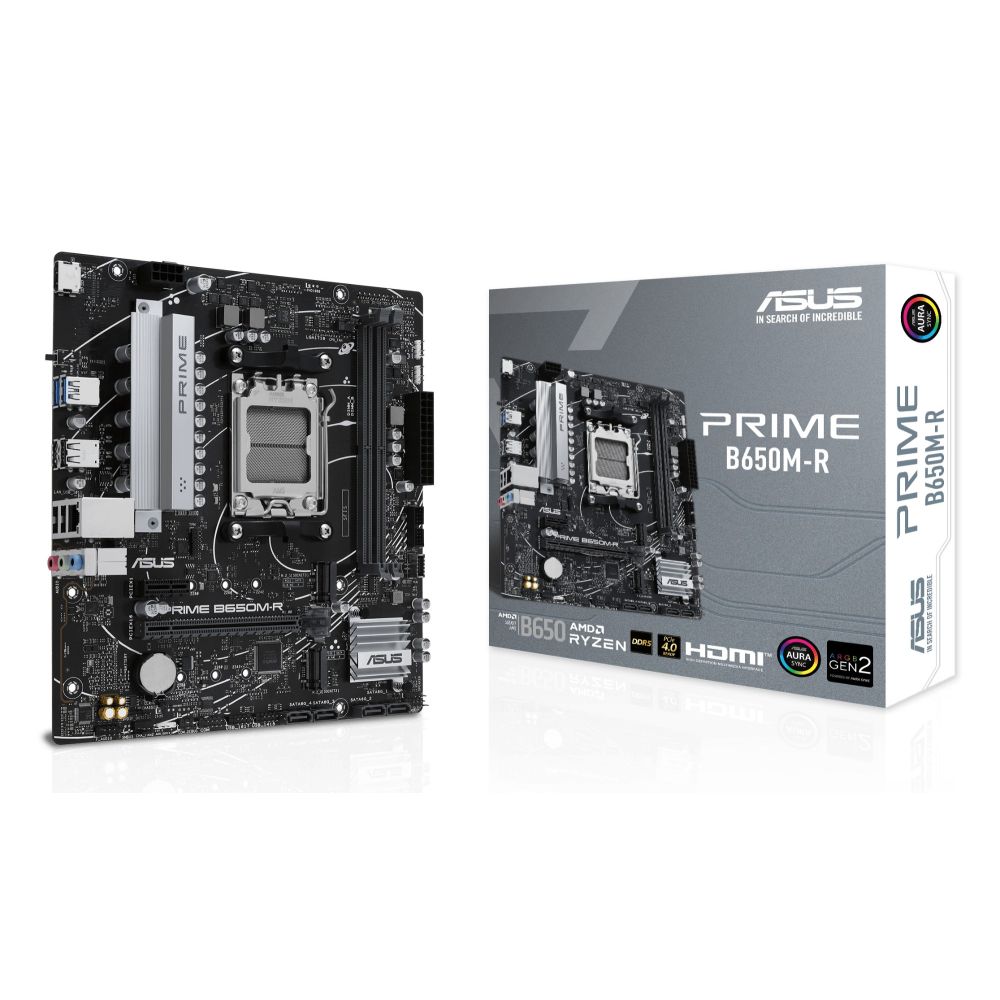

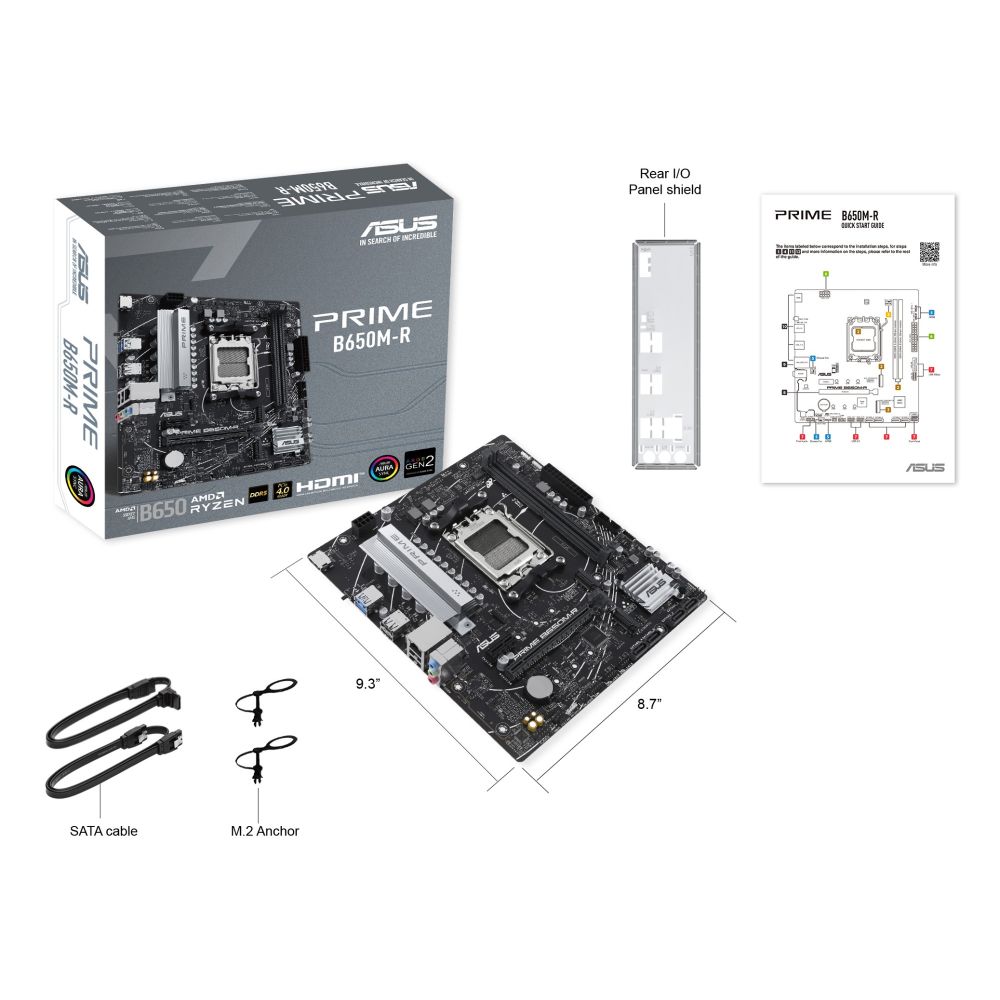

Box Contents
- ASUS PRIME B650M-R motherboard
- SATA cables (quantity not specified)
- User guide
- I/O shield
Check before you buy
- Confirm your CPU is an AMD Ryzen 7000 or 8000-series on AM5.
- Verify your case supports micro ATX dimensions (236 x 221 mm).
- Ensure your PSU has a 24-pin ATX and 8-pin EPS connector.
- Check that your RAM is DDR5 and within the 96 GB limit.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM modules.
Q: Can I overclock my CPU and RAM?
A: Yes, the board is unlocked for CPU overclocking and supports AMD EXPO for DDR5 memory tuning.
Q: How many M.2 drives can I install?
A: Two M.2 slots are available, both PCIe 4.0 compatible.
Q: Is Wi-Fi included?
A: No, this model does not have built-in Wi-Fi; it relies on Ethernet.
Q: What is the maximum supported RAM speed?
A: Up to 7200 MHz, depending on the CPU and memory kit.
The Consultant’s verdict & warranty
The ASUS PRIME B650M-R offers a balanced mix of performance, cooling, and connectivity for Ryzen 7000 builds in a compact micro ATX form factor. Its robust VRM, DDR5 support, and Aura Sync lighting make it a versatile foundation for gaming, content creation, or everyday productivity. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| Cooling type | Passive |
| Back-to-BIOS button | Yes |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |

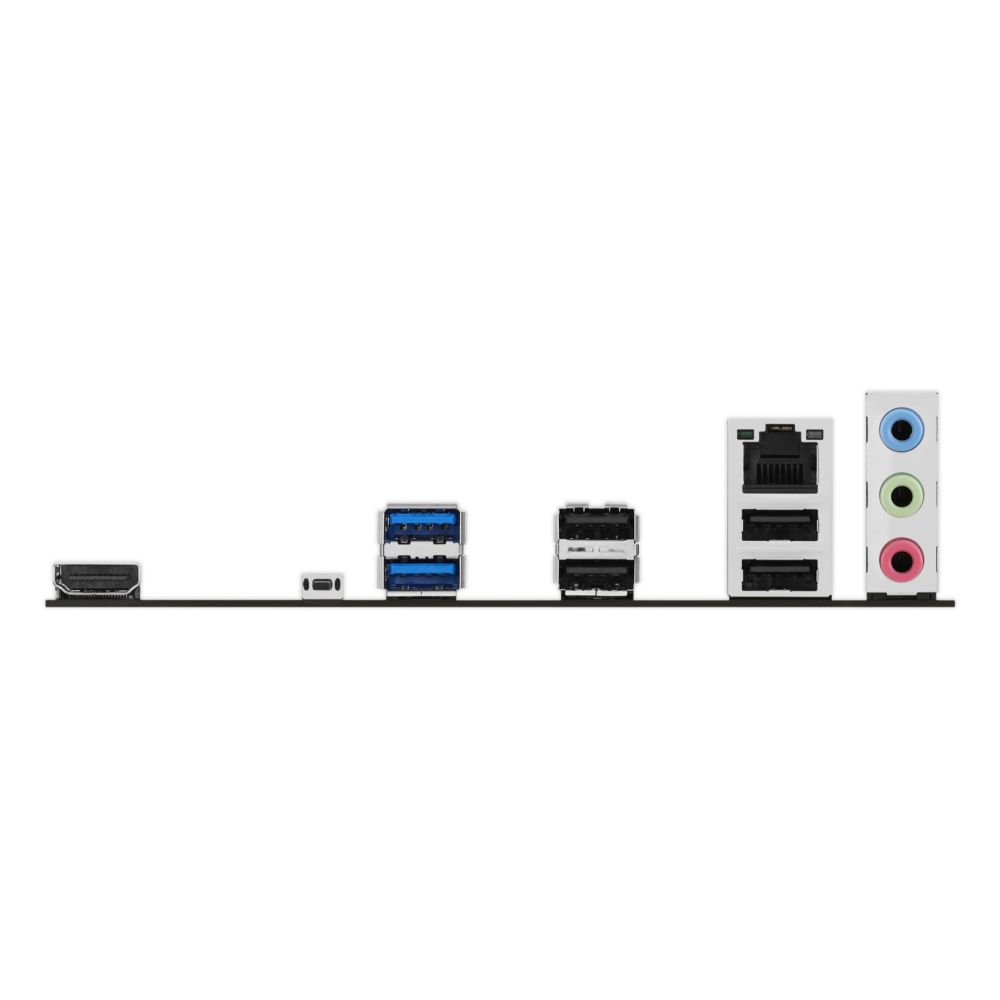

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Back-to-BIOS button | Yes |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 855 g |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 855 g |
| Width | 236 mm |
| Depth | 221 mm |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Other features | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 855 g |
| Back-to-BIOS button | Yes |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1H30-M0EAY0, 502739, STD10228989, CL90MB1H30-M0EAY0 |
