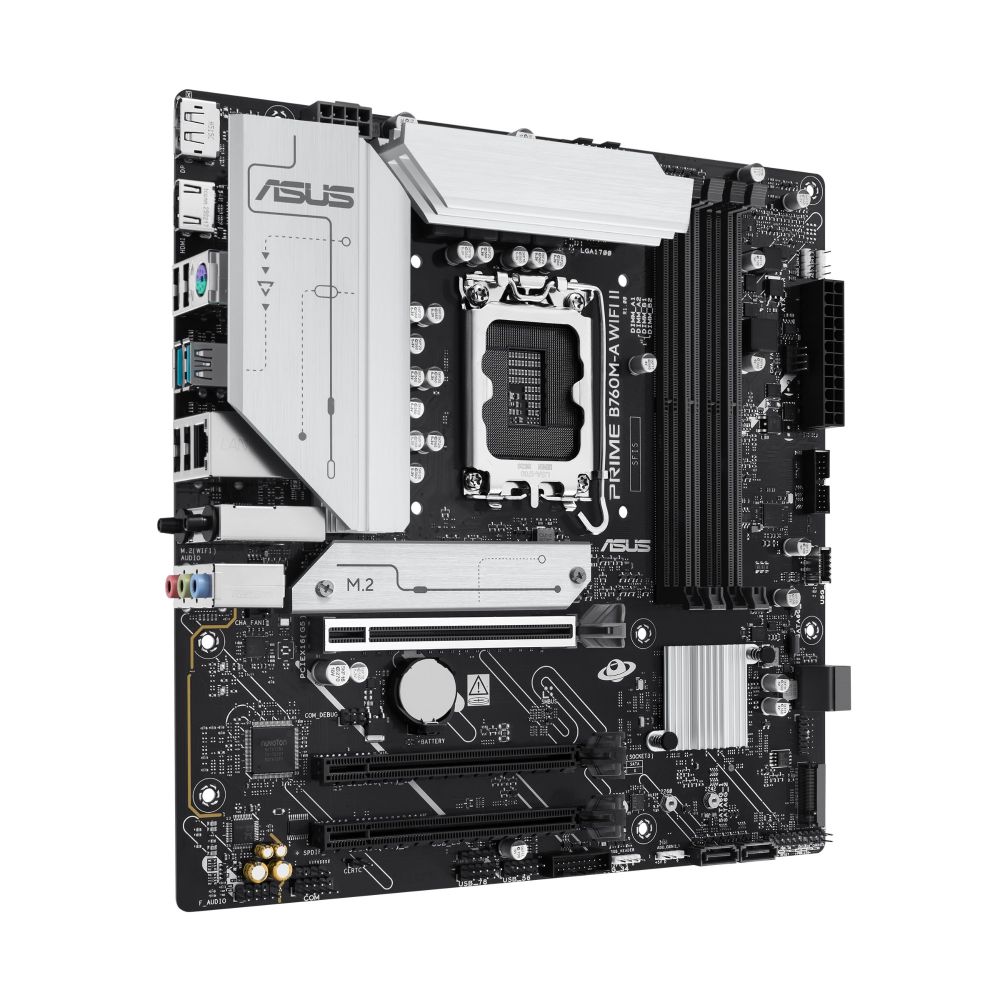

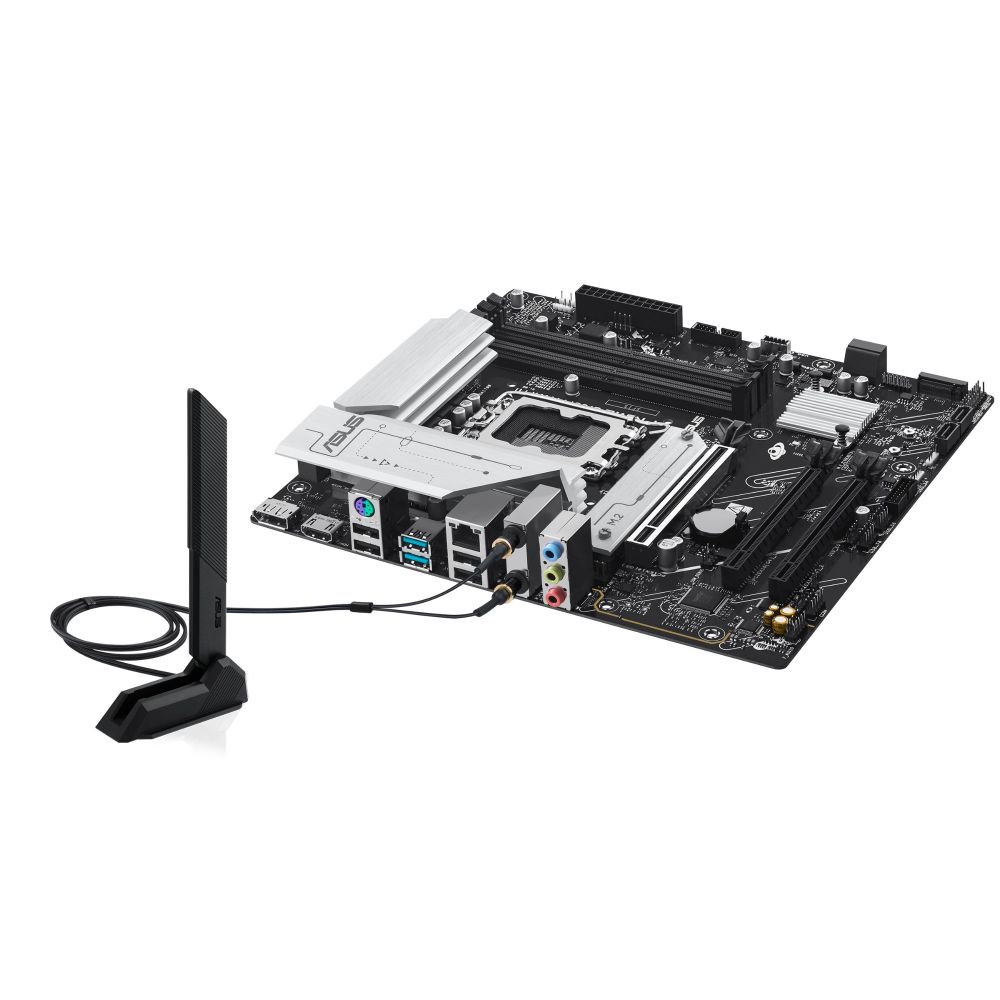

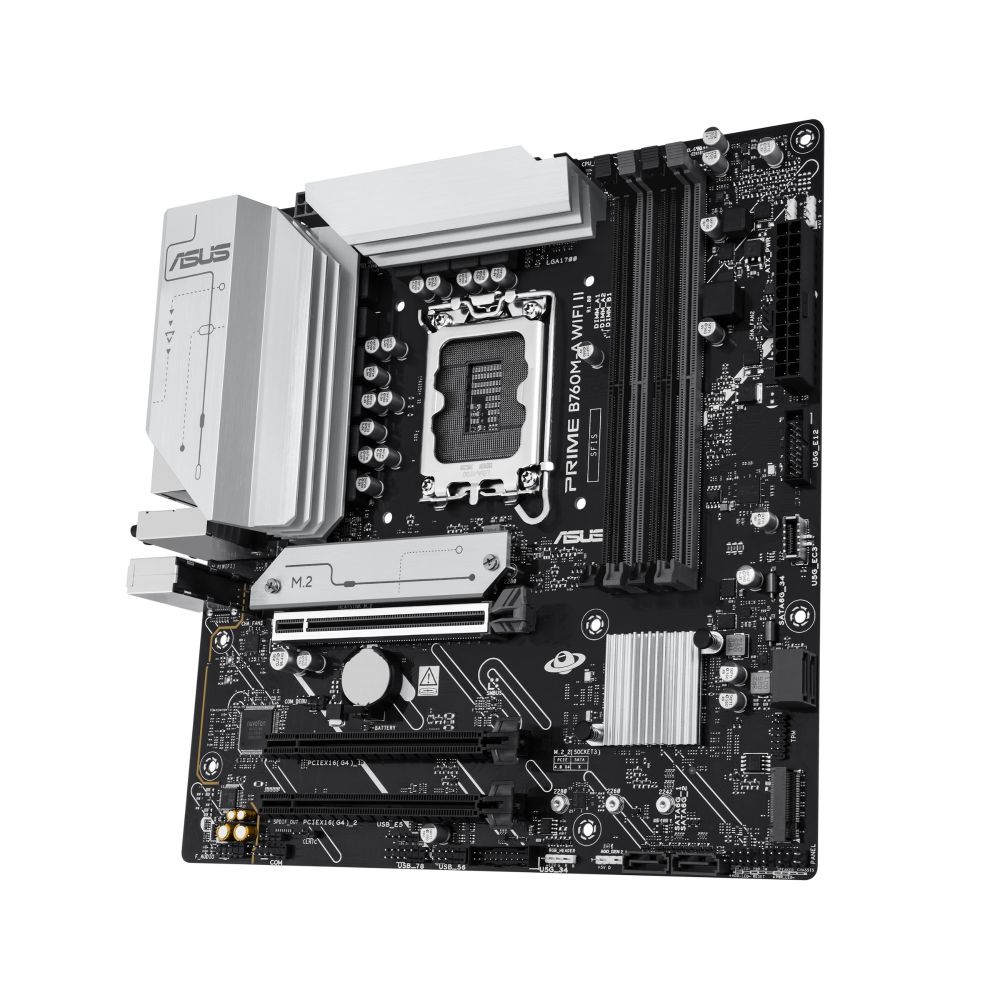

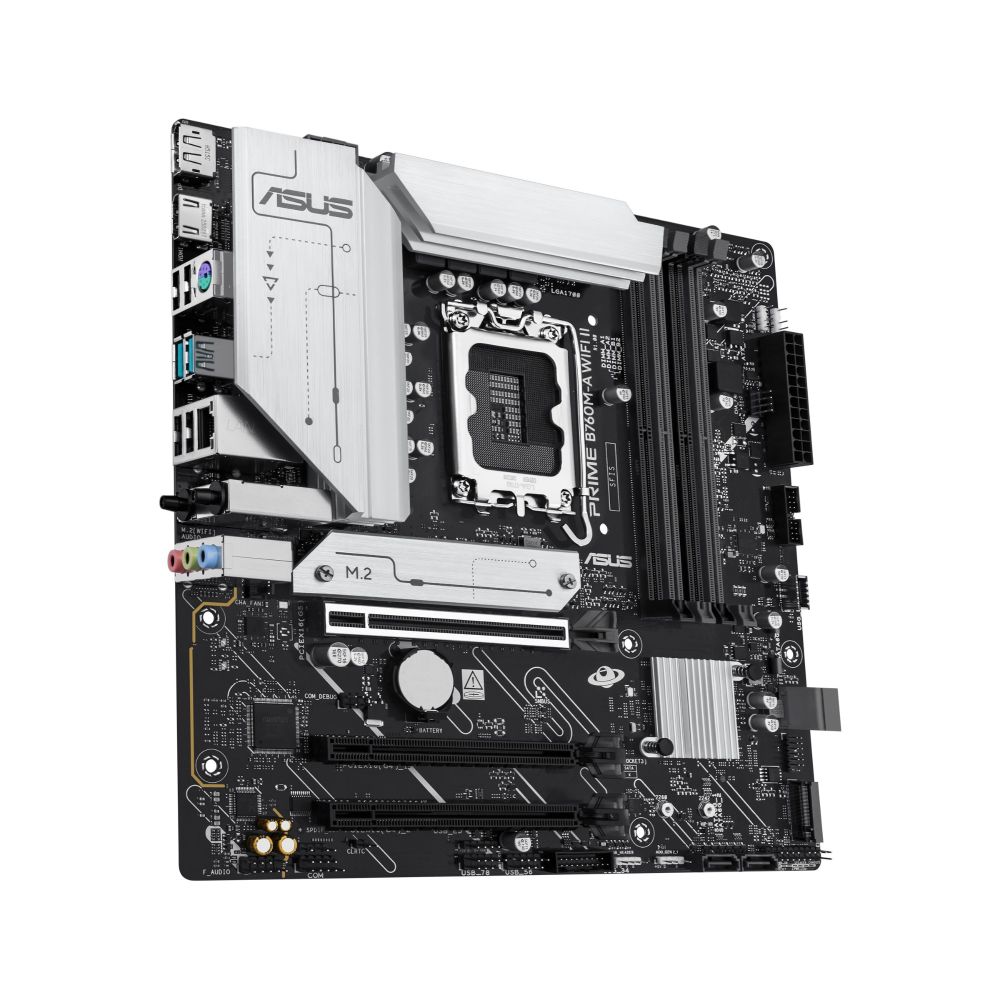

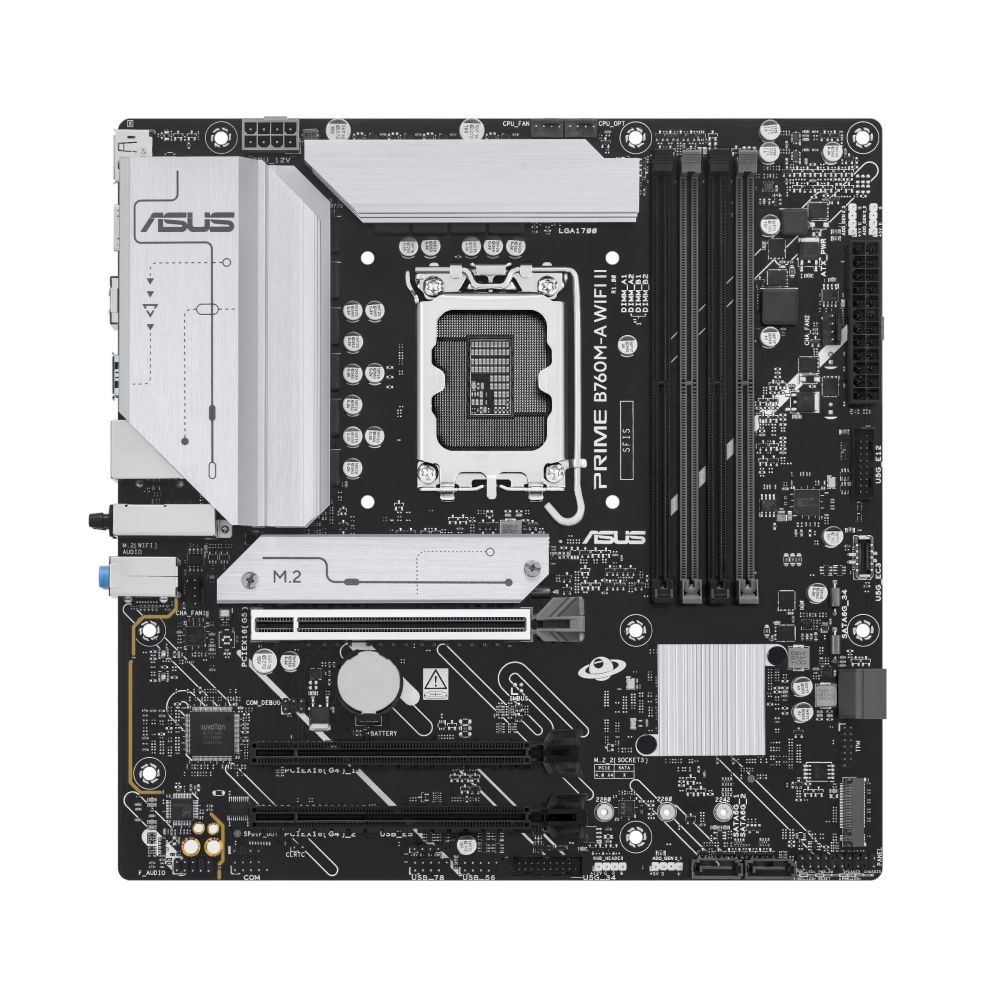

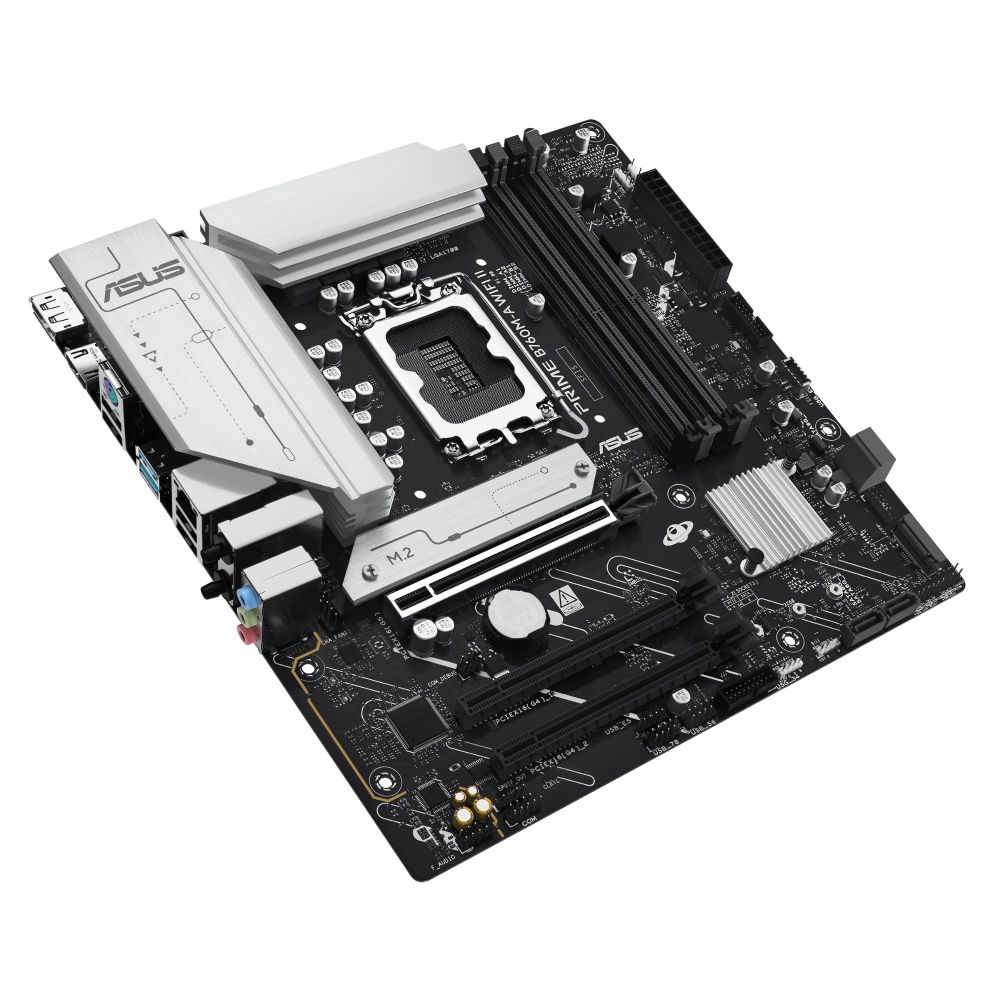

ASUS PRIME B760M-A WIFI II Micro ATX Motherboard
£110.22 inc VAT
4 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B760 micro ATX motherboard for 14th Gen Intel Core processors
- Supports DDR5 memory up to 7200 MHz with 256 GB max capacity
- Features 2 M.2 slots and 4 SATA III connectors for versatile storage
- Equipped with Wi-Fi 6E, 2.5 Gb Ethernet, and Bluetooth 5.4 for connectivity
- 7.1 channel audio output with comprehensive cooling and RGB header support
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS PRIME B760M-A WIFI II | Intel B760 LGA 1700 micro ATX Motherboard
The ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX motherboard delivers robust performance for 14th Gen Intel Core processors, combining comprehensive cooling, intelligent tuning, and advanced connectivity in a compact micro ATX form factor.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Memory | 4x DDR5, up to 7200 MHz |
| Storage | 2x M.2 NVMe + 4x SATA III |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Ethernet | 2.5 Gb LAN |
| PCIe | 1x Gen 5, 2x Gen 4 |
Built for 14th Gen Intel Core Processors
Engineered specifically for 14th Gen Intel Core processors, this motherboard features a robust power design with enhanced VRM cooling to maintain stable performance during intensive workloads. The micro ATX footprint makes it ideal for compact builds without compromising on expandability or connectivity options.
Advanced Connectivity & Storage
With dual M.2 slots supporting PCIe 4.0 and PCIe 3.0, plus four SATA III ports, you can configure multiple high-speed storage solutions. The 2.5 Gb Ethernet and Wi-Fi 6E ensure fast, reliable network connections for gaming, streaming, and professional applications, while Bluetooth 5.4 provides seamless peripheral connectivity.
Comprehensive Cooling Solutions
ASUS PRIME B760M-A WIFI II incorporates extensive cooling features including two chassis fan headers, CPU fan connector, and dedicated heatsink designs. These solutions work together to maintain optimal temperatures, ensuring consistent performance and longevity for your components during demanding tasks.
AI-Powered Performance Tuning
The motherboard includes intelligent tuning options through ASUS software, allowing users to optimize performance based on their specific needs. Whether you’re a gamer, content creator, or professional, these AI-driven features help maximize system efficiency and responsiveness.
Box Contents
- ASUS PRIME B760M-A WIFI II motherboard
- SATA cables
- I/O shield
- User manual
- Warranty card
- Wi-Fi antenna
Check before you buy
- Confirm your processor is compatible with LGA 1700 socket
- Verify your case supports micro ATX form factor (244mm x 244mm)
- Check DDR5 memory compatibility and maximum supported speed
- Confirm you have adequate cooling for your intended use case
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard only supports DDR5-SDRAM memory.
Q: What processors are compatible with this board?
A: It supports 12th, 13th, and 14th Gen Intel Core processors, plus Celeron, Pentium Gold, and compatible Intel chips.
Q: How many M.2 slots are available?
A: There are two M.2 slots available for NVMe SSDs.
Q: Does it include Wi-Fi and Bluetooth?
A: Yes, it includes Wi-Fi 6E and Bluetooth 5.4 connectivity.
Q: What is the maximum memory capacity?
A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots.
The Consultant’s Verdict & Warranty
The ASUS PRIME B760M-A WIFI II offers exceptional value for users building systems around 14th Gen Intel processors who need reliable performance in a compact form factor. Its combination of advanced connectivity, comprehensive cooling, and AI-powered tuning makes it suitable for both gaming and professional applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
| Identifiers | |
| Distributor SKUs | MBD-90MB1NF0-M0EAY0, 12231172, STD10230327, CL90MB1NF0-M0EAY0 |
