ASUS PRIME B850M-A-CSM | Micro ATX Powerhouse for AMD Ryzen

The ASUS PRIME B850M-A-CSM AMD B850 Socket AM5 micro ATX motherboard is engineered for users seeking a stable, high-performance foundation for AMD Ryzen 7000, 8000, and 9000 series processors. Built with the Corporate Stable Model program, it delivers long-term reliability and advanced features for both business and enthusiast builds.

Slim Specs Table

Corporate Stable Model for Business Confidence

The ASUS Corporate Stable Model (CSM) program ensures this motherboard is built for longevity, offering up to 36 months of lifecycle support with 6 months’ notice before end-of-life. This makes it ideal for IT departments and businesses planning long-term deployments without frequent hardware refreshes. Each purchase includes ASUS Control Center Express, a server-grade IT management tool that simplifies endpoint monitoring, remote maintenance, and security configuration across corporate networks.

Advanced Power Delivery for Stable Performance

Featuring an 8+2+1 phase digital power design with discrete MOSFETs, the PRIME B850M-A-CSM delivers clean, efficient power to AMD Ryzen processors. The multi-layered PCB and Digi+ VRM module work together to reduce voltage ripple and heat around the voltage regulators, improving stability and providing headroom for mild overclocking. This design ensures consistent performance during demanding workloads and everyday use.

Enhanced DDR5 Memory and Storage Performance

This motherboard supports DDR5 memory up to 8000 MHz, with dual-channel architecture and a maximum capacity of 256 GB. For users without AMD EXPO™ kits, ASUS Enhanced Memory Profile (AEMP) automatically detects and optimises memory settings for better performance. Storage is equally impressive, with three M.2 slots offering up to 128 Gbps via PCIe 5.0 and two additional PCIe 4.0 slots, enabling rapid boot and load times for OS and applications.

Smart Cooling for Demanding Workloads

The PRIME B850M-A-CSM includes multiple onboard heatsinks and three chassis fan headers to maintain optimal temperatures under load. ASUS Fan Xpert 2+ software provides precise fan control, with Auto-Tuning for automatic configuration and Extreme Quiet mode for silent operation during light tasks. The motherboard also supports ASUS AIO coolers for enhanced thermal performance and quieter operation.

Versatile Connectivity for Modern Builds

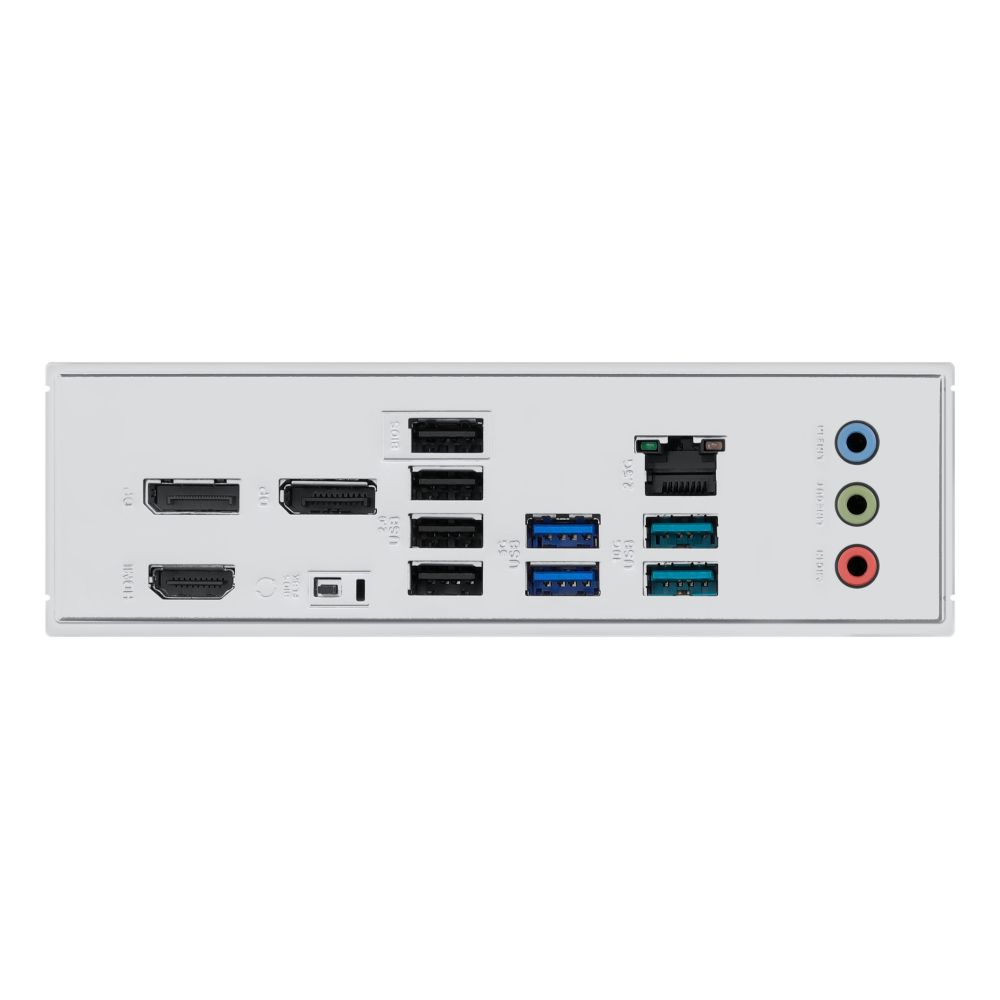

Connectivity is comprehensive, with support for PCIe 5.0 graphics cards, a Realtek 2.5 Gb Ethernet port for fast, reliable networking, and a front-panel USB 5Gbps Type-C® connector for quick data transfers. The rear I/O includes multiple USB ports, HDMI 2.1, DisplayPort 1.4, and 7.1-channel HD audio, ensuring compatibility with a wide range of peripherals and displays.

Customization and DIY-Friendly Features

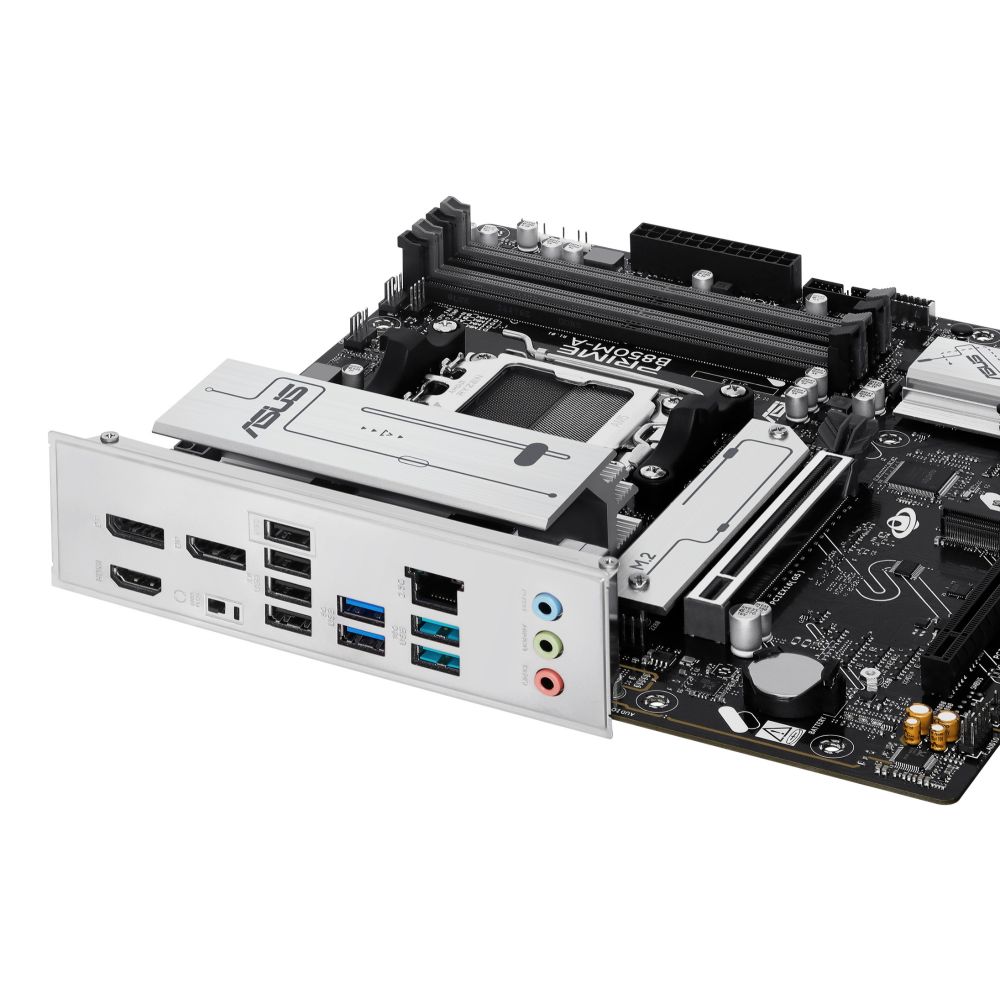

ASUS has included several EZ PC DIY features to simplify building and maintenance. The pre-mounted I/O shield protects ports and speeds up assembly, while BIOS FlashBack™ allows firmware updates without a CPU or memory installed. The Q-LED Core display helps troubleshoot POST issues with colour-coded indicators, and three addressable Gen 2 RGB headers let you personalise your system’s lighting with Aura Sync compatibility.

Box contents

• ASUS PRIME B850M-A-CSM motherboard
• SATA cables
• Screws
• User manual and warranty documents

Check before you buy

• Confirm your AMD Ryzen processor is compatible with Socket AM5.
• Verify your DDR5 memory kit supports the motherboard’s speed and capacity limits.
• Ensure your case has the correct micro ATX mounting points and clearance.
• Check if you need Wi-Fi (this model does not include wireless connectivity).

Frequently Asked Questions

Q: What processors are supported by the ASUS PRIME B850M-A-CSM?

A: It supports AMD Ryzen 7000, 8000, and 9000 series processors on the Socket AM5 platform.

Q: How many M.2 slots are available and what speeds do they support?

A: There are three M.2 slots: one PCIe 5.0 (up to 128 Gbps) and two PCIe 4.0 slots.

Q: Does this motherboard support Wi-Fi?

A: No, the ASUS PRIME B850M-A-CSM does not include built-in Wi-Fi; a separate adapter is required.

Q: What is the maximum memory capacity and speed?

A: The motherboard supports up to 256 GB of DDR5 memory at speeds up to 8000 MHz.

Q: Is this motherboard suitable for business use?

A: Yes, it is part of the ASUS Corporate Stable Model program, offering long-term support and IT management tools.

The Consultant’s verdict & warranty

The ASUS PRIME B850M-A-CSM is an excellent choice for users and businesses seeking a reliable, feature-rich micro ATX motherboard for AMD Ryzen processors. Its combination of stable power delivery, advanced memory and storage support, and comprehensive connectivity makes it suitable for both professional and enthusiast builds. Covered by the standard Manufacturer Warranty.
