ASUS Prime H610M-K micro ATX motherboard
£85.72 inc VAT
1028 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel H610 micro ATX motherboard for 13th & 12th Gen Intel Core processors
- DDR5 support with dual-channel, up to 96GB at 4800-5600MHz
- 1 M.2 slot for PCIe 3.0 NVMe storage up to 32Gbps
- PCIe 4.0 x16 slot for high-speed graphics cards
- 7.1 audio, Gigabit Ethernet, and 4 SATA III ports
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE B760M D3HP Motherboard – Intel Core 14th Gen, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
ASUS Prime H610M-K | Intel H610 micro ATX Motherboard
The ASUS Prime H610M-K Intel H610 LGA 1700 micro ATX motherboard delivers a balanced blend of performance, flexibility, and energy efficiency for Intel’s 12th and 13th Gen processors. Built on the Intel H610 chipset, it supports DDR5 memory and offers robust connectivity in a compact micro ATX form factor.
Slim Specs Table
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Memory Support | DDR5 (up to 96 GB) |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 (PCIe 3.0), 4 x SATA III |
| Network | Gigabit Ethernet (no Wi-Fi) |
Flexible Performance Tuning
The ASUS Prime H610M-K is engineered for users who want control without complexity. The UEFI BIOS provides an intuitive interface with both EZ and Advanced modes, making it easy to adjust settings whether you’re a first-time builder or an experienced overclocker. Armoury Crate centralises all your system tuning and device management in one place, while Fan Xpert 2+ allows precise cooling control with multiple temperature sources.
DDR5 Memory Optimisation
This motherboard unlocks the full potential of DDR5 memory, supporting speeds from 4800 MHz up to 5600 MHz. Whether you’re using entry-level modules or high-performance kits, the PRIME H610M-K ensures stable operation. Intel XMP support lets you push beyond standard speeds with just a few clicks, and the comprehensive UEFI settings give advanced users granular control over timings and voltages.
Storage and Expansion Ready
With one M.2 slot supporting PCIe 3.0 speeds up to 32 Gbps, boot times and application loading are significantly accelerated. Four SATA III ports provide ample space for additional SSDs or HDDs, supporting up to five storage drives total. The PCIe 4.0 x16 slot is ready for the latest graphics cards, delivering the bandwidth needed for demanding gaming and content creation workloads.
Efficient Power Delivery
The Energy Processing Unit (EPU) automatically optimises power consumption across all components, with Away mode capable of shutting down unused I/O controllers for extreme energy savings. This intelligent power management helps reduce electricity costs without sacrificing performance when you need it.

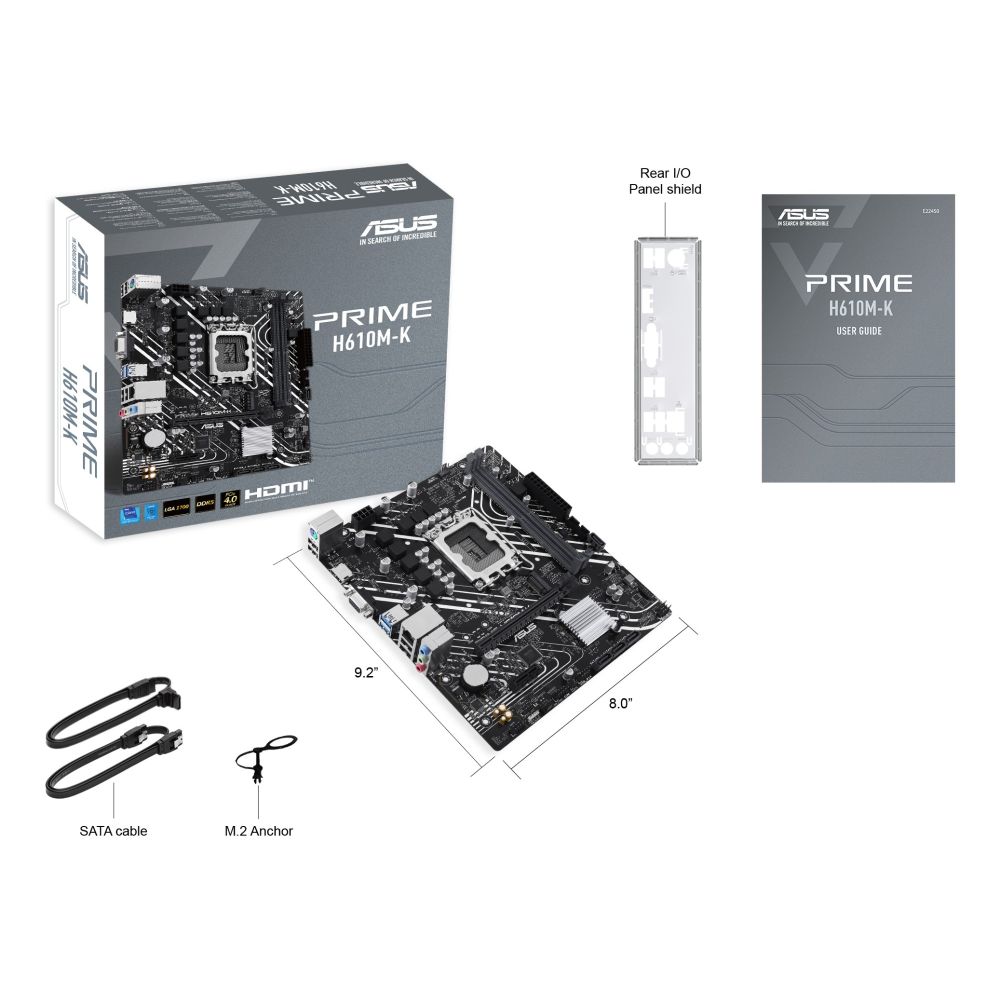

Box contents
- ASUS Prime H610M-K motherboard

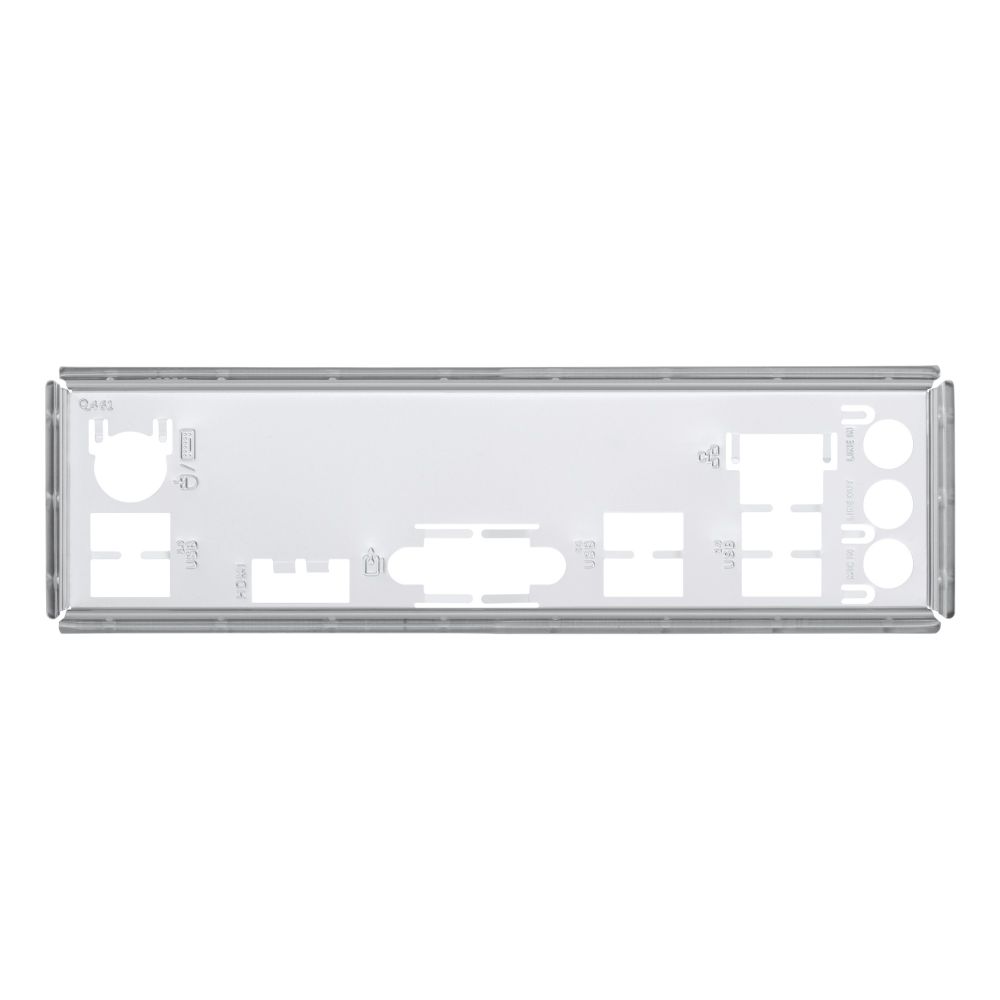

- I/O shield
- SATA cables (quantity not specified)
- User manual
- Warranty card
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your DDR5 memory is on the QVL list for this motherboard
- Ensure your case supports micro ATX dimensions (244 x 203 mm)
- Check if you need Wi-Fi capabilities (this board has none)
Frequently Asked Questions
Q: Does this motherboard support 13th Gen Intel processors?
A: Yes, it supports both 12th and 13th Generation Intel Core processors with a BIOS update if required.
Q: Can I use DDR4 memory with this motherboard?
A: No, this board only supports DDR5 memory modules.
Q: How many graphics cards can I install?
A: Only one graphics card can be installed in the PCIe x16 slot.
Q: Does it come with built-in Wi-Fi?
A: No, this motherboard does not include Wi-Fi. You’ll need a separate Wi-Fi card or USB adapter.
Q: What is the maximum RAM capacity?
A: The motherboard supports up to 96 GB of DDR5 memory across its two DIMM slots.
The Consultant’s verdict & warranty
The ASUS Prime H610M-K is an excellent choice for users building a reliable, upgrade-ready system with Intel’s latest processors. It offers the essential features for both productivity and light gaming without unnecessary complexity. Covered by the standard Manufacturer Warranty, this motherboard represents solid value for those prioritising stability and straightforward performance tuning.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |

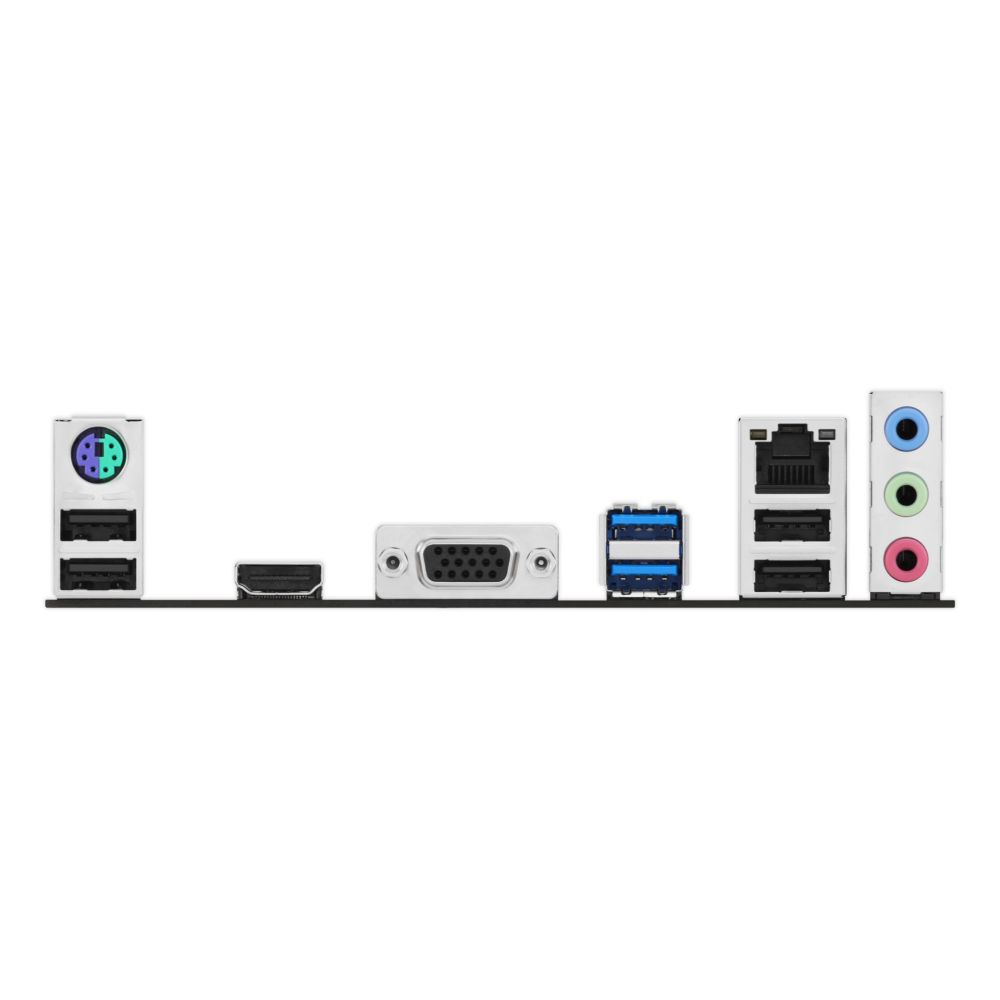

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Multicolour |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 820 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Height | 36.5 mm |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 820 g |
| Weight | 470 g |
| Width | 234 mm |
| Depth | 203 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| Height | 36.5 mm |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 820 g |
| Weight | 470 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1GA0-M0EAY0, STD10225493, CL90MB1GA0-M0EAY0 |
