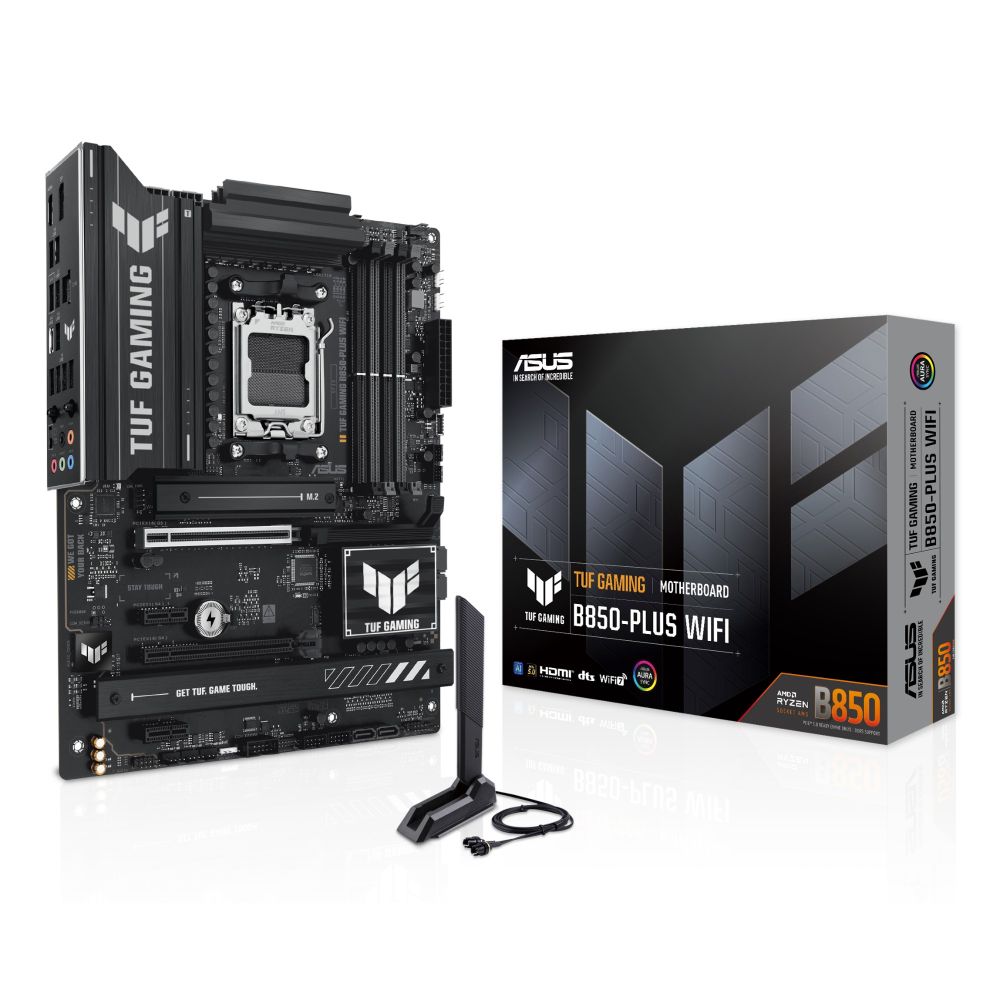

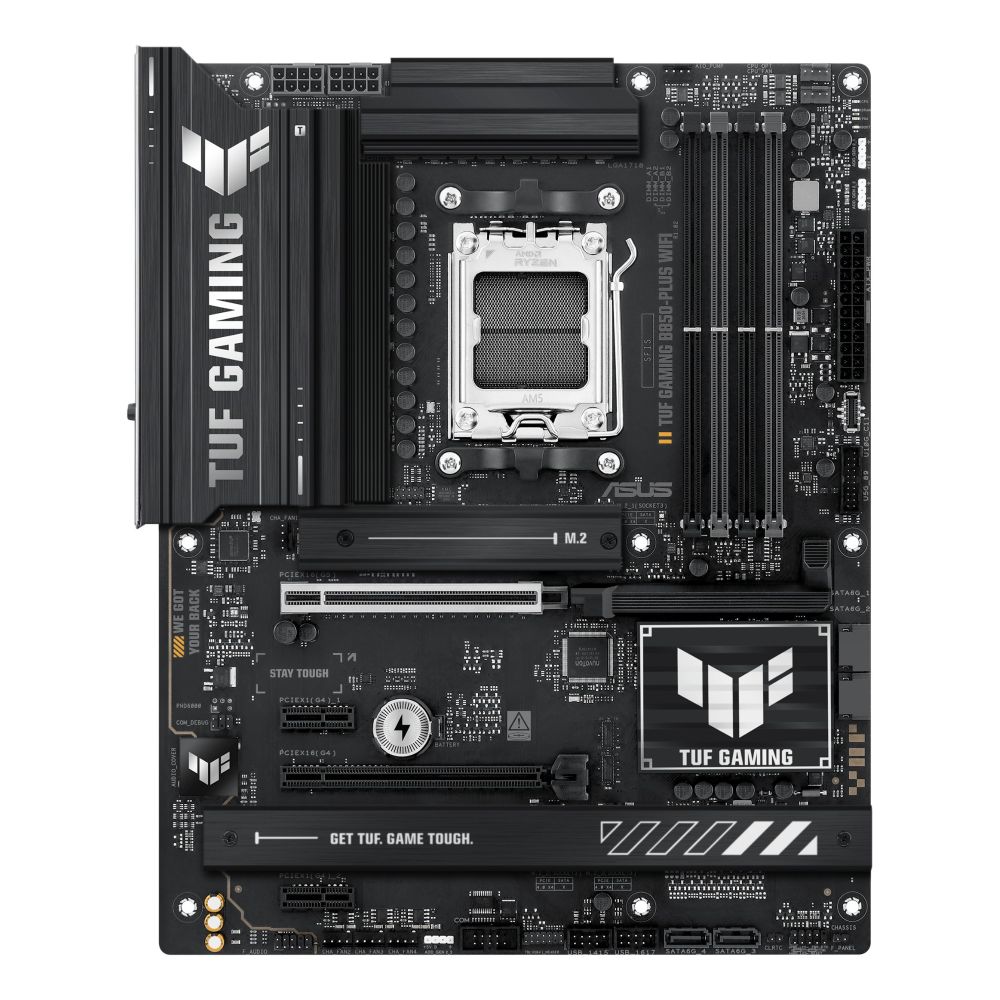

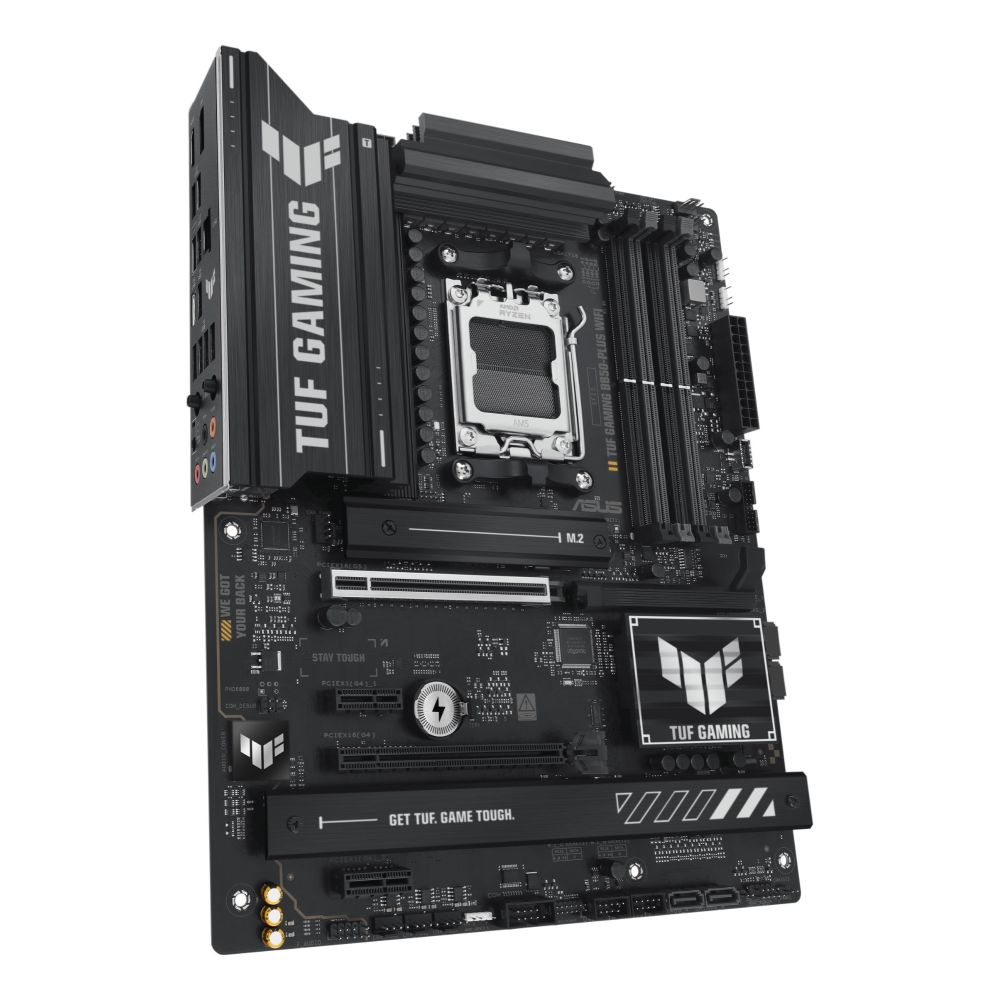

ASUS TUF Gaming B850-Plus WiFi Motherboard
£220.40 inc VAT
336 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B850 chipset with Socket AM5 for Ryzen 7000/8000/9000 series CPUs
- Three M.2 slots with PCIe 5.0 and 4.0 support for NVMe SSDs
- DDR5 memory support up to 192 GB at 8000 MHz with dual-channel
- Wi-Fi 7 and 2.5Gb Ethernet for ultra-fast networking
- PCIe 5.0 x16 slot and multiple USB 3.2 Gen 2 ports for high-speed connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

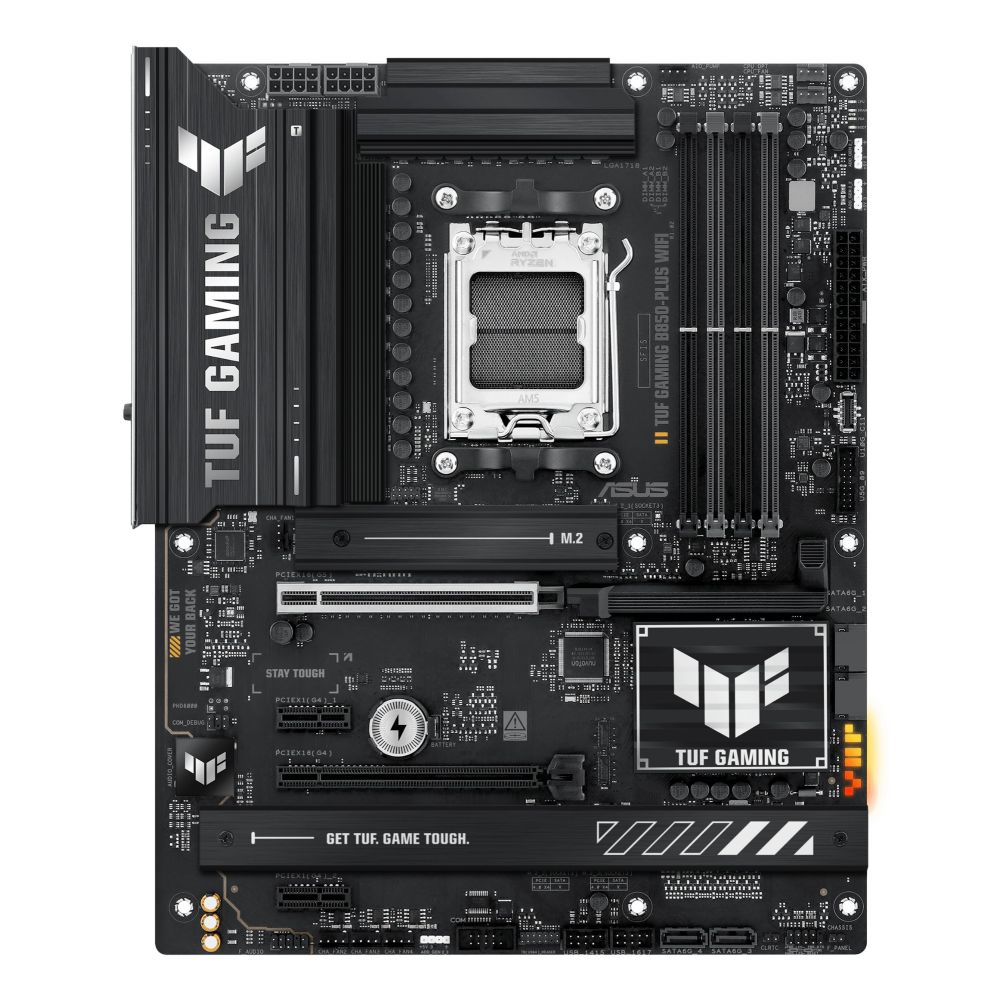

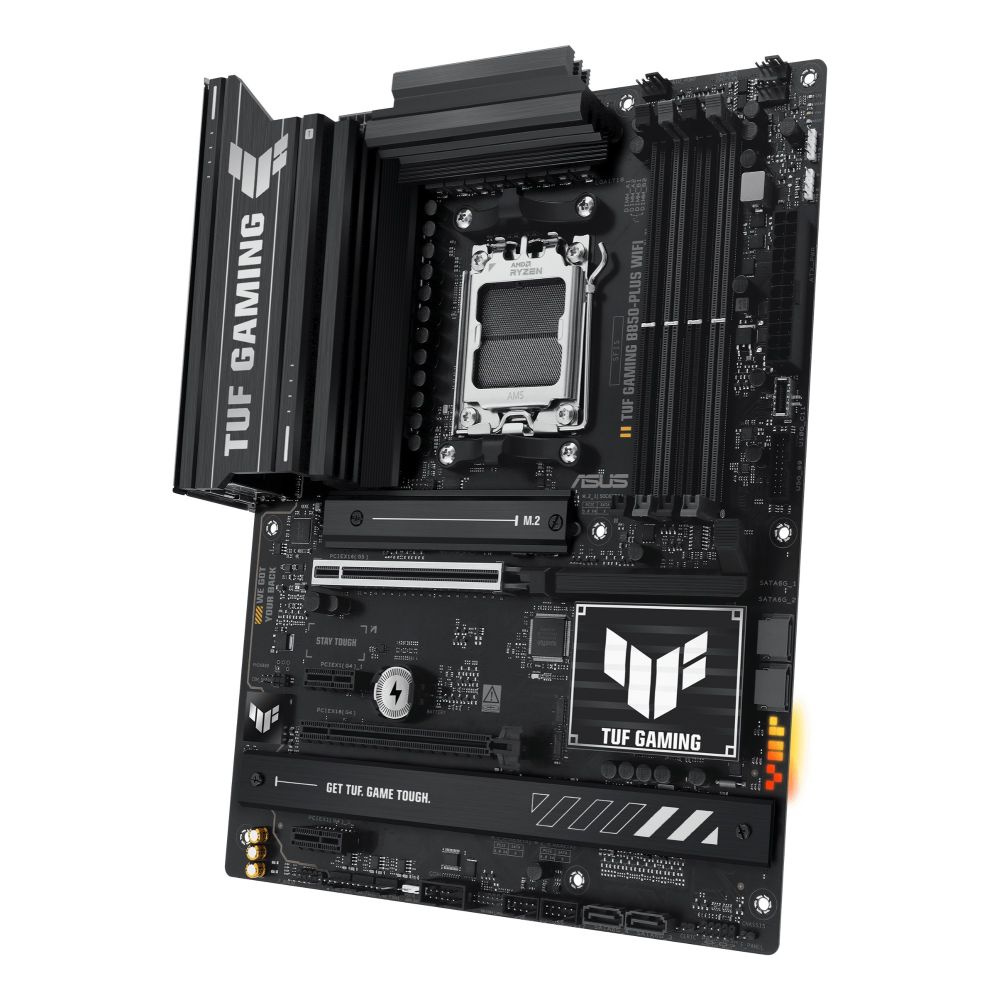

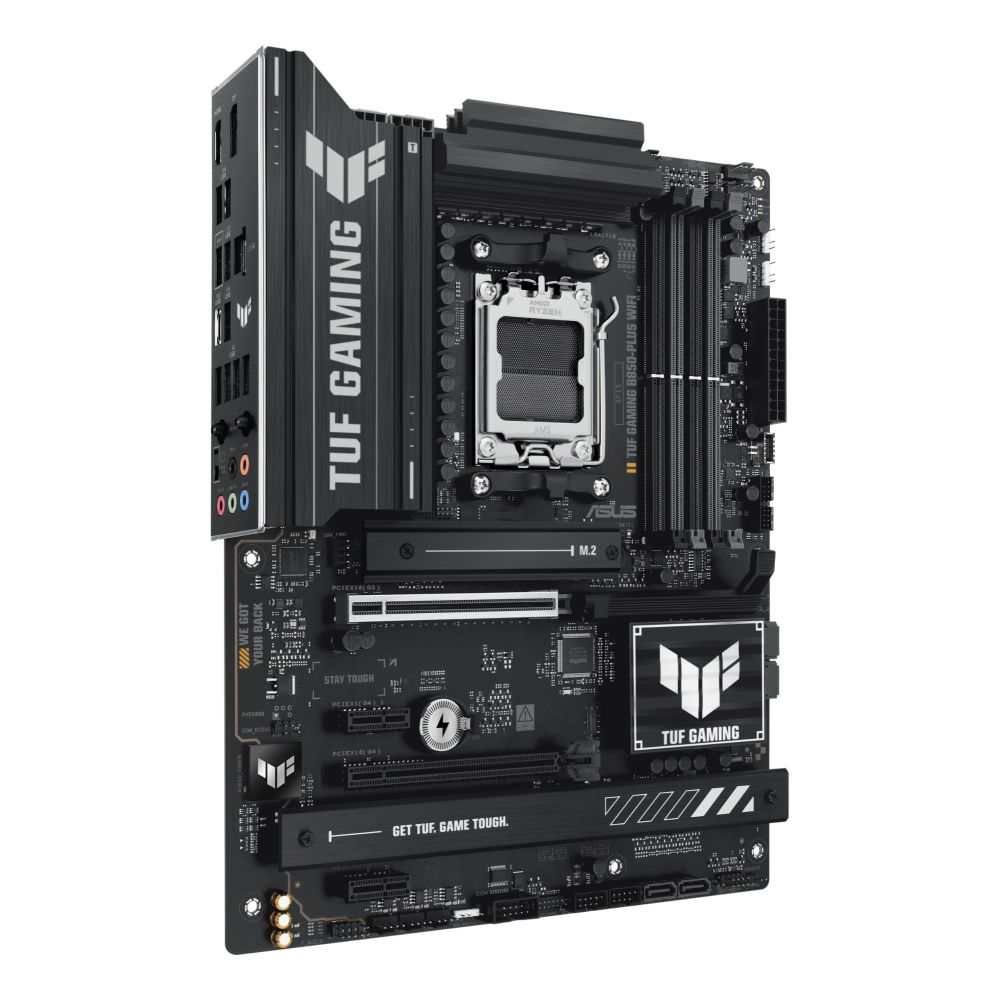

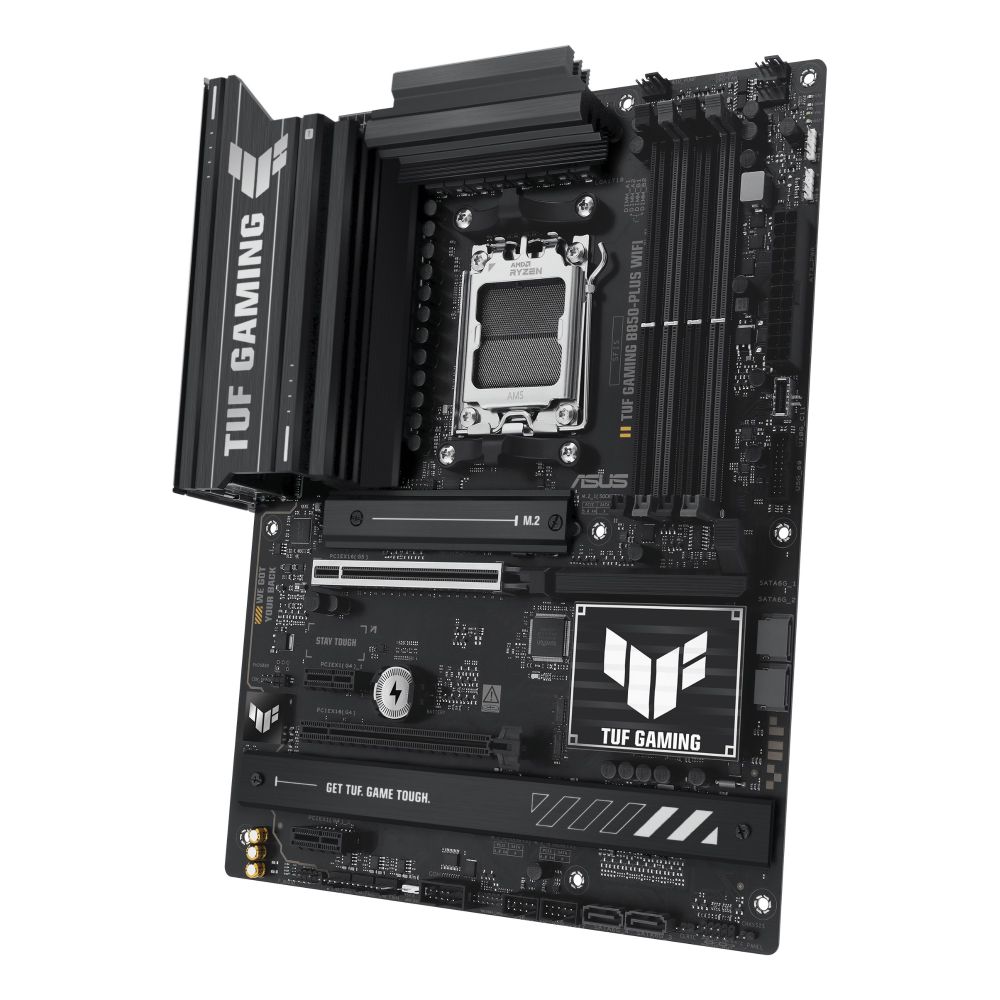

ASUS TUF GAMING B850-PLUS WIFI | AMD B850 Socket AM5 ATX Motherboard
The ASUS TUF GAMING B850-PLUS WIFI is built for gamers and creators who demand rock-solid stability and future-ready performance with AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform.
Key Specifications
| Metric | Spec. |
|---|---|
| Socket | AM5 |
| Memory | DDR5, up to 192 GB |
| PCIe Support | PCIe 5.0 x16, PCIe 4.0 x1 |
| Storage | 3x M.2 (NVMe), 4x SATA III |
| Networking | Wi-Fi 7, 2.5 Gb Ethernet |
| USB Ports | 4x USB 3.2 Gen 1, 3x USB 3.2 Gen 2, 1x USB 3.2 Gen 2×2 Type-C |

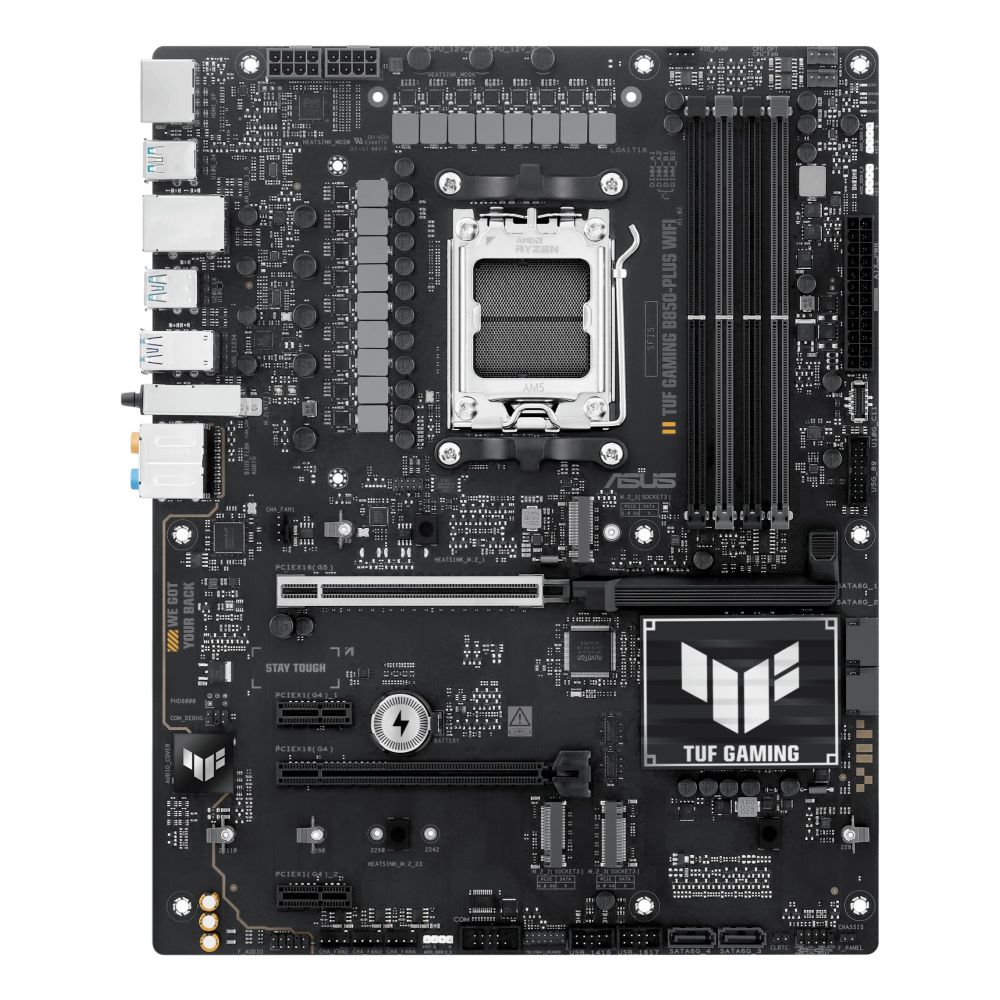

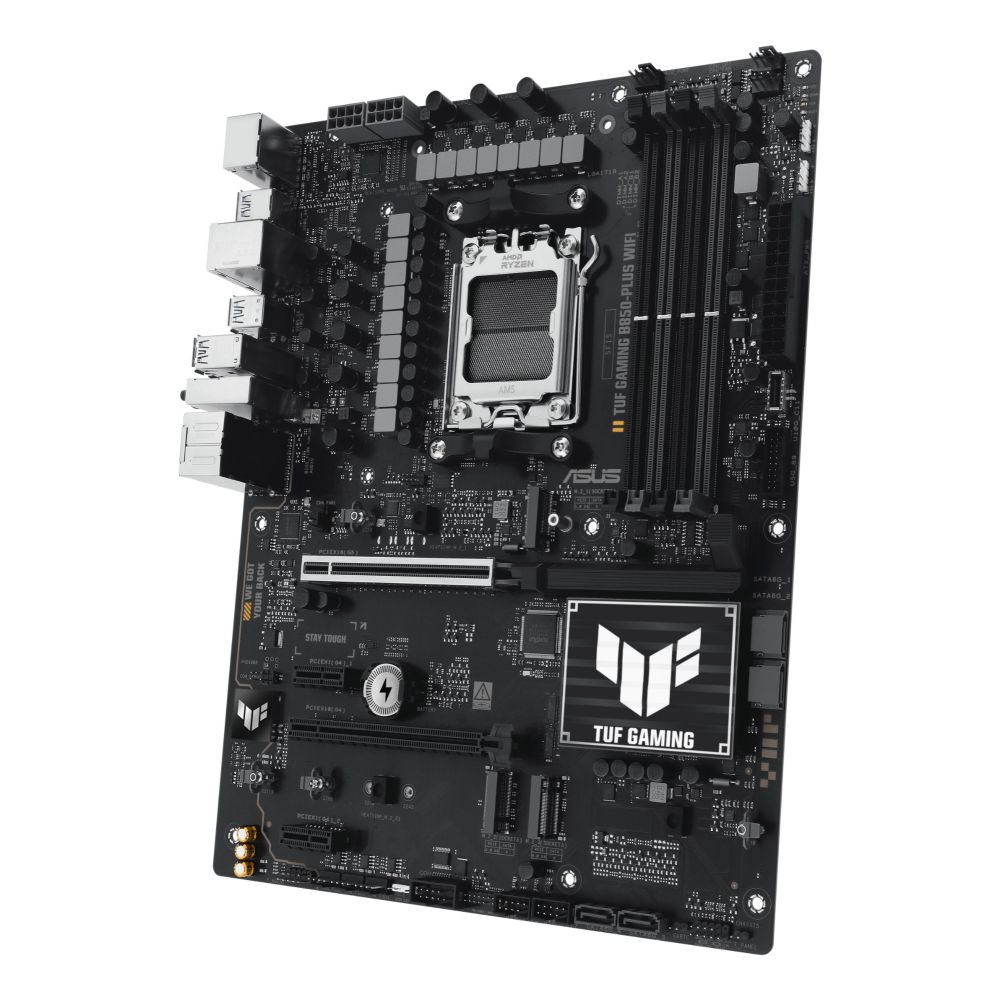

Power Delivery That Handles High-Core CPUs
Engineered with 14+2+1 power stages rated at 80A each, this motherboard delivers clean, stable power to demanding AMD Ryzen processors. Military-grade components and robust VRMs ensure consistent performance during heavy workloads and marathon gaming sessions.
DDR5 Memory Performance with EXPO Support
Unlock the full potential of DDR5 memory with AMD EXPO technology. Whether you’re using high-speed kits or entry-level modules, ASUS AEMP automatically optimises frequency, timing, and voltage for peak performance without manual tweaking.
PCIe 5.0 and M.2 Storage Ready
With one PCIe 5.0 M.2 slot, you can take advantage of the fastest NVMe SSDs available, delivering up to 128 Gbps of bandwidth. All M.2 slots support RAID configurations, giving you flexibility for ultra-fast storage setups.
Next-Gen Wi-Fi 7 and 2.5 Gb Ethernet
Stay connected with Wi-Fi 7 for stable, low-latency wireless performance, plus a 2.5 Gb Ethernet port for speeds up to 2.5x faster than standard Gigabit connections. Perfect for competitive online gaming and large file transfers.
Easy DIY Installation
Features like PCIe Slot Q-Release, Q-Antenna, M.2 Q-Latch, and pre-mounted I/O shield make building your system straightforward. The Q-LED diagnostic lights help troubleshoot hardware issues before boot, saving you time and frustration.

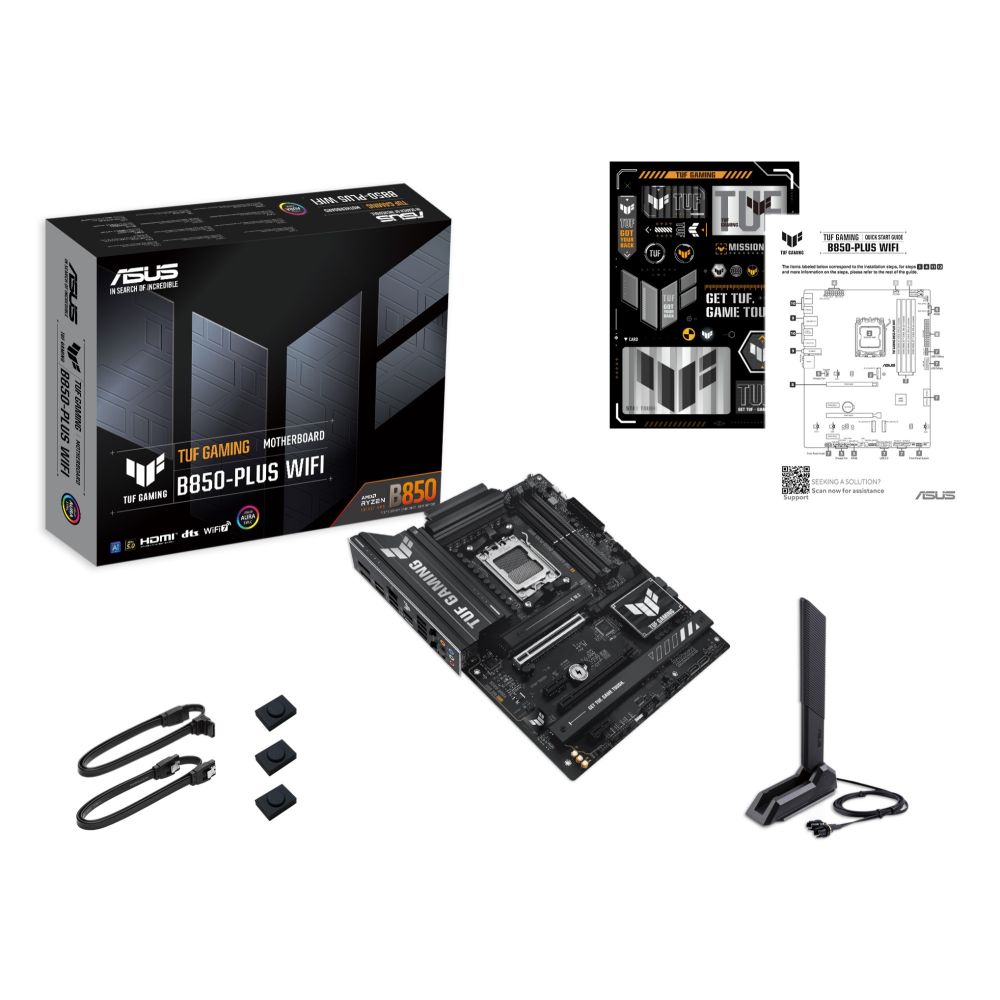

Box Contents
- ASUS TUF GAMING B850-PLUS WIFI motherboard
- SATA cables
- Wi-Fi antenna
- Quick installation guide
Check before you buy
- Confirm your CPU is compatible with the AM5 socket (Ryzen 7000/8000/9000 Series)
- Verify your case supports ATX form factor (305 x 244 mm)
- Check that your GPU and PCIe devices fit with the PCIe 5.0 x16 slot layout
- Ensure your power supply provides adequate PCIe and CPU power connectors
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM modules.
Q: How many M.2 SSDs can I install?
A: You can install up to three M.2 SSDs, with one supporting PCIe 5.0.
Q: Is Wi-Fi 7 backwards compatible with older Wi-Fi standards?
A: Yes, Wi-Fi 7 is fully backwards compatible with previous Wi-Fi generations.
Q: Can I overclock my CPU and RAM with this board?
A: Yes, it supports CPU overclocking and AMD EXPO for memory overclocking.
Q: What type of audio does it provide?
A: It features Realtek ALC1220P with 7.1 channel audio output.
The Consultant’s Verdict & Warranty
The ASUS TUF GAMING B850-PLUS WIFI delivers military-grade durability, cutting-edge connectivity, and exceptional power delivery for AMD Ryzen users. It’s ideal for gamers and creators who want a stable, upgrade-ready platform without compromising on speed or features. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 7680 x 4320 pixels |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.81 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.81 kg |
| Weight | 1.32 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Antenna included | Yes |
| Other features | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.81 kg |
| Weight | 1.32 kg |
| Quick installation guide | Yes |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1J30-M0EAY0, 11508501, 126169, TUF GAMING B850-PLUS WIFI, 542819, 544162, STD10218898, CL90MB1J30-M0EAY0 |
