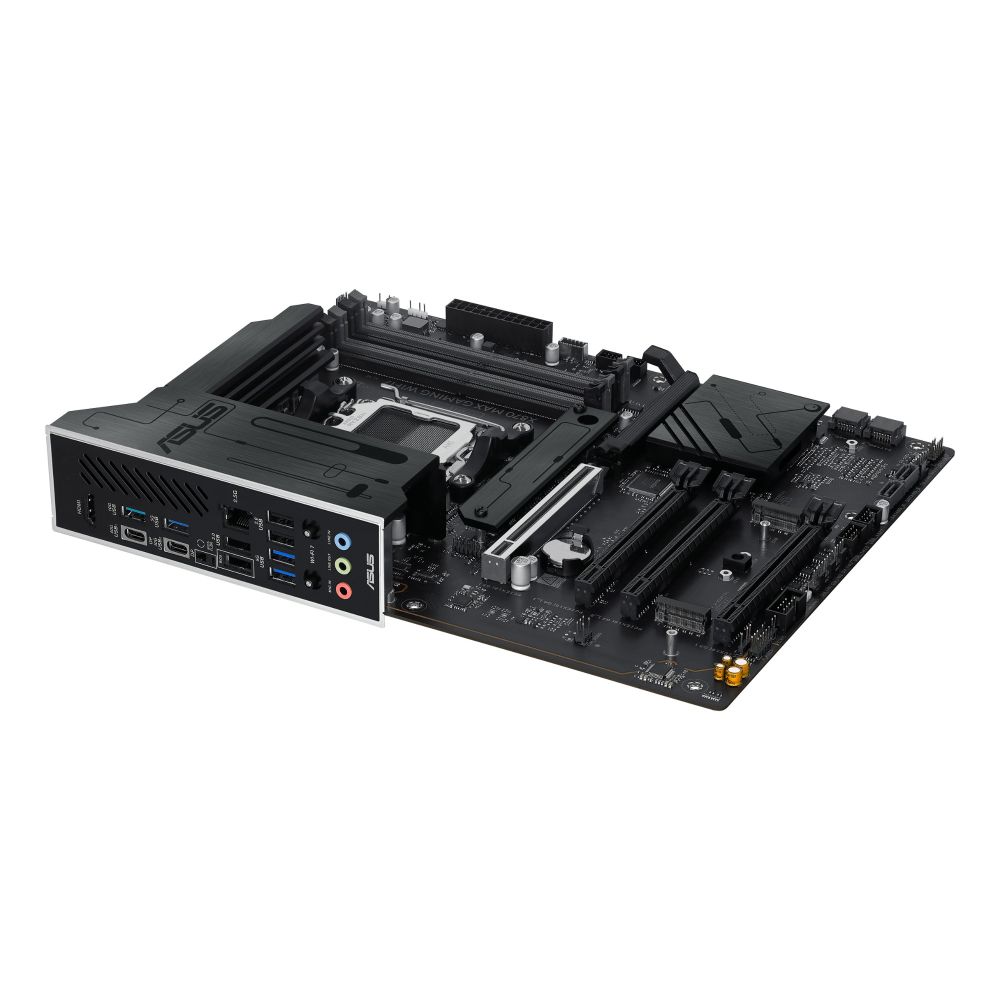

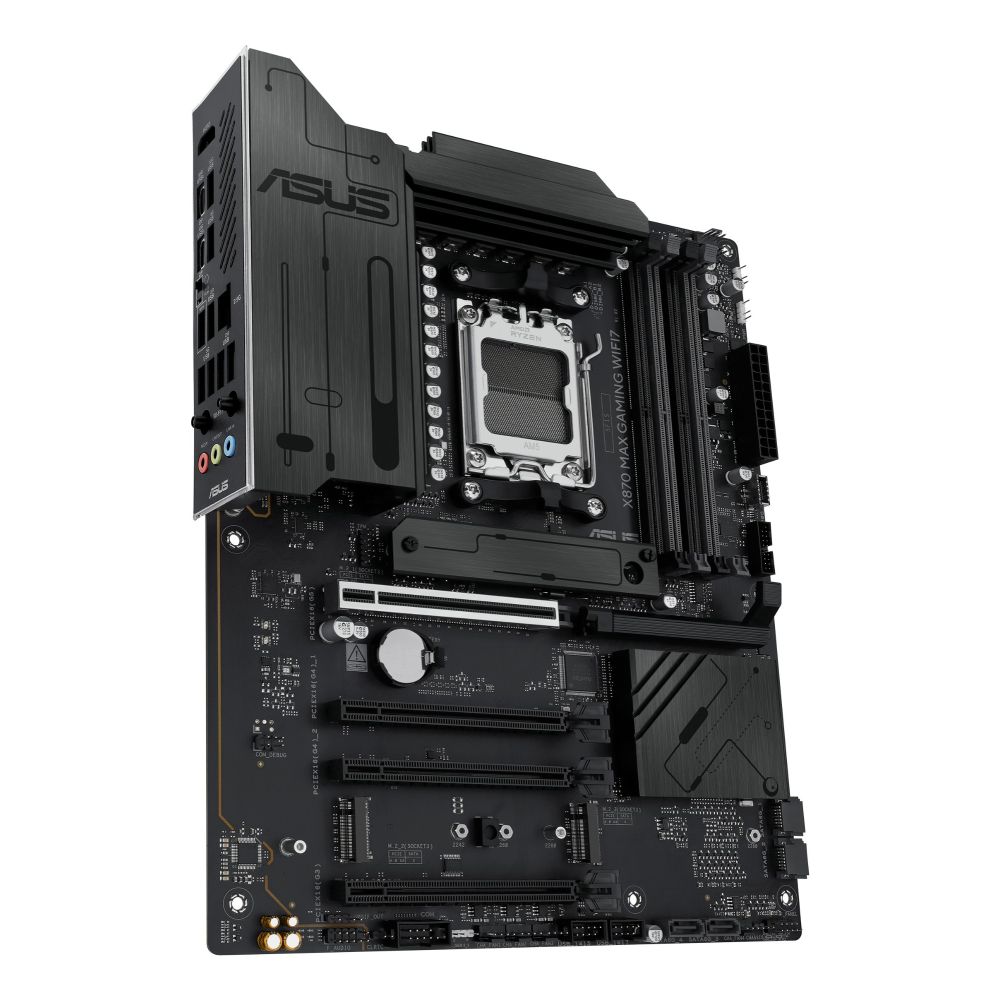

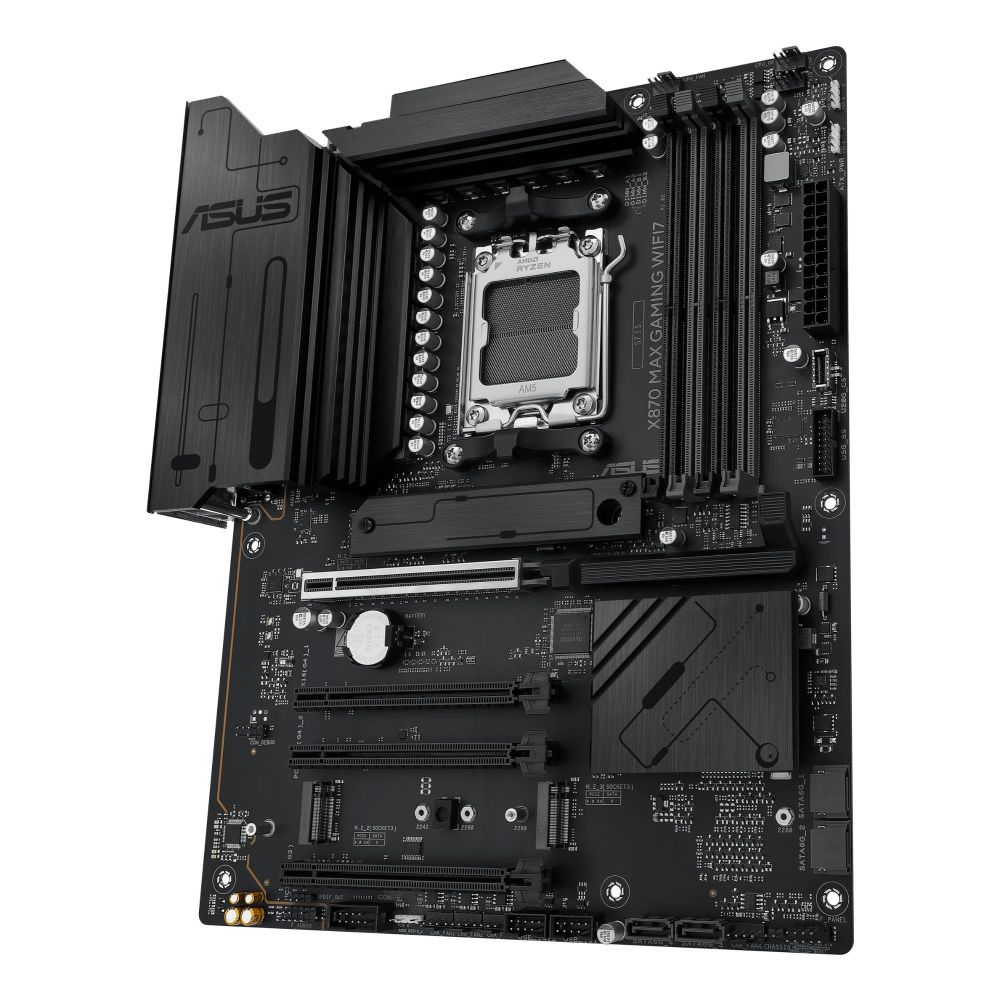

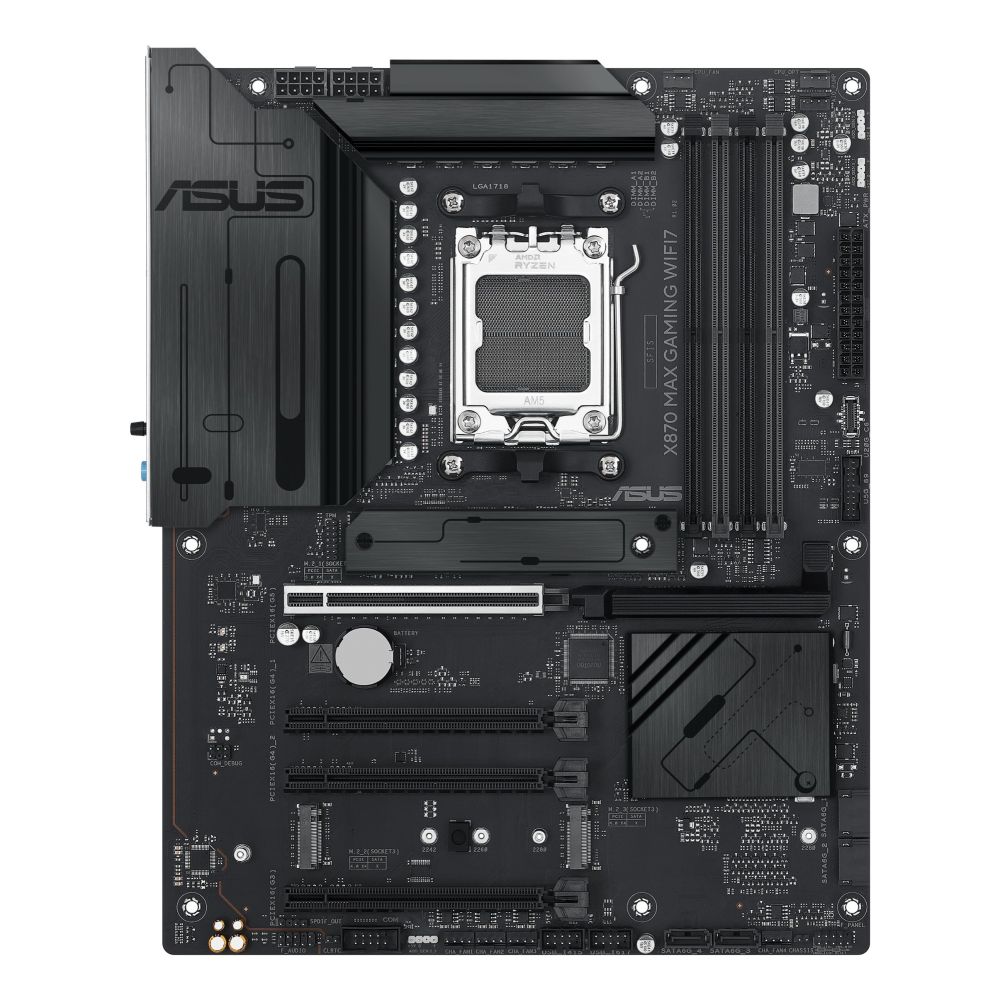

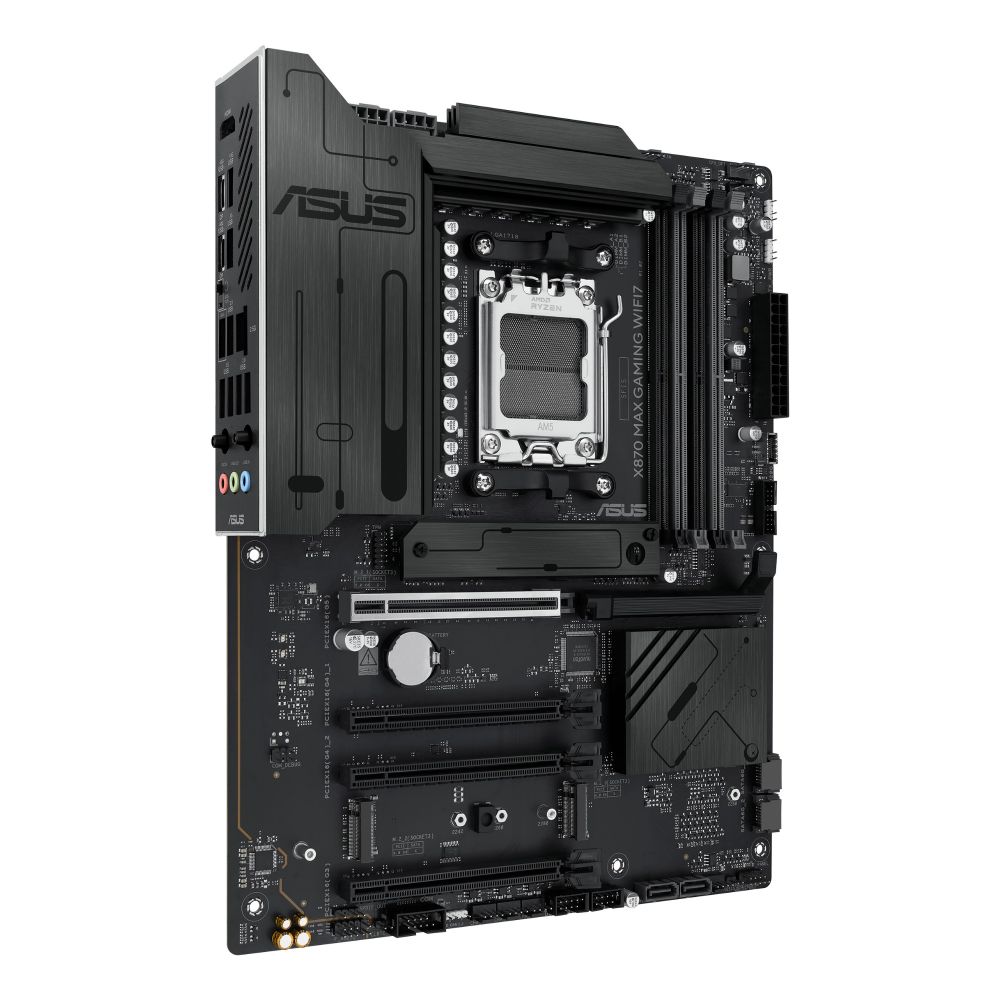

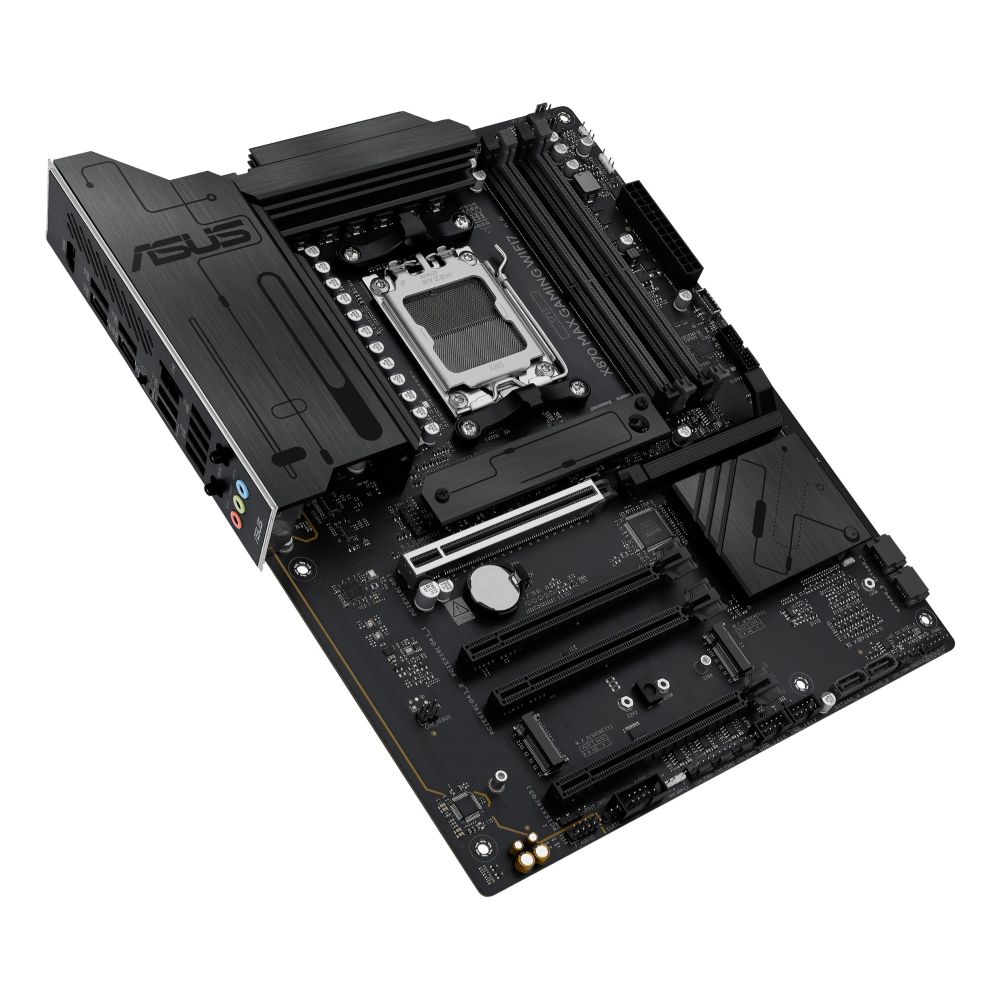

ASUS X870 MAX GAMING ATX Motherboard
£265.62 inc VAT
12 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports AMD Ryzen 7000/8000/9000 Series processors on Socket AM5
- Triple M.2 slots with M.2 and SATA III storage interfaces
- 256 GB max DDR5 memory at 8000 MHz with dual-channel support
- Wi-Fi 7 and 2.5 Gigabit Ethernet for advanced connectivity
- ATX form factor with 7.1 audio channels and RGB lighting
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS X870 MAX GAMING WIFI7 | AMD X870 Socket AM5 ATX Motherboard

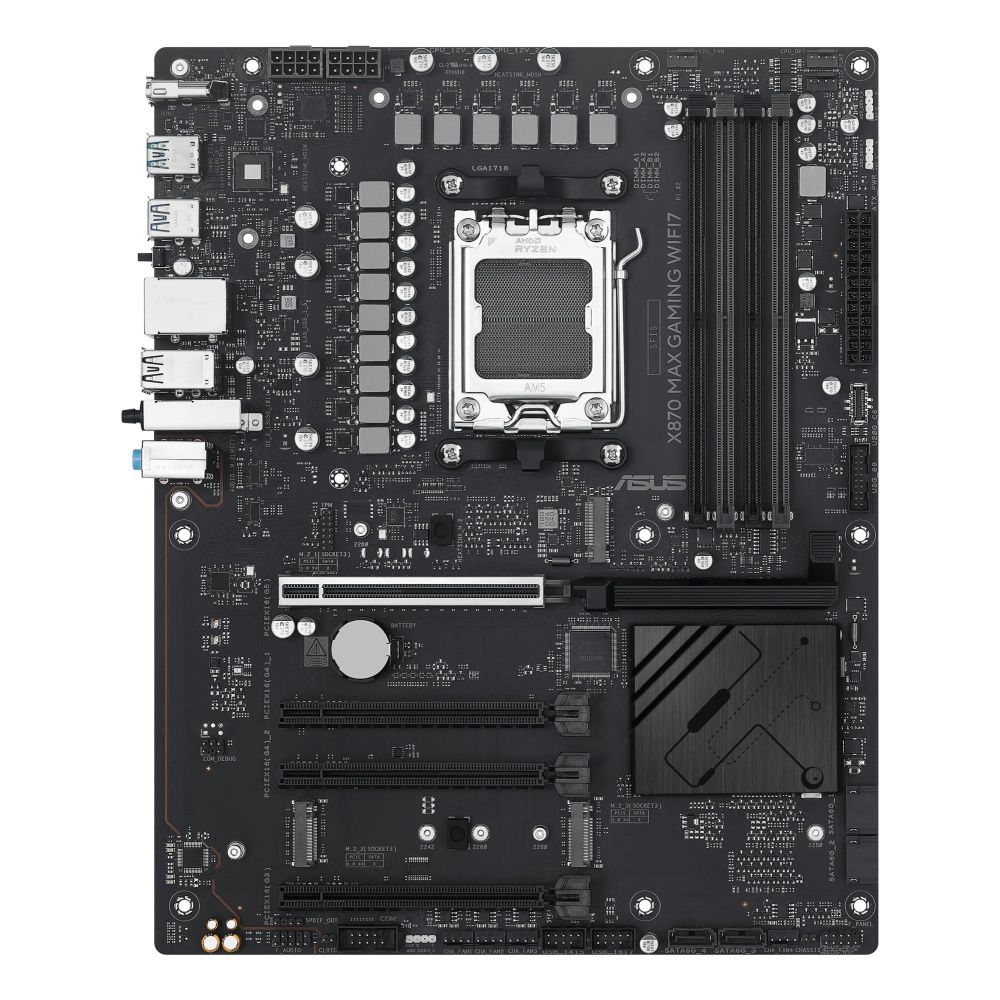

The ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX motherboard is engineered for AMD Ryzen 9000 series processors, delivering robust power delivery, comprehensive cooling, and intelligent tuning options for PC DIY builders seeking high-performance gaming and AI-ready computing.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Socket | AMD AM5 |
| Memory Support | DDR5 up to 8000 MHz (4 slots, 256 GB max) |
| Storage Interfaces | M.2, SATA III |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Ethernet | 2.5 Gigabit |
Advanced AI PC-Ready Performance
Built for the next generation of computing, this motherboard supports demanding AI applications with its robust power design and comprehensive connectivity. The AMD X870 chipset provides the foundation for advanced processing capabilities, while the DDR5 memory support ensures smooth multitasking and data handling for AI workloads.
Comprehensive Cooling & Power Delivery
The motherboard features a robust power design with multiple cooling solutions to maintain optimal performance during extended gaming sessions. With dedicated CPU and chassis fan connectors, plus support for multiple storage drives, the cooling system is designed to handle thermal loads effectively. The 12V power connector and EPS 8-pin connector ensure stable power delivery to all components.
Next-Generation Connectivity
Equipped with Wi-Fi 7 and Bluetooth 5.4, this motherboard offers cutting-edge wireless connectivity. The 2.5 Gigabit Ethernet provides reliable wired networking, while multiple USB ports (including USB 4 Gen 3×2) support high-speed data transfer. HDMI output and 7.1 channel audio deliver immersive multimedia experiences.

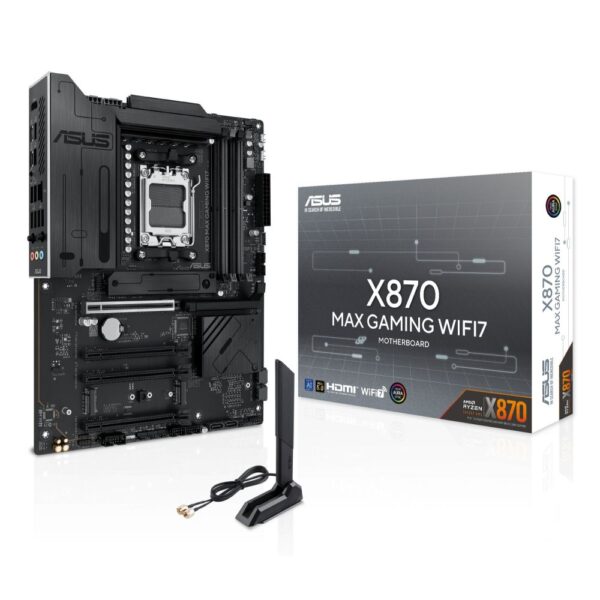

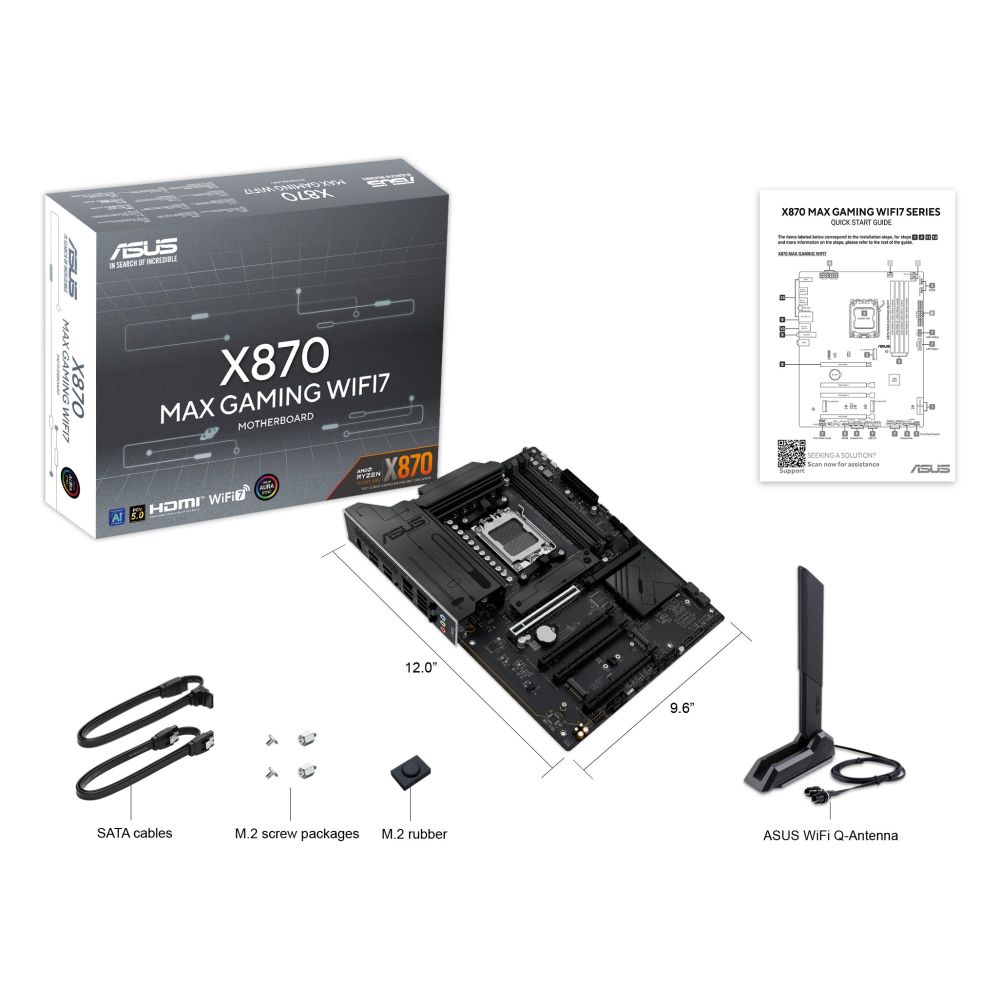

Box Contents
- ASUS X870 MAX GAMING WIFI7 motherboard
- I/O shield
- User manual
- Driver/software disc
- SATA cables
- Wi-Fi antennas (2)
Check before you buy
- Confirm your AMD Ryzen processor is compatible (7000, 8000, or 9000 series)
- Verify your case supports ATX form factor (305 x 244 mm)
- Check that your power supply has required connectors (24-pin ATX, 8-pin EPS)
- Confirm you need DDR5 memory (not DDR4 compatible)
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: AMD Ryzen 7000, 8000, and 9000 series processors with Socket AM5.
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM memory.
Q: How many M.2 slots are available?
A: There are 3 M.2 slots for high-speed storage.
Q: What Wi-Fi standard does this motherboard support?
A: It supports Wi-Fi 7 (802.11be) with Bluetooth 5.4.
Q: Is this motherboard suitable for gaming?
A: Yes, it’s designed for gaming with robust power delivery and comprehensive cooling.
The Consultant’s verdict & warranty
The ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX motherboard offers exceptional performance for gamers and content creators seeking cutting-edge technology. With Wi-Fi 7 support, DDR5 memory compatibility, and robust power delivery, it represents a future-proof investment for high-performance PC builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |

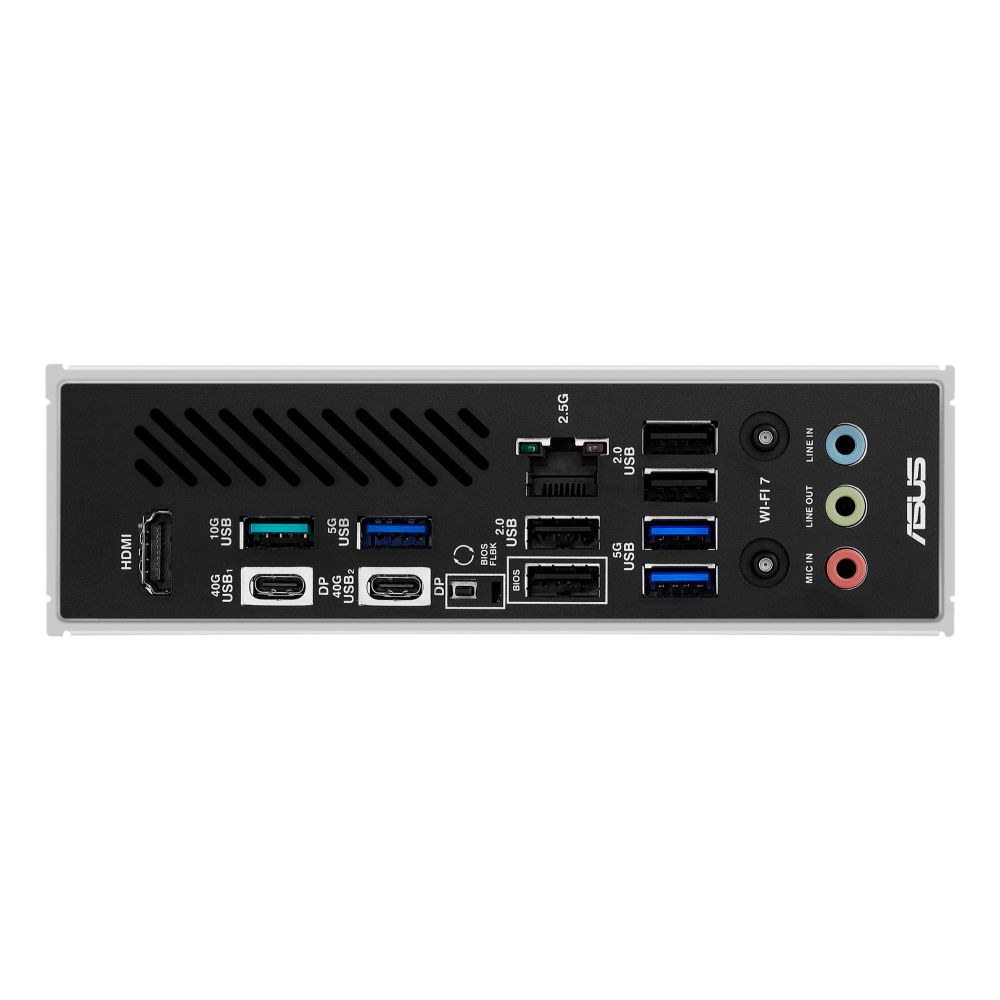

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Multicolour |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.95 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Height | 48 mm |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.95 kg |
| Weight | 1.36 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Antenna included | Yes |
| Other features | |
| Height | 48 mm |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.95 kg |
| Weight | 1.36 kg |
| Identifiers | |
| Distributor SKUs | MBD-90MB1LY0-M0EAY0, 11808585, 126850, W129160096, X870 MAX GAMING WIFI7, 554899, STD10223450, CL90MB1LY0-M0EAY0 |
| Additional EANs | 0199291007840 |
