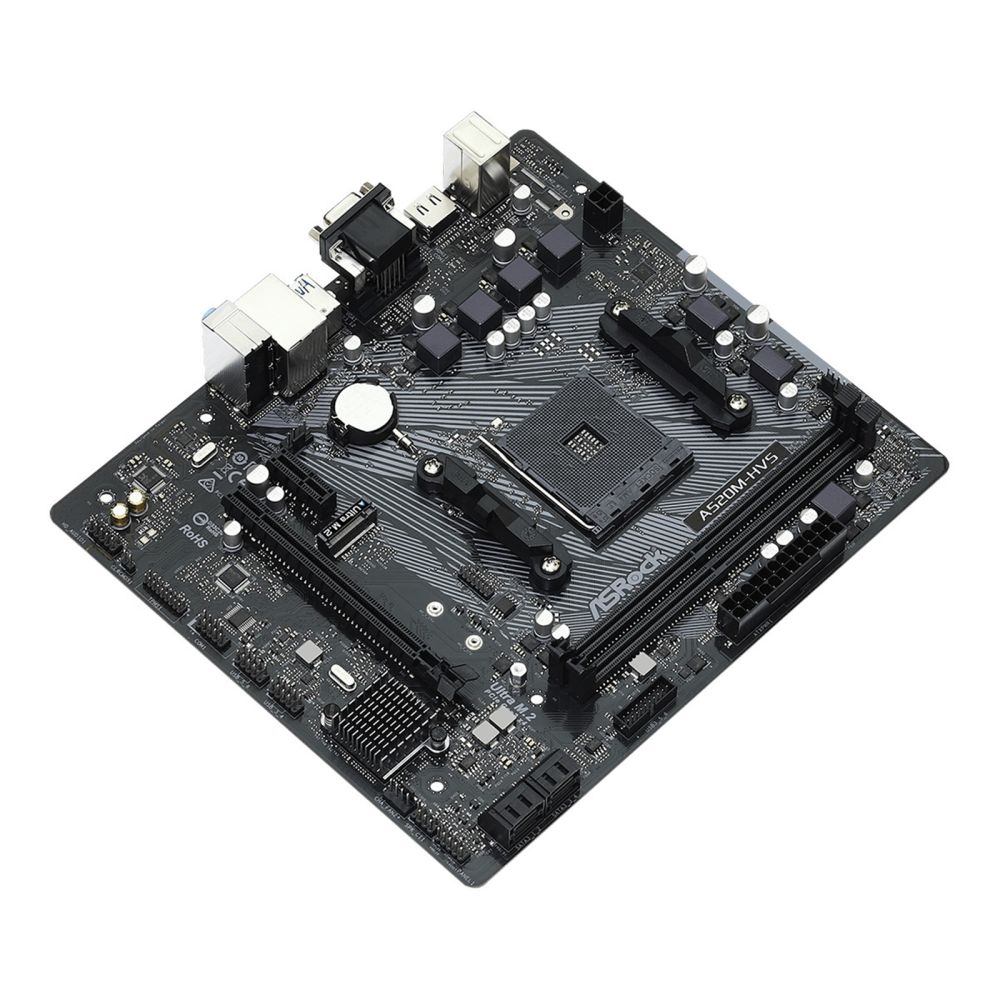

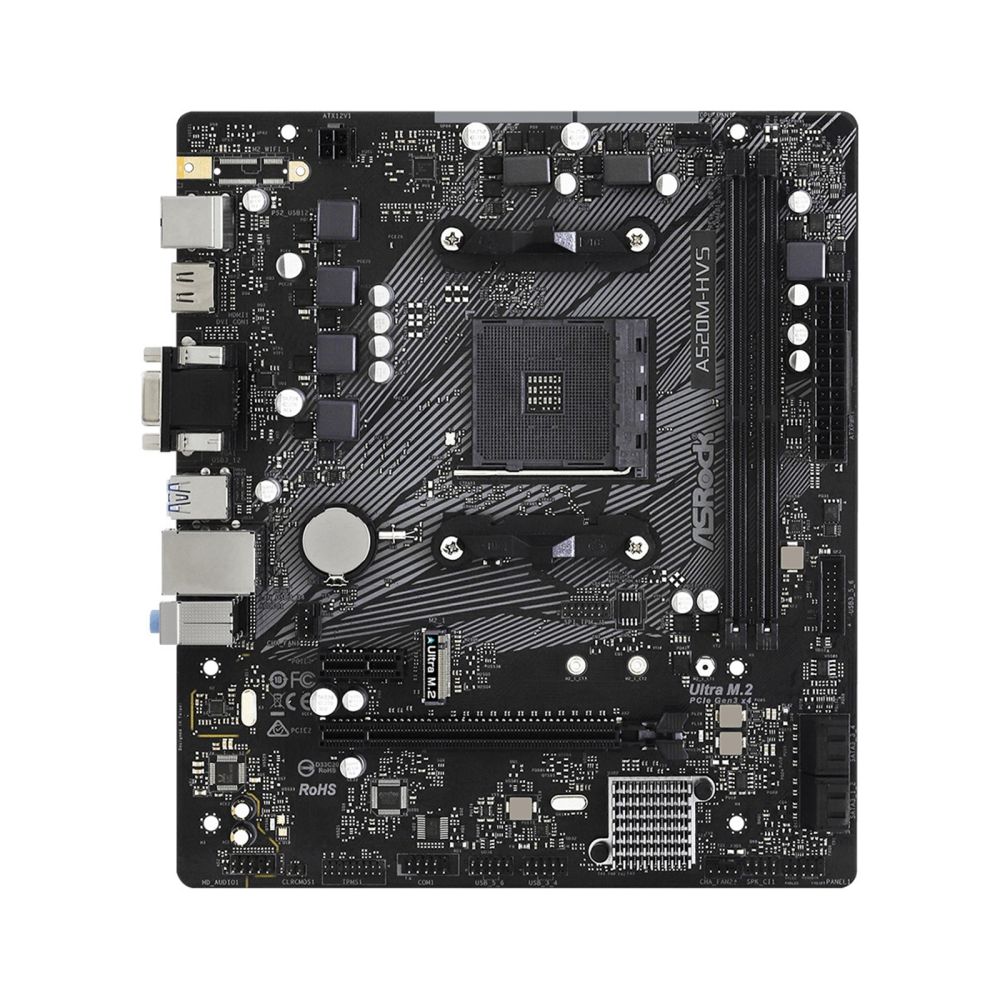

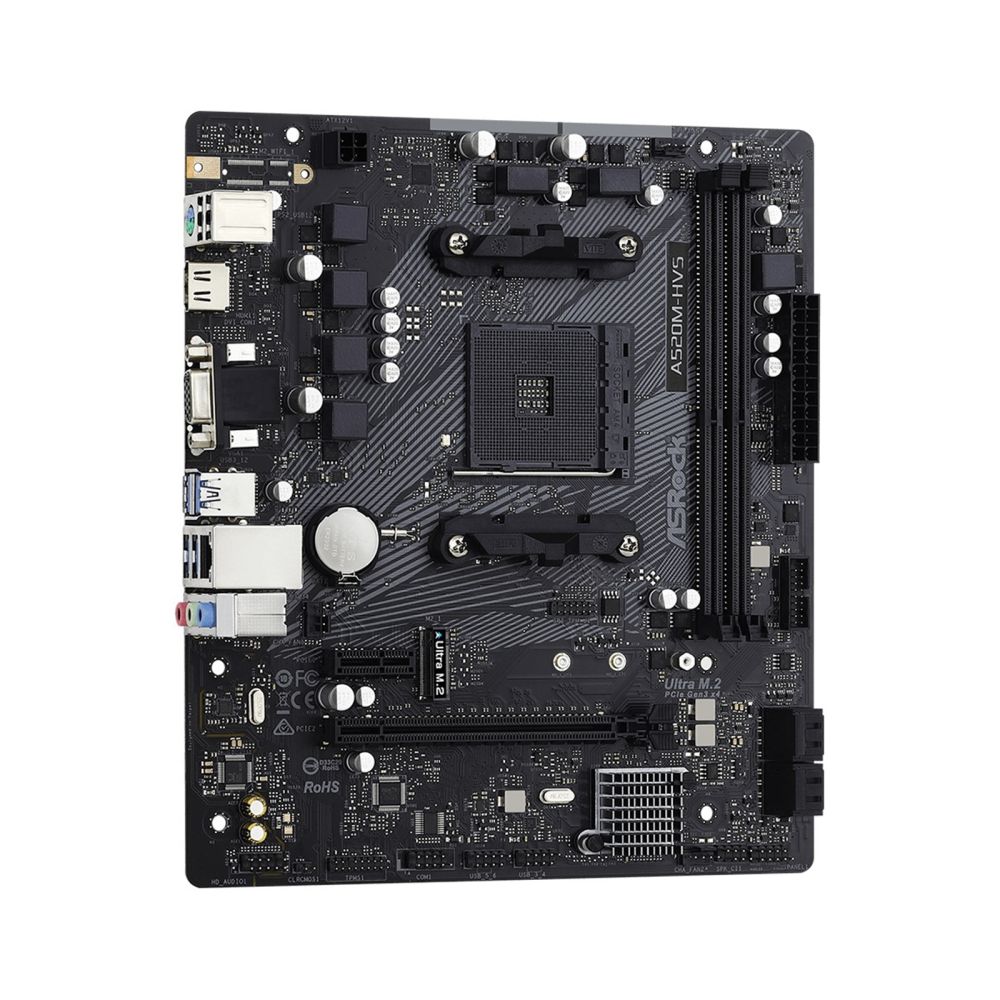

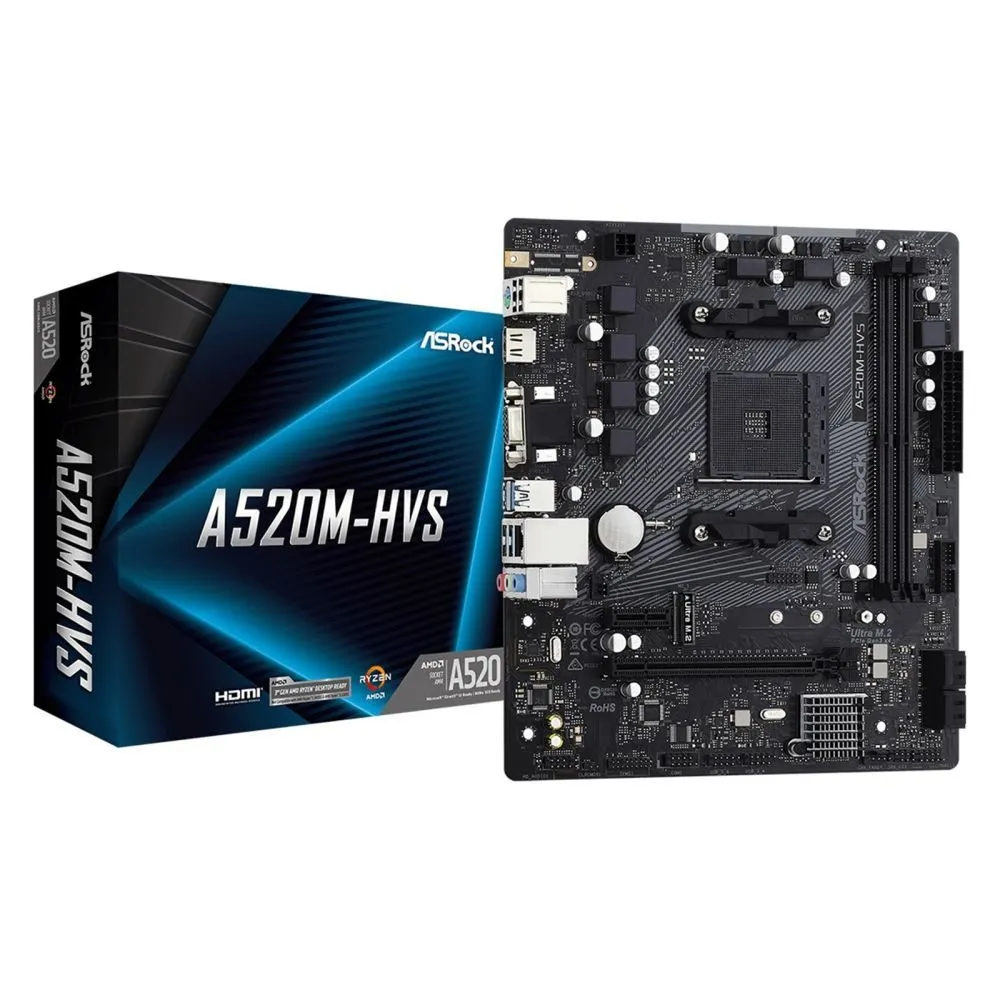

ASRock A520M-HVS Micro-ATX AMD AM4 Motherboard

ASRock A520M-HVS | AMD AM4 Micro-ATX Motherboard

The ASRock A520M-HVS Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port delivers essential computing features in a compact micro-ATX form factor. Built on AMD’s A520 chipset, it supports 3rd Gen AMD Ryzen and future Ryzen processors, making it a reliable choice for budget-conscious builders seeking Windows 11 compatibility and solid performance for everyday computing tasks.

Key Specifications

AMD AM4 Ready for Modern Computing

This motherboard supports 3rd generation AMD Ryzen processors and future AM4 Ryzen CPUs, ensuring long-term upgrade potential. The 6-phase power design with ASRock Super Alloy components provides stable power delivery for reliable everyday performance. Windows 11 Ready certification means you can run Microsoft’s latest operating system without compatibility concerns.

Ultra M.2 Storage Performance

The PCIe Gen3 x4 Ultra M.2 socket delivers data transfer speeds up to 32Gb/s, significantly faster than traditional SATA storage. Whether you’re installing a high-speed NVMe SSD or a SATA M.2 module, this interface ensures quick boot times and responsive application loading. The M.2 slot supports various module sizes including 2242, 2260, and 2280 for flexible storage options.

Complete Graphics Connectivity

With both D-Sub and HDMI ports available, you have flexible display options for different monitor types. The HDMI 4K @60Hz support ensures smooth, high-resolution output for modern displays. Whether connecting to an office monitor via VGA or a 4K TV via HDMI, this motherboard provides the necessary connectivity without requiring a dedicated graphics card for basic tasks.

Comprehensive I/O and Protection

ASRock includes Full Spike Protection across all USB, audio, and LAN ports to safeguard your components from electrical surges. The rear panel features a complete selection of ports including PS/2 for legacy peripherals, multiple USB 3.2 Gen1 ports for fast data transfer, and a Gigabit LAN port for reliable wired networking. Smart fan speed control helps maintain optimal temperatures while minimising noise.

Box Contents

• ASRock A520M-HVS Motherboard
• I/O Shield
• Quick Installation Guide
• Support CD
• 2 x SATA Data Cables
• 1 x M.2 Screw

Check Before You Buy

• Confirm your AMD Ryzen CPU is supported on the AM4 socket
• Verify your case has micro-ATX mounting points (9.0″ x 7.9″)
• Check that your power supply has the required 24-pin ATX and 4-pin 12V connectors
• Ensure you have DDR4 memory modules (up to 64GB supported)

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it is Windows 11 Ready certified and supports the operating system.

Q: What type of memory does it support?

A: It supports DDR4 memory up to 4733+ MHz (OC) with a maximum capacity of 64GB.

Q: Can I use NVMe SSDs with this board?

A: Yes, the Ultra M.2 socket supports NVMe SSDs with PCIe Gen3 x4 speeds up to 32Gb/s.

Q: Does it have built-in Wi-Fi?

A: No, this motherboard does not include built-in Wi-Fi; it uses Gigabit LAN for wired connectivity.

Q: What graphics outputs are available?

A: It provides both D-Sub (VGA) and HDMI ports for dual graphics output options.

The Consultant’s Verdict & Warranty

The ASRock A520M-HVS offers excellent value for users building budget-friendly AMD AM4 systems. Its combination of Windows 11 readiness, solid power delivery, and essential features makes it ideal for home office setups, media centres, or entry-level gaming rigs. Covered by the standard Manufacturer Warranty, this micro-ATX motherboard delivers reliable performance without unnecessary complexity.
