Asrock A620AM PRO-A micro ATX motherboard
£85.28 inc VAT
31 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD A620 micro ATX motherboard for AMD Ryzen 7000/8000/9000 Series processors
- Supports DDR5 memory up to 8000 MHz with XMP/EXPO profiles for overclocking
- Three M.2 slots for NVMe SSDs with PCIe 4.0 support for high-speed storage
- AMD RDNA 2 integrated graphics with HDMI 2.1 and 7.1 channel audio
- 2.5Gb/s LAN, USB 3.2 Gen1 Type-A/C ports, and micro ATX form factor
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

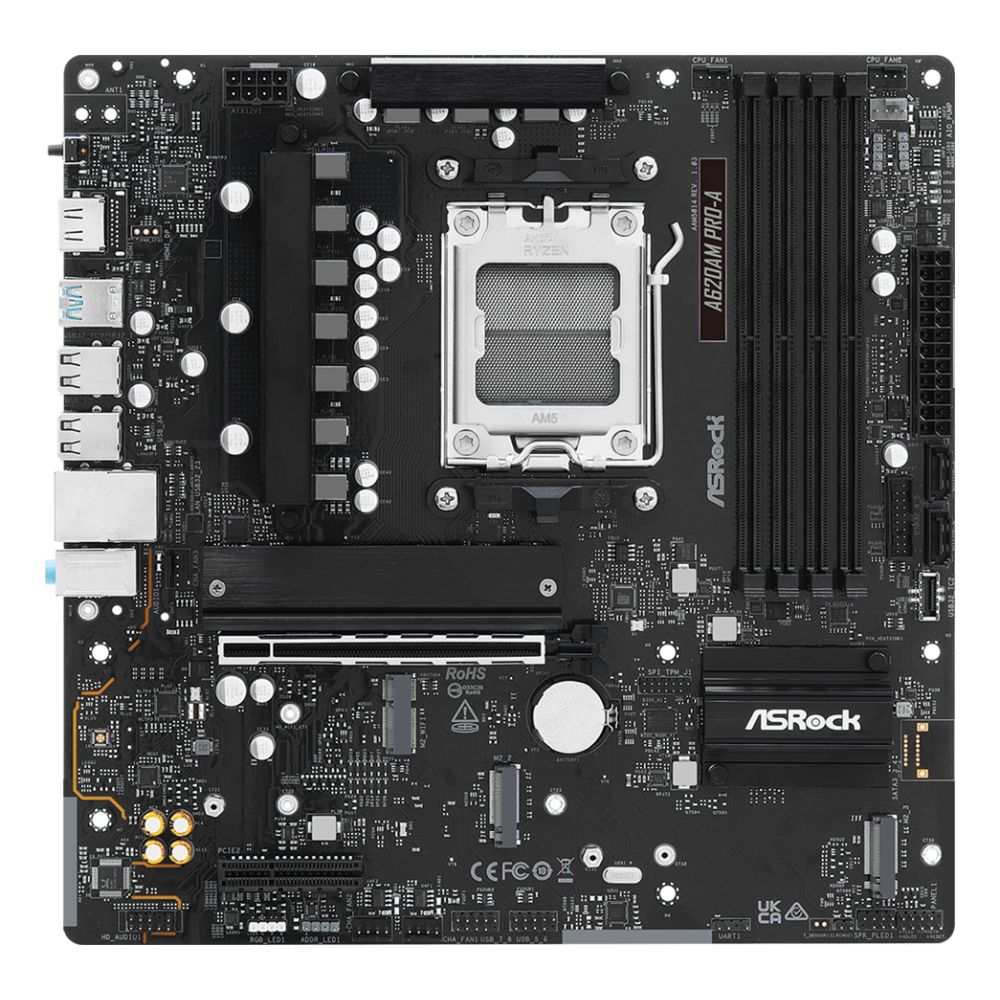

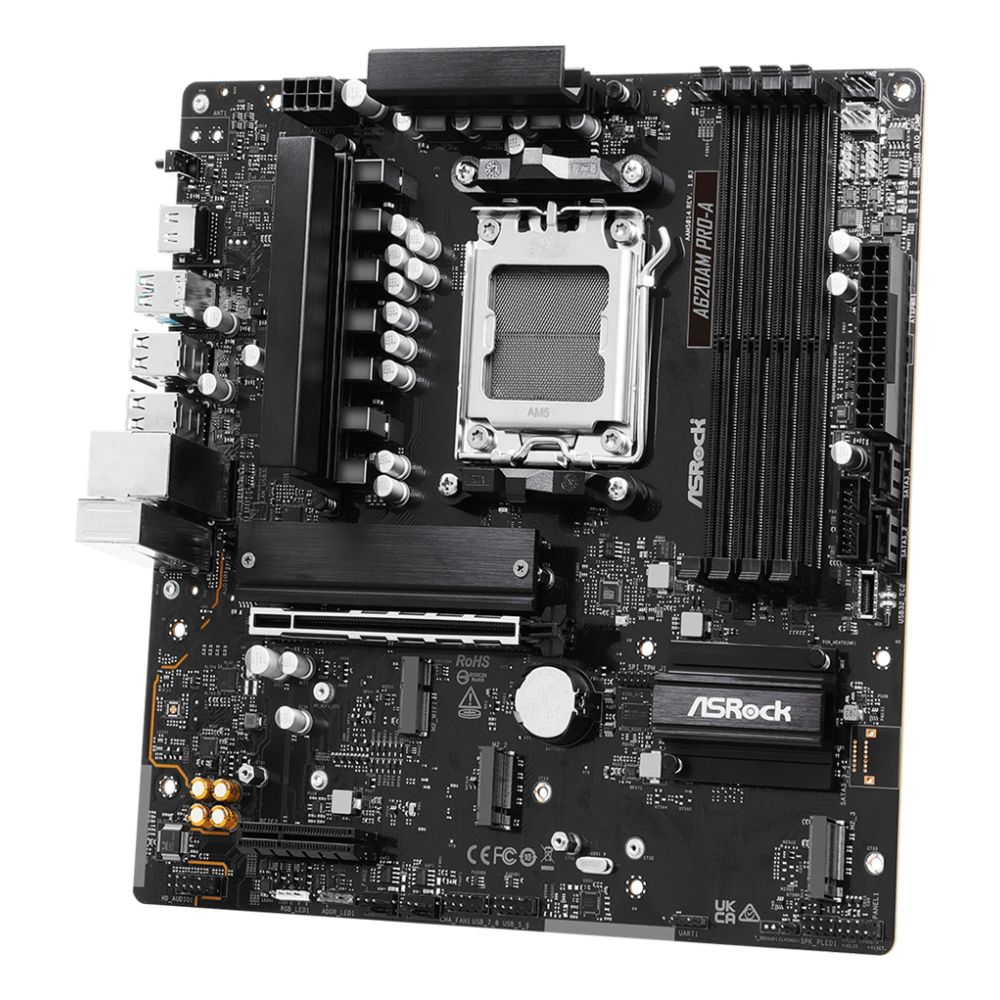

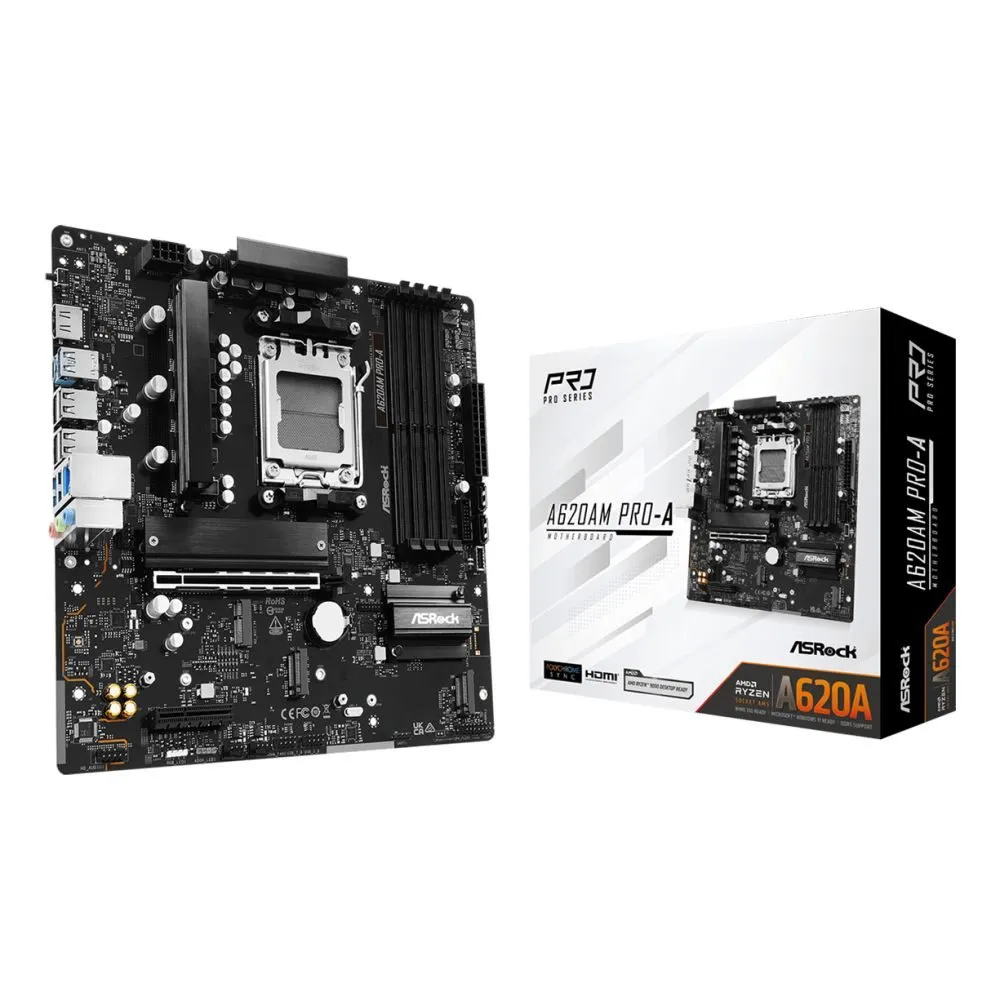

ASRock A620AM PRO-A | AMD AM5 Micro ATX Motherboard
The ASRock A620AM PRO-A motherboard AMD A620 Socket AM5 micro ATX delivers stable, efficient performance for AMD Ryzen 7000/8000/9000 Series processors. Built with passive cooling and robust power delivery, it’s ideal for home and office systems requiring reliability without excessive noise.
Slim Specs Table
| Metric | Spec |
|---|---|
| CPU Socket | AM5 |
| Memory Support | DDR5, up to 256 GB |
| Form Factor | micro ATX |
| LAN | 2.5 Gb/s Ethernet |
| Graphics Output | HDMI 2.1, 7.1 audio |
Stable Power Delivery for Everyday Computing
The A620AM PRO-A features a robust power phase design with Dr. MOS technology, delivering smooth and efficient power to your CPU. This ensures stable performance during daily tasks and light multitasking, while the Hi-Density Power Connectors provide extra durability during system operation.
High-Speed Storage and Memory Support
With three M.2 slots supporting NVMe SSDs and SATA III, you can configure fast storage for your system. The motherboard supports DDR5 memory up to 8000 MHz with XMP and EXPO profiles, allowing you to boost performance easily when using compatible modules.
Intelligent Cooling Without Noise
Passive cooling design keeps the system quiet while maintaining thermal efficiency. The aluminum heatsink effectively dissipates heat during operation, ensuring long-term stability without the need for active cooling fans.
Reliable Connectivity Options
Dragon 2.5 Gb/s LAN provides fast and stable wired internet for smooth online experiences. Front USB 3.2 Gen1 Type-C header offers convenient access to high-speed USB connections at the front of your case. Note that Wi-Fi is not built-in but can be added via the M.2 Key E slot.
DIY-Friendly Features
ASRock includes practical tools like BIOS Flashback for easy updates without a CPU installed, Auto Driver Installer for quick setup, and a Post Status Checker with LED indicators to help diagnose boot issues quickly.
Box Contents
- ASRock A620AM PRO-A motherboard
- SATA cables
- Screws
- M.2 standoff
Check before you buy
- Confirm your AMD Ryzen processor is compatible with Socket AM5
- Verify you have a micro ATX case that fits 244mm x 244mm
- Check if you need to add Wi-Fi separately (not included)
- Ensure your PSU has a 24-pin ATX connector
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM memory modules.
Q: Can I overclock my CPU with this board?
A: The A620 chipset does not support CPU overclocking, but memory overclocking via XMP/EXPO is possible.
Q: Is there built-in Wi-Fi?
A: No, but there is an M.2 Key E slot for adding a Wi-Fi module.
Q: What graphics outputs are available?
A: It has one HDMI 2.1 port supporting up to 4K resolution.
Q: How many M.2 slots does it have?
A: It includes three M.2 slots for NVMe SSDs.
The Consultant’s verdict & warranty
The ASRock A620AM PRO-A motherboard AMD A620 Socket AM5 micro ATX is a solid choice for users building reliable AMD AM5 systems without the need for advanced overclocking. Its passive cooling, strong connectivity, and user-friendly features make it well-suited for home and office PCs. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Intel Extreme Memory Profile (XMP) | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| RAID levels | 0, 1, 10 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Graphics card family | AMD |
| Graphics card | AMD RDNA 2 |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |

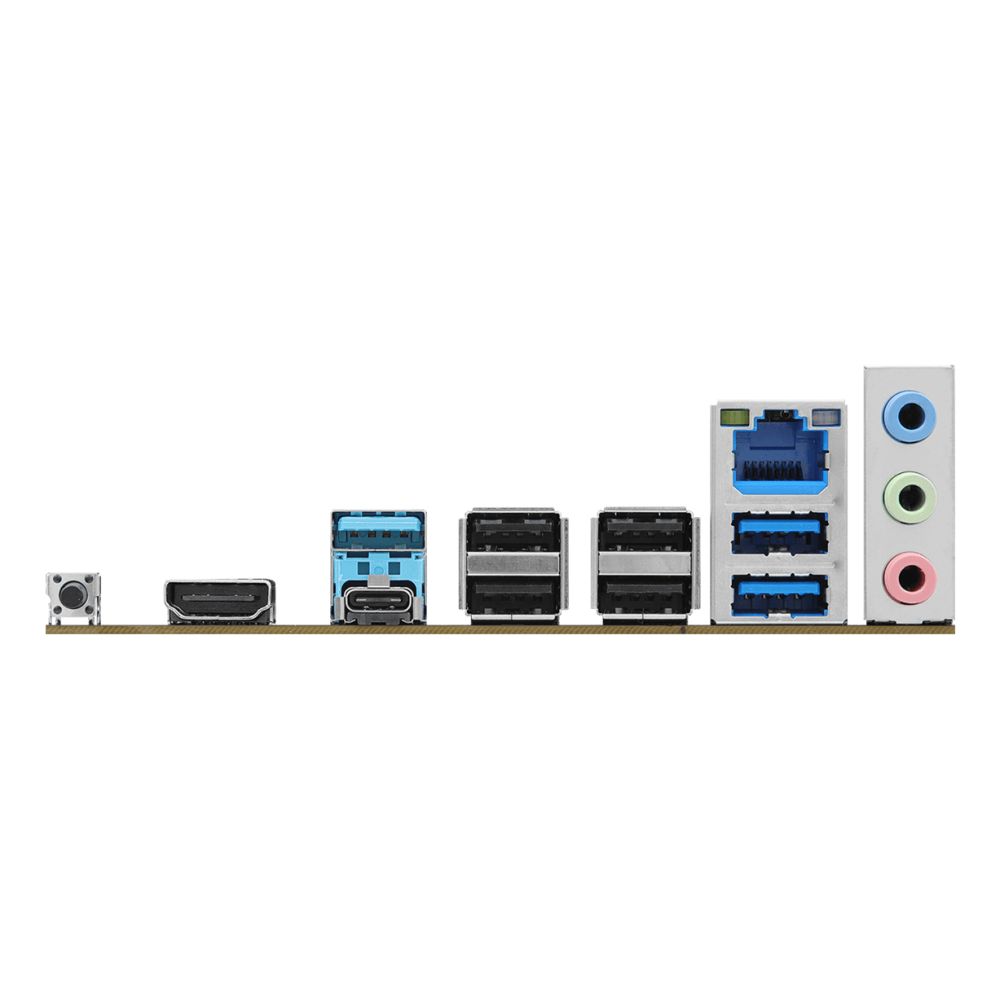

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Rear speaker out | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | No |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS flashback button | Yes |
| Processor special features | |
| Intel Extreme Memory Profile (XMP) | Yes |
| AMD Extended Profiles for Overclocking (EXPO) | Yes |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Graphics card family | AMD |
| Graphics card | AMD RDNA 2 |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| M.2 standoff included | Yes |
| Other features | |
| PCI Express x4 (Gen 3.x) slots | 1 |
