Asrock B650M-H/M.2+ AMD B650 AM5 micro ATX

ASRock B650M-H/M.2+ | AMD B650 Micro ATX Motherboard

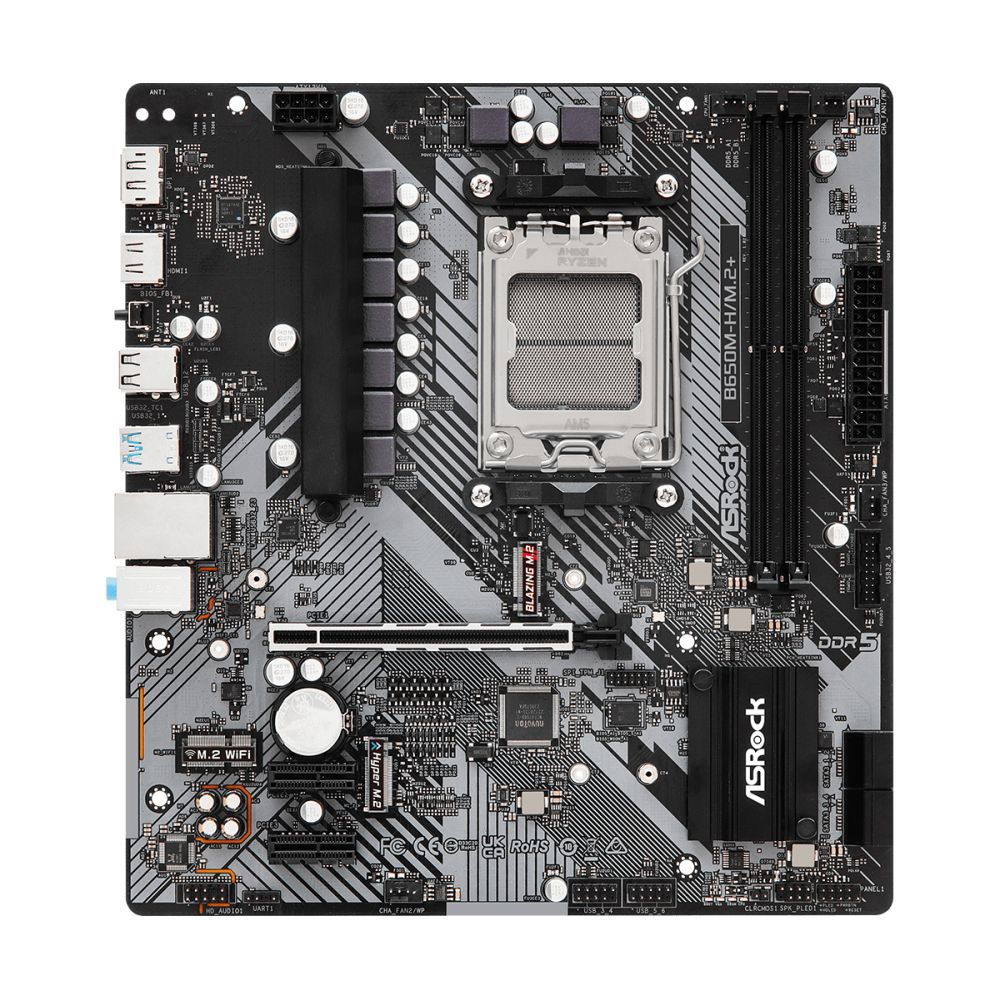

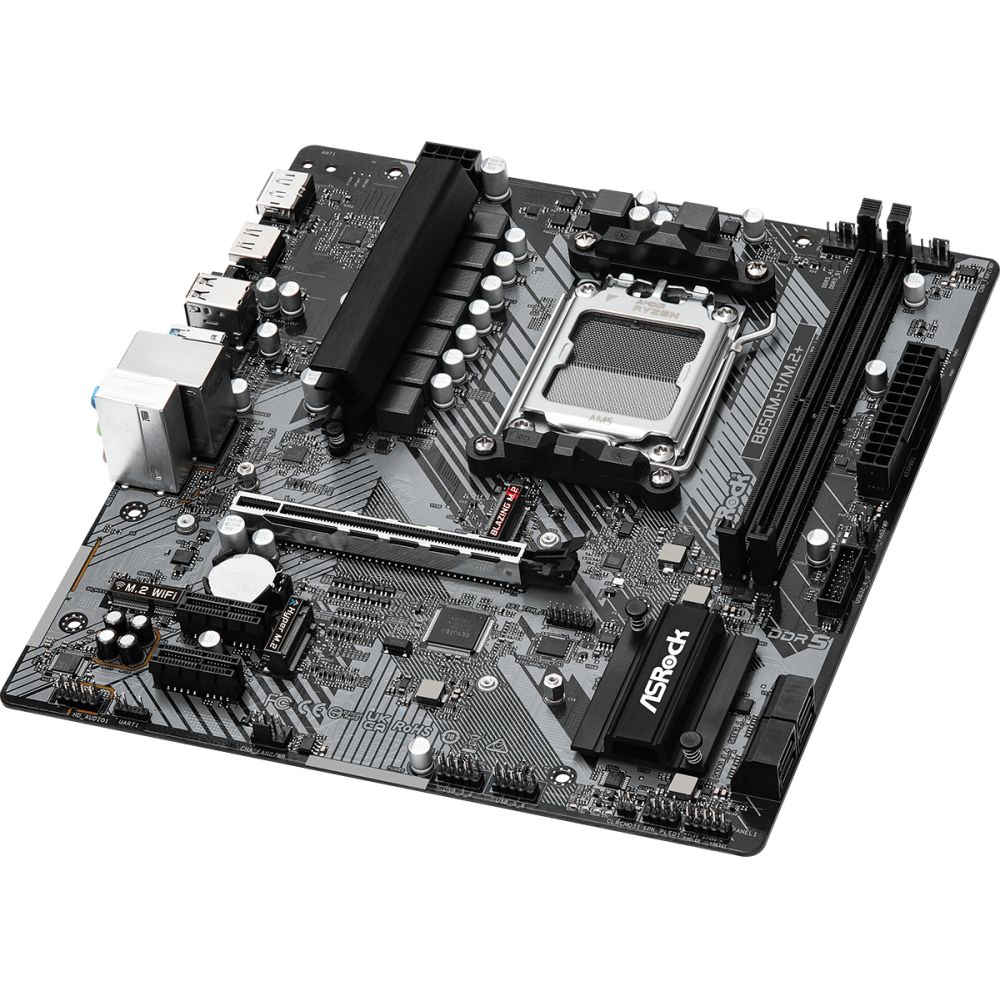

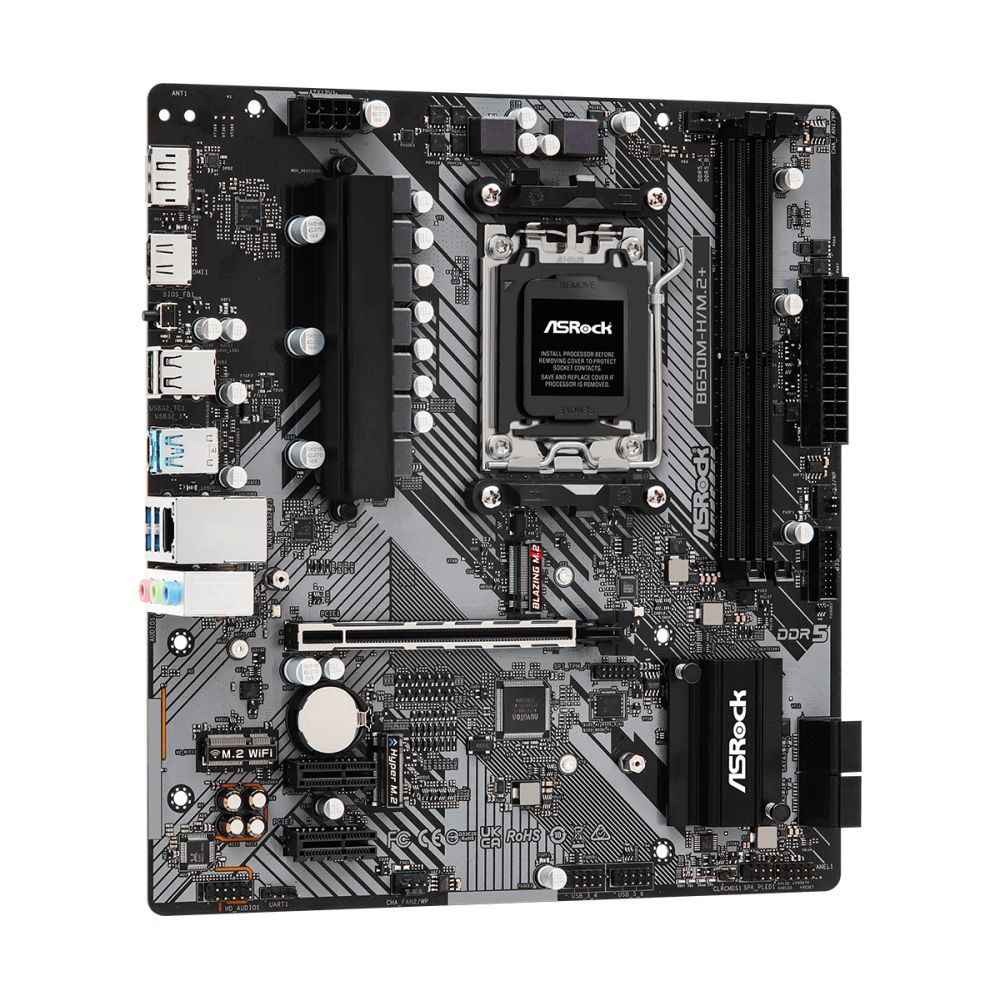

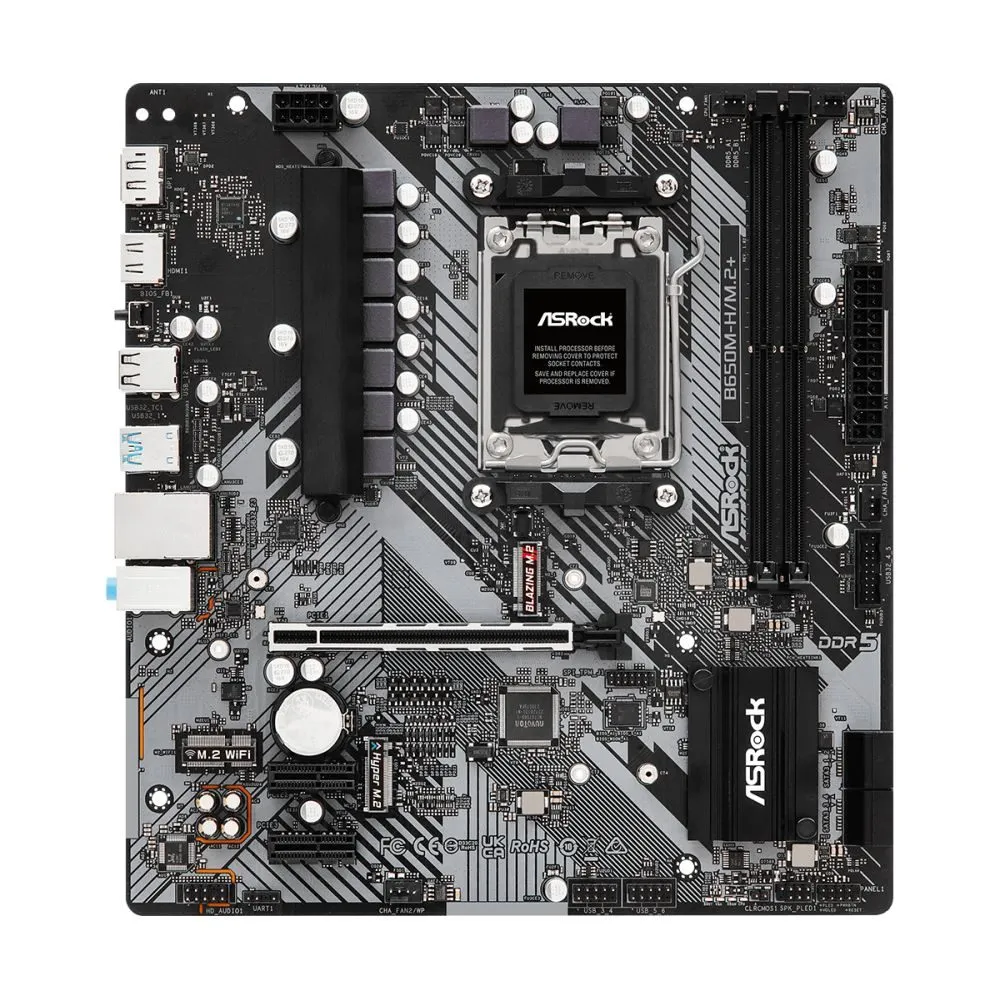

The ASRock B650M-H/M.2+ is a micro ATX motherboard built around the AMD B650 chipset, supporting the latest AMD Ryzen 7000X3D processors on the Socket AM5 platform. Designed for compact builds without sacrificing performance, it offers PCIe 5.0 storage, DDR5 memory support, and robust VRM cooling for stable operation.

Key Specifications

Optimized VRM Design for Ryzen 7000X3D

Engineered with enhanced VRM components, this motherboard delivers stable power delivery to AMD Ryzen 7000X3D series processors. The robust thermal design ensures consistent performance during extended gaming or content creation sessions, making it ideal for high-demand workloads.

6-Layer PCB for Enhanced Stability

The 6-layer printed circuit board improves signal integrity and power distribution, resulting in lower operating temperatures and greater energy efficiency. This construction provides a more reliable platform for overclocking and sustained performance.

PCIe 5.0 Blazing M.2 Storage

Equipped with a PCIe 5.0 M.2 slot, the B650M-H/M.2+ supports next-generation NVMe SSDs capable of up to 128 Gb/s transfer speeds. This allows for significantly faster boot times, game loading, and large file transfers compared to previous generations.

Nahimic Audio for Immersive Sound

Featuring Nahimic Audio technology, this motherboard delivers 7.1-channel surround sound with advanced noise cancellation and voice stabilization. Whether gaming, streaming, or video conferencing, the audio processing enhances clarity and spatial awareness for a more engaging experience.

Auto Driver Installer Convenience

The Auto Driver Installer (ADI) feature pre-packages essential Ethernet drivers in the BIOS, allowing automatic download and installation of all necessary drivers after operating system setup. This streamlines the installation process and reduces setup time.

Box Contents

• ASRock B650M-H/M.2+ motherboard
• I/O shield
• SATA cables (quantity not specified)
• User manual and driver DVD
• Warranty card

Check Before You Buy

• Confirm your AMD Ryzen 7000X3D processor is compatible with Socket AM5.
• Verify your case supports micro ATX motherboard dimensions (244 x 226 mm).
• Check that your power supply has a 24-pin ATX connector.
• Ensure you have DDR5 memory modules for optimal performance.

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi?

A: No, Wi-Fi is not built-in, but it includes an M.2 Key E slot for optional wireless network cards.

Q: Can I use ECC memory with this board?

A: Yes, the B650M-H/M.2+ supports both ECC and non-ECC DDR5 memory modules.

Q: How many M.2 drives can I install?

A: It supports one M.2 drive with PCIe 5.0 speeds and additional SATA III drives up to six total.

Q: Is BIOS flashing complicated?

A: No, it features BIOS Flashback that allows updating without a CPU or memory installed.

Q: What RAID levels are supported?

A: RAID 0, 1, and 10 are supported for both M.2 and SATA drives.

The Consultant’s Verdict & Warranty

The ASRock B650M-H/M.2+ is an excellent choice for users building a compact yet powerful AMD AM5 system. Its combination of PCIe 5.0 storage, DDR5 memory support, and enhanced VRM design makes it suitable for gaming, content creation, and everyday computing. Covered by the standard Manufacturer Warranty.
