Asrock B760M-HDV/M.2 D4 Motherboard

ASRock B760M-HDV/M.2 D4 | Intel B760 Micro ATX Motherboard

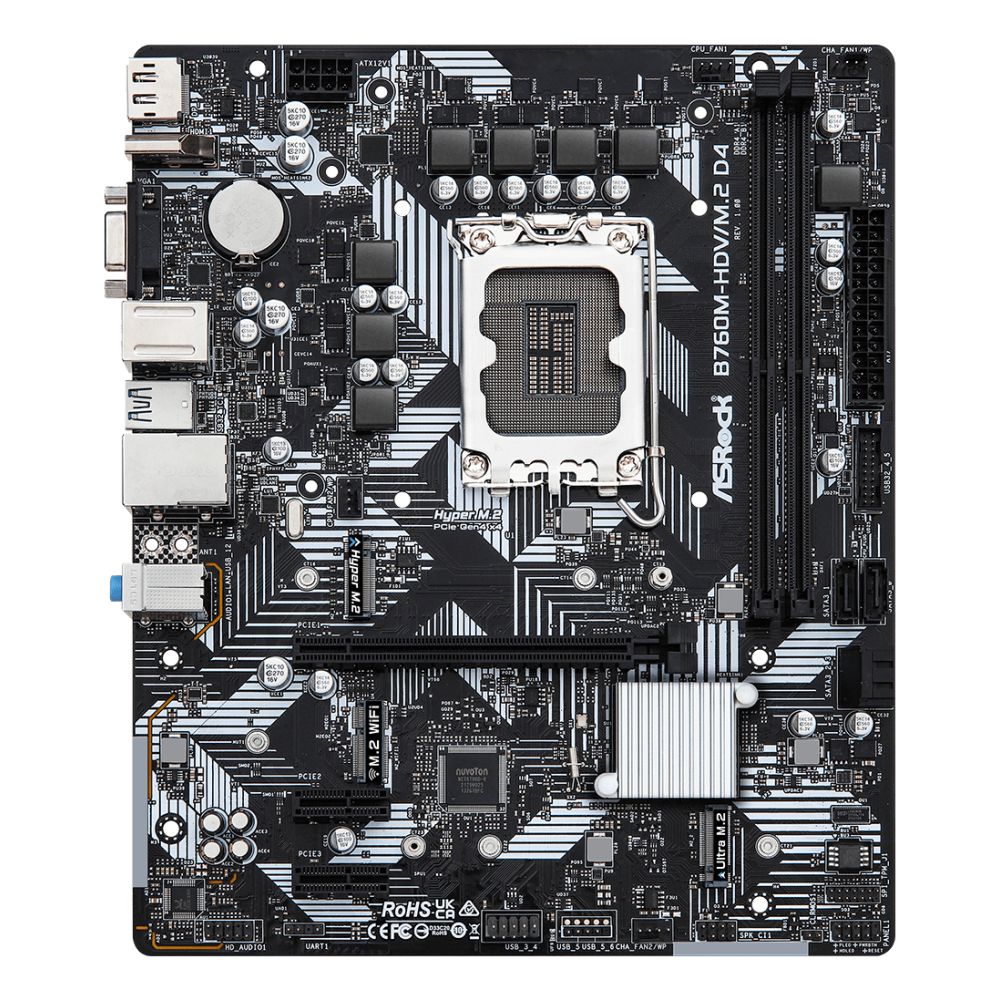

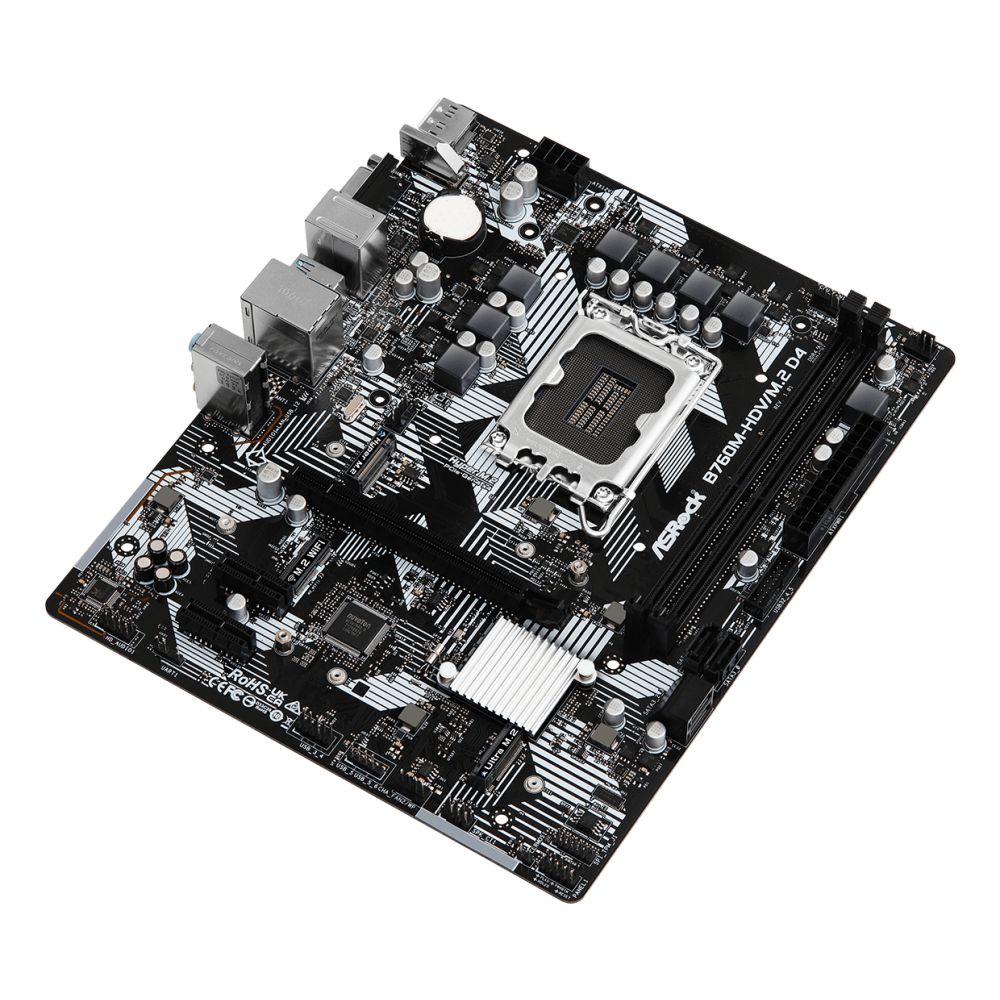

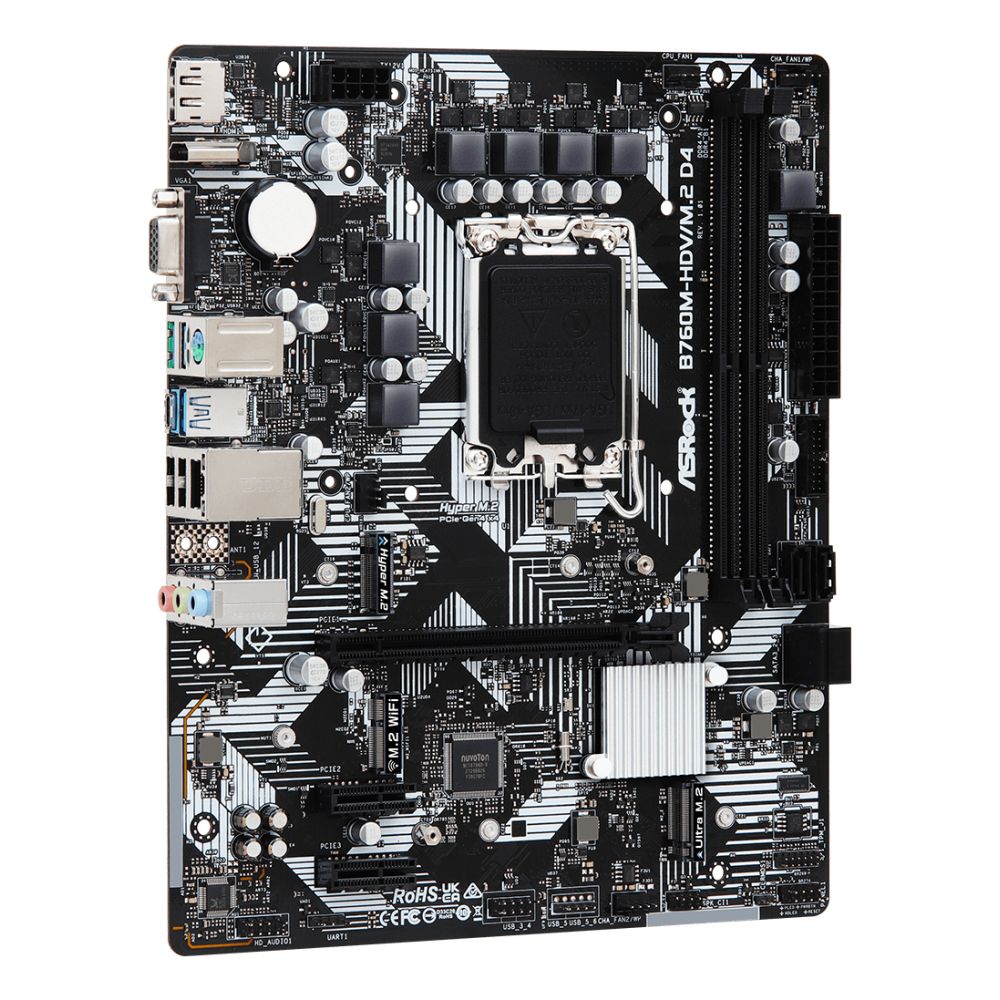

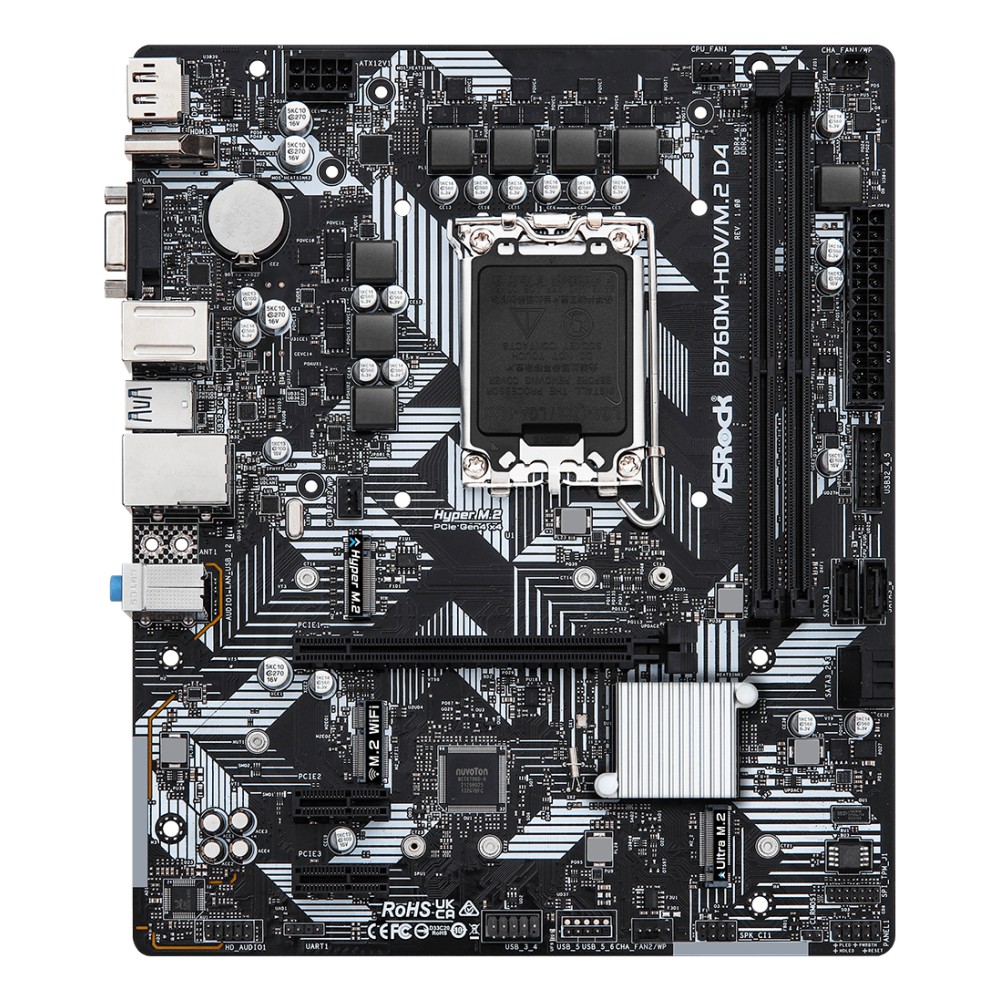

The ASRock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX motherboard delivers a solid foundation for Intel Core processors with PCIe 4.0 storage and flexible graphics outputs. Built around the Intel B760 chipset, it supports DDR4 memory up to 64 GB and offers a compact micro ATX form factor ideal for space-conscious builds.

Key Specifications

Power delivery and performance foundation

The 5+1+1 power phase design ensures stable voltage delivery to compatible Intel Core i3, i5, i7, and i9 processors. This configuration helps maintain consistent performance during demanding workloads or gaming sessions. The robust VRM components contribute to system reliability over extended use.

High-speed storage capabilities

A single M.2 slot supports PCIe 4.0 x4 NVMe SSDs, delivering up to twice the bandwidth of PCIe 3.0 solutions. This enables rapid game loading, quick file transfers, and responsive system boot times. The board also includes four SATA III ports for additional storage expansion.

Flexible display connectivity

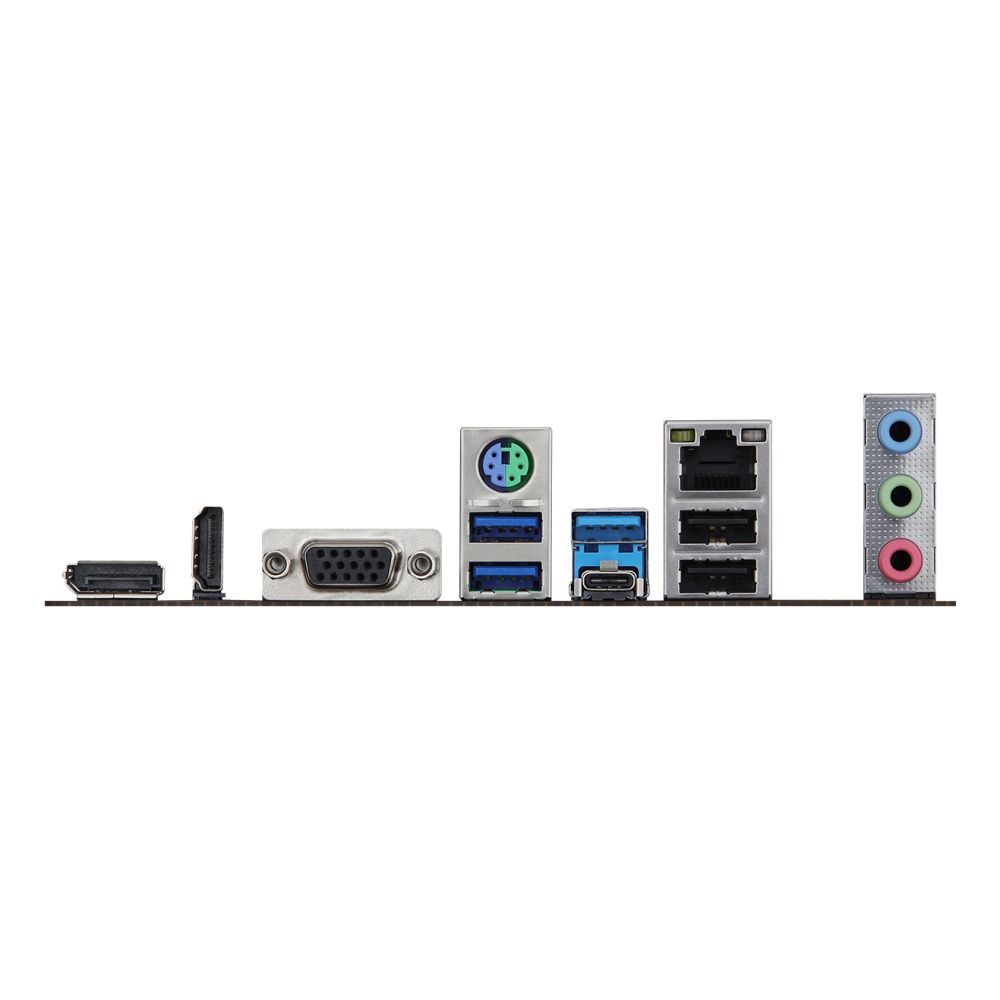

With three simultaneous graphics outputs—HDMI 1.4, DisplayPort 1.4, and VGA—this motherboard accommodates various monitor setups. Whether connecting to modern high-refresh displays or legacy VGA monitors, the B760M-HDV/M.2 D4 provides versatile connectivity options without requiring a dedicated graphics card.

Built-in networking and audio

Realtek RTL8111H Gigabit Ethernet provides reliable wired connectivity for online gaming and large file transfers. The Realtek ALC897 audio codec delivers 7.1 channel surround sound through the onboard audio jacks. Note that this model does not include built-in Wi-Fi, though an M.2 Key E slot allows for optional wireless adapter installation.

Box contents

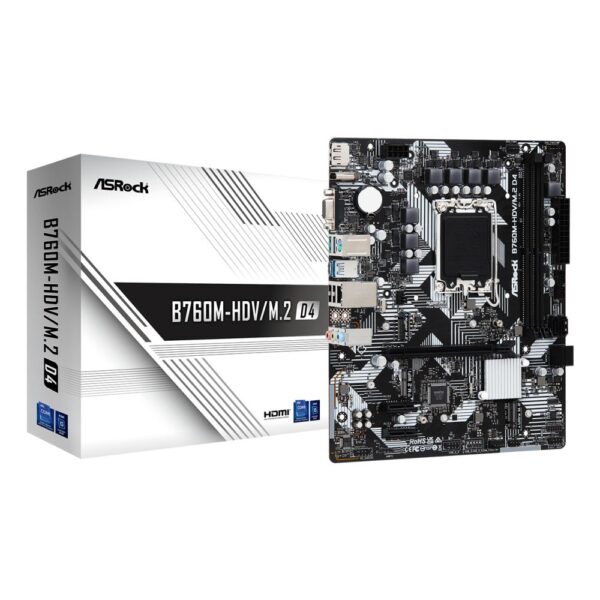

• ASRock B760M-HDV/M.2 D4 motherboard
• I/O shield
• SATA cables (quantity not specified)

Check before you buy

• Confirm your CPU is compatible with LGA 1700 socket
• Verify your case supports micro ATX motherboards (244 mm × 201 mm)
• Check if you need Wi-Fi capability, as this model requires an optional M.2 adapter
• Ensure your power supply has the required 8-pin EPS and 24-pin ATX connectors

Frequently Asked Questions

Q: What processors work with this motherboard?

A: Intel Core i3, i5, i7, and i9 processors with LGA 1700 socket.

Q: Does this motherboard support DDR5 memory?

A: No, it only supports DDR4 memory up to 64 GB.

Q: Can I install multiple M.2 drives?

A: No, this board has only one M.2 slot.

Q: Is Wi-Fi included on this motherboard?

A: No, but there is an M.2 Key E slot for adding a wireless adapter.

Q: What RAID configurations are supported?

A: RAID 0, 1, 5, and 10 for compatible storage drives.

The Consultant’s verdict & warranty

The ASRock B760M-HDV/M.2 D4 offers excellent value for users building compact systems with Intel’s latest processors. Its PCIe 4.0 M.2 support, flexible display outputs, and reliable power delivery make it suitable for both gaming and productivity applications. Covered by the standard Manufacturer Warranty.
