Asrock Phantom Gaming B850 Riptide WiFi ATX
£189.18 inc VAT
3 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B850 chipset for Ryzen 7000/8000/9000 series on Socket AM5
- 4 M.2 slots with PCIe 4.0/5.0 support for high-speed storage
- ATX form factor with 8-layer PCB for enhanced stability
- DDR5 memory support up to 256GB dual-channel
- Wi-Fi 7, 2.5Gb Ethernet, and Bluetooth 5.4 for advanced connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
ASRock Phantom Gaming B850 Riptide WiFi | High-Performance AM5 Gaming Motherboard
The ASRock Phantom Gaming B850 Riptide WiFi AMD B850 Socket AM5 ATX motherboard delivers exceptional performance for gaming enthusiasts and content creators. Built on the AMD B850 chipset with Socket AM5, this ATX motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors, making it an ideal foundation for high-performance PC builds.
Slim Specs Table
| Metric | Spec |
|---|---|
| Form Factor | ATX |
| Memory Support | DDR5, up to 256GB |
| M.2 Slots | 4 (1x PCIe 5.0, 3x PCIe 4.0) |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Ethernet | 2.5Gbps Killer E3100G |
Advanced Power Delivery for Stable Performance
The Phantom Gaming B850 Riptide features a robust 14+2+1 power phase design with Dr. MOS technology, delivering clean and stable power to your CPU even under heavy overclocking loads. The upgraded 20K Black capacitor with 1000uF capacitance provides higher charge storage, lower ripple, and more stable output current compared to standard capacitors. This translates to improved system stability and consistent performance during demanding gaming sessions or intensive workloads.
Cutting-Edge Connectivity Options
Stay ahead with Wi-Fi 7 technology offering multi-link operation for faster speeds and lower latency, perfect for cloud gaming and 8K streaming. The Killer E3100 2.5Gbps Ethernet controller prioritizes gaming traffic to reduce lag, while Killer GameFast Technology frees up CPU cycles and memory for smoother gameplay. With multiple USB ports including USB 3.2 Gen 2×2 Type-C delivering 20Gbps transfer speeds, plus HDMI 2.1 and DisplayPort outputs, you’ll have all the connectivity options needed for modern gaming setups.
Superior Cooling Solutions
Efficient thermal management is crucial for maintaining peak performance. This motherboard features an optimized aluminum heatsink design, PWM/DC fan support with automatic detection, and a thermistor header for customized temperature monitoring. The enlarged XXL M.2 heatsink with anti-drop screw design keeps your high-speed SSDs cool, while the toolless M.2 heatsink mechanism makes installation simple. Fan-Tastic Tuning allows you to fine-tune fan curves via a visualized UI interface, balancing cooling performance with noise reduction.
Immersive Audio Experience
Nahimic Audio technology delivers vibrant, rich sound with exceptional detail across all your audio devices. Whether using headphones, speakers, or HDMI output, you’ll experience enhanced communication quality with noise suppression, echo cancellation, and voice stabilization. The Sound Tracker feature provides 360° audio positioning for competitive gaming advantage, while the Realtek ALC4082 audio chip ensures 7.1 channel surround sound for immersive entertainment.

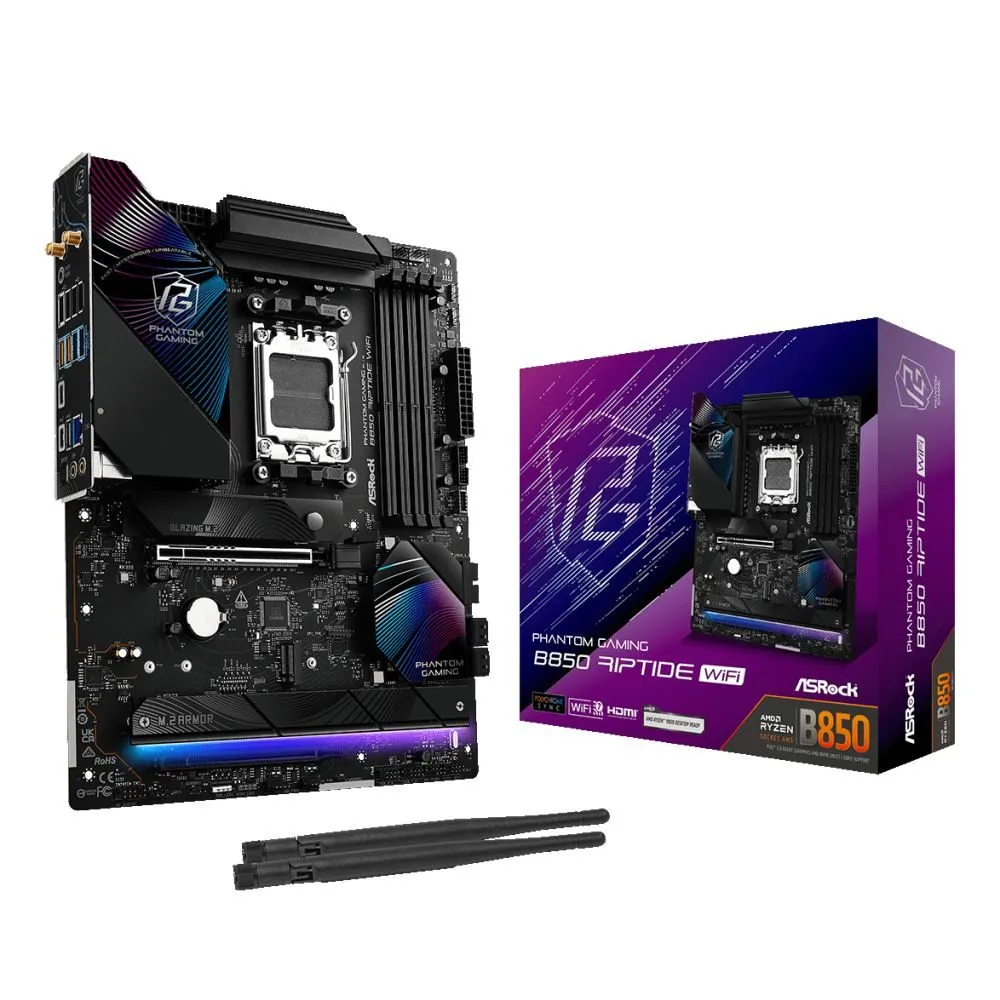

Box contents
- ASRock Phantom Gaming B850 Riptide WiFi motherboard
- SATA cables
- Wi-Fi antennas
- I/O shield
- User manual
- Driver/software disc
Check before you buy
- Confirm your CPU is compatible with Socket AM5 (Ryzen 7000/8000/9000 Series)
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check if your PSU has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your DDR5 memory is on the motherboard’s QVL list for optimal performance
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard supports DDR5-SDRAM only, with a maximum capacity of 256GB across four DIMM slots.
Q: How many M.2 SSDs can I install?
A: You can install up to four M.2 SSDs, with one supporting PCIe 5.0 and three supporting PCIe 4.0 for maximum storage flexibility.
Q: Is Wi-Fi 7 backwards compatible?
A: Yes, Wi-Fi 7 is backwards compatible with previous standards including Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5, and earlier versions.
Q: Can I overclock my CPU with this motherboard?
A: Yes, the 14+2+1 power phase design with Dr. MOS technology and Hi-Density Power Connectors provide excellent overclocking capabilities.
Q: Does it come with RGB lighting?
A: Yes, it features POLYCHROME RGB with onboard and addressable RGB headers, plus compatibility with SignalRGB for synchronized lighting effects.
The Consultant’s verdict & warranty
The ASRock Phantom Gaming B850 Riptide WiFi is an excellent choice for gamers and PC enthusiasts seeking a feature-rich AM5 motherboard with cutting-edge connectivity and robust power delivery. Its combination of Wi-Fi 7, 2.5Gbps Killer networking, PCIe 5.0 support, and comprehensive cooling solutions makes it well-suited for high-performance gaming and content creation systems. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| 12V power connector | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Killer E3100G |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC4082 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Certificates | |
| Certification | FCC, CE, ErP/EuP |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
